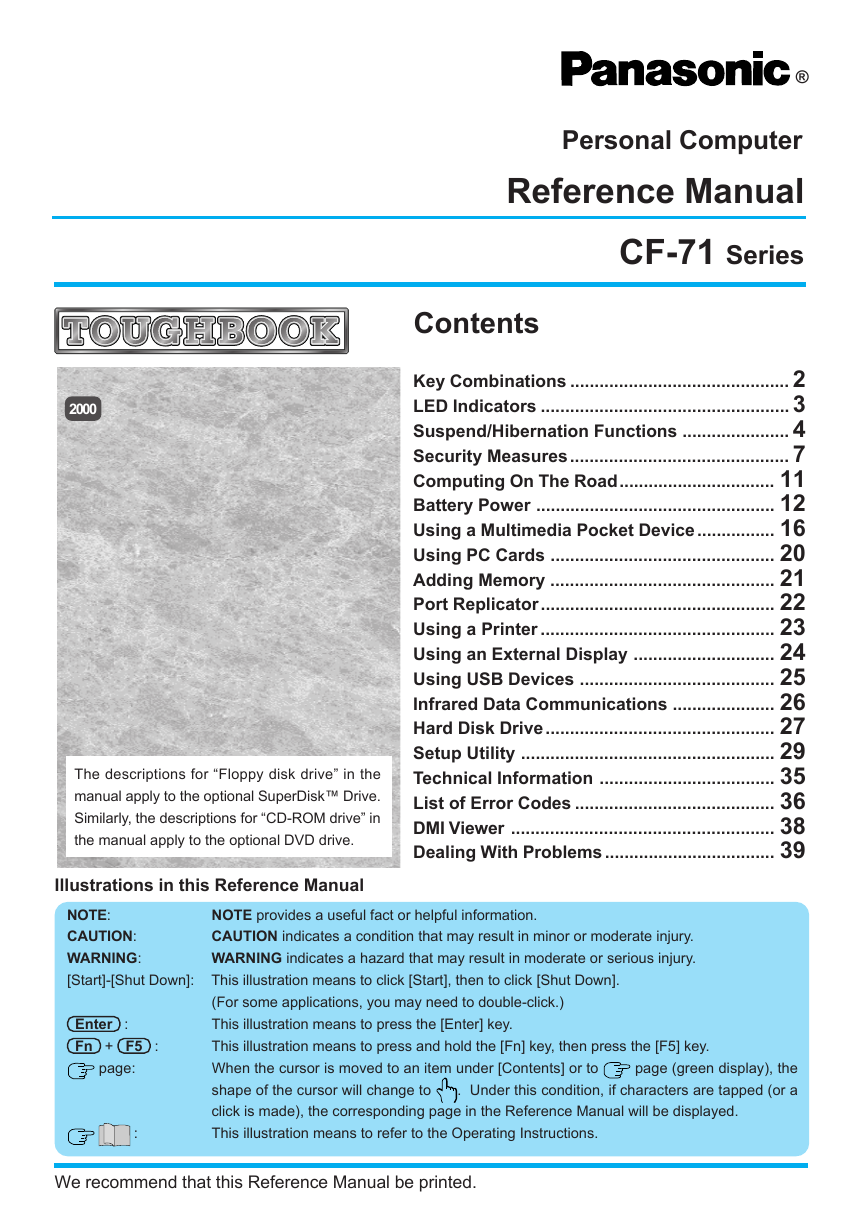

® Personal Computer Reference Manual CF-71 Series Contents Key Combinations ............................................. 2 LED Indicators ................................................... 3 Suspend/Hibernation Functions ...................... 4 Security Measures............................................. 7 Computing On The Road................................ 11 Battery Power ................................................. 12 Using a Multimedia Pocket Device ................ 16 Using PC Cards .............................................. 20 Adding Memory .............................................. 21 Port Replicator ................................................ 22 Using a Printer ................................................ 23 Using an External Display ............................. 24 Using USB Devices ........................................ 25 Infrared Data Communications ..................... 26 Hard Disk Drive ............................................... 27 Setup Utility .................................................... 29 Technical Information .................................... 35 List of Error Codes ......................................... 36 DMI Viewer ...................................................... 38 Dealing With Problems ................................... 39 2000 The descriptions for “Floppy disk drive” in the manual apply to the optional SuperDisk™ Drive. Similarly, the descriptions for “CD-ROM drive” in the manual apply to the optional DVD drive. Illustrations in this Reference Manual NOTE: CAUTION: WARNING: [Start]-[Shut Down]: This illustration means to click [Start], then to click [Shut Down]. NOTE provides a useful fact or helpful information. CAUTION indicates a condition that may result in minor or moderate injury. WARNING indicates a hazard that may result in moderate or serious injury. Enter : Fn + F5 : page: : (For some applications, you may need to double-click.) This illustration means to press the [Enter] key. This illustration means to press and hold the [Fn] key, then press the [F5] key. When the cursor is moved to an item under [Contents] or to shape of the cursor will change to click is made), the corresponding page in the Reference Manual will be displayed. This illustration means to refer to the Operating Instructions. page (green display), the . Under this condition, if characters are tapped (or a We recommend that this Reference Manual be printed.

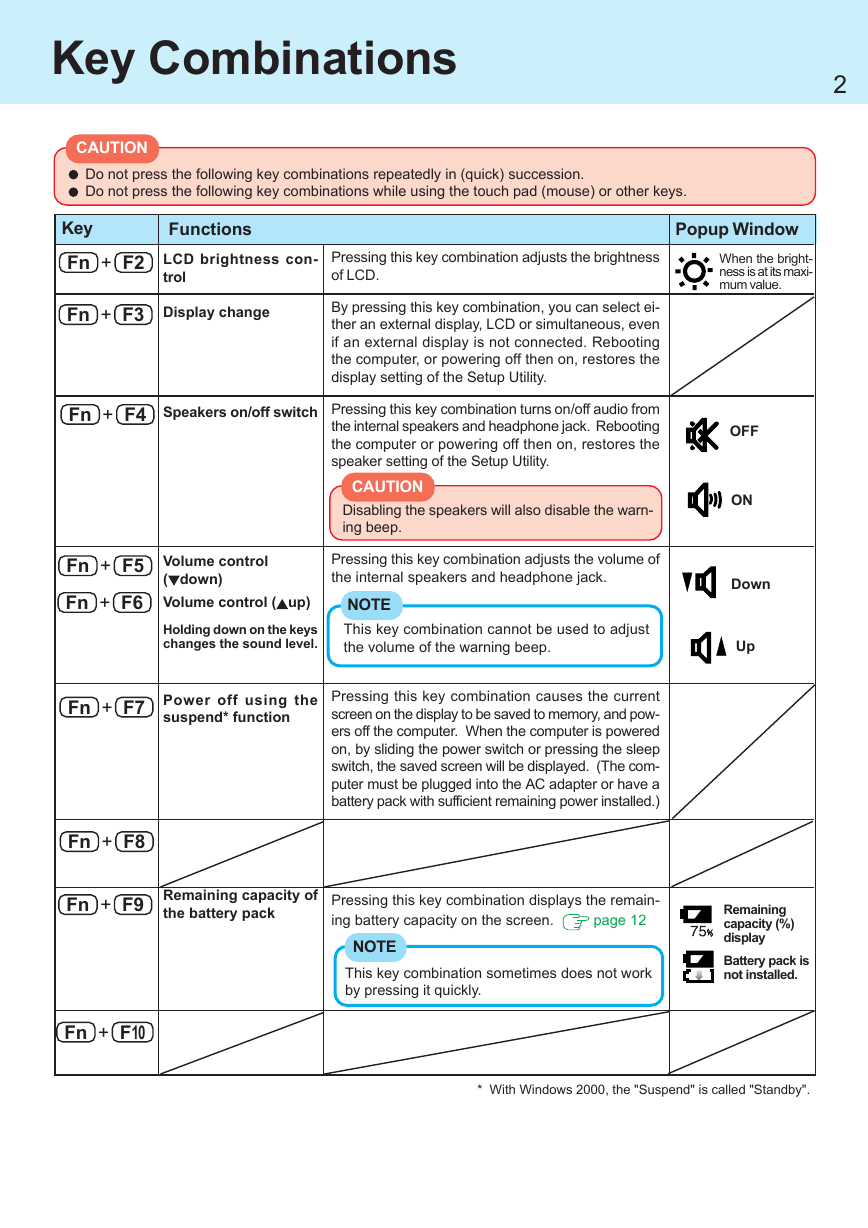

Key Combinations 2 CAUTION Do not press the following key combinations repeatedly in (quick) succession. Do not press the following key combinations while using the touch pad (mouse) or other keys. Key Functions Fn + F2 LCD brightness con- trol Pressing this key combination adjusts the brightness of LCD. Popup Window When the bright- ness is at its maxi- mum value. Fn + F3 Display change Fn + F4 Speakers on/off switch By pressing this key combination, you can select ei- ther an external display, LCD or simultaneous, even if an external display is not connected. Rebooting the computer, or powering off then on, restores the display setting of the Setup Utility. Pressing this key combination turns on/off audio from the internal speakers and headphone jack. Rebooting the computer or powering off then on, restores the speaker setting of the Setup Utility. CAUTION Disabling the speakers will also disable the warn- ing beep. Fn + F5 Fn + F6 Volume control ( down) Volume control ( up) Holding down on the keys changes the sound level. Pressing this key combination adjusts the volume of the internal speakers and headphone jack. NOTE This key combination cannot be used to adjust the volume of the warning beep. Fn + F7 Power off using the suspend* function Pressing this key combination causes the current screen on the display to be saved to memory, and pow- ers off the computer. When the computer is powered on, by sliding the power switch or pressing the sleep switch, the saved screen will be displayed. (The com- puter must be plugged into the AC adapter or have a battery pack with sufficient remaining power installed.) Fn + F8 OFF ON Down Up Fn + F9 Remaining capacity of the battery pack Pressing this key combination displays the remain- ing battery capacity on the screen. page 12 NOTE This key combination sometimes does not work by pressing it quickly. Remaining capacity (%) display Battery pack is not installed. Fn + F10 * With Windows 2000, the "Suspend" is called "Standby".

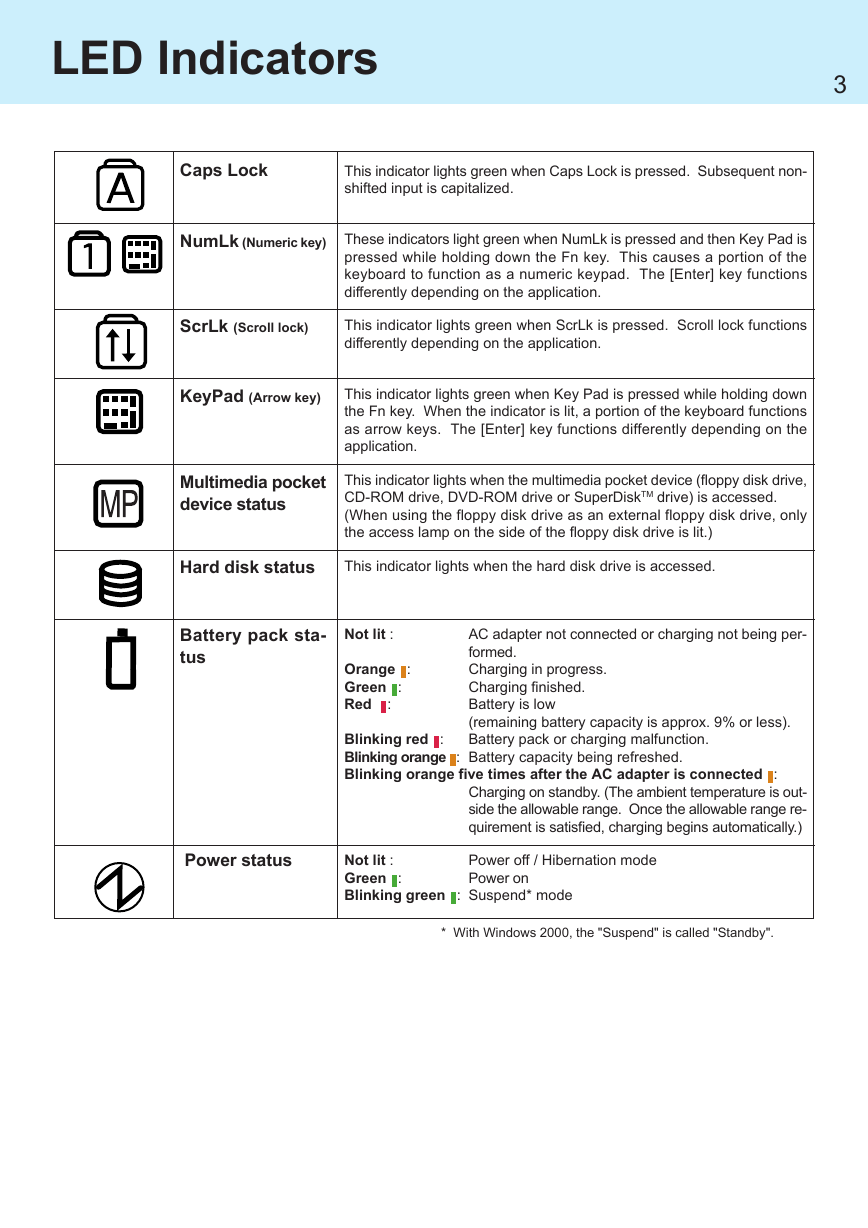

LED Indicators 3 Caps Lock This indicator lights green when Caps Lock is pressed. Subsequent non- shifted input is capitalized. NumLk (Numeric key) These indicators light green when NumLk is pressed and then Key Pad is pressed while holding down the Fn key. This causes a portion of the keyboard to function as a numeric keypad. The [Enter] key functions differently depending on the application. ScrLk (Scroll lock) This indicator lights green when ScrLk is pressed. Scroll lock functions differently depending on the application. KeyPad (Arrow key) This indicator lights green when Key Pad is pressed while holding down the Fn key. When the indicator is lit, a portion of the keyboard functions as arrow keys. The [Enter] key functions differently depending on the application. Multimedia pocket device status This indicator lights when the multimedia pocket device (floppy disk drive, CD-ROM drive, DVD-ROM drive or SuperDiskTM drive) is accessed. (When using the floppy disk drive as an external floppy disk drive, only the access lamp on the side of the floppy disk drive is lit.) Hard disk status This indicator lights when the hard disk drive is accessed. Battery pack sta- tus Not lit : Orange : Green : Red : AC adapter not connected or charging not being per- formed. Charging in progress. Charging finished. Battery is low (remaining battery capacity is approx. 9% or less). Battery pack or charging malfunction. Blinking red : Blinking orange : Battery capacity being refreshed. Blinking orange five times after the AC adapter is connected : Charging on standby. (The ambient temperature is out- side the allowable range. Once the allowable range re- quirement is satisfied, charging begins automatically.) Power status Not lit : Green : Blinking green : Suspend* mode Power off / Hibernation mode Power on * With Windows 2000, the "Suspend" is called "Standby".

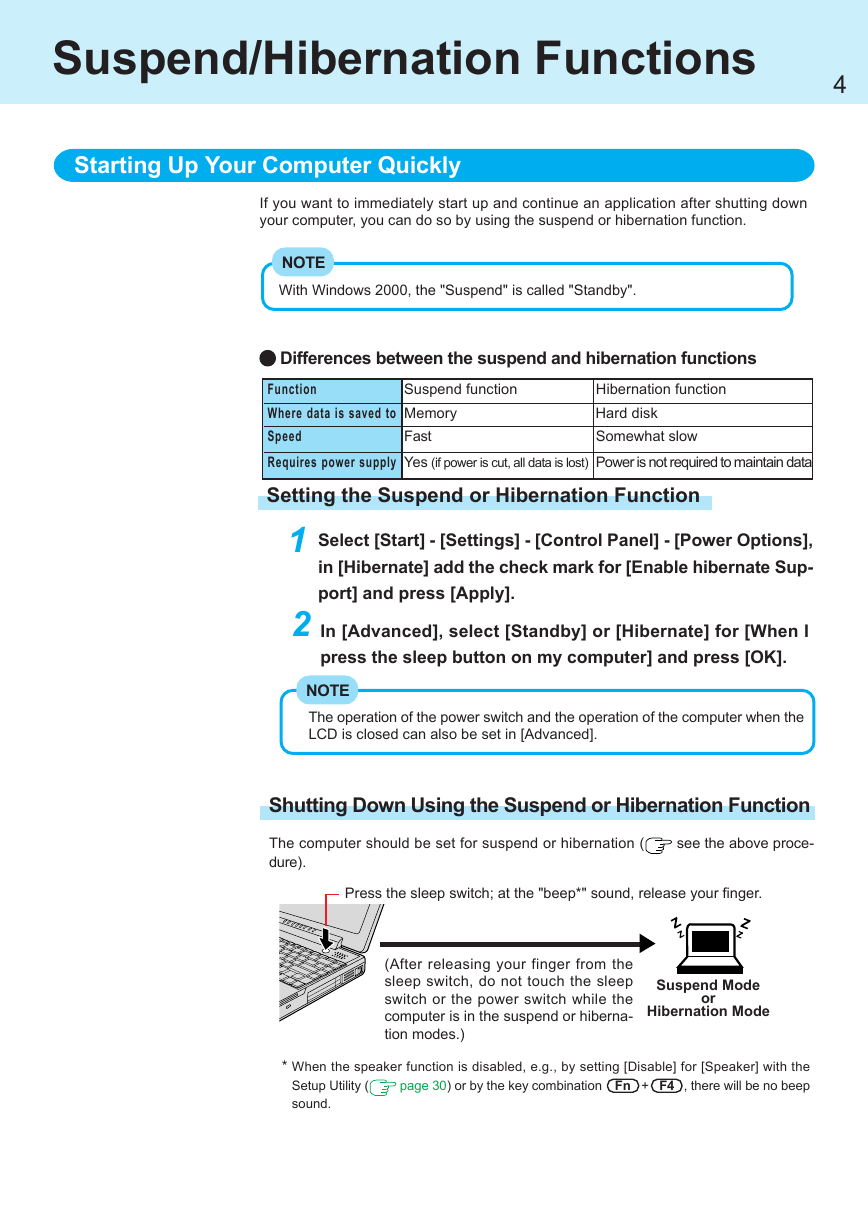

Suspend/Hibernation Functions 4 Starting Up Your Computer Quickly If you want to immediately start up and continue an application after shutting down your computer, you can do so by using the suspend or hibernation function. NOTE With Windows 2000, the "Suspend" is called "Standby". Differences between the suspend and hibernation functions Suspend function Function Where data is saved to Memory Speed Fast Hibernation function Hard disk Somewhat slow Requires power supply Yes (if power is cut, all data is lost) Power is not required to maintain data Setting the Suspend or Hibernation Function 1 Select [Start] - [Settings] - [Control Panel] - [Power Options], in [Hibernate] add the check mark for [Enable hibernate Sup- port] and press [Apply]. 2 In [Advanced], select [Standby] or [Hibernate] for [When I press the sleep button on my computer] and press [OK]. NOTE The operation of the power switch and the operation of the computer when the LCD is closed can also be set in [Advanced]. Shutting Down Using the Suspend or Hibernation Function The computer should be set for suspend or hibernation ( dure). see the above proce- Press the sleep switch; at the "beep*" sound, release your finger. (After releasing your finger from the sleep switch, do not touch the sleep switch or the power switch while the computer is in the suspend or hiberna- tion modes.) Suspend Mode or Hibernation Mode * When the speaker function is disabled, e.g., by setting [Disable] for [Speaker] with the page 30) or by the key combination Fn + F4 , there will be no beep Setup Utility ( sound.

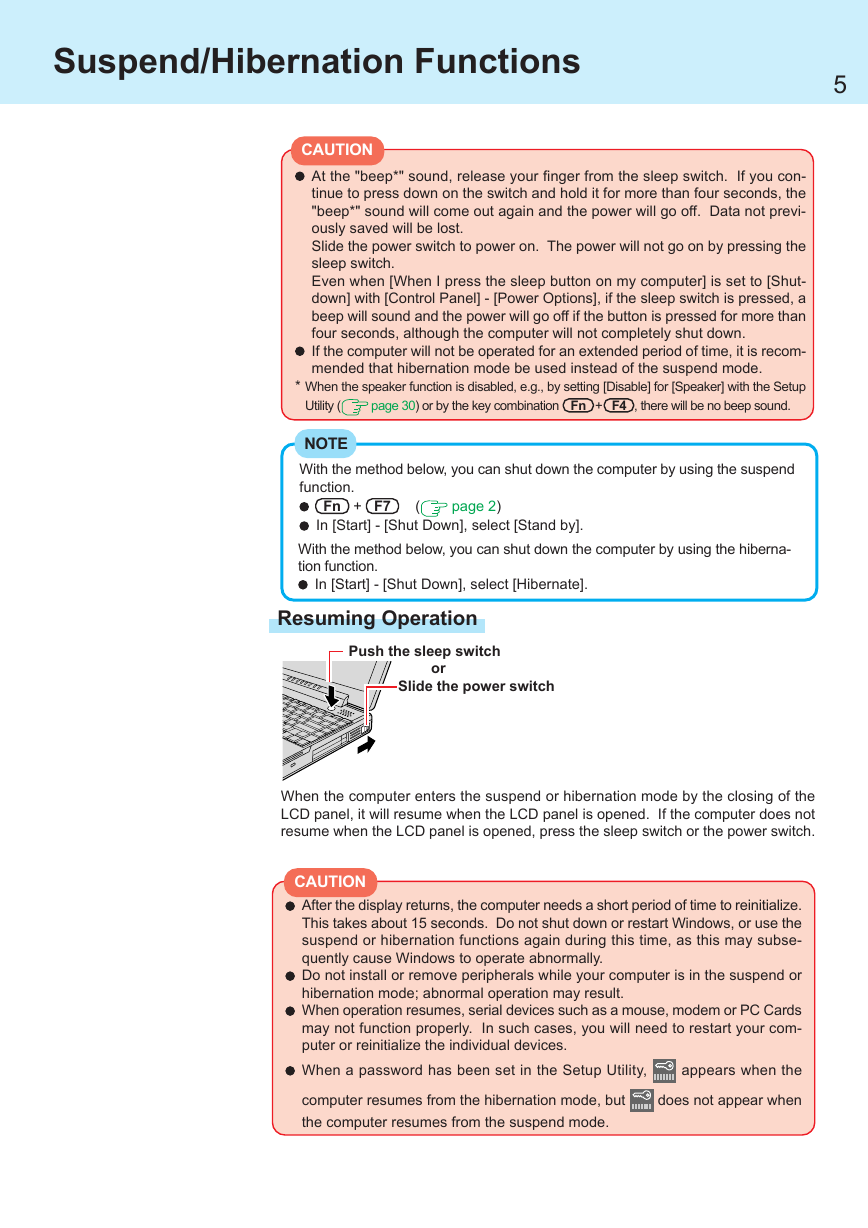

Suspend/Hibernation Functions 5 CAUTION At the "beep*" sound, release your finger from the sleep switch. If you con- tinue to press down on the switch and hold it for more than four seconds, the "beep*" sound will come out again and the power will go off. Data not previ- ously saved will be lost. Slide the power switch to power on. The power will not go on by pressing the sleep switch. Even when [When I press the sleep button on my computer] is set to [Shut- down] with [Control Panel] - [Power Options], if the sleep switch is pressed, a beep will sound and the power will go off if the button is pressed for more than four seconds, although the computer will not completely shut down. If the computer will not be operated for an extended period of time, it is recom- mended that hibernation mode be used instead of the suspend mode. * When the speaker function is disabled, e.g., by setting [Disable] for [Speaker] with the Setup Utility ( page 30) or by the key combination Fn + F4 , there will be no beep sound. NOTE With the method below, you can shut down the computer by using the suspend function. Fn + F7 ( In [Start] - [Shut Down], select [Stand by]. page 2) With the method below, you can shut down the computer by using the hiberna- tion function. In [Start] - [Shut Down], select [Hibernate]. Resuming Operation Push the sleep switch or Slide the power switch When the computer enters the suspend or hibernation mode by the closing of the LCD panel, it will resume when the LCD panel is opened. If the computer does not resume when the LCD panel is opened, press the sleep switch or the power switch. CAUTION After the display returns, the computer needs a short period of time to reinitialize. This takes about 15 seconds. Do not shut down or restart Windows, or use the suspend or hibernation functions again during this time, as this may subse- quently cause Windows to operate abnormally. Do not install or remove peripherals while your computer is in the suspend or hibernation mode; abnormal operation may result. When operation resumes, serial devices such as a mouse, modem or PC Cards may not function properly. In such cases, you will need to restart your com- puter or reinitialize the individual devices. When a password has been set in the Setup Utility, appears when the computer resumes from the hibernation mode, but the computer resumes from the suspend mode. does not appear when

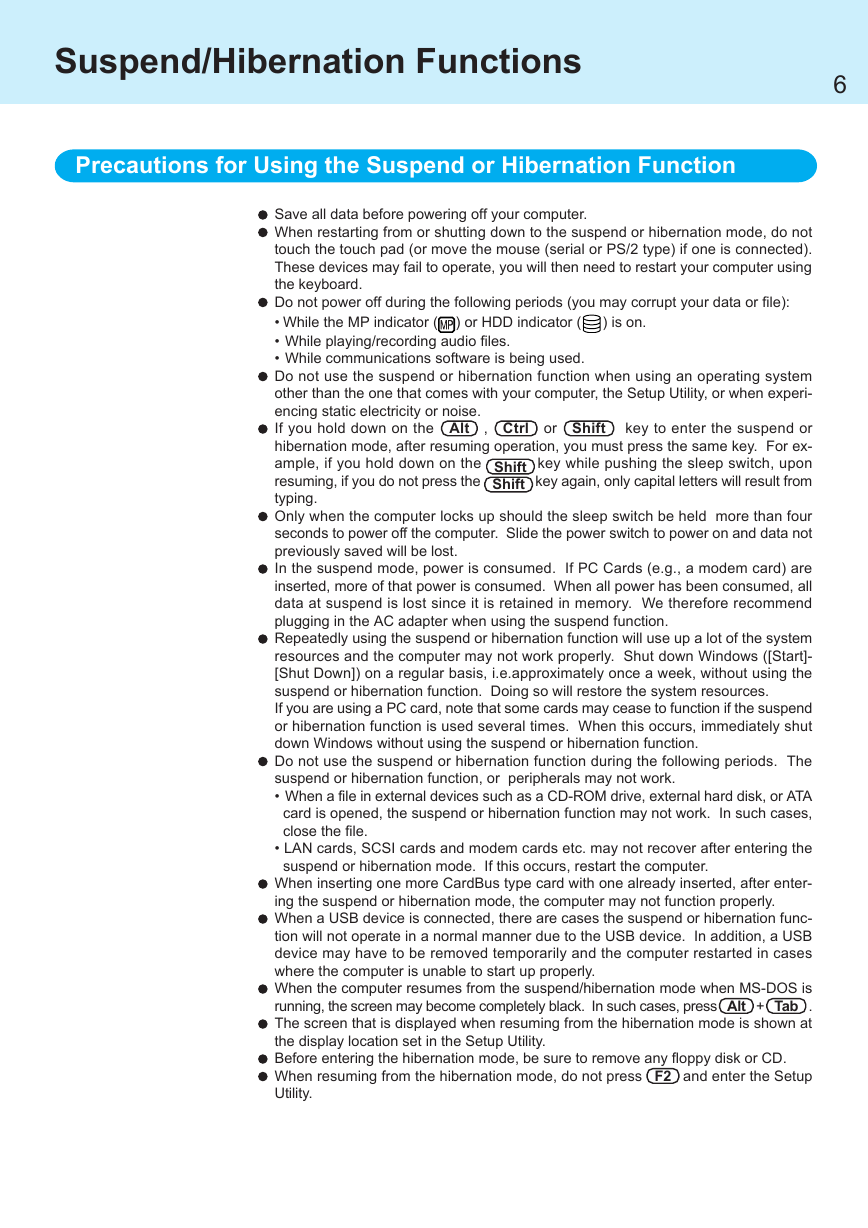

Suspend/Hibernation Functions 6 Precautions for Using the Suspend or Hibernation Function ) is on. Shift Shift ) or HDD indicator ( Save all data before powering off your computer. When restarting from or shutting down to the suspend or hibernation mode, do not touch the touch pad (or move the mouse (serial or PS/2 type) if one is connected). These devices may fail to operate, you will then need to restart your computer using the keyboard. Do not power off during the following periods (you may corrupt your data or file): • While the MP indicator ( • While playing/recording audio files. • While communications software is being used. Do not use the suspend or hibernation function when using an operating system other than the one that comes with your computer, the Setup Utility, or when experi- encing static electricity or noise. If you hold down on the Alt , Ctrl or Shift key to enter the suspend or hibernation mode, after resuming operation, you must press the same key. For ex- ample, if you hold down on the key while pushing the sleep switch, upon resuming, if you do not press the key again, only capital letters will result from typing. Only when the computer locks up should the sleep switch be held more than four seconds to power off the computer. Slide the power switch to power on and data not previously saved will be lost. In the suspend mode, power is consumed. If PC Cards (e.g., a modem card) are inserted, more of that power is consumed. When all power has been consumed, all data at suspend is lost since it is retained in memory. We therefore recommend plugging in the AC adapter when using the suspend function. Repeatedly using the suspend or hibernation function will use up a lot of the system resources and the computer may not work properly. Shut down Windows ([Start]- [Shut Down]) on a regular basis, i.e.approximately once a week, without using the suspend or hibernation function. Doing so will restore the system resources. If you are using a PC card, note that some cards may cease to function if the suspend or hibernation function is used several times. When this occurs, immediately shut down Windows without using the suspend or hibernation function. Do not use the suspend or hibernation function during the following periods. The suspend or hibernation function, or peripherals may not work. • When a file in external devices such as a CD-ROM drive, external hard disk, or ATA card is opened, the suspend or hibernation function may not work. In such cases, close the file. • LAN cards, SCSI cards and modem cards etc. may not recover after entering the suspend or hibernation mode. If this occurs, restart the computer. When inserting one more CardBus type card with one already inserted, after enter- ing the suspend or hibernation mode, the computer may not function properly. When a USB device is connected, there are cases the suspend or hibernation func- tion will not operate in a normal manner due to the USB device. In addition, a USB device may have to be removed temporarily and the computer restarted in cases where the computer is unable to start up properly. When the computer resumes from the suspend/hibernation mode when MS-DOS is running, the screen may become completely black. In such cases, press Alt + Tab . The screen that is displayed when resuming from the hibernation mode is shown at the display location set in the Setup Utility. Before entering the hibernation mode, be sure to remove any floppy disk or CD. When resuming from the hibernation mode, do not press F2 and enter the Setup Utility.

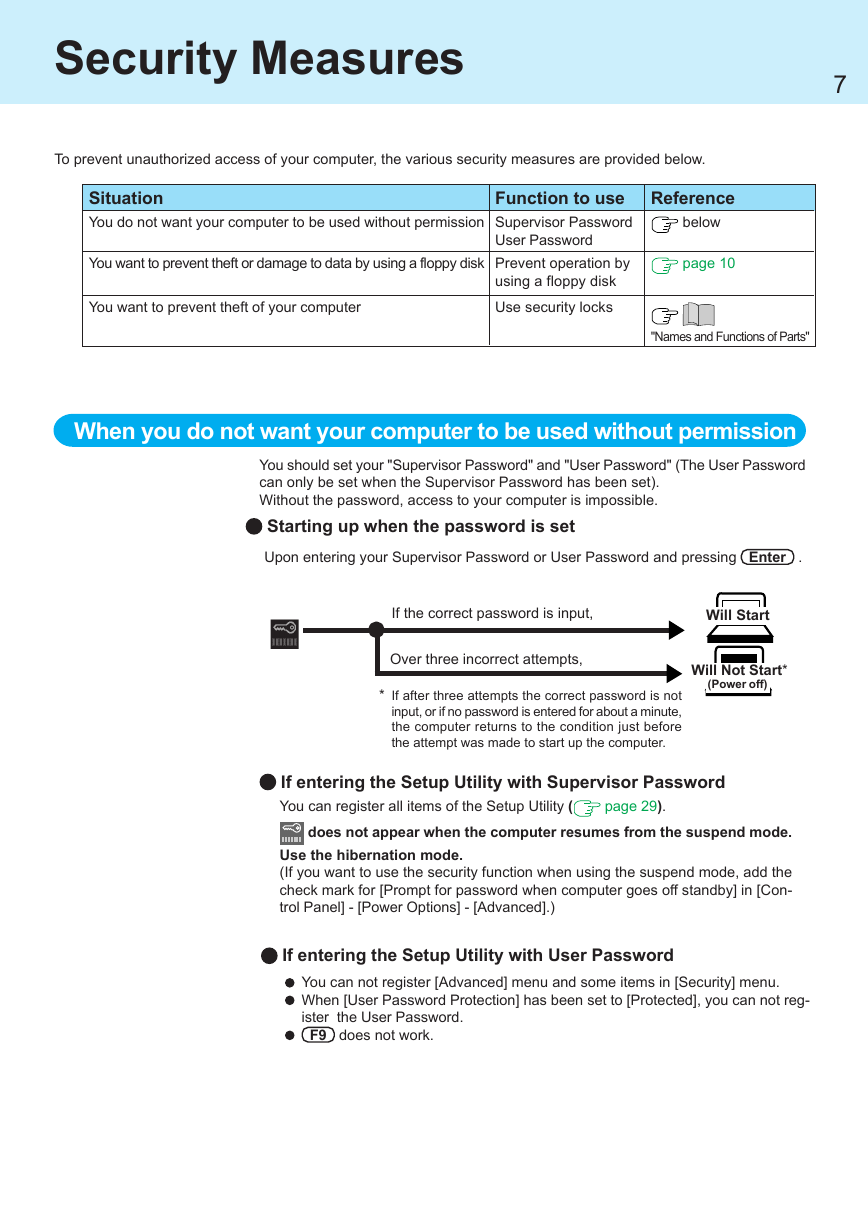

Security Measures 7 To prevent unauthorized access of your computer, the various security measures are provided below. Situation You do not want your computer to be used without permission You want to prevent theft or damage to data by using a floppy disk You want to prevent theft of your computer Function to use Supervisor Password User Password Prevent operation by using a floppy disk Use security locks Reference below page 10 "Names and Functions of Parts" When you do not want your computer to be used without permission You should set your "Supervisor Password" and "User Password" (The User Password can only be set when the Supervisor Password has been set). Without the password, access to your computer is impossible. Starting up when the password is set Upon entering your Supervisor Password or User Password and pressing Enter . If the correct password is input, Will Start Over three incorrect attempts, * If after three attempts the correct password is not input, or if no password is entered for about a minute, the computer returns to the condition just before the attempt was made to start up the computer. Will Not Start* (Power off) If entering the Setup Utility with Supervisor Password You can register all items of the Setup Utility ( page 29). does not appear when the computer resumes from the suspend mode. Use the hibernation mode. (If you want to use the security function when using the suspend mode, add the check mark for [Prompt for password when computer goes off standby] in [Con- trol Panel] - [Power Options] - [Advanced].) If entering the Setup Utility with User Password You can not register [Advanced] menu and some items in [Security] menu. When [User Password Protection] has been set to [Protected], you can not reg- ister the User Password. F9 does not work.

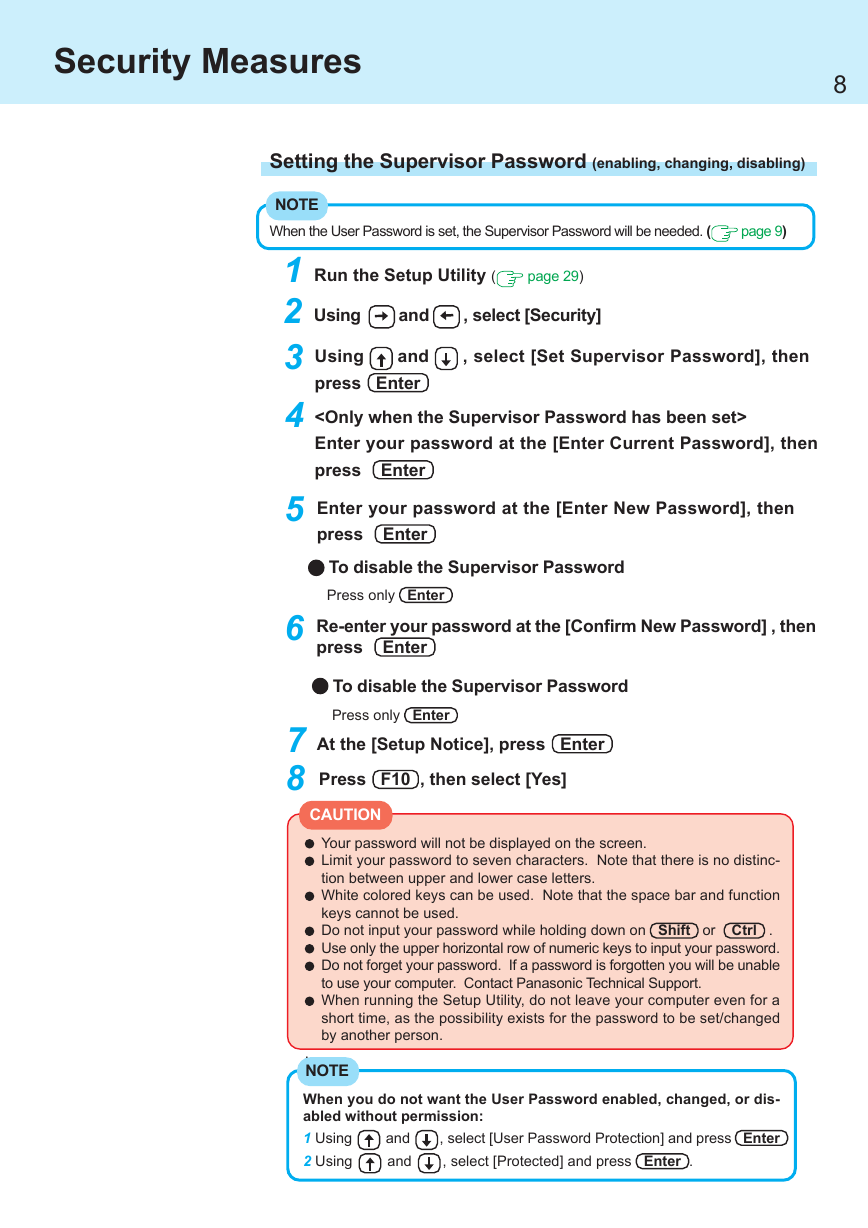

Security Measures 8 Setting the Supervisor Password (enabling, changing, disabling) NOTE When the User Password is set, the Supervisor Password will be needed. ( page 9) 1 2 3 4 5 Run the Setup Utility ( page 29) Using and , select [Security] and Using press Enter , select [Set Supervisor Password], then Enter your password at the [Enter Current Password], then press Enter Enter your password at the [Enter New Password], then press Enter To disable the Supervisor Password Press only Enter 6 Re-enter your password at the [Confirm New Password] , then press Enter To disable the Supervisor Password Press only Enter At the [Setup Notice], press Enter Press F10 , then select [Yes] 7 8 CAUTION Your password will not be displayed on the screen. Limit your password to seven characters. Note that there is no distinc- tion between upper and lower case letters. White colored keys can be used. Note that the space bar and function keys cannot be used. Do not input your password while holding down on Shift or Ctrl . Use only the upper horizontal row of numeric keys to input your password. Do not forget your password. If a password is forgotten you will be unable to use your computer. Contact Panasonic Technical Support. When running the Setup Utility, do not leave your computer even for a short time, as the possibility exists for the password to be set/changed by another person. . NOTE When you do not want the User Password enabled, changed, or dis- abled without permission: 1 Using 2 Using , select [User Password Protection] and press Enter , select [Protected] and press Enter . and and
