DLP™ PROJECTOR MODELXD365U-EST WD385U-EST User Manual XD365U-EST WD385U-EST This User Manual is important to you. Please read it before using your projector.

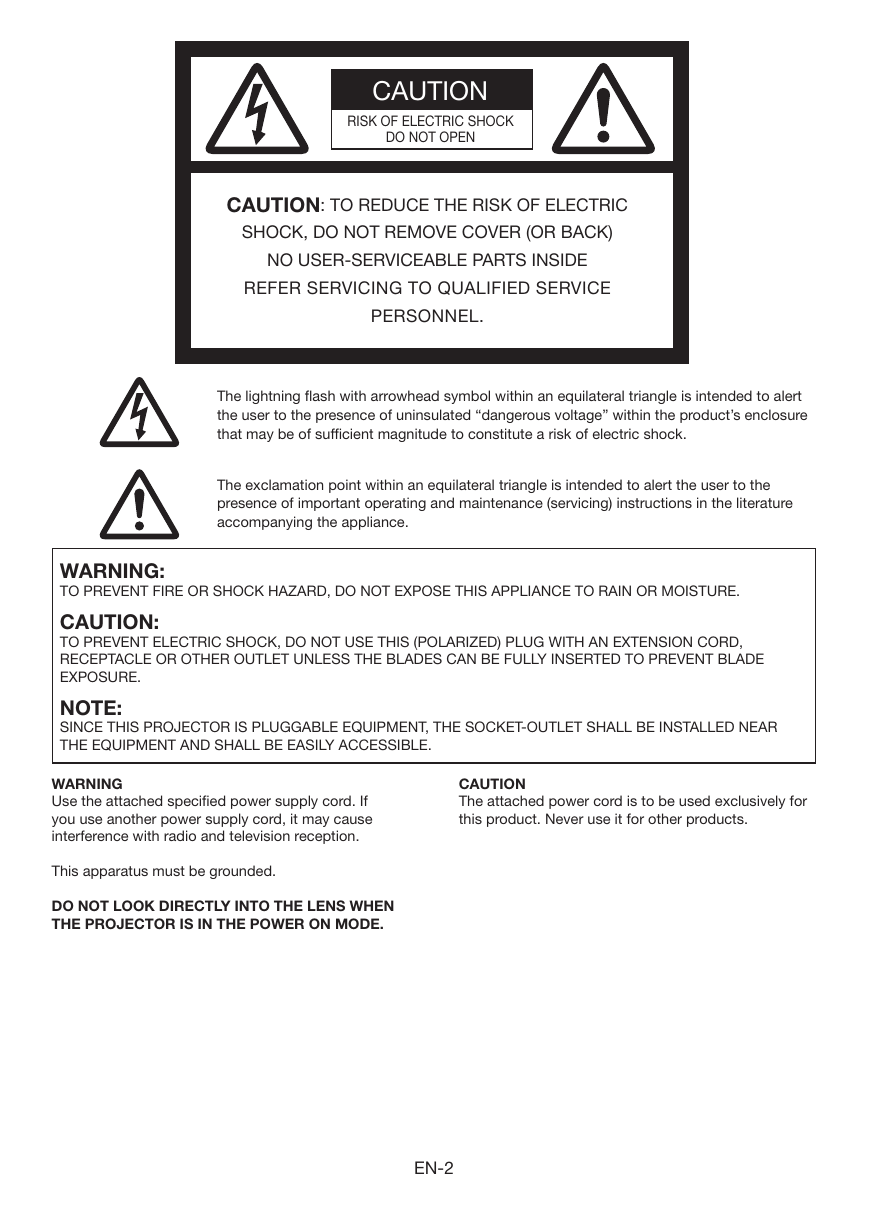

CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER-SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. CAUTION: TO PREVENT ELECTRIC SHOCK, DO NOT USE THIS (POLARIZED) PLUG WITH AN EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE. NOTE: SINCE THIS PROJECTOR IS PLUGGABLE EQUIPMENT, THE SOCKET-OUTLET SHALL BE INSTALLED NEAR THE EQUIPMENT AND SHALL BE EASILY ACCESSIBLE. WARNING Use the attached specified power supply cord. If you use another power supply cord, it may cause interference with radio and television reception. This apparatus must be grounded. DO NOT LOOK DIRECTLY INTO THE LENS WHEN THE PROJECTOR IS IN THE POWER ON MODE. CAUTION The attached power cord is to be used exclusively for this product. Never use it for other products. EN-2

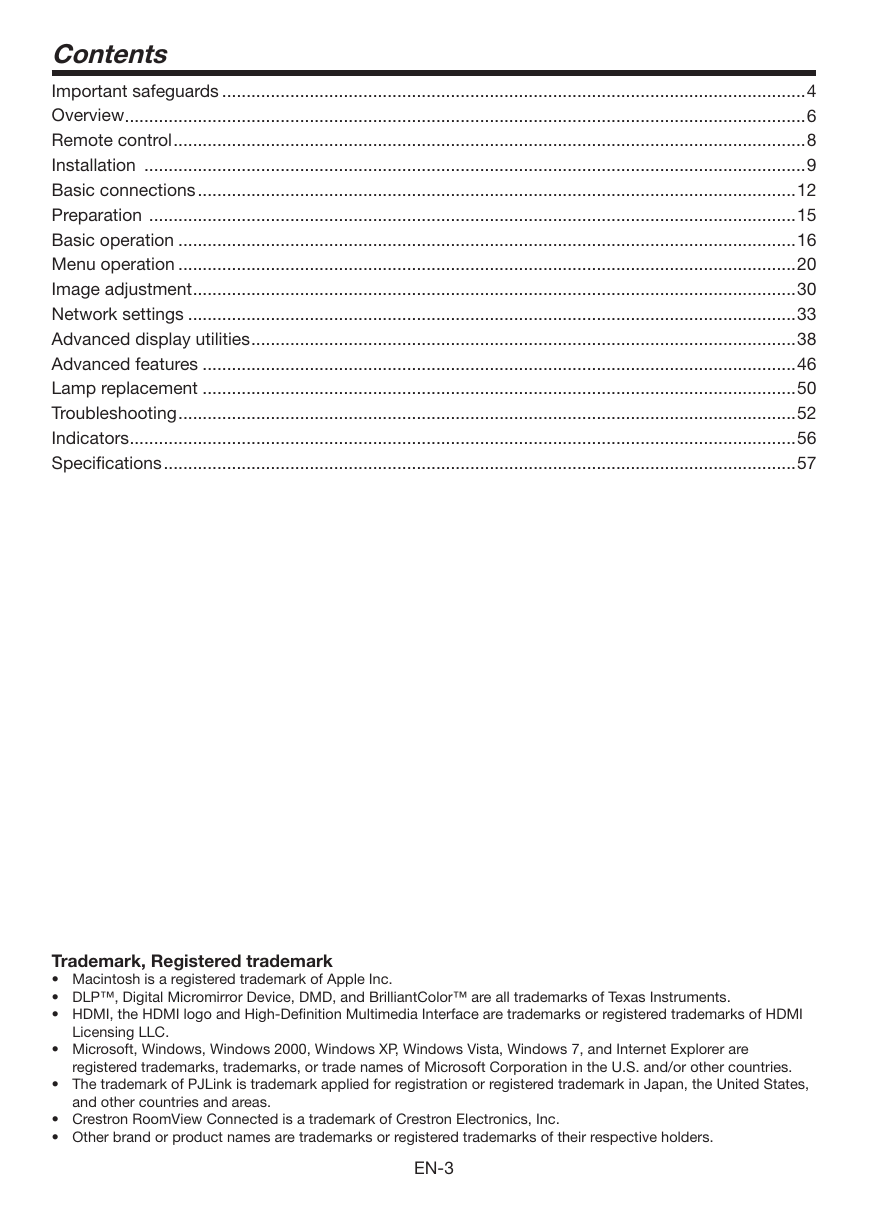

Contents Important safeguards ........................................................................................................................4 Overview ............................................................................................................................................6 Remote control ..................................................................................................................................8 Installation ........................................................................................................................................9 Basic connections ...........................................................................................................................12 Preparation .....................................................................................................................................15 Basic operation ...............................................................................................................................16 Menu operation ...............................................................................................................................20 Image adjustment ............................................................................................................................30 Network settings .............................................................................................................................33 Advanced display utilities ................................................................................................................38 Advanced features ..........................................................................................................................46 Lamp replacement ..........................................................................................................................50 Troubleshooting ...............................................................................................................................52 Indicators .........................................................................................................................................56 Specifications ..................................................................................................................................57 Trademark, Registered trademark • Macintosh is a registered trademark of Apple Inc. • DLP™, Digital Micromirror Device, DMD, and BrilliantColor™ are all trademarks of Texas Instruments. • HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC. • Microsoft, Windows, Windows 2000, Windows XP, Windows Vista, Windows 7, and Internet Explorer are registered trademarks, trademarks, or trade names of Microsoft Corporation in the U.S. and/or other countries. • The trademark of PJLink is trademark applied for registration or registered trademark in Japan, the United States, and other countries and areas. • Crestron RoomView Connected is a trademark of Crestron Electronics, Inc. • Other brand or product names are trademarks or registered trademarks of their respective holders. EN-3

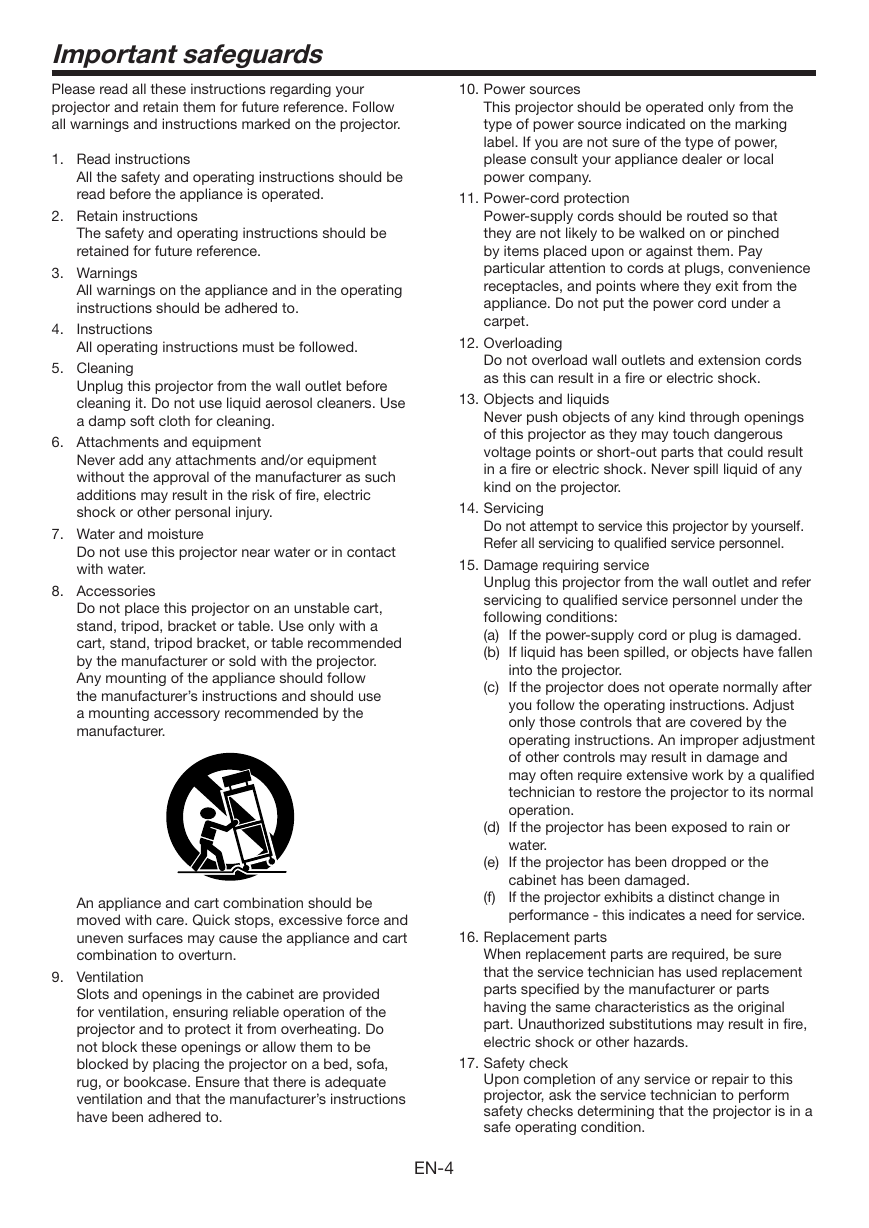

Important safeguards Please read all these instructions regarding your projector and retain them for future reference. Follow all warnings and instructions marked on the projector. 1. Read instructions All the safety and operating instructions should be read before the appliance is operated. 2. Retain instructions The safety and operating instructions should be retained for future reference. 3. Warnings All warnings on the appliance and in the operating instructions should be adhered to. Instructions All operating instructions must be followed. 4. 5. Cleaning Unplug this projector from the wall outlet before cleaning it. Do not use liquid aerosol cleaners. Use a damp soft cloth for cleaning. 6. Attachments and equipment Never add any attachments and/or equipment without the approval of the manufacturer as such additions may result in the risk of fire, electric shock or other personal injury. 7. Water and moisture Do not use this projector near water or in contact with water. 8. Accessories Do not place this projector on an unstable cart, stand, tripod, bracket or table. Use only with a cart, stand, tripod bracket, or table recommended by the manufacturer or sold with the projector. Any mounting of the appliance should follow the manufacturer’s instructions and should use a mounting accessory recommended by the manufacturer. An appliance and cart combination should be moved with care. Quick stops, excessive force and uneven surfaces may cause the appliance and cart combination to overturn. 9. Ventilation Slots and openings in the cabinet are provided for ventilation, ensuring reliable operation of the projector and to protect it from overheating. Do not block these openings or allow them to be blocked by placing the projector on a bed, sofa, rug, or bookcase. Ensure that there is adequate ventilation and that the manufacturer’s instructions have been adhered to. EN-4 10. Power sources This projector should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power, please consult your appliance dealer or local power company. 11. Power-cord protection Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them. Pay particular attention to cords at plugs, convenience receptacles, and points where they exit from the appliance. Do not put the power cord under a carpet. 12. Overloading Do not overload wall outlets and extension cords as this can result in a fire or electric shock. 13. Objects and liquids Never push objects of any kind through openings of this projector as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the projector. 14. Servicing Do not attempt to service this projector by yourself. Refer all servicing to qualified service personnel. 15. Damage requiring service Unplug this projector from the wall outlet and refer servicing to qualified service personnel under the following conditions: (a) If the power-supply cord or plug is damaged. (b) If liquid has been spilled, or objects have fallen into the projector. (c) If the projector does not operate normally after you follow the operating instructions. Adjust only those controls that are covered by the operating instructions. An improper adjustment of other controls may result in damage and may often require extensive work by a qualified technician to restore the projector to its normal operation. (d) If the projector has been exposed to rain or water. (e) If the projector has been dropped or the (f) cabinet has been damaged. If the projector exhibits a distinct change in performance - this indicates a need for service. 16. Replacement parts When replacement parts are required, be sure that the service technician has used replacement parts specified by the manufacturer or parts having the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock or other hazards. 17. Safety check Upon completion of any service or repair to this projector, ask the service technician to perform safety checks determining that the projector is in a safe operating condition.

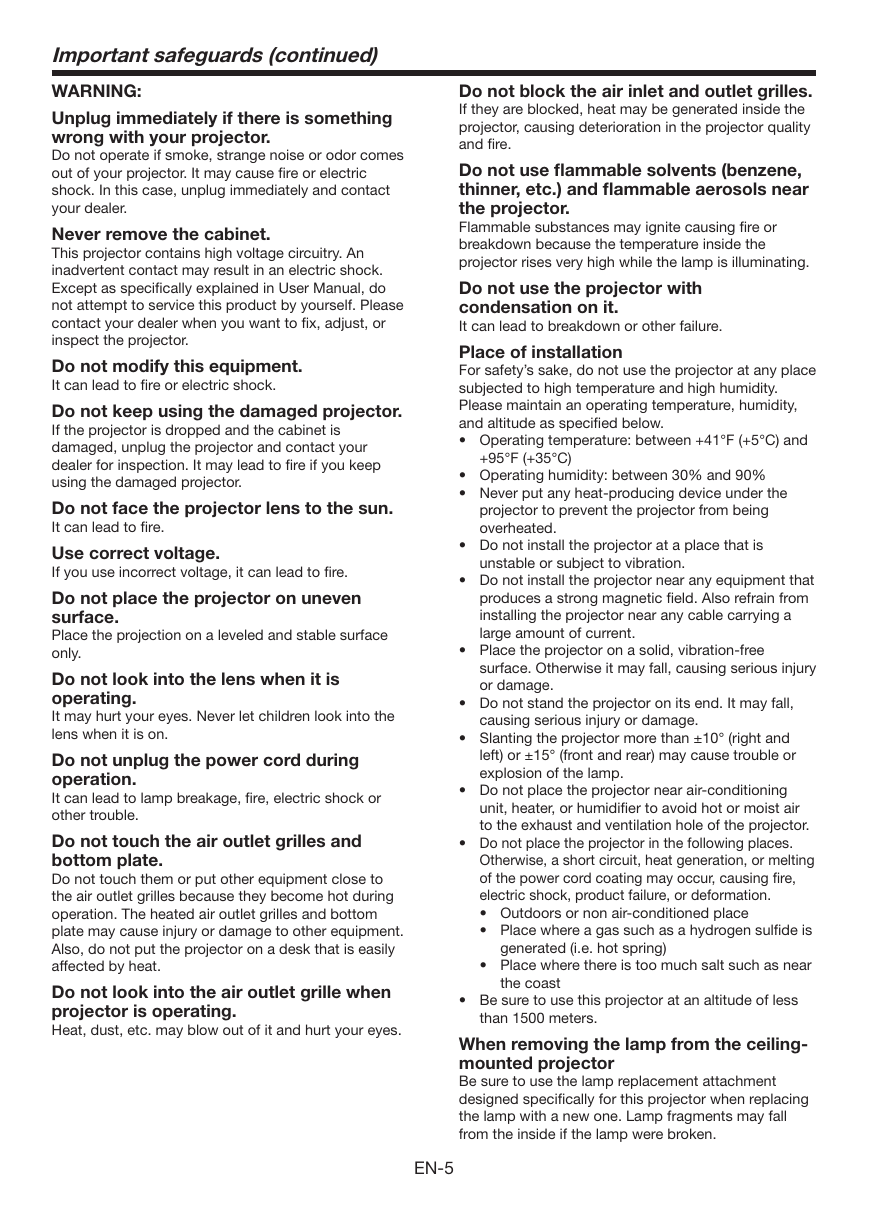

Important safeguards (continued) WARNING: Unplug immediately if there is something wrong with your projector. Do not operate if smoke, strange noise or odor comes out of your projector. It may cause fire or electric shock. In this case, unplug immediately and contact your dealer. Never remove the cabinet. This projector contains high voltage circuitry. An inadvertent contact may result in an electric shock. Except as specifically explained in User Manual, do not attempt to service this product by yourself. Please contact your dealer when you want to fix, adjust, or inspect the projector. Do not modify this equipment. It can lead to fire or electric shock. Do not keep using the damaged projector. If the projector is dropped and the cabinet is damaged, unplug the projector and contact your dealer for inspection. It may lead to fire if you keep using the damaged projector. Do not face the projector lens to the sun. It can lead to fire. Use correct voltage. If you use incorrect voltage, it can lead to fire. Do not place the projector on uneven surface. Place the projection on a leveled and stable surface only. Do not look into the lens when it is operating. It may hurt your eyes. Never let children look into the lens when it is on. Do not unplug the power cord during operation. It can lead to lamp breakage, fire, electric shock or other trouble. Do not touch the air outlet grilles and bottom plate. Do not touch them or put other equipment close to the air outlet grilles because they become hot during operation. The heated air outlet grilles and bottom plate may cause injury or damage to other equipment. Also, do not put the projector on a desk that is easily affected by heat. Do not look into the air outlet grille when projector is operating. Heat, dust, etc. may blow out of it and hurt your eyes. Do not block the air inlet and outlet grilles. If they are blocked, heat may be generated inside the projector, causing deterioration in the projector quality and fire. Do not use flammable solvents (benzene, thinner, etc.) and flammable aerosols near the projector. Flammable substances may ignite causing fire or breakdown because the temperature inside the projector rises very high while the lamp is illuminating. Do not use the projector with condensation on it. It can lead to breakdown or other failure. Place of installation For safety’s sake, do not use the projector at any place subjected to high temperature and high humidity. Please maintain an operating temperature, humidity, and altitude as specified below. • Operating temperature: between +41°F (+5°C) and +95°F (+35°C) • Operating humidity: between 30% and 90% • Never put any heat-producing device under the projector to prevent the projector from being overheated. • Do not install the projector at a place that is unstable or subject to vibration. • Do not install the projector near any equipment that produces a strong magnetic field. Also refrain from installing the projector near any cable carrying a large amount of current. • Place the projector on a solid, vibration-free surface. Otherwise it may fall, causing serious injury or damage. • Do not stand the projector on its end. It may fall, causing serious injury or damage. • Slanting the projector more than ±10° (right and left) or ±15° (front and rear) may cause trouble or explosion of the lamp. • Do not place the projector near air-conditioning unit, heater, or humidifier to avoid hot or moist air to the exhaust and ventilation hole of the projector. • Do not place the projector in the following places. Otherwise, a short circuit, heat generation, or melting of the power cord coating may occur, causing fire, electric shock, product failure, or deformation. • Outdoors or non air-conditioned place • Place where a gas such as a hydrogen sulfide is generated (i.e. hot spring) • Place where there is too much salt such as near the coast • Be sure to use this projector at an altitude of less than 1500 meters. When removing the lamp from the ceiling- mounted projector Be sure to use the lamp replacement attachment designed specifically for this projector when replacing the lamp with a new one. Lamp fragments may fall from the inside if the lamp were broken. EN-5

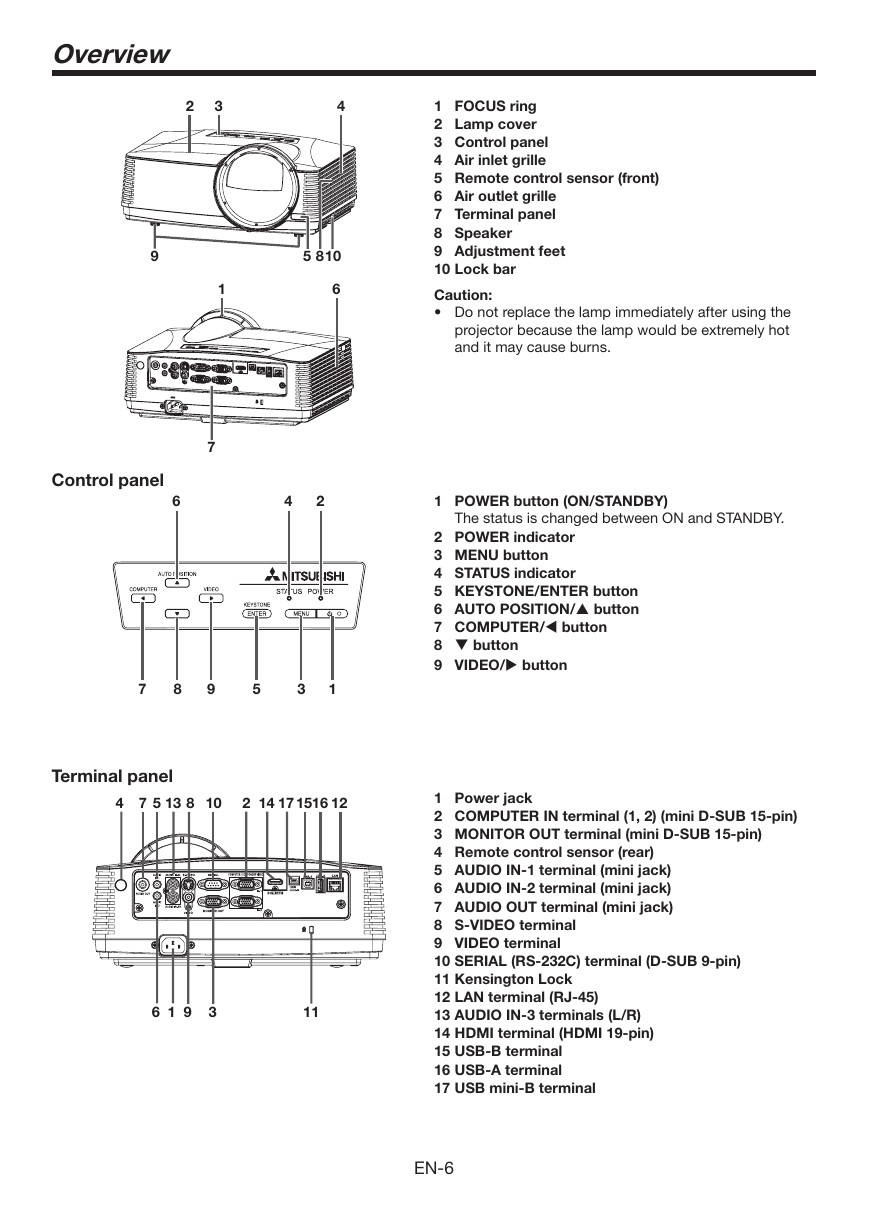

Overview 2 3 4 5 810 6 9 1 7 1 FOCUS ring 2 Lamp cover 3 Control panel 4 Air inlet grille 5 Remote control sensor (front) 6 Air outlet grille 7 Terminal panel 8 Speaker 9 Adjustment feet 10 Lock bar Caution: • Do not replace the lamp immediately after using the projector because the lamp would be extremely hot and it may cause burns. Control panel 6 4 2 1 POWER button (ON/STANDBY) The status is changed between ON and STANDBY. 7 8 9 5 3 1 Terminal panel 4 7 5 13 8 10 2 14 17 1615 12 6 1 9 3 11 2 POWER indicator 3 MENU button 4 STATUS indicator 5 KEYSTONE/ENTER button 6 AUTO POSITION/ button 7 COMPUTER/ button 8  button 9 VIDEO/ button 1 Power jack 2 COMPUTER IN terminal (1, 2) (mini D-SUB 15-pin) 3 MONITOR OUT terminal (mini D-SUB 15-pin) 4 Remote control sensor (rear) 5 AUDIO IN-1 terminal (mini jack) 6 AUDIO IN-2 terminal (mini jack) 7 AUDIO OUT terminal (mini jack) 8 S-VIDEO terminal 9 VIDEO terminal 10 SERIAL (RS-232C) terminal (D-SUB 9-pin) 11 Kensington Lock 12 LAN terminal (RJ-45) 13 AUDIO IN-3 terminals (L/R) 14 HDMI terminal (HDMI 19-pin) 15 USB-B terminal 16 USB-A terminal 17 USB mini-B terminal EN-6

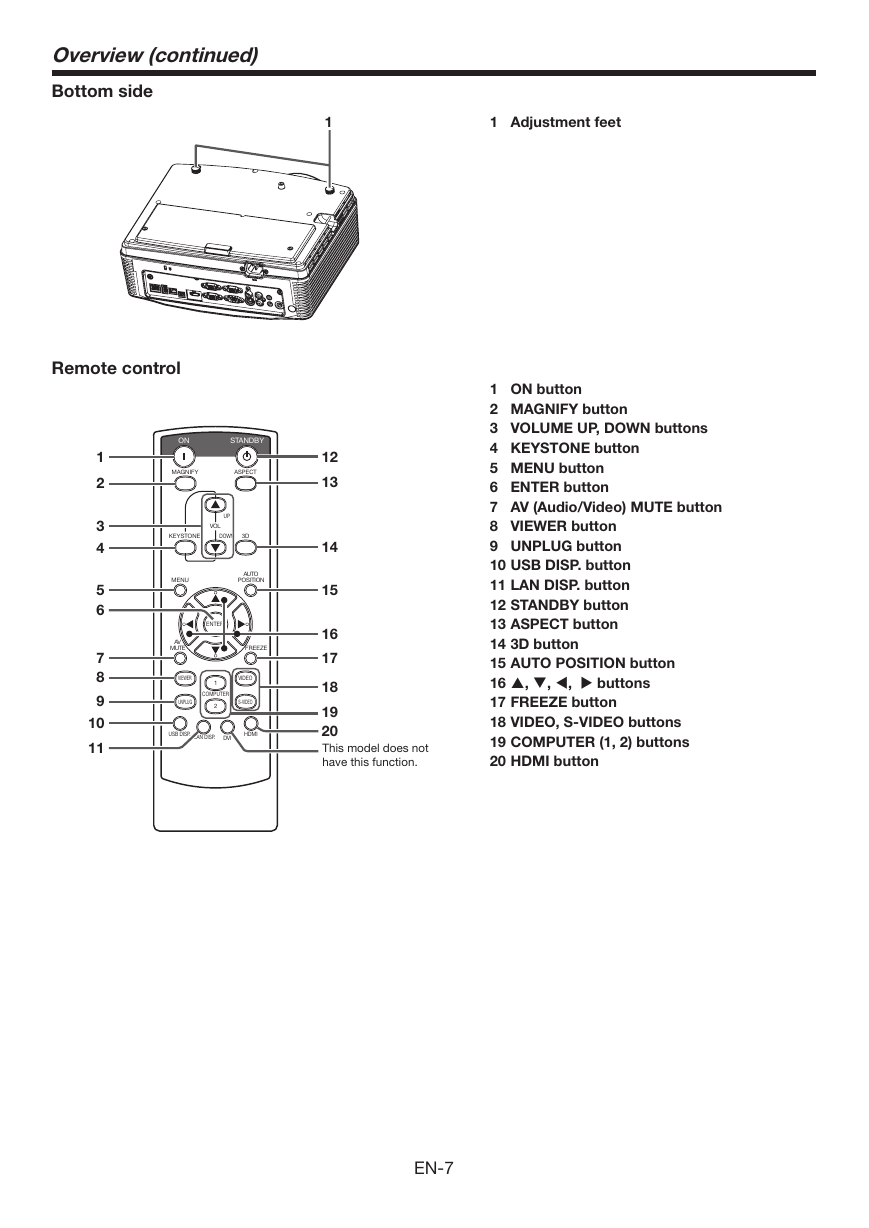

Overview (continued) Bottom side 1 1 Adjustment feet Remote control 1 2 3 4 5 6 7 8 9 10 11 ON STANDBY MAGNIFY ASPECT UP VOL KEYSTONE DOWN 3D MENU AUTO POSITION ENTER AV MUTE FREEZE VIEWER UNPLUG 1 COMPUTER 2 VIDEO S-VIDEO USB DISP. LAN DISP. DVI HDMI 12 13 14 15 16 17 18 19 20 This model does not have this function. 1 ON button 2 MAGNIFY button 3 VOLUME UP, DOWN buttons 4 KEYSTONE button 5 MENU button 6 ENTER button 7 AV (Audio/Video) MUTE button 8 VIEWER button 9 UNPLUG button 10 USB DISP. button 11 LAN DISP. button 12 STANDBY button 13 ASPECT button 14 3D button 15 AUTO POSITION button 16 , , ,  buttons 17 FREEZE button 18 VIDEO, S-VIDEO buttons 19 COMPUTER (1, 2) buttons 20 HDMI button EN-7

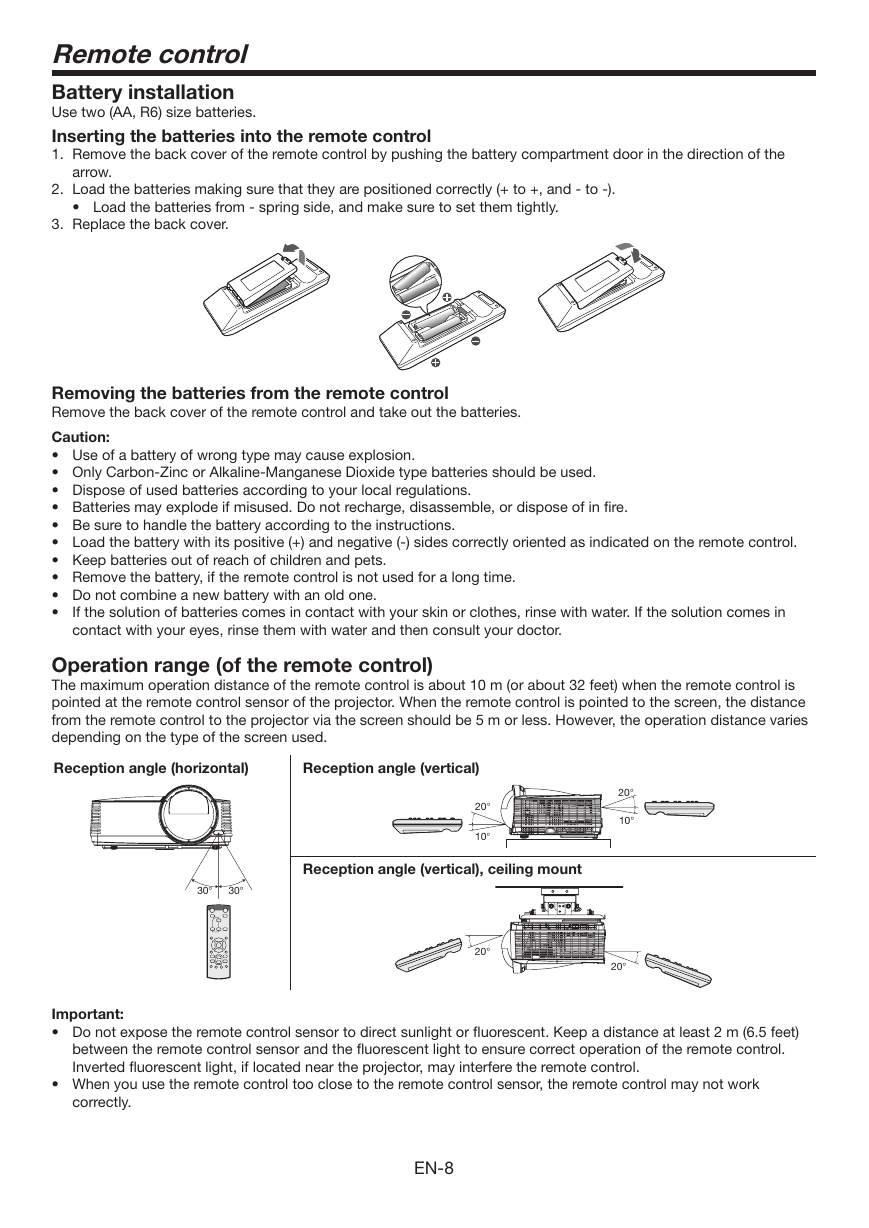

Remote control Battery installation Use two (AA, R6) size batteries. Inserting the batteries into the remote control 1. Remove the back cover of the remote control by pushing the battery compartment door in the direction of the arrow. 2. Load the batteries making sure that they are positioned correctly (+ to +, and - to -). • Load the batteries from - spring side, and make sure to set them tightly. 3. Replace the back cover. Removing the batteries from the remote control Remove the back cover of the remote control and take out the batteries. Caution: • Use of a battery of wrong type may cause explosion. • Only Carbon-Zinc or Alkaline-Manganese Dioxide type batteries should be used. • Dispose of used batteries according to your local regulations. • Batteries may explode if misused. Do not recharge, disassemble, or dispose of in fire. • Be sure to handle the battery according to the instructions. • Load the battery with its positive (+) and negative (-) sides correctly oriented as indicated on the remote control. • Keep batteries out of reach of children and pets. • Remove the battery, if the remote control is not used for a long time. • Do not combine a new battery with an old one. • If the solution of batteries comes in contact with your skin or clothes, rinse with water. If the solution comes in contact with your eyes, rinse them with water and then consult your doctor. Operation range (of the remote control) The maximum operation distance of the remote control is about 10 m (or about 32 feet) when the remote control is pointed at the remote control sensor of the projector. When the remote control is pointed to the screen, the distance from the remote control to the projector via the screen should be 5 m or less. However, the operation distance varies depending on the type of the screen used. Reception angle (horizontal) Reception angle (vertical) 20° 10° Reception angle (vertical), ceiling mount 30° 30° 20° 20° 10° 20° Important: • Do not expose the remote control sensor to direct sunlight or fluorescent. Keep a distance at least 2 m (6.5 feet) between the remote control sensor and the fluorescent light to ensure correct operation of the remote control. Inverted fluorescent light, if located near the projector, may interfere the remote control. • When you use the remote control too close to the remote control sensor, the remote control may not work correctly. EN-8
