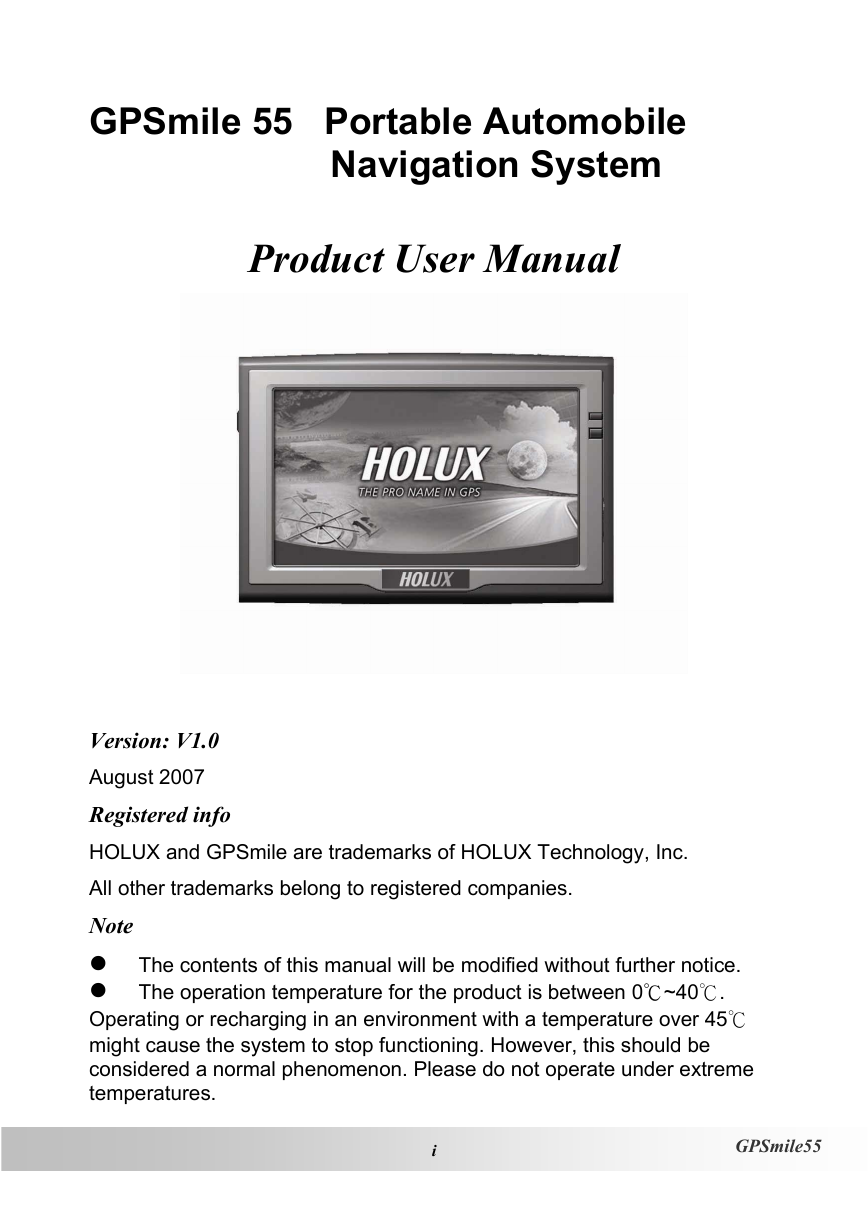

GPSmile 55 Portable Automobile Navigation System Product User Manual Version: V1.0 August 2007 Registered info HOLUX and GPSmile are trademarks of HOLUX Technology, Inc. All other trademarks belong to registered companies. Note The contents of this manual will be modified without further notice. The operation temperature for the product is between 0℃~40℃. Operating or recharging in an environment with a temperature over 45℃ might cause the system to stop functioning. However, this should be considered a normal phenomenon. Please do not operate under extreme temperatures. i GPSmile55

GPSmile55 ii

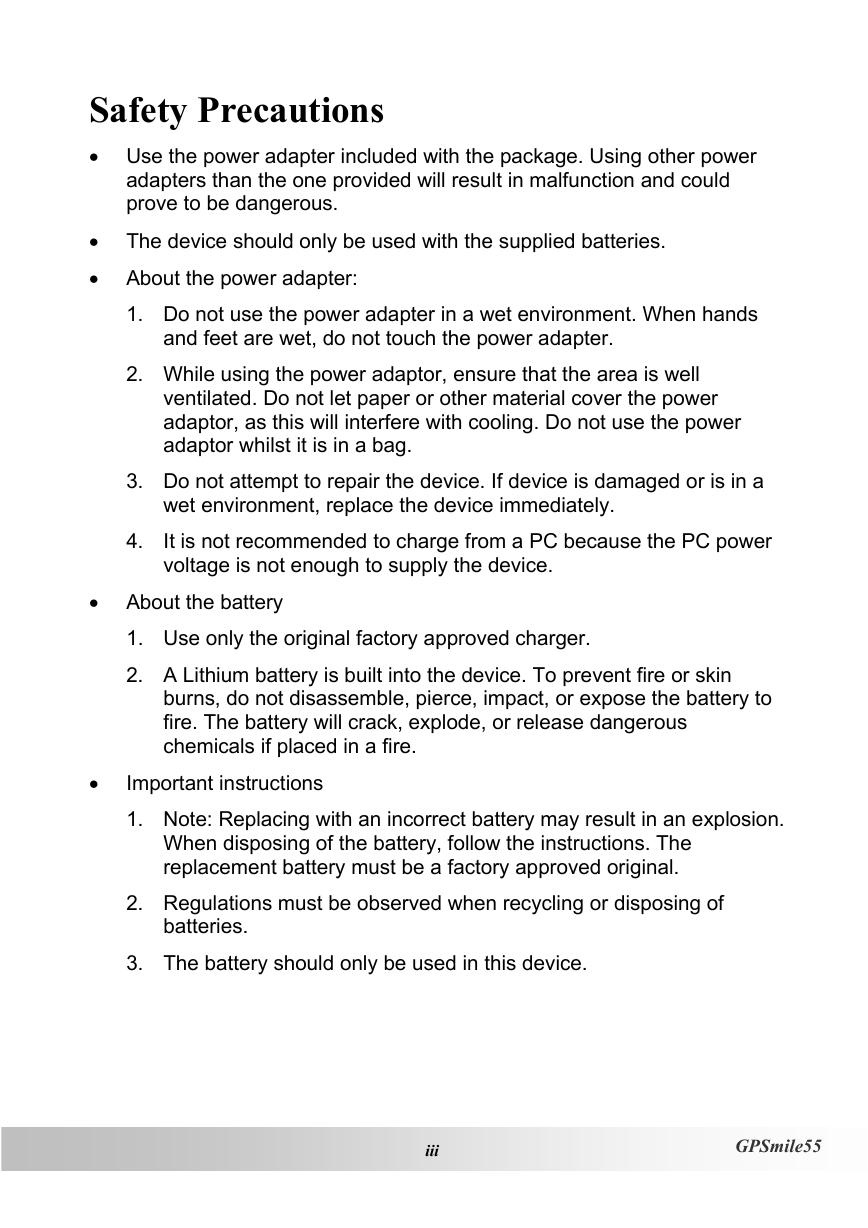

Safety Precautions • Use the power adapter included with the package. Using other power adapters than the one provided will result in malfunction and could prove to be dangerous. • The device should only be used with the supplied batteries. • About the power adapter: 1. Do not use the power adapter in a wet environment. When hands and feet are wet, do not touch the power adapter. 2. While using the power adaptor, ensure that the area is well ventilated. Do not let paper or other material cover the power adaptor, as this will interfere with cooling. Do not use the power adaptor whilst it is in a bag. 3. Do not attempt to repair the device. If device is damaged or is in a wet environment, replace the device immediately. It is not recommended to charge from a PC because the PC power voltage is not enough to supply the device. 4. • About the battery 1. Use only the original factory approved charger. 2. A Lithium battery is built into the device. To prevent fire or skin burns, do not disassemble, pierce, impact, or expose the battery to fire. The battery will crack, explode, or release dangerous chemicals if placed in a fire. • Important instructions 1. Note: Replacing with an incorrect battery may result in an explosion. When disposing of the battery, follow the instructions. The replacement battery must be a factory approved original. 2. Regulations must be observed when recycling or disposing of batteries. 3. The battery should only be used in this device. iii GPSmile55

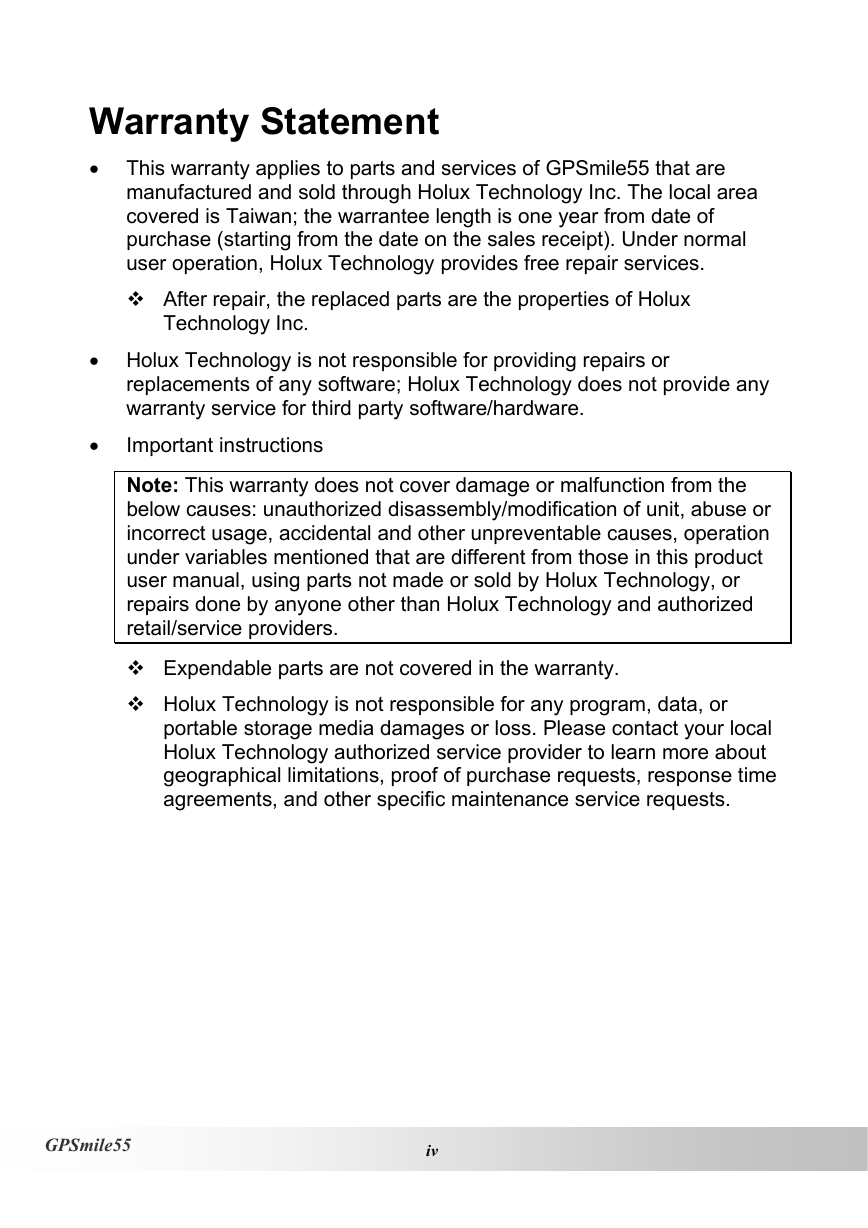

Warranty Statement • This warranty applies to parts and services of GPSmile55 that are manufactured and sold through Holux Technology Inc. The local area covered is Taiwan; the warrantee length is one year from date of purchase (starting from the date on the sales receipt). Under normal user operation, Holux Technology provides free repair services. After repair, the replaced parts are the properties of Holux Technology Inc. • Holux Technology is not responsible for providing repairs or • replacements of any software; Holux Technology does not provide any warranty service for third party software/hardware. Important instructions Note: This warranty does not cover damage or malfunction from the below causes: unauthorized disassembly/modification of unit, abuse or incorrect usage, accidental and other unpreventable causes, operation under variables mentioned that are different from those in this product user manual, using parts not made or sold by Holux Technology, or repairs done by anyone other than Holux Technology and authorized retail/service providers. Expendable parts are not covered in the warranty. Holux Technology is not responsible for any program, data, or portable storage media damages or loss. Please contact your local Holux Technology authorized service provider to learn more about geographical limitations, proof of purchase requests, response time agreements, and other specific maintenance service requests. GPSmile55 iv

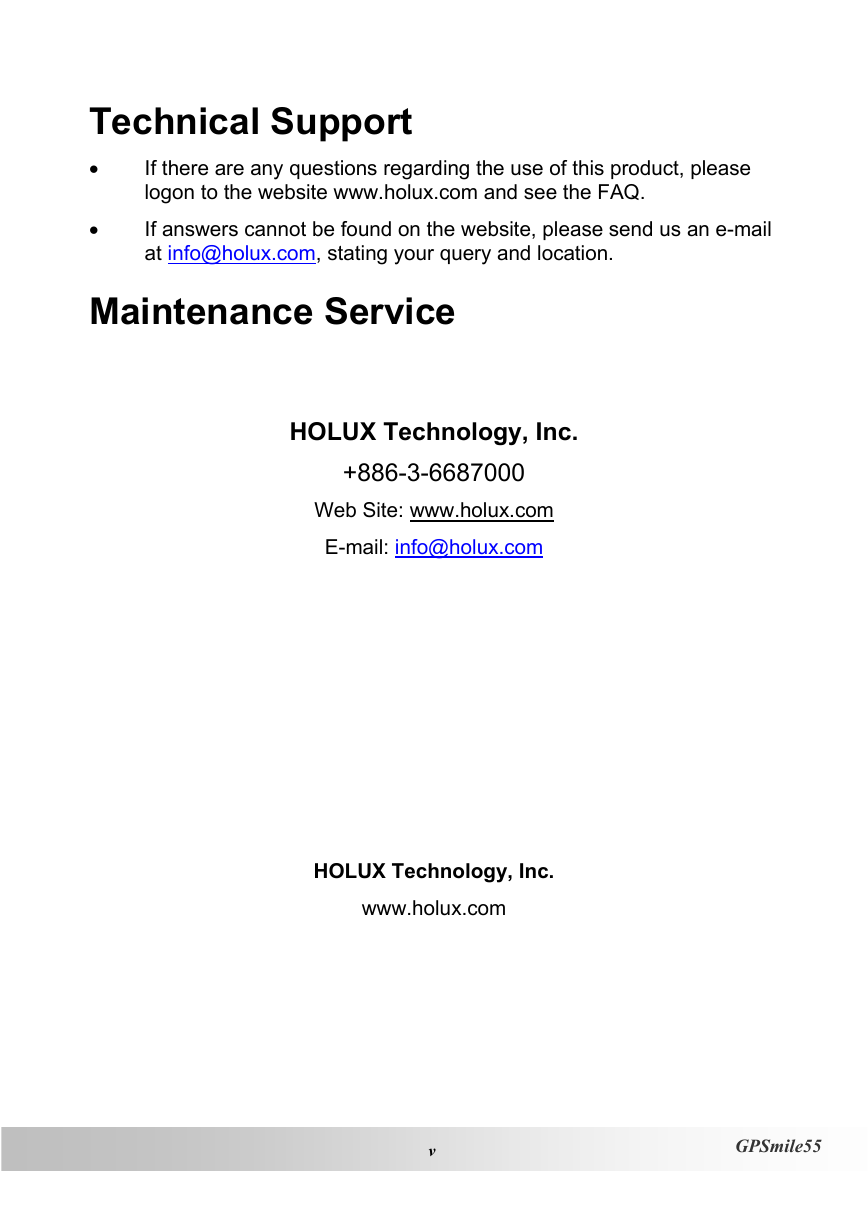

Technical Support • If there are any questions regarding the use of this product, please logon to the website www.holux.com and see the FAQ. If answers cannot be found on the website, please send us an e-mail at info@holux.com, stating your query and location. • Maintenance Service HOLUX Technology, Inc. +886-3-6687000 Web Site: www.holux.com E-mail: info@holux.com HOLUX Technology, Inc. www.holux.com v GPSmile55

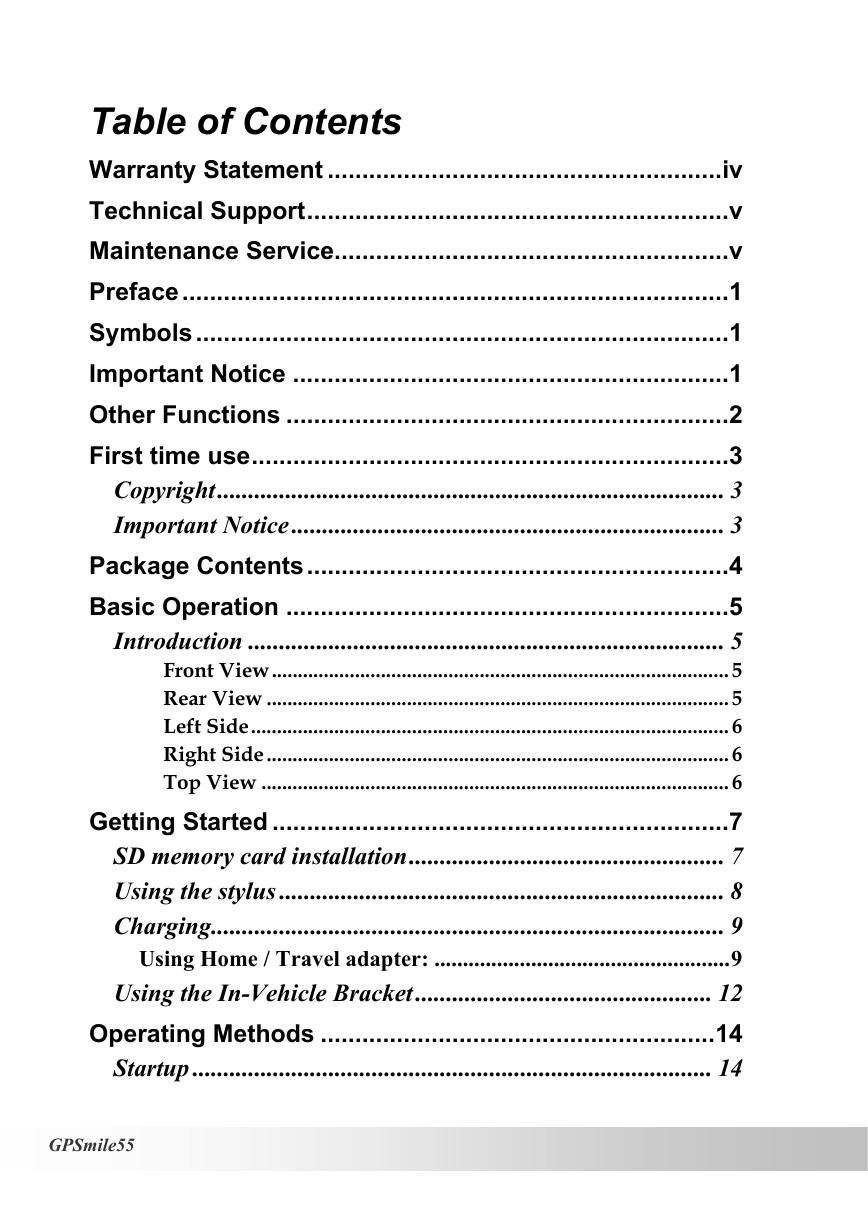

Table of Contents Warranty Statement .........................................................iv Technical Support.............................................................v Maintenance Service.........................................................v Preface...............................................................................1 Symbols.............................................................................1 Important Notice ...............................................................1 Other Functions ................................................................2 First time use.....................................................................3 Copyright.................................................................................. 3 Important Notice...................................................................... 3 Package Contents.............................................................4 Basic Operation ................................................................5 Introduction ............................................................................. 5 Front View........................................................................................ 5 Rear View ......................................................................................... 5 Left Side............................................................................................ 6 Right Side......................................................................................... 6 Top View .......................................................................................... 6 Getting Started ..................................................................7 SD memory card installation................................................... 7 Using the stylus ........................................................................ 8 Charging................................................................................... 9 Using Home / Travel adapter: ....................................................9 Using the In-Vehicle Bracket................................................ 12 Operating Methods .........................................................14 Startup .................................................................................... 14 GPSmile55

Shutdown................................................................................ 14 Using Functions..............................................................15 Function Menu Music Playback Function......................... 16 Storing MP3 files on SD memory cards................................ 16 Starting music playback......................................................... 16 Image Browsing Function..................................................... 19 Setting..................................................................................... 23 Power...........................................................................................23 Time.............................................................................................23 Time.............................................................................................24 Panel Adjustment.......................................................................25 Reset GPS ...................................................................................27 Version ........................................................................................29 Startup Message.........................................................................30 Click Voice..................................................................................30 Hot Key .......................................................................................31 Using the CD ...................................................................32 Troubleshooting..............................................................32 System reset............................................................................ 32 Quick Troubleshooting.......................................................... 33 Normal Care and Maintenance............................................. 33 Keep dry.......................................................................................... 33 Do not drop the unit ..................................................................... 33 Avoid sudden temperature changes .......................................... 33 Keep away from strong magnetic fields ................................... 34 Operating temperature................................................................. 34 Avoid exposure to sunlight ......................................................... 34 Using the stylus............................................................................. 34 Cleaning the screen....................................................................... 34 Do not disassemble....................................................................... 34 Storage.................................................................................... 34 GPSmile55

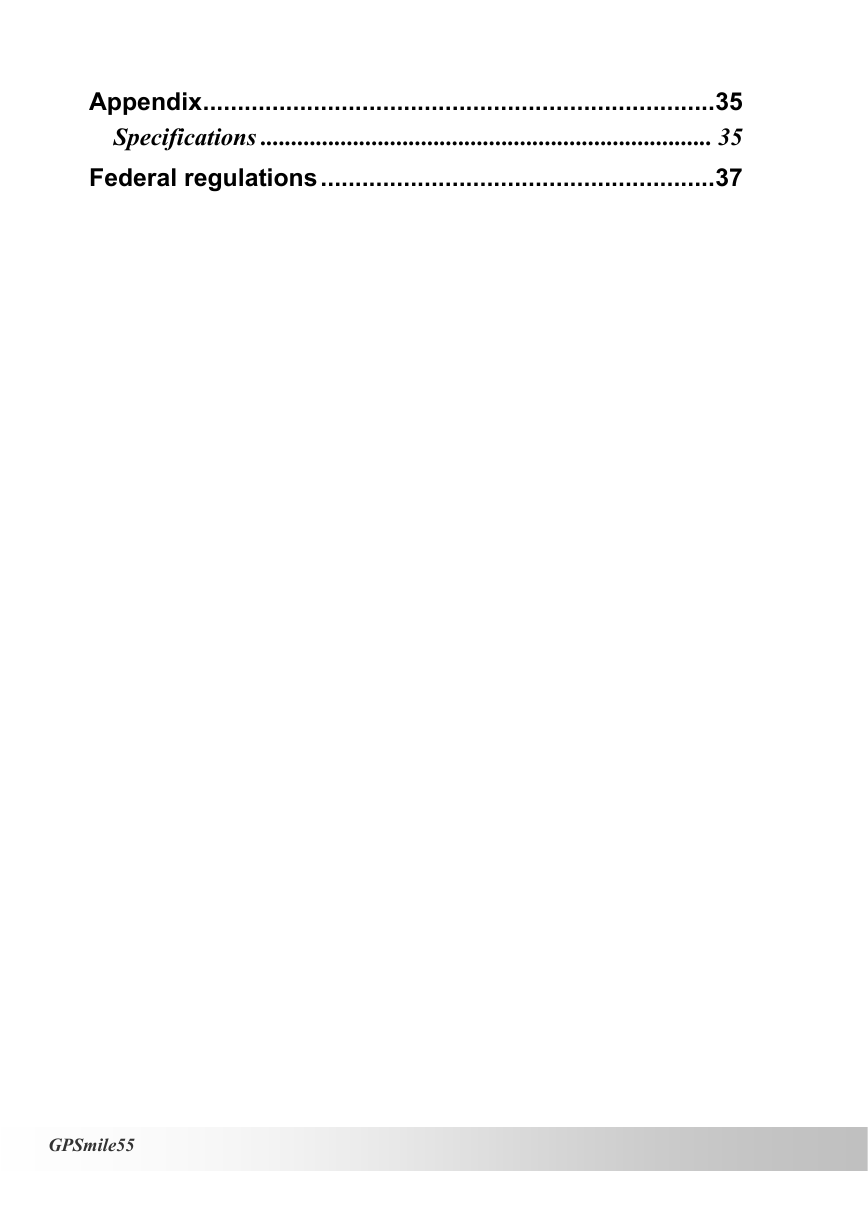

Appendix..........................................................................35 Specifications ......................................................................... 35 Federal regulations.........................................................37 GPSmile55
