Safety Instructions

Names of parts

Main Body

Control Panel

Connecting Part

Remote Control

Installing Batteries

Projector Status Indicators

Accessories

Optional Extras

Installing and Composition

Installation Precautions

Positioning the Projector

Kensington Security System

Turning on the Projector

Turning off the Projector

Focus and Position of the Screen Image

Selecting Input Mode

Connection

Connecting to a Desktop PC

Connecting to a Video Source

Connecting to a DVD Player

Connecting to a D-TV Set-Top Box

3D Video Function

Caution When Viewing 3D Video

When Viewing 3D Video

How to Watch 3D Video

Function

PICTURE Menu Options

Picture Mode

Color Temperature Function

Adjusting Picture Mode

Advanced Control Function

Picture Reset Function

TruMotion Demo Function

SCREEN Menu Options

Using the Still Function

To Change PJT Mode

Using Aspect Ratio Function

Test Pattern Function

Using Keystone Function

Auto Configure Function

RGB Config. Function

TIME Menu Options

Sleep Time Function

Auto Off Function

OPTION Menu Options

Selecting Language

Using Blank Function

Selecting Blank image

To Calibrate the Camera

To Adjust the Brightness of the Lamp

High Altitude Mode

Network Setup

Setting Input Label

Setting Power Sound

INFORMATION Menu Options

To See The Projector Information

Information

Supported Monitor Display

Maintenance

Replacing the Lamp

Specifications

Open Source Software Notice

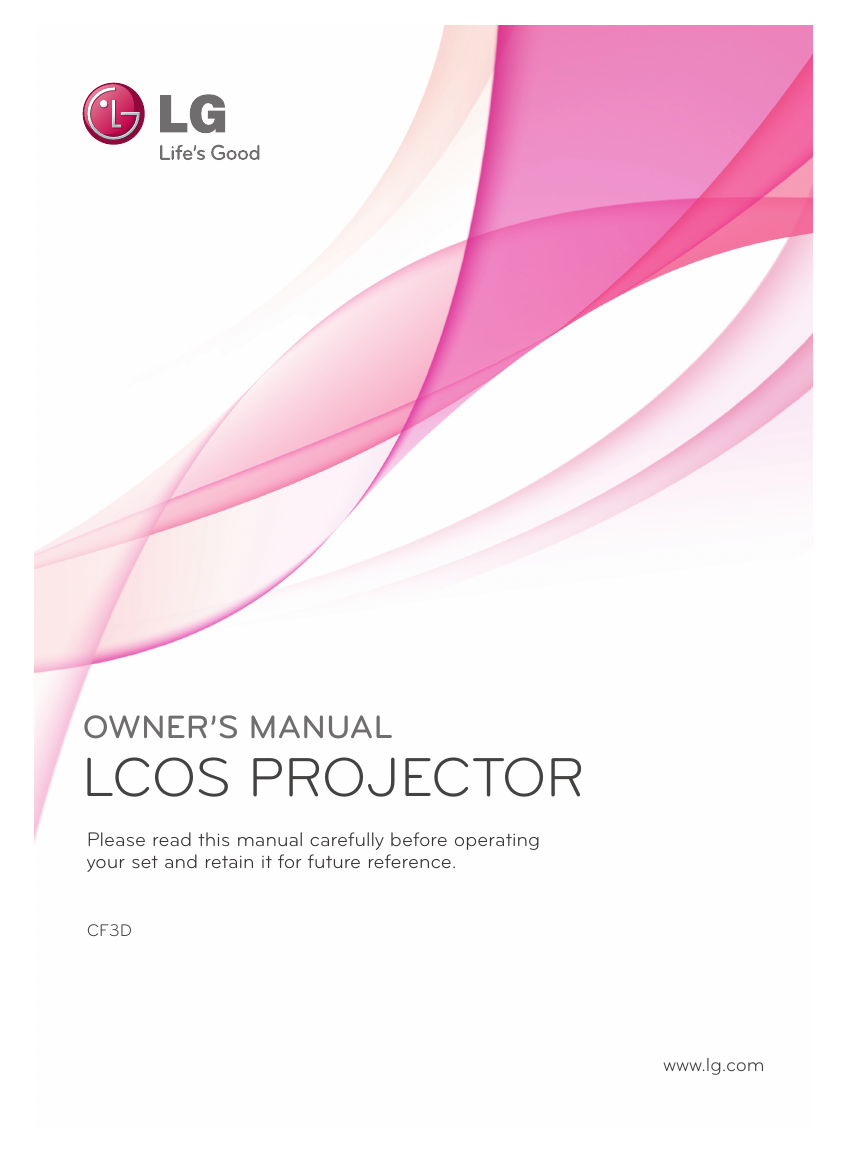

OWNER’S MANUAL LCOS PROJECTOR Please read this manual carefully before operating your set and retain it for future reference. CF3D www.lg.com

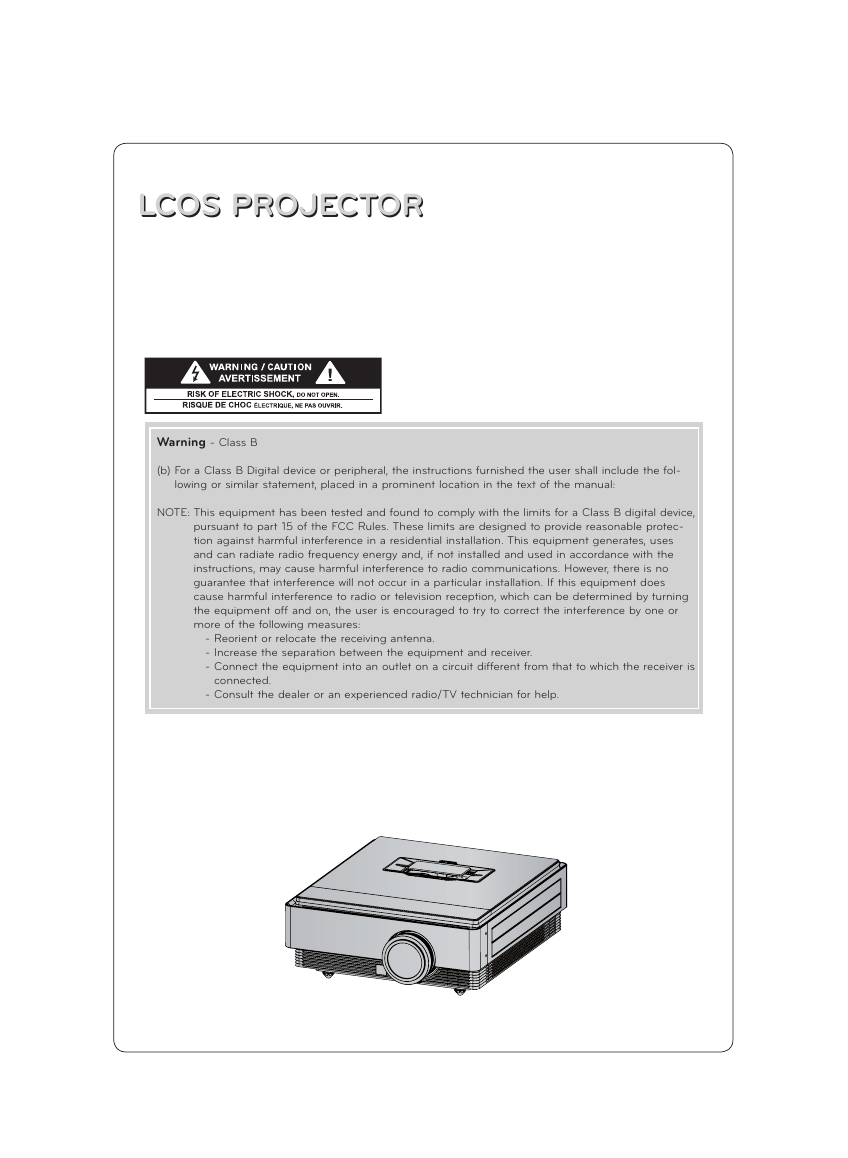

LCOS PROJECTOR LCOS PROJECTOR Warning - Class B (b) For a Class B Digital device or peripheral, the instructions furnished the user shall include the fol- lowing or similar statement, placed in a prominent location in the text of the manual: NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protec- tion against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help.

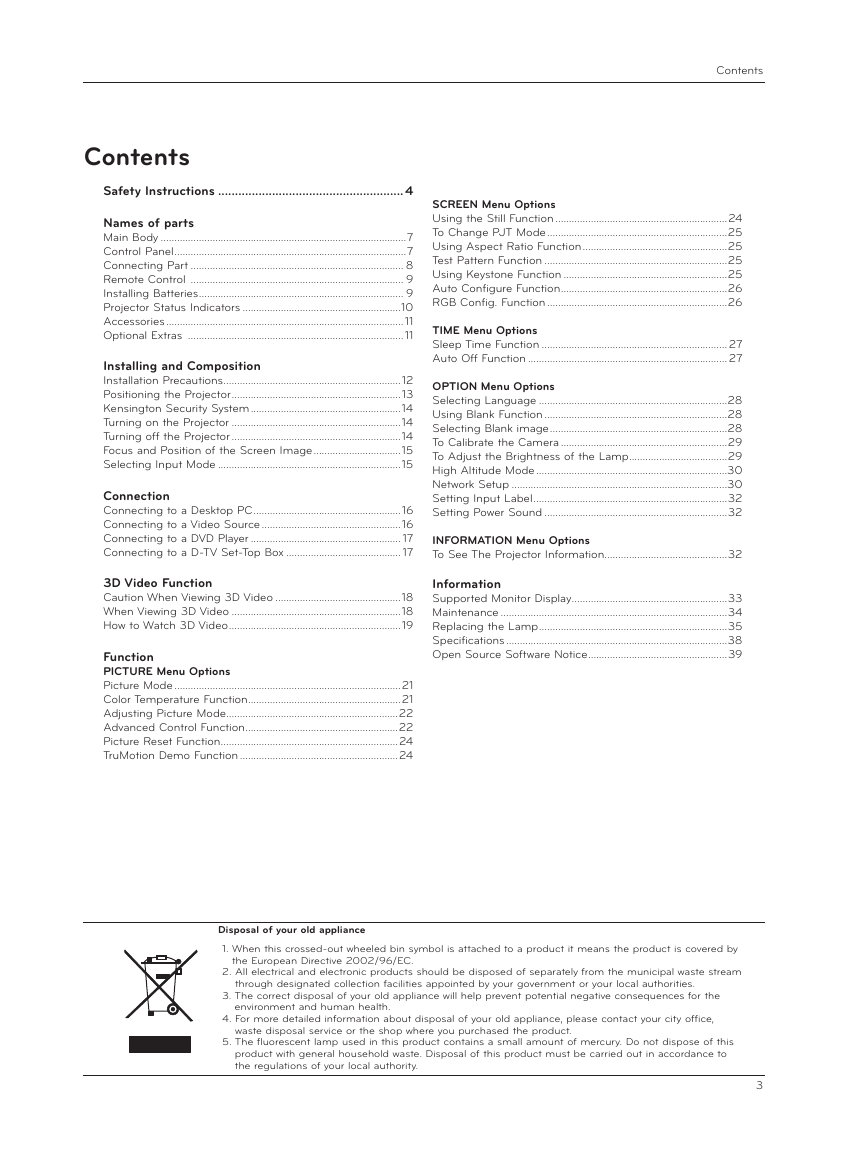

Contents SCREEN Menu Options Using the Still Function ...............................................................24 To Change PJT Mode ..................................................................25 Using Aspect Ratio Function .....................................................25 Test Pattern Function ...................................................................25 Using Keystone Function ............................................................25 Auto Configure Function .............................................................26 RGB Config. Function ..................................................................26 TIME Menu Options Sleep Time Function .................................................................... 27 Auto Off Function ......................................................................... 27 OPTION Menu Options Selecting Language .....................................................................28 Using Blank Function ...................................................................28 Selecting Blank image .................................................................28 To Calibrate the Camera .............................................................29 To Adjust the Brightness of the Lamp ....................................29 High Altitude Mode ......................................................................30 Network Setup ...............................................................................30 Setting Input Label .......................................................................32 Setting Power Sound ...................................................................32 INFORMATION Menu Options To See The Projector Information .............................................32 Information Supported Monitor Display .........................................................33 Maintenance ...................................................................................34 Replacing the Lamp .....................................................................35 Specifications .................................................................................38 Open Source Software Notice ...................................................39 Contents Safety Instructions .......................................................4 Names of parts Main Body ..........................................................................................7 Control Panel .....................................................................................7 Connecting Part .............................................................................. 8 Remote Control .............................................................................. 9 Installing Batteries ........................................................................... 9 Projector Status Indicators ..........................................................10 Accessories .......................................................................................11 Optional Extras ...............................................................................11 Installing and Composition Installation Precautions .................................................................12 Positioning the Projector ..............................................................13 Kensington Security System .......................................................14 Turning on the Projector ..............................................................14 Turning off the Projector ..............................................................14 Focus and Position of the Screen Image ................................15 Selecting Input Mode ...................................................................15 Connection Connecting to a Desktop PC ......................................................16 Connecting to a Video Source ...................................................16 Connecting to a DVD Player ....................................................... 17 Connecting to a D-TV Set-Top Box .......................................... 17 3D Video Function Caution When Viewing 3D Video ..............................................18 When Viewing 3D Video ..............................................................18 How to Watch 3D Video ...............................................................19 Function PICTURE Menu Options Picture Mode ...................................................................................21 Color Temperature Function ........................................................21 Adjusting Picture Mode ...............................................................22 Advanced Control Function ........................................................22 Picture Reset Function .................................................................24 TruMotion Demo Function ..........................................................24 Disposal of your old appliance 1. When this crossed-out wheeled bin symbol is attached to a product it means the product is covered by the European Directive 2002/96/EC. 2. All electrical and electronic products should be disposed of separately from the municipal waste stream through designated collection facilities appointed by your government or your local authorities. 3. The correct disposal of your old appliance will help prevent potential negative consequences for the environment and human health. 4. For more detailed information about disposal of your old appliance, please contact your city office, waste disposal service or the shop where you purchased the product. 5. The fluorescent lamp used in this product contains a small amount of mercury. Do not dispose of this product with general household waste. Disposal of this product must be carried out in accordance to the regulations of your local authority. 3

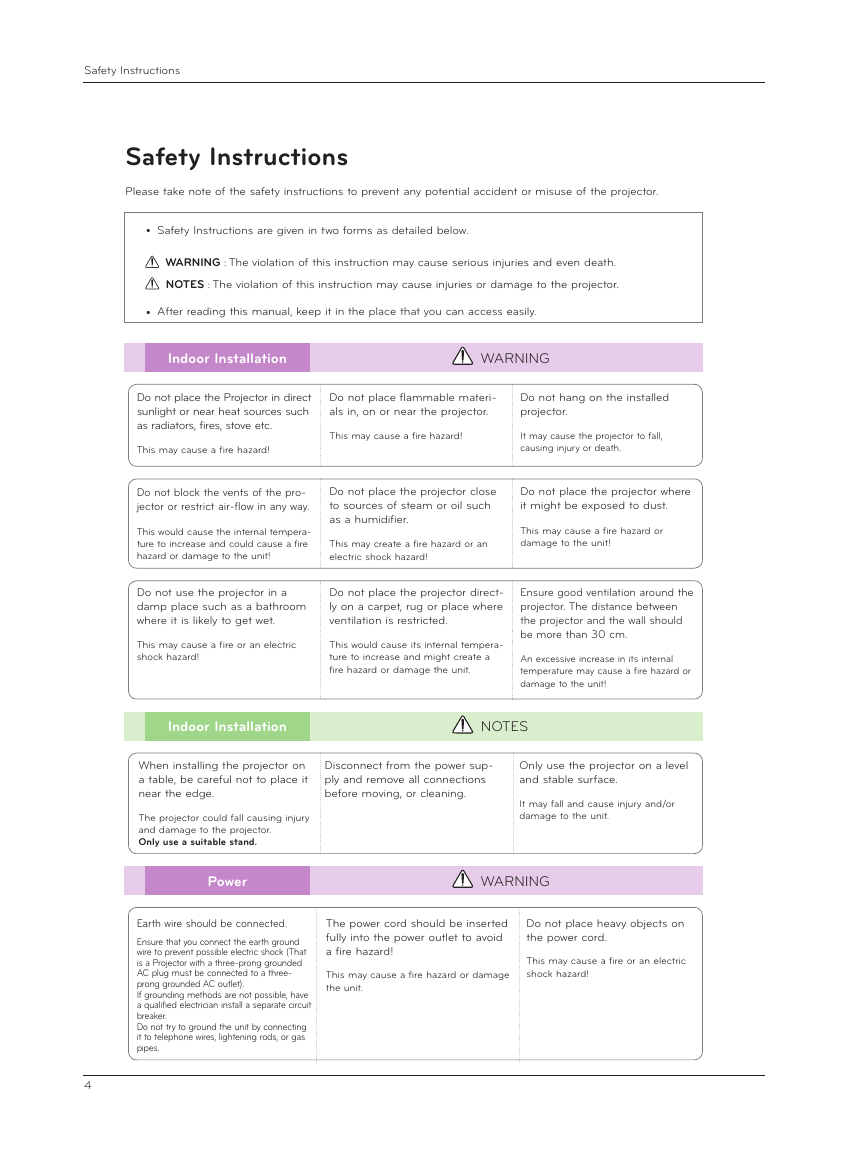

Safety Instructions Safety Instructions Please take note of the safety instructions to prevent any potential accident or misuse of the projector. ꔈ Safety Instructions are given in two forms as detailed below. WARNING : The violation of this instruction may cause serious injuries and even death. NOTES : The violation of this instruction may cause injuries or damage to the projector. ꔈ After reading this manual, keep it in the place that you can access easily. Indoor Installation WARNING Do not place the Projector in direct sunlight or near heat sources such as radiators, fires, stove etc. This may cause a fire hazard! Do not place flammable materi- als in, on or near the projector. Do not hang on the installed projector. This may cause a fire hazard! It may cause the projector to fall, causing injury or death. Do not block the vents of the pro- jector or restrict air-flow in any way. This would cause the internal tempera- ture to increase and could cause a fire hazard or damage to the unit! Do not place the projector close to sources of steam or oil such as a humidifier. This may create a fire hazard or an electric shock hazard! Do not place the projector where it might be exposed to dust. This may cause a fire hazard or damage to the unit! Do not use the projector in a damp place such as a bathroom where it is likely to get wet. Do not place the projector direct- ly on a carpet, rug or place where ventilation is restricted. This may cause a fire or an electric shock hazard! This would cause its internal tempera- ture to increase and might create a fire hazard or damage the unit. Ensure good ventilation around the projector. The distance between the projector and the wall should be more than 30 cm. An excessive increase in its internal temperature may cause a fire hazard or damage to the unit! Indoor Installation NOTES When installing the projector on a table, be careful not to place it near the edge. Disconnect from the power sup- ply and remove all connections before moving, or cleaning. The projector could fall causing injury and damage to the projector. Only use a suitable stand. Only use the projector on a level and stable surface. It may fall and cause injury and/or damage to the unit. Power WARNING The power cord should be inserted fully into the power outlet to avoid a fire hazard! This may cause a fire hazard or damage the unit. Do not place heavy objects on the power cord. This may cause a fire or an electric shock hazard! Earth wire should be connected. Ensure that you connect the earth ground wire to prevent possible electric shock (That is a Projector with a three-prong grounded AC plug must be connected to a three- prong grounded AC outlet). If grounding methods are not possible, have a qualified electrician install a separate circuit breaker. Do not try to ground the unit by connecting it to telephone wires, lightening rods, or gas pipes. 4

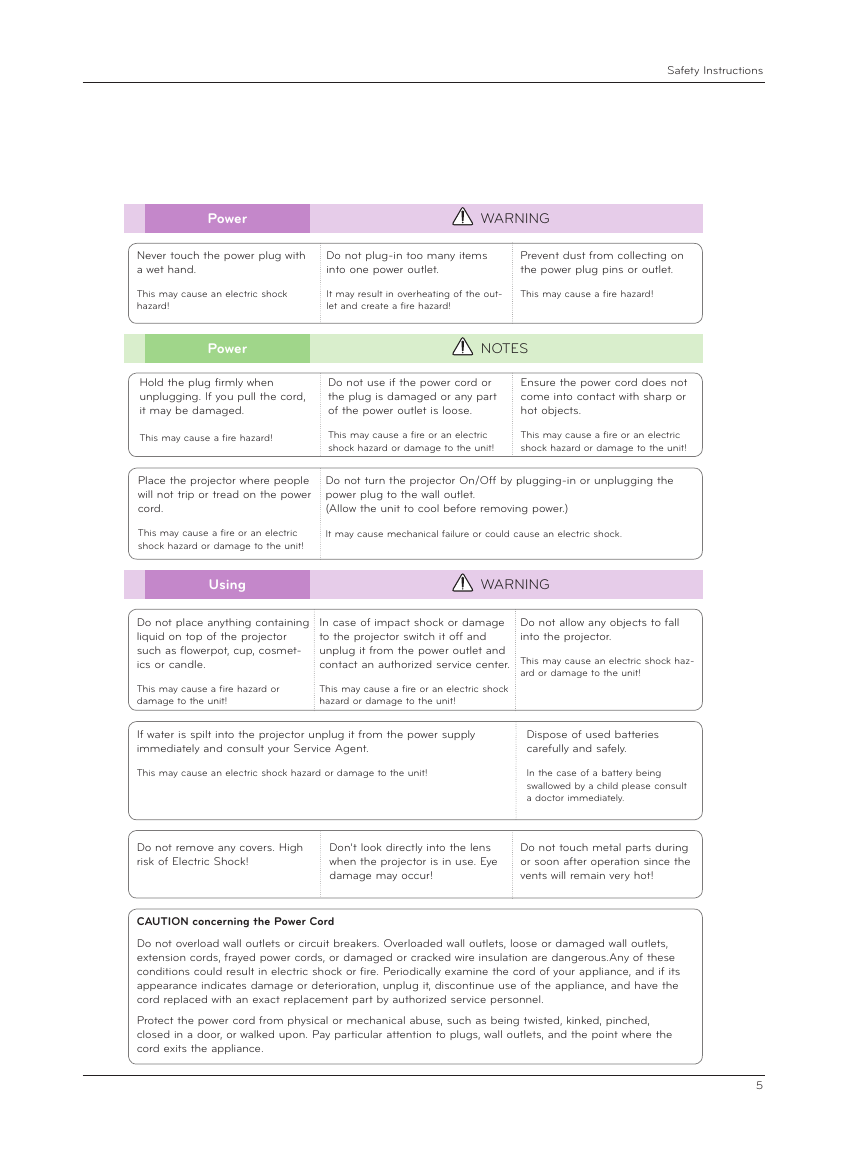

Safety Instructions Power WARNING Never touch the power plug with a wet hand. Do not plug-in too many items into one power outlet. Prevent dust from collecting on the power plug pins or outlet. This may cause an electric shock hazard! It may result in overheating of the out- let and create a fire hazard! This may cause a fire hazard! Power NOTES Hold the plug firmly when unplugging. If you pull the cord, it may be damaged. Do not use if the power cord or the plug is damaged or any part of the power outlet is loose. Ensure the power cord does not come into contact with sharp or hot objects. This may cause a fire hazard! This may cause a fire or an electric shock hazard or damage to the unit! This may cause a fire or an electric shock hazard or damage to the unit! Place the projector where people will not trip or tread on the power cord. Do not turn the projector On/Off by plugging-in or unplugging the power plug to the wall outlet. (Allow the unit to cool before removing power.) This may cause a fire or an electric shock hazard or damage to the unit! It may cause mechanical failure or could cause an electric shock. Using WARNING Do not place anything containing liquid on top of the projector such as flowerpot, cup, cosmet- ics or candle. In case of impact shock or damage to the projector switch it off and unplug it from the power outlet and contact an authorized service center. Do not allow any objects to fall into the projector. This may cause an electric shock haz- ard or damage to the unit! This may cause a fire hazard or damage to the unit! This may cause a fire or an electric shock hazard or damage to the unit! If water is spilt into the projector unplug it from the power supply immediately and consult your Service Agent. Dispose of used batteries carefully and safely. This may cause an electric shock hazard or damage to the unit! In the case of a battery being swallowed by a child please consult a doctor immediately. Do not remove any covers. High risk of Electric Shock! Don’t look directly into the lens when the projector is in use. Eye damage may occur! Do not touch metal parts during or soon after operation since the vents will remain very hot! CAUTION concerning the Power Cord Do not overload wall outlets or circuit breakers. Overloaded wall outlets, loose or damaged wall outlets, extension cords, frayed power cords, or damaged or cracked wire insulation are dangerous.Any of these conditions could result in electric shock or fire. Periodically examine the cord of your appliance, and if its appearance indicates damage or deterioration, unplug it, discontinue use of the appliance, and have the cord replaced with an exact replacement part by authorized service personnel. Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the point where the cord exits the appliance. 5

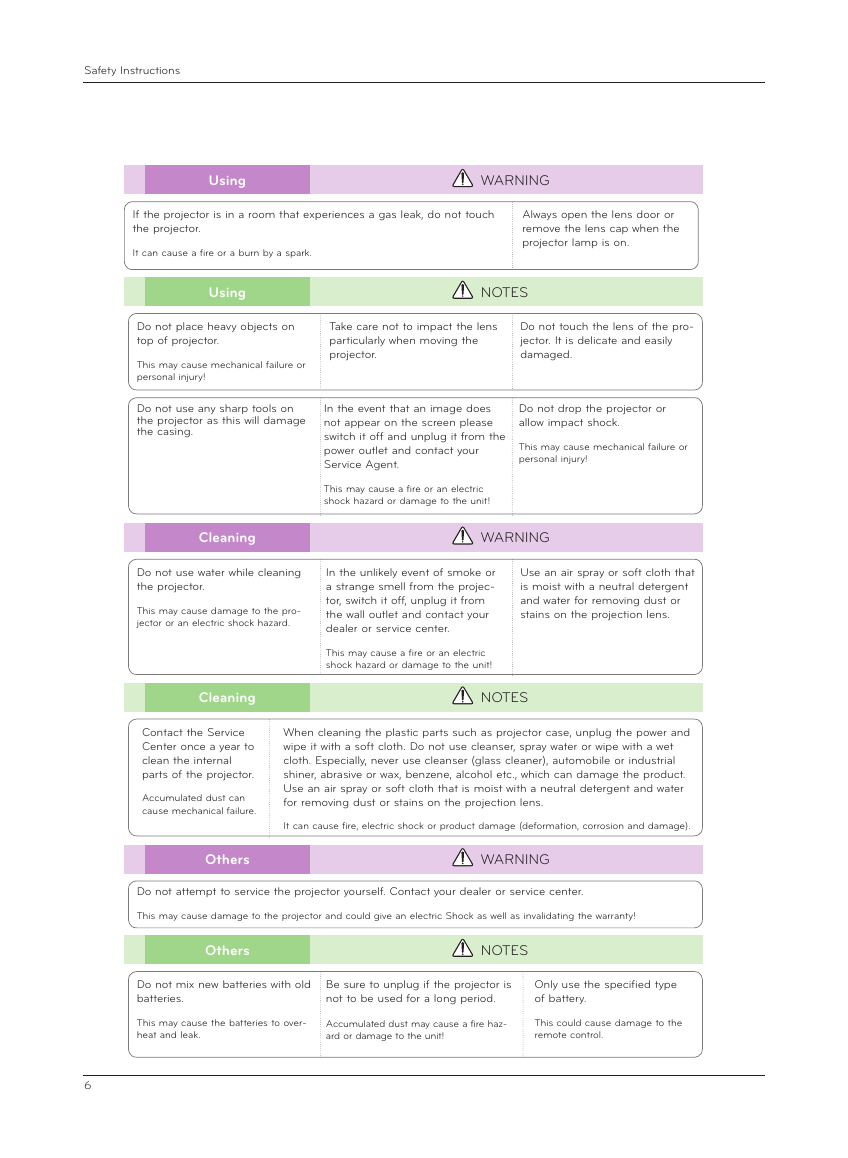

Safety Instructions Using WARNING If the projector is in a room that experiences a gas leak, do not touch the projector. It can cause a fire or a burn by a spark. Always open the lens door or remove the lens cap when the projector lamp is on. Using NOTES Do not place heavy objects on top of projector. This may cause mechanical failure or personal injury! Do not use any sharp tools on the projector as this will damage the casing. Take care not to impact the lens particularly when moving the projector. Do not touch the lens of the pro- jector. It is delicate and easily damaged. In the event that an image does not appear on the screen please switch it off and unplug it from the power outlet and contact your Service Agent. Do not drop the projector or allow impact shock. This may cause mechanical failure or personal injury! This may cause a fire or an electric shock hazard or damage to the unit! Cleaning WARNING Do not use water while cleaning the projector. This may cause damage to the pro- jector or an electric shock hazard. In the unlikely event of smoke or a strange smell from the projec- tor, switch it off, unplug it from the wall outlet and contact your dealer or service center. This may cause a fire or an electric shock hazard or damage to the unit! Use an air spray or soft cloth that is moist with a neutral detergent and water for removing dust or stains on the projection lens. Cleaning Contact the Service Center once a year to clean the internal parts of the projector. Accumulated dust can cause mechanical failure. NOTES When cleaning the plastic parts such as projector case, unplug the power and wipe it with a soft cloth. Do not use cleanser, spray water or wipe with a wet cloth. Especially, never use cleanser (glass cleaner), automobile or industrial shiner, abrasive or wax, benzene, alcohol etc., which can damage the product. Use an air spray or soft cloth that is moist with a neutral detergent and water for removing dust or stains on the projection lens. It can cause fire, electric shock or product damage (deformation, corrosion and damage). Others WARNING Do not attempt to service the projector yourself. Contact your dealer or service center. This may cause damage to the projector and could give an electric Shock as well as invalidating the warranty! Others NOTES Do not mix new batteries with old batteries. Be sure to unplug if the projector is not to be used for a long period. Only use the specified type of battery. This may cause the batteries to over- heat and leak. Accumulated dust may cause a fire haz- ard or damage to the unit! This could cause damage to the remote control. 6

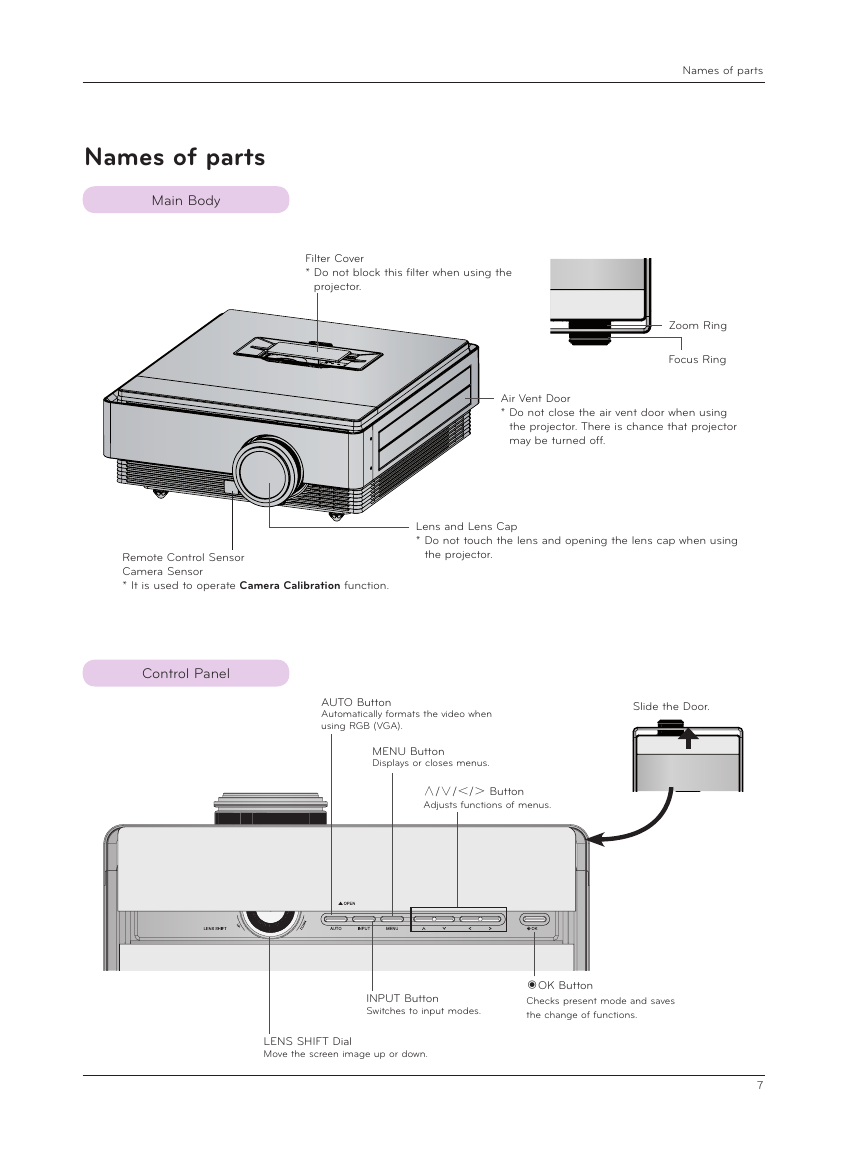

Names of parts Names of parts Main Body Filter Cover * Do not block this filter when using the projector. Zoom Ring Focus Ring Air Vent Door * Do not close the air vent door when using the projector. There is chance that projector may be turned off. Remote Control Sensor Camera Sensor * It is used to operate Camera Calibration function. Lens and Lens Cap * Do not touch the lens and opening the lens cap when using the projector. Control Panel AUTO Button Automatically formats the video when using RGB (VGA). MENU Button Displays or closes menus. ∧/∨/＜/＞ Button Adjusts functions of menus. Slide the Door. INPUT Button Switches to input modes. ◉OK Button Checks present mode and saves the change of functions. LENS SHIFT Dial Move the screen image up or down. 7

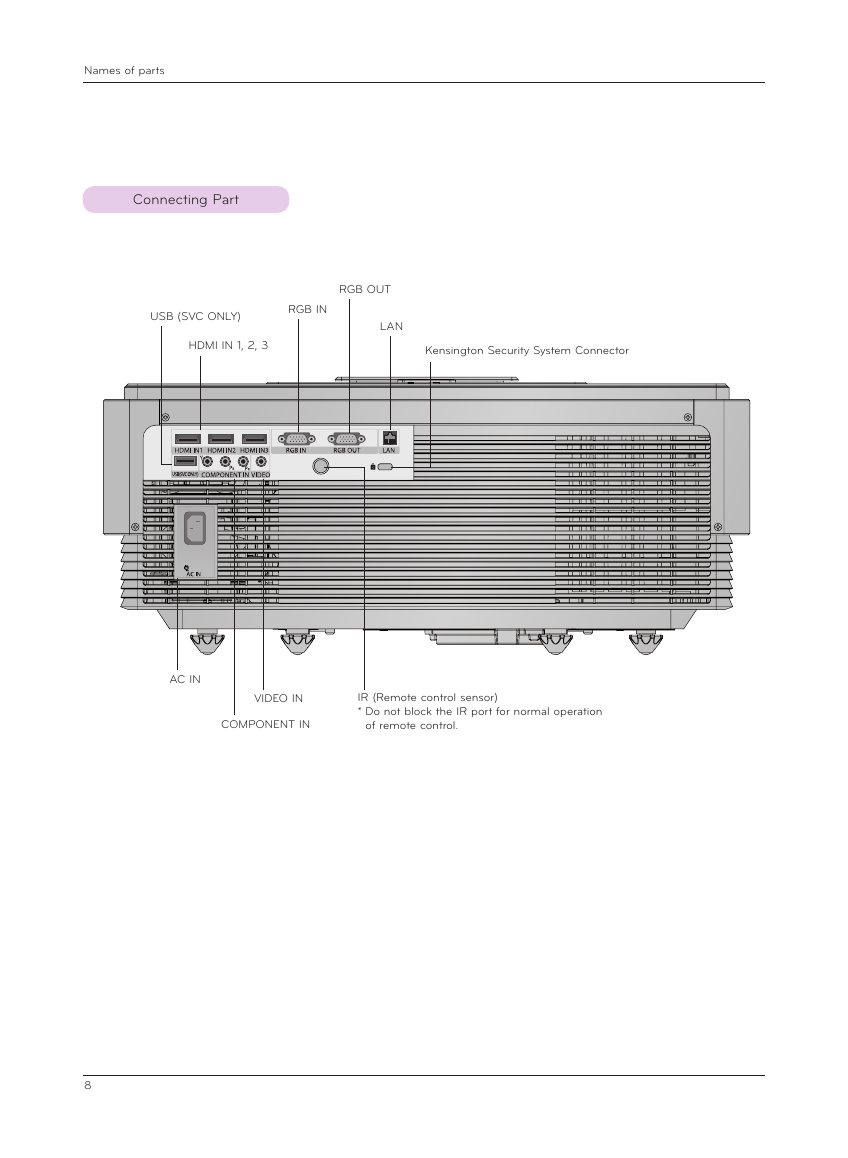

Names of parts Connecting Part USB (SVC ONLY) RGB IN HDMI IN 1, 2, 3 RGB OUT LAN Kensington Security System Connector AC IN VIDEO IN COMPONENT IN IR (Remote control sensor) * Do not block the IR port for normal operation of remote control. 8
