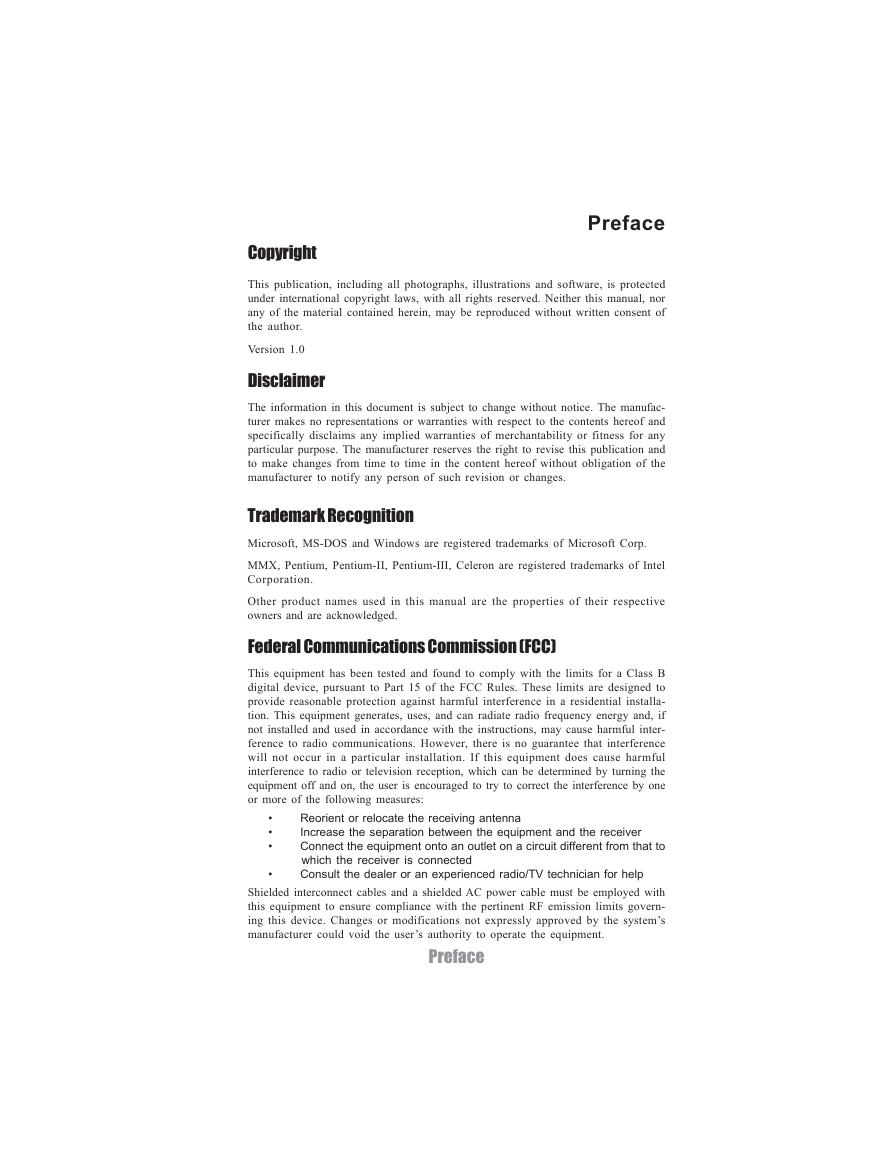

Preface Copyright This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. Neither this manual, nor any of the material contained herein, may be reproduced without written consent of the author. Version 1.0 Disclaimer The information in this document is subject to change without notice. The manufac- turer makes no representations or warranties with respect to the contents hereof and specifically disclaims any implied warranties of merchantability or fitness for any particular purpose. The manufacturer reserves the right to revise this publication and to make changes from time to time in the content hereof without obligation of the manufacturer to notify any person of such revision or changes. Trademark Recognition Microsoft, MS-DOS and Windows are registered trademarks of Microsoft Corp. MMX, Pentium, Pentium-II, Pentium-III, Celeron are registered trademarks of Intel Corporation. Other product names used in this manual are the properties of their respective owners and are acknowledged. Federal Communications Commission (FCC) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installa- tion. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful inter- ference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • • • • Reorient or relocate the receiving antenna Increase the separation between the equipment and the receiver Connect the equipment onto an outlet on a circuit different from that to which the receiver is connected Consult the dealer or an experienced radio/TV technician for help Shielded interconnect cables and a shielded AC power cable must be employed with this equipment to ensure compliance with the pertinent RF emission limits govern- ing this device. Changes or modifications not expressly approved by the system’s manufacturer could void the user’s authority to operate the equipment. Preface

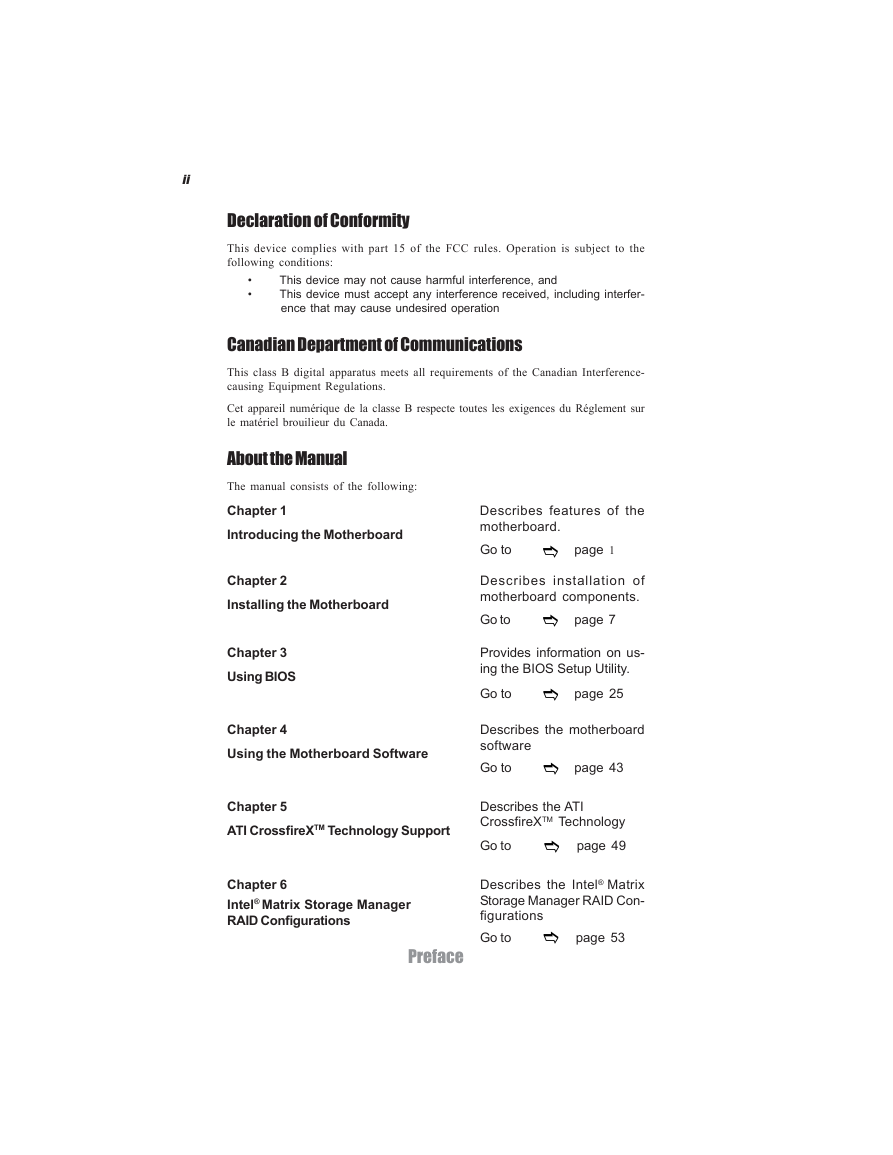

ii Declaration of Conformity This device complies with part 15 of the FCC rules. Operation is subject to the following conditions: • • This device may not cause harmful interference, and This device must accept any interference received, including interfer- ence that may cause undesired operation Canadian Department of Communications This class B digital apparatus meets all requirements of the Canadian Interference- causing Equipment Regulations. Cet appareil numérique de la classe B respecte toutes les exigences du Réglement sur le matériel brouilieur du Canada. About the Manual The manual consists of the following: Chapter 1 Introducing the Motherboard Chapter 2 Installing the Motherboard Chapter 3 Using BIOS Chapter 4 Using the Motherboard Software Chapter 5 ATI CrossfireXTM Technology Support Chapter 6 Intel® Matrix Storage Manager RAID Configurations Preface Describes features of the motherboard. Go to page 1 Describes installation of motherboard components. Go to page 7 Provides information on us- ing the BIOS Setup Utility. Go to page 25 Describes the motherboard software Go to page 43 Describes the ATI CrossfireXTM Technology Go to page 49 Describes the Intel® Matrix Storage Manager RAID Con- figurations Go to page 53

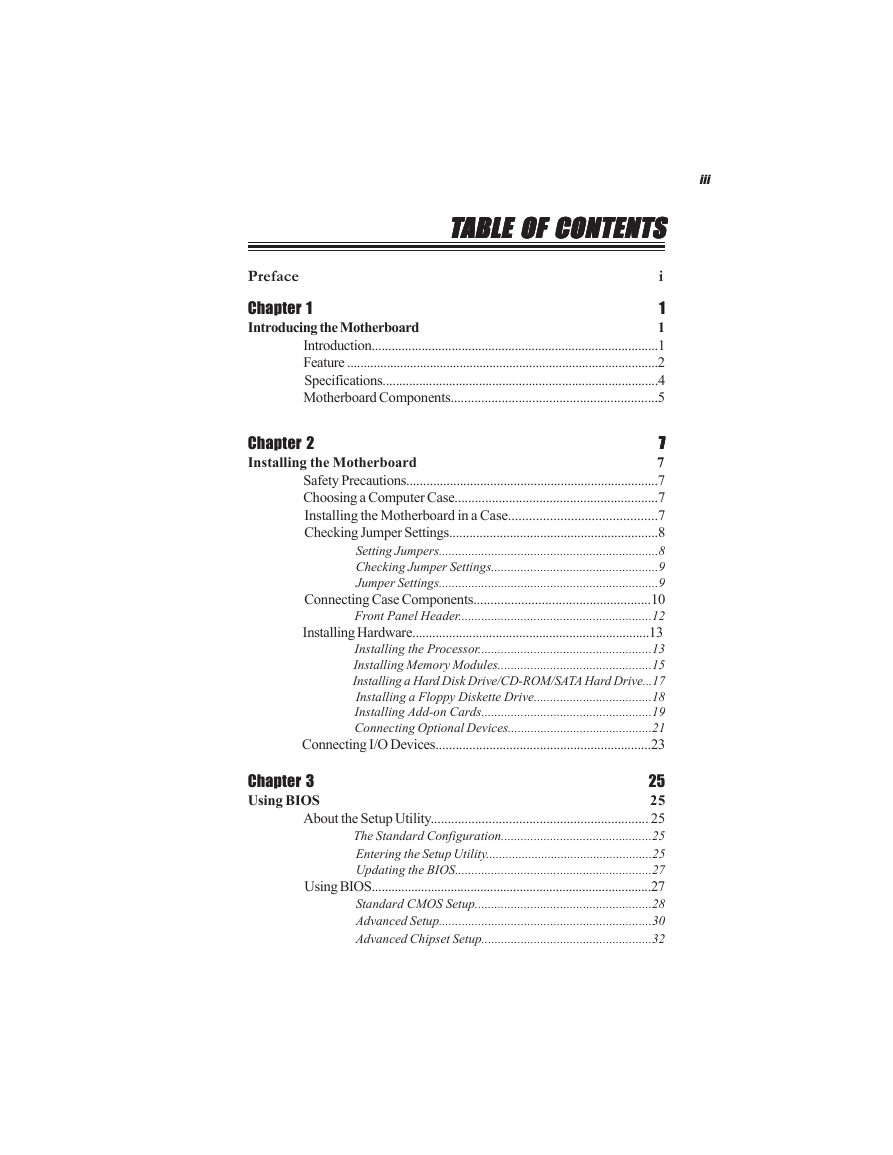

iii TTTTTABLE OF CONTENTS ABLE OF CONTENTS ABLE OF CONTENTS ABLE OF CONTENTS ABLE OF CONTENTS Preface i Chapter 1 Introducing the Motherboard 1 1 Introduction......................................................................................1 Feature ..............................................................................................2 Specifications...................................................................................4 Motherboard Components.............................................................5 7 7 7 7 7 Chapter 2 Installing the Motherboard 7 Safety Precautions...........................................................................7 Choosing a Computer Case............................................................7 Installing the Motherboard in a Case...........................................7 Checking Jumper Settings..............................................................8 Setting Jumpers...................................................................8 Checking Jumper Settings...................................................9 Jumper Settings...................................................................9 Connecting Case Components....................................................10 Front Panel Header...........................................................12 Installing Hardware.......................................................................13 Installing the Processor.....................................................13 Installing Memory Modules...............................................15 Installing a Hard Disk Drive/CD-ROM/SATA Hard Drive...17 Installing a Floppy Diskette Drive....................................18 Installing Add-on Cards....................................................19 Connecting Optional Devices............................................21 Connecting I/O Devices................................................................23 Chapter 3 Using BIOS 25 25 About the Setup Utility................................................................ 25 The Standard Configuration..............................................25 Entering the Setup Utility...................................................25 Updating the BIOS............................................................27 Using BIOS.....................................................................................27 Standard CMOS Setup......................................................28 Advanced Setup.................................................................30 Advanced Chipset Setup....................................................32

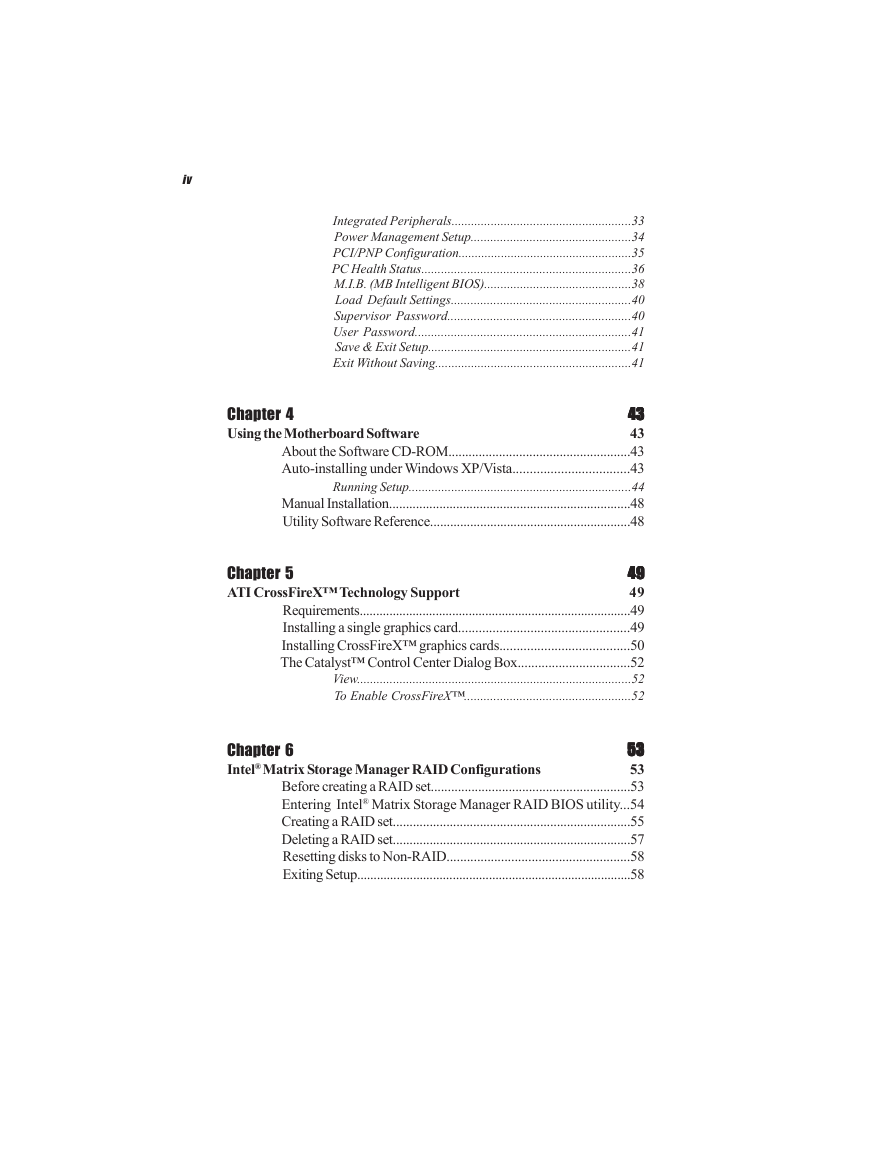

iv Integrated Peripherals.......................................................33 Power Management Setup.................................................34 PCI/PNP Configuration.....................................................35 PC Health Status................................................................36 M.I.B. (MB Intelligent BIOS).............................................38 Load Default Settings.......................................................40 Supervisor Password........................................................40 User Password..................................................................41 Save & Exit Setup..............................................................41 Exit Without Saving............................................................41 Chapter 4 Using the Motherboard Software 43 43 43 43 43 43 About the Software CD-ROM......................................................43 Auto-installing under Windows XP/Vista..................................43 Running Setup....................................................................44 Manual Installation........................................................................48 Utility Software Reference............................................................48 Chapter 5 ATI CrossFireX™ Technology Support 49 49 49 49 49 49 Requirements..................................................................................49 Installing a single graphics card..................................................49 Installing CrossFireX™ graphics cards......................................50 The Catalyst™ Control Center Dialog Box.................................52 View....................................................................................52 To Enable CrossFireX™...................................................52 Chapter 6 Intel® Matrix Storage Manager RAID Configurations 53 53 53 53 53 53 Before creating a RAID set...........................................................53 Entering Intel® Matrix Storage Manager RAID BIOS utility...54 Creating a RAID set.......................................................................55 Deleting a RAID set.......................................................................57 Resetting disks to Non-RAID......................................................58 Exiting Setup...................................................................................58

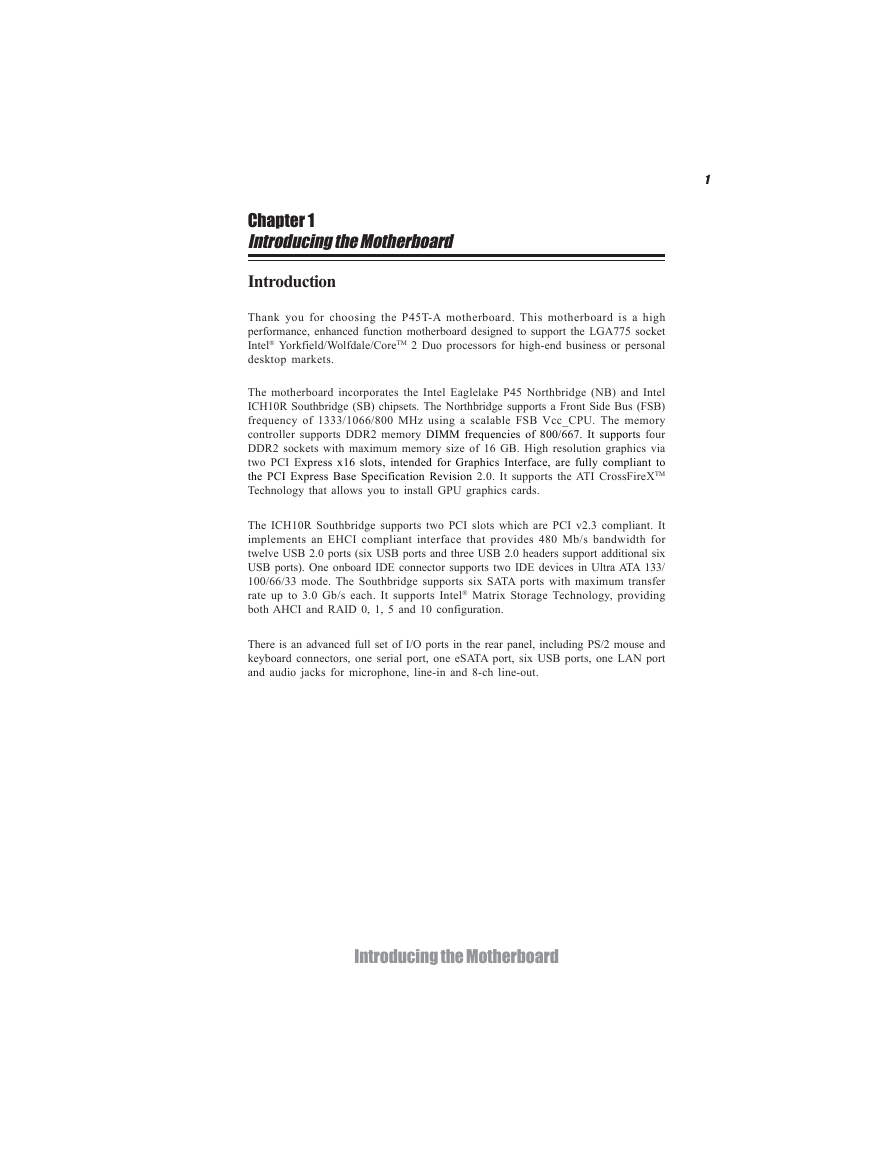

1 Chapter 1 Introducing the Motherboard Introduction Thank you for choosing the P45T-A motherboard. This motherboard is a high performance, enhanced function motherboard designed to support the LGA775 socket Intel® Yorkfield/Wolfdale/CoreTM 2 Duo processors for high-end business or personal desktop markets. The motherboard incorporates the Intel Eaglelake P45 Northbridge (NB) and Intel ICH10R Southbridge (SB) chipsets. The Northbridge supports a Front Side Bus (FSB) frequency of 1333/1066/800 MHz using a scalable FSB Vcc_CPU. The memory controller supports DDR2 memory DIMM frequencies of 800/667. It supports four DDR2 sockets with maximum memory size of 16 GB. High resolution graphics via two PCI Express x16 slots, intended for Graphics Interface, are fully compliant to the PCI Express Base Specification Revision 2.0. It supports the ATI CrossFireXTM Technology that allows you to install GPU graphics cards. The ICH10R Southbridge supports two PCI slots which are PCI v2.3 compliant. It implements an EHCI compliant interface that provides 480 Mb/s bandwidth for twelve USB 2.0 ports (six USB ports and three USB 2.0 headers support additional six USB ports). One onboard IDE connector supports two IDE devices in Ultra ATA 133/ 100/66/33 mode. The Southbridge supports six SATA ports with maximum transfer rate up to 3.0 Gb/s each. It supports Intel® Matrix Storage Technology, providing both AHCI and RAID 0, 1, 5 and 10 configuration. There is an advanced full set of I/O ports in the rear panel, including PS/2 mouse and keyboard connectors, one serial port, one eSATA port, six USB ports, one LAN port and audio jacks for microphone, line-in and 8-ch line-out. Introducing the Motherboard

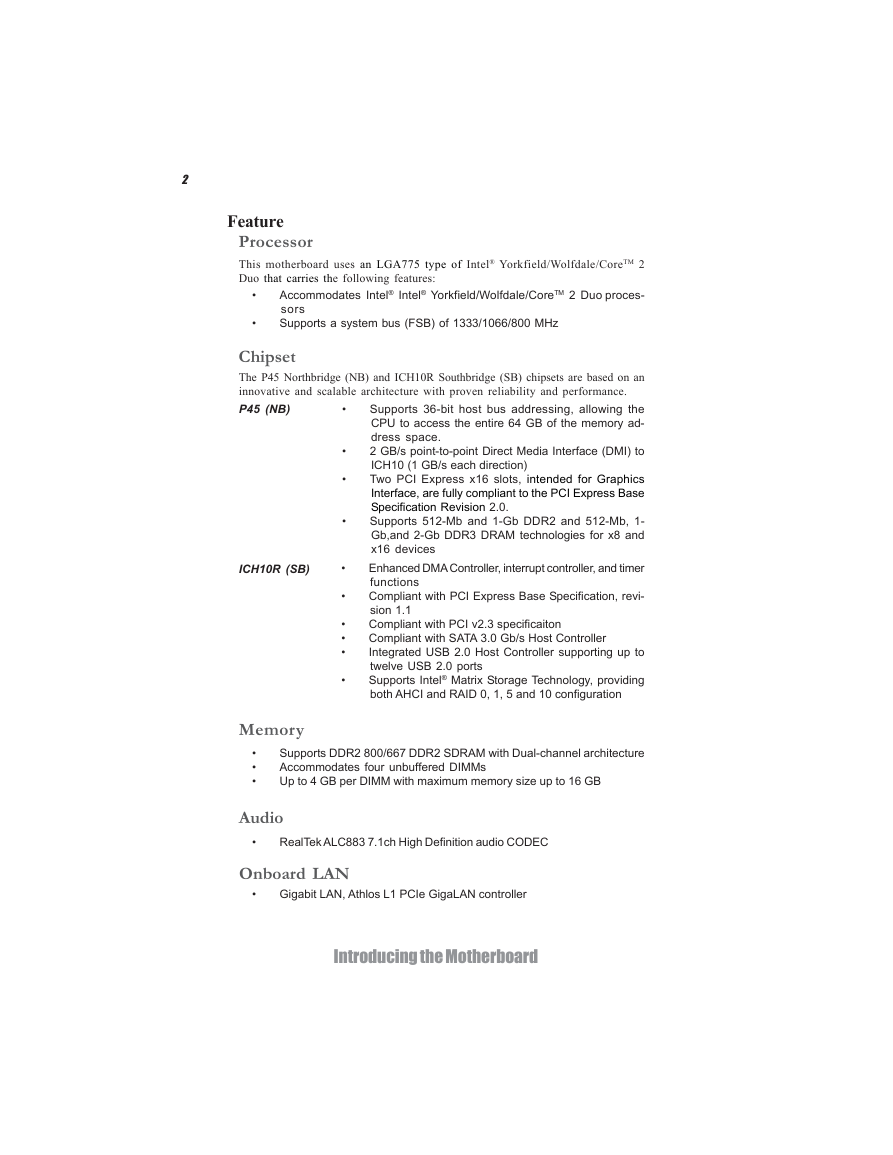

2 Feature Processor This motherboard uses an LGA775 type of Intel® Yorkfield/Wolfdale/CoreTM 2 Duo that carries the following features: • • Accommodates Intel® Intel® Yorkfield/Wolfdale/CoreTM 2 Duo proces- sors Supports a system bus (FSB) of 1333/1066/800 MHz Chipset The P45 Northbridge (NB) and ICH10R Southbridge (SB) chipsets are based on an innovative and scalable architecture with proven reliability and performance. P45 (NB) • ICH10R (SB) • • • • • • • • • Supports 36-bit host bus addressing, allowing the CPU to access the entire 64 GB of the memory ad- dress space. 2 GB/s point-to-point Direct Media Interface (DMI) to ICH10 (1 GB/s each direction) Two PCI Express x16 slots, intended for Graphics Interface, are fully compliant to the PCI Express Base Specification Revision 2.0. Supports 512-Mb and 1-Gb DDR2 and 512-Mb, 1- Gb,and 2-Gb DDR3 DRAM technologies for x8 and x16 devices Enhanced DMA Controller, interrupt controller, and timer functions Compliant with PCI Express Base Specification, revi- sion 1.1 Compliant with PCI v2.3 specificaiton Compliant with SATA 3.0 Gb/s Host Controller Integrated USB 2.0 Host Controller supporting up to twelve USB 2.0 ports Supports Intel® Matrix Storage Technology, providing both AHCI and RAID 0, 1, 5 and 10 configuration Memory • • • Supports DDR2 800/667 DDR2 SDRAM with Dual-channel architecture Accommodates four unbuffered DIMMs Up to 4 GB per DIMM with maximum memory size up to 16 GB Audio • RealTek ALC883 7.1ch High Definition audio CODEC Onboard LAN • Gigabit LAN, Athlos L1 PCIe GigaLAN controller Introducing the Motherboard
