R P/I-P65UP5 Baseboard USER'S MANUAL

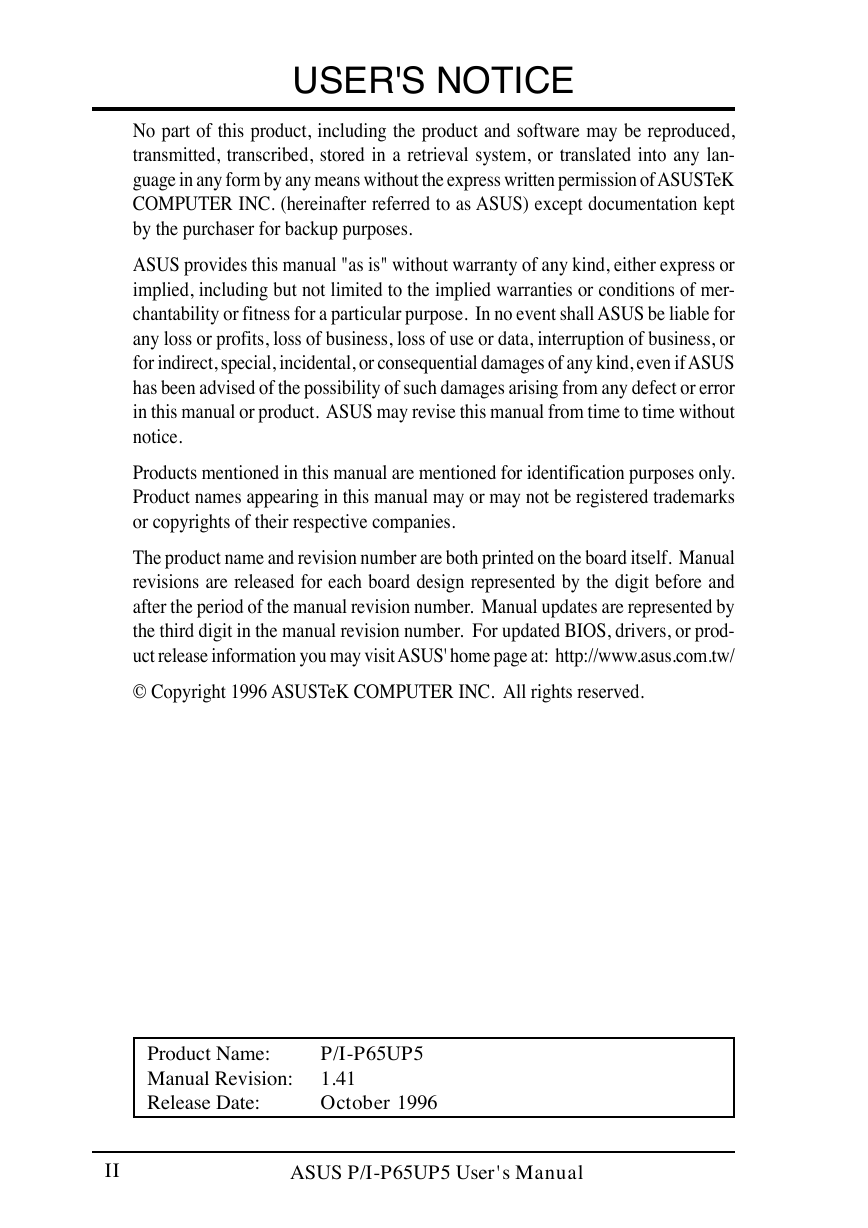

USER'S NOTICE No part of this product, including the product and software may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any lan- guage in any form by any means without the express written permission of ASUSTeK COMPUTER INC. (hereinafter referred to as ASUS) except documentation kept by the purchaser for backup purposes. ASUS provides this manual "as is" without warranty of any kind, either express or implied, including but not limited to the implied warranties or conditions of mer- chantability or fitness for a particular purpose. In no event shall ASUS be liable for any loss or profits, loss of business, loss of use or data, interruption of business, or for indirect, special, incidental, or consequential damages of any kind, even if ASUS has been advised of the possibility of such damages arising from any defect or error in this manual or product. ASUS may revise this manual from time to time without notice. Products mentioned in this manual are mentioned for identification purposes only. Product names appearing in this manual may or may not be registered trademarks or copyrights of their respective companies. The product name and revision number are both printed on the board itself. Manual revisions are released for each board design represented by the digit before and after the period of the manual revision number. Manual updates are represented by the third digit in the manual revision number. For updated BIOS, drivers, or prod- uct release information you may visit ASUS' home page at: http://www.asus.com.tw/ © Copyright 1996 ASUSTeK COMPUTER INC. All rights reserved. Product Name: Manual Revision: Release Date: P/I-P65UP5 1.41 October 1996 II ASUS P/I-P65UP5 User's Manual

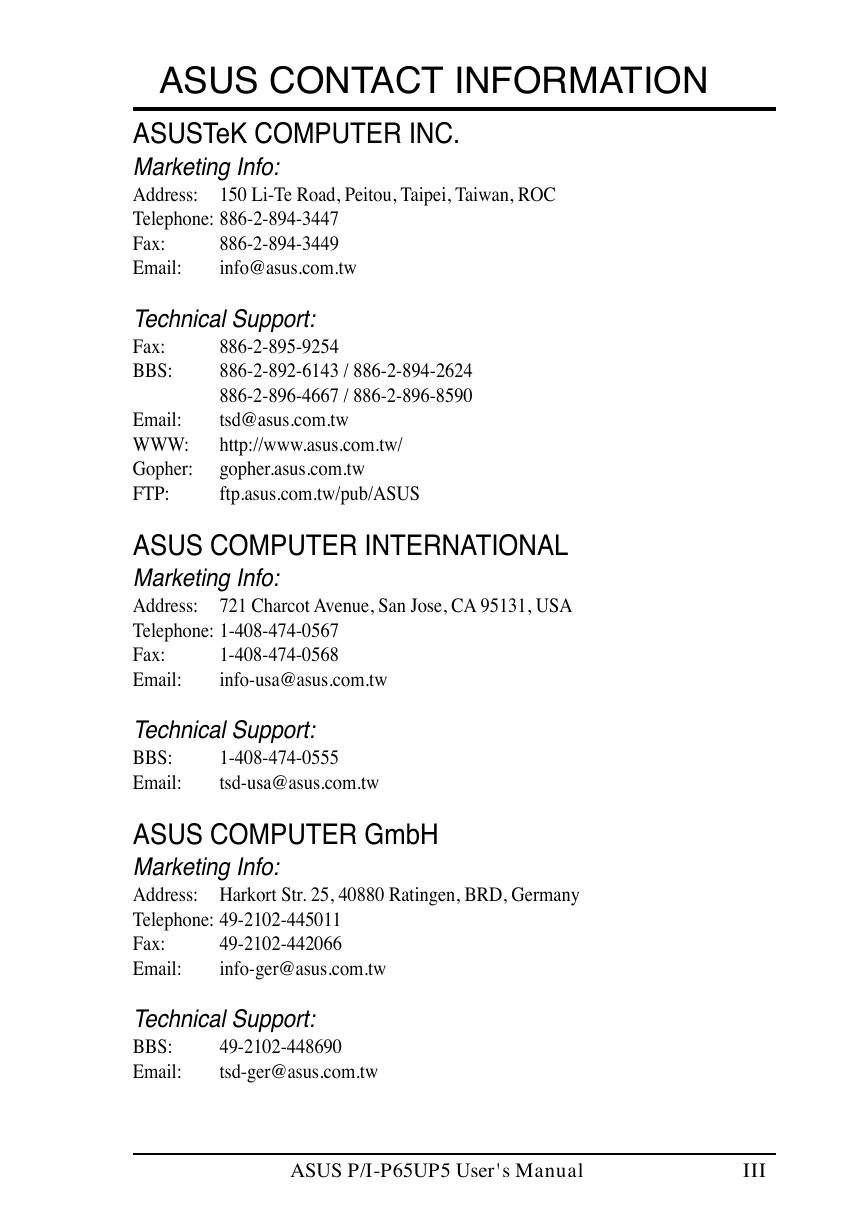

ASUS CONTACT INFORMATION ASUSTeK COMPUTER INC. Marketing Info: Address: Telephone: 886-2-894-3447 886-2-894-3449 Fax: Email: info@asus.com.tw 150 Li-Te Road, Peitou, Taipei, Taiwan, ROC Technical Support: Fax: BBS: 886-2-895-9254 886-2-892-6143 / 886-2-894-2624 886-2-896-4667 / 886-2-896-8590 tsd@asus.com.tw http://www.asus.com.tw/ gopher.asus.com.tw ftp.asus.com.tw/pub/ASUS Email: WWW: Gopher: FTP: ASUS COMPUTER INTERNATIONAL Marketing Info: Address: Telephone: 1-408-474-0567 1-408-474-0568 Fax: Email: info-usa@asus.com.tw 721 Charcot Avenue, San Jose, CA 95131, USA Technical Support: BBS: Email: 1-408-474-0555 tsd-usa@asus.com.tw ASUS COMPUTER GmbH Marketing Info: Address: Harkort Str. 25, 40880 Ratingen, BRD, Germany Telephone: 49-2102-445011 49-2102-442066 Fax: Email: info-ger@asus.com.tw Technical Support: BBS: Email: 49-2102-448690 tsd-ger@asus.com.tw ASUS P/I-P65UP5 User's Manual III

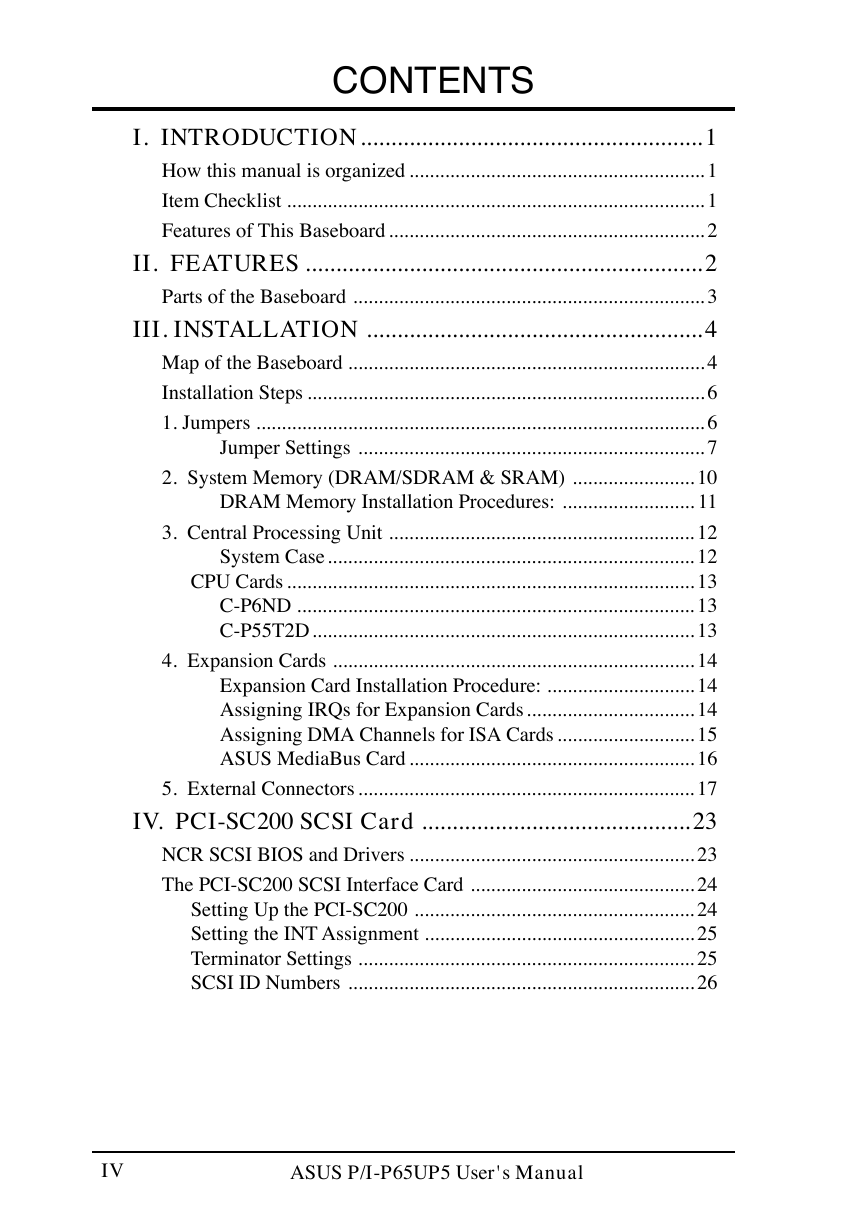

CONTENTS I. INTRODUCTION........................................................1 How this manual is organized .......................................................... 1 Item Checklist .................................................................................. 1 Features of This Baseboard .............................................................. 2 II. FEATURES .................................................................2 Parts of the Baseboard ..................................................................... 3 III. INSTALLATION .......................................................4 Map of the Baseboard ...................................................................... 4 Installation Steps .............................................................................. 6 1. Jumpers ........................................................................................ 6 Jumper Settings .................................................................... 7 2. System Memory (DRAM/SDRAM & SRAM) ........................ 10 DRAM Memory Installation Procedures: .......................... 11 3. Central Processing Unit ............................................................ 12 System Case........................................................................ 12 CPU Cards ................................................................................ 13 C-P6ND .............................................................................. 13 C-P55T2D........................................................................... 13 4. Expansion Cards ....................................................................... 14 Expansion Card Installation Procedure: ............................. 14 Assigning IRQs for Expansion Cards................................. 14 Assigning DMA Channels for ISA Cards ........................... 15 ASUS MediaBus Card ........................................................ 16 5. External Connectors .................................................................. 17 IV. PCI-SC200 SCSI Card ............................................23 NCR SCSI BIOS and Drivers ........................................................ 23 The PCI-SC200 SCSI Interface Card ............................................ 24 Setting Up the PCI-SC200 ....................................................... 24 Setting the INT Assignment ..................................................... 25 Terminator Settings .................................................................. 25 SCSI ID Numbers .................................................................... 26 IV ASUS P/I-P65UP5 User's Manual

ASUS P/I-P65UP5 User's Manual V

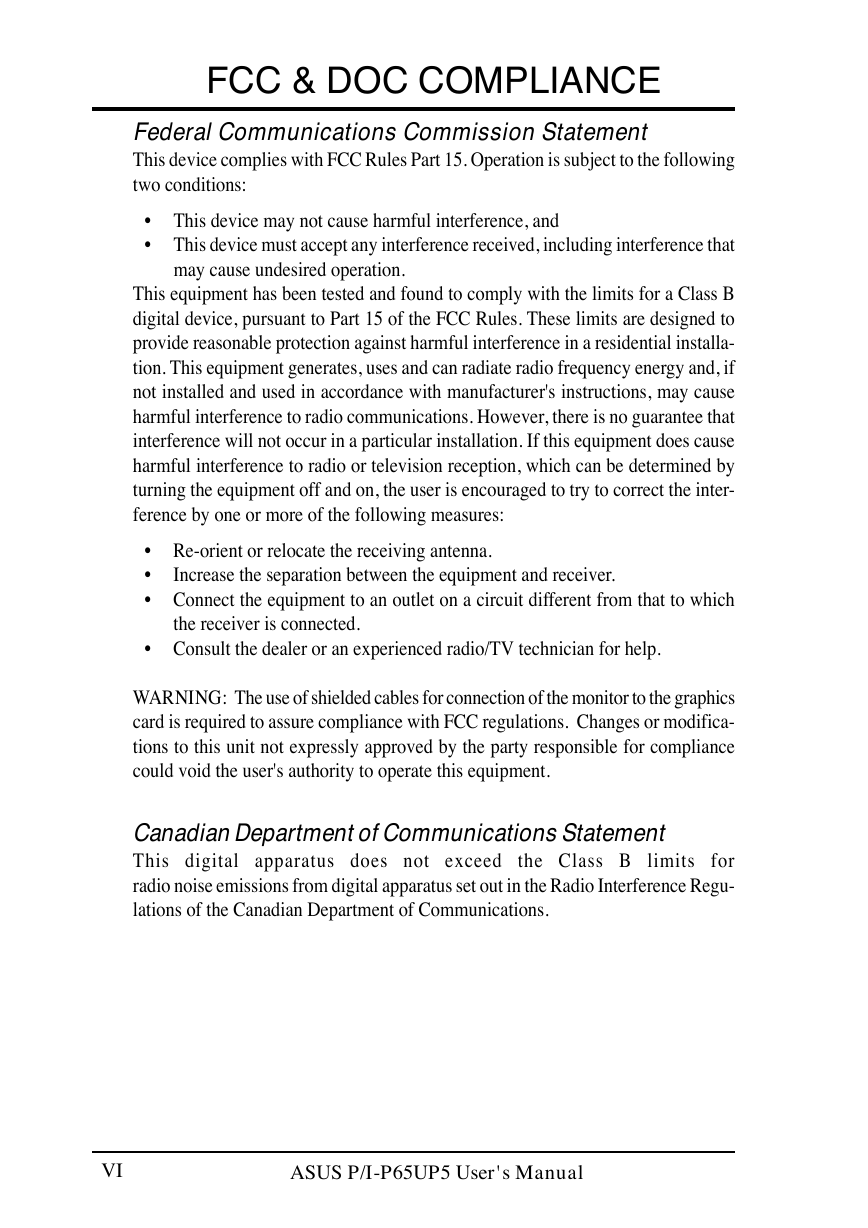

FCC & DOC COMPLIANCE Federal Communications Commission Statement This device complies with FCC Rules Part 15. Operation is subject to the following two conditions: • This device may not cause harmful interference, and • This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installa- tion. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with manufacturer's instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the inter- ference by one or more of the following measures: • Re-orient or relocate the receiving antenna. • • Connect the equipment to an outlet on a circuit different from that to which Increase the separation between the equipment and receiver. the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. WARNING: The use of shielded cables for connection of the monitor to the graphics card is required to assure compliance with FCC regulations. Changes or modifica- tions to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. Canadian Department of Communications Statement This digital apparatus does not exceed limits for radio noise emissions from digital apparatus set out in the Radio Interference Regu- lations of the Canadian Department of Communications. the Class B VI ASUS P/I-P65UP5 User's Manual

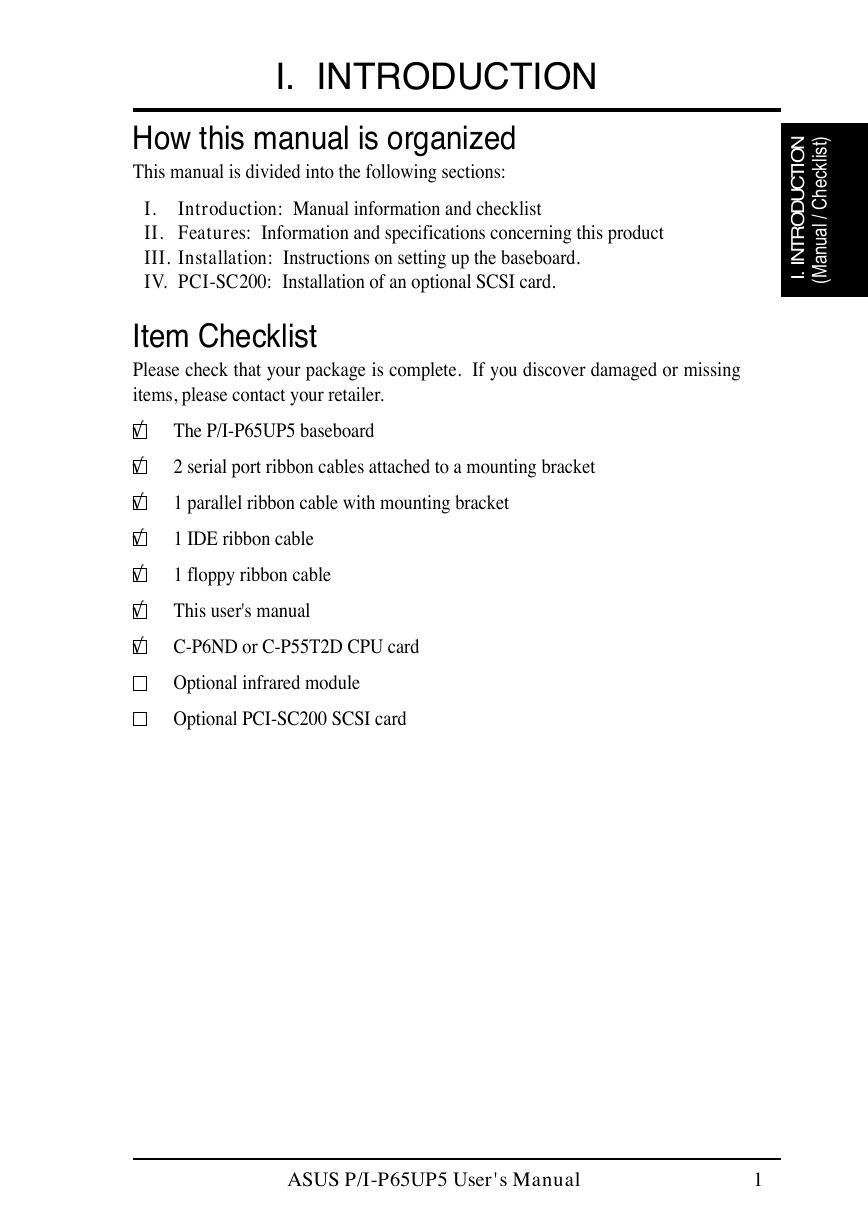

) t s i l I N O T C U D O R T N I . I k c e h C / l a u n a M ( I. INTRODUCTION How this manual is organized This manual is divided into the following sections: Introduction: Manual information and checklist I. II. Features: Information and specifications concerning this product III. Installation: Instructions on setting up the baseboard. IV. PCI-SC200: Installation of an optional SCSI card. Item Checklist Please check that your package is complete. If you discover damaged or missing items, please contact your retailer. The P/I-P65UP5 baseboard 2 serial port ribbon cables attached to a mounting bracket 1 parallel ribbon cable with mounting bracket 1 IDE ribbon cable 1 floppy ribbon cable This user's manual C-P6ND or C-P55T2D CPU card Optional infrared module Optional PCI-SC200 SCSI card ASUS P/I-P65UP5 User's Manual 1

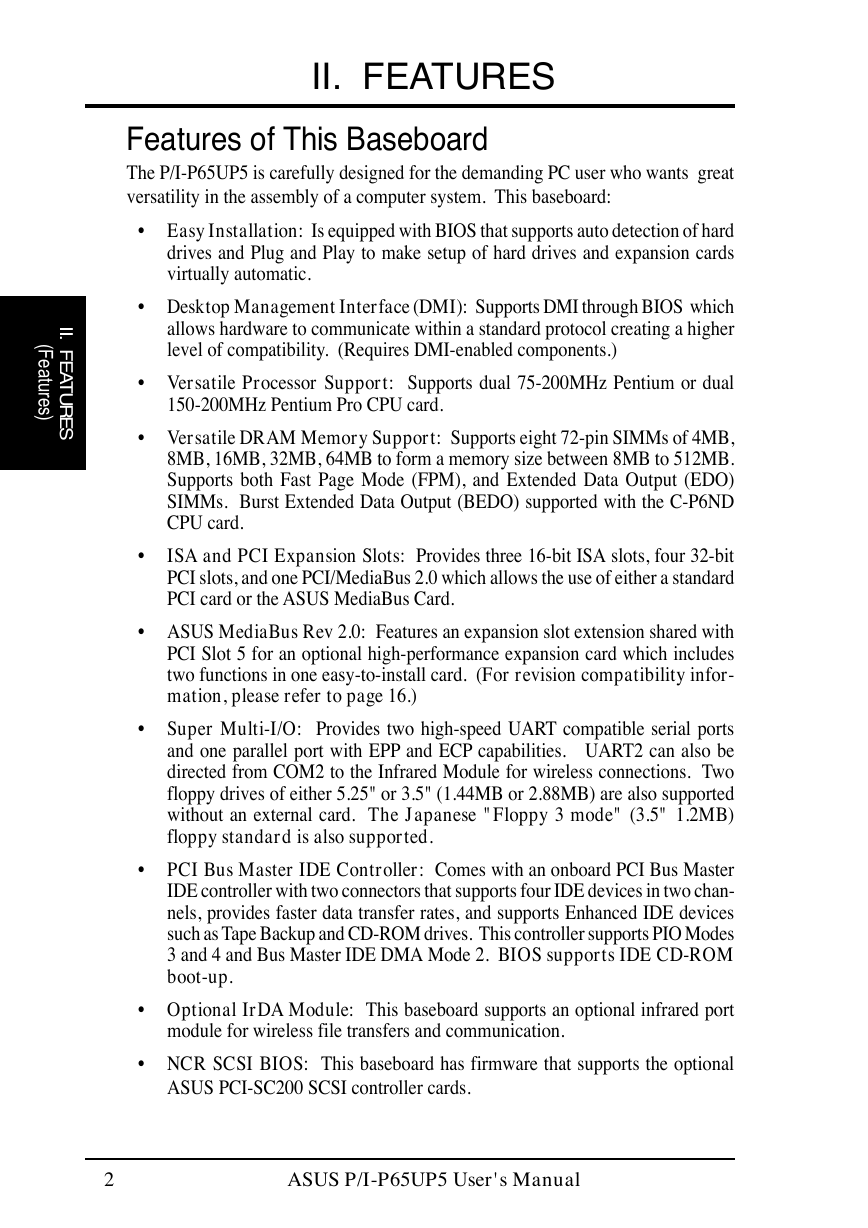

( F e a t I I . F E A T U R E S u r e s ) II. FEATURES Features of This Baseboard The P/I-P65UP5 is carefully designed for the demanding PC user who wants great versatility in the assembly of a computer system. This baseboard: • Easy Installation: Is equipped with BIOS that supports auto detection of hard drives and Plug and Play to make setup of hard drives and expansion cards virtually automatic. • Desktop Management Interface (DMI): Supports DMI through BIOS which allows hardware to communicate within a standard protocol creating a higher level of compatibility. (Requires DMI-enabled components.) • Versatile Processor Support: Supports dual 75-200MHz Pentium or dual 150-200MHz Pentium Pro CPU card. • Versatile DRAM Memory Support: Supports eight 72-pin SIMMs of 4MB, 8MB, 16MB, 32MB, 64MB to form a memory size between 8MB to 512MB. Supports both Fast Page Mode (FPM), and Extended Data Output (EDO) SIMMs. Burst Extended Data Output (BEDO) supported with the C-P6ND CPU card. ISA and PCI Expansion Slots: Provides three 16-bit ISA slots, four 32-bit PCI slots, and one PCI/MediaBus 2.0 which allows the use of either a standard PCI card or the ASUS MediaBus Card. • • • ASUS MediaBus Rev 2.0: Features an expansion slot extension shared with PCI Slot 5 for an optional high-performance expansion card which includes two functions in one easy-to-install card. (For revision compatibility infor- mation, please refer to page 16.) Super Multi-I/O: Provides two high-speed UART compatible serial ports and one parallel port with EPP and ECP capabilities. UART2 can also be directed from COM2 to the Infrared Module for wireless connections. Two floppy drives of either 5.25" or 3.5" (1.44MB or 2.88MB) are also supported without an external card. The Japanese "Floppy 3 mode" (3.5" 1.2MB) floppy standard is also supported. PCI Bus Master IDE Controller: Comes with an onboard PCI Bus Master IDE controller with two connectors that supports four IDE devices in two chan- nels, provides faster data transfer rates, and supports Enhanced IDE devices such as Tape Backup and CD-ROM drives. This controller supports PIO Modes 3 and 4 and Bus Master IDE DMA Mode 2. BIOS supports IDE CD-ROM boot-up. • • Optional IrDA Module: This baseboard supports an optional infrared port module for wireless file transfers and communication. • NCR SCSI BIOS: This baseboard has firmware that supports the optional ASUS PCI-SC200 SCSI controller cards. 2 ASUS P/I-P65UP5 User's Manual
