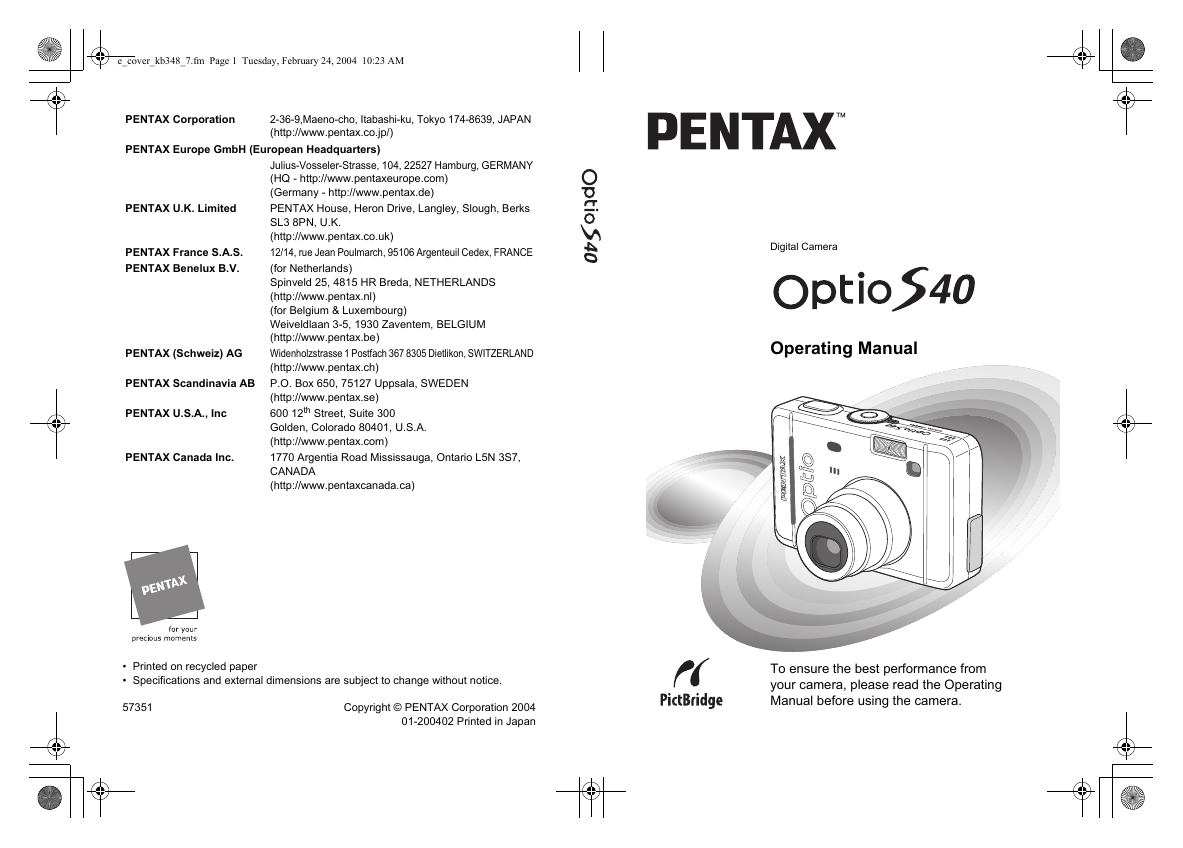

e_cover_kb348_7.fm Page 1 Tuesday, February 24, 2004 10:23 AM PENTAX Corporation 2-36-9,Maeno-cho, Itabashi-ku, Tokyo 174-8639, JAPAN (http://www.pentax.co.jp/) PENTAX Europe GmbH (European Headquarters) PENTAX U.K. Limited PENTAX France S.A.S. PENTAX Benelux B.V. PENTAX (Schweiz) AG Julius-Vosseler-Strasse, 104, 22527 Hamburg, GERMANY (HQ - http://www.pentaxeurope.com) (Germany - http://www.pentax.de) PENTAX House, Heron Drive, Langley, Slough, Berks SL3 8PN, U.K. (http://www.pentax.co.uk) 12/14, rue Jean Poulmarch, 95106 Argenteuil Cedex, FRANCE (for Netherlands) Spinveld 25, 4815 HR Breda, NETHERLANDS (http://www.pentax.nl) (for Belgium & Luxembourg) Weiveldlaan 3-5, 1930 Zaventem, BELGIUM (http://www.pentax.be) Widenholzstrasse 1 Postfach 367 8305 Dietlikon, SWITZERLAND (http://www.pentax.ch) Digital Camera Operating Manual PENTAX Scandinavia AB P.O. Box 650, 75127 Uppsala, SWEDEN PENTAX U.S.A., Inc PENTAX Canada Inc. (http://www.pentax.se) 600 12th Street, Suite 300 Golden, Colorado 80401, U.S.A. (http://www.pentax.com) 1770 Argentia Road Mississauga, Ontario L5N 3S7, CANADA (http://www.pentaxcanada.ca) • Printed on recycled paper • Specifications and external dimensions are subject to change without notice. 57351 Copyright © PENTAX Corporation 2004 01-200402 Printed in Japan To ensure the best performance from your camera, please read the Operating Manual before using the camera.

e_kb348.book Page 1 Tuesday, February 24, 2004 2:43 PM Thank you for buying the PENTAX Optio S40 Digital Camera. Please read this manual before using the camera in order to get the most out of all the features and functions. Keep this manual safe, as it can be a valuable tool in helping you to understand all the camera's capabilities. Regarding copyrights Images taken using the Optio S40 that are for anything other than personal enjoyment cannot be used without permission according to the rights as specified in the Copyright Act. Please take care, as there are even cases where limitations are placed on taking pictures even for personal enjoyment during demonstrations, industrial enterprise or as items for display. Images taken with the purpose of obtaining copyrights also cannot be used outside the scope of use of the copyright as laid out in the Copyright Act, and care should be taken here also. To users of this camera • There is a possibility that recorded data may be erased or that the camera may not function correctly when used in surroundings such as installations generating strong electromagnetic radiation or magnetic fields. • The liquid crystal panel used in the LCD display is manufactured using extremely high precision technology. Although the level of functioning pixels is 99.99% or better, you should be aware that 0.01% or fewer of the pixels may not illuminate or may illuminate when they should not. However, this has no effect on the recorded image. Regarding trademarks • The SD logo • PENTAX is a trademark of PENTAX Corporation. • Optio is a trademark of PENTAX Corporation. • All other brands or product names are trademarks or registered trademarks of is a trademark. their respective companies. • This product supports PRINT Image Matching II. When used in combination, PRINT Image Matching II enables digital still cameras, printers and software help photographers to produce images more faithful to their intentions. Copyright 2001 Seiko Epson Corporation. All Rights Reserved. PRINT Image Matching II is a trademark of Seiko Epson Corporation. • “PictBridge” allows the user to connect the printer and digital camera directly, using the unified standard for the direct printout of images. You can print images directly from the camera through a few simple operations. • There is a possibility that the illustrations and the display screen of the LCD monitor in this manual are different form the actual product.

e_kb348.book Page 1 Tuesday, February 24, 2004 2:43 PM FOR SAFE USE OF YOUR CAMERA Sufficient attention has been paid to the safety of this product but please pay particular attention to the warnings indicated by the following symbols during use. Warning These symbols indicate that it is possible that the user may experience serious difficulties if the warnings are not heeded. These symbols indicate that it is possible that the user may experience minor or middling difficulties or physical difficulties if the warnings are not heeded. Caution About the Camera Warning • Do not attempt to take the camera apart or remodel the camera. High voltages are present within the camera, and there is therefore a danger of electric shocks. • If the inside of the camera should become exposed as a result of, for example, the camera being dropped, please do not under any circumstances touch such exposed portions, as there is a danger of receiving an electric shock. • Wrapping the strap of the camera around your neck is also dangerous. Please take care that small children do not hang the strap around their necks. • To avoid the risk of it being swallowed by mistake, keep the SD Memory Card out of the reach of small children. Seek medical attention immediately if accidentally swallowed. • Use an AC adapter that is of the power and voltage specified for exclusive use with this product. The use of an AC adapter other than that specified exclusively for use with this product may cause fire or electric shocks. • If the camera emits smoke or a strange smell, or in the event of any other irregularity, stop using the camera immediately, remove the battery or disconnect the AC adapter and contact your nearest PENTAX service center. Continued use of the camera may result in fire or electric shock. 1

e_kb348.book Page 2 Tuesday, February 24, 2004 2:43 PM Caution • Never try to disassemble or short the battery. Also, do not dispose of the battery in fire, as it may explode. • Do not charge any batteries other than rechargeable Ni-MH batteries. The battery could explode or catch fire. Of the batteries that can be used in this camera, only the Ni-MH battery can be recharged. • Do not place your finger on the flash when it is discharging as there is a risk of burns. risk of discoloring. • Do not discharge the flash while it is touching your clothing as there is a • If any of the battery leakage should come in contact with your eyes, do not rub them. Flush your eyes with clean water and get medical attention immediately. • If any of the battery leakage should come in contact with skin or clothes, wash the affected areas thoroughly with water. • Remove the battery from the camera immediately if it becomes hot or begins to smoke. Be careful not to burn yourself during removal. • Some portions of the camera heat up during use, so please take care, as there is a risk of low temperature burns if such portions are held for long periods of time. • Should the LCD be damaged, be careful of glass fragments. Also, be careful not to allow the liquid crystal to get on your skin or eyes or in your mouth. 2

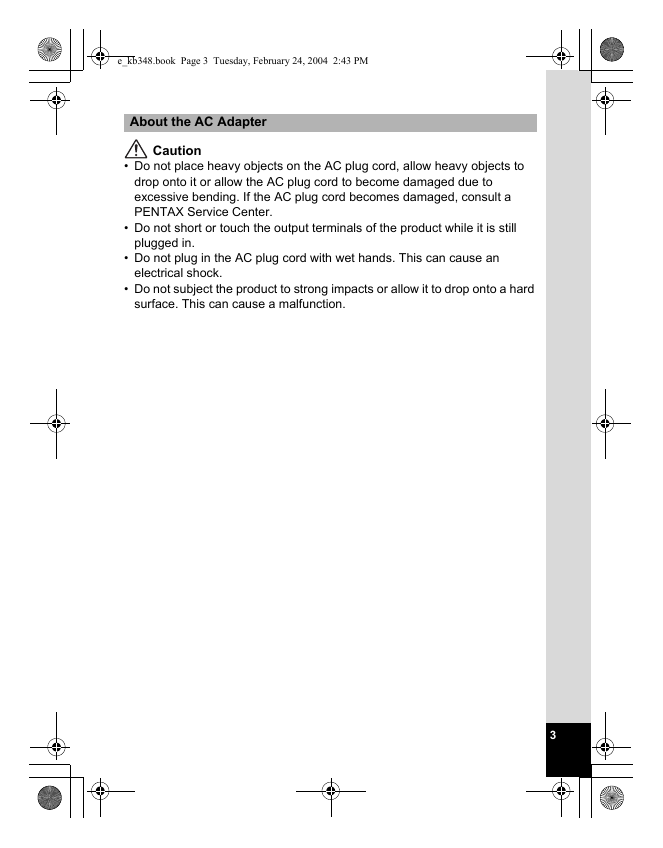

e_kb348.book Page 3 Tuesday, February 24, 2004 2:43 PM About the AC Adapter Caution • Do not place heavy objects on the AC plug cord, allow heavy objects to drop onto it or allow the AC plug cord to become damaged due to excessive bending. If the AC plug cord becomes damaged, consult a PENTAX Service Center. • Do not short or touch the output terminals of the product while it is still plugged in. electrical shock. • Do not plug in the AC plug cord with wet hands. This can cause an • Do not subject the product to strong impacts or allow it to drop onto a hard surface. This can cause a malfunction. 3

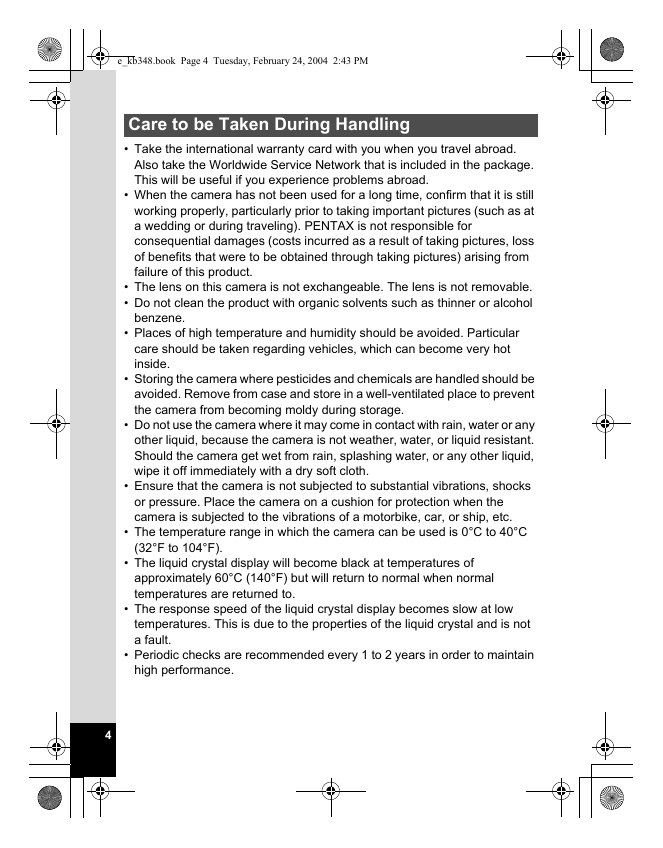

e_kb348.book Page 4 Tuesday, February 24, 2004 2:43 PM Care to be Taken During Handling • Take the international warranty card with you when you travel abroad. Also take the Worldwide Service Network that is included in the package. This will be useful if you experience problems abroad. • When the camera has not been used for a long time, confirm that it is still working properly, particularly prior to taking important pictures (such as at a wedding or during traveling). PENTAX is not responsible for consequential damages (costs incurred as a result of taking pictures, loss of benefits that were to be obtained through taking pictures) arising from failure of this product. • The lens on this camera is not exchangeable. The lens is not removable. • Do not clean the product with organic solvents such as thinner or alcohol benzene. • Places of high temperature and humidity should be avoided. Particular care should be taken regarding vehicles, which can become very hot inside. • Storing the camera where pesticides and chemicals are handled should be avoided. Remove from case and store in a well-ventilated place to prevent the camera from becoming moldy during storage. • Do not use the camera where it may come in contact with rain, water or any other liquid, because the camera is not weather, water, or liquid resistant. Should the camera get wet from rain, splashing water, or any other liquid, wipe it off immediately with a dry soft cloth. • Ensure that the camera is not subjected to substantial vibrations, shocks or pressure. Place the camera on a cushion for protection when the camera is subjected to the vibrations of a motorbike, car, or ship, etc. • The temperature range in which the camera can be used is 0°C to 40°C (32°F to 104°F). • The liquid crystal display will become black at temperatures of approximately 60°C (140°F) but will return to normal when normal temperatures are returned to. • The response speed of the liquid crystal display becomes slow at low temperatures. This is due to the properties of the liquid crystal and is not a fault. • Periodic checks are recommended every 1 to 2 years in order to maintain high performance. 4

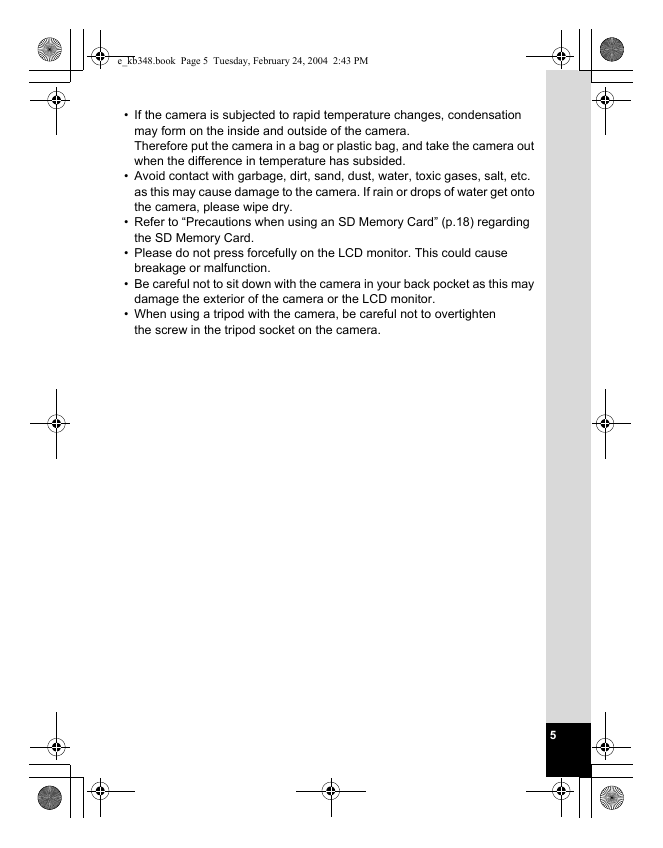

e_kb348.book Page 5 Tuesday, February 24, 2004 2:43 PM • If the camera is subjected to rapid temperature changes, condensation may form on the inside and outside of the camera. Therefore put the camera in a bag or plastic bag, and take the camera out when the difference in temperature has subsided. • Avoid contact with garbage, dirt, sand, dust, water, toxic gases, salt, etc. as this may cause damage to the camera. If rain or drops of water get onto the camera, please wipe dry. • Refer to “Precautions when using an SD Memory Card” (p.18) regarding • Be careful not to sit down with the camera in your back pocket as this may damage the exterior of the camera or the LCD monitor. • When using a tripod with the camera, be careful not to overtighten the screw in the tripod socket on the camera. • Please do not press forcefully on the LCD monitor. This could cause the SD Memory Card. breakage or malfunction. 5

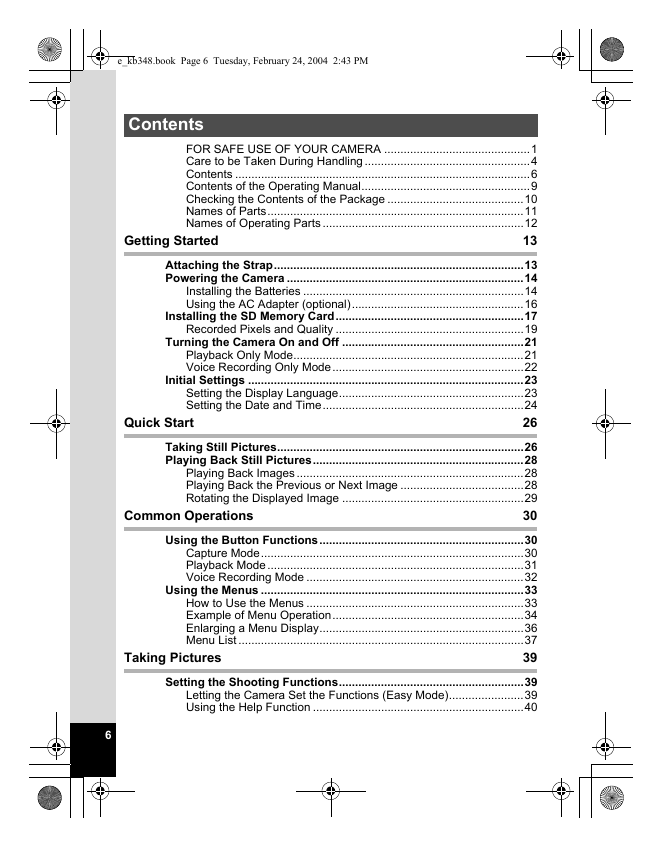

e_kb348.book Page 6 Tuesday, February 24, 2004 2:43 PM Contents Getting Started FOR SAFE USE OF YOUR CAMERA .............................................1 Care to be Taken During Handling ...................................................4 Contents ...........................................................................................6 Contents of the Operating Manual....................................................9 Checking the Contents of the Package ..........................................10 Names of Parts...............................................................................11 Names of Operating Parts ..............................................................12 13 Attaching the Strap.............................................................................13 Powering the Camera .........................................................................14 Installing the Batteries ....................................................................14 Using the AC Adapter (optional).....................................................16 Installing the SD Memory Card..........................................................17 Recorded Pixels and Quality ..........................................................19 Turning the Camera On and Off ........................................................21 Playback Only Mode.......................................................................21 Voice Recording Only Mode...........................................................22 Initial Settings .....................................................................................23 Setting the Display Language.........................................................23 Setting the Date and Time..............................................................24 26 Taking Still Pictures............................................................................26 Playing Back Still Pictures.................................................................28 Playing Back Images ......................................................................28 Playing Back the Previous or Next Image ......................................28 Rotating the Displayed Image ........................................................29 30 Using the Button Functions...............................................................30 Capture Mode.................................................................................30 Playback Mode ...............................................................................31 Voice Recording Mode ...................................................................32 Using the Menus .................................................................................33 How to Use the Menus ...................................................................33 Example of Menu Operation...........................................................34 Enlarging a Menu Display...............................................................36 Menu List ........................................................................................37 39 Setting the Shooting Functions.........................................................39 Letting the Camera Set the Functions (Easy Mode).......................39 Using the Help Function .................................................................40 Quick Start Common Operations Taking Pictures 6
