CONTENT 1. Advisory Note 1.1 CD-ROM 1.2 Before using the DC-302 1.3 Copyright information 1.4 Caution when using the camera 2. Getting to know your DC-302 2.1 Control Reference 2.2 Monitor screen display 3. Usage preparations 3.1 Load batteries and memory card 3.2 Turn ON/OFF the camera 3.3 Set up 1

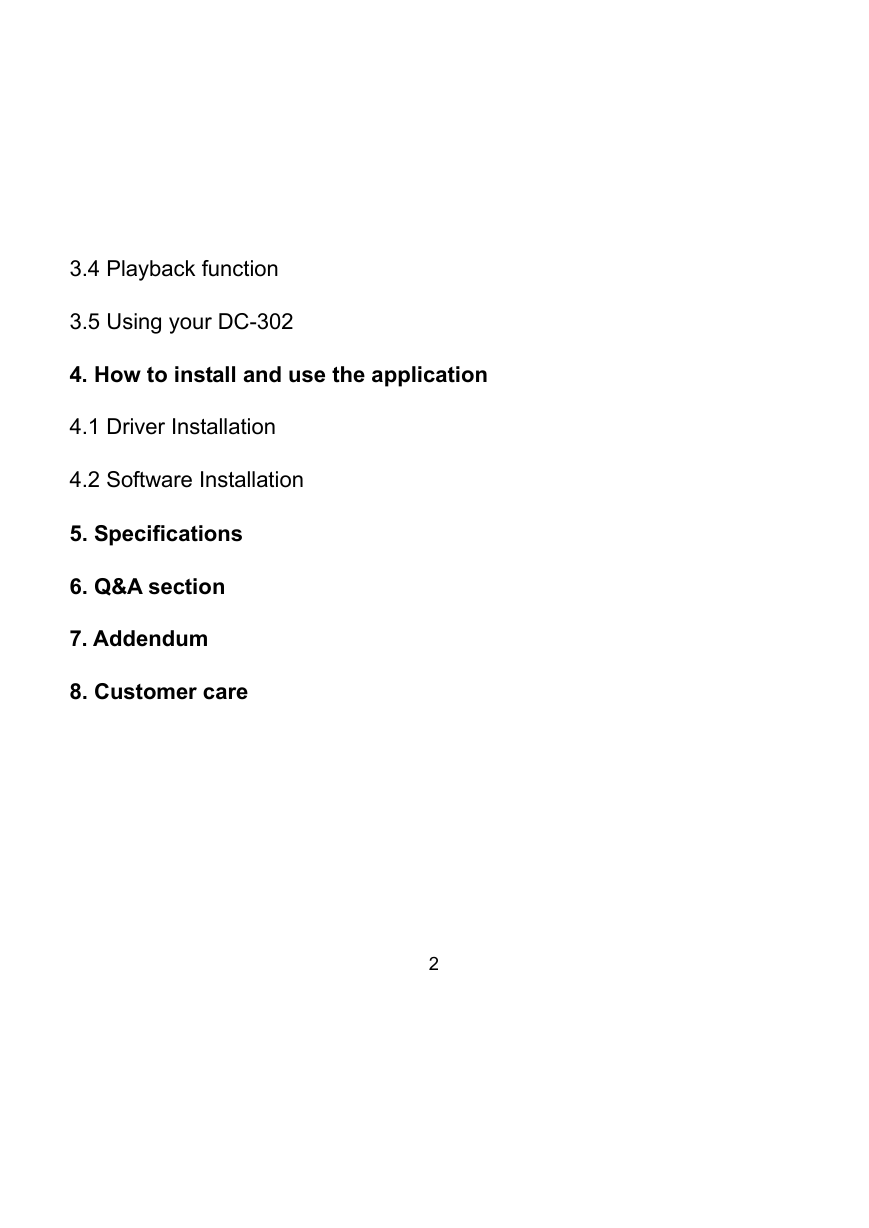

3.4 Playback function 3.5 Using your DC-302 4. How to install and use the application 4.1 Driver Installation 4.2 Software Installation 5. Specifications 6. Q&A section 7. Addendum 8. Customer care 2

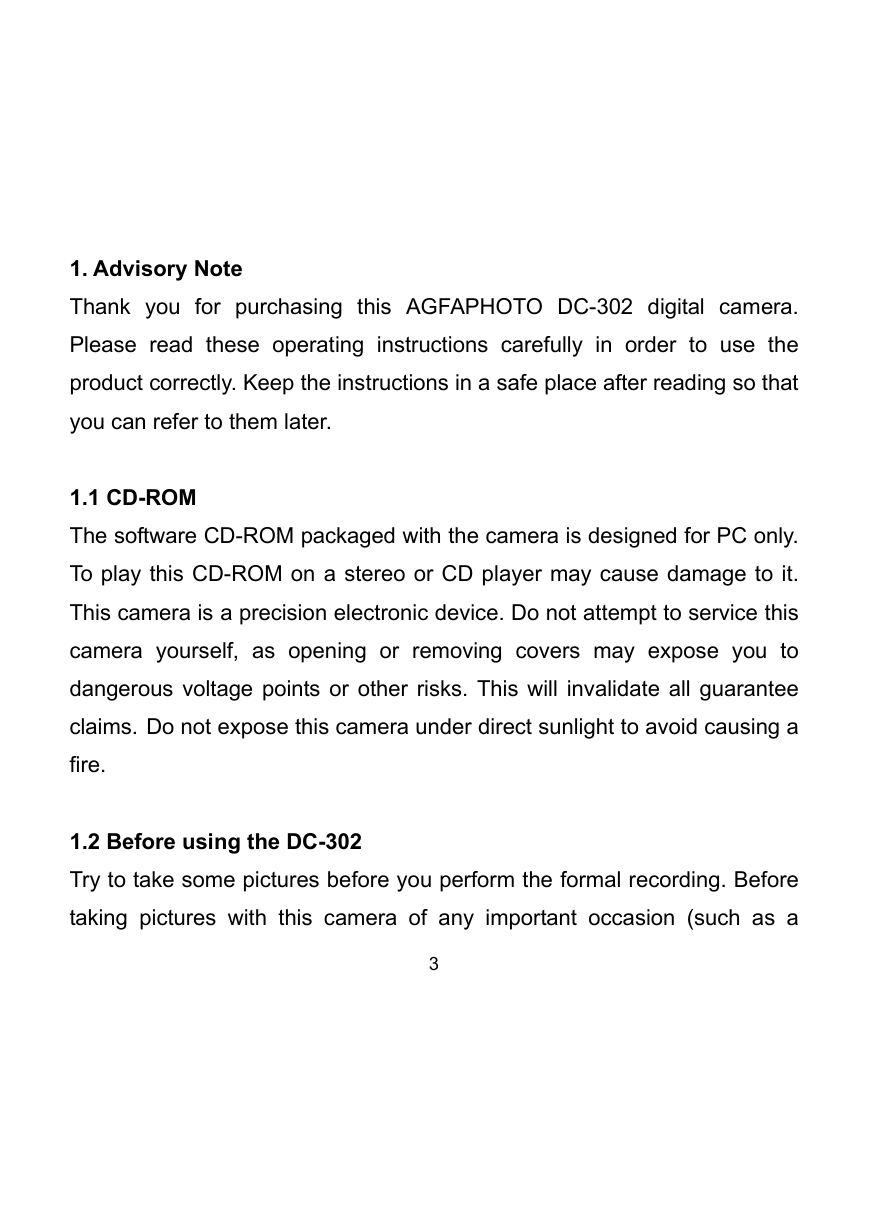

1. Advisory Note Thank you for purchasing this AGFAPHOTO DC-302 digital camera. Please read these operating instructions carefully in order to use the product correctly. Keep the instructions in a safe place after reading so that you can refer to them later. 1.1 CD-ROM The software CD-ROM packaged with the camera is designed for PC only. To play this CD-ROM on a stereo or CD player may cause damage to it. This camera is a precision electronic device. Do not attempt to service this camera yourself, as opening or removing covers may expose you to dangerous voltage points or other risks. This will invalidate all guarantee claims. Do not expose this camera under direct sunlight to avoid causing a fire. 1.2 Before using the DC-302 Try to take some pictures before you perform the formal recording. Before taking pictures with this camera of any important occasion (such as a 3

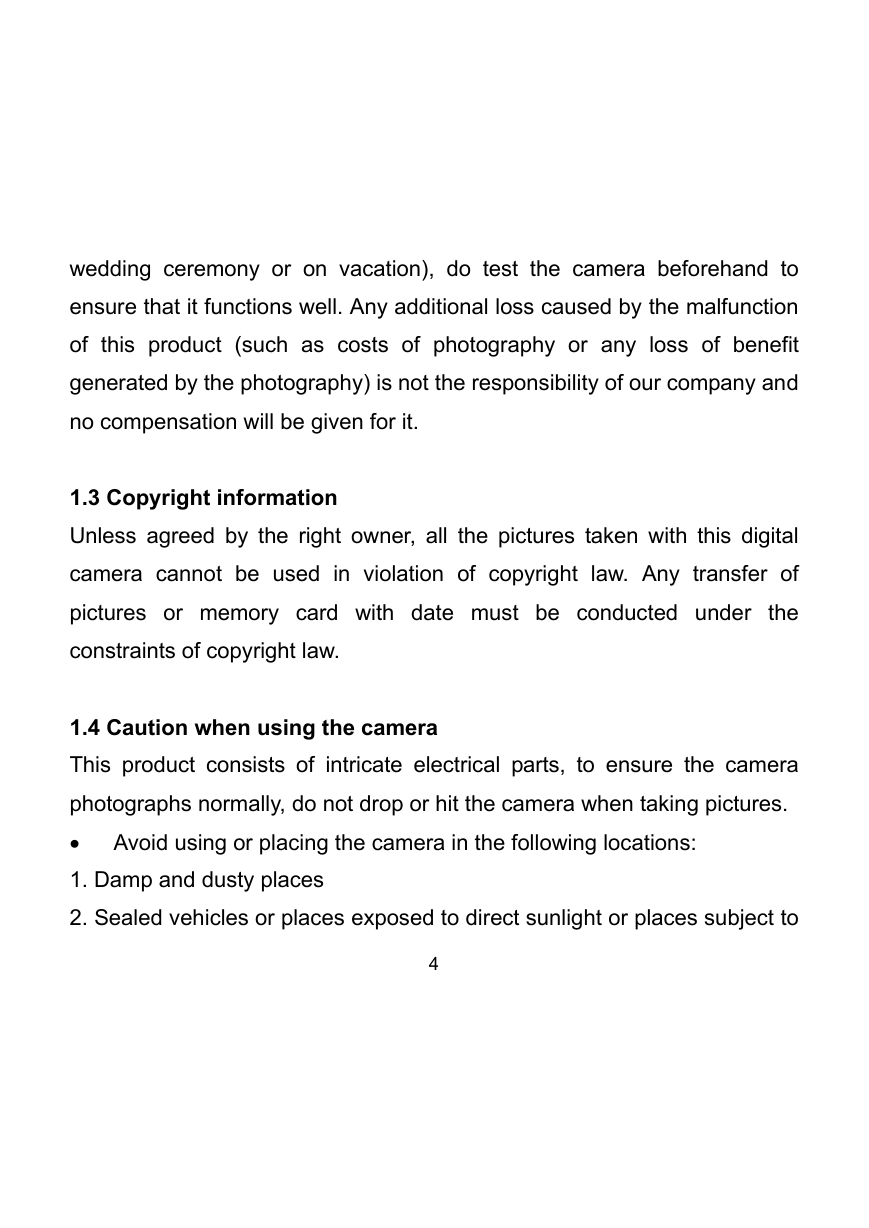

wedding ceremony or on vacation), do test the camera beforehand to ensure that it functions well. Any additional loss caused by the malfunction of this product (such as costs of photography or any loss of benefit generated by the photography) is not the responsibility of our company and no compensation will be given for it. 1.3 Copyright information Unless agreed by the right owner, all the pictures taken with this digital camera cannot be used in violation of copyright law. Any transfer of pictures or memory card with date must be conducted under the constraints of copyright law. 1.4 Caution when using the camera This product consists of intricate electrical parts, to ensure the camera photographs normally, do not drop or hit the camera when taking pictures. • Avoid using or placing the camera in the following locations: 1. Damp and dusty places 2. Sealed vehicles or places exposed to direct sunlight or places subject to 4

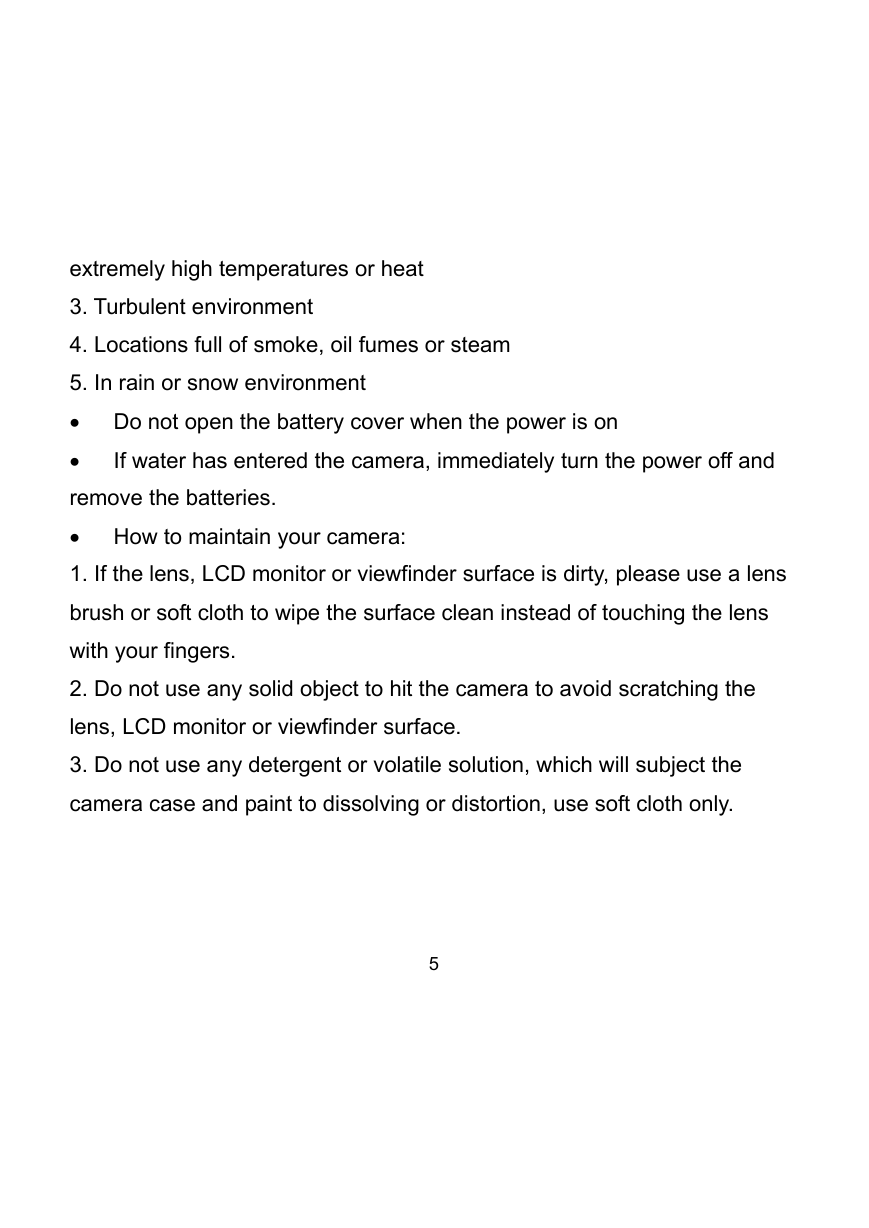

If water has entered the camera, immediately turn the power off and extremely high temperatures or heat 3. Turbulent environment 4. Locations full of smoke, oil fumes or steam 5. In rain or snow environment • Do not open the battery cover when the power is on • remove the batteries. • How to maintain your camera: 1. If the lens, LCD monitor or viewfinder surface is dirty, please use a lens brush or soft cloth to wipe the surface clean instead of touching the lens with your fingers. 2. Do not use any solid object to hit the camera to avoid scratching the lens, LCD monitor or viewfinder surface. 3. Do not use any detergent or volatile solution, which will subject the camera case and paint to dissolving or distortion, use soft cloth only. 5

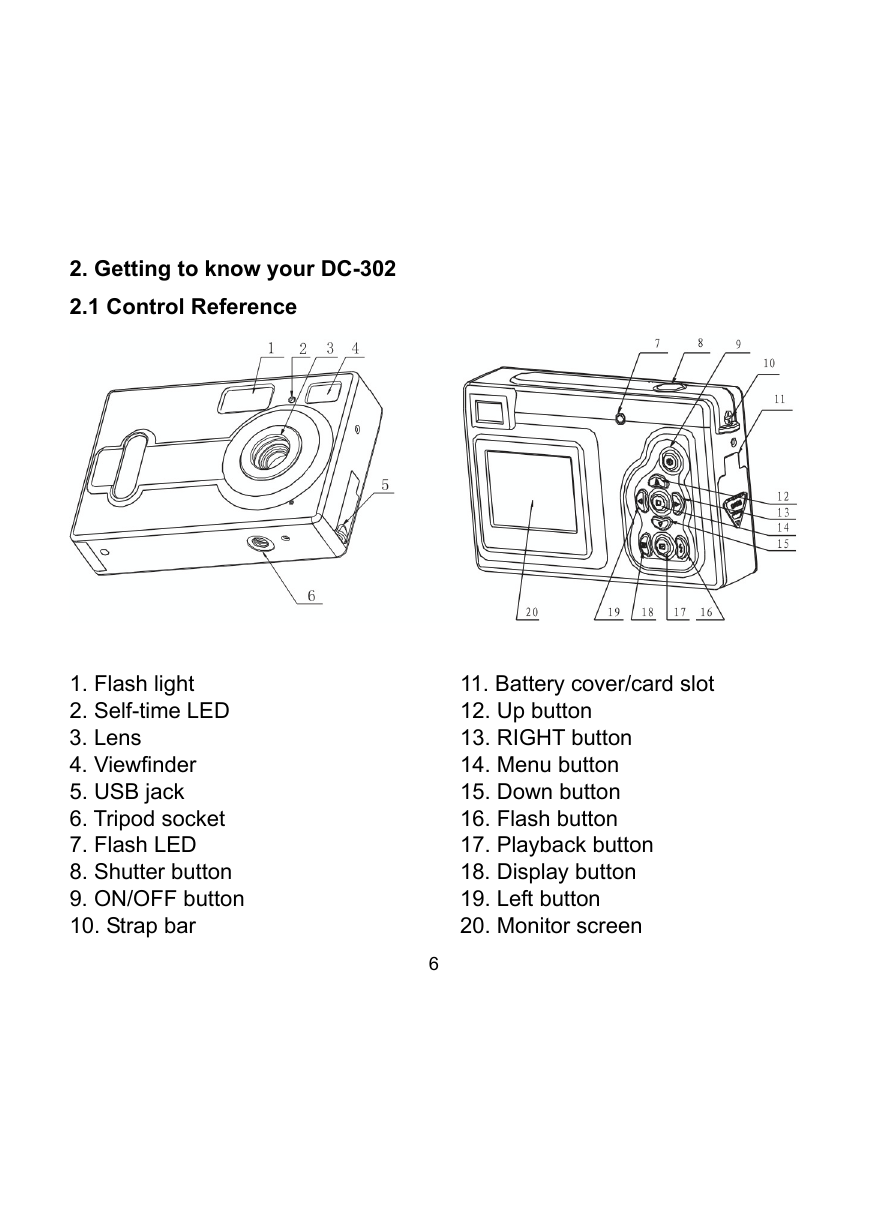

2. Getting to know your DC-302 2.1 Control Reference 1. Flash light 2. Self-time LED 3. Lens 4. Viewfinder 5. USB jack 6. Tripod socket 7. Flash LED 8. Shutter button 9. ON/OFF button 10. Strap bar 11. Battery cover/card slot 12. Up button 13. RIGHT button 14. Menu button 15. Down button 16. Flash button 17. Playback button 18. Display button 19. Left button 20. Monitor screen 6

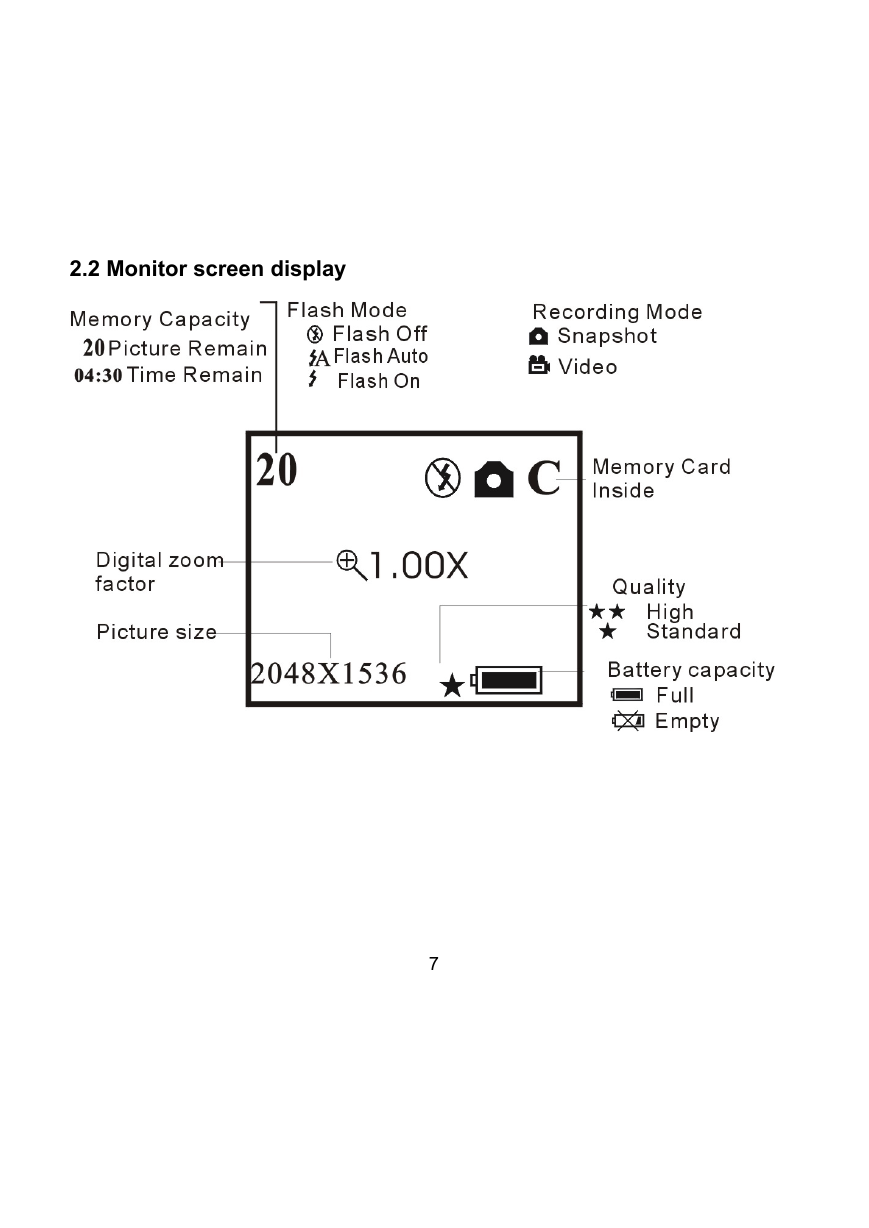

2.2 Monitor screen display 7

3. Usage preparations 3.1 Load batteries and memory card Open the battery cover and put in 3 AAA new alkaline batteries according to the polarity indicated on the battery door, then insert the memory card (not included in the scope of delivery), close the cover. When the battery is in low voltage, a selected icon will appear on the screen, you need to select what kind of battery you are using, if you use alkaline battery, you should select 1, the battery capacity icon will display half, then you cannot use flash light, but you can still take photos until the icon displays empty; if you use rechargeable battery, you should select 2, the battery capacity icon still display full, you can take photos until the icon display empty. 3.2 Turn ON/OFF the camera You start the camera when you press the ON/OFF button until the operation LED lights. Press the ON/OFF button for 2 seconds the camera will turn off. This camera is designed to automatically power off to save battery life in 30 seconds to 59 minutes 59 seconds of inactivity if not connected to USB. The auto power off time can be set in the menu of auto 8
