华硕主板-P2B-N说明书.pdf
® P2B-N
Pentium®III / Pentium® II / Celeron™
NLX Motherboard
USER’S MANUAL

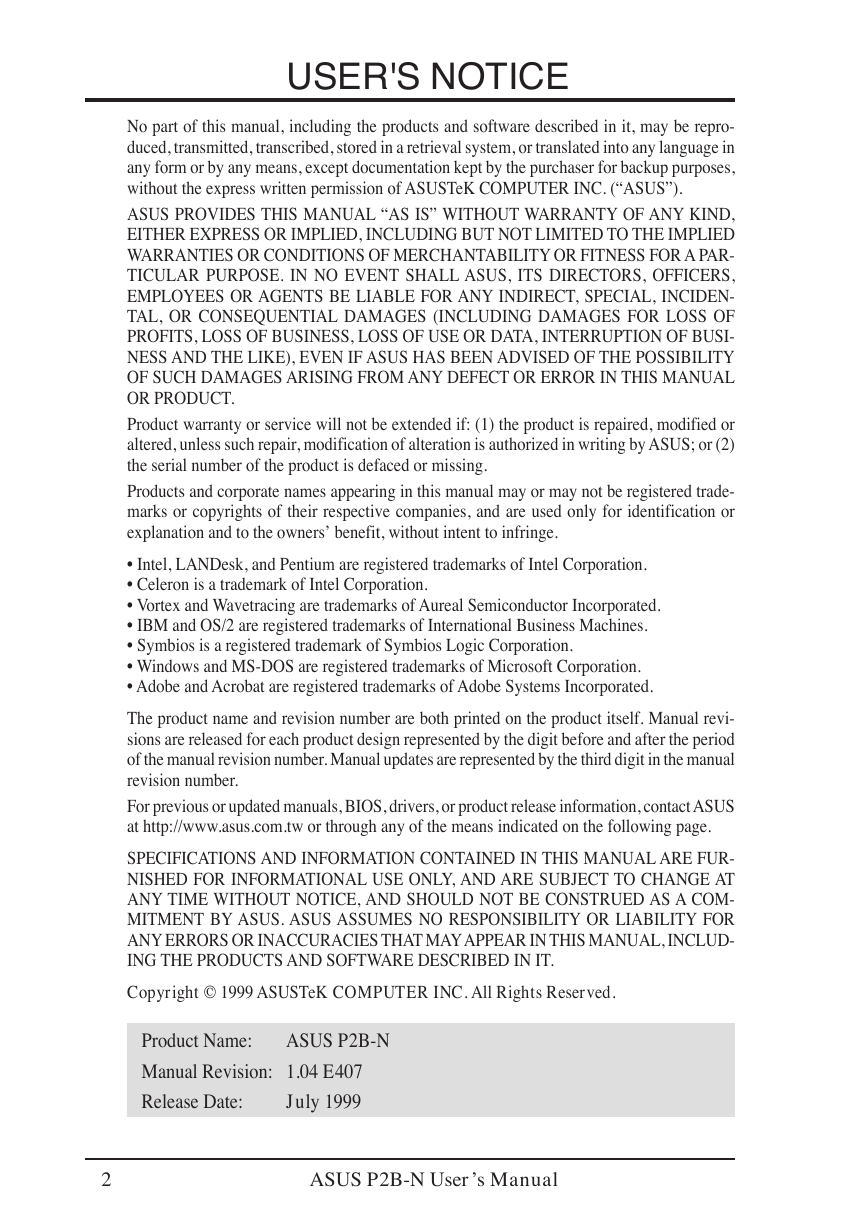

USER'S NOTICE
No part of this manual, including the products and software described in it, may be repro-
duced, transmitted, transcribed, stored in a retrieval system, or translated into any language in
any form or by any means, except documentation kept by the purchaser for backup purposes,
without the express written permission of ASUSTeK COMPUTER INC. (“ASUS”).
ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND,
EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED
WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A PAR-
TICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS,
EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDEN-
TAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF
PROFITS, LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSI-
NESS AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY
OF SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL
OR PRODUCT.
Product warranty or service will not be extended if: (1) the product is repaired, modified or
altered, unless such repair, modification of alteration is authorized in writing by ASUS; or (2)
the serial number of the product is defaced or missing.
Products and corporate names appearing in this manual may or may not be registered trade-
marks or copyrights of their respective companies, and are used only for identification or
explanation and to the owners’ benefit, without intent to infringe.
• Intel, LANDesk, and Pentium are registered trademarks of Intel Corporation.
• Celeron is a trademark of Intel Corporation.
• Vortex and Wavetracing are trademarks of Aureal Semiconductor Incorporated.
• IBM and OS/2 are registered trademarks of International Business Machines.
• Symbios is a registered trademark of Symbios Logic Corporation.
• Windows and MS-DOS are registered trademarks of Microsoft Corporation.
• Adobe and Acrobat are registered trademarks of Adobe Systems Incorporated.
The product name and revision number are both printed on the product itself. Manual revi-
sions are released for each product design represented by the digit before and after the period
of the manual revision number. Manual updates are represented by the third digit in the manual
revision number.
For previous or updated manuals, BIOS, drivers, or product release information, contact ASUS
at http://www.asus.com.tw or through any of the means indicated on the following page.
SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FUR-
NISHED FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT
ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A COM-
MITMENT BY ASUS. ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY FOR
ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS MANUAL, INCLUD-
ING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.
Copyright © 1999 ASUSTeK COMPUTER INC. All Rights Reserved.
ASUS P2B-N
Product Name:
Manual Revision: 1.04 E407
July 1999
Release Date:
2
ASUS P2B-N User’s Manual
ASUS CONTACT INFORMATION
ASUSTeK COMPUTER INC. (Asia-Pacific)
Marketing
Address:
Telephone:
Fax:
Email:
150 Li-Te Road, Peitou, Taipei, Taiwan 112
+886-2-2894-3447
+886-2-2894-3449
info@asus.com.tw
Technical Support
Tel (English): +886-2-2894-3447 ext. 706
Tel (Chinese): +886-2-2894-3447 ext. 111
Fax:
Email:
Newsgroup:
WWW:
FTP:
+886-2-2895-9254
tsd@asus.com.tw
news2.asus.com.tw
www.asus.com.tw
ftp.asus.com.tw/pub/ASUS
ASUS COMPUTER INTERNATIONAL (America)
Marketing
Address:
6737 Mowry Avenue, Mowry Business Center, Building 2
Newark, CA 94560, USA
+1-510-608-4555
info-usa@asus.com.tw
Fax:
Email:
Technical Support
Fax:
BBS:
Email:
WWW:
FTP:
+1-510-608-4555
+1-510-739-3774
tsd-usa@asus.com.tw
www.asus.com
ftp.asus.com.tw/pub/ASUS
ASUS COMPUTER GmbH (Europe)
Marketing
Address:
Telephone:
Fax:
Email:
Harkort Str. 25, 40880 Ratingen, BRD, Germany
49-2102-445011
49-2102-442066
sales@asuscom.de
Technical Support
Hotline:
BBS:
Email:
WWW:
FTP:
49-2102-499712
49-2102-448690
tsd@asuscom.de
www.asuscom.de
ftp.asuscom.de/pub/ASUSCOM
ASUS P2B-N User’s Manual
3
CONTENTS
1. INTRODUCTION .............................................................................. 7
1.1 How This Manual Is Organized .................................................. 7
1.2 Item Checklist ............................................................................. 7
1.2.1 Motherboard....................................................................... 7
1.2.2 Riser Card .......................................................................... 7
2. FEATURES ......................................................................................... 8
2.1 The ASUS P2B-N Motherboard ................................................. 8
2.1.1 Specifications ..................................................................... 8
2.1.2 Special Features ................................................................. 9
2.1.3 Performance Features ...................................................... 10
2.1.4 Intelligence....................................................................... 10
2.2 ASUS P2B-N Parts ................................................................... 11
3. HARDWARE SETUP ...................................................................... 12
3.1 Motherboard Layout ................................................................. 12
3.2 Riser Cards ................................................................................ 14
3.2.1 NLX-R Riser Card ........................................................... 14
3.2.2 B9-N Riser Card .............................................................. 14
3.2.3 Yeong-Yang Riser Card ................................................... 14
3.3 Hardware Setup Procedure ....................................................... 17
3.4 Motherboard Settings ................................................................ 17
3.5 System Memory (DIMM) ......................................................... 23
3.5.1 General DIMM Notes ...................................................... 23
3.5.2 DIMM Memory Installation ............................................ 24
3.6 Central Processing Unit (CPU) ................................................. 25
3.6.1 Universal Retention Mechanism ...................................... 25
3.6.2 Heatsinks .......................................................................... 25
3.6.3 Installing the Processor .................................................... 26
3.6.4 ASUS Smart Thermal Solutions ...................................... 28
3.6.5 Recommended Heatsinks for Slot 1 Processors .............. 29
3.7 Expansion Cards ....................................................................... 30
3.7.1 Expansion Card Installation Procedure............................ 30
3.7.2 Assigning IRQs for Expansion Cards .............................. 30
3.7.3 Assigning DMA Channels for ISA Cards ........................ 31
3.7.4 ISA Cards and Hardware Monitor ................................... 31
3.8 External Connectors .................................................................. 32
3.8.1 Back Panel Connectors .................................................... 32
3.8.2 Midboard Connectors ...................................................... 35
3.8.3 Riser Card Connectors ..................................................... 36
3.9 Power Connection Procedures .................................................. 41
4
ASUS P2B-N User’s Manual
CONTENTS
4. BIOS SETUP .................................................................................... 42
4.1 Managing and Updating Your BIOS ......................................... 42
4.1.1 Upon First Use of the Computer System ......................... 42
4.1.2 Updating BIOS Procedures (only when necessary) ......... 43
4.2 BIOS Setup ............................................................................... 45
4.3 Standard CMOS Setup .............................................................. 46
4.4 BIOS Features Setup ................................................................. 49
4.5 Chipset Features Setup .............................................................. 52
4.6 Power Management Setup ........................................................ 55
4.7 PNP and PCI Setup ................................................................... 58
4.8 Load BIOS Defaults .................................................................. 60
4.9 Load Setup Defaults .................................................................. 60
4.10 Supervisor and User Password ................................................. 61
4.11 IDE HDD Auto Detection ......................................................... 62
4.12 Save & Exit Setup ..................................................................... 63
4.13 Exit Without Saving .................................................................. 63
5. SOFTWARE SETUP ....................................................................... 65
5.1 Support CD Main Menu (Windows 98) .................................... 65
5.3 LDCM Local Setup ................................................................... 68
5.4 LDCM Administrator Setup ...................................................... 70
5.5 ASUS PC Probe ........................................................................ 71
5.6 ASUS LiveUpdate .................................................................... 72
5.6 Driver ........................................................................................ 73
5.7 Other ......................................................................................... 76
5.8 Uninstalling Programs .............................................................. 78
5.9 DOS and Windows 3.1 Setup for Novell .................................. 79
5.10 Windows NT Server or Workstation ......................................... 80
5.11 Windows 95 .............................................................................. 82
5.12 Select Duplex Mode (optional) ................................................. 83
6. SOFTWARE REFERENCE ........................................................... 85
6.1 ASUS PC Probe ........................................................................ 85
6.2 AudioRack32 ............................................................................ 91
6.3 Display Settings for Windows 95/98 ...................................... 100
6.4 Desktop Management Interface (DMI) ................................... 102
7. APPENDIX ...................................................................................... 105
7.1 PCI-L101 Fast Ethernet Card ................................................. 105
7.2 S370 Series CPU Cards .......................................................... 107
7.3 Network Controller ................................................................. 109
7.4 Glossary .................................................................................. 115
ASUS P2B-N User’s Manual
5
FCC & DOC COMPLIANCE
Federal Communications Commission Statement
This device complies with FCC Rules Part 15. Operation is subject to the following
two conditions:
• This device may not cause harmful interference, and
• This device must accept any interference received, including interference that
may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installa-
tion. This equipment generates, uses and can radiate radio frequency energy and, if
not installed and used in accordance with manufacturer's instructions, may cause
harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the inter-
ference by one or more of the following measures:
• Re-orient or relocate the receiving antenna.
•
• Connect the equipment to an outlet on a circuit different from that to which
Increase the separation between the equipment and receiver.
the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
WARNING! Any changes or modifications to this product not expressly ap-
proved by the manufacturer could void any assurances of safety or performance
and could result in violation of Part 15 of the FCC Rules.
Canadian Department of Communications Statement
This digital apparatus does not exceed the Class B limits for radio noise emissions
from digital apparatus set out in the Radio Interference Regulations of the Cana-
dian Department of Communications.
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
6
ASUS P2B-N User’s Manual
I
N
O
T
C
U
D
O
R
T
N
I
.
1
t
s
i
l
k
c
e
h
C
/
l
a
u
n
a
M
Introduction
1. INTRODUCTION
1.1 How This Manual Is Organized
This manual is divided into the following sections:
1.
2. Features
3. Hardware Setup
4. BIOS Setup
5. Software Setup
6. Software Reference Reference material for the included support software
7. Appendix
1.2 Item Checklist
Please check that your package is complete. If you discover damaged or missing
items, please contact your retailer.
Manual information and checklist
Information and specifications concerning this product
Instructions on setting up the motherboard and jumpers
Instructions on setting up the BIOS software
Instructions on setting up the included support software
Optional items and general reference
1.2.1 Motherboard
(1) ASUS motherboard
(1) Universal retention mechanism for SECC2/SECC/SEPP
(1) Support CD with drivers and utilities
(1) Motherboard User’s Manual
(1) System housing User’s Manual
(1) NLX Form-factor system housing, riser card, and power supply
ASUS Slim CD-ROM (optional)
S-P2FAN or P2T-Cable for Slot 1 processors (optional)
IrDA-compliant infrared module (optional)
ASUS S370 CPU card series (optional)
ASUS PCI-L101 Wake-On-LAN 10/100 Ethernet Card (optional)
NOTE: This motherboard only works with ASUS riser cards. See your dealer for
more information.
1.2.2 Riser Card
(1) ASUS Riser Card
(1) UltraDMA/33 IDE + 3.5” floppy disk drive connector set
OR
(1) UltraDMA/66 IDE cable and (1) 3.5” floppy disk drive cable
(1) Bag of spare jumper caps
(1) FDC slim CD-ROM cable (optional)
ASUS P2B-N User’s Manual
7
2
.
S
p
e
c
i
f
i
c
a
t
i
o
n
s
F
E
A
T
U
R
E
S
2. FEATURES
2.1 The ASUS P2B-N Motherboard
The ASUS P2B-N is carefully designed for the demanding PC user who wants ad-
vanced features processed by the fastest CPU.
2.1.1 Specifications
• NLX: Features ASUS’ custom designed NLX form factor.
• Multi-Speed: Supports Intel Pentium® III (450MHz and faster), Pentium® II
(233MHz to 450MHz), and CeleronTM SEPP (266MHz and faster) processors.
• Multi-Cache: Supports processors with 512, 256, 128, or 0KB Pipelined Burst
Level 2 cache.
•
• Anti-Boot Virus BIOS: Features a programmable BIOS, offering enhanced
Advanced Configuration Power Interface (ACPI) support for Windows 98 com-
patibility, built-in firmware-based virus protection through Trend ChipAway Virus
codes, and autodetection of most devices for virtually automatic setup.
Intel AGPset: Features Intel’s 440BX AGPset with I/O subsystems and front-side bus
(FSB) platform, which boosts the traditional 66MHz external bus speed to 100MHz.
PC100 Memory Support: Equipped with two DIMM sockets to support Intel
PC100-compliant SDRAMs (8, 16, 32, 64, 128, or 256MB) up to 512MB. These
new SDRAMs are necessary to meet the critical enhanced 100MHz bus speed
requirement.
100/10Mbps LAN (optional): Features an onboard Intel 82558 Ethernet LAN
Controller (fully integrated 10BASE-T/100BASE-TX) and a LAN Activity LED
for monitoring network conditions.
•
•
• AGP VGA (optional): Features an onboard ATI 3D Rage Pro AGP 2X (8MB
SDRAM) or Rage IIC (4MB SDRAM) for 3D hardware acceleration.
PCI Audio (optional): Features onboard the ESS Solo-1 32-bit 3D positional
PCI audio which supports games and applications for Sound BlasterTM and Sound
Blaster Pro and full-duplex stereo.
•
• Thermal Sensor Connector with Optional Sensor: Accurately detects the CPU
temperature of processors with the ASUS Smart Fan or the Intel boxed proces-
sor heatsink with fan when connected to an ASUS P2T-Cable.
• Hardware Monitoring (optional): Provides an easier way to examine and man-
age system status information, such as CPU and system voltages, temperatures,
and fan status through the onboard hardware ASIC and the bundled LDCM by
Intel or PC Probe from ASUS.
• Riser Cards: Provides NLX power, IDE, floppy drive, LAN wake up connec-
tors; PCI/ISA slots; and USB and IrDA support.
• Ultra DMA/33 BM IDE: Comes with an onboard PCI Bus Master IDE controller
with two connectors that supports four IDE devices in two channels, supports Ultra
DMA/33, PIO Modes 3 and 4 and Bus Master IDE DMA Mode 2, and supports
Enhanced IDE devices, such as Tape Backup, CD-ROM, and LS-120 drives.
8
ASUS P2B-N User’s Manual
相关推荐
2023年江西萍乡中考道德与法治真题及答案.doc
2012年重庆南川中考生物真题及答案.doc
2013年江西师范大学地理学综合及文艺理论基础考研真题.doc
2020年四川甘孜小升初语文真题及答案I卷.doc
2020年注册岩土工程师专业基础考试真题及答案.doc
2023-2024学年福建省厦门市九年级上学期数学月考试题及答案.doc
2021-2022学年辽宁省沈阳市大东区九年级上学期语文期末试题及答案.doc
2022-2023学年北京东城区初三第一学期物理期末试卷及答案.doc
2018上半年江西教师资格初中地理学科知识与教学能力真题及答案.doc
2012年河北国家公务员申论考试真题及答案-省级.doc
2020-2021学年江苏省扬州市江都区邵樊片九年级上学期数学第一次质量检测试题及答案.doc
2022下半年黑龙江教师资格证中学综合素质真题及答案.doc
