Access Control Attacks on PLC Vulnerabilities
Abstract
Keywords
1. Introduction
2. Related Work
3. Testbed Setup
4. The Attack Approach
4.1. Scanning
4.2. Establish Connection
4.3. Read Data
4.4. Attack
5. Discussion
6. Securing PLC Systems
7. Conclusions
Conflicts of Interest
References

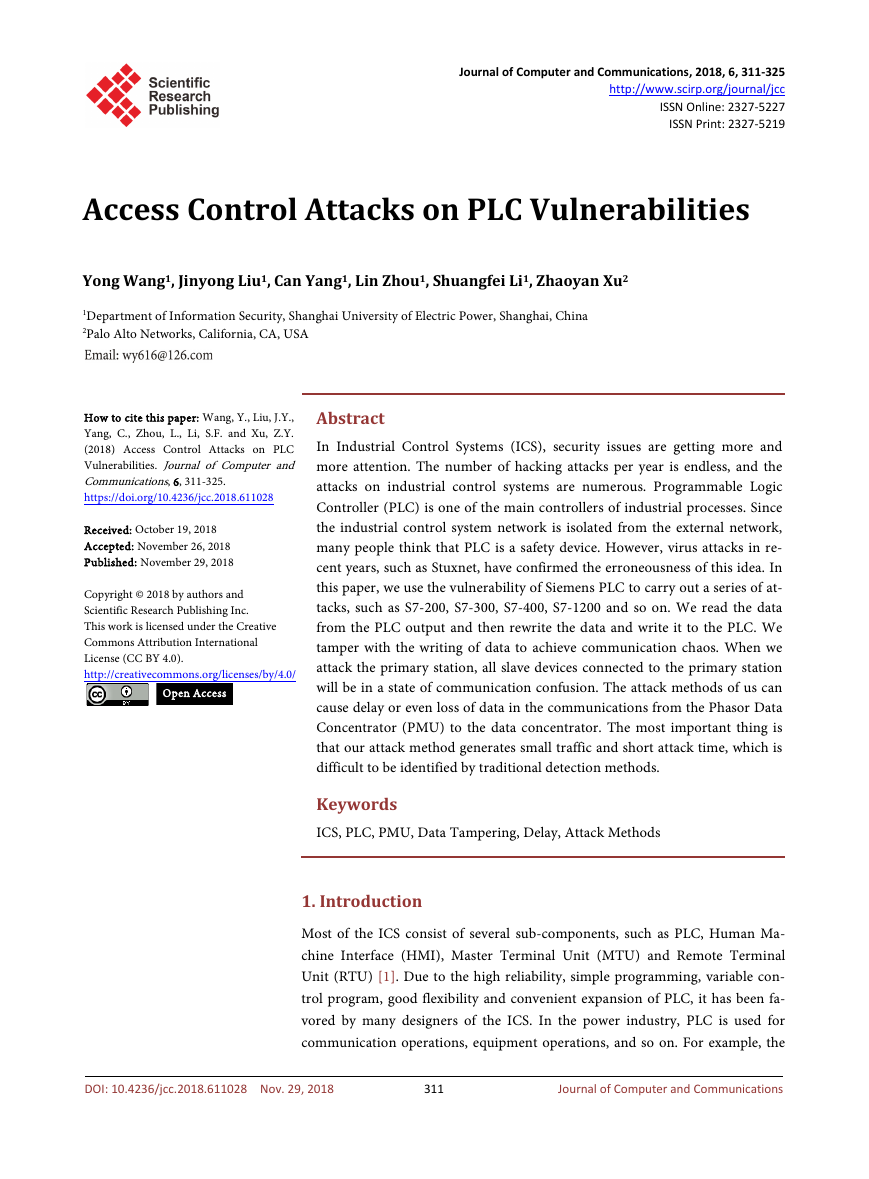

Journal of Computer and Communications, 2018, 6, 311-325 http://www.scirp.org/journal/jcc ISSN Online: 2327-5227 ISSN Print: 2327-5219 Access Control Attacks on PLC Vulnerabilities Yong Wang1, Jinyong Liu1, Can Yang1, Lin Zhou1, Shuangfei Li1, Zhaoyan Xu2 1Department of Information Security, Shanghai University of Electric Power, Shanghai, China 2Palo Alto Networks, California, CA, USA How to cite this paper: Wang, Y., Liu, J.Y., Yang, C., Zhou, L., Li, S.F. and Xu, Z.Y. (2018) Access Control Attacks on PLC Vulnerabilities. Journal of Computer and Communications, 6, 311-325. https://doi.org/10.4236/jcc.2018.611028 Received: October 19, 2018 Accepted: November 26, 2018 Published: November 29, 2018 Copyright © 2018 by authors and Scientific Research Publishing Inc. This work is licensed under the Creative Commons Attribution International License (CC BY 4.0). http://creativecommons.org/licenses/by/4.0/ Open Access Abstract In Industrial Control Systems (ICS), security issues are getting more and more attention. The number of hacking attacks per year is endless, and the attacks on industrial control systems are numerous. Programmable Logic Controller (PLC) is one of the main controllers of industrial processes. Since the industrial control system network is isolated from the external network, many people think that PLC is a safety device. However, virus attacks in re- cent years, such as Stuxnet, have confirmed the erroneousness of this idea. In this paper, we use the vulnerability of Siemens PLC to carry out a series of at- tacks, such as S7-200, S7-300, S7-400, S7-1200 and so on. We read the data from the PLC output and then rewrite the data and write it to the PLC. We tamper with the writing of data to achieve communication chaos. When we attack the primary station, all slave devices connected to the primary station will be in a state of communication confusion. The attack methods of us can cause delay or even loss of data in the communications from the Phasor Data Concentrator (PMU) to the data concentrator. The most important thing is that our attack method generates small traffic and short attack time, which is difficult to be identified by traditional detection methods. Keywords ICS, PLC, PMU, Data Tampering, Delay, Attack Methods 1. Introduction Most of the ICS consist of several sub-components, such as PLC, Human Ma- chine Interface (HMI), Master Terminal Unit (MTU) and Remote Terminal Unit (RTU) [1]. Due to the high reliability, simple programming, variable con- trol program, good flexibility and convenient expansion of PLC, it has been fa- vored by many designers of the ICS. In the power industry, PLC is used for communication operations, equipment operations, and so on. For example, the DOI: 10.4236/jcc.2018.611028 Nov. 29, 2018 311 Journal of Computer and Communications

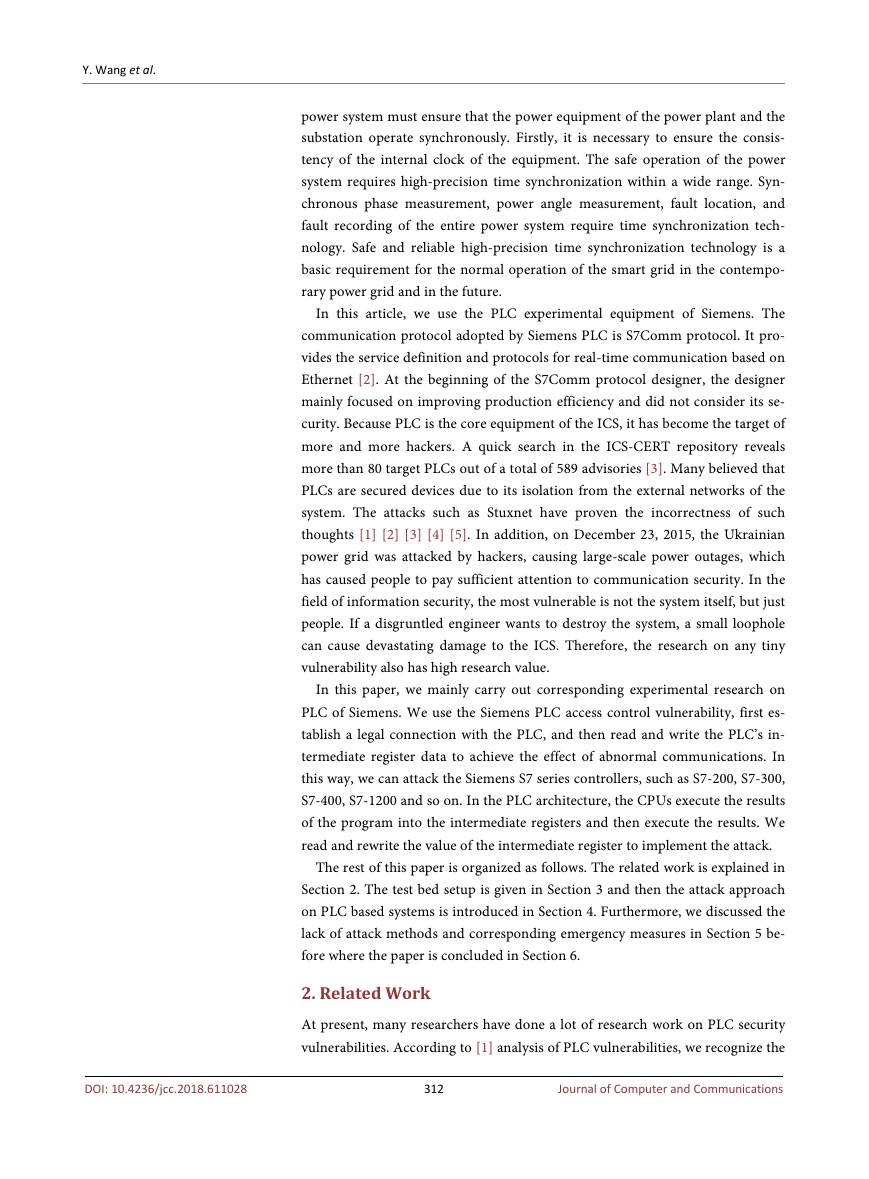

Y. Wang et al. DOI: 10.4236/jcc.2018.611028 power system must ensure that the power equipment of the power plant and the substation operate synchronously. Firstly, it is necessary to ensure the consis- tency of the internal clock of the equipment. The safe operation of the power system requires high-precision time synchronization within a wide range. Syn- chronous phase measurement, power angle measurement, fault location, and fault recording of the entire power system require time synchronization tech- nology. Safe and reliable high-precision time synchronization technology is a basic requirement for the normal operation of the smart grid in the contempo- rary power grid and in the future. In this article, we use the PLC experimental equipment of Siemens. The communication protocol adopted by Siemens PLC is S7Comm protocol. It pro- vides the service definition and protocols for real-time communication based on Ethernet [2]. At the beginning of the S7Comm protocol designer, the designer mainly focused on improving production efficiency and did not consider its se- curity. Because PLC is the core equipment of the ICS, it has become the target of more and more hackers. A quick search in the ICS-CERT repository reveals more than 80 target PLCs out of a total of 589 advisories [3]. Many believed that PLCs are secured devices due to its isolation from the external networks of the system. The attacks such as Stuxnet have proven the incorrectness of such thoughts [1] [2] [3] [4] [5]. In addition, on December 23, 2015, the Ukrainian power grid was attacked by hackers, causing large-scale power outages, which has caused people to pay sufficient attention to communication security. In the field of information security, the most vulnerable is not the system itself, but just people. If a disgruntled engineer wants to destroy the system, a small loophole can cause devastating damage to the ICS. Therefore, the research on any tiny vulnerability also has high research value. In this paper, we mainly carry out corresponding experimental research on PLC of Siemens. We use the Siemens PLC access control vulnerability, first es- tablish a legal connection with the PLC, and then read and write the PLC’s in- termediate register data to achieve the effect of abnormal communications. In this way, we can attack the Siemens S7 series controllers, such as S7-200, S7-300, S7-400, S7-1200 and so on. In the PLC architecture, the CPUs execute the results of the program into the intermediate registers and then execute the results. We read and rewrite the value of the intermediate register to implement the attack. The rest of this paper is organized as follows. The related work is explained in Section 2. The test bed setup is given in Section 3 and then the attack approach on PLC based systems is introduced in Section 4. Furthermore, we discussed the lack of attack methods and corresponding emergency measures in Section 5 be- fore where the paper is concluded in Section 6. 2. Related Work At present, many researchers have done a lot of research work on PLC security vulnerabilities. According to [1] analysis of PLC vulnerabilities, we recognize the 312 Journal of Computer and Communications

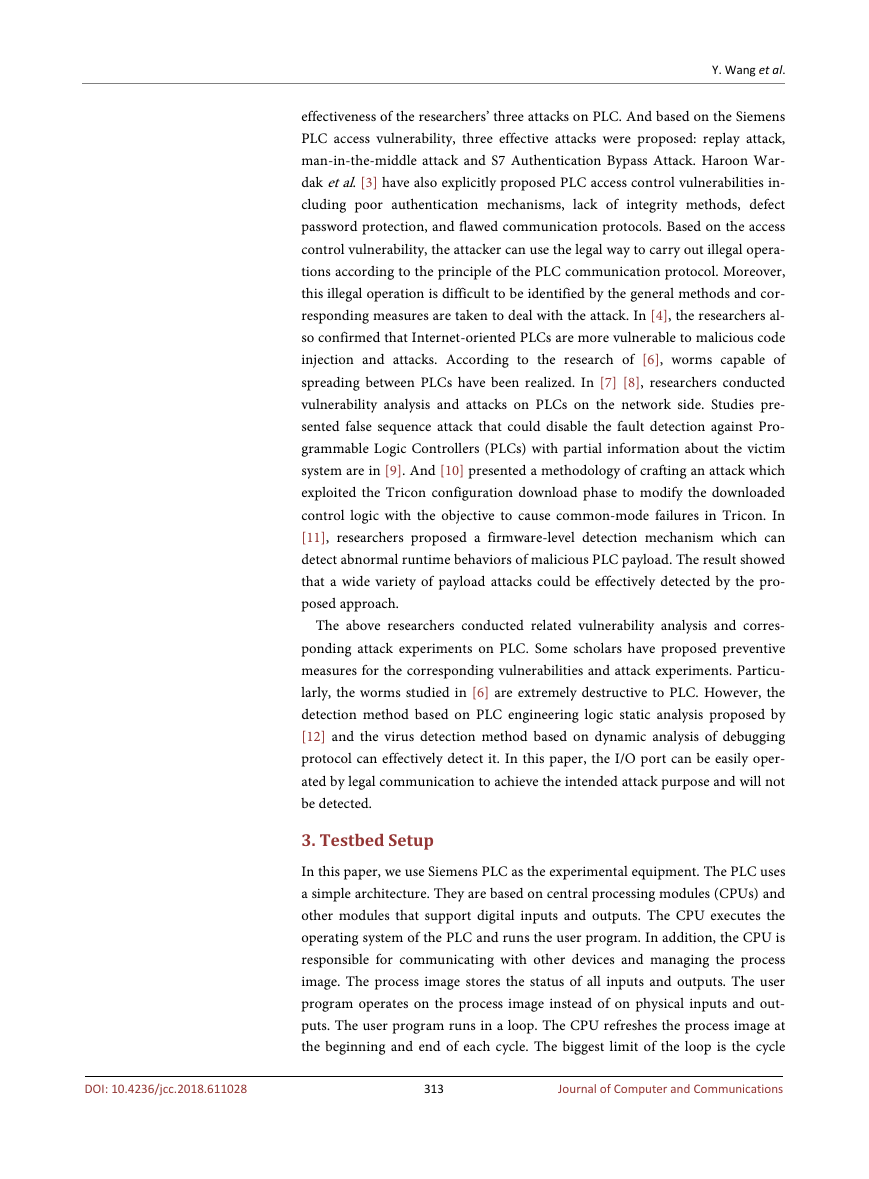

Y. Wang et al. effectiveness of the researchers’ three attacks on PLC. And based on the Siemens PLC access vulnerability, three effective attacks were proposed: replay attack, man-in-the-middle attack and S7 Authentication Bypass Attack. Haroon War- dak et al. [3] have also explicitly proposed PLC access control vulnerabilities in- cluding poor authentication mechanisms, lack of integrity methods, defect password protection, and flawed communication protocols. Based on the access control vulnerability, the attacker can use the legal way to carry out illegal opera- tions according to the principle of the PLC communication protocol. Moreover, this illegal operation is difficult to be identified by the general methods and cor- responding measures are taken to deal with the attack. In [4], the researchers al- so confirmed that Internet-oriented PLCs are more vulnerable to malicious code injection and attacks. According to the research of [6], worms capable of spreading between PLCs have been realized. In [7] [8], researchers conducted vulnerability analysis and attacks on PLCs on the network side. Studies pre- sented false sequence attack that could disable the fault detection against Pro- grammable Logic Controllers (PLCs) with partial information about the victim system are in [9]. And [10] presented a methodology of crafting an attack which exploited the Tricon configuration download phase to modify the downloaded control logic with the objective to cause common-mode failures in Tricon. In [11], researchers proposed a firmware-level detection mechanism which can detect abnormal runtime behaviors of malicious PLC payload. The result showed that a wide variety of payload attacks could be effectively detected by the pro- posed approach. The above researchers conducted related vulnerability analysis and corres- ponding attack experiments on PLC. Some scholars have proposed preventive measures for the corresponding vulnerabilities and attack experiments. Particu- larly, the worms studied in [6] are extremely destructive to PLC. However, the detection method based on PLC engineering logic static analysis proposed by [12] and the virus detection method based on dynamic analysis of debugging protocol can effectively detect it. In this paper, the I/O port can be easily oper- ated by legal communication to achieve the intended attack purpose and will not be detected. 3. Testbed Setup In this paper, we use Siemens PLC as the experimental equipment. The PLC uses a simple architecture. They are based on central processing modules (CPUs) and other modules that support digital inputs and outputs. The CPU executes the operating system of the PLC and runs the user program. In addition, the CPU is responsible for communicating with other devices and managing the process image. The process image stores the status of all inputs and outputs. The user program operates on the process image instead of on physical inputs and out- puts. The user program runs in a loop. The CPU refreshes the process image at the beginning and end of each cycle. The biggest limit of the loop is the cycle 313 Journal of Computer and Communications DOI: 10.4236/jcc.2018.611028

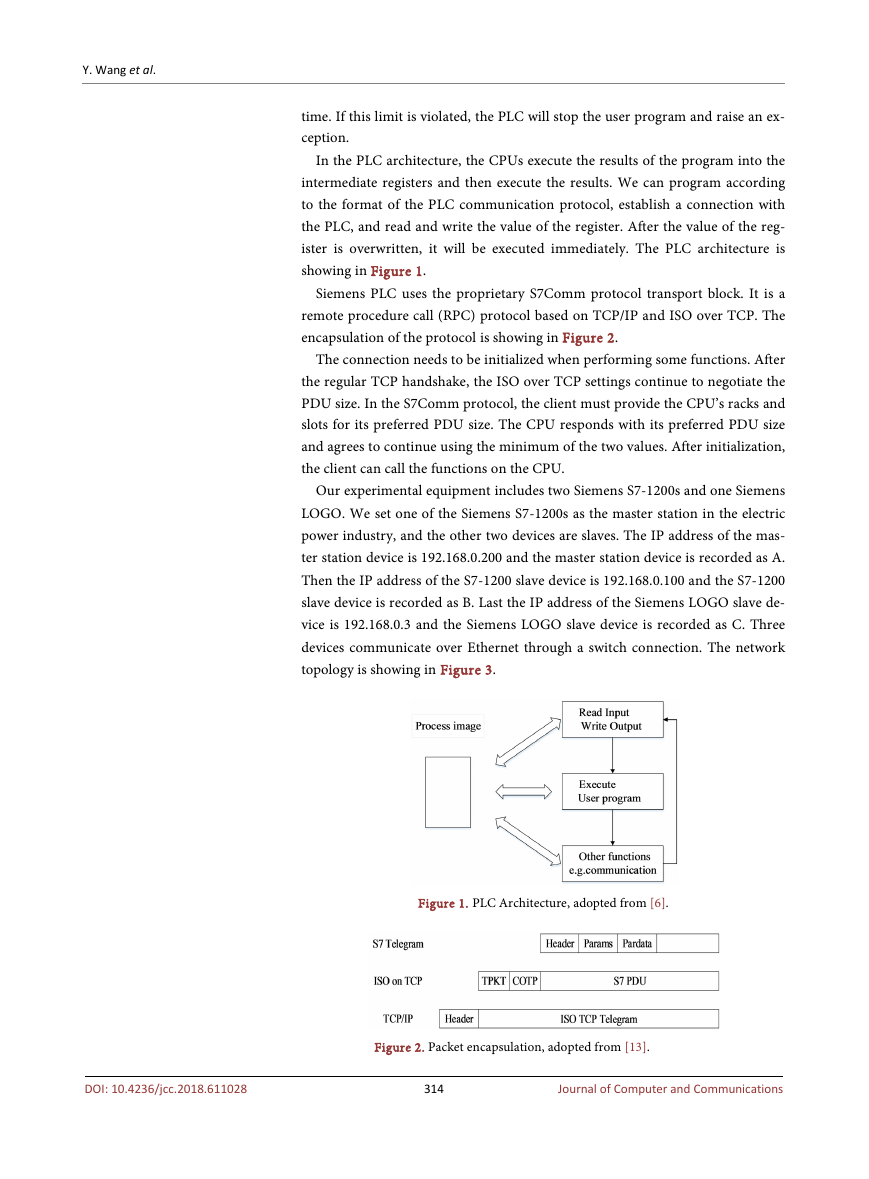

Y. Wang et al. time. If this limit is violated, the PLC will stop the user program and raise an ex- ception. In the PLC architecture, the CPUs execute the results of the program into the intermediate registers and then execute the results. We can program according to the format of the PLC communication protocol, establish a connection with the PLC, and read and write the value of the register. After the value of the reg- ister is overwritten, it will be executed immediately. The PLC architecture is showing in Figure 1. Siemens PLC uses the proprietary S7Comm protocol transport block. It is a remote procedure call (RPC) protocol based on TCP/IP and ISO over TCP. The encapsulation of the protocol is showing in Figure 2. The connection needs to be initialized when performing some functions. After the regular TCP handshake, the ISO over TCP settings continue to negotiate the PDU size. In the S7Comm protocol, the client must provide the CPU’s racks and slots for its preferred PDU size. The CPU responds with its preferred PDU size and agrees to continue using the minimum of the two values. After initialization, the client can call the functions on the CPU. Our experimental equipment includes two Siemens S7-1200s and one Siemens LOGO. We set one of the Siemens S7-1200s as the master station in the electric power industry, and the other two devices are slaves. The IP address of the mas- ter station device is 192.168.0.200 and the master station device is recorded as A. Then the IP address of the S7-1200 slave device is 192.168.0.100 and the S7-1200 slave device is recorded as B. Last the IP address of the Siemens LOGO slave de- vice is 192.168.0.3 and the Siemens LOGO slave device is recorded as C. Three devices communicate over Ethernet through a switch connection. The network topology is showing in Figure 3. Figure 1. PLC Architecture, adopted from [6]. DOI: 10.4236/jcc.2018.611028 Figure 2. Packet encapsulation, adopted from [13]. 314 Journal of Computer and Communications

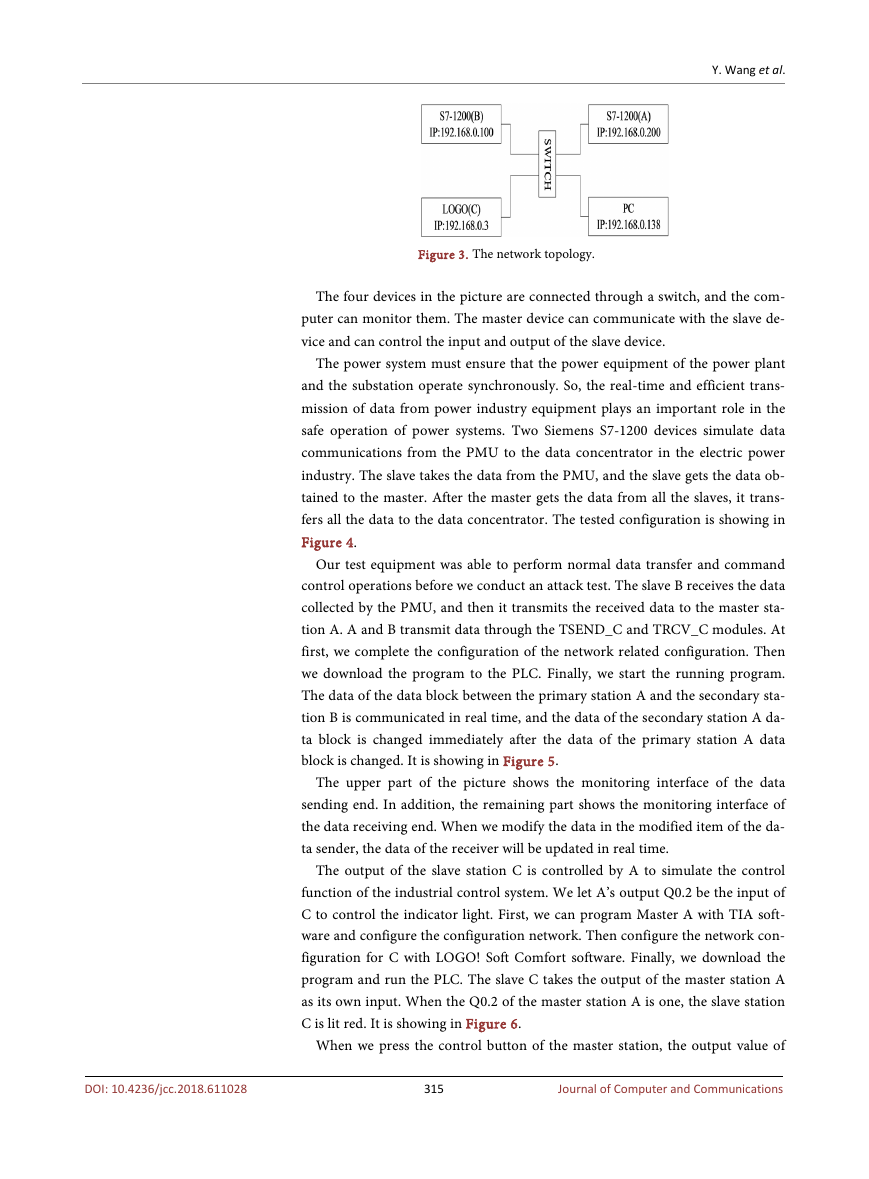

Y. Wang et al. Figure 3. The network topology. The four devices in the picture are connected through a switch, and the com- puter can monitor them. The master device can communicate with the slave de- vice and can control the input and output of the slave device. The power system must ensure that the power equipment of the power plant and the substation operate synchronously. So, the real-time and efficient trans- mission of data from power industry equipment plays an important role in the safe operation of power systems. Two Siemens S7-1200 devices simulate data communications from the PMU to the data concentrator in the electric power industry. The slave takes the data from the PMU, and the slave gets the data ob- tained to the master. After the master gets the data from all the slaves, it trans- fers all the data to the data concentrator. The tested configuration is showing in Figure 4. Our test equipment was able to perform normal data transfer and command control operations before we conduct an attack test. The slave B receives the data collected by the PMU, and then it transmits the received data to the master sta- tion A. A and B transmit data through the TSEND_C and TRCV_C modules. At first, we complete the configuration of the network related configuration. Then we download the program to the PLC. Finally, we start the running program. The data of the data block between the primary station A and the secondary sta- tion B is communicated in real time, and the data of the secondary station A da- ta block is changed immediately after the data of the primary station A data block is changed. It is showing in Figure 5. The upper part of the picture shows the monitoring interface of the data sending end. In addition, the remaining part shows the monitoring interface of the data receiving end. When we modify the data in the modified item of the da- ta sender, the data of the receiver will be updated in real time. The output of the slave station C is controlled by A to simulate the control function of the industrial control system. We let A’s output Q0.2 be the input of C to control the indicator light. First, we can program Master A with TIA soft- ware and configure the configuration network. Then configure the network con- figuration for C with LOGO! Soft Comfort software. Finally, we download the program and run the PLC. The slave C takes the output of the master station A as its own input. When the Q0.2 of the master station A is one, the slave station C is lit red. It is showing in Figure 6. When we press the control button of the master station, the output value of 315 Journal of Computer and Communications DOI: 10.4236/jcc.2018.611028

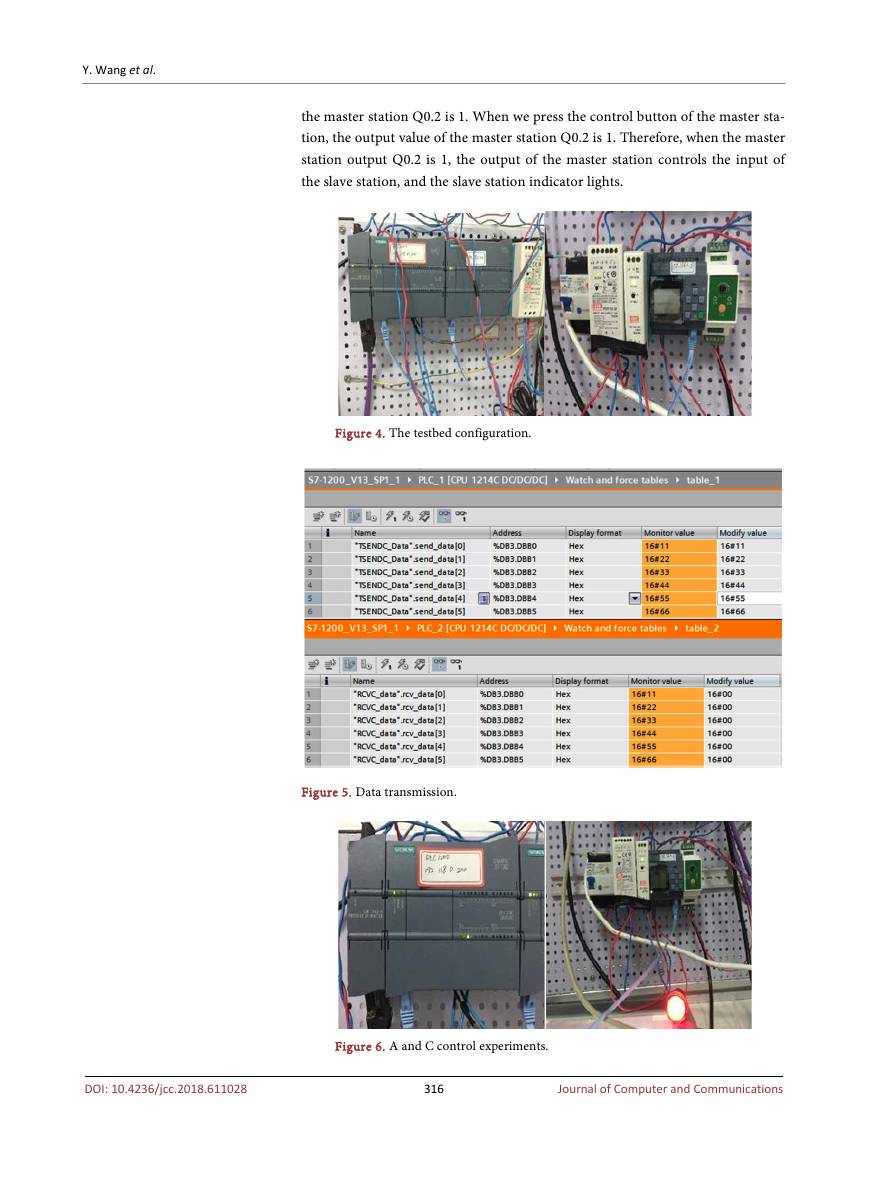

Y. Wang et al. the master station Q0.2 is 1. When we press the control button of the master sta- tion, the output value of the master station Q0.2 is 1. Therefore, when the master station output Q0.2 is 1, the output of the master station controls the input of the slave station, and the slave station indicator lights. Figure 4. The testbed configuration. Figure 5. Data transmission. DOI: 10.4236/jcc.2018.611028 Figure 6. A and C control experiments. 316 Journal of Computer and Communications

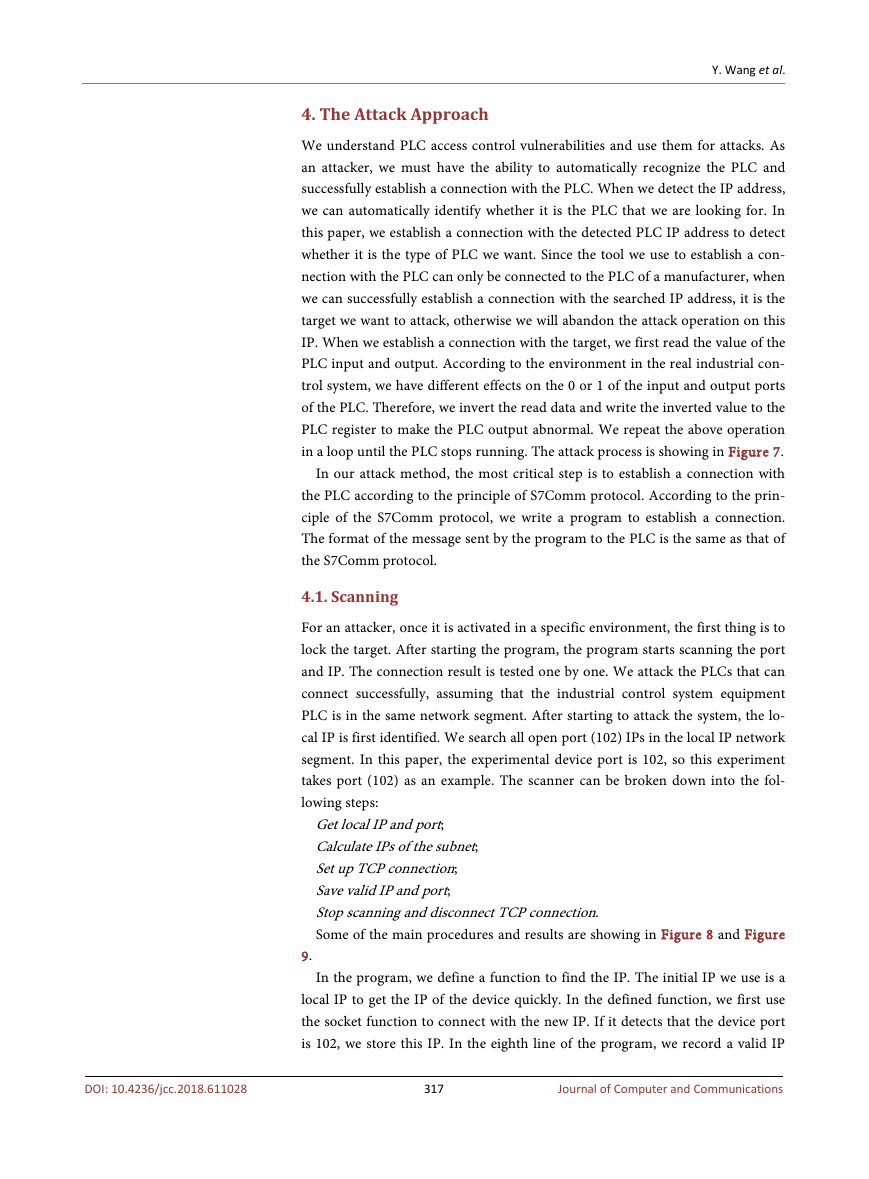

Y. Wang et al. 4. The Attack Approach We understand PLC access control vulnerabilities and use them for attacks. As an attacker, we must have the ability to automatically recognize the PLC and successfully establish a connection with the PLC. When we detect the IP address, we can automatically identify whether it is the PLC that we are looking for. In this paper, we establish a connection with the detected PLC IP address to detect whether it is the type of PLC we want. Since the tool we use to establish a con- nection with the PLC can only be connected to the PLC of a manufacturer, when we can successfully establish a connection with the searched IP address, it is the target we want to attack, otherwise we will abandon the attack operation on this IP. When we establish a connection with the target, we first read the value of the PLC input and output. According to the environment in the real industrial con- trol system, we have different effects on the 0 or 1 of the input and output ports of the PLC. Therefore, we invert the read data and write the inverted value to the PLC register to make the PLC output abnormal. We repeat the above operation in a loop until the PLC stops running. The attack process is showing in Figure 7. In our attack method, the most critical step is to establish a connection with the PLC according to the principle of S7Comm protocol. According to the prin- ciple of the S7Comm protocol, we write a program to establish a connection. The format of the message sent by the program to the PLC is the same as that of the S7Comm protocol. 4.1. Scanning For an attacker, once it is activated in a specific environment, the first thing is to lock the target. After starting the program, the program starts scanning the port and IP. The connection result is tested one by one. We attack the PLCs that can connect successfully, assuming that the industrial control system equipment PLC is in the same network segment. After starting to attack the system, the lo- cal IP is first identified. We search all open port (102) IPs in the local IP network segment. In this paper, the experimental device port is 102, so this experiment takes port (102) as an example. The scanner can be broken down into the fol- lowing steps: Get local IP and port; Calculate IPs of the subnet; Set up TCP connection; Save valid IP and port; Stop scanning and disconnect TCP connection. Some of the main procedures and results are showing in Figure 8 and Figure 9. In the program, we define a function to find the IP. The initial IP we use is a local IP to get the IP of the device quickly. In the defined function, we first use the socket function to connect with the new IP. If it detects that the device port is 102, we store this IP. In the eighth line of the program, we record a valid IP 317 Journal of Computer and Communications DOI: 10.4236/jcc.2018.611028

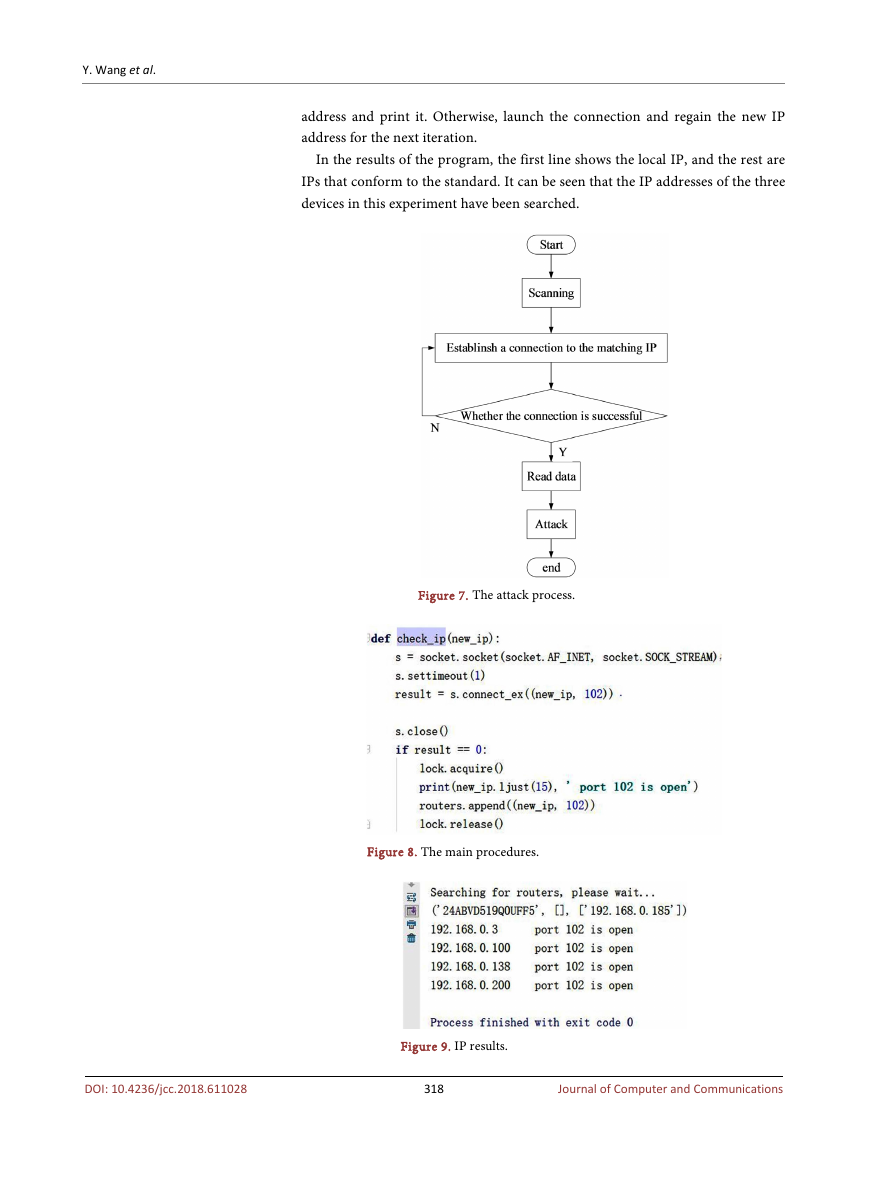

Y. Wang et al. address and print it. Otherwise, launch the connection and regain the new IP address for the next iteration. In the results of the program, the first line shows the local IP, and the rest are IPs that conform to the standard. It can be seen that the IP addresses of the three devices in this experiment have been searched. Figure 7. The attack process. Figure 8. The main procedures. DOI: 10.4236/jcc.2018.611028 Figure 9. IP results. 318 Journal of Computer and Communications
