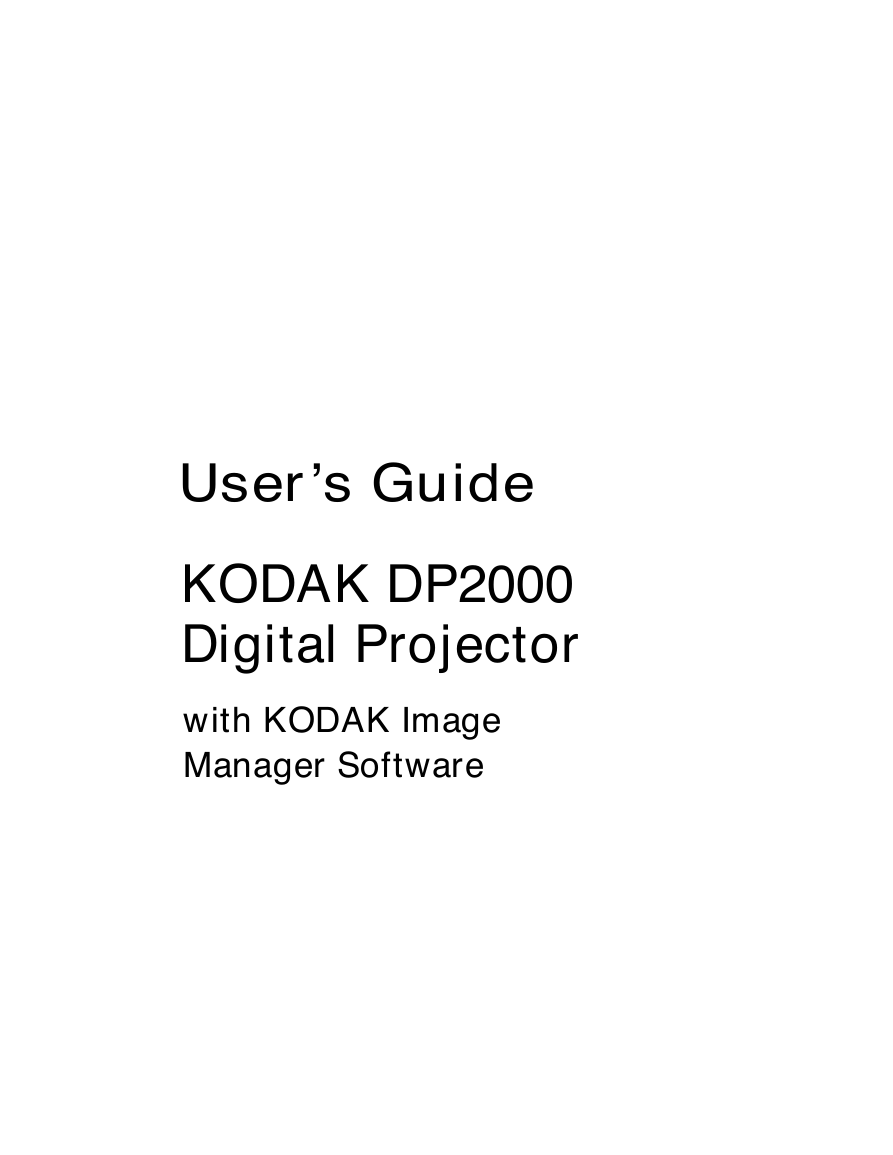

User’s Guide KODAK DP2000 Digital Projector with KODAK Image Manager Software

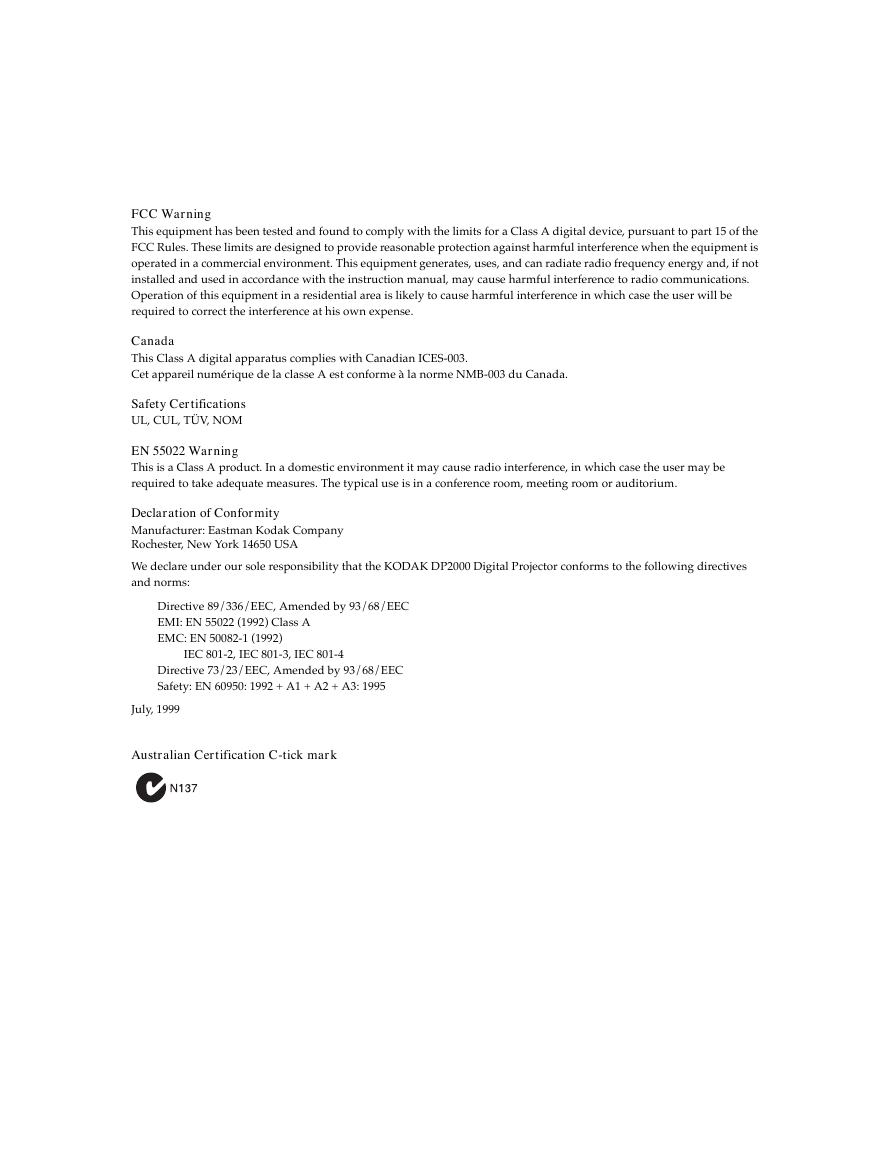

FCC Warning This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. Canada This Class A digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada. Safety Certifications UL, CUL, TÜV, NOM EN 55022 Warning This is a Class A product. In a domestic environment it may cause radio interference, in which case the user may be required to take adequate measures. The typical use is in a conference room, meeting room or auditorium. Declaration of Conformity Manufacturer: Eastman Kodak Company Rochester, New York 14650 USA We declare under our sole responsibility that the KODAK DP2000 Digital Projector conforms to the following directives and norms: Directive 89/336/EEC, Amended by 93/68/EEC EMI: EN 55022 (1992) Class A EMC: EN 50082-1 (1992) IEC 801-2, IEC 801-3, IEC 801-4 Directive 73/23/EEC, Amended by 93/68/EEC Safety: EN 60950: 1992 + A1 + A2 + A3: 1995 July, 1999 Australian Certification C-tick mark

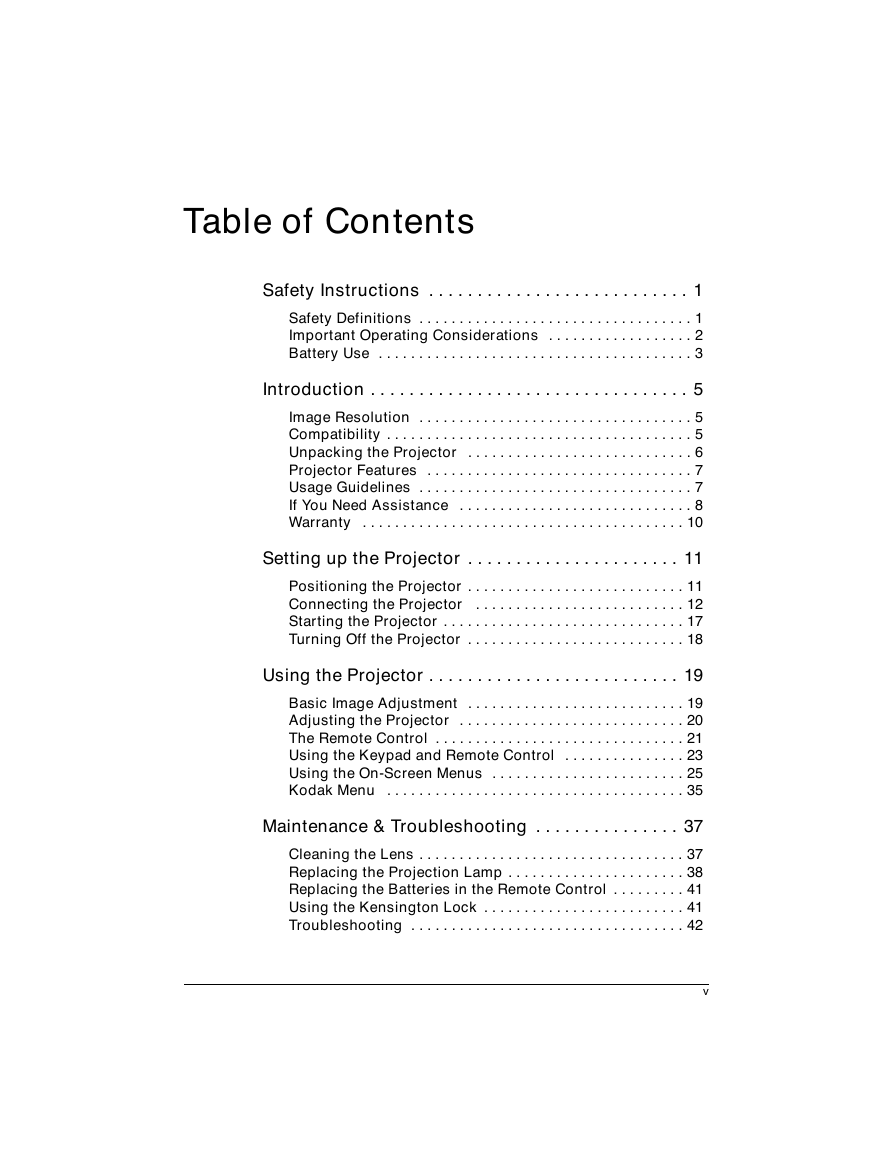

Table of Contents Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Safety Definitions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Important Operating Considerations . . . . . . . . . . . . . . . . . . 2 Battery Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Image Resolution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Compatibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Unpacking the Projector . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Projector Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Usage Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 If You Need Assistance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Setting up the Projector . . . . . . . . . . . . . . . . . . . . . . 11 Positioning the Projector . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Connecting the Projector . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Starting the Projector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Turning Off the Projector . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Using the Projector . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Basic Image Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Adjusting the Projector . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 The Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Using the Keypad and Remote Control . . . . . . . . . . . . . . . 23 Using the On-Screen Menus . . . . . . . . . . . . . . . . . . . . . . . . 25 Kodak Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35 Maintenance & Troubleshooting . . . . . . . . . . . . . . . 37 Cleaning the Lens . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37 Replacing the Projection Lamp . . . . . . . . . . . . . . . . . . . . . . 38 Replacing the Batteries in the Remote Control . . . . . . . . . 41 Using the Kensington Lock . . . . . . . . . . . . . . . . . . . . . . . . . 41 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42 v

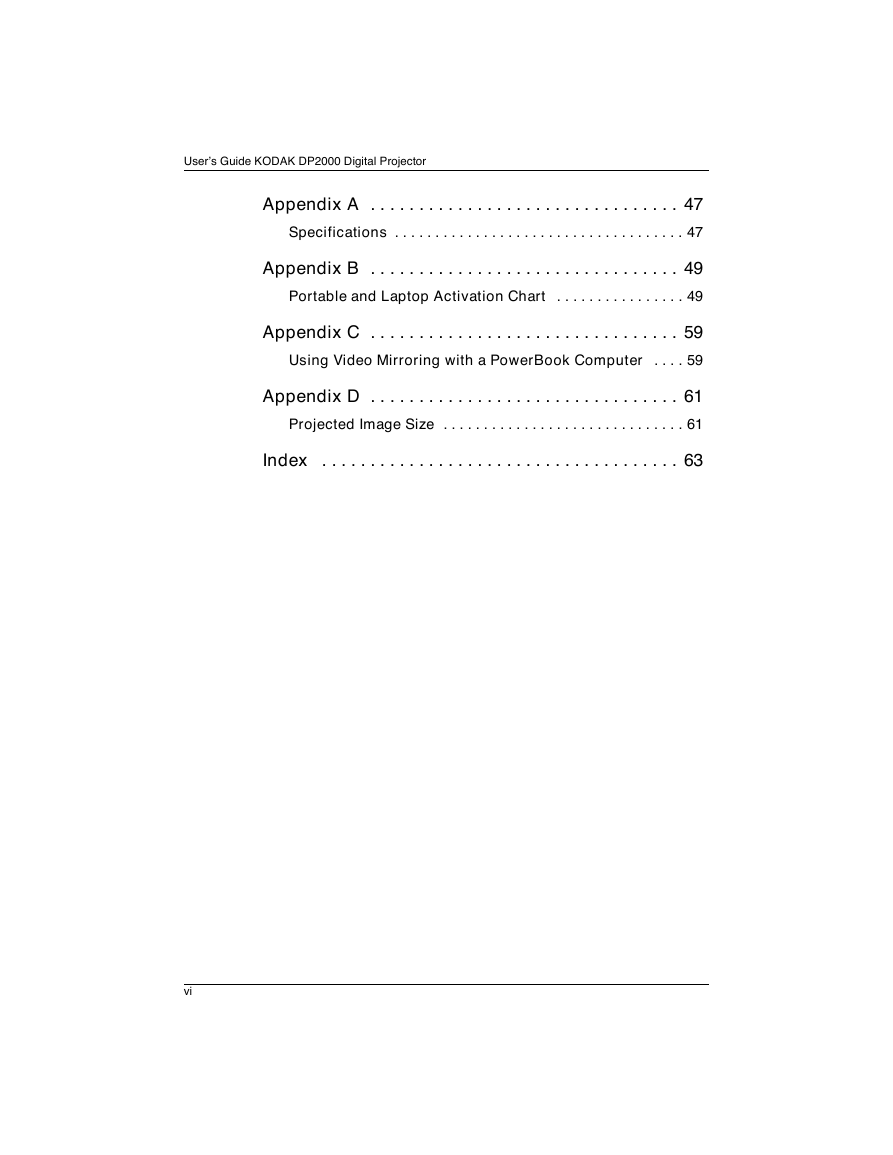

User’s Guide KODAK DP2000 Digital Projector Appendix A . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47 Appendix B . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49 Portable and Laptop Activation Chart . . . . . . . . . . . . . . . . 49 Appendix C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59 Using Video Mirroring with a PowerBook Computer . . . . 59 Appendix D . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61 Projected Image Size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61 Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63 vi

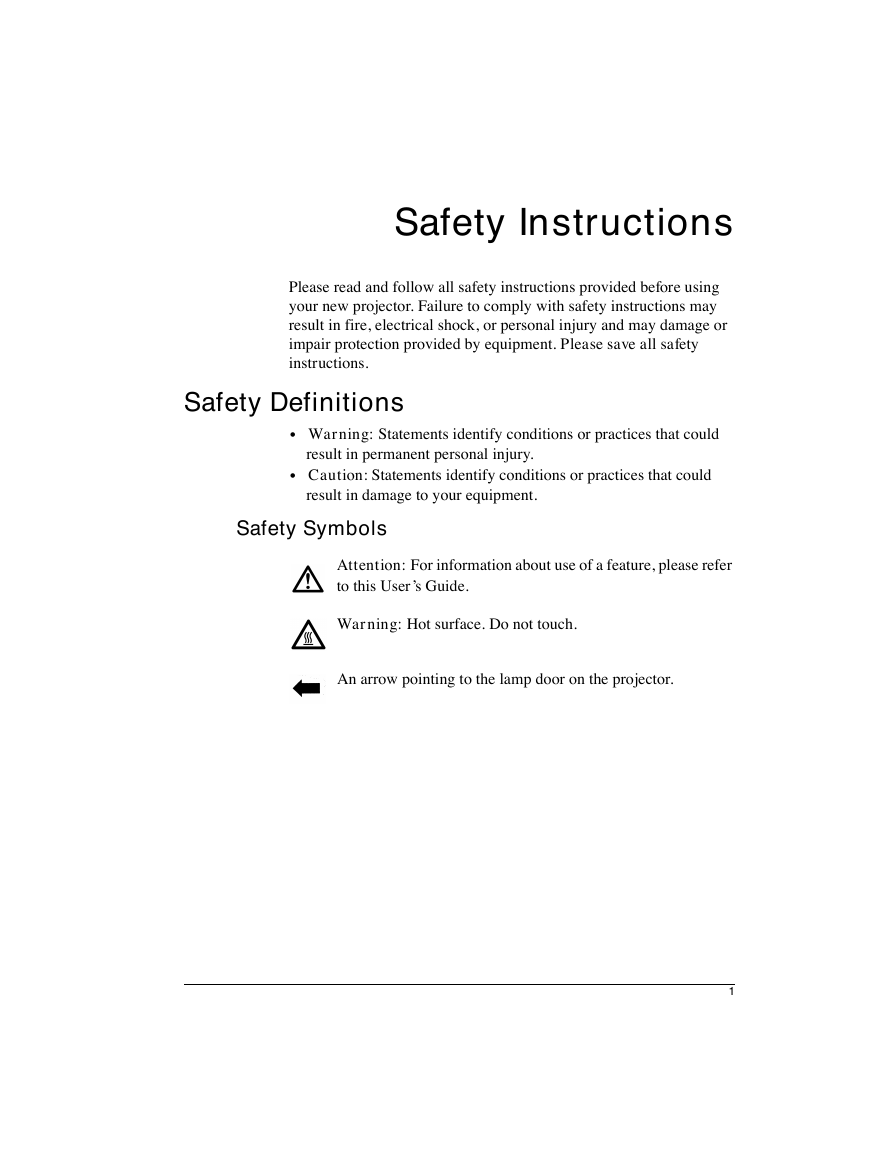

Safety Instructions Please read and follow all safety instructions provided before using your new projector. Failure to comply with safety instructions may result in fire, electrical shock, or personal injury and may damage or impair protection provided by equipment. Please save all safety instructions. Safety Definitions • Warning: Statements identify conditions or practices that could result in permanent personal injury. • Caution: Statements identify conditions or practices that could result in damage to your equipment. Safety Symbols Attention: For information about use of a feature, please refer to this User’s Guide. Warning: Hot surface. Do not touch. An arrow pointing to the lamp door on the projector. 1

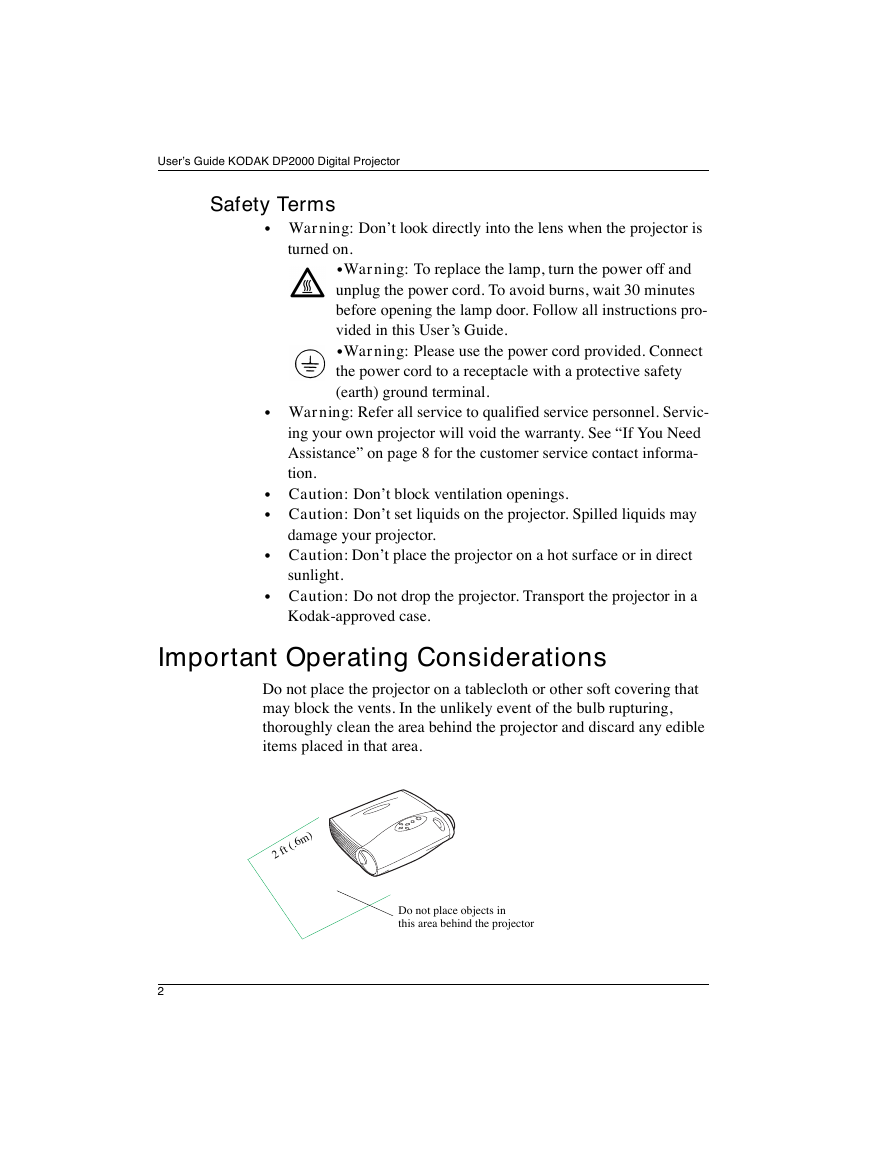

User’s Guide KODAK DP2000 Digital Projector Safety Terms • Warning: Don’t look directly into the lens when the projector is turned on. •Warning: To replace the lamp, turn the power off and unplug the power cord. To avoid burns, wait 30 minutes before opening the lamp door. Follow all instructions pro- vided in this User’s Guide. •Warning: Please use the power cord provided. Connect the power cord to a receptacle with a protective safety (earth) ground terminal. • Warning: Refer all service to qualified service personnel. Servic- ing your own projector will void the warranty. See “If You Need Assistance” on page 8 for the customer service contact informa- tion. • Caution: Don’t block ventilation openings. • Caution: Don’t set liquids on the projector. Spilled liquids may damage your projector. • Caution: Don’t place the projector on a hot surface or in direct sunlight. • Caution: Do not drop the projector. Transport the projector in a Kodak-approved case. Important Operating Considerations Do not place the projector on a tablecloth or other soft covering that may block the vents. In the unlikely event of the bulb rupturing, thoroughly clean the area behind the projector and discard any edible items placed in that area. m ) 2 ft (.6 Do not place objects in this area behind the projector 2
