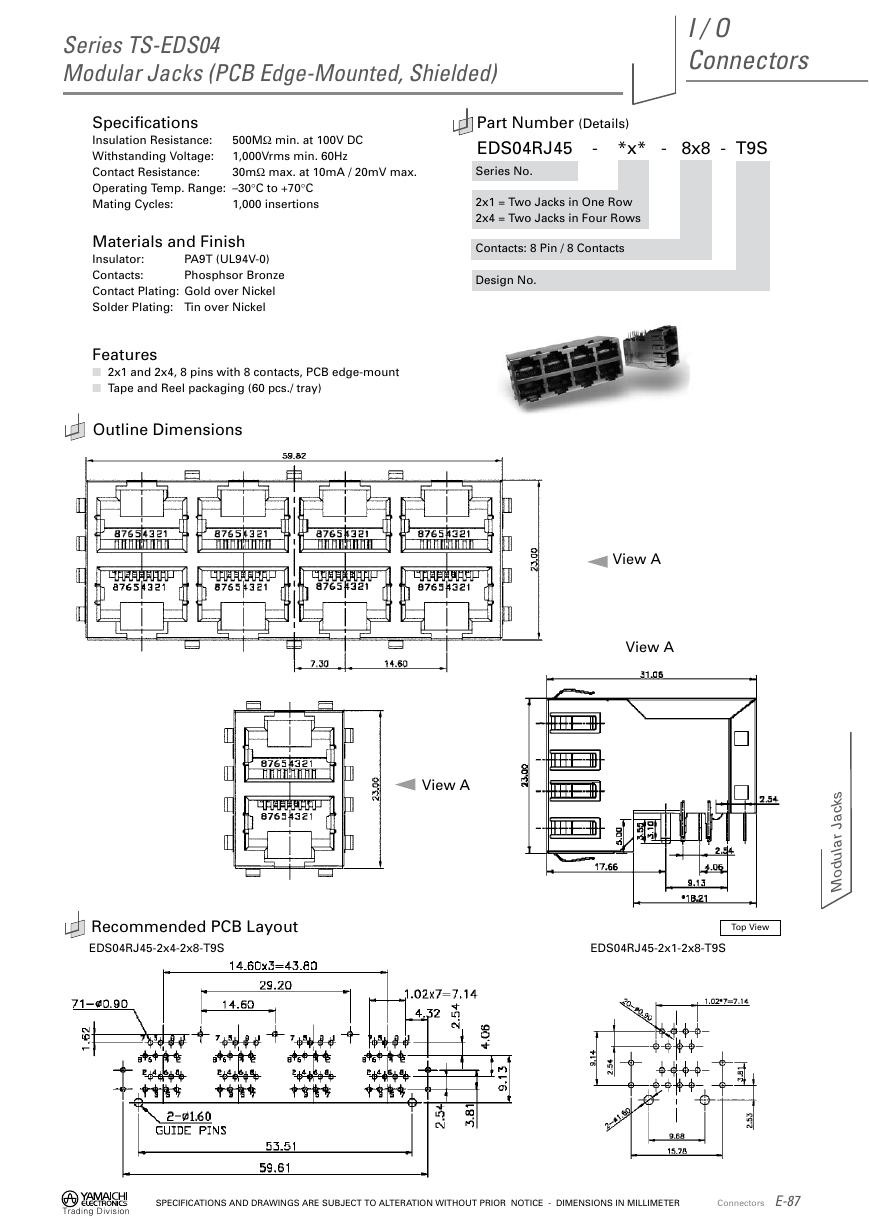

Series TS-EDS04 Modular Jacks (PCB Edge-Mounted, Shielded) I / O Connectors Specifications Insulation Resistance: Withstanding Voltage: Contact Resistance: Operating Temp. Range: –30°C to +70°C 1,000 insertions Mating Cycles: 500MΩ min. at 100V DC 1,000Vrms min. 60Hz 30mΩ max. at 10mA / 20mV max. Materials and Finish Insulator: Contacts: Contact Plating: Gold over Nickel Solder Plating: Tin over Nickel PA9T (UL94V-0) Phosphsor Bronze Features  2x1 and 2x4, 8 pins with 8 contacts, PCB edge-mount  Tape and Reel packaging (60 pcs./ tray) Outline Dimensions Part Number (Details) EDS04RJ45 - *x* - 8x8 - T9S Series No. 2x1 = Two Jacks in One Row 2x4 = Two Jacks in Four Rows Contacts: 8 Pin / 8 Contacts Design No. View A View A View A s k c a J r a l u d o M Recommended PCB Layout EDS04RJ45-2x4-2x8-T9S EDS04RJ45-2x1-2x8-T9S Top View Trading Division SPECIFICATIONS AND DRAWINGS ARE SUBJECT TO ALTERATION WITHOUT PRIOR NOTICE - DIMENSIONS IN MILLIMETER Connectors E-87
