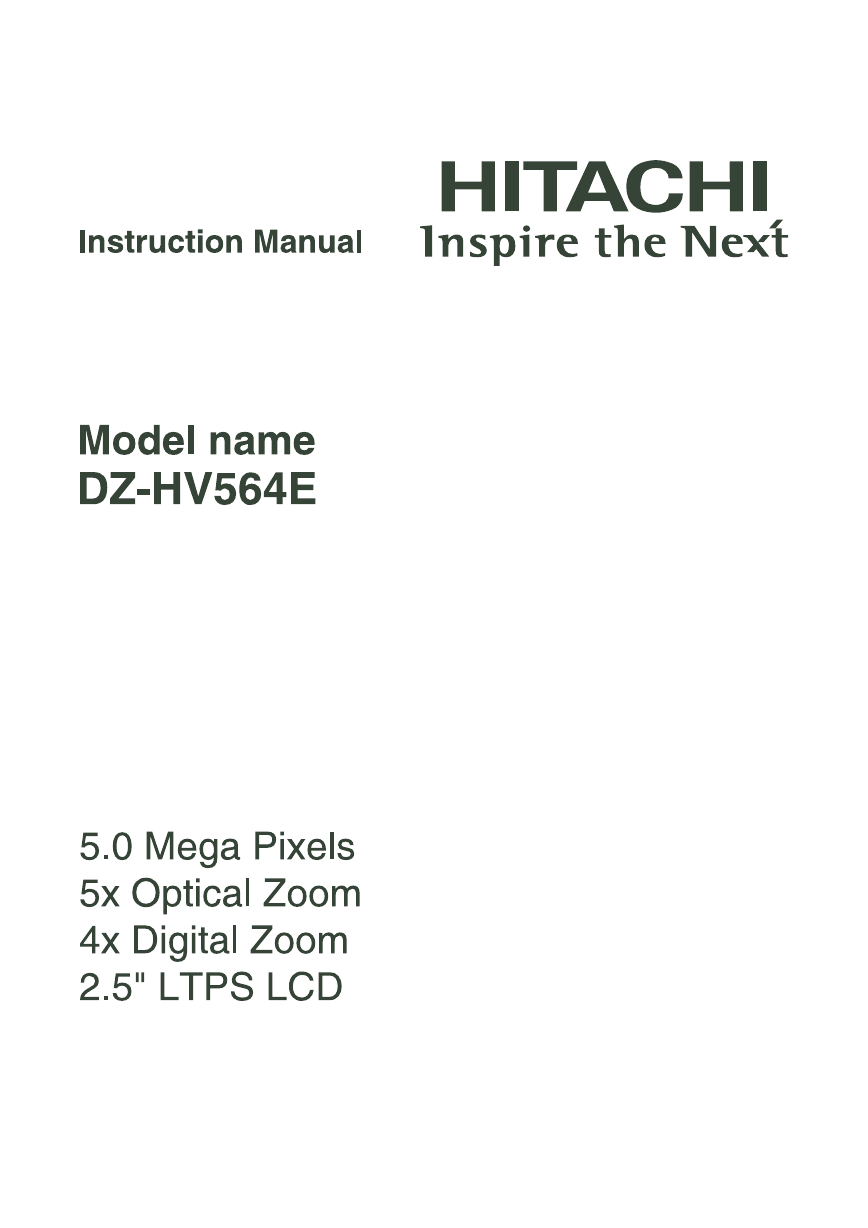

日立数码摄像机-DZ-HV564E说明书.pdf-资料库

第1页 / 共53页

第2页 / 共53页

第3页 / 共53页

第4页 / 共53页

第5页 / 共53页

第6页 / 共53页

第7页 / 共53页

第8页 / 共53页

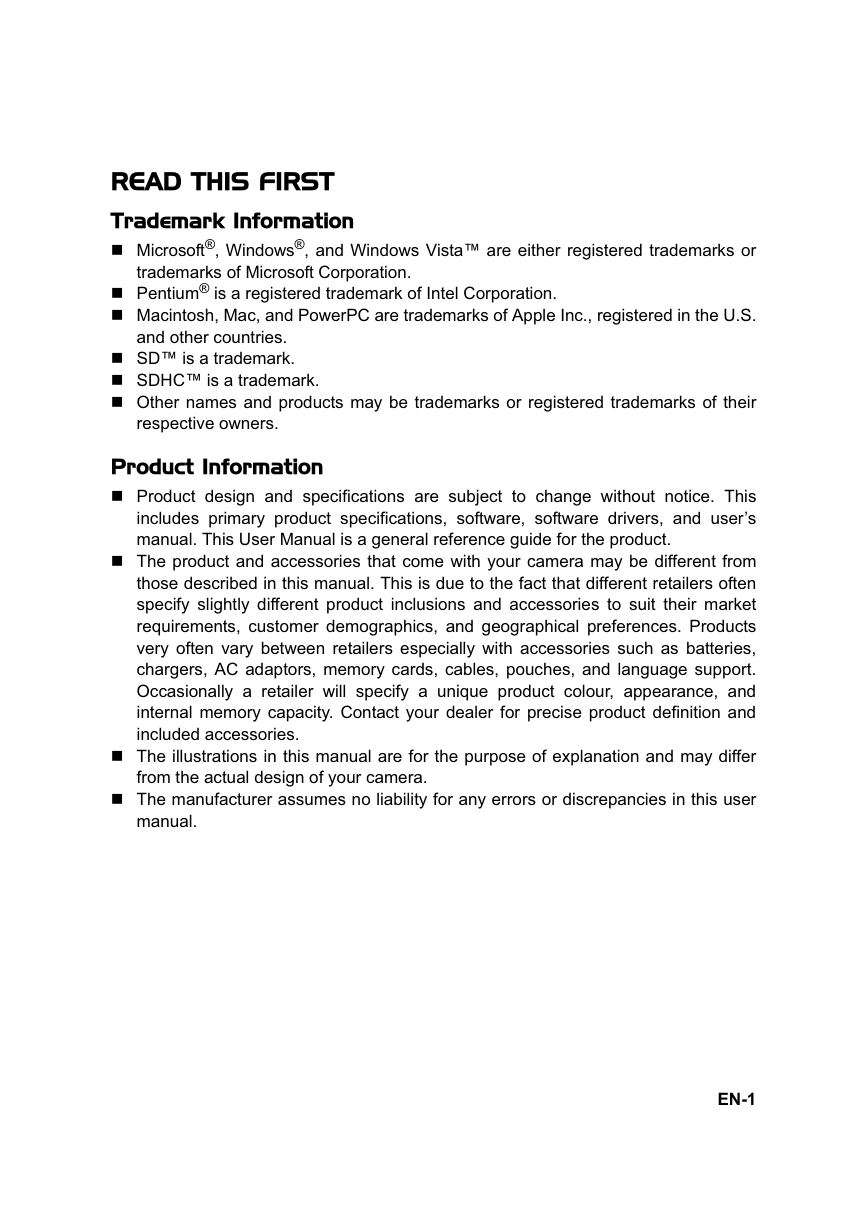

READ THIS FIRST Trademark Information Microsoft®, Windows®, and Windows Vista™ are either registered trademarks or trademarks of Microsoft Corporation. Pentium® is a registered trademark of Intel Corporation. Macintosh, Mac, and PowerPC are trademarks of Apple Inc., registered in the U.S. and other countries. SD™ is a trademark. SDHC™ is a trademark. Other names and products may be trademarks or registered trademarks of their respective owners. Product Information Product design and specifications are subject to change without notice. This includes primary product specifications, software, software drivers, and user’s manual. This User Manual is a general reference guide for the product. The product and accessories that come with your camera may be different from those described in this manual. This is due to the fact that different retailers often specify slightly different product inclusions and accessories to suit their market requirements, customer demographics, and geographical preferences. Products very often vary between retailers especially with accessories such as batteries, chargers, AC adaptors, memory cards, cables, pouches, and language support. Occasionally a retailer will specify a unique product colour, appearance, and internal memory capacity. Contact your dealer for precise product definition and included accessories. The illustrations in this manual are for the purpose of explanation and may differ from the actual design of your camera. The manufacturer assumes no liability for any errors or discrepancies in this user manual. EN-1

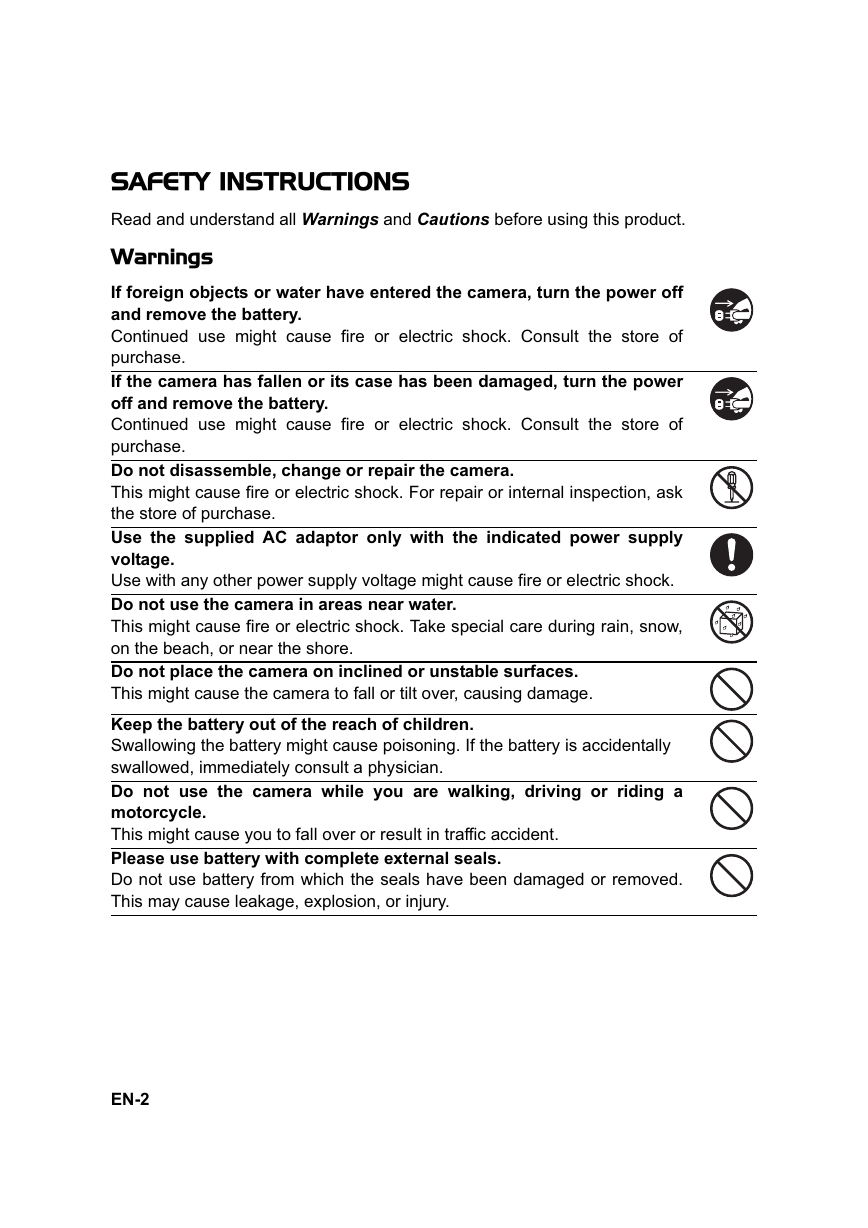

SAFETY INSTRUCTIONS Read and understand all Warnings and Cautions before using this product. Warnings If foreign objects or water have entered the camera, turn the power off and remove the battery. Continued use might cause fire or electric shock. Consult the store of purchase. If the camera has fallen or its case has been damaged, turn the power off and remove the battery. Continued use might cause fire or electric shock. Consult the store of purchase. Do not disassemble, change or repair the camera. This might cause fire or electric shock. For repair or internal inspection, ask the store of purchase. Use the supplied AC adaptor only with the indicated power supply voltage. Use with any other power supply voltage might cause fire or electric shock. Do not use the camera in areas near water. This might cause fire or electric shock. Take special care during rain, snow, on the beach, or near the shore. Do not place the camera on inclined or unstable surfaces. This might cause the camera to fall or tilt over, causing damage. Keep the battery out of the reach of children. Swallowing the battery might cause poisoning. If the battery is accidentally swallowed, immediately consult a physician. Do not use the camera while you are walking, driving or riding a motorcycle. This might cause you to fall over or result in traffic accident. Please use battery with complete external seals. Do not use battery from which the seals have been damaged or removed. This may cause leakage, explosion, or injury. EN-2

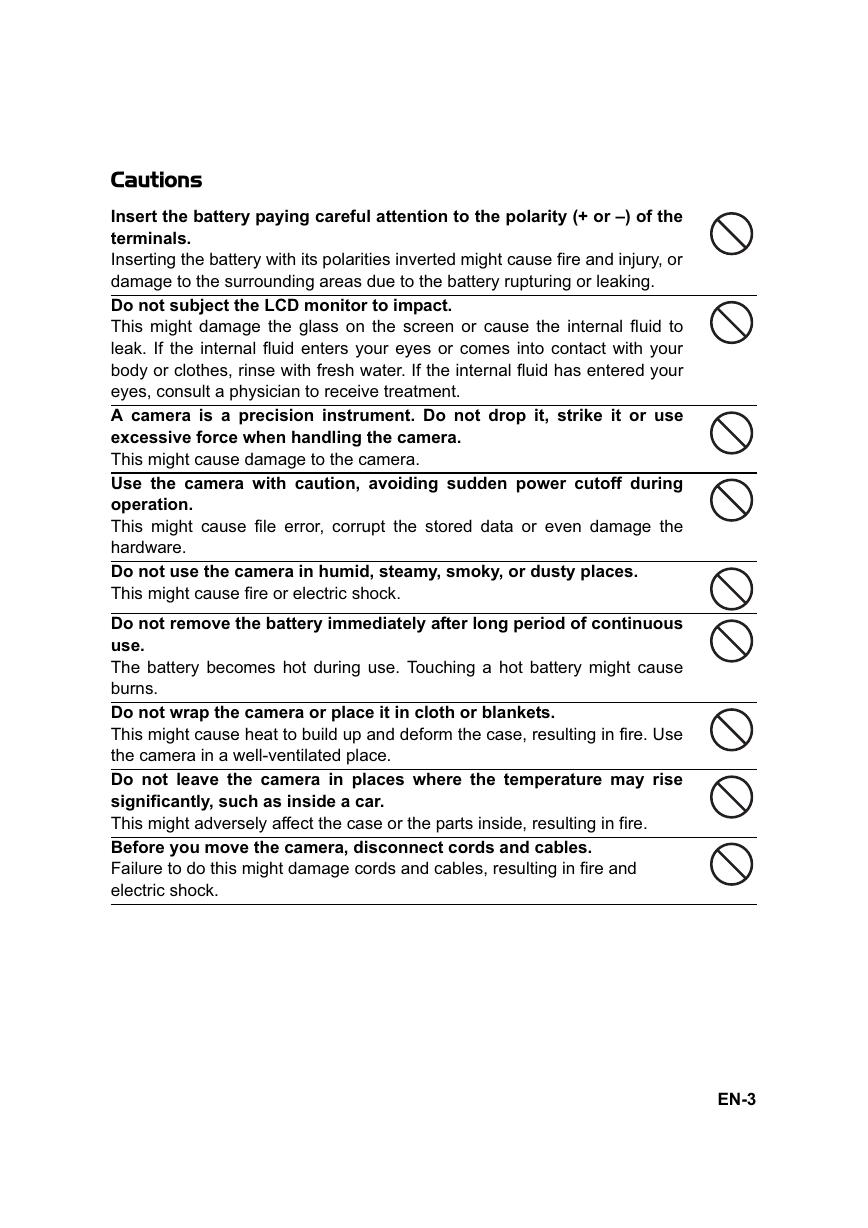

Cautions Insert the battery paying careful attention to the polarity (+ or –) of the terminals. Inserting the battery with its polarities inverted might cause fire and injury, or damage to the surrounding areas due to the battery rupturing or leaking. Do not subject the LCD monitor to impact. This might damage the glass on the screen or cause the internal fluid to leak. If the internal fluid enters your eyes or comes into contact with your body or clothes, rinse with fresh water. If the internal fluid has entered your eyes, consult a physician to receive treatment. A camera is a precision instrument. Do not drop it, strike it or use excessive force when handling the camera. This might cause damage to the camera. Use the camera with caution, avoiding sudden power cutoff during operation. This might cause file error, corrupt the stored data or even damage the hardware. Do not use the camera in humid, steamy, smoky, or dusty places. This might cause fire or electric shock. Do not remove the battery immediately after long period of continuous use. The battery becomes hot during use. Touching a hot battery might cause burns. Do not wrap the camera or place it in cloth or blankets. This might cause heat to build up and deform the case, resulting in fire. Use the camera in a well-ventilated place. Do not leave the camera in places where the temperature may rise significantly, such as inside a car. This might adversely affect the case or the parts inside, resulting in fire. Before you move the camera, disconnect cords and cables. Failure to do this might damage cords and cables, resulting in fire and electric shock. EN-3

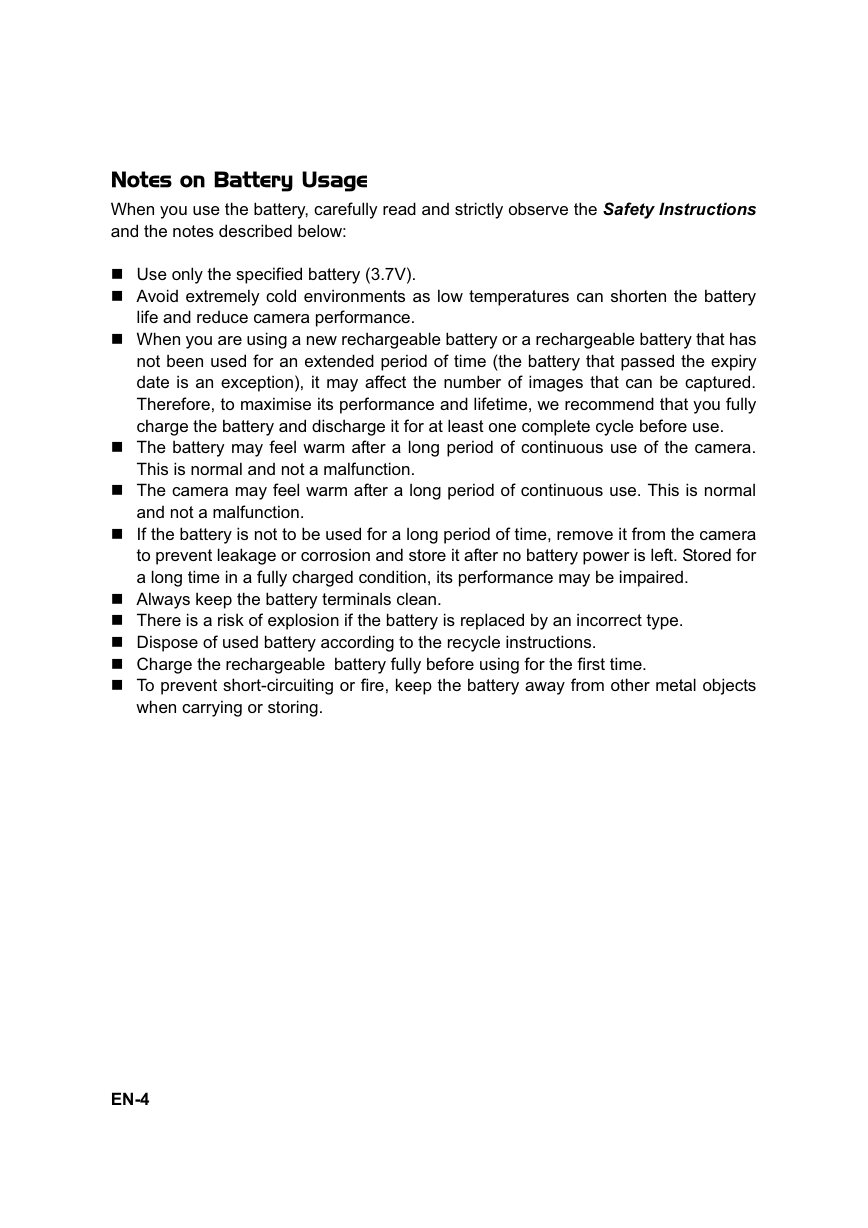

Notes on Battery Usage When you use the battery, carefully read and strictly observe the Safety Instructions and the notes described below: Use only the specified battery (3.7V). Avoid extremely cold environments as low temperatures can shorten the battery life and reduce camera performance. When you are using a new rechargeable battery or a rechargeable battery that has not been used for an extended period of time (the battery that passed the expiry date is an exception), it may affect the number of images that can be captured. Therefore, to maximise its performance and lifetime, we recommend that you fully charge the battery and discharge it for at least one complete cycle before use. The battery may feel warm after a long period of continuous use of the camera. This is normal and not a malfunction. The camera may feel warm after a long period of continuous use. This is normal and not a malfunction. If the battery is not to be used for a long period of time, remove it from the camera to prevent leakage or corrosion and store it after no battery power is left. Stored for a long time in a fully charged condition, its performance may be impaired. Always keep the battery terminals clean. There is a risk of explosion if the battery is replaced by an incorrect type. Dispose of used battery according to the recycle instructions. Charge the rechargeablebattery fully before using for the first time. To prevent short-circuiting or fire, keep the battery away from other metal objects when carrying or storing. EN-4

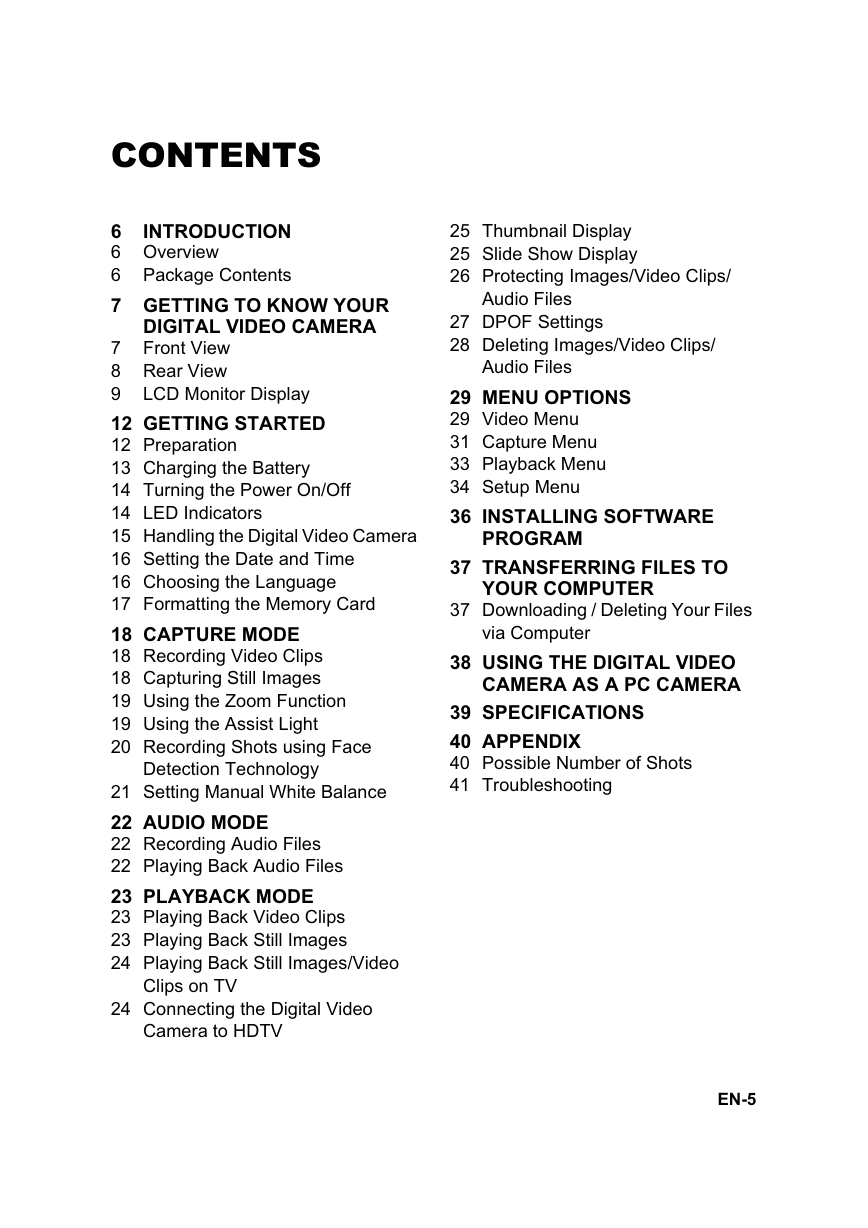

CONTENTS INTRODUCTION 6 6 Overview 6 Package Contents 7 GETTING TO KNOW YOUR DIGITAL VIDEO CAMERA LCD Monitor Display 7 Front View 8 Rear View 9 12 GETTING STARTED 12 Preparation 13 Charging the Battery 14 Turning the Power On/Off 14 LED Indicators 15 Handling the Digital Video Camera 16 Setting the Date and Time 16 Choosing the Language 17 Formatting the Memory Card 18 CAPTURE MODE 18 Recording Video Clips 18 Capturing Still Images 19 Using the Zoom Function 19 Using the Assist Light 20 Recording Shots using Face Detection Technology 21 Setting Manual White Balance 22 AUDIO MODE 22 Recording Audio Files 22 Playing Back Audio Files 23 PLAYBACK MODE 23 Playing Back Video Clips 23 Playing Back Still Images 24 Playing Back Still Images/Video Clips on TV 24 Connecting the Digital Video Camera to HDTV 25 Thumbnail Display 25 Slide Show Display 26 Protecting Images/Video Clips/ Audio Files 27 DPOF Settings 28 Deleting Images/Video Clips/ Audio Files 29 MENU OPTIONS 29 Video Menu 31 Capture Menu 33 Playback Menu 34 Setup Menu 36 INSTALLING SOFTWARE PROGRAM 37 TRANSFERRING FILES TO YOUR COMPUTER 37 Downloading / Deleting Your Files via Computer 38 USING THE DIGITAL VIDEO CAMERA AS A PC CAMERA 39 SPECIFICATIONS 40 APPENDIX 40 Possible Number of Shots 41 Troubleshooting EN-5

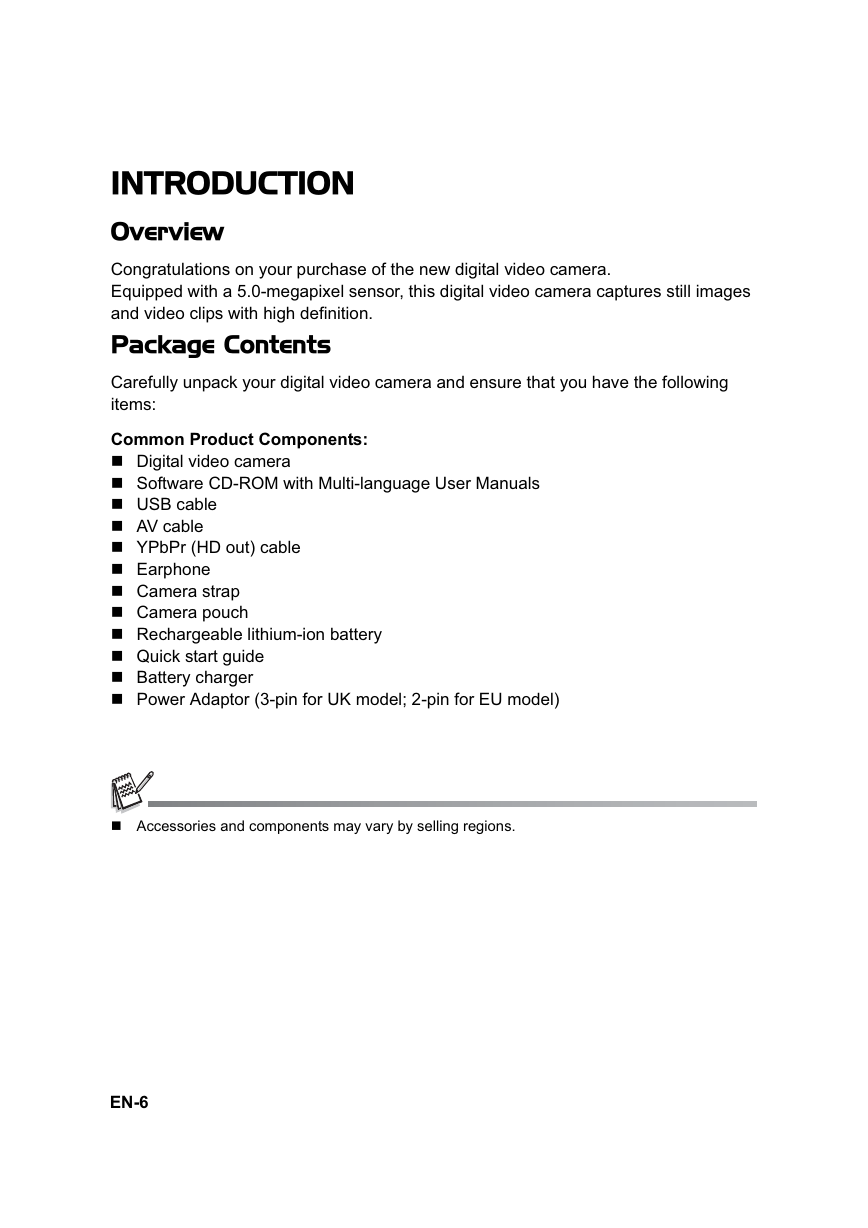

INTRODUCTION Overview Congratulations on your purchase of the new digital video camera. Equipped with a 5.0-megapixel sensor, this digital video camera captures still images and video clips with high definition. Package Contents Carefully unpack your digital video camera and ensure that you have the following items: Common Product Components: Digital video camera Software CD-ROM with Multi-language User Manuals USB cable AV cable YPbPr (HD out) cable Earphone Camera strap Camera pouch Rechargeable lithium-ion battery Quick start guide Battery charger Power Adaptor (3-pin for UK model; 2-pin for EU model) Accessories and components may vary by selling regions. EN-6

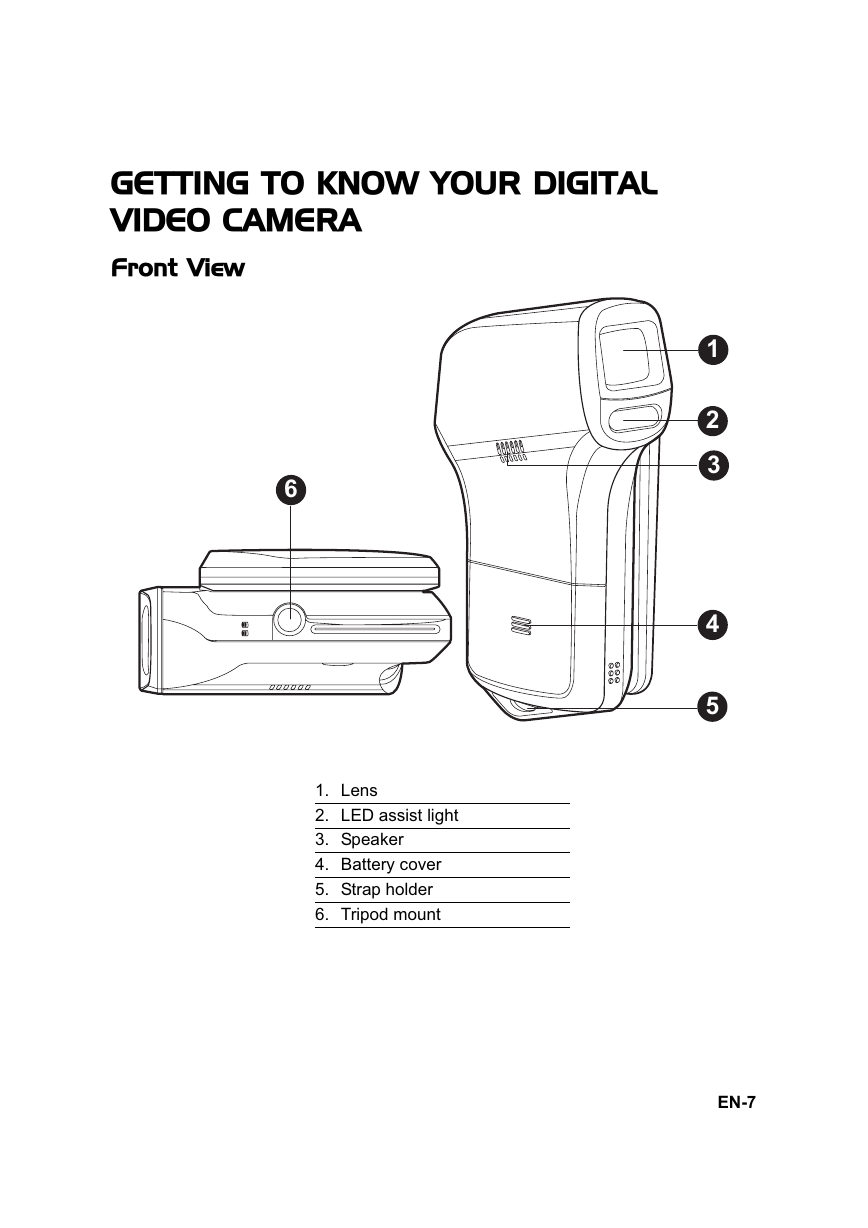

GETTING TO KNOW YOUR DIGITAL VIDEO CAMERA Front View 6 1. Lens 2. LED assist light 3. Speaker 4. Battery cover 5. Strap holder 6. Tripod mount 1 2 3 4 5 EN-7
