尼康数码相机-CoolPix 8800(仅为宣传手册)说明书.pdf

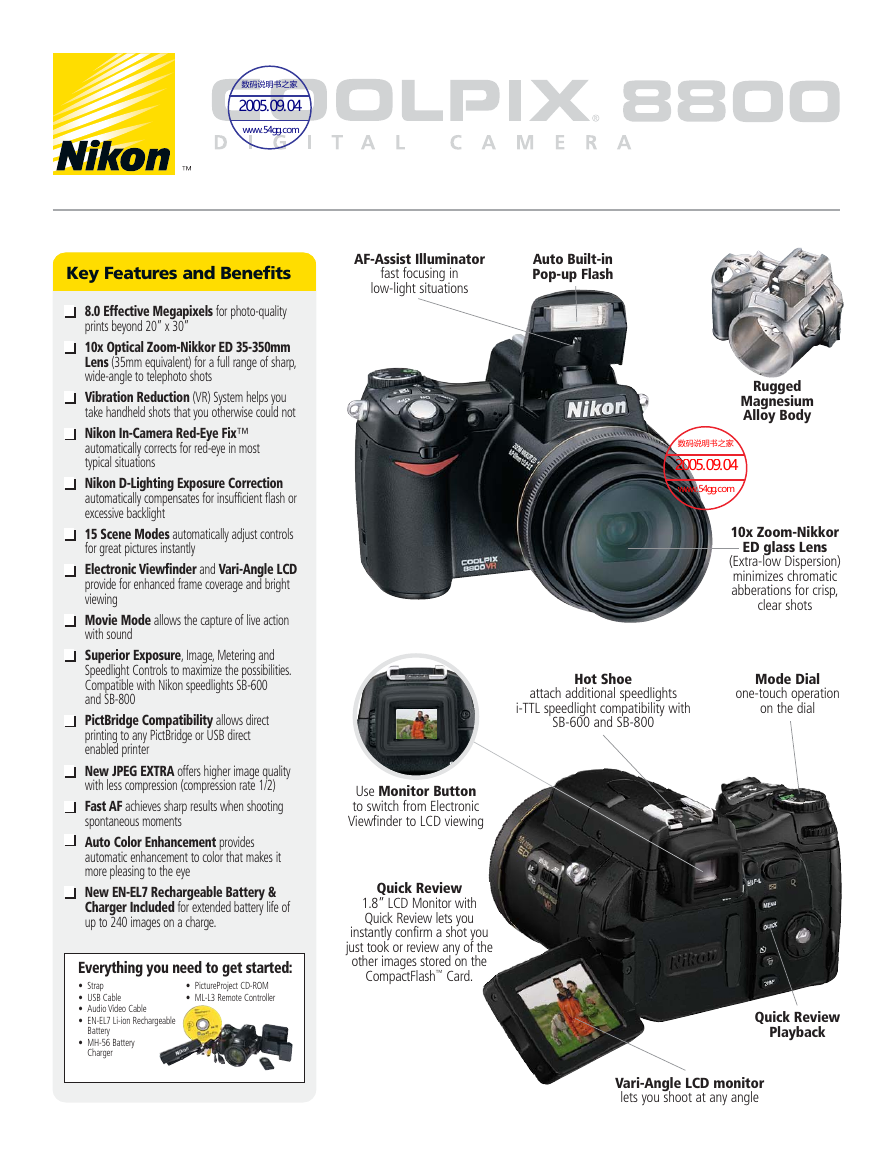

Key Features and Benefits
AF-Assist Illuminator
fast focusing in
low-light situations
Auto Built-in
Pop-up Flash
8.0 Effective Megapixels for photo-quality
prints beyond 20” x 30”
10x Optical Zoom-Nikkor ED 35-350mm
Lens (35mm equivalent) for a full range of sharp,
wide-angle to telephoto shots
Vibration Reduction (VR) System helps you
take handheld shots that you otherwise could not
Nikon In-Camera Red-Eye Fix™
automatically corrects for red-eye in most
typical situations
Nikon D-Lighting Exposure Correction
automatically compensates for insufficient flash or
excessive backlight
15 Scene Modes automatically adjust controls
for great pictures instantly
Electronic Viewfinder and Vari-Angle LCD
provide for enhanced frame coverage and bright
viewing
Movie Mode allows the capture of live action
with sound
Superior Exposure, Image, Metering and
Speedlight Controls to maximize the possibilities.
Compatible with Nikon speedlights SB-600
and SB-800
PictBridge Compatibility allows direct
printing to any PictBridge or USB direct
enabled printer
New JPEG EXTRA offers higher image quality
with less compression (compression rate 1/2)
Fast AF achieves sharp results when shooting
spontaneous moments
Auto Color Enhancement provides
automatic enhancement to color that makes it
more pleasing to the eye
New EN-EL7 Rechargeable Battery &
Charger Included for extended battery life of
up to 240 images on a charge.
Everything you need to get started:
• Strap
• USB Cable
• Audio Video Cable
• EN-EL7 Li-ion Rechargeable
• PictureProject CD-ROM
• ML-L3 Remote Controller
Battery
• MH-56 Battery
Charger
Rugged
Magnesium
Alloy Body
10x Zoom-Nikkor
ED glass Lens
(Extra-low Dispersion)
minimizes chromatic
abberations for crisp,
clear shots
Mode Dial
one-touch operation
on the dial
Hot Shoe
attach additional speedlights
i-TTL speedlight compatibility with
SB-600 and SB-800
Use Monitor Button
to switch from Electronic
Viewfinder to LCD viewing
Quick Review
1.8” LCD Monitor with
Quick Review lets you
instantly confirm a shot you
just took or review any of the
other images stored on the
CompactFlash™ Card.
Quick Review
Playback
Vari-Angle LCD monitor
lets you shoot at any angle
Nikon In-Camera Red-Eye Fix™:
Nikon D-Lighting:
This in-camera feature automatically removes most typical
occurrences of red-eye. You may never see red-eye again.
In playback mode, D-Lighting will compensate for underexposed
areas or insufficient flash without affecting properly exposed areas.
NEW! Time Lapse feature in Movie Mode
Camera takes a series of still images at specified intervals (30 seconds to 60 minutes) and joins these
frames together to create a Quicktime™ movie with a frame rate of 30 frames per second.
The Coolpix 8800 System (optional accessories)
Fisheye Converter
7mm*
Wideangle Converter
28mm*
Telephoto Converter
600mm*
Coolpix Filters
FF-CP11 NC
FF-CP11 CPL
FF-CP11 ND4
FC-E9
(0.2x)
WM-E80
(0.8x)
TC-E17ED
(Approx. 1.7x)
Requires Step-Down Ring
Adapter UR-E18
Requires Step-Down Ring
Adapter UR-E17
Nikon Speedlights
(SB-800/600)
Soft Case
*35mm equivalent
Battery Pack
MB-CP11
AC Adapter
EH-54
Through the Shooting Menu
Framing
Guides
display framing
guides on the
LCD monitor
in order to
achieve an ideal
composition
Real-time
Histogram
Real time display
of image data to
confirm exposure
and make
adjustments
Saturation
Mode
Control color
saturation
Noise
Reduction
Mode
Minimize digital
artifacts in long
exposures
White
Balance
Bracketing
Ensure proper
color balance
Autofocus/Metering Options:
Choose the autofocus option you want to use.
Pick the metering option that is right for your shot.
Select from one of nine
focus areas manually, or
let Auto Mode choose
from five focus areas
automatically.
Manual 9-Area Multi-AF
Matrix
Metering
optimal exposure
is measured by
comparing 256
areas of the frame
Spot metering
optimal exposure
is measured by
using 1/32 from
the center of
frame
Center
Weighted
Metering
optimal exposure
is measured by
using 1/4 from the
center of frame
Spot AF Area
exposure is
linked to active
focus area
Versatile 15 Scene Modes
PictureProject Software
Fifteen programmed Scene Modes make it easy to
capture optimal results in the most diverse shooting
situations. With the COOLPIX 8800, anyone, even a
novice photographer, can take great images simply by
choosing the appropriate mode for the next picture.
Nikon is proud to introduce the
next generation of imaging soft-
ware, Nikon PictureProject.
Nikon PictureProject™ is a fast and powerful
tool for organizing and working with your
pictures easily and intuitively.
PictureProject will let you transfer your pictures from your camera seamlessly.
You can then edit, remove red-eye, enhance, crop, print, e-mail, post pictures
to the web or create a photo album.You can even publish them to your PDA,
create slideshows with music or stitch together a number of pictures to create
a stunning panorama.
With Nikon PictureProject you can spend more time taking pictures instead of
managing them and then easily store, organize and share your memories.
PictureProject will work with Windows® 98SE, 2000, ME & XP as well as Mac
OS® X (10.1.5 or later).
Portrait
Emphasizes a subject with natural
skin tones against a soft, pleasing
background.
Close Up
With precise manual focus area selection
and appropriate coloration, this mode
makes detailed subjects stand out from
the background.
Landscape
Emphasizing depth-of-field, this mode captures distant scenes sharply and clearly,
for postcard-like landscape pictures.
Panorama Assist
Allows you to take several side-by-side images, all at the same exposure and white
balance setting, then combine them later using the “Panorama Maker™” photo
editing software (supplied) to create spectacular wide-vista photos.
Continuous shooting at 2.3 fps
Now you can take up to five full-size, 8-megapixel (3,264 x 2,448) images
at 2.3 frames per second.
AE Best Shot Selector:
AE-BSS for the proper exposure
AE-BSS (Auto Exposure -
Best Shot Selector)
automatically selects the best
relative exposure from a series
of consecutive images. Select
from three modes: Highlight
mode, Shadow mode, and
Histogram mode.
Highlight mode
Shadow mode

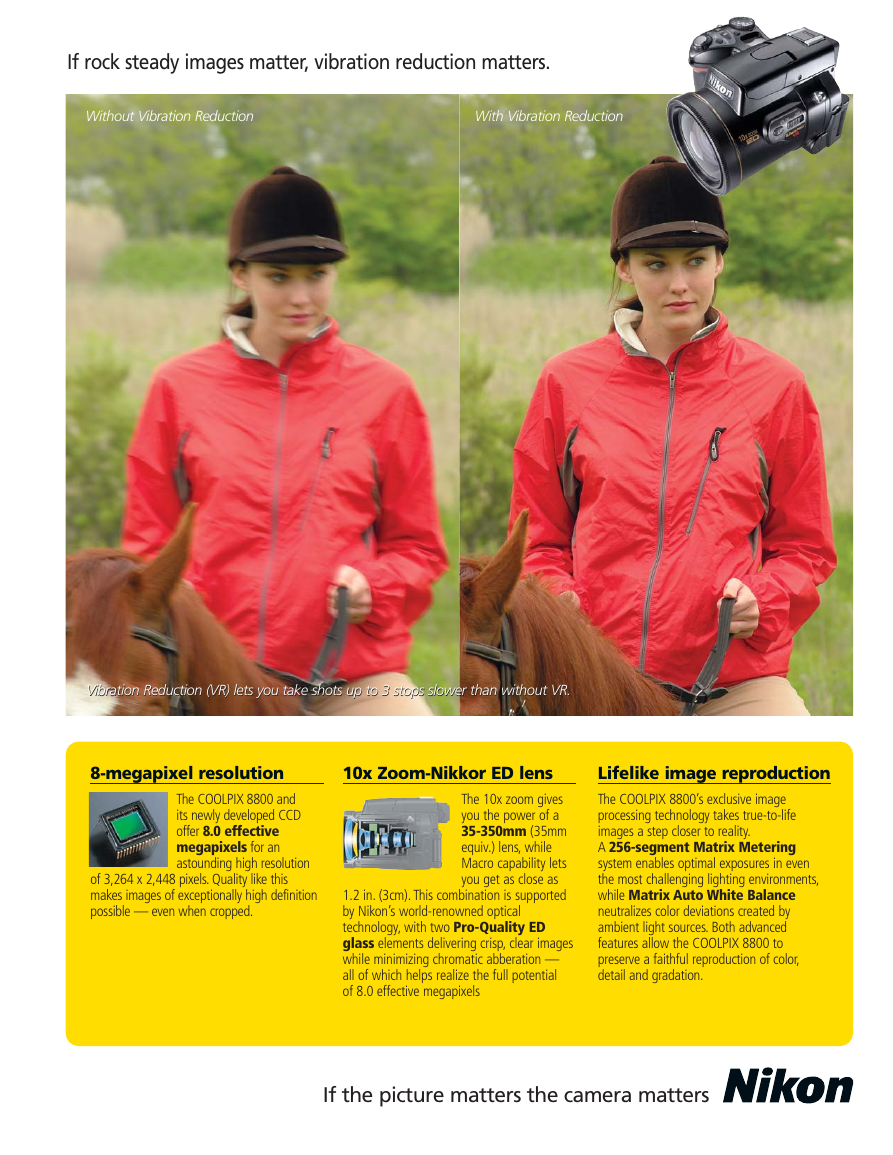

If rock steady images matter, vibration reduction matters.
Without Vibration Reduction
With Vibration Reduction
Vibration Reduction (VR) lets you take shots up to 3 stops slower than without VR.
Vibration Reduction (VR) lets you take shots up to 3 stops slower than without VR.
8-megapixel resolution
The COOLPIX 8800 and
its newly developed CCD
offer 8.0 effective
megapixels for an
astounding high resolution
of 3,264 x 2,448 pixels. Quality like this
makes images of exceptionally high definition
possible — even when cropped.
10x Zoom-Nikkor ED lens
The 10x zoom gives
you the power of a
35-350mm (35mm
equiv.) lens, while
Macro capability lets
you get as close as
1.2 in. (3cm). This combination is supported
by Nikon’s world-renowned optical
technology, with two Pro-Quality ED
glass elements delivering crisp, clear images
while minimizing chromatic abberation —
all of which helps realize the full potential
of 8.0 effective megapixels
Lifelike image reproduction
The COOLPIX 8800’s exclusive image
processing technology takes true-to-life
images a step closer to reality.
A 256-segment Matrix Metering
system enables optimal exposures in even
the most challenging lighting environments,
while Matrix Auto White Balance
neutralizes color deviations created by
ambient light sources. Both advanced
features allow the COOLPIX 8800 to
preserve a faithful reproduction of color,
detail and gradation.
If the picture matters the camera matters
Nikon Coolpix ® 8800
Digital Camera Specifications
Type of camera:
Effective pixels:
CCD:
Image size (pixels):
Lens:
Vibration Reduction:
Digital zoom:
Autofocus:
Focus modes:
Focus range:
Viewfinder:
LCD monitor:
Storage:
Digital camera E8800
8.0 million
2/3-inch-type (total pixels: 8.31 million)
8M (3,264 x 2,448), 3:2 (3,264 x 2,176), 5M (2,592 x 1,944), 3M (2,048 x 1,536),
2M (1,600 x 1,200), 1M (1,280 x 960), PC (1,024 x 768),TV (640 x 480) selectable
10x Zoom-Nikkor; 8.9-89mm [35mm (135) format equivalent to 35-350mm]
f/2.8-5.2; 16 elements in 10 groups; two glass molded ED lens elements included
Lens shift
Up to 4x
Contrast-detect TTL AF with AF-assist illuminator; Center,Auto 5-area multi AF,
manual 9-area multi AF selectable
1) Continuous AF, 2) Single AF, 3) Manual Focus (from 1.2 in. [3cm] to infinity (∞) with
focus confirmation indication)
19.7 in. (50cm) to infinity (∞) (W)/39.4 in. (1m) to infinity (∞) (T); 1.2 in. (3cm) to
infinity (∞) (W) in macro and manual focus modes
0.44-inch type, 235,000-dot, polysilicon TFT color LCD viewfinder;
Diopter adjustment: -3 to +1m-1
1.8-inch type, 134,000-dot High Transmissive Advanced TFT LCD monitor with
brightness and hue adjustment; frame coverage: approx. 97% horizontal and
vertical (shooting)
Media:Type I and II CompactFlash™ (CF) and Microdrive™ cards
File system: Compliant with Design Rule for Camera File System (DCF)*, Exif 2.2**,
and Digital Print Order Format (DPOF)
File formats: RAW (NEF) and TIFF-RGB (uncompressed), JPEG-base line-compliant
(1:2, 1:4, 1:8, 1:16) (compressed), QuickTime (movies),WAV (sound files)
*A standard widely used in the digital camera industry to ensure compatibility among different
makes of camera.
**Exchangeable Image File Format for Digital Still Cameras. Version 2.2 allows information stored
with pictures to be used for optimal color reproduction when images are output on
Exif-compliant printers.
Number of frames with 256MB CF Card (approx.)
1M
—
—
200
390
710
1305
8M
3M
20 — —
20 — —
80
30
155
60
310
125
240
600
Image Size:
RAW
HI
FINE
FINE
NORMAL
BASIC
TV
—
—
710
1305
1955
2610
PC
—
—
310
600
975
1565
3:2
—
10
35
70
140
275
2M
—
—
130
250
485
870
50
100
195
370
5M
l
y
t
i
a
u
Q
e
g
a
m
I
Shooting modes:
Scene modes:
Shooting menu:
Capture modes:
Exposure metering:
Exposure control:
AUTO, SCENE, P, S,A, M, MOVIE
Portrait, Party/Indoor, Night portrait, Beach/Snow, Landscape, Sunset, Night landscape,
Museum, Fireworks show, Close up, Copy, Back light, Panorama assist, Sports,
and Dusk/Dawn
1) White balance, 2) (Exposure) Metering, 3) Continuous (Shooting), 4) Best Shot
Selector (BSS/AE-BSS), 5) Image adjustment (Auto/Normal/More contrast/Less
contrast), 6) Saturation Control (-2 to +2/Black & White), 7) User setting (two
combinations of mode setting can be memorized as #1-#2), 8) Image mode,
9) Sensitivity, 10) Image Sharpening, 11) Lens, 12) Exposure options (AE Lock,
Bulb/Timed release), 13) Focus options, 14) Zoom options, 15) VR mode,
16) Speedlight options, 17) Auto Bracketing, 18) Noise Reduction, 19) Reset,
20) My Menu, 21) CF Card Format
1) Single, 2) Continuous H (2.3 fps; up to 5 frames), 3) Continuous L (1.2 fps; up to
11 frames) 4) Multi-shot 16 (16 consecutive frames at 1.6 fps), 5) Ultra HS (high-
speed) (640 x 480 pixels; 30 fps, up to 100 frames), 6) 5 shot buffer (0.7 fps),
7) Interval Timer Shooting, 8) Movie*:TV movie 640 (640 x 480 pixels) with audio at
30 fps; up to 60 seconds, Small movie 320 (320 x 240 pixels) with audio at 15 fps; up
to 895 seconds,Time-lapse movie (640 x 480 pixels) at 30 fps; up to 35 seconds
(1,050 frames), Sepia movie 320 (320 x 240 pixels) with audio at 5 fps; up to 895
seconds, B/W movie 320 (320 x 240 pixels) with audio at 15 fps; up to 895 seconds
are selectable
*Approximate maximum total length [256MB card]; may vary with make of card.
4-mode TTL metering: 1) 256-segment Matrix, 2) Spot, 3) Center-Weighted,
4) Spot AF area
1) Programmed Auto with Flexible Program [P], 2) Shutter-Priority Auto [S],
3) Aperture-Priority Auto [A], 4) Manual [M]; Exposure Compensation (±2 EV in 1/3
EV steps);Auto Exposure Bracketing;AE-BSS
Additional accessories can be found at
www.nikondigitalusa.com on the Coolpix 8800 page
Exposure range:
Shutter:
Aperture:
Sensitivity:
White balance:
Self-timer:
Built-in Speedlight:
EV 0.0 to +18.5 (W), EV +1.8 to +18.5 (T)
Mechanical and charge-coupled electronic shutter; 2-1/3,000 s (auto and exposure
mode P), 8-1/3,000 s (exposure modes S and A), BULB/TIME (max. 10 min.) and
8-1/3,000 s (exposure mode M), 1/30-1/8,000 s (Ultra HS). Maximum at some
apertures is 1/1,500 s.
7-blade iris diaphragm; 10 steps in 1/3 EV increments (to minimum of f/8)
Approximately equivalent to ISO 50, 100, 200, 400, and Auto (auto gain to ISO
200 equivalent)
1) Auto White Balance with TTL control, 2) 6-mode Manual with fine tuning
(Daylight/Incandescent/Fluorescent/Cloudy/ Speedlight/Shade), 3) Preset, 4) White
Balance Bracketing
10 s or 3 s; can be used with supplied Remote Controller ML-L3
Shooting range: approx. 1.8-19.8ft. (0.5-6.0m) (W), approx. 3.3-9.1ft. (1.0-3.0m) (T)
Flash modes: 1) Auto Flash, 2) Flash Cancel 3) Red-Eye Reduction (In-Camera Red Eye
Fix™) 4) Anytime Flash, 5) Night Portrait (Slow Sync Flash), 6) Rear Curtain Sync
Sync method: Standard i-TTL Flash
Standard ISO hot-shoe contact with safety lock
Hot shoe connects to external Nikon Speedlight SB-800/600
Interface:
I/O terminal:
Supported languages:
Accessory shoe:
External Speedlight:
Playback menu options: 1) Full-frame, 2) Thumbnail (4/9 segments), 3) Slide show, 4) Movie with audio,
5) Playback zoom (up to 10x); File information; Shooting information; Histogram
indication and highlight point display; Hide and protect attributes can be set to each
image; Focus confirmation indication; RAW image playback; Small picture; D-Lighting
USB 2.0 (HI-SPEED)
DC in;Audio/Video (NTSC or PAL selectable) out; Digital I/O (USB)
German/English/Spanish/French/Italian/Dutch/Swedish/Japanese/Simplified Chinese/
Traditional Chinese/Korean selectable in menu display
One Rechargeable Li-ion Battery EN-EL7 (included), Battery Pack MB-CP11 (optional)
with six 1.5V LR6 (AA-size alkaline) batteries*,AC Adapter EH-54 (optional)
*1.5V FR Lithium, 1.2V NiMH, or 1.2V NiCd batteries can also be used.
240 images (EN-EL7; based on CIPA standard*)
*Industry standard for measuring life of camera batteries. Measured at 25°C (77°F); zoom adjusted
with each shot, built-in Speedlight fired with every other shot, image mode set to NORMAL/8M
Battery life (approx.):
Power requirements:
Dimensions (W x H x D): 4.6 x 3.3 x 4.8 in. (116 x 85 x 121mm)
Weight:
Supplied accessories*:
Optional accessories:
Approx. 21.2 oz. (600g) (without battery and storage media)
Lens Cap, Strap, USB Cable,Audio Video Cable, EN-EL7 Rechargeable Li-ion Battery,
MH-56 Battery Charger, ML-L3 Remote Controller, PictureProject CD-ROM
*Supplied accessories may differ by country or area.
Additional EN-EL7 Rechargeable Li-ion Battery, EH-54 AC Adapter, MB-CP11 Battery
Pack, Soft Case,Various size CompactFlash™ Cards, FC-E9 Fisheye Converter, UR-E18
Step-Down Ring Lens Adapter,TC-E17ED Telephoto Converter, UR-E17 Step-Down
Ring Lens Adapter,WM-E80 Wideangle Converter Attachment, HN-CP14 Lens Hood,
SB-800/600 Speedlight, COOLPIX Filter FF-CP11NC/FF-CP11CPL/FF-CP11ND4,
MSV-01 Digital Photo Storage Viewer COOLWALKER
PictureProject
System requirements RAM:64 MB or more recommended
for Macintosh:
OS:Mac® OS X (10.1.5 or later),
Hard disk:60 MB required for installation
Display:800 x 600 with 16-bit colors (full color recommended)
Others:CD-ROM drive required for installation
PictureProject
System requirements Home Edition,Windows® XP Professional pre-installed model
for Windows:
OS:Windows® 98SE,Windows® ME,Windows® 2000 Professional,Windows® XP
RAM:64 MB or more recommended
Hard disk:60 MB required for installation
Display:800 x 600 with 16-bit colors (full color recommended)
Others:CD-ROM drive required for installation
Product Number:
25523 UPC code: 018208255238
All products indicated by trademark symbols are trademarked and/or registered by their respective companies.
Specifications and equipment are subject to change without any notice or obligation on the part of the manufacturer. 9/04
©2004 NIKON INC.
Nikon Inc.,
1300 Walt Whitman Road, Melville, NY 11747
www.nikondigitalusa.com / 1-800-Nikon-UX
CDP-8800-01
相关推荐
2023年江西萍乡中考道德与法治真题及答案.doc
2012年重庆南川中考生物真题及答案.doc
2013年江西师范大学地理学综合及文艺理论基础考研真题.doc
2020年四川甘孜小升初语文真题及答案I卷.doc
2020年注册岩土工程师专业基础考试真题及答案.doc
2023-2024学年福建省厦门市九年级上学期数学月考试题及答案.doc
2021-2022学年辽宁省沈阳市大东区九年级上学期语文期末试题及答案.doc
2022-2023学年北京东城区初三第一学期物理期末试卷及答案.doc
2018上半年江西教师资格初中地理学科知识与教学能力真题及答案.doc
2012年河北国家公务员申论考试真题及答案-省级.doc
2020-2021学年江苏省扬州市江都区邵樊片九年级上学期数学第一次质量检测试题及答案.doc
2022下半年黑龙江教师资格证中学综合素质真题及答案.doc
