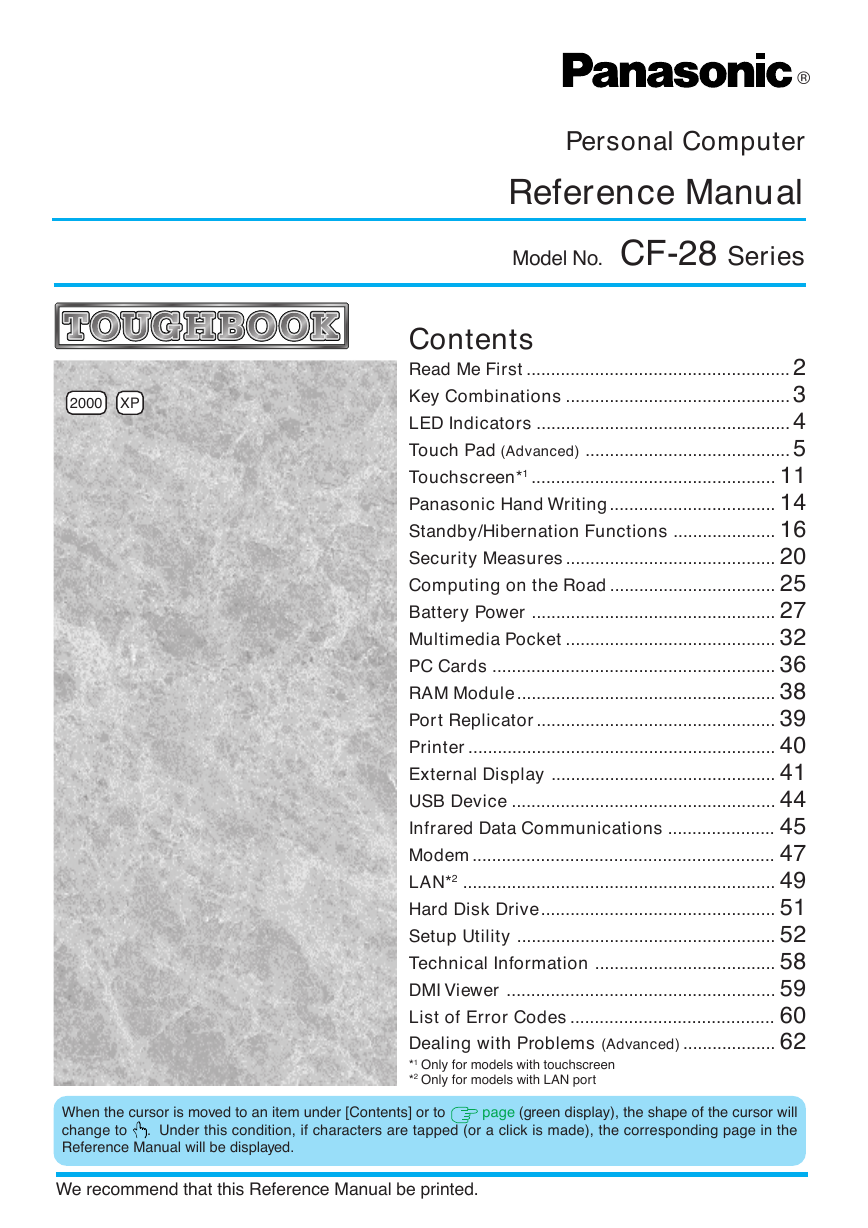

2000 XP ® Personal Computer Reference Manual Model No. CF-28 Series Contents Read Me First ...................................................... 2 Key Combinations .............................................. 3 LED Indicators .................................................... 4 Touch Pad (Advanced) .......................................... 5 Touchscreen*1 .................................................. 11 Panasonic Hand Writing.................................. 14 Standby/Hibernation Functions ..................... 16 Security Measures ........................................... 20 Computing on the Road .................................. 25 Battery Power .................................................. 27 Multimedia Pocket ........................................... 32 PC Cards .......................................................... 36 RAM Module ..................................................... 38 Port Replicator ................................................. 39 Printer ............................................................... 40 External Display .............................................. 41 USB Device ...................................................... 44 Infrared Data Communications ...................... 45 Modem .............................................................. 47 LAN*2 ................................................................ 49 Hard Disk Drive................................................ 51 Setup Utility ..................................................... 52 Technical Information ..................................... 58 DMI Viewer ....................................................... 59 List of Error Codes .......................................... 60 Dealing with Problems (Advanced) ................... 62 *1 Only for models with touchscreen *2 Only for models with LAN port When the cursor is moved to an item under [Contents] or to change to Reference Manual will be displayed. page (green display), the shape of the cursor will . Under this condition, if characters are tapped (or a click is made), the corresponding page in the We recommend that this Reference Manual be printed.

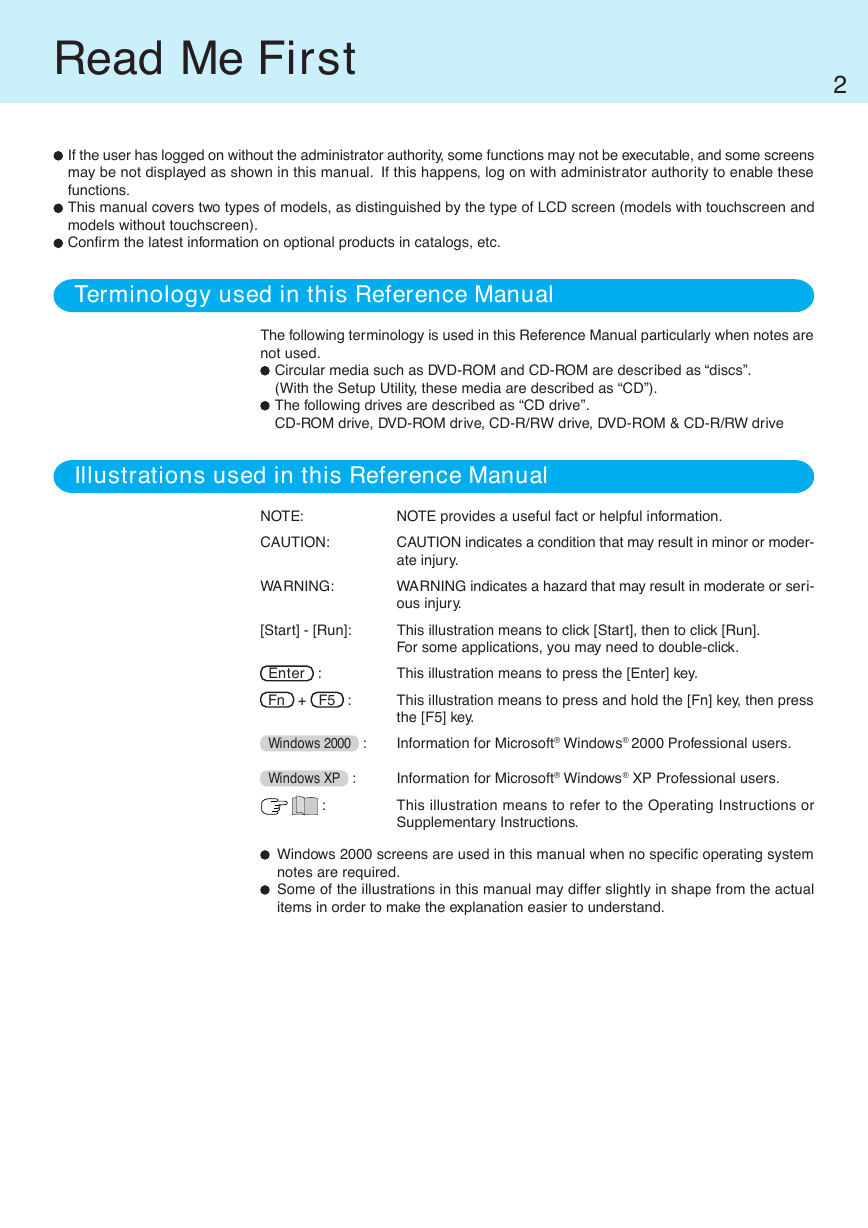

Read Me First 2 If the user has logged on without the administrator authority, some functions may not be executable, and some screens may be not displayed as shown in this manual. If this happens, log on with administrator authority to enable these functions. This manual covers two types of models, as distinguished by the type of LCD screen (models with touchscreen and models without touchscreen). Confirm the latest information on optional products in catalogs, etc. Terminology used in this Reference Manual The following terminology is used in this Reference Manual particularly when notes are not used. Circular media such as DVD-ROM and CD-ROM are described as “discs”. (With the Setup Utility, these media are described as “CD”). The following drives are described as “CD drive”. CD-ROM drive, DVD-ROM drive, CD-R/RW drive, DVD-ROM & CD-R/RW drive Illustrations used in this Reference Manual NOTE: CAUTION: WARNING: [Start] - [Run]: Enter : Fn + F5 : NOTE provides a useful fact or helpful information. CAUTION indicates a condition that may result in minor or moder- ate injury. WARNING indicates a hazard that may result in moderate or seri- ous injury. This illustration means to click [Start], then to click [Run]. For some applications, you may need to double-click. This illustration means to press the [Enter] key. This illustration means to press and hold the [Fn] key, then press the [F5] key. Windows 2000 : Information for Microsoft® Windows® 2000 Professional users. Windows XP : Information for Microsoft® Windows® XP Professional users. : This illustration means to refer to the Operating Instructions or Supplementary Instructions. Windows 2000 screens are used in this manual when no specific operating system notes are required. Some of the illustrations in this manual may differ slightly in shape from the actual items in order to make the explanation easier to understand.

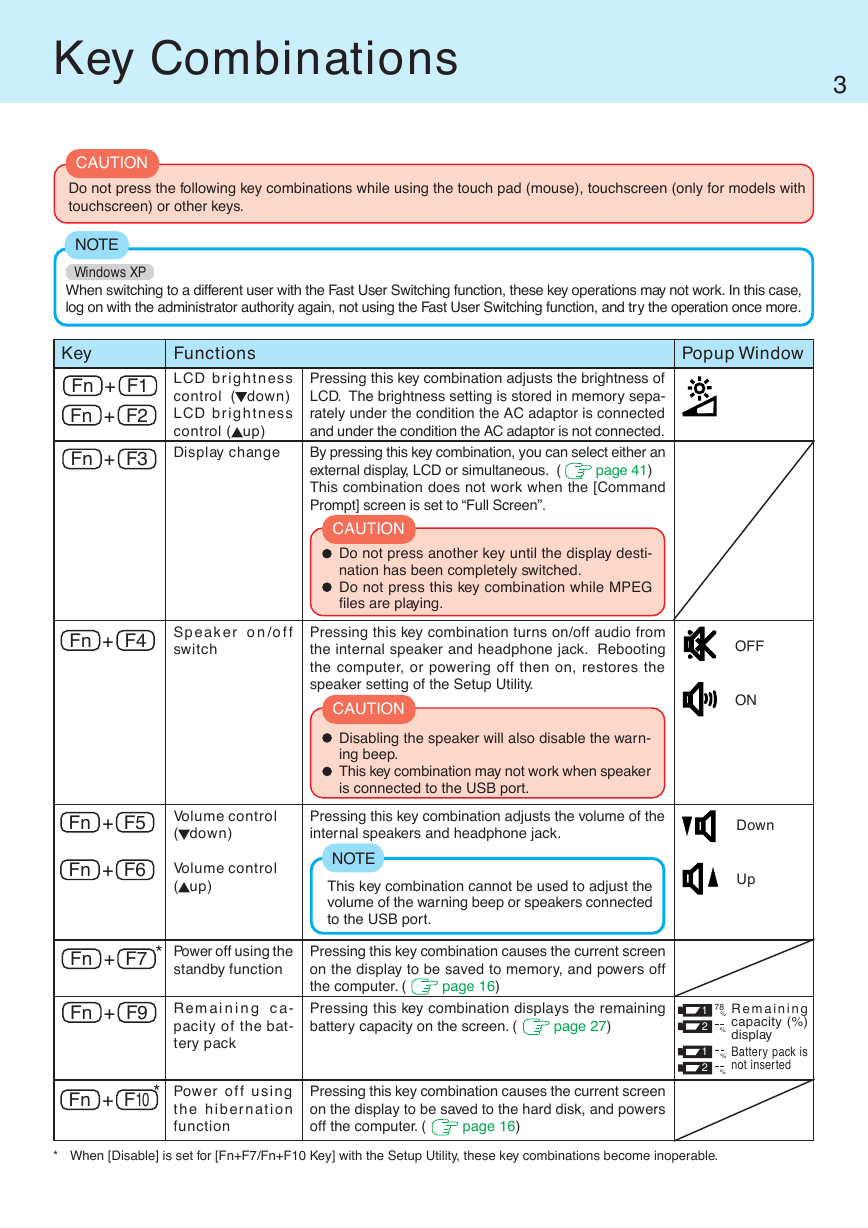

Key Combinations 3 CAUTION Do not press the following key combinations while using the touch pad (mouse), touchscreen (only for models with touchscreen) or other keys. NOTE Windows XP When switching to a different user with the Fast User Switching function, these key operations may not work. In this case, log on with the administrator authority again, not using the Fast User Switching function, and try the operation once more. Key Fn + F1 Fn + F2 Fn + F3 Functions LCD brightness control ( down) LCD brightness control ( up) Display change Fn + F4 Speaker on/off switch Pressing this key combination adjusts the brightness of LCD. The brightness setting is stored in memory sepa- rately under the condition the AC adaptor is connected and under the condition the AC adaptor is not connected. By pressing this key combination, you can select either an external display, LCD or simultaneous. ( This combination does not work when the [Command Prompt] screen is set to “Full Screen”. page 41) CAUTION Do not press another key until the display desti- nation has been completely switched. Do not press this key combination while MPEG files are playing. Pressing this key combination turns on/off audio from the internal speaker and headphone jack. Rebooting the computer, or powering off then on, restores the speaker setting of the Setup Utility. CAUTION Disabling the speaker will also disable the warn- ing beep. This key combination may not work when speaker is connected to the USB port. Fn + F5 Volume control ( down) Pressing this key combination adjusts the volume of the internal speakers and headphone jack. Fn + F6 Volume control ( up) Fn + F7 * Power off using the standby function Fn + F9 Remaining ca- pacity of the bat- tery pack NOTE This key combination cannot be used to adjust the volume of the warning beep or speakers connected to the USB port. Pressing this key combination causes the current screen on the display to be saved to memory, and powers off the computer. ( Pressing this key combination displays the remaining battery capacity on the screen. ( page 16) page 27) Popup Window OFF ON Down Up 1 78 % 2 % 1 2 % % R e m a i n i n g capacity (%) display Battery pack is not inserted Fn + F10 * Power off using the hibernation function Pressing this key combination causes the current screen on the display to be saved to the hard disk, and powers off the computer. ( page 16) * When [Disable] is set for [Fn+F7/Fn+F10 Key] with the Setup Utility, these key combinations become inoperable.

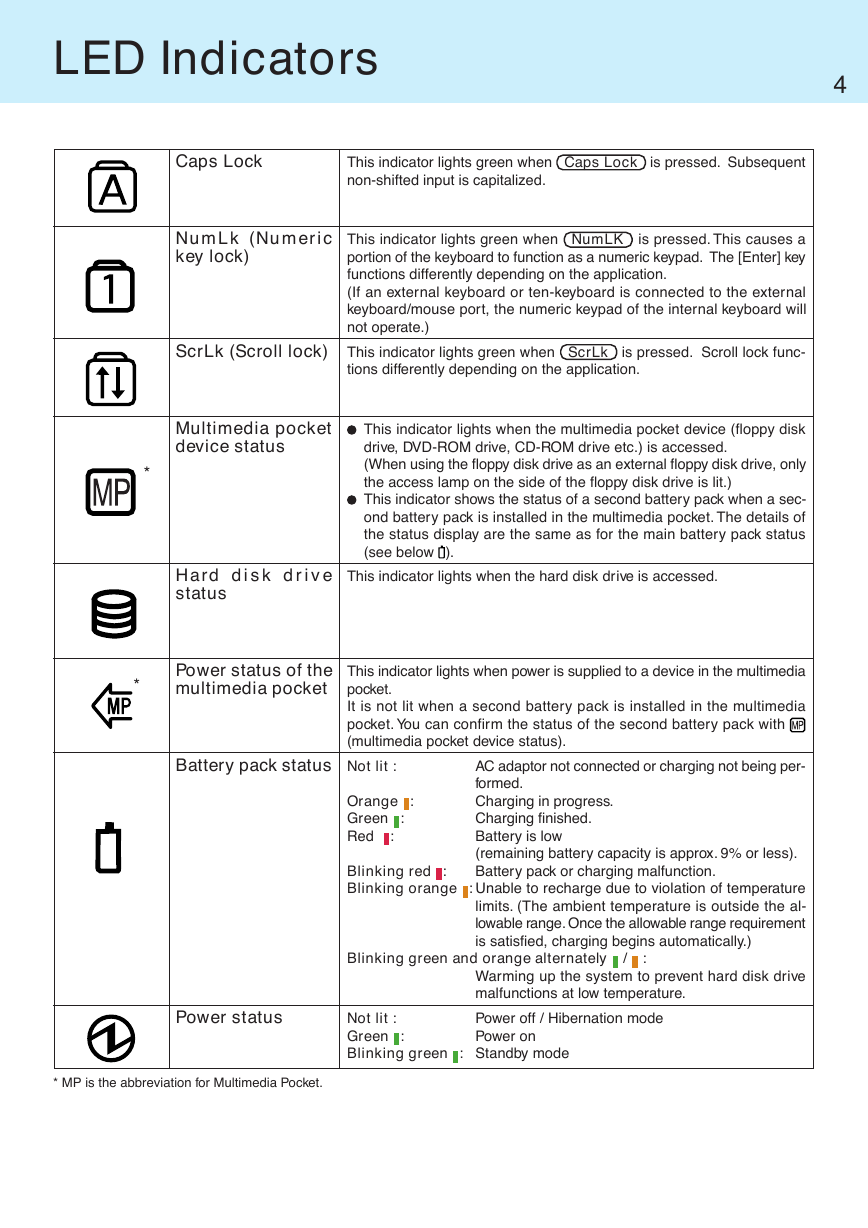

LED Indicators 4 Caps Lock This indicator lights green when Caps Lock is pressed. Subsequent non-shifted input is capitalized. NumLk (Numeric key lock) ScrLk (Scroll lock) Multimedia pocket device status * Hard disk drive status * Power status of the multimedia pocket Battery pack status This indicator lights green when NumLK is pressed. This causes a portion of the keyboard to function as a numeric keypad. The [Enter] key functions differently depending on the application. (If an external keyboard or ten-keyboard is connected to the external keyboard/mouse port, the numeric keypad of the internal keyboard will not operate.) This indicator lights green when ScrLk is pressed. Scroll lock func- tions differently depending on the application. This indicator lights when the multimedia pocket device (floppy disk drive, DVD-ROM drive, CD-ROM drive etc.) is accessed. (When using the floppy disk drive as an external floppy disk drive, only the access lamp on the side of the floppy disk drive is lit.) This indicator shows the status of a second battery pack when a sec- ond battery pack is installed in the multimedia pocket. The details of the status display are the same as for the main battery pack status (see below ). This indicator lights when the hard disk drive is accessed. This indicator lights when power is supplied to a device in the multimedia pocket. It is not lit when a second battery pack is installed in the multimedia pocket. You can confirm the status of the second battery pack with (multimedia pocket device status). Not lit : Orange : Green : Red : AC adaptor not connected or charging not being per- formed. Charging in progress. Charging finished. Battery is low (remaining battery capacity is approx. 9% or less). Battery pack or charging malfunction. Blinking red : Blinking orange : Unable to recharge due to violation of temperature limits. (The ambient temperature is outside the al- lowable range. Once the allowable range requirement is satisfied, charging begins automatically.) Power status * MP is the abbreviation for Multimedia Pocket. Blinking green and orange alternately / : Warming up the system to prevent hard disk drive malfunctions at low temperature. Power off / Hibernation mode Power on Not lit : Green : Blinking green : Standby mode

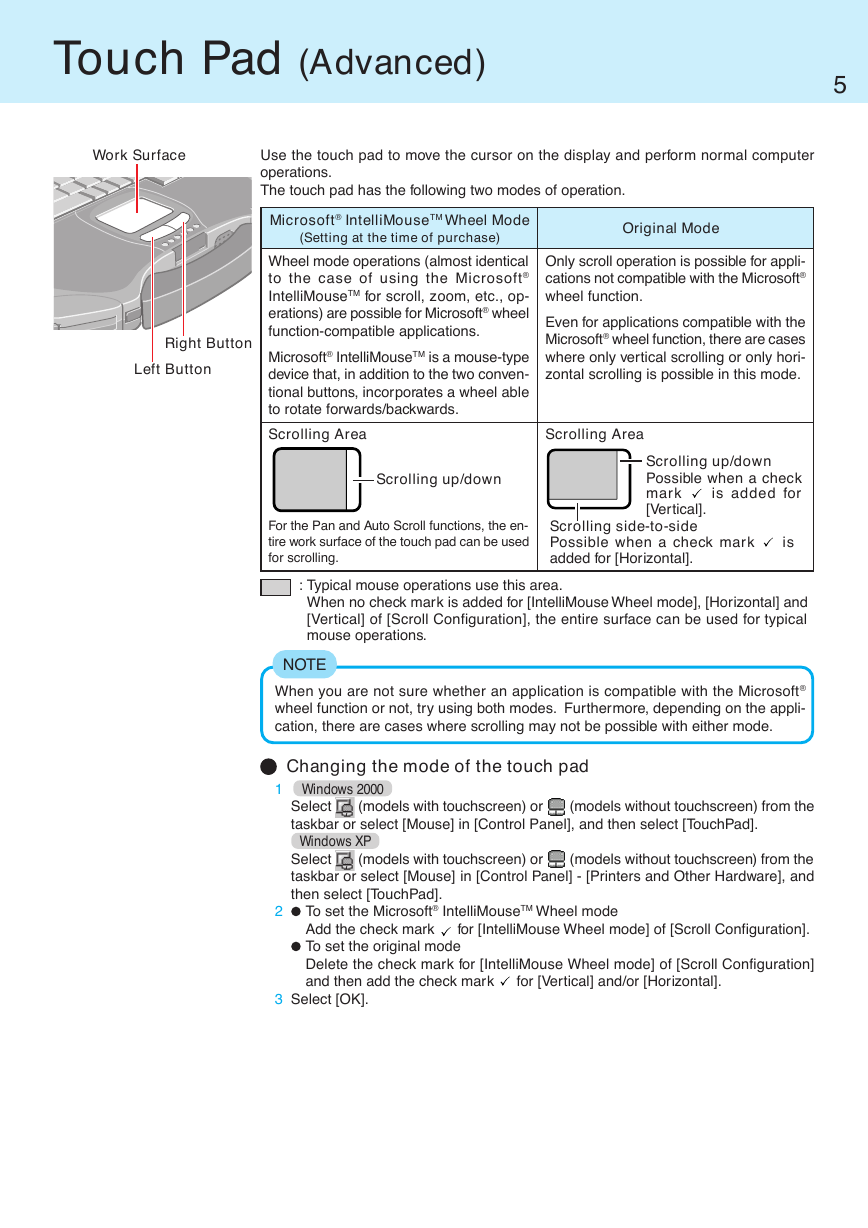

Touch Pad (Advanced) 5 Work Surface Use the touch pad to move the cursor on the display and perform normal computer operations. The touch pad has the following two modes of operation. Right Button Left Button Microsoft® IntelliMouseTM Wheel Mode (Setting at the time of purchase) Wheel mode operations (almost identical to the case of using the Microsoft® IntelliMouseTM for scroll, zoom, etc., op- erations) are possible for Microsoft® wheel function-compatible applications. Microsoft® IntelliMouseTM is a mouse-type device that, in addition to the two conven- tional buttons, incorporates a wheel able to rotate forwards/backwards. Scrolling Area Scrolling up/down For the Pan and Auto Scroll functions, the en- tire work surface of the touch pad can be used for scrolling. Original Mode Only scroll operation is possible for appli- cations not compatible with the Microsoft® wheel function. Even for applications compatible with the Microsoft® wheel function, there are cases where only vertical scrolling or only hori- zontal scrolling is possible in this mode. Scrolling Area Scrolling up/down Possible when a check mark is added for [Vertical]. Scrolling side-to-side Possible when a check mark added for [Horizontal]. is : Typical mouse operations use this area. When no check mark is added for [IntelliMouse Wheel mode], [Horizontal] and [Vertical] of [Scroll Configuration], the entire surface can be used for typical mouse operations. NOTE When you are not sure whether an application is compatible with the Microsoft® wheel function or not, try using both modes. Furthermore, depending on the appli- cation, there are cases where scrolling may not be possible with either mode. Changing the mode of the touch pad 1 Windows 2000 Select taskbar or select [Mouse] in [Control Panel], and then select [TouchPad]. (models with touchscreen) or (models without touchscreen) from the 2 Windows XP (models with touchscreen) or Select (models without touchscreen) from the taskbar or select [Mouse] in [Control Panel] - [Printers and Other Hardware], and then select [TouchPad]. To set the Microsoft® IntelliMouseTM Wheel mode Add the check mark To set the original mode Delete the check mark for [IntelliMouse Wheel mode] of [Scroll Configuration] and then add the check mark for [IntelliMouse Wheel mode] of [Scroll Configuration]. for [Vertical] and/or [Horizontal]. 3 Select [OK].

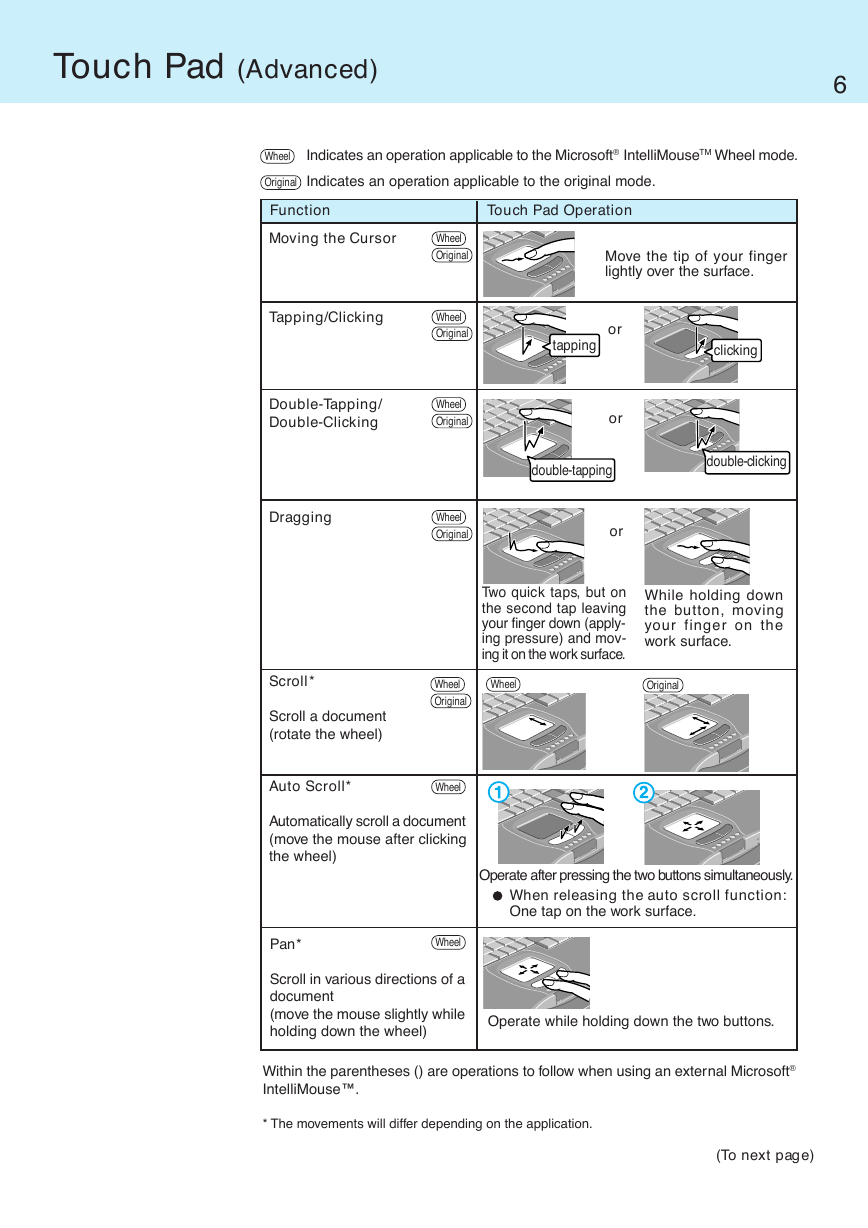

Touch Pad (Advanced) 6 Wheel Indicates an operation applicable to the Microsoft® IntelliMouseTM Wheel mode. Original Indicates an operation applicable to the original mode. Function Moving the Cursor Tapping/Clicking Double-Tapping/ Double-Clicking Dragging Wheel Original Wheel Original Wheel Original Wheel Original Touch Pad Operation Move the tip of your finger lightly over the surface. tapping or or clicking double-tapping double-clicking or Two quick taps, but on the second tap leaving your finger down (apply- ing pressure) and mov- ing it on the work surface. While holding down the button, moving your finger on the work surface. Wheel Original Wheel Original Scroll* Scroll a document (rotate the wheel) Auto Scroll* Wheel Automatically scroll a document (move the mouse after clicking the wheel) Pan* Wheel Scroll in various directions of a document (move the mouse slightly while holding down the wheel) Operate after pressing the two buttons simultaneously. When releasing the auto scroll function: One tap on the work surface. Operate while holding down the two buttons. Within the parentheses () are operations to follow when using an external Microsoft® IntelliMouse™. * The movements will differ depending on the application. (To next page)

Touch Pad (Advanced) Function Zoom* Touch Pad Operation Wheel Ctrl + Shift + Magnify/reduce the display of a document. (rotate the wheel while holding down Ctrl ) Wheel Data Zoom* Display or hide a document, or perform operations to return to or proceed with Internet Ex- plorer. (rotate the wheel while holding down Shift ) 7 Magnify Reduce Within the parentheses () are operations to follow when using an external Microsoft® IntelliMouse™. * The movements will differ depending on the application. CAUTION Do not enter the standby or hibernation mode when an external mouse is con- nected to the serial port. Windows 2000 Do not remove [touchpad/touchscreen] in [Control Panel] - [System] - [Hardware] - [Device Manager] - [Mice and other pointing devices]. Windows XP Do not remove [touchpad/touchscreen] in [Control Panel] - [Performance and Maintenance] - [System] - [Hardware] - [Device Manager] - [Mice and other point- ing devices]. Windows 2000 Do not remove [touchpad] in [Control Panel] - [System] - [Hardware] - [Device Manager] - [Mice and other pointing devices]. Windows XP Do not remove [touchpad] in [Control Panel] - [Performance and Maintenance] - [System] - [Hardware] - [Device Manager] - [Mice and other pointing devices]. NOTE The double-tapping speed of the touch pad can be changed using the following menu. Windows 2000 : [Control Panel] - [Mouse] - [Tap and Buttons] - [Double-click Speed] Windows XP : [Control Panel] - [Printers and Other Hardware] - [Mouse] - [Tap The touch pad cannot be used in the Setup Utility. and Buttons] - [Double-click Speed]

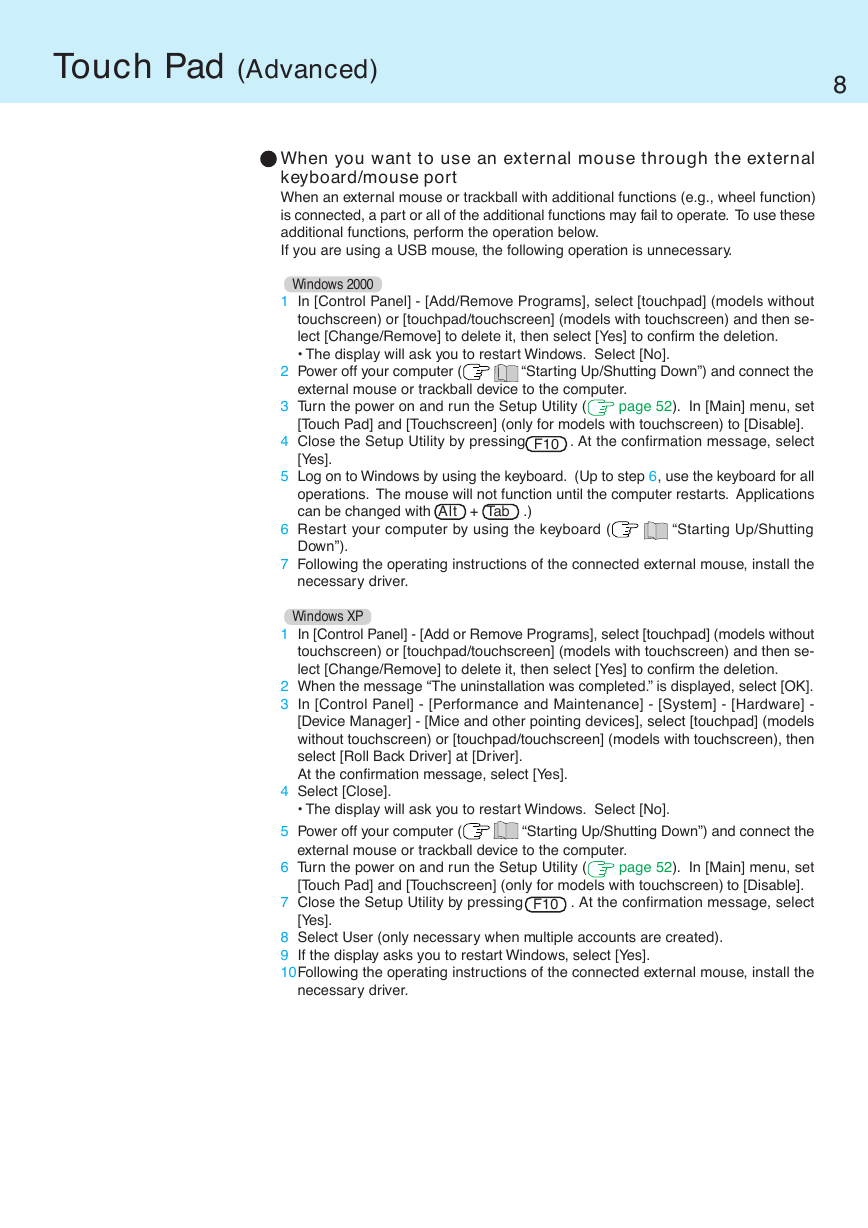

Touch Pad (Advanced) 8 When you want to use an external mouse through the external keyboard/mouse port When an external mouse or trackball with additional functions (e.g., wheel function) is connected, a part or all of the additional functions may fail to operate. To use these additional functions, perform the operation below. If you are using a USB mouse, the following operation is unnecessary. Windows 2000 1 In [Control Panel] - [Add/Remove Programs], select [touchpad] (models without touchscreen) or [touchpad/touchscreen] (models with touchscreen) and then se- lect [Change/Remove] to delete it, then select [Yes] to confirm the deletion. The display will ask you to restart Windows. Select [No]. 2 Power off your computer ( “Starting Up/Shutting Down”) and connect the external mouse or trackball device to the computer. 3 Turn the power on and run the Setup Utility ( page 52). In [Main] menu, set [Touch Pad] and [Touchscreen] (only for models with touchscreen) to [Disable]. 4 Close the Setup Utility by pressing . At the confirmation message, select F10 [Yes]. 5 Log on to Windows by using the keyboard. (Up to step 6, use the keyboard for all operations. The mouse will not function until the computer restarts. Applications can be changed with Alt + Tab .) 6 Restart your computer by using the keyboard ( “Starting Up/Shutting Down”). 7 Following the operating instructions of the connected external mouse, install the necessary driver. Windows XP 1 In [Control Panel] - [Add or Remove Programs], select [touchpad] (models without touchscreen) or [touchpad/touchscreen] (models with touchscreen) and then se- lect [Change/Remove] to delete it, then select [Yes] to confirm the deletion. 2 When the message “The uninstallation was completed.” is displayed, select [OK]. 3 In [Control Panel] - [Performance and Maintenance] - [System] - [Hardware] - [Device Manager] - [Mice and other pointing devices], select [touchpad] (models without touchscreen) or [touchpad/touchscreen] (models with touchscreen), then select [Roll Back Driver] at [Driver]. At the confirmation message, select [Yes]. 4 Select [Close]. The display will ask you to restart Windows. Select [No]. 5 Power off your computer ( “Starting Up/Shutting Down”) and connect the external mouse or trackball device to the computer. 6 Turn the power on and run the Setup Utility ( page 52). In [Main] menu, set [Touch Pad] and [Touchscreen] (only for models with touchscreen) to [Disable]. 7 Close the Setup Utility by pressing . At the confirmation message, select F10 [Yes]. 8 Select User (only necessary when multiple accounts are created). 9 If the display asks you to restart Windows, select [Yes]. 10Following the operating instructions of the connected external mouse, install the necessary driver.
