Preface Copyright This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. Neither this manual, nor any of the material contained herein, may be reproduced without written consent of the author. Version 1.1 Disclaimer The information in this document is subject to change without notice. The manufacturer makes no representations or warranties with respect to the contents hereof and specifically disclaims any implied warranties of merchantability or fitness for any particular purpose. The manufacturer reserves the right to revise this publication and to make changes from time to time in the content hereof without obligation of the manufacturer to notify any person of such revision or changes. Trademark Recognition Microsoft, MS-DOS and Windows are registered trademarks of Microsoft Corp. MMX, Pentium, Pentium-II, Pentium-III, Celeron are registered trademarks of Intel Cor- poration. Other product names used in this manual are the properties of their respective owners and are acknowledged. Federal Communications Commission (FCC) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reason- able protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • • • • Reorient or relocate the receiving antenna Increase the separation between the equipment and the receiver Connect the equipment onto an outlet on a circuit different from that to which the receiver is connected Consult the dealer or an experienced radio/TV technician for help Shielded interconnect cables and a shielded AC power cable must be employed with this equipment to ensure compliance with the pertinent RF emission limits governing this device. Changes or modifications not expressly approved by the system’s manufacturer could void the user’s authority to operate the equipment. Preface

ii Declaration of Conformity This device complies with part 15 of the FCC rules. Operation is subject to the following conditions: • • This device may not cause harmful interference, and This device must accept any interference received, including interference that may cause undesired operation Canadian Department of Communications This class B digital apparatus meets all requirements of the Canadian Interference-causing Equipment Regulations. Cet appareil numérique de la classe B respecte toutes les exigences du Réglement sur le matériel brouilieur du Canada. About the Manual The manual consists of the following: Chapter 1 Introducing the Motherboard Chapter 2 Installing the Motherboard Chapter 3 Using BIOS Describes features of the motherboard. Go to page 1 Describes installation of motherboard components. Go to page 7 Provides information on using the BIOS Setup Utility. Go to page 27 Chapter 4 Using the Motherboard Software Describes the motherboard software Go to page 43 Preface

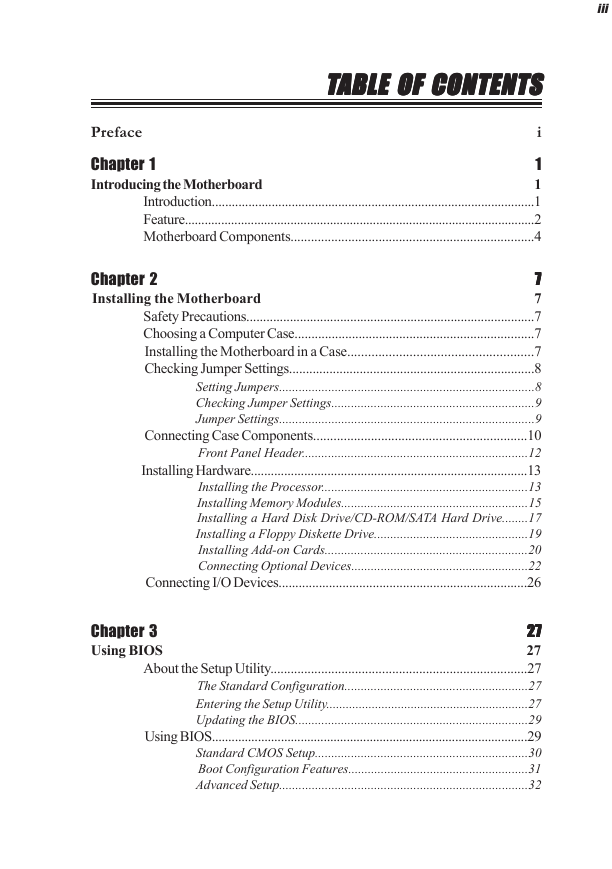

iii TTTTTABLE OF CONTENTS ABLE OF CONTENTS ABLE OF CONTENTS ABLE OF CONTENTS ABLE OF CONTENTS Preface i Chapter 1 Introducing the Motherboard 1 1 Introduction.................................................................................................1 Feature..........................................................................................................2 Motherboard Components........................................................................4 7 7 7 7 7 Chapter 2 Installing the Motherboard 7 Safety Precautions......................................................................................7 Choosing a Computer Case.......................................................................7 Installing the Motherboard in a Case......................................................7 Checking Jumper Settings.........................................................................8 Setting Jumpers..............................................................................8 Checking Jumper Settings..............................................................9 Jumper Settings..............................................................................9 Connecting Case Components...............................................................10 Front Panel Header.....................................................................12 Installing Hardware...................................................................................13 Installing the Processor...............................................................13 Installing Memory Modules.........................................................15 Installing a Hard Disk Drive/CD-ROM/SATA Hard Drive........17 Installing a Floppy Diskette Drive...............................................19 Installing Add-on Cards..............................................................20 Connecting Optional Devices......................................................22 Connecting I/O Devices..........................................................................26 Chapter 3 Using BIOS 27 27 27 27 27 27 About the Setup Utility............................................................................27 The Standard Configuration........................................................27 Entering the Setup Utility..............................................................27 Updating the BIOS.......................................................................29 Using BIOS................................................................................................29 Standard CMOS Setup.................................................................30 Boot Configuration Features.......................................................31 Advanced Setup............................................................................32

iv Advanced Chipset Features.........................................................37 Power Management Setup...........................................................38 Hardware Health Configuration.................................................40 BIOS Security Features................................................................41 Load Optimal Defaults................................................................42 Load FailSafe Defaults ...............................................................42 Save Changes and Exit................................................................42 Discard Changes and Exit...........................................................42 Chapter 4 Using the Motherboard Software 43 43 43 43 43 43 About the Software CD-ROM................................................................43 Auto-installing under Windows 98/ME/2000/XP................................43 Running Setup..............................................................................44 Manual Installation..................................................................................46 Utility Software Reference.......................................................................46 Multi-Language Translation

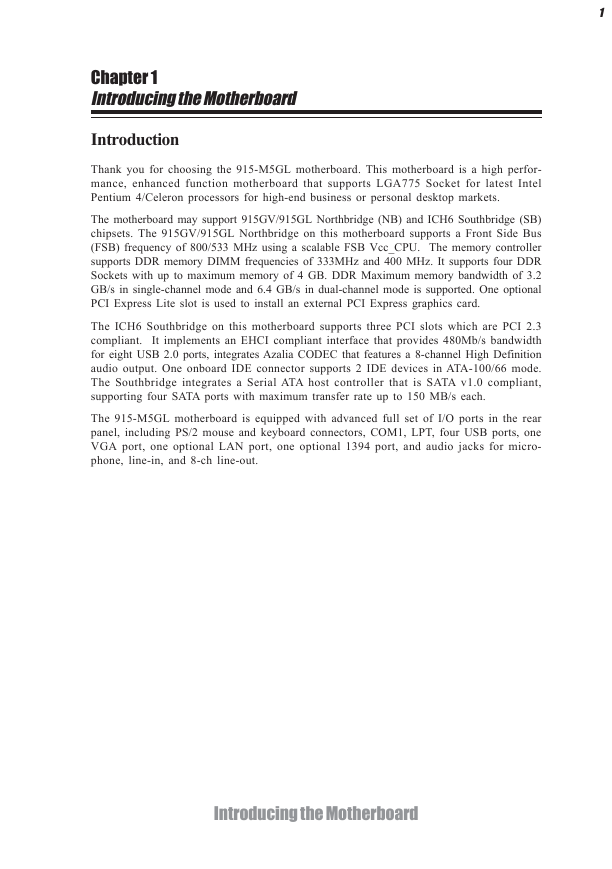

1 Chapter 1 Introducing the Motherboard Introduction Thank you for choosing the 915-M5GL motherboard. This motherboard is a high perfor- mance, enhanced function motherboard that supports LGA775 Socket for latest Intel Pentium 4/Celeron processors for high-end business or personal desktop markets. The motherboard may support 915GV/915GL Northbridge (NB) and ICH6 Southbridge (SB) chipsets. The 915GV/915GL Northbridge on this motherboard supports a Front Side Bus (FSB) frequency of 800/533 MHz using a scalable FSB Vcc_CPU. The memory controller supports DDR memory DIMM frequencies of 333MHz and 400 MHz. It supports four DDR Sockets with up to maximum memory of 4 GB. DDR Maximum memory bandwidth of 3.2 GB/s in single-channel mode and 6.4 GB/s in dual-channel mode is supported. One optional PCI Express Lite slot is used to install an external PCI Express graphics card. The ICH6 Southbridge on this motherboard supports three PCI slots which are PCI 2.3 compliant. It implements an EHCI compliant interface that provides 480Mb/s bandwidth for eight USB 2.0 ports, integrates Azalia CODEC that features a 8-channel High Definition audio output. One onboard IDE connector supports 2 IDE devices in ATA-100/66 mode. The Southbridge integrates a Serial ATA host controller that is SATA v1.0 compliant, supporting four SATA ports with maximum transfer rate up to 150 MB/s each. The 915-M5GL motherboard is equipped with advanced full set of I/O ports in the rear panel, including PS/2 mouse and keyboard connectors, COM1, LPT, four USB ports, one VGA port, one optional LAN port, one optional 1394 port, and audio jacks for micro- phone, line-in, and 8-ch line-out. Introducing the Motherboard

2 Feature Accommodates Intel P4/Celeron processors Supports a system bus (FSB) of 800/533MHz Supports “Hyper-Threading” technology CPU Processor The 915-M5GL uses a LGA775 type of Pentium 4 that carries the following features: • • • “Hyper-Threading” technology enables the operating system into thinking it’s hooked up to two processors, allowing two threads to be run in parallel, both on separate “logical” processors within the same physical processor. Chipset The 915GV/915GL Northbridge (NB) and ICH6 Southbridge (SB) chipset are based on an innovative and scalable architecture with proven reliability and performance. 915GV/915GL • • • • Supports 32-bit host bus addressing, allowing the CPU to access the entire 4 GB of the memory address space. Has a 12-deep In-Order Queue to support up to twelve outstanding piplined address requests on the host bus. Supports 256-Mb, 512-Mb and 1-Gb DDR/DDR2 technolo- gies for x8 and x16 devices(915GL supports DDR400 only) Provides an integrated graphics device delivering cost com- petitive 3D, 2D and video capabilities. (NB) 915GV/915GL chipset can only support 256-Mb, 512-Mb and 1-Gb DDR technologies for x8 and x16 device, NOT support 128-Mb DDR technol- ogy. That is, 256 MB Double Side Memory Module & 128 MB Single Side Memory Module are NOT support. ICH6 (SB) • • • • Enhanced DMA Controller, interrupt controller, and timer func- tions Compliant with PCI 2.3 specificaiton Compliant with Serial ATA 1.0a specification Integrated USB 2.0 Host Controller supporting up to eight USB 2.0 ports Integrated LAN controller Integrated IDE controller supports Ultra ATA100/66/33 • • Accommodates four unbuffered DIMMs Up to 1 GB per DIMM with maximum memory size up to 4 GB Memory • • Graphics • • • • Onboard LAN (Optional) Supports core frequency of 333 MHz Supports 3D Setup, Render Engine, and 3D Graphics Enhancements Supports High Quality Texture Engine Video DVD/PC-VCR This motherboard may support either of the following LAN chipset: • • • • • • Supports 10/Mbs and 100Mb/s N-Way Auto negotiation operation Half/Full duplex capability Supports Wake-On-LAN(WOL) function and remote wake-up Integrate 10/100/1000 transceiver Supports PCI v2.3, 32-bit, 33/66MHz Supports fully with IEEE802.3, IEEE802.3u and IEEE802.3ab Introducing the Motherboard

3 Audio This motherboard may support either of the following Audio chipset. • • • Compliant with the AC’97 v2.3 CODEC Supports 6-channel audio CODEC designed for PC multimedia systems Provides three analog line-level stereo inputs with 5-bit volume control: Line-in, CD, AUX Supports S/PDIF output function Compliant with Azalia specification, supporting 8 channel DACs with SNR.100dB Capabilities: 192/96/48/44.1 KHz with 24/20/16 bits 8 Smart Jack I/O port support Extensive jack detection via RNM (resistors network method) that can be used to monitor the plugging status of each jack Digital S/PDIF OUT & IN support • • • • • • Expansion Options The motherboard comes with the following expansion options: • • • • One PIC Express Lite slot (optional) Three 32-bit PCI v2.3 compliant slots One 40-pin IDE low profile header that support two IDE devices One floppy disk drive interface and four 7-pin SATA connectors The 915-M5GL motherboard supports UltraDMA bus mastering with transfer rates of 100/66 MB/s. Integrated I/O The motherboard has a full set of I/O ports and connectors: • • • • • Two PS/2 ports for mouse and keyboard One serial port and one parallel port Four USB ports One VGA port, one 1394 port (optional) and one LAN port (optional) Audio jacks for microphone in, line-in and line-out (Audio jack for microphone in, line-in and 8-ch High Definition Audio out if supports Azalia Audio CODEC.) BIOS Firmware This motherboard uses AMI BIOS that enables users to configure many system features including the following: • • • • Power management Wake-up alarms CPU parameters CPU and memory timing The firmware can also be used to set parameters for different processor clock speeds. Some hardware specifications and software items are subject to change with out prior notice. Introducing the Motherboard

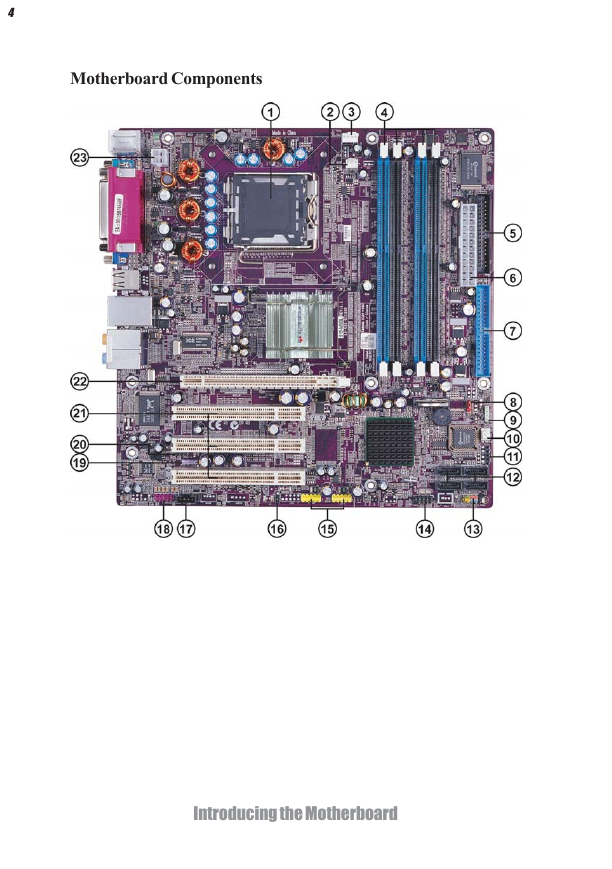

4 Motherboard Components Introducing the Motherboard
