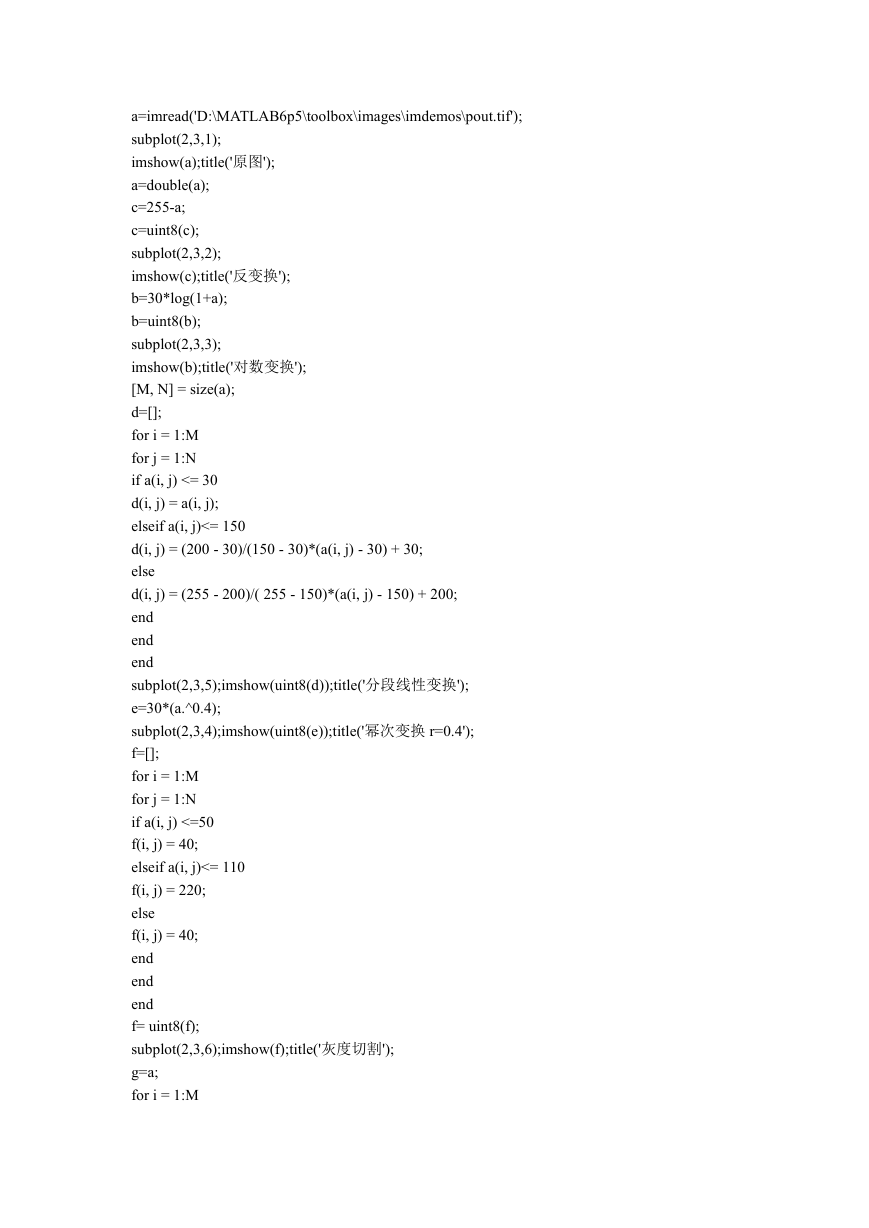

a=imread('D:\MATLAB6p5\toolbox\images\imdemos\pout.tif'); subplot(2,3,1); imshow(a);title('原图'); a=double(a); c=255-a; c=uint8(c); subplot(2,3,2); imshow(c);title('反变换'); b=30*log(1+a); b=uint8(b); subplot(2,3,3); imshow(b);title('对数变换'); [M, N] = size(a); d=[]; for i = 1:M for j = 1:N if a(i, j) <= 30 d(i, j) = a(i, j); elseif a(i, j)<= 150 d(i, j) = (200 - 30)/(150 - 30)*(a(i, j) - 30) + 30; else d(i, j) = (255 - 200)/( 255 - 150)*(a(i, j) - 150) + 200; end end end subplot(2,3,5);imshow(uint8(d));title('分段线性变换'); e=30*(a.^0.4); subplot(2,3,4);imshow(uint8(e));title('幂次变换 r=0.4'); f=[]; for i = 1:M for j = 1:N if a(i, j) <=50 f(i, j) = 40; elseif a(i, j)<= 110 f(i, j) = 220; else f(i, j) = 40; end end end f= uint8(f); subplot(2,3,6);imshow(f);title('灰度切割'); g=a; for i = 1:M 

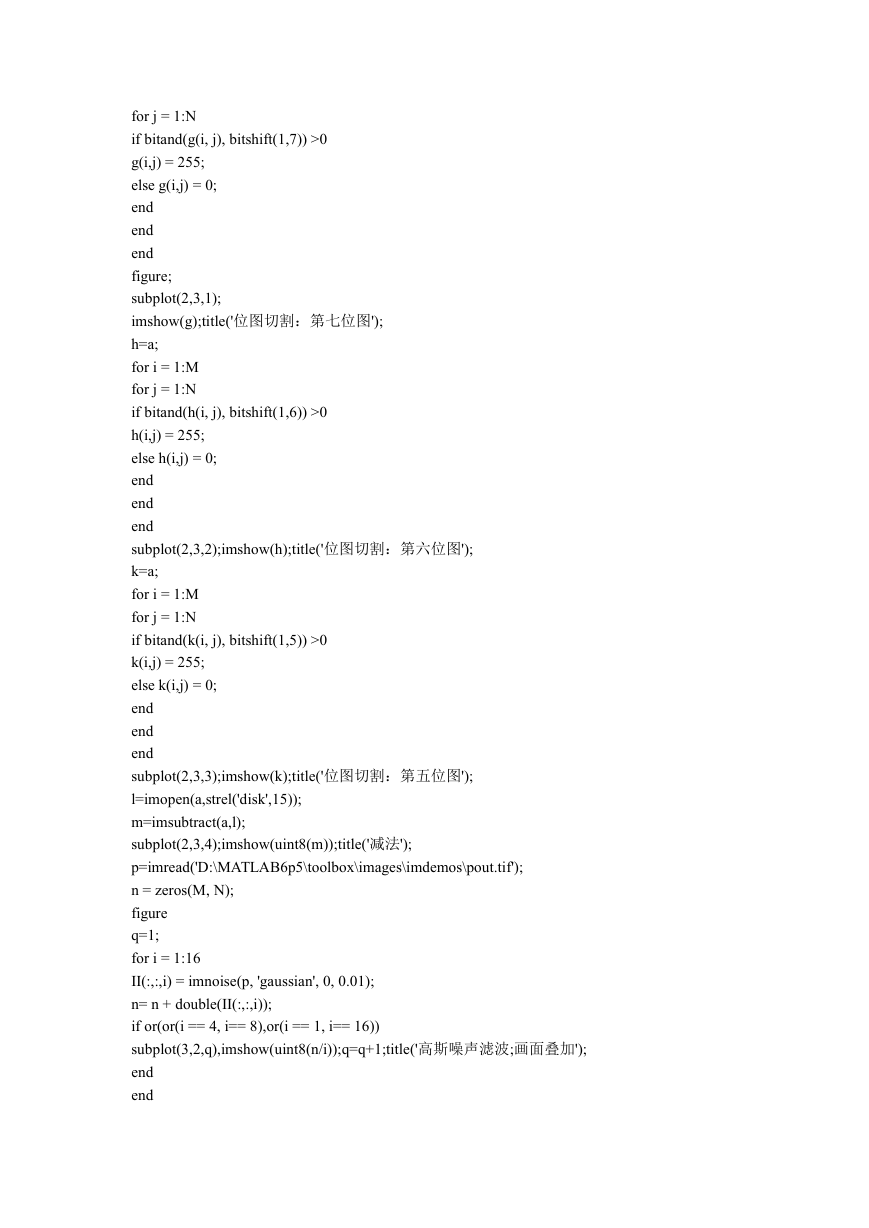

for j = 1:N if bitand(g(i, j), bitshift(1,7)) >0 g(i,j) = 255; else g(i,j) = 0; end end end figure; subplot(2,3,1); imshow(g);title('位图切割：第七位图'); h=a; for i = 1:M for j = 1:N if bitand(h(i, j), bitshift(1,6)) >0 h(i,j) = 255; else h(i,j) = 0; end end end subplot(2,3,2);imshow(h);title('位图切割：第六位图'); k=a; for i = 1:M for j = 1:N if bitand(k(i, j), bitshift(1,5)) >0 k(i,j) = 255; else k(i,j) = 0; end end end subplot(2,3,3);imshow(k);title('位图切割：第五位图'); l=imopen(a,strel('disk',15)); m=imsubtract(a,l); subplot(2,3,4);imshow(uint8(m));title('减法'); p=imread('D:\MATLAB6p5\toolbox\images\imdemos\pout.tif'); n = zeros(M, N); figure q=1; for i = 1:16 II(:,:,i) = imnoise(p, 'gaussian', 0, 0.01); n= n + double(II(:,:,i)); if or(or(i == 4, i== 8),or(i == 1, i== 16)) subplot(3,2,q),imshow(uint8(n/i));q=q+1;title('高斯噪声滤波;画面叠加'); end end 

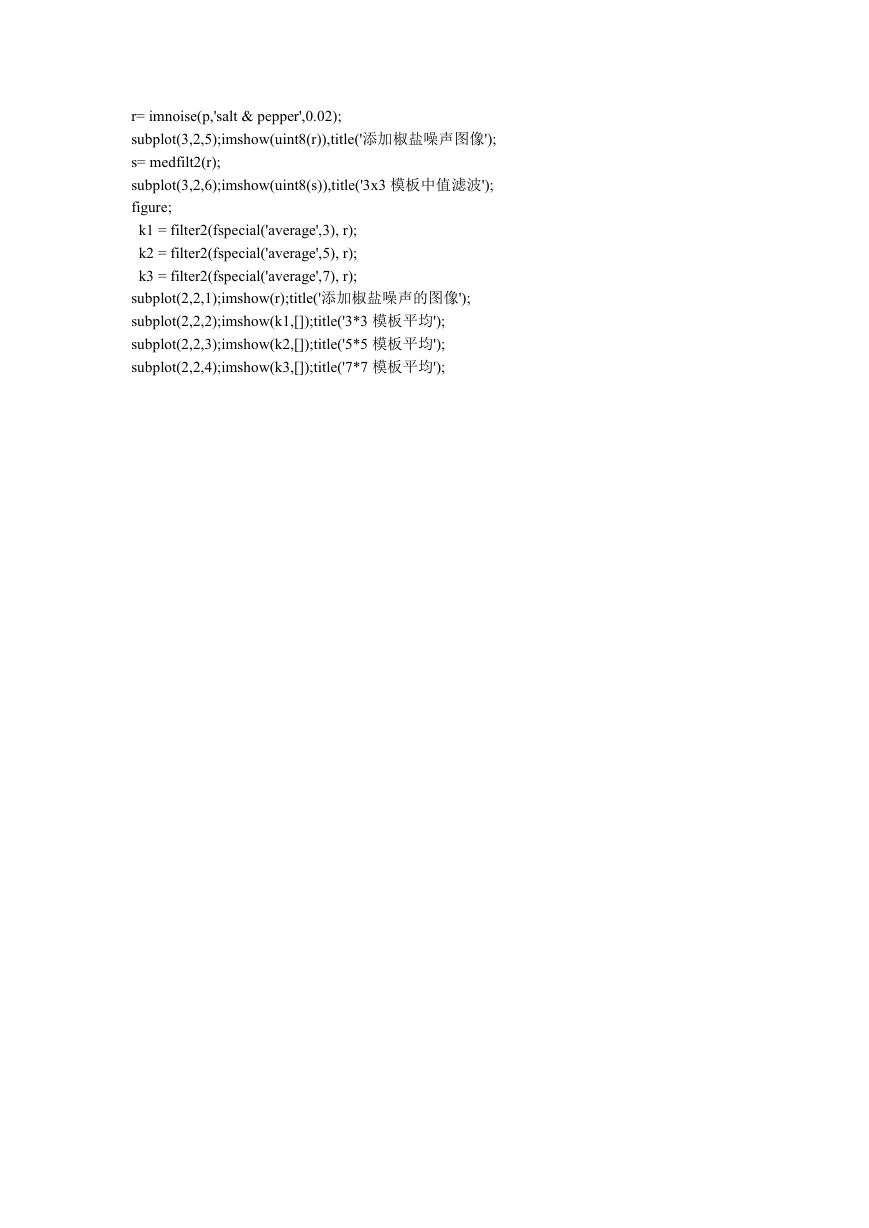

r= imnoise(p,'salt & pepper',0.02); subplot(3,2,5);imshow(uint8(r)),title('添加椒盐噪声图像'); s= medfilt2(r); subplot(3,2,6);imshow(uint8(s)),title('3x3 模板中值滤波'); figure; k1 = filter2(fspecial('average',3), r); k2 = filter2(fspecial('average',5), r); k3 = filter2(fspecial('average',7), r); subplot(2,2,1);imshow(r);title('添加椒盐噪声的图像'); subplot(2,2,2);imshow(k1,[]);title('3*3 模板平均'); subplot(2,2,3);imshow(k2,[]);title('5*5 模板平均'); subplot(2,2,4);imshow(k3,[]);title('7*7 模板平均');
