OWNER’S MANUAL DLP PROJECTOR Please read this manual carefully before operating your set and retain it for future reference. HW300Y HW300G HW301Y HW301G www.lg.com

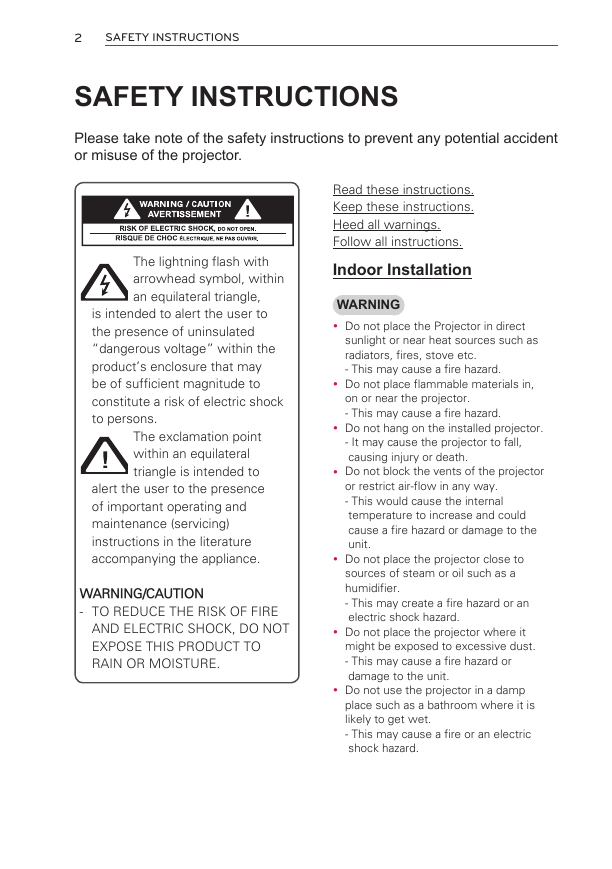

2 SAFETY INSTRUCTIONS SAFETY INSTRUCTIONS Please take note of the safety instructions to prevent any potential accident or misuse of the projector. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. WARNING/CAUTION - TO REDUCE THE RISK OF FIRE AND ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Indoor Installation WARNING y Do not place the Projector in direct sunlight or near heat sources such as radiators, fires, stove etc. - This may cause a fire hazard. y Do not place flammable materials in, on or near the projector. - This may cause a fire hazard. y Do not hang on the installed projector. - It may cause the projector to fall, causing injury or death. y Do not block the vents of the projector or restrict air-flow in any way. - This would cause the internal temperature to increase and could cause a fire hazard or damage to the unit. y Do not place the projector close to sources of steam or oil such as a humidifier. - This may create a fire hazard or an electric shock hazard. y Do not place the projector where it might be exposed to excessive dust. - This may cause a fire hazard or damage to the unit. y Do not use the projector in a damp place such as a bathroom where it is likely to get wet. - This may cause a fire or an electric shock hazard.

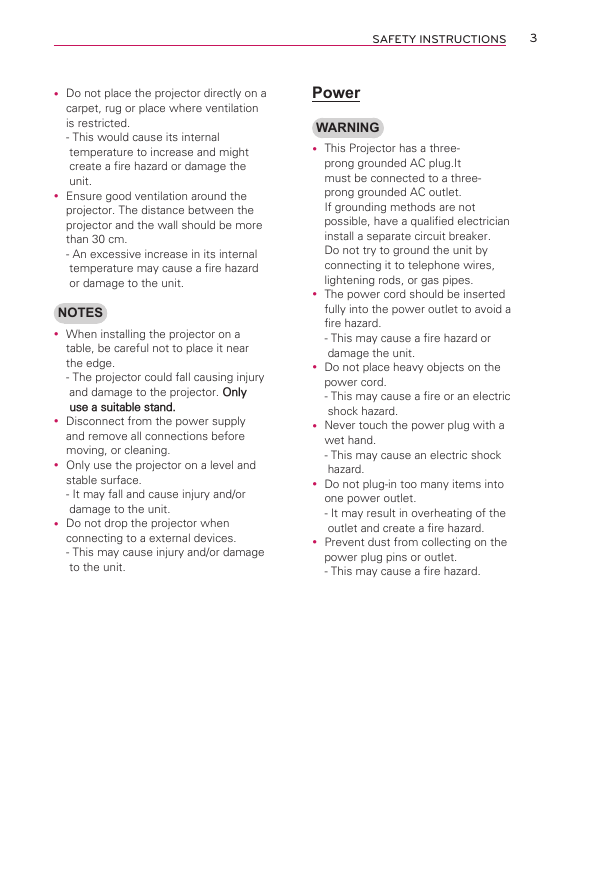

y Do not place the projector directly on a carpet, rug or place where ventilation is restricted. - This would cause its internal temperature to increase and might create a fire hazard or damage the unit. y Ensure good ventilation around the projector. The distance between the projector and the wall should be more than 30 cm. - An excessive increase in its internal temperature may cause a fire hazard or damage to the unit. NOTES y When installing the projector on a table, be careful not to place it near the edge. - The projector could fall causing injury and damage to the projector. Only use a suitable stand. y Disconnect from the power supply and remove all connections before moving, or cleaning. y Only use the projector on a level and stable surface. - It may fall and cause injury and/or damage to the unit. y Do not drop the projector when connecting to a external devices. - This may cause injury and/or damage to the unit. SAFETY INSTRUCTIONS 3 Power WARNING y This Projector has a three- prong grounded AC plug.It must be connected to a three- prong grounded AC outlet. If grounding methods are not possible, have a qualified electrician install a separate circuit breaker. Do not try to ground the unit by connecting it to telephone wires, lightening rods, or gas pipes. y The power cord should be inserted fully into the power outlet to avoid a fire hazard. - This may cause a fire hazard or damage the unit. y Do not place heavy objects on the power cord. - This may cause a fire or an electric shock hazard. y Never touch the power plug with a wet hand. - This may cause an electric shock hazard. y Do not plug-in too many items into one power outlet. - It may result in overheating of the outlet and create a fire hazard. y Prevent dust from collecting on the power plug pins or outlet. - This may cause a fire hazard.

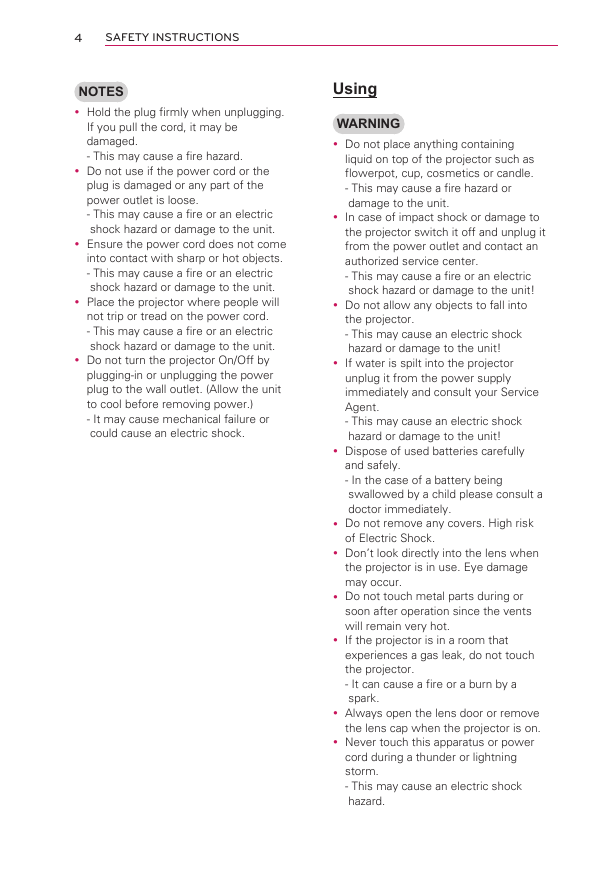

4 SAFETY INSTRUCTIONS NOTES y Hold the plug firmly when unplugging. If you pull the cord, it may be damaged. - This may cause a fire hazard. y Do not use if the power cord or the plug is damaged or any part of the power outlet is loose. - This may cause a fire or an electric shock hazard or damage to the unit. y Ensure the power cord does not come into contact with sharp or hot objects. - This may cause a fire or an electric shock hazard or damage to the unit. y Place the projector where people will not trip or tread on the power cord. - This may cause a fire or an electric shock hazard or damage to the unit. y Do not turn the projector On/Off by plugging-in or unplugging the power plug to the wall outlet. (Allow the unit to cool before removing power.) - It may cause mechanical failure or could cause an electric shock. Using WARNING y Do not place anything containing liquid on top of the projector such as flowerpot, cup, cosmetics or candle. - This may cause a fire hazard or damage to the unit. y In case of impact shock or damage to the projector switch it off and unplug it from the power outlet and contact an authorized service center. - This may cause a fire or an electric shock hazard or damage to the unit! y Do not allow any objects to fall into the projector. - This may cause an electric shock hazard or damage to the unit! y If water is spilt into the projector unplug it from the power supply immediately and consult your Service Agent. - This may cause an electric shock hazard or damage to the unit! y Dispose of used batteries carefully and safely. - In the case of a battery being swallowed by a child please consult a doctor immediately. y Do not remove any covers. High risk of Electric Shock. y Don’t look directly into the lens when the projector is in use. Eye damage may occur. y Do not touch metal parts during or soon after operation since the vents will remain very hot. y If the projector is in a room that experiences a gas leak, do not touch the projector. - It can cause a fire or a burn by a spark. y Always open the lens door or remove the lens cap when the projector is on. y Never touch this apparatus or power cord during a thunder or lightning storm. - This may cause an electric shock hazard.

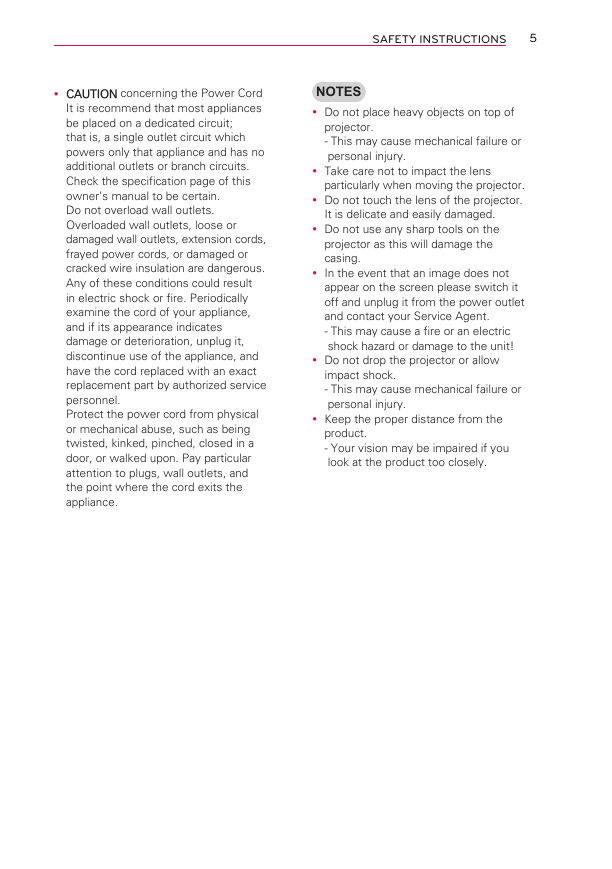

SAFETY INSTRUCTIONS 5 NOTES y Do not place heavy objects on top of projector. - This may cause mechanical failure or personal injury. y Take care not to impact the lens particularly when moving the projector. y Do not touch the lens of the projector. It is delicate and easily damaged. y Do not use any sharp tools on the projector as this will damage the casing. y In the event that an image does not appear on the screen please switch it off and unplug it from the power outlet and contact your Service Agent. - This may cause a fire or an electric shock hazard or damage to the unit! y Do not drop the projector or allow impact shock. - This may cause mechanical failure or personal injury. y Keep the proper distance from the product. - Your vision may be impaired if you look at the product too closely. y CAUTION concerning the Power Cord It is recommend that most appliances be placed on a dedicated circuit; that is, a single outlet circuit which powers only that appliance and has no additional outlets or branch circuits. Check the specification page of this owner’s manual to be certain. Do not overload wall outlets. Overloaded wall outlets, loose or damaged wall outlets, extension cords, frayed power cords, or damaged or cracked wire insulation are dangerous. Any of these conditions could result in electric shock or fire. Periodically examine the cord of your appliance, and if its appearance indicates damage or deterioration, unplug it, discontinue use of the appliance, and have the cord replaced with an exact replacement part by authorized service personnel. Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the point where the cord exits the appliance.

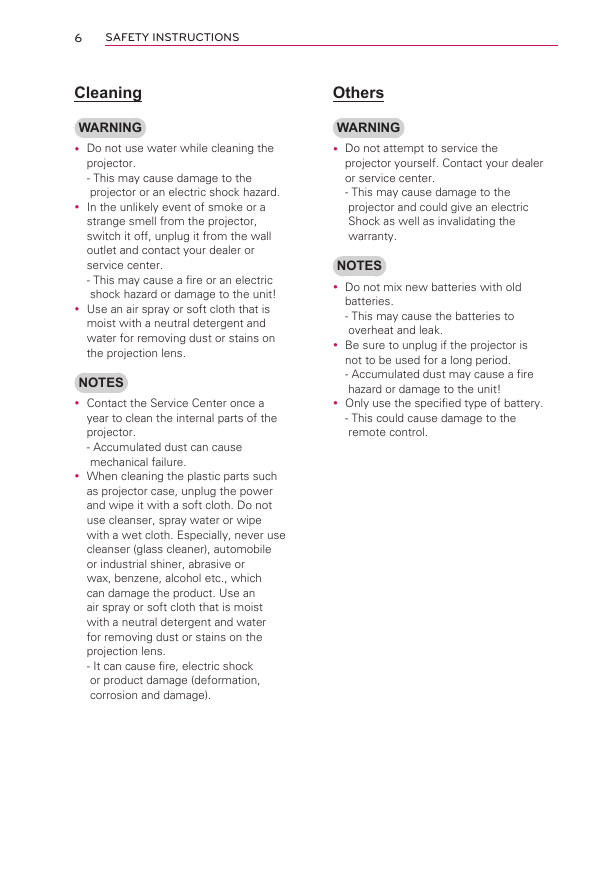

6 SAFETY INSTRUCTIONS Cleaning Others WARNING y Do not attempt to service the projector yourself. Contact your dealer or service center. - This may cause damage to the projector and could give an electric Shock as well as invalidating the warranty. NOTES y Do not mix new batteries with old batteries. - This may cause the batteries to overheat and leak. y Be sure to unplug if the projector is not to be used for a long period. - Accumulated dust may cause a fire hazard or damage to the unit! y Only use the specified type of battery. - This could cause damage to the remote control. WARNING y Do not use water while cleaning the projector. - This may cause damage to the projector or an electric shock hazard. y In the unlikely event of smoke or a strange smell from the projector, switch it off, unplug it from the wall outlet and contact your dealer or service center. - This may cause a fire or an electric shock hazard or damage to the unit! y Use an air spray or soft cloth that is moist with a neutral detergent and water for removing dust or stains on the projection lens. NOTES y Contact the Service Center once a year to clean the internal parts of the projector. - Accumulated dust can cause mechanical failure. y When cleaning the plastic parts such as projector case, unplug the power and wipe it with a soft cloth. Do not use cleanser, spray water or wipe with a wet cloth. Especially, never use cleanser (glass cleaner), automobile or industrial shiner, abrasive or wax, benzene, alcohol etc., which can damage the product. Use an air spray or soft cloth that is moist with a neutral detergent and water for removing dust or stains on the projection lens. - It can cause fire, electric shock or product damage (deformation, corrosion and damage).

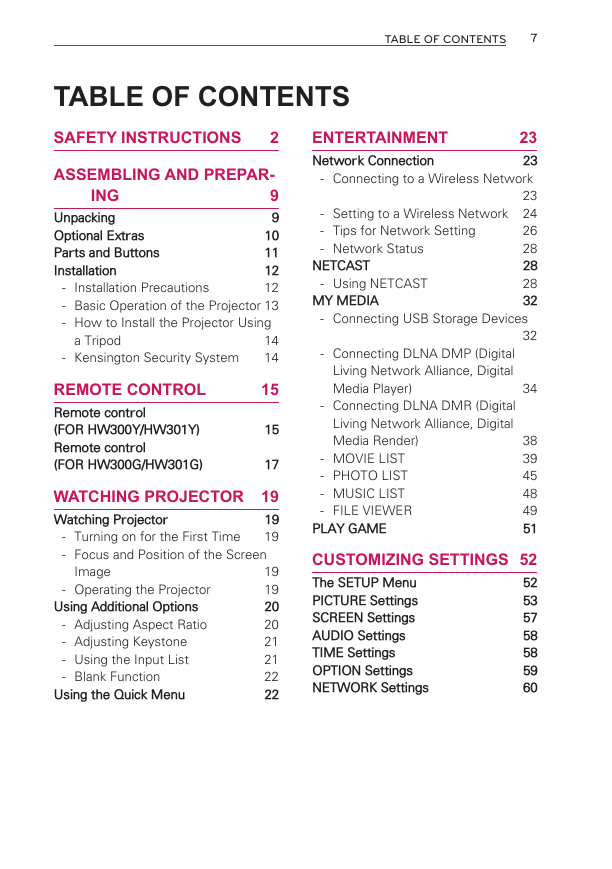

TABLE OF CONTENTS SAFETY INSTRUCTIONS 2 ING Unpacking Optional Extras Parts and Buttons Installation ASSEMBLING AND PREPAR- 9 9 10 11 12 - 12 - Basic Operation of the Projector 13 - How to Install the Projector Using 14 14 - Kensington Security System Installation Precautions a Tripod REMOTE CONTROL Remote control (FOR HW300Y/HW301Y) Remote control (FOR HW300G/HW301G) 15 15 17 WATCHING PROJECTOR 19 19 Watching Projector 19 - Turning on for the First Time - Focus and Position of the Screen Image - Operating the Projector Using Additional Options - Adjusting Aspect Ratio - Adjusting Keystone - Using the Input List - Blank Function Using the Quick Menu 19 19 20 20 21 21 22 22 TABLE OF CONTENTS 7 ENTERTAINMENT Network Connection 23 23 - Connecting to a Wireless Network 23 - Setting to a Wireless Network 24 26 - Tips for Network Setting 28 - Network Status 28 28 32 - Connecting USB Storage Devices 32 - Using NETCAST MY MEDIA NETCAST - Connecting DLNA DMP (Digital Living Network Alliance, Digital Media Player) - Connecting DLNA DMR (Digital Living Network Alliance, Digital Media Render) - MOVIE LIST - PHOTO LIST - MUSIC LIST - FILE VIEWER PLAY GAME 34 38 39 45 48 49 51 CUSTOMIZING SETTINGS 52 52 The SETUP Menu 53 PICTURE Settings 57 SCREEN Settings AUDIO Settings 58 58 TIME Settings 59 OPTION Settings NETWORK Settings 60

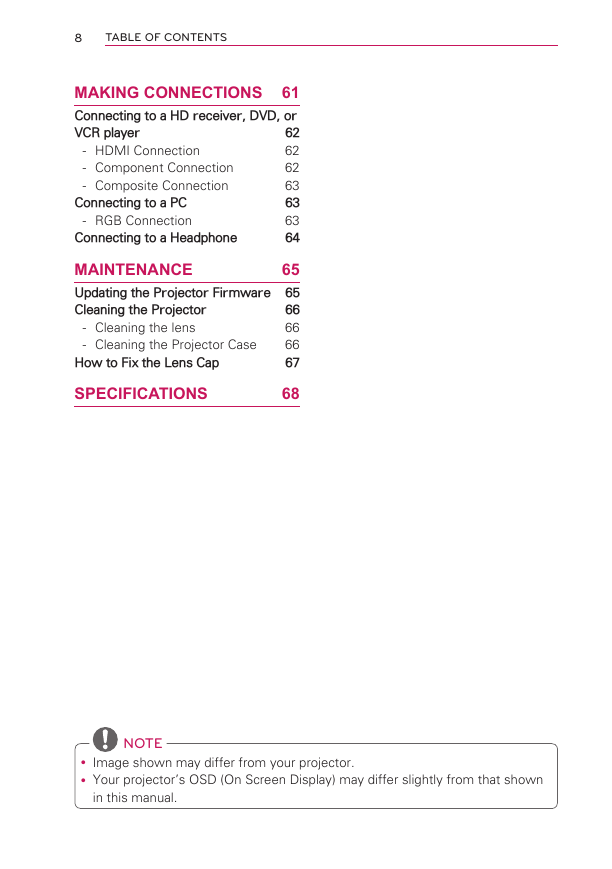

8 TABLE OF CONTENTS MAKING CONNECTIONS 61 Connecting to a HD receiver, DVD, or 62 VCR player 62 62 63 63 63 64 - HDMI Connection - Component Connection - Composite Connection Connecting to a PC - RGB Connection Connecting to a Headphone MAINTENANCE 65 Updating the Projector Firmware 65 66 Cleaning the Projector 66 66 67 - Cleaning the lens - Cleaning the Projector Case How to Fix the Lens Cap SPECIFICATIONS 68 NOTE y Image shown may differ from your projector. y Your projector’s OSD (On Screen Display) may differ slightly from that shown in this manual.
