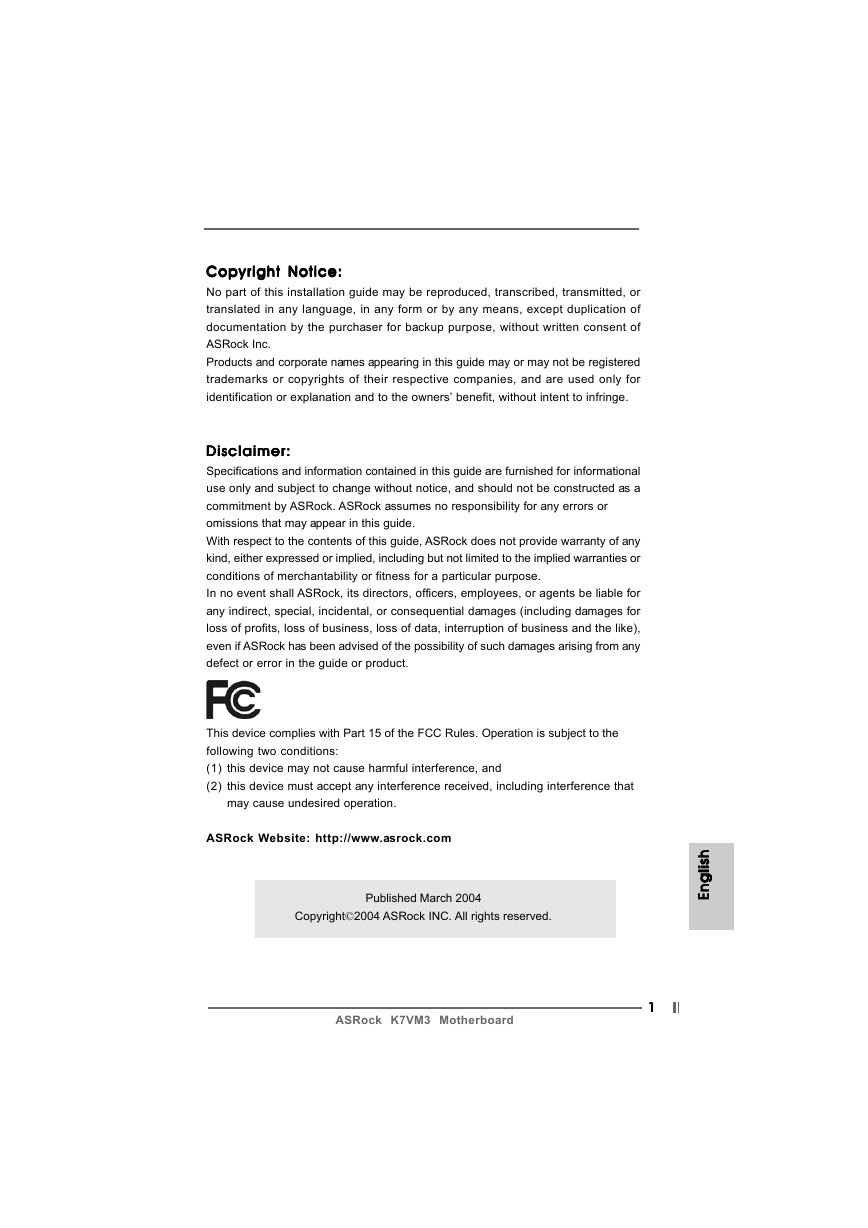

Copyright Notice: Copyright Notice: Copyright Notice: Copyright Notice: Copyright Notice: No part of this installation guide may be reproduced, transcribed, transmitted, or translated in any language, in any form or by any means, except duplication of documentation by the purchaser for backup purpose, without written consent of ASRock Inc. Products and corporate names appearing in this guide may or may not be registered trademarks or copyrights of their respective companies, and are used only for identification or explanation and to the owners’ benefit, without intent to infringe. Disclaimer: Disclaimer: Disclaimer: Disclaimer: Disclaimer: Specifications and information contained in this guide are furnished for informational use only and subject to change without notice, and should not be constructed as a commitment by ASRock. ASRock assumes no responsibility for any errors or omissions that may appear in this guide. With respect to the contents of this guide, ASRock does not provide warranty of any kind, either expressed or implied, including but not limited to the implied warranties or conditions of merchantability or fitness for a particular purpose. In no event shall ASRock, its directors, officers, employees, or agents be liable for any indirect, special, incidental, or consequential damages (including damages for loss of profits, loss of business, loss of data, interruption of business and the like), even if ASRock has been advised of the possibility of such damages arising from any defect or error in the guide or product. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. ASRock Website: http://www.asrock.com Published March 2004 Copyright©2004 ASRock INC. All rights reserved. h h h h h s s s s s i i i i i l l l l l g g g g g n n n n n E E E E E ASRock K7VM3 Motherboard 11111

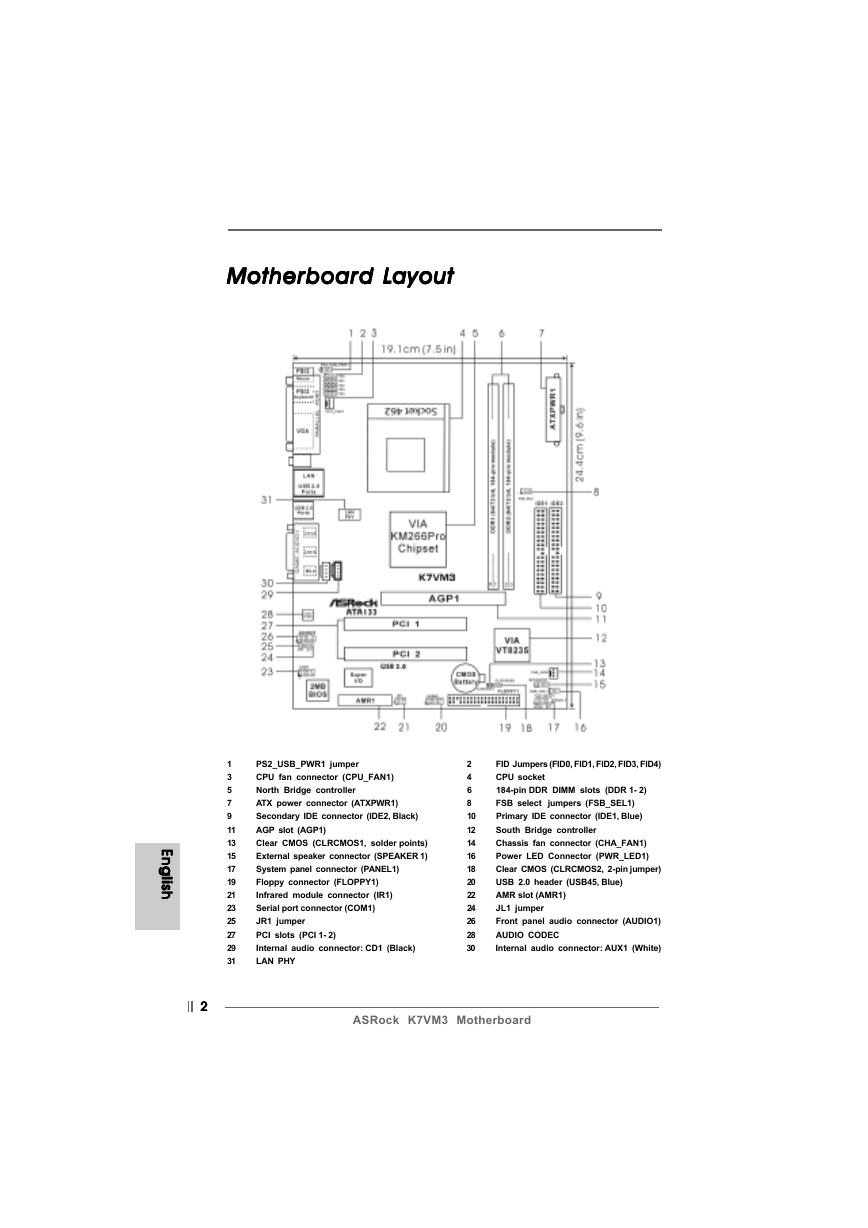

Motherboard L Motherboard L ayout ayout Motherboard Layout ayout Motherboard L Motherboard L ayout 1 3 5 7 9 11 13 15 17 19 21 23 25 27 29 31 PS2_USB_PWR1 jumper CPU fan connector (CPU_FAN1) North Bridge controller ATX power connector (ATXPWR1) Secondary IDE connector (IDE2, Black) AGP slot (AGP1) Clear CMOS (CLRCMOS1, solder points) External speaker connector (SPEAKER 1) System panel connector (PANEL1) Floppy connector (FLOPPY1) Infrared module connector (IR1) Serial port connector (COM1) JR1 jumper PCI slots (PCI 1- 2) Internal audio connector: CD1 (Black) LAN PHY 2 4 6 8 10 12 14 16 18 20 22 24 26 28 30 FID Jumpers (FID0, FID1, FID2, FID3, FID4) CPU socket 184-pin DDR DIMM slots (DDR 1- 2) FSB select jumpers (FSB_SEL1) Primary IDE connector (IDE1, Blue) South Bridge controller Chassis fan connector (CHA_FAN1) Power LED Connector (PWR_LED1) Clear CMOS (CLRCMOS2, 2-pin jumper) USB 2.0 header (USB45, Blue) AMR slot (AMR1) JL1 jumper Front panel audio connector (AUDIO1) AUDIO CODEC Internal audio connector: AUX1 (White) E E E E E n n n n n g g g g g l l l l l i i i i i s s s s s h h h h h 22222 ASRock K7VM3 Motherboard

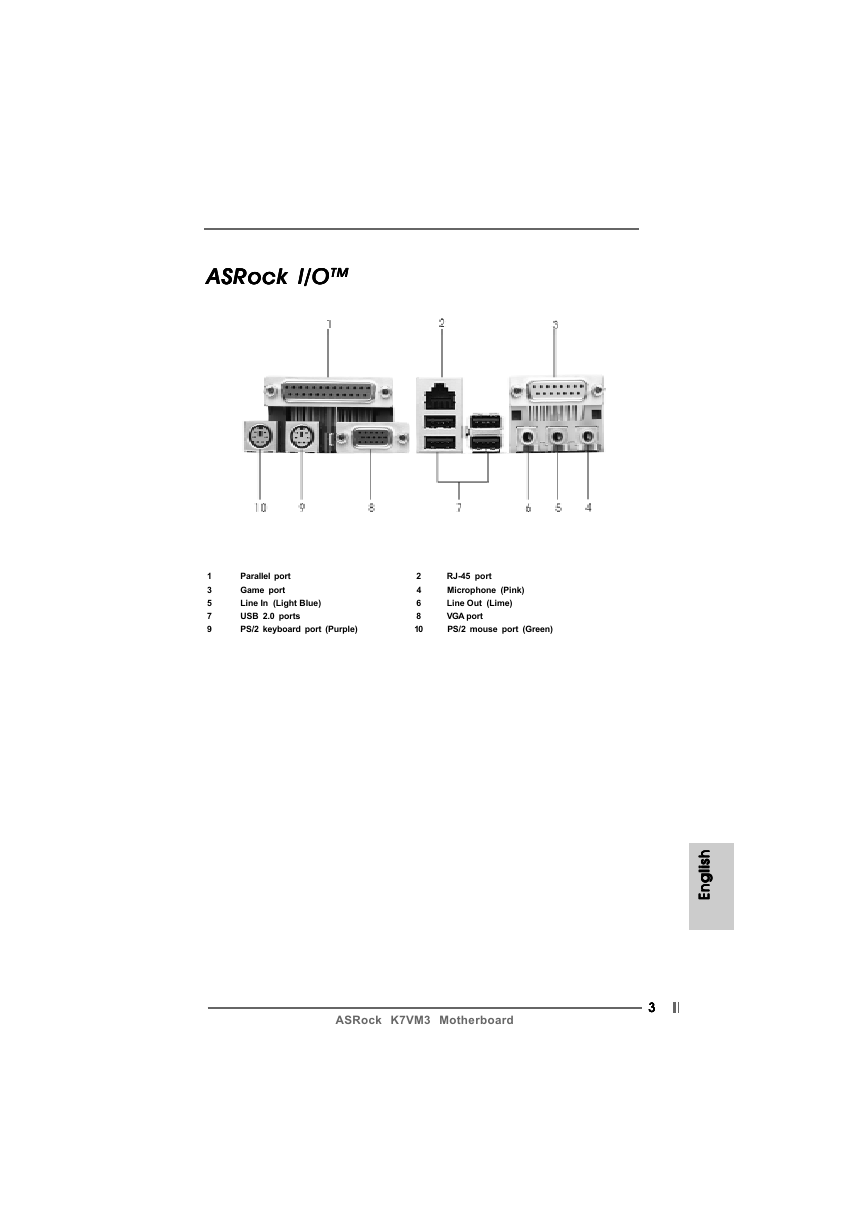

ASRock I/O ASRock I/O ASRock I/OTMTMTMTMTM ASRock I/O ASRock I/O 1 3 5 7 9 Parallel port Game port Line In (Light Blue) USB 2.0 ports PS/2 keyboard port (Purple) 2 4 6 8 10 RJ-45 port Microphone (Pink) Line Out (Lime) VGA port PS/2 mouse port (Green) h h h h h s s s s s i i i i i l l l l l g g g g g n n n n n E E E E E ASRock K7VM3 Motherboard 33333

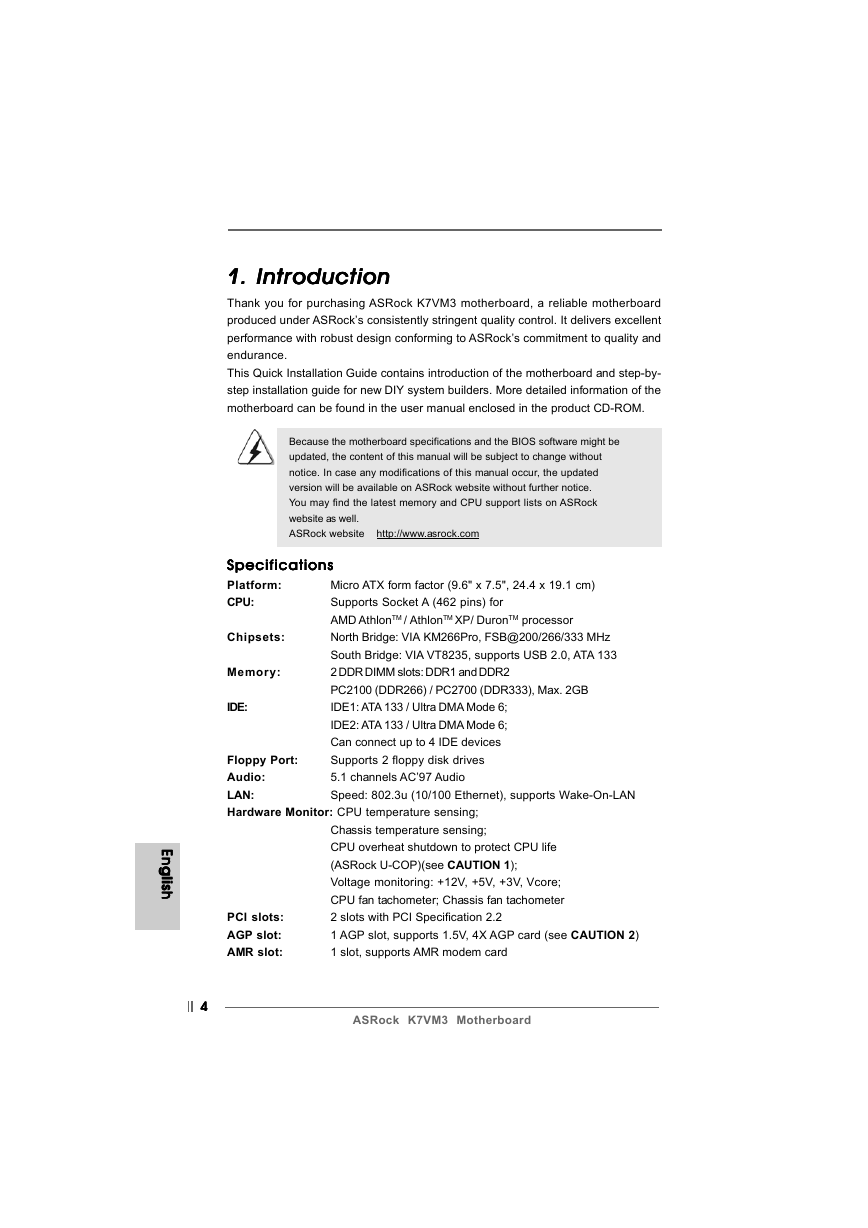

1. Introduction 1. Introduction 1. Introduction 1. Introduction 1. Introduction Thank you for purchasing ASRock K7VM3 motherboard, a reliable motherboard produced under ASRock’s consistently stringent quality control. It delivers excellent performance with robust design conforming to ASRock’s commitment to quality and endurance. This Quick Installation Guide contains introduction of the motherboard and step-by- step installation guide for new DIY system builders. More detailed information of the motherboard can be found in the user manual enclosed in the product CD-ROM. Because the motherboard specifications and the BIOS software might be updated, the content of this manual will be subject to change without notice. In case any modifications of this manual occur, the updated version will be available on ASRock website without further notice. You may find the latest memory and CPU support lists on ASRock website as well. ASRock website http://www.asrock.com Specifications Specifications Specifications Specifications Specifications Platform: CPU: Chipsets: Memory: IDE: Micro ATX form factor (9.6" x 7.5", 24.4 x 19.1 cm) Supports Socket A (462 pins) for AMD AthlonTM / AthlonTM XP/ DuronTM processor North Bridge: VIA KM266Pro, FSB@200/266/333 MHz South Bridge: VIA VT8235, supports USB 2.0, ATA 133 2 DDR DIMM slots: DDR1 and DDR2 PC2100 (DDR266) / PC2700 (DDR333), Max. 2GB IDE1: ATA 133 / Ultra DMA Mode 6; IDE2: ATA 133 / Ultra DMA Mode 6; Can connect up to 4 IDE devices Supports 2 floppy disk drives 5.1 channels AC’97 Audio Speed: 802.3u (10/100 Ethernet), supports Wake-On-LAN Floppy Port: Audio: LAN: Hardware Monitor: CPU temperature sensing; E E E E E n n n n n g g g g g l l l l l i i i i i s s s s s h h h h h PCI slots: AGP slot: AMR slot: 44444 Chassis temperature sensing; CPU overheat shutdown to protect CPU life (ASRock U-COP)(see CAUTION 1); Voltage monitoring: +12V, +5V, +3V, Vcore; CPU fan tachometer; Chassis fan tachometer 2 slots with PCI Specification 2.2 1 AGP slot, supports 1.5V, 4X AGP card (see CAUTION 2) 1 slot, supports AMR modem card ASRock K7VM3 Motherboard

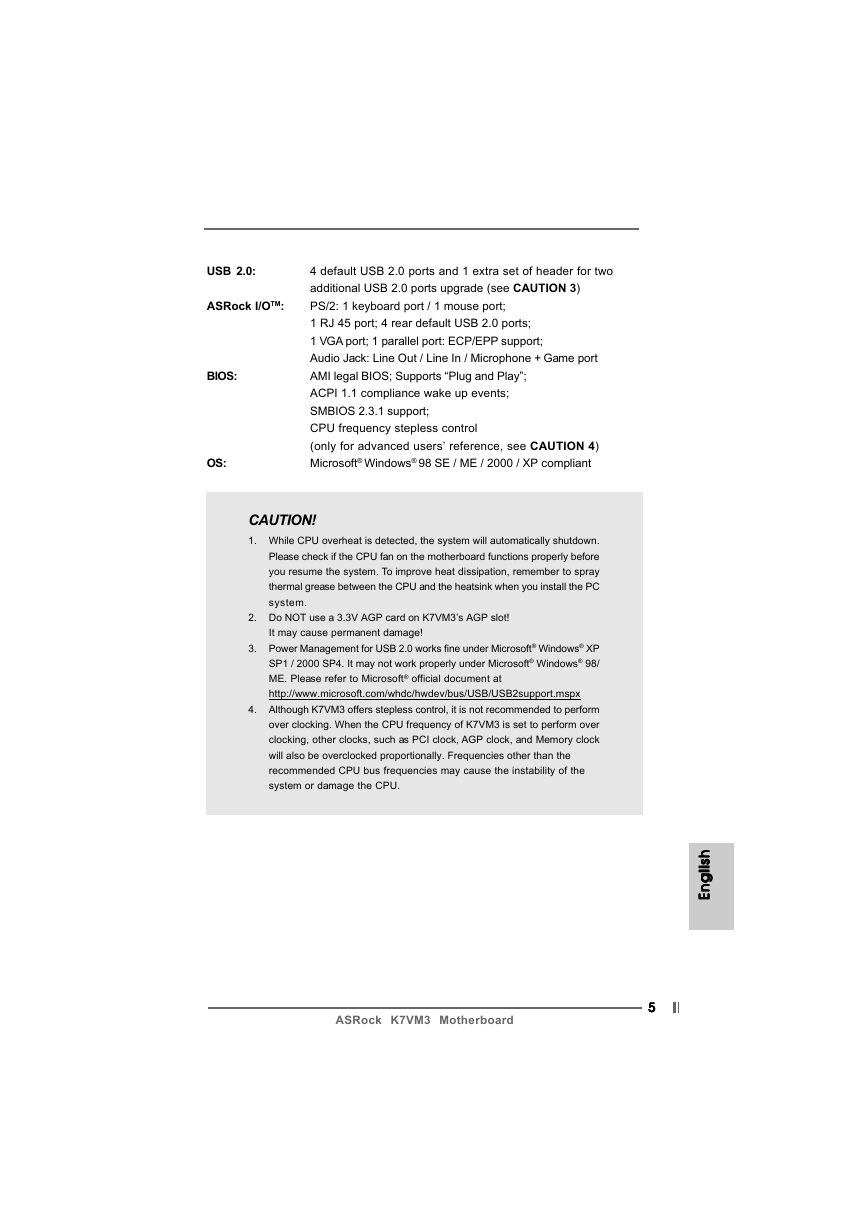

USB 2.0: ASRock I/OTM: BIOS: OS: 4 default USB 2.0 ports and 1 extra set of header for two additional USB 2.0 ports upgrade (see CAUTION 3) PS/2: 1 keyboard port / 1 mouse port; 1 RJ 45 port; 4 rear default USB 2.0 ports; 1 VGA port; 1 parallel port: ECP/EPP support; Audio Jack: Line Out / Line In / Microphone + Game port AMI legal BIOS; Supports “Plug and Play”; ACPI 1.1 compliance wake up events; SMBIOS 2.3.1 support; CPU frequency stepless control (only for advanced users’ reference, see CAUTION 4) Microsoft® Windows® 98 SE / ME / 2000 / XP compliant CAUTION! 1. While CPU overheat is detected, the system will automatically shutdown. Please check if the CPU fan on the motherboard functions properly before you resume the system. To improve heat dissipation, remember to spray thermal grease between the CPU and the heatsink when you install the PC system. 2. Do NOT use a 3.3V AGP card on K7VM3’s AGP slot! It may cause permanent damage! 3. Power Management for USB 2.0 works fine under Microsoft® Windows® XP SP1 / 2000 SP4. It may not work properly under Microsoft® Windows® 98/ ME. Please refer to Microsoft® official document at http://www.microsoft.com/whdc/hwdev/bus/USB/USB2support.mspx 4. Although K7VM3 offers stepless control, it is not recommended to perform over clocking. When the CPU frequency of K7VM3 is set to perform over clocking, other clocks, such as PCI clock, AGP clock, and Memory clock will also be overclocked proportionally. Frequencies other than the recommended CPU bus frequencies may cause the instability of the system or damage the CPU. h h h h h s s s s s i i i i i l l l l l g g g g g n n n n n E E E E E ASRock K7VM3 Motherboard 55555

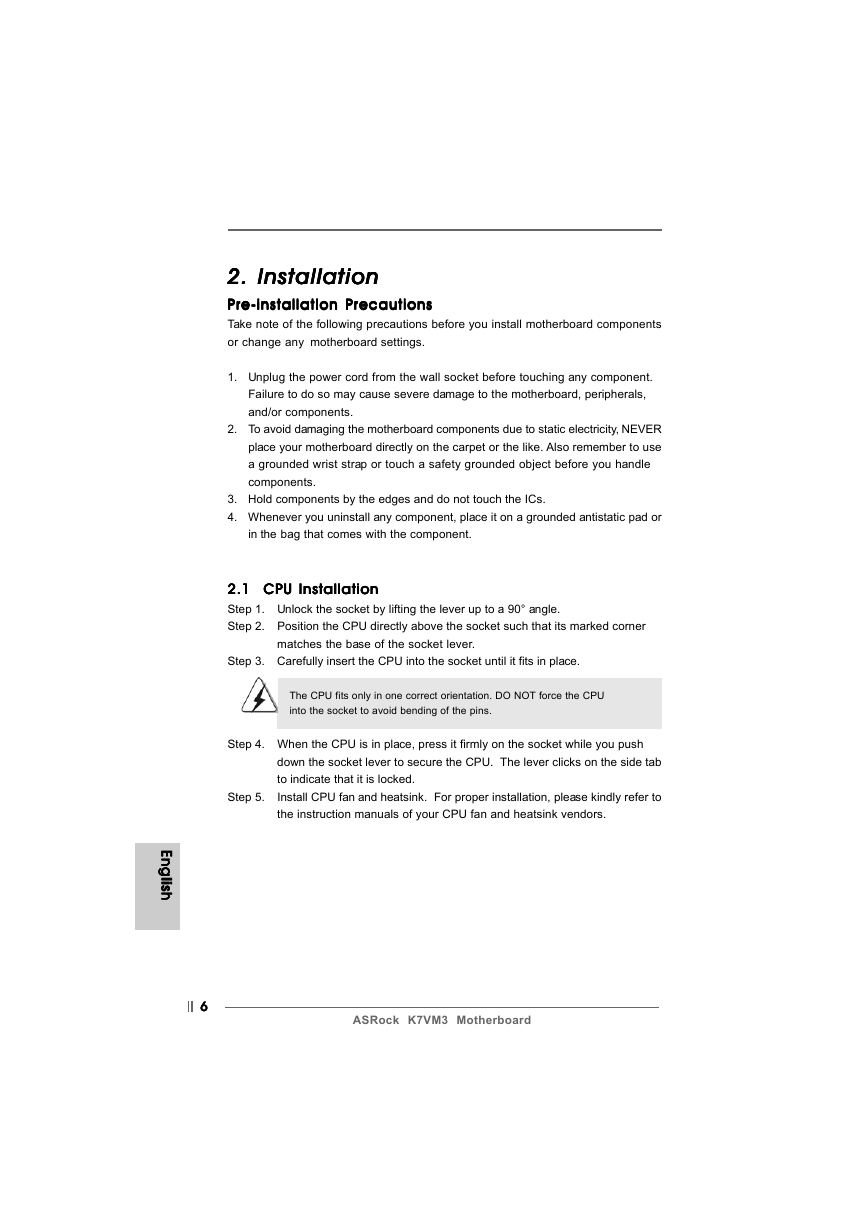

2. Installation 2. Installation 2. Installation 2. Installation 2. Installation Pre-installation Precautions Pre-installation Precautions Pre-installation Precautions Pre-installation Precautions Pre-installation Precautions Take note of the following precautions before you install motherboard components or change any motherboard settings. 1. Unplug the power cord from the wall socket before touching any component. Failure to do so may cause severe damage to the motherboard, peripherals, and/or components. 2. To avoid damaging the motherboard components due to static electricity, NEVER place your motherboard directly on the carpet or the like. Also remember to use a grounded wrist strap or touch a safety grounded object before you handle components. 3. Hold components by the edges and do not touch the ICs. 4. Whenever you uninstall any component, place it on a grounded antistatic pad or in the bag that comes with the component. 2.1 CPU Installation 2.1 CPU Installation 2.1 CPU Installation 2.1 CPU Installation 2.1 CPU Installation Step 1. Unlock the socket by lifting the lever up to a 90° angle. Step 2. Position the CPU directly above the socket such that its marked corner matches the base of the socket lever. Step 3. Carefully insert the CPU into the socket until it fits in place. The CPU fits only in one correct orientation. DO NOT force the CPU into the socket to avoid bending of the pins. Step 4. When the CPU is in place, press it firmly on the socket while you push down the socket lever to secure the CPU. The lever clicks on the side tab to indicate that it is locked. Install CPU fan and heatsink. For proper installation, please kindly refer to the instruction manuals of your CPU fan and heatsink vendors. Step 5. E E E E E n n n n n g g g g g l l l l l i i i i i s s s s s h h h h h 66666 ASRock K7VM3 Motherboard

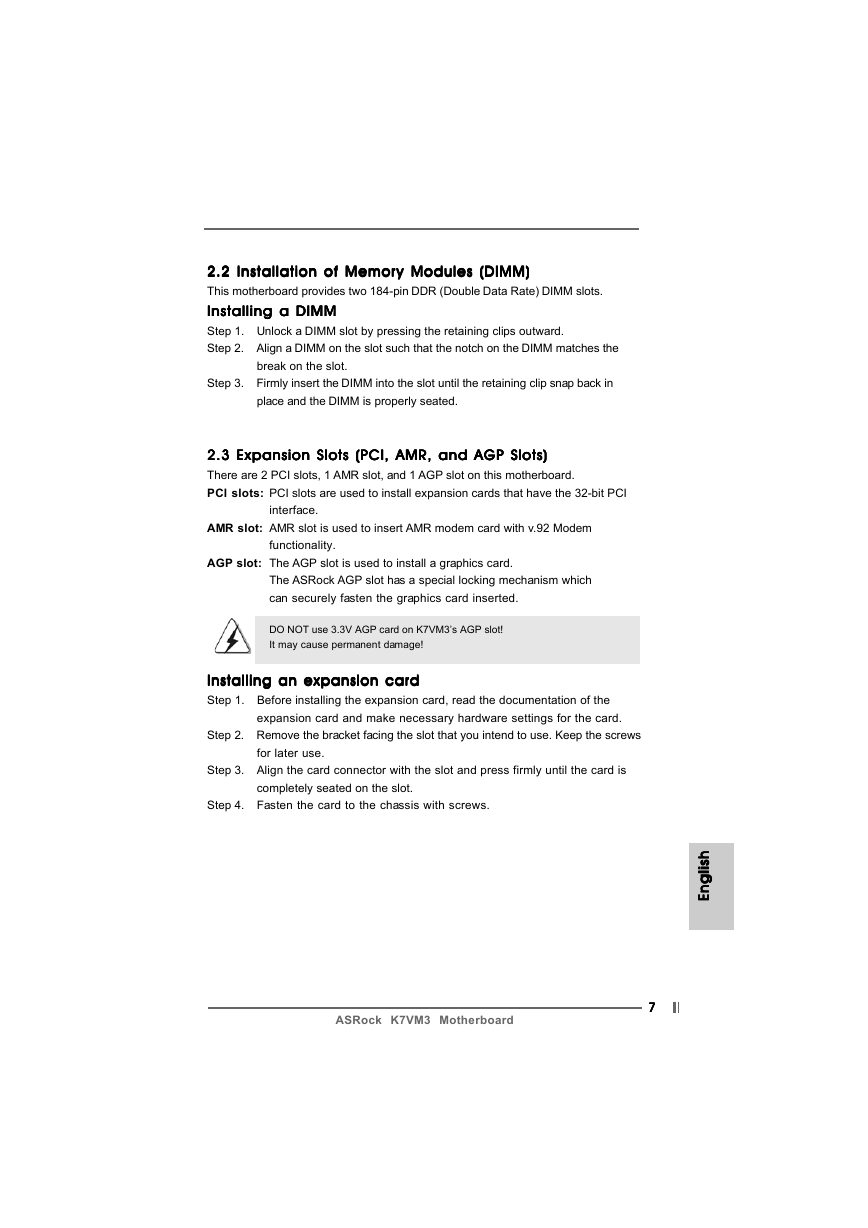

2.2 Installation of Memory Modules (DIMM) 2.2 Installation of Memory Modules (DIMM) 2.2 Installation of Memory Modules (DIMM) 2.2 Installation of Memory Modules (DIMM) 2.2 Installation of Memory Modules (DIMM) This motherboard provides two 184-pin DDR (Double Data Rate) DIMM slots. Installing a DIMM Installing a DIMM Installing a DIMM Installing a DIMM Installing a DIMM Step 1. Unlock a DIMM slot by pressing the retaining clips outward. Step 2. Align a DIMM on the slot such that the notch on the DIMM matches the break on the slot. Step 3. Firmly insert the DIMM into the slot until the retaining clip snap back in place and the DIMM is properly seated. 2.3 Expansion Slots (PCI, AMR, and AGP Slots) 2.3 Expansion Slots (PCI, AMR, and AGP Slots) 2.3 Expansion Slots (PCI, AMR, and AGP Slots) 2.3 Expansion Slots (PCI, AMR, and AGP Slots) 2.3 Expansion Slots (PCI, AMR, and AGP Slots) There are 2 PCI slots, 1 AMR slot, and 1 AGP slot on this motherboard. PCI slots: PCI slots are used to install expansion cards that have the 32-bit PCI interface. AMR slot: AMR slot is used to insert AMR modem card with v.92 Modem functionality. AGP slot: The AGP slot is used to install a graphics card. The ASRock AGP slot has a special locking mechanism which can securely fasten the graphics card inserted. DO NOT use 3.3V AGP card on K7VM3’s AGP slot! It may cause permanent damage! Installing an expansion card Installing an expansion card Installing an expansion card Installing an expansion card Installing an expansion card Step 1. Before installing the expansion card, read the documentation of the expansion card and make necessary hardware settings for the card. Step 2. Remove the bracket facing the slot that you intend to use. Keep the screws for later use. Step 3. Align the card connector with the slot and press firmly until the card is completely seated on the slot. Step 4. Fasten the card to the chassis with screws. h h h h h s s s s s i i i i i l l l l l g g g g g n n n n n E E E E E ASRock K7VM3 Motherboard 77777
2.4 Jumpers Setup 2.4 Jumpers Setup 2.4 Jumpers Setup 2.4 Jumpers Setup 2.4 Jumpers Setup The illustration shows how jumpers are setup. When the jumper cap is placed on pins, the jumper is “SHORT”. If no jumper cap is placed on the pins, the jumper is “OPEN”. The illustration shows a 3-pin jumper whose pin1 and pin2 are “SHORT” when jumper cap is placed on these 2 pins. Jumper FSB_SEL1 (see p.2 item 8) Setting Short Open Note: The setting of the CPU front side bus frequency of this motherboard is by means of the adjustment of jumper-setting. Please follow the figures above to set the CPU front side bus frequency. PS2_USB_PWR1 (see p.2 item 1) Short pin2, pin3 to enable +5VSB (standby) for PS/2 or USB wake up events. Note: To select +5VSB, it requires 2 Amp and higher standby current provided by power supply. JR1(see p.2 item 25) JL1(see p.2 item 24) Note: If the jumpers JL1 and JR1 are short , both front panel and rear panel audio connectors can work. E E E E E n n n n n g g g g g l l l l l i i i i i s s s s s h h h h h 88888 ASRock K7VM3 Motherboard
