日立投影机-CP-S420说明书.pdf

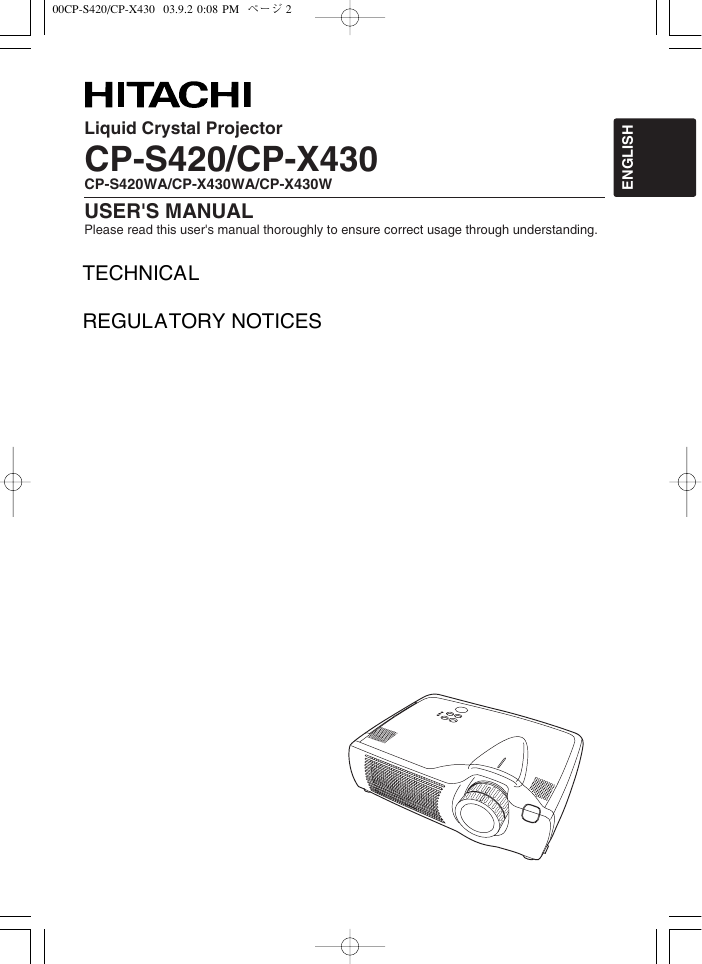

00CP-S420/CP-X430 03.9.2 0:08 PM ページ 2
Liquid Crystal Projector
CP-S420/CP-X430
CP-S420WA/CP-X430WA/CP-X430W
USER'S MANUAL
Please read this user's manual thoroughly to ensure correct usage through understanding.
I
H
S
L
G
N
E
01CP-S420/CP-X430 03.9.2 0:08 PM ページ 1
Liquid Crystal Projector
USER'S MANUAL
USER'S MANUAL
Thank you for purchasing this liquid crystal projector.
WARNING • Please read the accompanying manual “SAFETY
INSTRUCTIONS” and this “USER'S MANUAL” thoroughly to ensure correct
usage through understanding. After reading, store this instruction manual in a
safe place for future reference.
• The information in this manual is subject to change without notice.
NOTE
• The manufacturer assumes no responsibility for any errors that may appear in this manual
• The reproduction, transmission or use of this document or contents is not permitted without
express written authority.
TRADEMARK ACKNOWLEDGMENT : PS/2, VGA and XGA are registered trademarks of
International Business Machines Corporation. Apple, Mac and ADB are registered trademarks of
Apple Computer, Inc. VESA and SVGA are trademarks of the Video Electronics Standard
Association. Windows is a registered trademark of Microsoft Corporation. Carefully observe the
trademarks and registered trademarks of all companies, even when not mentioned.
I
H
S
L
G
N
E
CONTENTS
CONTENTS
Page
FEATURES .......................................2
BEFORE USE ...................................2
Contents of Package ..............................2
Part Names.............................................3
Loading the Batteries..............................5
INSTALLATION ................................6
Installation of the Projector and Screen........6
Angle Adjustment ...................................6
Cabling ...................................................7
Power Connection ..................................8
Example of System Setup ......................8
Plug & Play .............................................8
OPERATIONS...................................9
Power ON ..................................................9
Power OFF ..............................................9
Basic Operation ....................................10
Setup Menu ..........................................12
Input Menu............................................13
Image Menu..........................................14
Options Menu .......................................15
No Signal Menu ....................................16
MAINTENANCE ..............................17
Lamp.....................................................17
Air Filter ................................................19
Other Maintenance...............................19
Page
TROUBLESHOOTING ....................20
OSD Message ......................................20
Indicators Message ..............................21
Symptom ..............................................22
SPECIFICATIONS...........................23
WARRANTY AND AFTER-SERVICE......24
.......................................................................................
TABLES

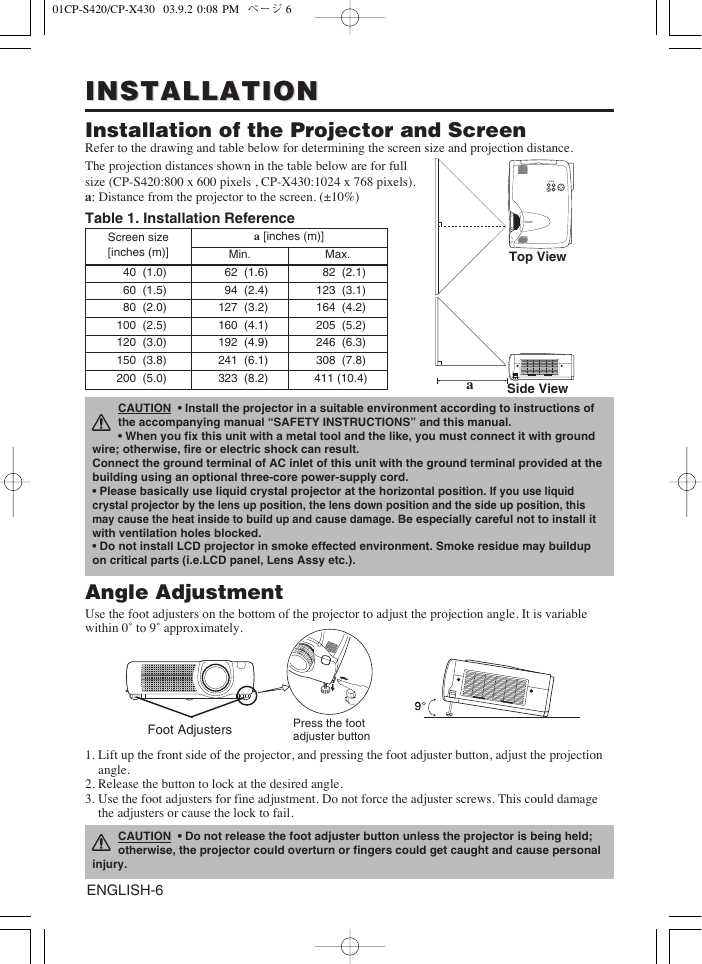

Table 1. Installation Reference.................6

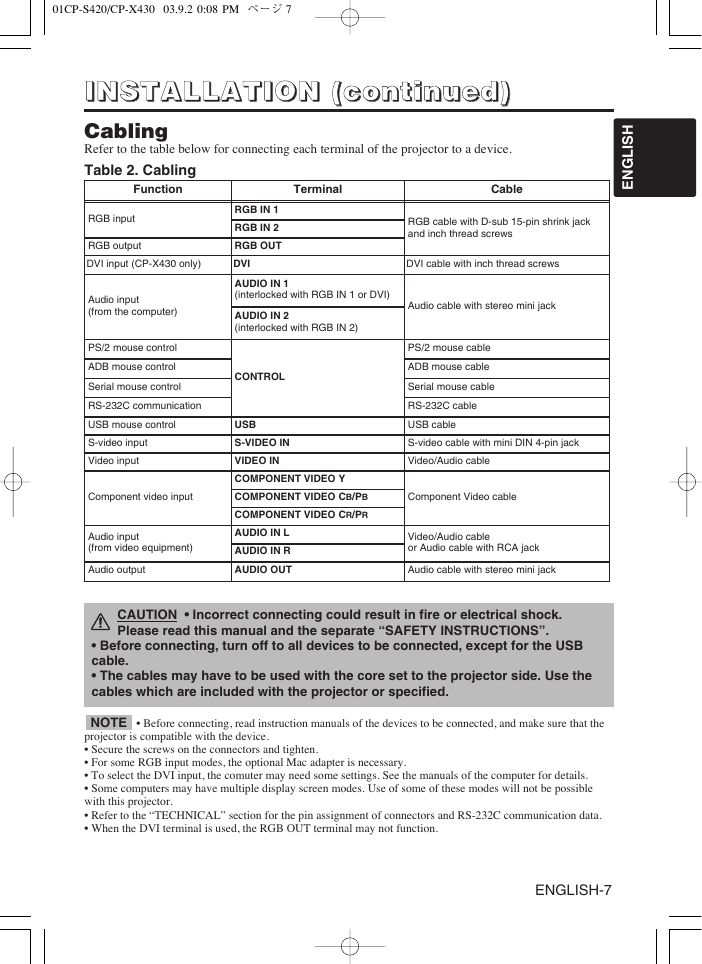

Table 2. Cabling .......................................7
Table 3. Basic Operation........................10
Table 4. Setup Menu ..............................12
Table 5. Input Menu................................13
Table 6. Image Menu..............................14
Table 7. Options Menu ...........................15
Table 8. No Signal Menu........................16
Table 9. OSD Message ..........................20
Table 10. Indicators Message ................21
Table 11. Symptom ................................22
Table 12. Specifications .........................23
.......................................................................................
For "TECHNICAL" and "REGULATORY
NOTICE", see the end of this manual.
ENGLISH-1
01CP-S420/CP-X430 03.9.2 0:08 PM ページ 2

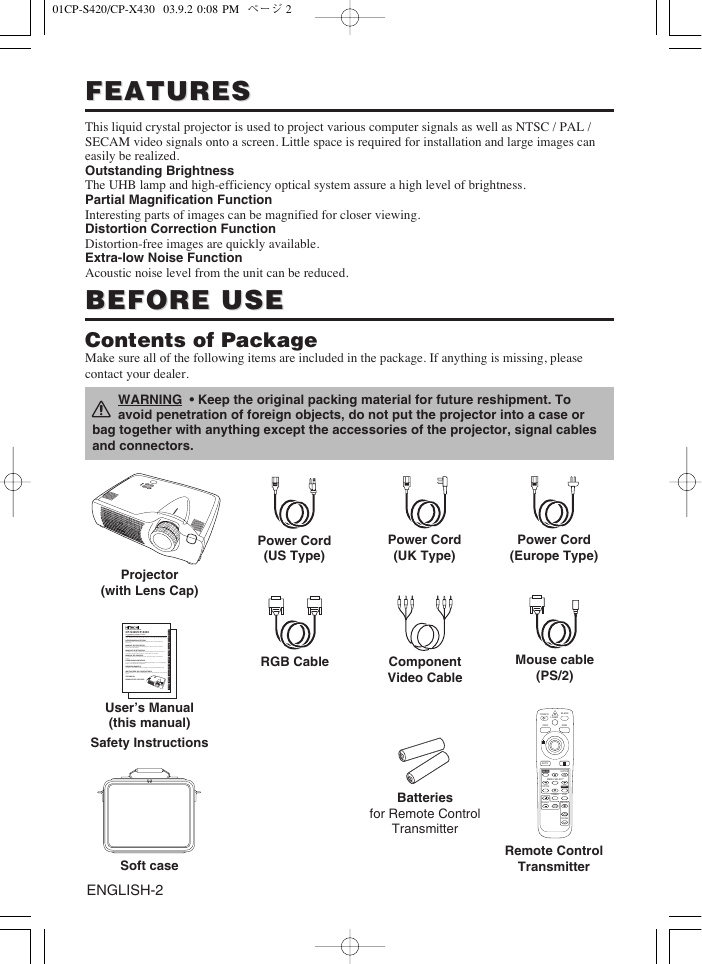

FEATURES
FEATURES
This liquid crystal projector is used to project various computer signals as well as NTSC / PAL /
SECAM video signals onto a screen. Little space is required for installation and large images can
easily be realized.
Outstanding Brightness
The UHB lamp and high-efficiency optical system assure a high level of brightness.
Partial Magnification Function
Interesting parts of images can be magnified for closer viewing.
Distortion Correction Function
Distortion-free images are quickly available.
Extra-low Noise Function
Acoustic noise level from the unit can be reduced.
BEFORE USE
BEFORE USE
Contents of Package
Make sure all of the following items are included in the package. If anything is missing, please
contact your dealer.
WARNING • Keep the original packing material for future reshipment. To
avoid penetration of foreign objects, do not put the projector into a case or
bag together with anything except the accessories of the projector, signal cables
and connectors.
Power Cord
(US Type)
Power Cord
(UK Type)
Power Cord
(Europe Type)
Projector
(with Lens Cap)
Liquid Crystal Projector
CP-S420/CP-X430
CP-S420WA/CP-X430WA/CP-X430W
USER'S MANUAL
Please read this user's manual thoroughly to ensure correct usage through understanding.
BEDIENUNGSANLEITUNG
Bitte lessen Sie diese Bedienungsanleitung zugunsten der korrekten Bedienung
aufmerksam.
MANUEL D'UTILISATION
Nous vous recommandons de lire attentivement ce manuel pour bien assimiler le
fonctionnement de l'appareil.
MANUALE D'ISTRUZIONI
Vi preghiamo voler leggere attentamente il manuale d'sitruzioni in modo tale da poter
comprendere quanto riportato ai fini di un corretto utilizzo del proiettore.
MANUAL DE USUARIO
Lea cuidadosamente este manual del usuario para poder utilizar corretamente el
producto.
GEBRUIKSAANWIJIZING
Lees voor het qebruik alstublieft deze handleiding aandachtig door, om volledig profijt te
hebben van de uitgebreide mogelijkheden.
BRUKERHÅNDBOK
Vennligst les denne bruksanvisningen grundig for å være garantert driftssikker bruk.
INSTRUÇÕES DO PROPRIETÁRIO
Para assegurar o uso correto do equipamento, por favor leia atentamente este manual do
usuário.
TECHNICAL
REGULATORY NOTICES
I
H
S
L
G
N
E
H
C
S
T
U
E
D
I
S
A
Ç
N
A
R
F
O
N
A
L
A
T
I
I
L
O
Ñ
A
P
S
E
S
D
N
A
L
R
E
D
E
N
K
S
R
O
N
S
Ê
G
T
R
O
P
I
L
A
C
N
H
C
E
T
User’s Manual
(this manual)
Safety Instructions
Soft case
ENGLISH-2
RGB Cable
Component
Video Cable
Mouse cable
(PS/2)
Batteries
for Remote Control
Transmitter
STANDBY/ON
BLANK
LASER
VIDEO
RGB
AUTO
MENU
KEYSTONE
MENU SELECT
POSITION
RESET
FREEZE
PinP
MAGNIFY
MUTE
OFF
VOLUME
Remote Control
Transmitter
01CP-S420/CP-X430 03.9.2 0:08 PM ページ 3
BBBBEEEEFFFFOOOORRRREEEE UUUUSSSSEEEE ((((ccccoooonnnnttttiiiinnnnuuuueeeedddd))))

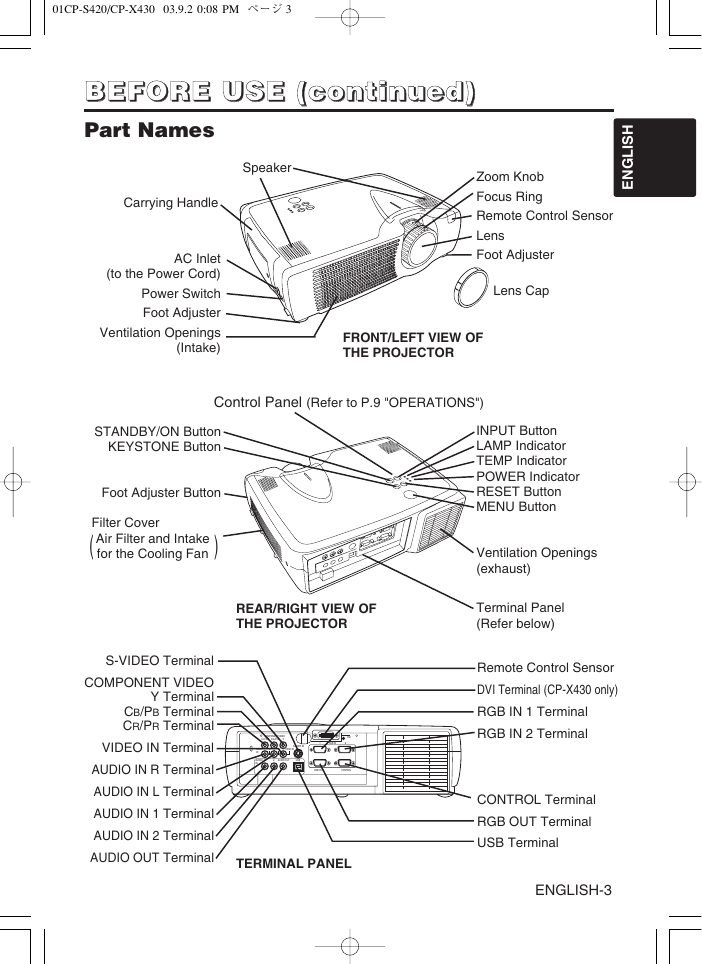

Part Names
Speaker
Carrying Handle
AC Inlet
(to the Power Cord)
Power Switch
Foot Adjuster
Ventilation Openings
(Intake)
I
H
S
L
G
N
E
Zoom Knob
Focus Ring
Remote Control Sensor
Lens
Foot Adjuster
Lens Cap
FRONT/LEFT VIEW OF
THE PROJECTOR
Control Panel (Refer to P.9 "OPERATIONS")
STANDBY/ON Button
KEYSTONE Button
Foot Adjuster Button
Filter Cover
Air Filter and Intake
for the Cooling Fan
( )
S-VIDEO Terminal
COMPONENT VIDEO
Y Terminal
CB/PB Terminal
CR/PR Terminal
VIDEO IN Terminal
AUDIO IN R Terminal
AUDIO IN L Terminal
AUDIO IN 1 Terminal
AUDIO IN 2 Terminal
AUDIO OUT Terminal
INPUT Button
LAMP Indicator
TEMP Indicator
POWER Indicator
RESET Button
MENU Button
Ventilation Openings
(exhaust)
REAR/RIGHT VIEW OF
THE PROJECTOR
Terminal Panel
(Refer below)
COMPONENT VIDEO
Y
CB/PB
CR/PR
AUDIO
IN
R
L
S-VIDEO IN
VIDEO IN
AUDIO
IN
1
2
AUDIO OUT
USB
DVI
1
RGB IN
2
RGB OUT
CONTROL
TERMINAL PANEL
Remote Control Sensor
DVI Terminal (CP-X430 only)
RGB IN 1 Terminal
RGB IN 2 Terminal
CONTROL Terminal
RGB OUT Terminal
USB Terminal
ENGLISH-3
01CP-S420/CP-X430 03.9.2 0:08 PM ページ 4
BBBBEEEEFFFFOOOORRRREEEE UUUUSSSSEEEE ((((ccccoooonnnnttttiiiinnnnuuuueeeedddd))))

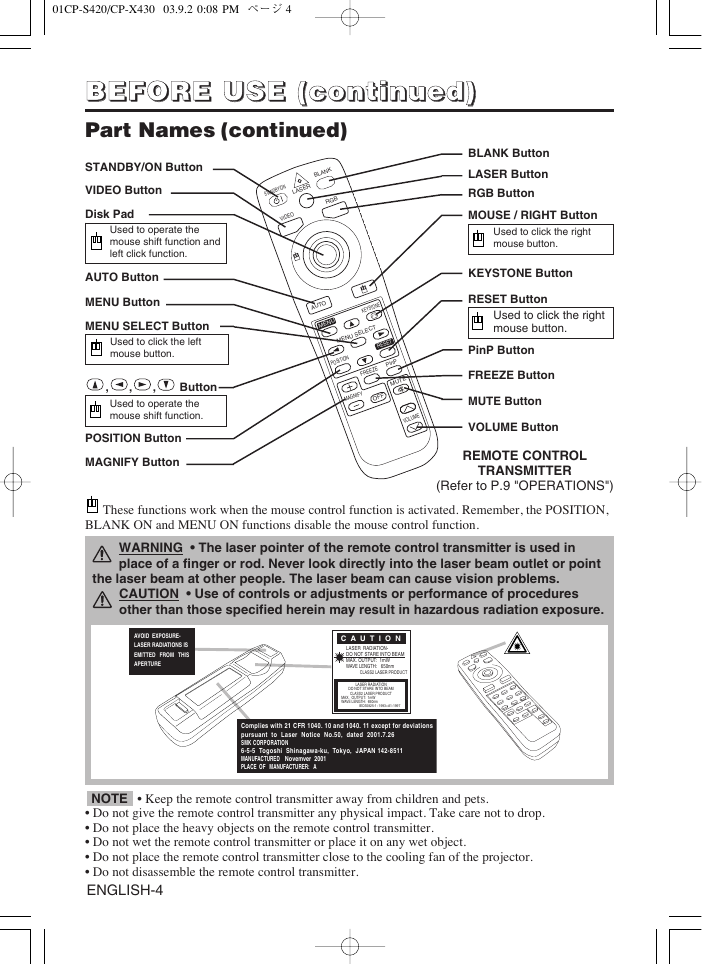

Part Names (continued)
STANDBY/ON Button
VIDEO Button
Disk Pad
Used to operate the
mouse shift function and
left click function.
AUTO Button
MENU Button
MENU SELECT Button
Used to click the left
mouse button.
,
,
,
Button
Used to operate the
mouse shift function.
POSITION Button
MAGNIFY Button
B L A N K
R G B
N
Y / O
B
D
N
A
T
S
L A S E R
O
E
V I D
A U T O
M E N U
E
N
O
T
S
Y
E
K
M E N U S E L E C T
T
E
S
E
R
N
S I T I O
O
P
E
Z
E
E
R
F
P i n P
M U T E
Y
N I F
G
A
M
F
O F
E
M
U
L
O
V
BLANK Button
LASER Button
RGB Button
MOUSE / RIGHT Button
Used to click the right
mouse button.
KEYSTONE Button
RESET Button
Used to click the right
mouse button.
PinP Button
FREEZE Button
MUTE Button
VOLUME Button
REMOTE CONTROL
TRANSMITTER
(Refer to P.9 "OPERATIONS")
These functions work when the mouse control function is activated. Remember, the POSITION,
BLANK ON and MENU ON functions disable the mouse control function.
WARNING • The laser pointer of the remote control transmitter is used in
place of a finger or rod. Never look directly into the laser beam outlet or point
the laser beam at other people. The laser beam can cause vision problems.
CAUTION • Use of controls or adjustments or performance of procedures
other than those specified herein may result in hazardous radiation exposure.
AVOID EXPOSURE-
LASER RADIATIONS IS
EMITTED FROM THIS
APERTURE
C A U T I O N
LASER RADIATION-
DO NOT STARE INTO BEAM
MAX. OUTPUT: 1mW
WAVE LENGTH: 650nm
CLASS2 LASER PRODUCT
LASER RADIATION
DO NOT STARE INTO BEAM
CLASS2 LASER PRODUCT
MAX. OUTPUT: 1mW
WAVE LENGTH: 650nm
IEC60825-1 :1993+A1:1997
Complies with 21 CFR 1040. 10 and 1040. 11 except for deviations
pursuant to Laser Notice No.50, dated 2001.7.26
SMK CORPORATION
6-5-5 Togoshi Shinagawa-ku, Tokyo, JAPAN 142-8511
MANUFACTURED Novemver 2001
PLACE OF MANUFACTURER: A
• Keep the remote control transmitter away from children and pets.
NOTE
• Do not give the remote control transmitter any physical impact. Take care not to drop.
• Do not place the heavy objects on the remote control transmitter.
• Do not wet the remote control transmitter or place it on any wet object.
• Do not place the remote control transmitter close to the cooling fan of the projector.
• Do not disassemble the remote control transmitter.
ENGLISH-4
01CP-S420/CP-X430 03.9.2 0:08 PM ページ 5
BBBBEEEEFFFFOOOORRRREEEE UUUUSSSSEEEE ((((ccccoooonnnnttttiiiinnnnuuuueeeedddd))))
Loading the Batteries
Install the AA batteries into the remote control
transmitter.
1. Remove the battery cover.
Push the knob while lifting up the battery cover.
2. Load the batteries.
Make sure the plus and minus poles are correctly
oriented.
1
3. Close the battery cover.
2
I
H
S
L
G
N
E
CAUTION • Use only the specified batteries with this remote control
transmitter. Also, do not mix new and old batteries. This could cause battery
cracking or leakage, which could result in fire or personal injury.
• When loading the batteries, make sure the plus and minus terminals are
correctly oriented as indicated in the remote control transmitter. Incorrect
orientation could cause battery cracking or leakage, which could result in
personal injury or pollution of the surrounding environment.
• When you dispose the battery, you should obey the law in the relative area or
country.
• Keep the battery away from children and pets.
• When not to be used for an extended period, remove the batteries from the
remote control transmitter.
NOTE
Replace the batteries when remote control transmitter operation becomes difficult.
ENGLISH-5
01CP-S420/CP-X430 03.9.2 0:08 PM ページ 6
INSTALLATION
INSTALLATION
Installation of the Projector and Screen
Refer to the drawing and table below for determining the screen size and projection distance.
The projection distances shown in the table below are for full
size (CP-S420:800 x 600 pixels , CP-X430:1024 x 768 pixels).
a: Distance from the projector to the screen. (±10%)
Table 1. Installation Reference
Screen size
[inches (m)]
40 (1.0)
60 (1.5)
80 (2.0)
100 (2.5)
120 (3.0)
150 (3.8)
200 (5.0)
a [inches (m)]
Min.
62 (1.6)
94 (2.4)
127 (3.2)
160 (4.1)
192 (4.9)
241 (6.1)
323 (8.2)
Max.
82 (2.1)
123 (3.1)
164 (4.2)
205 (5.2)
246 (6.3)
308 (7.8)
411 (10.4)
Top View
a
Side View
CAUTION • Install the projector in a suitable environment according to instructions of
the accompanying manual “SAFETY INSTRUCTIONS” and this manual.
• When you fix this unit with a metal tool and the like, you must connect it with ground
wire; otherwise, fire or electric shock can result.
Connect the ground terminal of AC inlet of this unit with the ground terminal provided at the
building using an optional three-core power-supply cord.
• Please basically use liquid crystal projector at the horizontal position. If you use liquid
crystal projector by the lens up position, the lens down position and the side up position, this
may cause the heat inside to build up and cause damage. Be especially careful not to install it
with ventilation holes blocked.
• Do not install LCD projector in smoke effected environment. Smoke residue may buildup
on critical parts (i.e.LCD panel, Lens Assy etc.).
Angle Adjustment
Use the foot adjusters on the bottom of the projector to adjust the projection angle. It is variable
within 0˚ to 9˚ approximately.
Foot Adjusters
Press the foot
adjuster button
1. Lift up the front side of the projector, and pressing the foot adjuster button, adjust the projection
angle.
2. Release the button to lock at the desired angle.
3. Use the foot adjusters for fine adjustment. Do not force the adjuster screws. This could damage
the adjusters or cause the lock to fail.
CAUTION • Do not release the foot adjuster button unless the projector is being held;
otherwise, the projector could overturn or fingers could get caught and cause personal
injury.
ENGLISH-6
01CP-S420/CP-X430 03.9.2 0:08 PM ページ 7
IIIINNNNSSSSTTTTAAAALLLLLLLLAAAATTTTIIIIOOOONNNN ((((ccccoooonnnnttttiiiinnnnuuuueeeedddd))))
Cabling
Refer to the table below for connecting each terminal of the projector to a device.
Table 2. Cabling
Function
Terminal
Cable
RGB input
RGB output
RGB IN 1
RGB IN 2
RGB OUT
RGB cable with D-sub 15-pin shrink jack
and inch thread screws
DVI input (CP-X430 only)
DVI
DVI cable with inch thread screws
I
H
S
L
G
N
E
Audio input
(from the computer)
PS/2 mouse control
ADB mouse control
Serial mouse control
RS-232C communication
USB mouse control
S-video input
Video input
Component video input
Audio input
(from video equipment)
AUDIO IN 1
(interlocked with RGB IN 1 or DVI)
AUDIO IN 2
(interlocked with RGB IN 2)
Audio cable with stereo mini jack
CONTROL
USB
S-VIDEO IN
VIDEO IN
COMPONENT VIDEO Y
COMPONENT VIDEO CB/PB
COMPONENT VIDEO CR/PR
AUDIO IN L
AUDIO IN R
PS/2 mouse cable
ADB mouse cable
Serial mouse cable
RS-232C cable
USB cable
S-video cable with mini DIN 4-pin jack
Video/Audio cable
Component Video cable
Video/Audio cable
or Audio cable with RCA jack
Audio output
AUDIO OUT
Audio cable with stereo mini jack
CAUTION • Incorrect connecting could result in fire or electrical shock.
Please read this manual and the separate “SAFETY INSTRUCTIONS”.
• Before connecting, turn off to all devices to be connected, except for the USB
cable.
• The cables may have to be used with the core set to the projector side. Use the
cables which are included with the projector or specified.
• Before connecting, read instruction manuals of the devices to be connected, and make sure that the
NOTE
projector is compatible with the device.
• Secure the screws on the connectors and tighten.
• For some RGB input modes, the optional Mac adapter is necessary.
• To select the DVI input, the comuter may need some settings. See the manuals of the computer for details.
• Some computers may have multiple display screen modes. Use of some of these modes will not be possible
with this projector.
• Refer to the “TECHNICAL” section for the pin assignment of connectors and RS-232C communication data.
• When the DVI terminal is used, the RGB OUT terminal may not function.
ENGLISH-7
相关推荐
2023年江西萍乡中考道德与法治真题及答案.doc
2012年重庆南川中考生物真题及答案.doc
2013年江西师范大学地理学综合及文艺理论基础考研真题.doc
2020年四川甘孜小升初语文真题及答案I卷.doc
2020年注册岩土工程师专业基础考试真题及答案.doc
2023-2024学年福建省厦门市九年级上学期数学月考试题及答案.doc
2021-2022学年辽宁省沈阳市大东区九年级上学期语文期末试题及答案.doc
2022-2023学年北京东城区初三第一学期物理期末试卷及答案.doc
2018上半年江西教师资格初中地理学科知识与教学能力真题及答案.doc
2012年河北国家公务员申论考试真题及答案-省级.doc
2020-2021学年江苏省扬州市江都区邵樊片九年级上学期数学第一次质量检测试题及答案.doc
2022下半年黑龙江教师资格证中学综合素质真题及答案.doc
