三洋投影机-PLC-SU25说明书.pdf
PLC-SU25
Safety precautions/instructions
Compliances

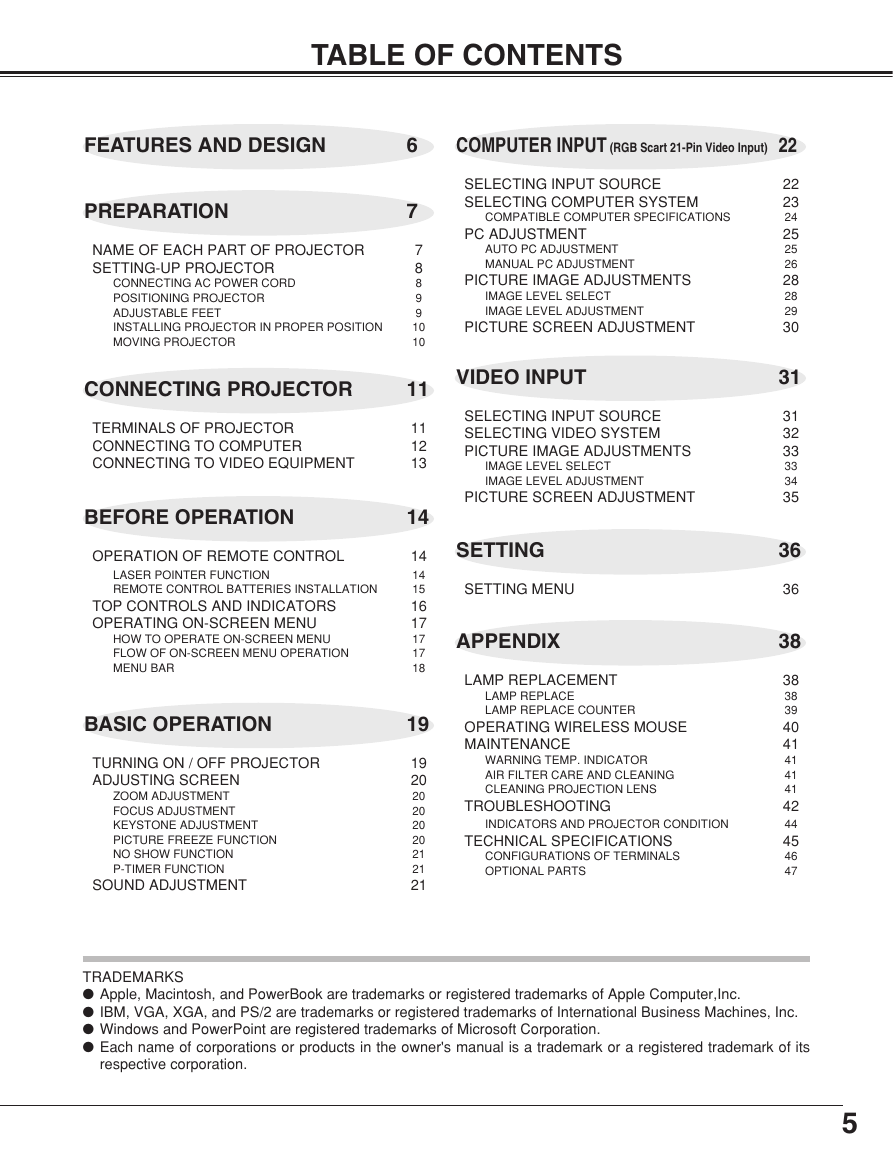

Table of contents
Features and Design
Preparation
Name of each part of projector
Setting-up projector
Positioning projector
Adjustable feet
Installing projector in properposition
Moving projector
Connecting projector
Terminals of projector
Connecting to computor
Connecting to video
Before operation
Opearation of remote control
Laser pointer function
Remote control bateries installation
Top controls and indicators
Operating on-screen menu
How to operate on-screen menu
Flow of on-screen menu
Menu bar
Basic operation
Turning on/off projector
Adjusting screen
Zoom
Focus
Keystone
Picture freeze function
No show functon
P-timer function
Sound adjustment
Direct operation
Menu operation
Computer input
Select input source
Direct operation
Menu operation
Selecting computer system
Compatible computer specications
PC adjustment
Auto PC adjustment
Manual PC adjustment
Picture image adjustment
Image level select(direct)
Image level select (menu)
Image level adjustment
Picture screen adjustment
Video input
Selecting input source
Direct operation
Menu operation
Selecting video system
Video jack or S-video jack
Y,Pd/Cb,Pr/Cr jacks
Picture image adjustments
Image level select(Direct)
Image level select(Menu)
Image level adjustment
Picture screen adjustment
Setting
Setting menu
Appendix
Lamp replacement
Lamp replace
Lamp replace counter
Lamp handling precautions
Operating wireless mouse
Installation
Operating wireless mouse
Maintenance
Warning temp. indicator
Air filter care and cleaning
Cleaning projector lens
Troubleshooting
Indicators and projector condition
Technical specificatyions
Configulations of terminals
Oprional parts
Multimedia Projector
MODEL PLC-SU25
Owner’s Manual

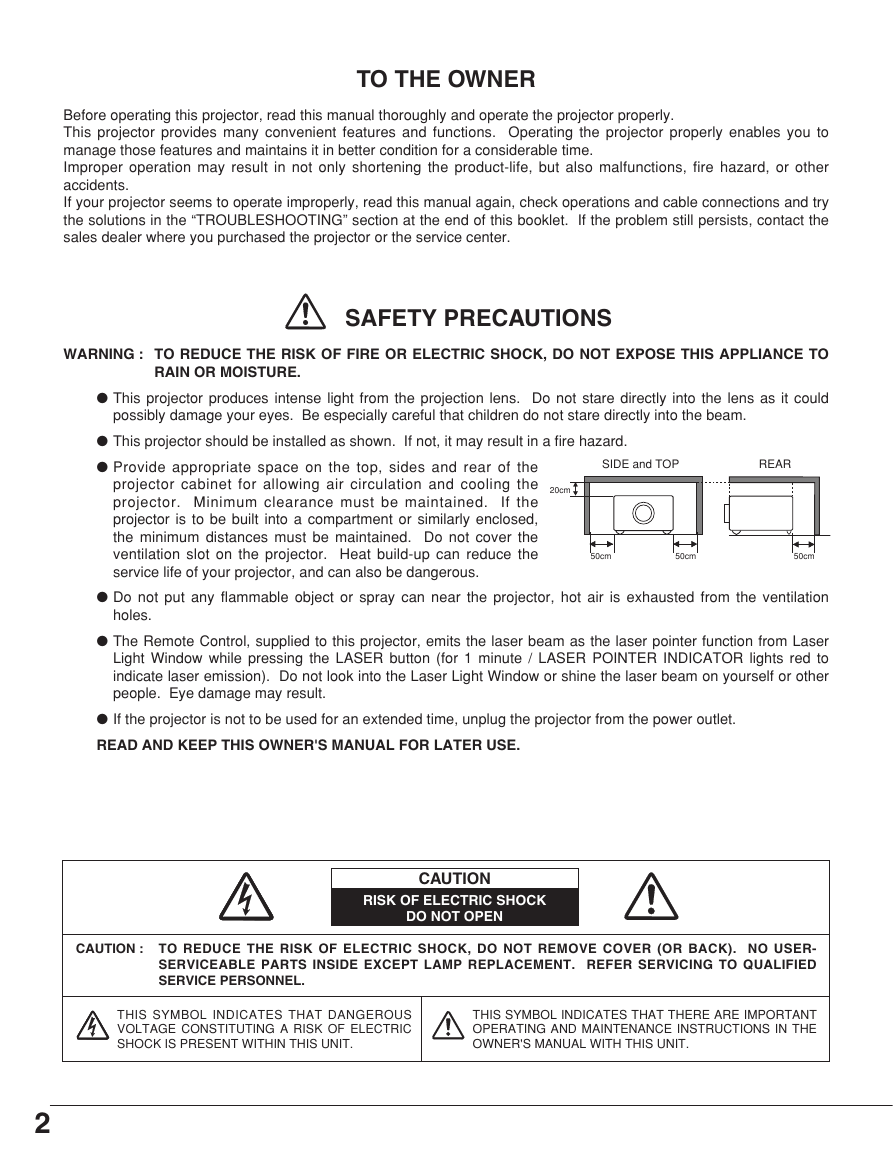

TO THE OWNER
Before operating this projector, read this manual thoroughly and operate the projector properly.
This projector provides many convenient features and functions. Operating the projector properly enables you to
manage those features and maintains it in better condition for a considerable time.
Improper operation may result in not only shortening the product-life, but also malfunctions, fire hazard, or other
accidents.
If your projector seems to operate improperly, read this manual again, check operations and cable connections and try
the solutions in the “TROUBLESHOOTING” section at the end of this booklet. If the problem still persists, contact the
sales dealer where you purchased the projector or the service center.
SAFETY PRECAUTIONS
WARNING : TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO
RAIN OR MOISTURE.
G This projector produces intense light from the projection lens. Do not stare directly into the lens as it could
possibly damage your eyes. Be especially careful that children do not stare directly into the beam.
G This projector should be installed as shown. If not, it may result in a fire hazard.
G Provide appropriate space on the top, sides and rear of the
projector cabinet for allowing air circulation and cooling the
projector. Minimum clearance must be maintained. If the
projector is to be built into a compartment or similarly enclosed,
the minimum distances must be maintained. Do not cover the
ventilation slot on the projector. Heat build-up can reduce the
service life of your projector, and can also be dangerous.
20cm
SIDE and TOP
REAR
50cm
50cm
50cm
G Do not put any flammable object or spray can near the projector, hot air is exhausted from the ventilation
holes.
G The Remote Control, supplied to this projector, emits the laser beam as the laser pointer function from Laser
Light Window while pressing the LASER button (for 1 minute / LASER POINTER INDICATOR lights red to
indicate laser emission). Do not look into the Laser Light Window or shine the laser beam on yourself or other
people. Eye damage may result.
G If the projector is not to be used for an extended time, unplug the projector from the power outlet.
READ AND KEEP THIS OWNER'S MANUAL FOR LATER USE.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-
SERVICEABLE PARTS INSIDE EXCEPT LAMP REPLACEMENT. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
THIS SYMBOL INDICATES THAT DANGEROUS
VOLTAGE CONSTITUTING A RISK OF ELECTRIC
SHOCK IS PRESENT WITHIN THIS UNIT.
THIS SYMBOL INDICATES THAT THERE ARE IMPORTANT
OPERATING AND MAINTENANCE INSTRUCTIONS IN THE
OWNER'S MANUAL WITH THIS UNIT.
2

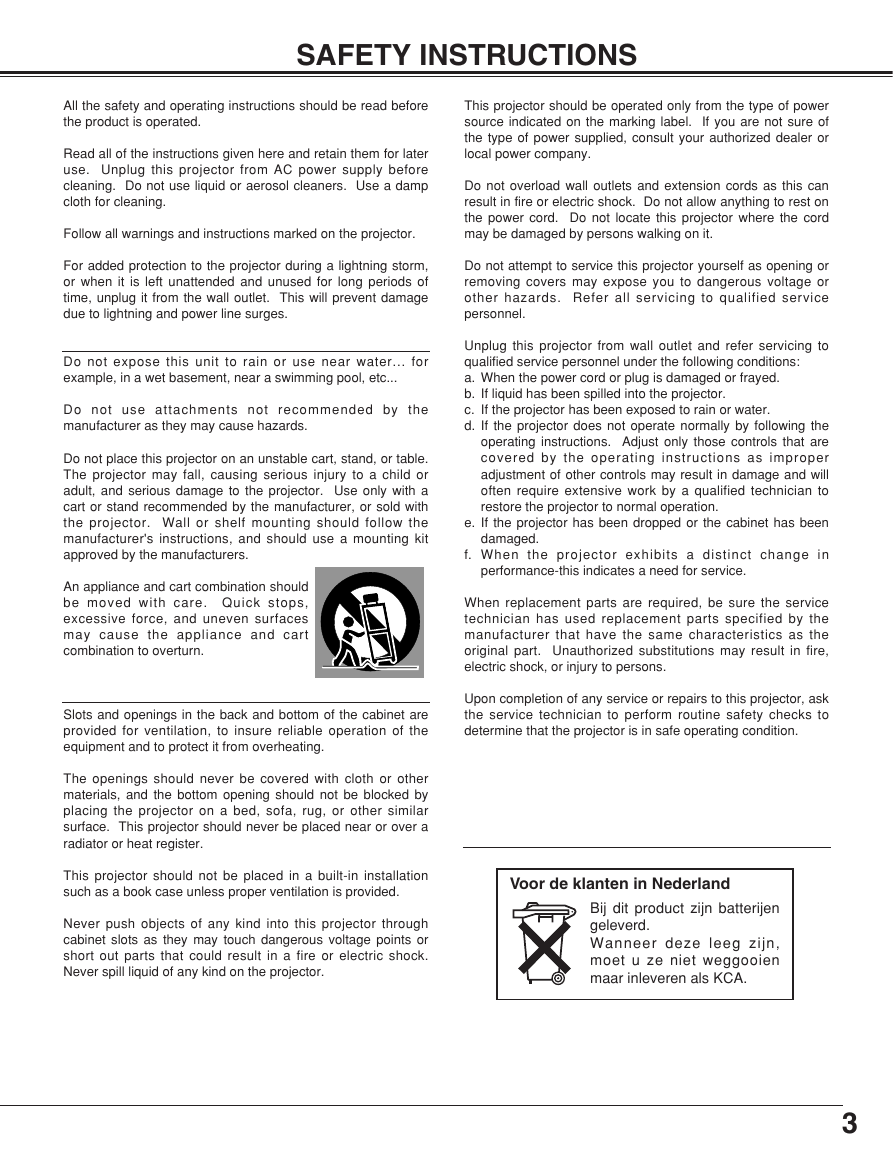

SAFETY INSTRUCTIONS
All the safety and operating instructions should be read before
the product is operated.
Read all of the instructions given here and retain them for later
use. Unplug this projector from AC power supply before
cleaning. Do not use liquid or aerosol cleaners. Use a damp
cloth for cleaning.
Follow all warnings and instructions marked on the projector.
This projector should be operated only from the type of power
source indicated on the marking label. If you are not sure of
the type of power supplied, consult your authorized dealer or
local power company.
Do not overload wall outlets and extension cords as this can
result in fire or electric shock. Do not allow anything to rest on
the power cord. Do not locate this projector where the cord
may be damaged by persons walking on it.
For added protection to the projector during a lightning storm,
or when it is left unattended and unused for long periods of
time, unplug it from the wall outlet. This will prevent damage
due to lightning and power line surges.
Do not attempt to service this projector yourself as opening or
removing covers may expose you to dangerous voltage or
other hazards. Refer all servicing to qualified service
personnel.
Do not expose this unit to rain or use near water... for
example, in a wet basement, near a swimming pool, etc...
Do not use attachments not recommended by the
manufacturer as they may cause hazards.
Do not place this projector on an unstable cart, stand, or table.
The projector may fall, causing serious injury to a child or
adult, and serious damage to the projector. Use only with a
cart or stand recommended by the manufacturer, or sold with
the projector. Wall or shelf mounting should follow the
manufacturer's instructions, and should use a mounting kit
approved by the manufacturers.
An appliance and cart combination should
be moved with care. Quick stops,
excessive force, and uneven surfaces
may cause the appliance and cart
combination to overturn.
Slots and openings in the back and bottom of the cabinet are
provided for ventilation, to insure reliable operation of the
equipment and to protect it from overheating.
The openings should never be covered with cloth or other
materials, and the bottom opening should not be blocked by
placing the projector on a bed, sofa, rug, or other similar
surface. This projector should never be placed near or over a
radiator or heat register.
Unplug this projector from wall outlet and refer servicing to
qualified service personnel under the following conditions:
a. When the power cord or plug is damaged or frayed.
b. If liquid has been spilled into the projector.
c. If the projector has been exposed to rain or water.
d. If the projector does not operate normally by following the
operating instructions. Adjust only those controls that are
covered by the operating instructions as improper
adjustment of other controls may result in damage and will
often require extensive work by a qualified technician to
restore the projector to normal operation.
e. If the projector has been dropped or the cabinet has been
damaged.
f. When the projector exhibits a distinct change in
performance-this indicates a need for service.
When replacement parts are required, be sure the service
technician has used replacement parts specified by the
manufacturer that have the same characteristics as the
original part. Unauthorized substitutions may result in fire,
electric shock, or injury to persons.
Upon completion of any service or repairs to this projector, ask
the service technician to perform routine safety checks to
determine that the projector is in safe operating condition.
This projector should not be placed in a built-in installation
such as a book case unless proper ventilation is provided.
Voor de klanten in Nederland
Never push objects of any kind into this projector through
cabinet slots as they may touch dangerous voltage points or
short out parts that could result in a fire or electric shock.
Never spill liquid of any kind on the projector.
Bij dit product zijn batterijen
geleverd.
Wanneer deze leeg zijn,
moet u ze niet weggooien
maar inleveren als KCA.
3

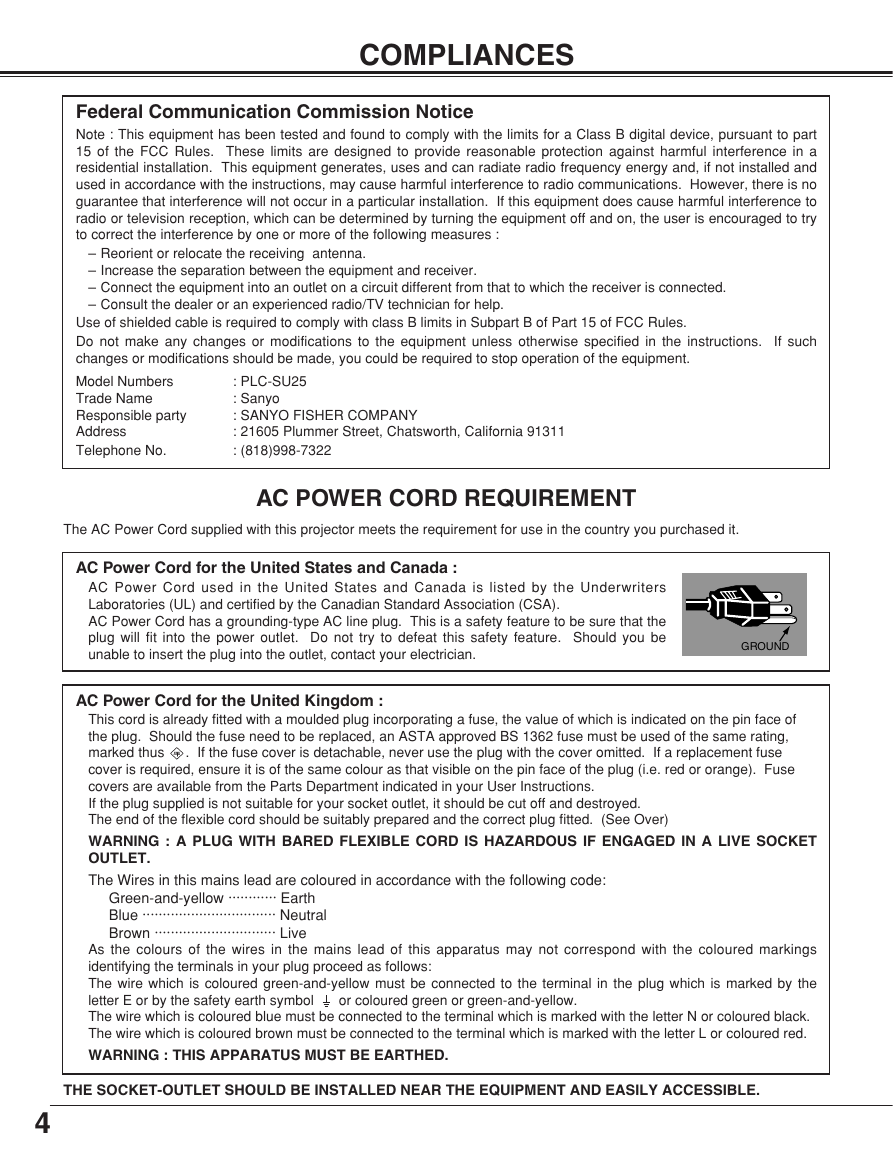

COMPLIANCES
Federal Communication Commission Notice
Note : This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures :
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
– Consult the dealer or an experienced radio/TV technician for help.
Use of shielded cable is required to comply with class B limits in Subpart B of Part 15 of FCC Rules.
Do not make any changes or modifications to the equipment unless otherwise specified in the instructions. If such
changes or modifications should be made, you could be required to stop operation of the equipment.
Model Numbers
Trade Name
Responsible party
Address
Telephone No.
: PLC-SU25
: Sanyo
: SANYO FISHER COMPANY
: 21605 Plummer Street, Chatsworth, California 91311
: (818)998-7322
AC POWER CORD REQUIREMENT
The AC Power Cord supplied with this projector meets the requirement for use in the country you purchased it.
AC Power Cord for the United States and Canada :
AC Power Cord used in the United States and Canada is listed by the Underwriters
Laboratories (UL) and certified by the Canadian Standard Association (CSA).
AC Power Cord has a grounding-type AC line plug. This is a safety feature to be sure that the
plug will fit into the power outlet. Do not try to defeat this safety feature. Should you be
unable to insert the plug into the outlet, contact your electrician.
GROUND
AC Power Cord for the United Kingdom :
ASA
This cord is already fitted with a moulded plug incorporating a fuse, the value of which is indicated on the pin face of
the plug. Should the fuse need to be replaced, an ASTA approved BS 1362 fuse must be used of the same rating,
marked thus
. If the fuse cover is detachable, never use the plug with the cover omitted. If a replacement fuse
cover is required, ensure it is of the same colour as that visible on the pin face of the plug (i.e. red or orange). Fuse
covers are available from the Parts Department indicated in your User Instructions.
If the plug supplied is not suitable for your socket outlet, it should be cut off and destroyed.
The end of the flexible cord should be suitably prepared and the correct plug fitted. (See Over)
WARNING : A PLUG WITH BARED FLEXIBLE CORD IS HAZARDOUS IF ENGAGED IN A LIVE SOCKET
OUTLET.
The Wires in this mains lead are coloured in accordance with the following code:
Green-and-yellow ············ Earth
Blue ································· Neutral
Brown ······························ Live
As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings
identifying the terminals in your plug proceed as follows:
The wire which is coloured green-and-yellow must be connected to the terminal in the plug which is marked by the
letter E or by the safety earth symbol
The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black.
The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.
WARNING : THIS APPARATUS MUST BE EARTHED.
or coloured green or green-and-yellow.
THE SOCKET-OUTLET SHOULD BE INSTALLED NEAR THE EQUIPMENT AND EASILY ACCESSIBLE.
4
TABLE OF CONTENTS
FEATURES AND DESIGN
PREPARATION
NAME OF EACH PART OF PROJECTOR
SETTING-UP PROJECTOR
CONNECTING AC POWER CORD
POSITIONING PROJECTOR
ADJUSTABLE FEET
INSTALLING PROJECTOR IN PROPER POSITION
MOVING PROJECTOR
CONNECTING PROJECTOR
TERMINALS OF PROJECTOR
CONNECTING TO COMPUTER
CONNECTING TO VIDEO EQUIPMENT
BEFORE OPERATION
OPERATION OF REMOTE CONTROL
LASER POINTER FUNCTION
REMOTE CONTROL BATTERIES INSTALLATION
TOP CONTROLS AND INDICATORS
OPERATING ON-SCREEN MENU
HOW TO OPERATE ON-SCREEN MENU
FLOW OF ON-SCREEN MENU OPERATION
MENU BAR
BASIC OPERATION
TURNING ON / OFF PROJECTOR
ADJUSTING SCREEN
ZOOM ADJUSTMENT
FOCUS ADJUSTMENT
KEYSTONE ADJUSTMENT
PICTURE FREEZE FUNCTION
NO SHOW FUNCTION
P-TIMER FUNCTION
SOUND ADJUSTMENT
6
7
7
8
8
9
9
10
10
11
11
12
13
14
14
14
15
16
17
17
17
18
19
19
20
20
20
20
20
21
21
21
COMPUTER INPUT (RGB Scart 21-Pin Video Input) 22
SELECTING INPUT SOURCE
SELECTING COMPUTER SYSTEM
COMPATIBLE COMPUTER SPECIFICATIONS
PC ADJUSTMENT
AUTO PC ADJUSTMENT
MANUAL PC ADJUSTMENT
PICTURE IMAGE ADJUSTMENTS
IMAGE LEVEL SELECT
IMAGE LEVEL ADJUSTMENT
PICTURE SCREEN ADJUSTMENT
VIDEO INPUT
SELECTING INPUT SOURCE
SELECTING VIDEO SYSTEM
PICTURE IMAGE ADJUSTMENTS
IMAGE LEVEL SELECT
IMAGE LEVEL ADJUSTMENT
PICTURE SCREEN ADJUSTMENT
SETTING
SETTING MENU
APPENDIX
LAMP REPLACEMENT
LAMP REPLACE
LAMP REPLACE COUNTER
OPERATING WIRELESS MOUSE
MAINTENANCE
WARNING TEMP. INDICATOR
AIR FILTER CARE AND CLEANING
CLEANING PROJECTION LENS
TROUBLESHOOTING
INDICATORS AND PROJECTOR CONDITION
TECHNICAL SPECIFICATIONS
CONFIGURATIONS OF TERMINALS
OPTIONAL PARTS
22
23
24
25
25
26
28
28
29
30
31
31
32
33
33
34
35
36
36
38
38
38
39
40
41
41
41
41
42
44
45
46
47
TRADEMARKS
G Apple, Macintosh, and PowerBook are trademarks or registered trademarks of Apple Computer,Inc.
G IBM, VGA, XGA, and PS/2 are trademarks or registered trademarks of International Business Machines, Inc.
G Windows and PowerPoint are registered trademarks of Microsoft Corporation.
G Each name of corporations or products in the owner's manual is a trademark or a registered trademark of its
respective corporation.
5
FEATURES AND DESIGN
This Multimedia Projector is designed with the most advanced technology for portability, durability, and ease of use. This
projector utilizes built-in multimedia features, a palette of 16.77 million colors, and matrix liquid crystal display (LCD)
technology.
N Compact Design
This projector is extremely compact in size and weight.
It is designed to be carried and work anywhere you wish
to use.
N Digital Zoom (for Computer)
Digital Zoom function expands (to approx. 16 times of
screen size) or compress the image size, allowing you to
focus on crucial information at a presentation.
N Short Zoom Lens
Short Zoom Lens allows you to enjoy a larger screen
even in the limited space.
N Compatibility
This projector widely accepts various video and
computer input signals including;
G Computers
IBM-compatible or Macintosh computer up to 1280
x 1024 resolution.
G 6 Color Systems
NTSC, PAL, SECAM, NTSC 4.43, PAL-M or PAL-
N color system can be connected.
G Component Video
Component video signal, such as a DVD player
output high definition TV signals including 480i,
480p, 575i, 575p, 720p, 1035i or 1080i, can be
connected.
G S-Video
S-Video signal, such as a S-VHS VCR output
signal, can be connected.
N High Resolution Image
This projector provides 800 x 600 dots resolution for
computer input. Resolution from a computer between
SVGA (800 x 600) and SXGA (1280 x 1024) is
compressed into 800 x 600 dots. This projector cannot
display the image of over 1280 x 1024 dots. When the
resolution of your computer is over than 1280 x 1024,
reset the computer output for lower resolution.
N Multi-Scan System
This projector has Multi-Scan System to conform to
almost all computer output signals quickly. There is no
need for troublesome manual adjustment of frequency
and other settings.
N One-Touch Auto PC Adjustment
Incoming computer video signals are recognized and the
best adjustment is automatically set by Auto PC
Adjustment. No complicated setup is necessary and
projection is always precise.
N Keystone Correction
Positioning of a projector may result in distorted image
being displayed in a trapezoid shape. Keystone
Correction solves this problem by digitally altering
projection to produce undistorted images.
N Power Management
The Power management function is provided to reduce
power consumption while the projector is not in use.
This Power management function operates to turn the
Projection lamp off when the projector detects signal
interruption and any button is not pressed for over 5
minutes. The Projection lamp is automatically turned on
again when the projector detects a signal or any
operation button is pressed.
This projector is shipped with this function ON.
N Digital Visual Interface
This projector is equipped with DVI 29-pin terminal for
connecting DVI output from a computer.
N Switchable Interface Terminal
This projector provides a switchable Interface terminal.
You can use the terminal as computer input or monitor
output conveniently. (Refer to page 36.)
N Laser Pointer Function
Remote Control supplied with this projector includes the
Laser Pointer function. This function helps you to make
a smart presentation on a projected screen.
N Wireless Mouse
Remote Control supplied with this projector has Wireless
Mouse function for a connected computer. This function
enables you to operate both the projector and the
computer with Remote Control only.
N Multilanguage Menu Display
Operation menu is displayed in; English, German,
French, Italian, Spanish, Portuguese, Dutch, Swedish,
Russian, Chinese, Korean, or Japanese.
6
PREPARATION
NAME OF EACH PART OF PROJECTOR
EXHAUST VENTS
CAUTION
Hot air is exhausted from the exhaust
vents. When using or installing the
projector, the following precautions
should be taken.
G Do not put any flammable objects near
these vents.
G Keep front grills at least 3’(1m) away
from any objects, especially heat-
sensitive objects.
G Do not touch this area, especially
screws and metallic part. This area will
become hot while the projector is used.
PROJECTION LENS
LENS COVER
This projector detects
internal
temperature and will automatically
adjust the speed of the Cooling Fans.
FRONT
CARRY HANDLE
INFRARED
REMOTE RECEIVER
BACK
TOP CONTROLS
AND INDICATORS
POWER CORD CONNECTOR
BOTTOM
LAMP COVER
ADJUSTABLE FEET
AND
FEET LOCK LATCHES
INFRARED
REMOTE RECEIVER
SPEAKER
TERMINALS
AND CONNECTORS
AIR FILTER
AIR INTAKE VENTS
(Back and Bottom)
This projector is equipped with Cooling
Fans for protection from overheating.
Pay attention to the following to ensure
proper ventilation and avoid a possible
risk of fire and malfunction.
G Do not cover vent slots.
G Keep back and bottom clear of any
object. Obstructions may block
cooling air.
7
PREPARATION
SETTING-UP PROJECTOR
CONNECTING AC POWER CORD
This projector uses nominal input voltages of 100-120 V or 200-240
V AC. This projector automatically selects the correct input
voltage. It is designed to work with single-phase power systems
having a grounded neutral conductor. To reduce risk of electrical
shock, do not plug into any other type of power system.
Consult your authorized dealer or service station if you are not sure
of the type of power being supplied.
Connect the projector with all peripheral equipment before turning
the projector on. (Refer to pages 11 ~ 13 for connection.)
CAUTION
For safety, unplug AC Power Cord when the projector is not in
use.
When this projector is connected to an outlet with AC Power
Cord, it is in Stand-by mode and consumes a little electric
power.
Connect AC Power Cord (supplied) to the projector.
The AC outlet must be near this equipment and must
be easily accessible.
NOTE ON THE POWER CORD
AC Power Cord must meet requirement of the country where you use a projector.
Confirm an AC plug type with the chart below and proper AC Power Cord must be used.
If supplied AC Power Cord does not match your AC outlet, contact your sales dealer.
Projector side
For the U.S.A. and Canada
Ground
AC Outlet side
For Continental Europe
For the U.K.
To POWER CORD
CONNECTOR on your
projector.
To the AC Outlet.
(120 V AC)
To the AC Outlet.
(200 - 240 V AC)
To the AC Outlet.
(200 - 240 V AC)
8
相关推荐
2023年江西萍乡中考道德与法治真题及答案.doc
2012年重庆南川中考生物真题及答案.doc
2013年江西师范大学地理学综合及文艺理论基础考研真题.doc
2020年四川甘孜小升初语文真题及答案I卷.doc
2020年注册岩土工程师专业基础考试真题及答案.doc
2023-2024学年福建省厦门市九年级上学期数学月考试题及答案.doc
2021-2022学年辽宁省沈阳市大东区九年级上学期语文期末试题及答案.doc
2022-2023学年北京东城区初三第一学期物理期末试卷及答案.doc
2018上半年江西教师资格初中地理学科知识与教学能力真题及答案.doc
2012年河北国家公务员申论考试真题及答案-省级.doc
2020-2021学年江苏省扬州市江都区邵樊片九年级上学期数学第一次质量检测试题及答案.doc
2022下半年黑龙江教师资格证中学综合素质真题及答案.doc
