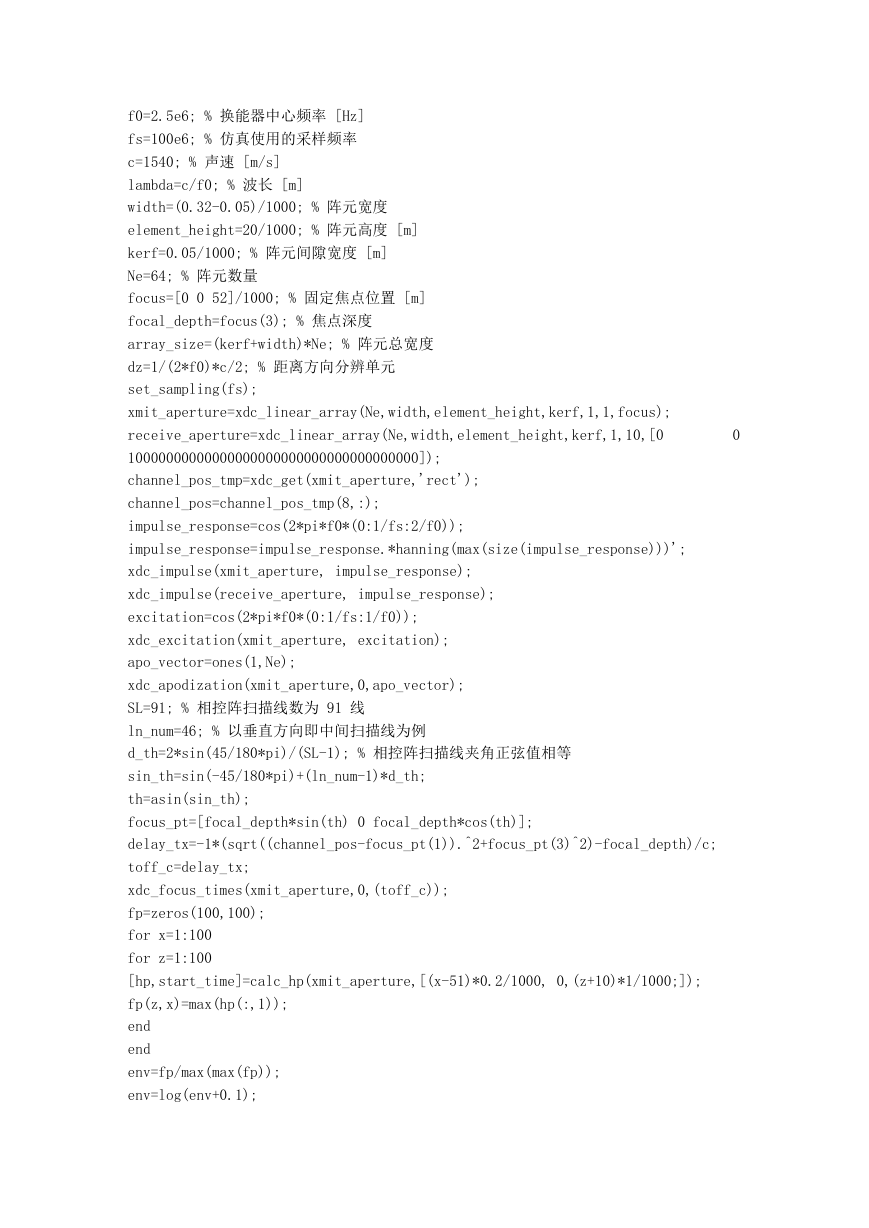

0 f0=2.5e6; % 换能器中心频率 [Hz] fs=100e6; % 仿真使用的采样频率 c=1540; % 声速 [m/s] lambda=c/f0; % 波长 [m] width=(0.32-0.05)/1000; % 阵元宽度 element_height=20/1000; % 阵元高度 [m] kerf=0.05/1000; % 阵元间隙宽度 [m] Ne=64; % 阵元数量 focus=[0 0 52]/1000; % 固定焦点位置 [m] focal_depth=focus(3); % 焦点深度 array_size=(kerf+width)*Ne; % 阵元总宽度 dz=1/(2*f0)*c/2; % 距离方向分辨单元 set_sampling(fs); xmit_aperture=xdc_linear_array(Ne,width,element_height,kerf,1,1,focus); receive_aperture=xdc_linear_array(Ne,width,element_height,kerf,1,10,[0 10000000000000000000000000000000000000]); channel_pos_tmp=xdc_get(xmit_aperture,'rect'); channel_pos=channel_pos_tmp(8,:); impulse_response=cos(2*pi*f0*(0:1/fs:2/f0)); impulse_response=impulse_response.*hanning(max(size(impulse_response)))'; xdc_impulse(xmit_aperture, impulse_response); xdc_impulse(receive_aperture, impulse_response); excitation=cos(2*pi*f0*(0:1/fs:1/f0)); xdc_excitation(xmit_aperture, excitation); apo_vector=ones(1,Ne); xdc_apodization(xmit_aperture,0,apo_vector); SL=91; % 相控阵扫描线数为 91 线 ln_num=46; % 以垂直方向即中间扫描线为例 d_th=2*sin(45/180*pi)/(SL-1); % 相控阵扫描线夹角正弦值相等 sin_th=sin(-45/180*pi)+(ln_num-1)*d_th; th=asin(sin_th); focus_pt=[focal_depth*sin(th) 0 focal_depth*cos(th)]; delay_tx=-1*(sqrt((channel_pos-focus_pt(1)).^2+focus_pt(3)^2)-focal_depth)/c; toff_c=delay_tx; xdc_focus_times(xmit_aperture,0,(toff_c)); fp=zeros(100,100); for x=1:100 for z=1:100 [hp,start_time]=calc_hp(xmit_aperture,[(x-51)*0.2/1000, 0,(z+10)*1/1000;]); fp(z,x)=max(hp(:,1)); end end env=fp/max(max(fp)); env=log(env+0.1); 

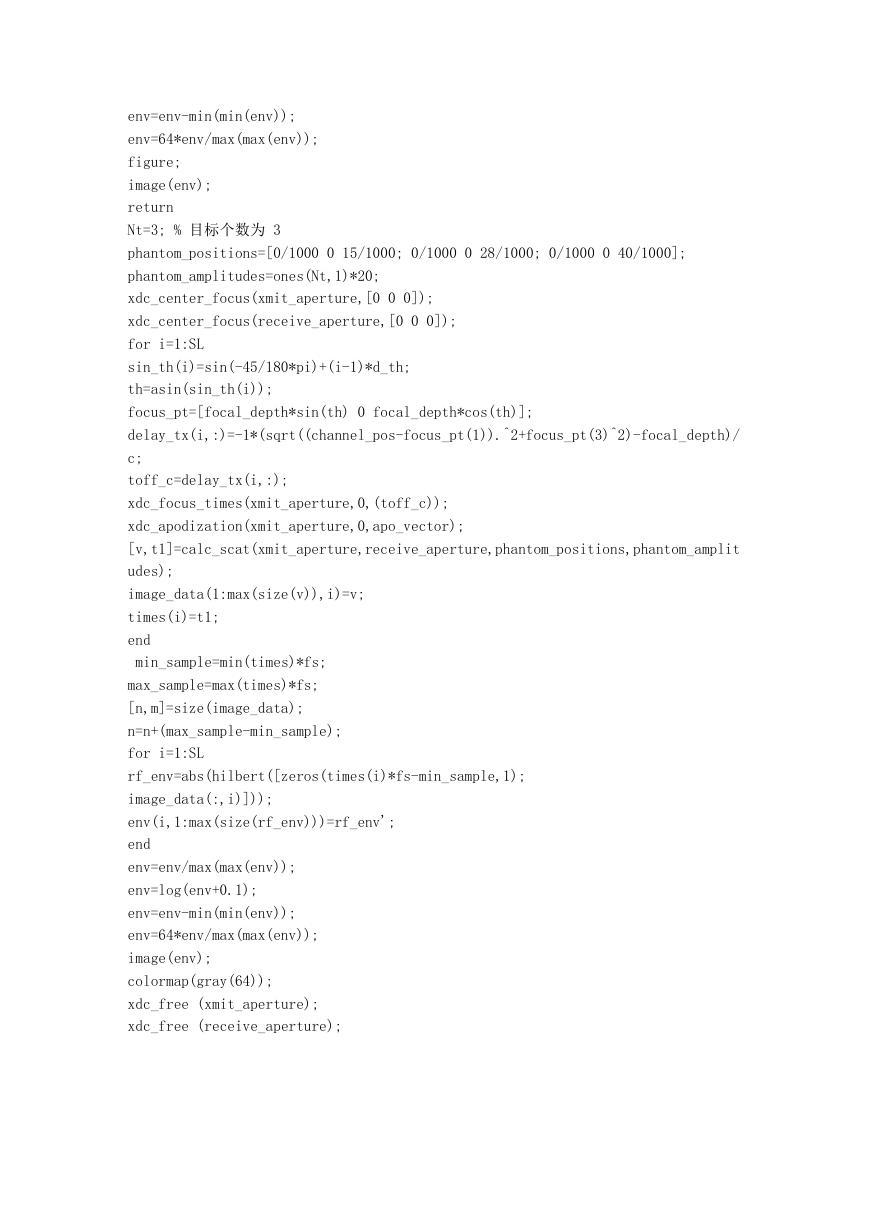

env=env-min(min(env)); env=64*env/max(max(env)); figure; image(env); return Nt=3; % 目标个数为 3 phantom_positions=[0/1000 0 15/1000; 0/1000 0 28/1000; 0/1000 0 40/1000]; phantom_amplitudes=ones(Nt,1)*20; xdc_center_focus(xmit_aperture,[0 0 0]); xdc_center_focus(receive_aperture,[0 0 0]); for i=1:SL sin_th(i)=sin(-45/180*pi)+(i-1)*d_th; th=asin(sin_th(i)); focus_pt=[focal_depth*sin(th) 0 focal_depth*cos(th)]; delay_tx(i,:)=-1*(sqrt((channel_pos-focus_pt(1)).^2+focus_pt(3)^2)-focal_depth)/ c; toff_c=delay_tx(i,:); xdc_focus_times(xmit_aperture,0,(toff_c)); xdc_apodization(xmit_aperture,0,apo_vector); [v,t1]=calc_scat(xmit_aperture,receive_aperture,phantom_positions,phantom_amplit udes); image_data(1:max(size(v)),i)=v; times(i)=t1; end min_sample=min(times)*fs; max_sample=max(times)*fs; [n,m]=size(image_data); n=n+(max_sample-min_sample); for i=1:SL rf_env=abs(hilbert([zeros(times(i)*fs-min_sample,1); image_data(:,i)])); env(i,1:max(size(rf_env)))=rf_env'; end env=env/max(max(env)); env=log(env+0.1); env=env-min(min(env)); env=64*env/max(max(env)); image(env); colormap(gray(64)); xdc_free (xmit_aperture); xdc_free (receive_aperture);
