USER MANUAL v3 1

INTRODUCTION 2

Medium format photography is about professionalism. Camera systems have to be professional, handling has to be professional and captures have to be professional in quality. Hasselblad knows it and delivers it; professionals know that too. The Hasselblad H series of cameras consists of building new developments on the shoulders of the previous generation. In this way all the previous work-experience based and branch-demanding features are automatically included. So, just when you think things can't get much better, they do. And the H5D is that model - all the good things from before and then some! The H5D series heralds a step up that is noticeably greater than before. There are changes and many are 'from the ground up'. The H spirit thrives but has now matured to reinforce further its position in the rapidly changing world of digital imaging. Future proofing is key to a secure placing for working photographers. The H5D provides a reliable connection to the fleeting environment of digital imaging technology so when the wind changes direction, the H5D remains as the safeguarding companion to provide support. There are five models to choose from to suit the varied demands from the professional world. They start with the entry level 40 MPixel model that right from the outset confidently takes on most rivals from all brands and beats them with star quality results. The models then just get better and better. At the other end of the scale is the 200 MPixel MultiShot model that raises the bar so much for product work that it is in a league of its own. True to Hasselblad philosophy, interchangeability and versatility span all models regarding lenses and accessories with minimal restrictions. This applies not only to H5 but all H1, H2, H3 and H4 models as well. The H system additionally breaks rank regarding series limitations with the ability to use other lenses from the V system or when using the sensor unit on view cameras. In short, you have access to a more comprehensive world to apply medium format quality to. Hasselblad's best kept secret is knowing that every link in the chain that leads to the page in the magazine has to reach a certain standard; it is that simple. That's why Hasselblad spends so much time and energy into checking those almost endless behind-the-scenes details and standards because they understand this simple concept. There is no magical formula to Hasselblad success other than an understanding of what is required to produce the best results available in the world today and an acceptance that there are no short cuts in this process. Hasselblad does its best to produce the best; there is no other way to achieve the Hasselblad star quality. 3

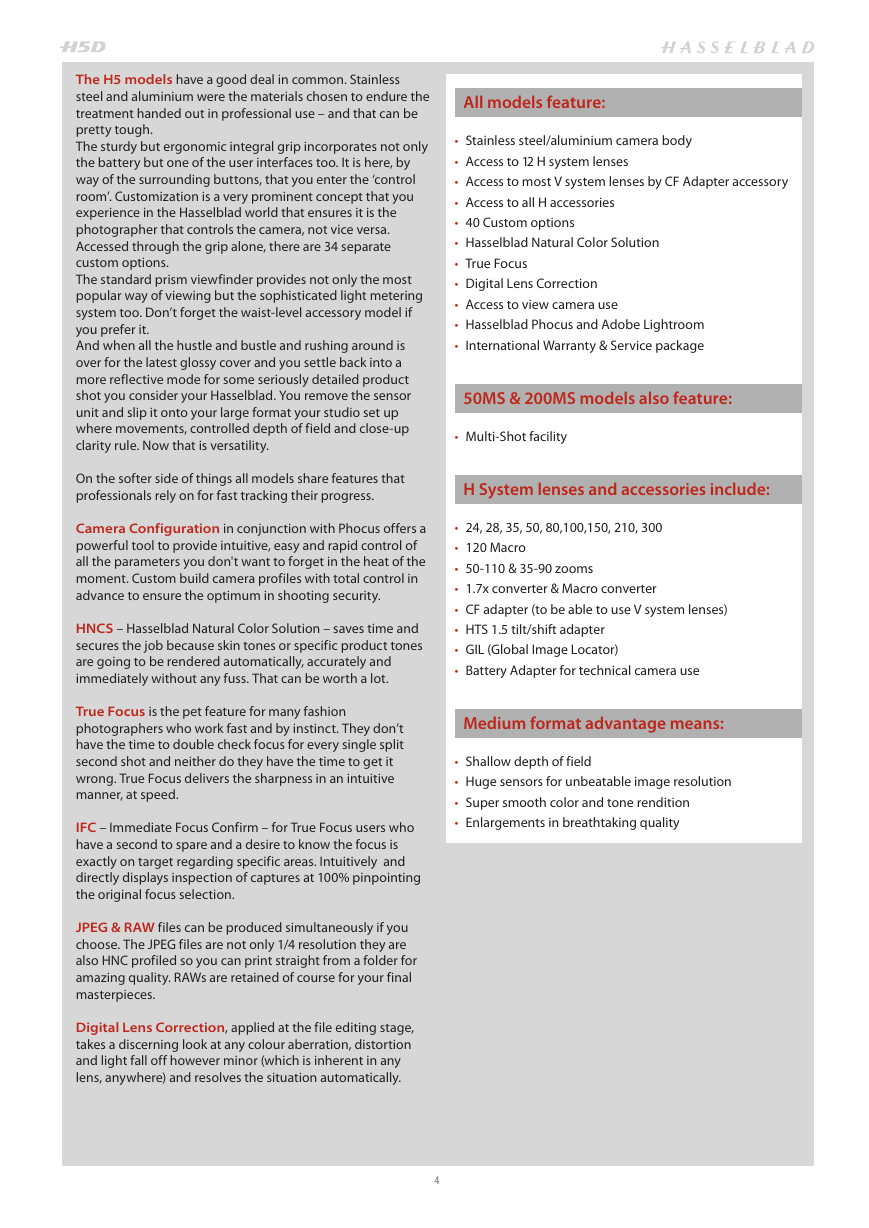

The H5 models have a good deal in common. Stainless steel and aluminium were the materials chosen to endure the treatment handed out in professional use – and that can be pretty tough. The sturdy but ergonomic integral grip incorporates not only the battery but one of the user interfaces too. It is here, by way of the surrounding buttons, that you enter the ‘control room’. Customization is a very prominent concept that you experience in the Hasselblad world that ensures it is the photographer that controls the camera, not vice versa. Accessed through the grip alone, there are 34 separate custom options. The standard prism viewfinder provides not only the most popular way of viewing but the sophisticated light metering system too. Don’t forget the waist-level accessory model if you prefer it. And when all the hustle and bustle and rushing around is over for the latest glossy cover and you settle back into a more reflective mode for some seriously detailed product shot you consider your Hasselblad. You remove the sensor unit and slip it onto your large format your studio set up where movements, controlled depth of field and close-up clarity rule. Now that is versatility. All models feature: • Stainless steel/aluminium camera body • Access to 12 H system lenses • Access to most V system lenses by CF Adapter accessory • Access to all H accessories • 40 Custom options • Hasselblad Natural Color Solution • True Focus • Digital Lens Correction • Access to view camera use • Hasselblad Phocus and Adobe Lightroom • International Warranty & Service package 50MS & 200MS models also feature: • Multi-Shot facility On the softer side of things all models share features that professionals rely on for fast tracking their progress. H System lenses and accessories include: Camera Configuration in conjunction with Phocus offers a powerful tool to provide intuitive, easy and rapid control of all the parameters you don't want to forget in the heat of the moment. Custom build camera profiles with total control in advance to ensure the optimum in shooting security. HNCS – Hasselblad Natural Color Solution – saves time and secures the job because skin tones or specific product tones are going to be rendered automatically, accurately and immediately without any fuss. That can be worth a lot. • 24, 28, 35, 50, 80,100,150, 210, 300 • 120 Macro • 50-110 & 35-90 zooms • 1.7x converter & Macro converter • CF adapter (to be able to use V system lenses) • HTS 1.5 tilt/shift adapter • GIL (Global Image Locator) • Battery Adapter for technical camera use Medium format advantage means: • Shallow depth of field • Huge sensors for unbeatable image resolution • Super smooth color and tone rendition • Enlargements in breathtaking quality True Focus is the pet feature for many fashion photographers who work fast and by instinct. They don’t have the time to double check focus for every single split second shot and neither do they have the time to get it wrong. True Focus delivers the sharpness in an intuitive manner, at speed. IFC – Immediate Focus Confirm – for True Focus users who have a second to spare and a desire to know the focus is exactly on target regarding specific areas. Intuitively and directly displays inspection of captures at 100% pinpointing the original focus selection. JPEG & RAW files can be produced simultaneously if you choose. The JPEG files are not only 1/4 resolution they are also HNC profiled so you can print straight from a folder for amazing quality. RAWs are retained of course for your final masterpieces. Digital Lens Correction, applied at the file editing stage, takes a discerning look at any colour aberration, distortion and light fall off however minor (which is inherent in any lens, anywhere) and resolves the situation automatically. 4

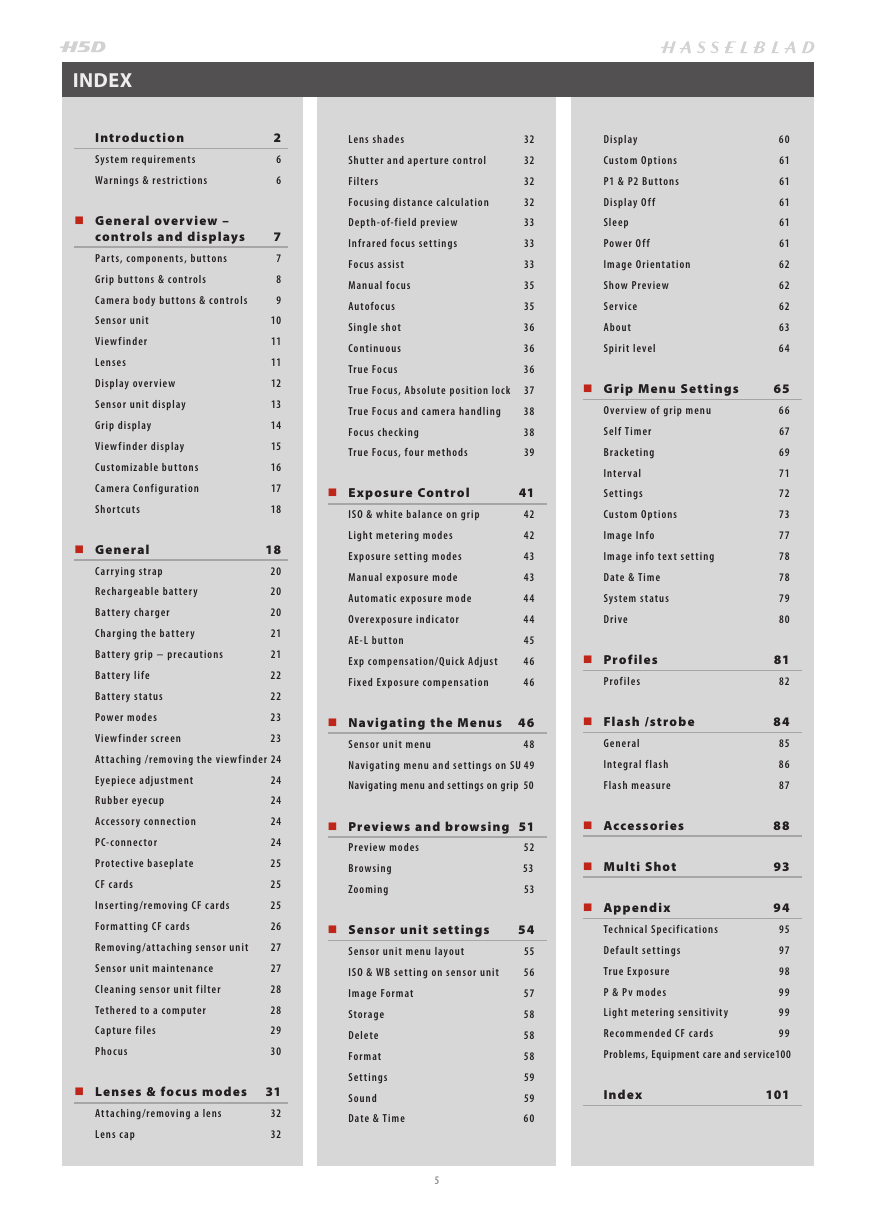

INDEX Introduction System requirements Warnings & restrictions  General overview – controls and displays Parts, components, buttons Grip buttons & controls Camera body buttons & controls Sensor unit Viewfinder Lenses Display overview Sensor unit display Grip display Viewfinder display Customizable buttons Camera Configuration Shortcuts  General Carrying strap Rechargeable battery Battery charger Charging the battery Battery grip − precautions Battery life Battery status Power modes Viewfinder screen 2 6 6 7 7 8 9 10 11 11 12 13 14 15 16 17 18 18 20 20 20 21 21 22 22 23 23 Attaching /removing the viewfinder 24 Eyepiece adjustment Rubber eyecup Accessory connection PC-connector Protective baseplate CF cards Inserting/removing CF cards Formatting CF cards Removing/attaching sensor unit Sensor unit maintenance Cleaning sensor unit filter Tethered to a computer Capture files Phocus  Lenses & focus modes Attaching/removing a lens Lens cap 24 24 24 24 25 25 25 26 27 27 28 28 29 30 31 32 32 Lens shades Shutter and aperture control Filters Focusing distance calculation Depth-of-field preview Infrared focus settings Focus assist Manual focus Autofocus Single shot Continuous True Focus True Focus, Absolute position lock True Focus and camera handling Focus checking True Focus, four methods  Exposure Control ISO & white balance on grip Light metering modes Exposure setting modes Manual exposure mode Automatic exposure mode Overexposure indicator AE-L button Exp compensation/Quick Adjust Fixed Exposure compensation 32 32 32 32 33 33 33 35 35 36 36 36 37 38 38 39 41 42 42 43 43 44 44 45 46 46 Display Custom Options P1 & P2 Buttons Display Of f Sleep Power Of f Image Orientation Show Preview Service About Spirit level  Grip Menu Settings Overview of grip menu Self Timer Bracketing Interval Settings Custom Options Image Info Image info text setting Date & Time System status Drive  Profiles Profiles  Navigating the Menus 46 48 Sensor unit menu Navigating menu and settings on SU 49 Navigating menu and settings on grip 50  Flash /strobe General Integral flash Flash measure 60 61 61 61 61 61 62 62 62 63 64 65 66 67 69 71 72 73 77 78 78 79 80 81 82 84 85 86 87  Previews and browsing 51 52 Preview modes  Accessories 88  Multi Shot  Appendix Technical Specifications Default settings True Exposure P & Pv modes Light metering sensitivity Recommended CF cards 93 94 95 97 98 99 99 99 Problems, Equipment care and service 100 Index 101 53 53 54 55 56 57 58 58 58 59 59 60 Browsing Zooming  Sensor unit settings Sensor unit menu layout ISO & WB setting on sensor unit Image Format Storage Delete Format Settings Sound Date & Time 5

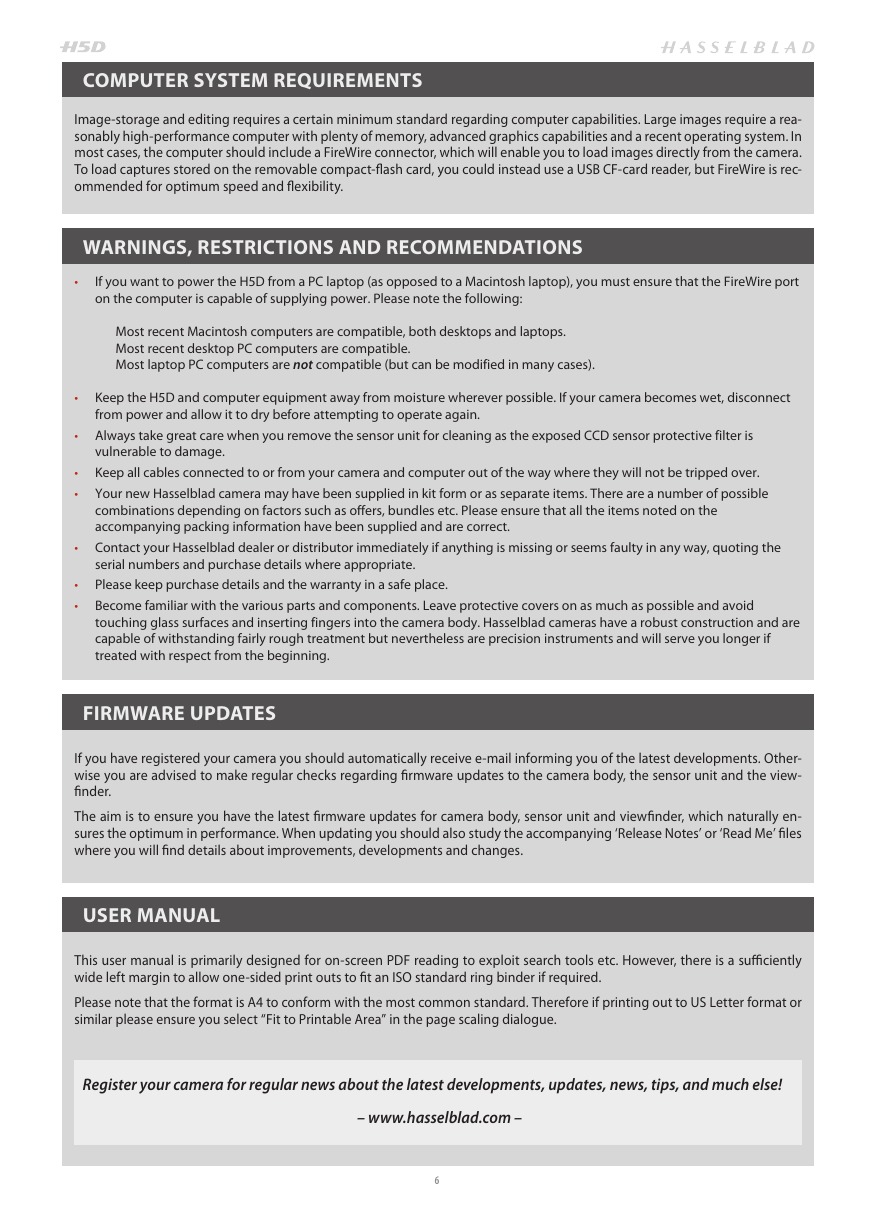

COMPUTER SYSTEM REQUIREMENTS Image-storage and editing requires a certain minimum standard regarding computer capabilities. Large images require a rea- sonably high-performance computer with plenty of memory, advanced graphics capabilities and a recent operating system. In most cases, the computer should include a FireWire connector, which will enable you to load images directly from the camera. To load captures stored on the removable compact-flash card, you could instead use a USB CF-card reader, but FireWire is rec- ommended for optimum speed and flexibility. WARNINGS, RESTRICTIONS AND RECOMMENDATIONS • If you want to power the H5D from a PC laptop (as opposed to a Macintosh laptop), you must ensure that the FireWire port on the computer is capable of supplying power. Please note the following: Most recent Macintosh computers are compatible, both desktops and laptops. Most recent desktop PC computers are compatible. Most laptop PC computers are not compatible (but can be modified in many cases). • Keep the H5D and computer equipment away from moisture wherever possible. If your camera becomes wet, disconnect from power and allow it to dry before attempting to operate again. • Always take great care when you remove the sensor unit for cleaning as the exposed CCD sensor protective filter is vulnerable to damage. • Keep all cables connected to or from your camera and computer out of the way where they will not be tripped over. • Your new Hasselblad camera may have been supplied in kit form or as separate items. There are a number of possible combinations depending on factors such as offers, bundles etc. Please ensure that all the items noted on the accompanying packing information have been supplied and are correct. • Contact your Hasselblad dealer or distributor immediately if anything is missing or seems faulty in any way, quoting the serial numbers and purchase details where appropriate. • Please keep purchase details and the warranty in a safe place. • Become familiar with the various parts and components. Leave protective covers on as much as possible and avoid touching glass surfaces and inserting fingers into the camera body. Hasselblad cameras have a robust construction and are capable of withstanding fairly rough treatment but nevertheless are precision instruments and will serve you longer if treated with respect from the beginning. FIRMWARE UPDATES If you have registered your camera you should automatically receive e-mail informing you of the latest developments. Other- wise you are advised to make regular checks regarding firmware updates to the camera body, the sensor unit and the view- finder. The aim is to ensure you have the latest firmware updates for camera body, sensor unit and viewfinder, which naturally en- sures the optimum in performance. When updating you should also study the accompanying ‘Release Notes’ or ‘Read Me’ files where you will find details about improvements, developments and changes. USER MANUAL This user manual is primarily designed for on-screen PDF reading to exploit search tools etc. However, there is a sufficiently wide left margin to allow one-sided print outs to fit an ISO standard ring binder if required. Please note that the format is A4 to conform with the most common standard. Therefore if printing out to US Letter format or similar please ensure you select “Fit to Printable Area” in the page scaling dialogue. Register your camera for regular news about the latest developments, updates, news, tips, and much else! – www.hasselblad.com – 6

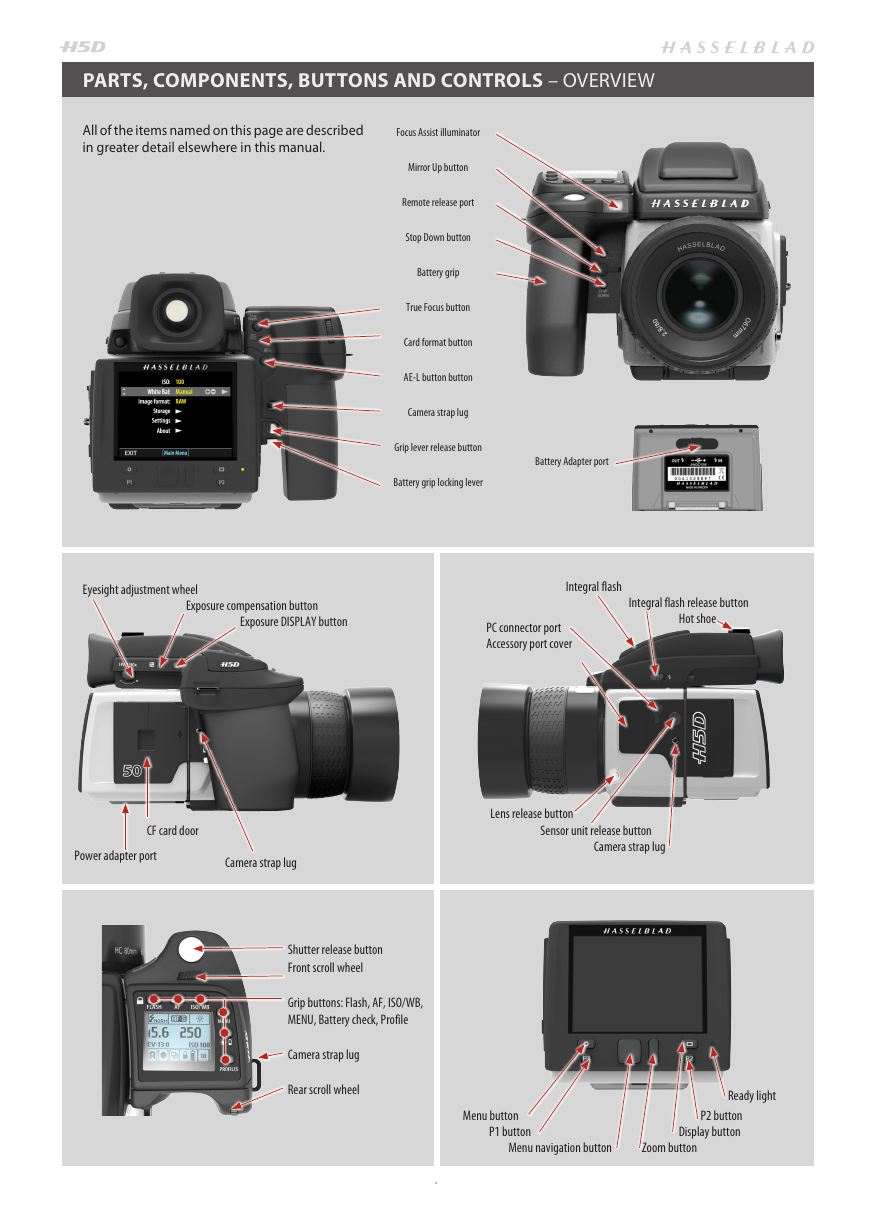

PARTS, COMPONENTS, BUTTONS AND CONTROLS – OVERVIEW All of the items named on this page are described in greater detail elsewhere in this manual. Focus Assist illuminator Mirror Up button Remote release port Stop Down button Battery grip True Focus button Card format button AE-L button button Camera strap lug Grip lever release button Battery grip locking lever Battery Adapter port Integral flash Integral flash release button Hot shoe PC connector port Accessory port cover Eyesight adjustment wheel Exposure compensation button Exposure DISPLAY button CF card door Power adapter port Camera strap lug Lens release button Sensor unit release button Camera strap lug Shutter release button Front scroll wheel Grip buttons: Flash, AF, ISO/WB, MENU, Battery check, Profile Camera strap lug Rear scroll wheel Menu button P1 button Menu navigation button P2 button Display button Zoom button Ready light 7

GRIP BUTTONS AND CONTROLS Note that some of the buttons are modal and so have multiple functions according to the setting be- ing made. 1 Shutter release button This button has half-press and full-press positions. By pressing half-way (or softly) the camera, auto focus function and exposure meter can be activated. By pressing all the way down (or more firmly) the shutter will be released (or the chosen exposure procedure for example, the self timer is activated with this but- ton). 2 Front scroll wheel The front and rear scroll wheels are used to make changes in exposure settings, provide access to the grip menu for settings, navigate the sensor unit’s menu as well as acting as browse controls. The effect of the wheels’ direction is customizable. 3 FLASH / (Control Lock) button) / (EXIT) This is a triple function button. If you press the button for one second, the beeper will sound (if set) and a key symbol will appear on the grip display signifying that the controls (except the shutter release) have been locked and therefore cannot be altered unintention- ally in use. Press the button for one second again to unlock (this function can be altered to lock all controls or scroll wheels only in Custom Options #18 on grip). Quickly clicking the button will access the flash set- tings information on the display from the main screen. See under Flash /Strobe - controls and displays for full details. This button also acts as the EXIT button for many other settings including an EXIT button when navi- gating the sensor unit menu. (ON) / (SEL.) / 4 AF button This is a triple function button. Press this button to directly access the autofocus/manual focus choice screen from the main screen. See under Lenses for full details. It also acts as the ON and SEL. (= select) but- tons for many other settings. / / 5 ISO/WB button (SAVE) (ENTER) This is a triple function button. It provides direct ac- cess to the ISO and White Balance settings (see under Light Metering & Exposure Control for full details). It also acts as the SAVE and ENTER buttons for many other settings as well as an OK button when navigat- ing the sensor unit menu. 6 MENU button Accesses the first level of the menu for settings changes. 7 Illumination/Battery status button Press to illuminate the display. Remains active until camera enters Display Off mode. Hold down to access battery status/general information screen. 1 2 3 4 5 6 7 8 9 8 ON / OFF (Profiles) button Press the button for 1 second to activate the camera. The H5D start-up logo will appear and then the main screen. After a few seconds (customizable) the camera will enter Display Off mode. A long press of the button will turn the camera off completely (even from Display Off mode) signified by an audible signal (if set). A quick ‘click’ on the button will access the Profiles feature (see later section for deatils). Note the difference in results between a long press and a quick click of this button. 9 Rear scroll wheel The front and rear scroll wheels are used to make changes in exposure settings, provide access to the grip menu for settings, navigate the sensor unit’s menu as well as acting as browse controls. The effect of the wheels’ direction is customizable. EXAMPLE In this example of making a Bracketing setting, the top three buttons – Flash, AF and ISO/WB – will tem- porarily function according to the description on the screen – Exit, On and Save. The buttons re- turn to the stan- dard function when you exit from the setting. 8
