《 数据结构与算法 》课程设计
指导老师:游洪跃
班级:2010 级计算机学院计算机科学与技术专业 9 班
姓名:袁东昊
学号:1043041071
1

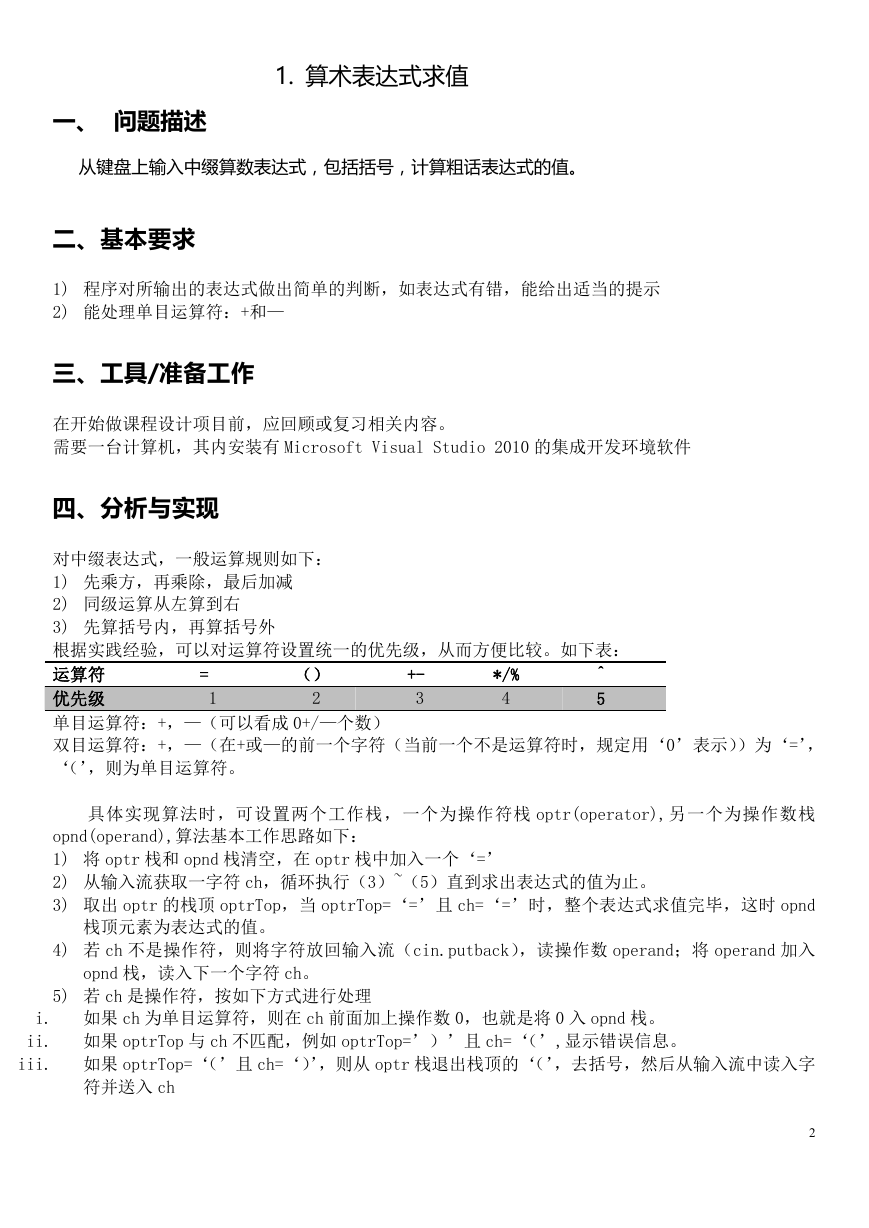

1. 算术表达式求值
一、 问题描述
从键盘上输入中缀算数表达式,包括括号,计算粗话表达式的值。
二、基本要求
1) 程序对所输出的表达式做出简单的判断,如表达式有错,能给出适当的提示
2) 能处理单目运算符:+和—
三、工具/准备工作
在开始做课程设计项目前,应回顾或复习相关内容。
需要一台计算机,其内安装有 Microsoft Visual Studio 2010 的集成开发环境软件
四、分析与实现
对中缀表达式,一般运算规则如下:
1) 先乘方,再乘除,最后加减
2) 同级运算从左算到右
3) 先算括号内,再算括号外
根据实践经验,可以对运算符设置统一的优先级,从而方便比较。如下表:
运算符
优先级
单目运算符:+,—(可以看成 0+/—个数)
双目运算符:+,—(在+或—的前一个字符(当前一个不是运算符时,规定用‘0’表示))为‘=’,
‘(’,则为单目运算符。
+-
3
()
=
1
2
*/%
4
^
5
具体实现算法时,可设置两个工作栈,一个为操作符栈 optr(operator),另一个为操作数栈
opnd(operand),算法基本工作思路如下:
1) 将 optr 栈和 opnd 栈清空,在 optr 栈中加入一个‘=’
2) 从输入流获取一字符 ch,循环执行(3)~(5)直到求出表达式的值为止。
3) 取出 optr 的栈顶 optrTop,当 optrTop=‘=’且 ch=‘=’时,整个表达式求值完毕,这时 opnd
栈顶元素为表达式的值。
4) 若 ch 不是操作符,则将字符放回输入流(cin.putback),读操作数 operand;将 operand 加入
opnd 栈,读入下一个字符 ch。
5) 若 ch 是操作符,按如下方式进行处理
i. 如果 ch 为单目运算符,则在 ch 前面加上操作数 0,也就是将 0 入 opnd 栈。
ii. 如果 optrTop 与 ch 不匹配,例如 optrTop=’)’且 ch=‘(’,显示错误信息。
iii. 如果 optrTop=‘(’且 ch=‘)’,则从 optr 栈退出栈顶的‘(’,去括号,然后从输入流中读入字
符并送入 ch
2
iv. 如果 ch=‘(’或 optrTop 比 ch 的优先级低,则 ch 入 optr 栈,从 optr 栈退出 theta,形成运算
指令(left)theta(right),结果入 opnd 栈。
源代码:
//文件 node.h
#ifndef _NODE_H_
#define _NODE_H_
template
struct Node
{
ElemType data;
Node *next;
Node();
Node(ElemType item,Node *link=NULL);
};
template
Node::Node()
{
next = NULL;
}
template
Node::Node(ElemType item, Node *link)
{
data = item;
next = link;
}
#endif _NODE_H_
//文件 lk_stack.h
#ifndef _LINK_STACK_H_
#define _LINK_STACK_H_
#include "utility.h"
#include "node.h"
template
class LinkStack
{
protected:
Node *top;
void Init();
public:
LinkStack();
int Length() const;
bool Empty() const;
void Clear();
void Traverse(void (* visit)(const ElemType &)) const;
StatusCode Push(const ElemType &e);
StatusCode Pop(ElemType &e);
3
StatusCode Top(ElemType &e) const;
LinkStack(const LinkStack ©);
LinkStack&operator=(const LinkStack ©);
};
template
void LinkStack::Init()
{
top=NULL;
}
template
LinkStack::LinkStack()
{
Init();
}
template
int LinkStack::Length() const
{
int count = 0;
for ( Node *tmpPtr = top; tmpPtr != NULL; tmpPtr = tmpPtr->next)
{
count++;
}
return count;
}
template
bool LinkStack::Empty() const
{
return top==NULL;
}
template
void LinkStack::Clear()
{
ElemType tmpElem;
while(!Empty())
{
Pop(tmpElem);
}
}
template
void LinkStack::Traverse(void (* visit)(const ElemType &)) const
4
{
Node *tmpPtr;
LinkStack tmpS;
for(tmpPtr=top;tmpPtr!=NULL;tmpPtr->next)
{
tmpS.Push(tmpPtr->data);
}
for(tmpPtr=tmpS.top;tmpPtr!=NULL;tmpPtr->next)
{
(* visit)(tmpPtr->data);
}
}
template
StatusCode LinkStack::Push(const ElemType &e)
{
Node *new_top=new Node(e,top);
if(new_top==NULL)
{
return OVER_FLOW;
}
else
{
}
}
top=new_top;
return SUCCESS;
template
StatusCode LinkStack::Top(ElemType & e) const
{
if(Empty())
{
return UNDER_FLOW;
}
else
{
}
}
e=top->data;
return SUCCESS;
template
StatusCode LinkStack::Pop(ElemType &e)
{
if(Empty())
{
5
return UNDER_FLOW;
Node *old_top=top;
e=old_top->data;
top=old_top->next;
delete old_top;
return SUCCESS;
}
else
{
}
}
template
LinkStack::LinkStack(const LinkStack ©)
{
if(copy.Empty())
{
Init();
}
else
{
top=new Node(copy.top->data);
Node *buttomPtr=top;
for(Node *tmp=copy.top->next;tmpPtr!=NuLL;tmpPtr!=NULL;tmpPtr=tmpPtr->next)
{
buttomPtr->next=new Node(tmpPtr->data)
buttomPtr=buttomptr->next;
}
}
}
template
LinkStack&LinkStack::operator=(const LinkStack ©)
{
if(©!=this)
{
if(copy.Empty())
{
Init();
}
else
{
Clear();
top=new Node(copy.top->data);
Node *buttomPtr=top;
for(Node *tmpPtr=copy.top->next;tmpPtr!=Null;tmpPtr=tmpPtr->next)
{
6
buttomPtr->next=new Node(tmpPtr->data);
buttomPtr=buttomPtr->next;
}
}
}
return *this;
}
#endif _LINK_STACK_H_
//文件路径名: calculator.h
// 文件路径名: calculator\calculator.h
#ifndef __CALCULATOR_H__
#define __CALCULATOR_H__
#include "lk_stack.h"
// 链栈类
// 计算器类
template
class Calculator
{
private:
LinkStack opnd;
LinkStack optr;
int OperPrior(char op);
void Get2Operands(ElemType &left, ElemType &right);
ElemType Operate(ElemType left, char op, ElemType right);
// 操作符优先级
// 操作数栈
// 操作符栈
bool IsOperator(char ch);
// 判断 ch 是否为操作符
public:
Calculator(){};
virtual ~Calculator(){};
void Run();
};
// 无参数的构造函数
// 析构函数
// 运算表达式
template
int Calculator::OperPrior(char op)
{
int prior;
if (op == '=') prior = 1;
else if (op == '(' || op == ')') prior = 2;
else if (op == '+' || op == '-') prior = 3;
else if (op == '*' || op == '/'|| op == '%') prior = 4;
// 优先级
// =优先级为 1
// (优先级为 2
// +-优先级为 3
// */%优先级为 4
else if (op == '^')
return prior;
prior = 5;
}
7
template
void Calculator::Get2Operands(ElemType &left, ElemType &right)
{
if (opnd.Pop(right) == UNDER_FLOW) throw Error("表达式有错!");
if (opnd.Pop(left)
== UNDER_FLOW) throw Error("表达式有错!");
};
template
ElemType Calculator::Operate(ElemType left, char op, ElemType right)
{
ElemType result;
if (op == '+') result = left + right;
else if (op == '-') result = left - right;
else if (op == '*') result = left * right;
else if (op == '/' && right == 0) throw Error("除数为零!");
else if (op == '/' && right != 0) result = left / right;
// 减法运算
// 乘法运算
// 加法运算
(long)right == 0) throw Error("除数为零!");
else if (op == '%' &&
else if (op == '%' && (long)right != 0) result = (long)left % (long)right;
else if (op == '^') result = pow(left, right);
return result;
// 返回 result
// 乘方运算
}
template
bool Calculator::IsOperator(char ch)
{
if (ch == '=' || ch == '(' || ch == '^' || ch == '*' ||
ch == '/' || ch =='%' || ch == '+' || ch== '-' || ch == ')') return true;
else return false;
};
template
void Calculator::Run()
{
// 清空 optr 栈与 opnd 栈
// 在 optr 栈中加入一个'='
optr.Clear(); opnd.Clear();
optr.Push('=');
char ch;
char priorChar; // 当前输入的前一个字符如不为操作符,则令其值为'0'
char optrTop;
double operand;
char op;
priorChar = '=';
ch = GetChar();
if (optr.Top(optrTop) == UNDER_FLOW) throw Error("表达式有错!");
// 操作符
// 前一字符
// 读入一个字符
// 临时字符
// 临 optr 栈的栈顶字符
// 操作数
// 取出 optr 栈的栈顶
while (optrTop != '=' || ch != '=')
{
// 当前表达式还未运算结束, 继续运算
// 抛出异常
8
