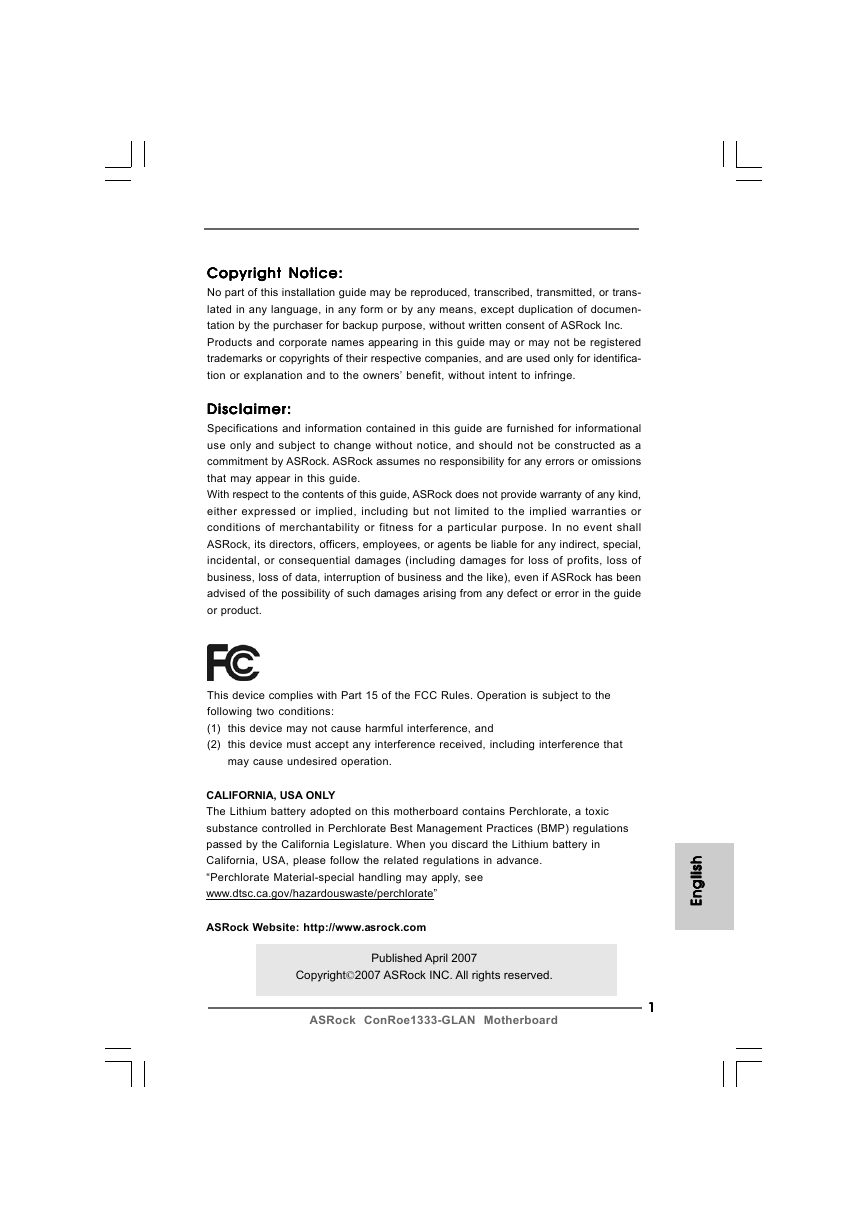

Copyright Notice: Copyright Notice: Copyright Notice: Copyright Notice: Copyright Notice: No part of this installation guide may be reproduced, transcribed, transmitted, or trans- lated in any language, in any form or by any means, except duplication of documen- tation by the purchaser for backup purpose, without written consent of ASRock Inc. Products and corporate names appearing in this guide may or may not be registered trademarks or copyrights of their respective companies, and are used only for identifica- tion or explanation and to the owners’ benefit, without intent to infringe. Disclaimer: Disclaimer: Disclaimer: Disclaimer: Disclaimer: Specifications and information contained in this guide are furnished for informational use only and subject to change without notice, and should not be constructed as a commitment by ASRock. ASRock assumes no responsibility for any errors or omissions that may appear in this guide. With respect to the contents of this guide, ASRock does not provide warranty of any kind, either expressed or implied, including but not limited to the implied warranties or conditions of merchantability or fitness for a particular purpose. In no event shall ASRock, its directors, officers, employees, or agents be liable for any indirect, special, incidental, or consequential damages (including damages for loss of profits, loss of business, loss of data, interruption of business and the like), even if ASRock has been advised of the possibility of such damages arising from any defect or error in the guide or product. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) (2) this device may not cause harmful interference, and this device must accept any interference received, including interference that may cause undesired operation. CALIFORNIA, USA ONLY The Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance controlled in Perchlorate Best Management Practices (BMP) regulations passed by the California Legislature. When you discard the Lithium battery in California, USA, please follow the related regulations in advance. “Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/perchlorate” ASRock Website: http://www.asrock.com h h h h h s s s s s i i i i i l l l l l g g g g g n n n n n E E E E E Published April 2007 Copyright©2007 ASRock INC. All rights reserved. ASRock ConRoe1333-GLAN Motherboard 11111

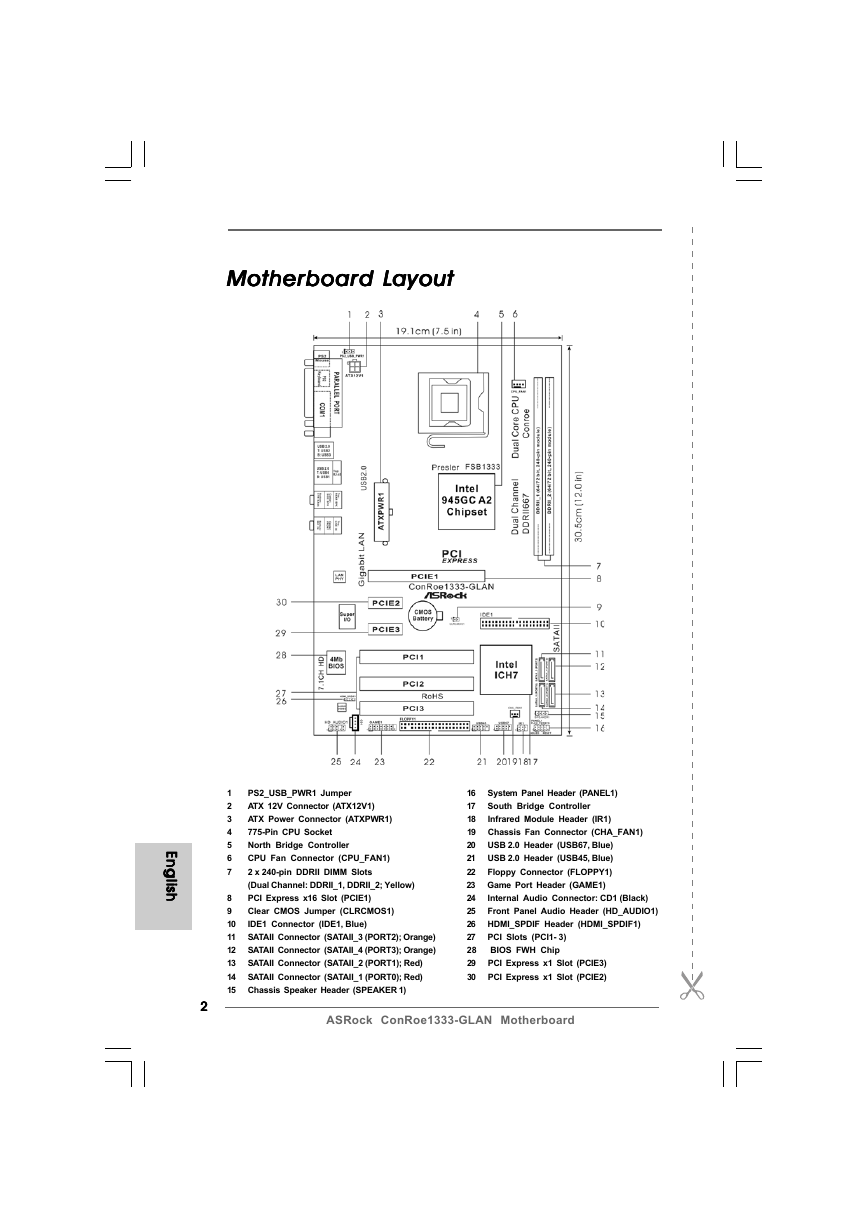

Motherboard L Motherboard L ayout ayout Motherboard Layout ayout Motherboard L Motherboard L ayout 1 2 3 4 5 6 7 PS2_USB_PWR1 Jumper ATX 12V Connector (ATX12V1) ATX Power Connector (ATXPWR1) 775-Pin CPU Socket North Bridge Controller CPU Fan Connector (CPU_FAN1) 2 x 240-pin DDRII DIMM Slots (Dual Channel: DDRII_1, DDRII_2; Yellow) PCI Express x16 Slot (PCIE1) Clear CMOS Jumper (CLRCMOS1) IDE1 Connector (IDE1, Blue) SATAII Connector (SATAII_3 (PORT2); Orange) SATAII Connector (SATAII_4 (PORT3); Orange) SATAII Connector (SATAII_2 (PORT1); Red) SATAII Connector (SATAII_1 (PORT0); Red) 8 9 10 11 12 13 14 15 Chassis Speaker Header (SPEAKER 1) System Panel Header (PANEL1) South Bridge Controller Infrared Module Header (IR1) 16 17 18 19 Chassis Fan Connector (CHA_FAN1) 20 USB 2.0 Header (USB67, Blue) 21 USB 2.0 Header (USB45, Blue) 22 Floppy Connector (FLOPPY1) 23 Game Port Header (GAME1) 24 25 26 HDMI_SPDIF Header (HDMI_SPDIF1) 27 28 BIOS FWH Chip 29 30 Internal Audio Connector: CD1 (Black) Front Panel Audio Header (HD_AUDIO1) PCI Slots (PCI1- 3) PCI Express x1 Slot (PCIE3) PCI Express x1 Slot (PCIE2) ASRock ConRoe1333-GLAN Motherboard E E E E E n n n n n g g g g g l l l l l i i i i i s s s s s h h h h h 22222

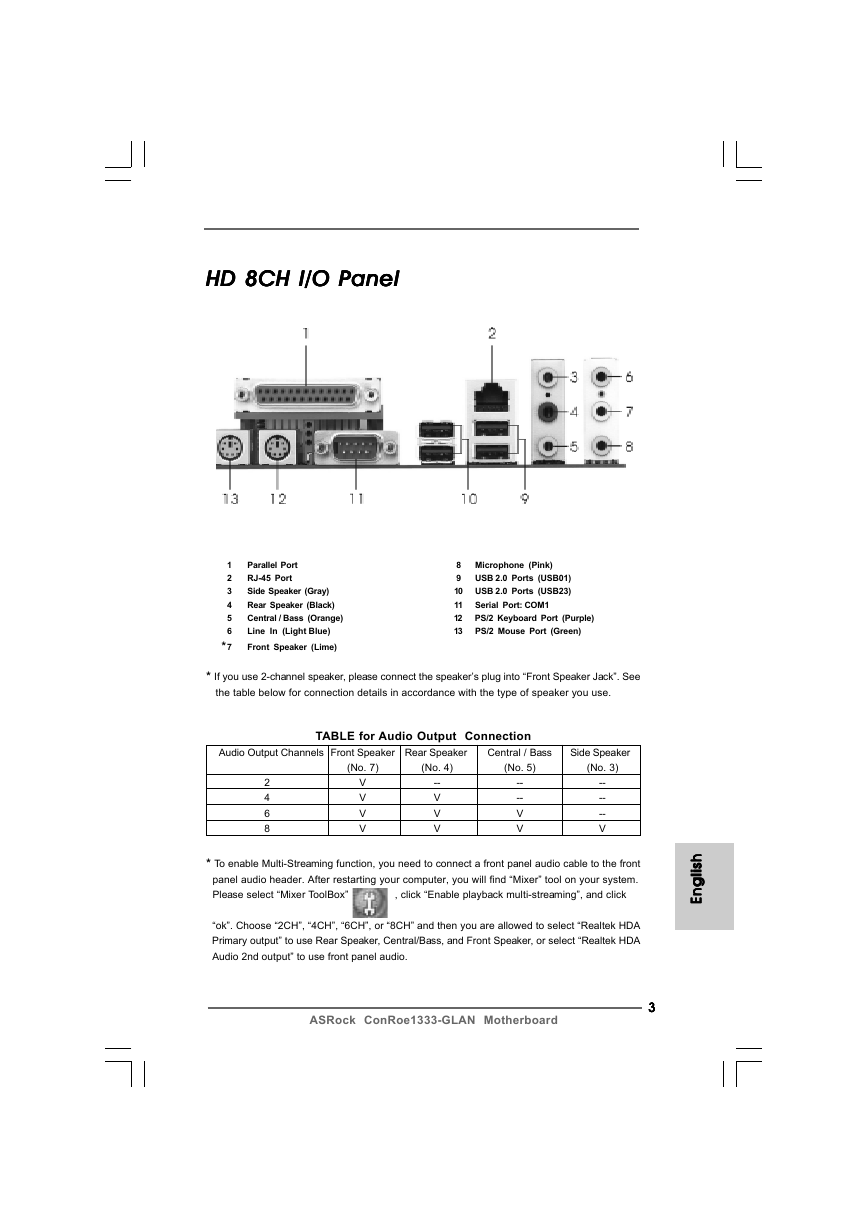

HD 8CH I/O P HD 8CH I/O P anel anel HD 8CH I/O Panel anel HD 8CH I/O P HD 8CH I/O P anel 1 2 3 4 5 6 *7 Parallel Port RJ-45 Port Side Speaker (Gray) Rear Speaker (Black) Central / Bass (Orange) Line In (Light Blue) Front Speaker (Lime) 8 Microphone (Pink) 9 USB 2.0 Ports (USB01) 10 USB 2.0 Ports (USB23) 11 12 13 Serial Port: COM1 PS/2 Keyboard Port (Purple) PS/2 Mouse Port (Green) * If you use 2-channel speaker, please connect the speaker’s plug into “Front Speaker Jack”. See the table below for connection details in accordance with the type of speaker you use. TABLE for Audio Output Connection Audio Output Channels Front Speaker Rear Speaker Central / Bass Side Speaker (No. 7) (No. 4) (No. 5) (No. 3) 2 4 6 8 V V V V -- V V V -- -- V V -- -- -- V * To enable Multi-Streaming function, you need to connect a front panel audio cable to the front panel audio header. After restarting your computer, you will find “Mixer” tool on your system. Please select “Mixer ToolBox” , click “Enable playback multi-streaming”, and click h h h h h s s s s s i i i i i l l l l l g g g g g n n n n n E E E E E “ok”. Choose “2CH”, “4CH”, “6CH”, or “8CH” and then you are allowed to select “Realtek HDA Primary output” to use Rear Speaker, Central/Bass, and Front Speaker, or select “Realtek HDA Audio 2nd output” to use front panel audio. ASRock ConRoe1333-GLAN Motherboard 33333

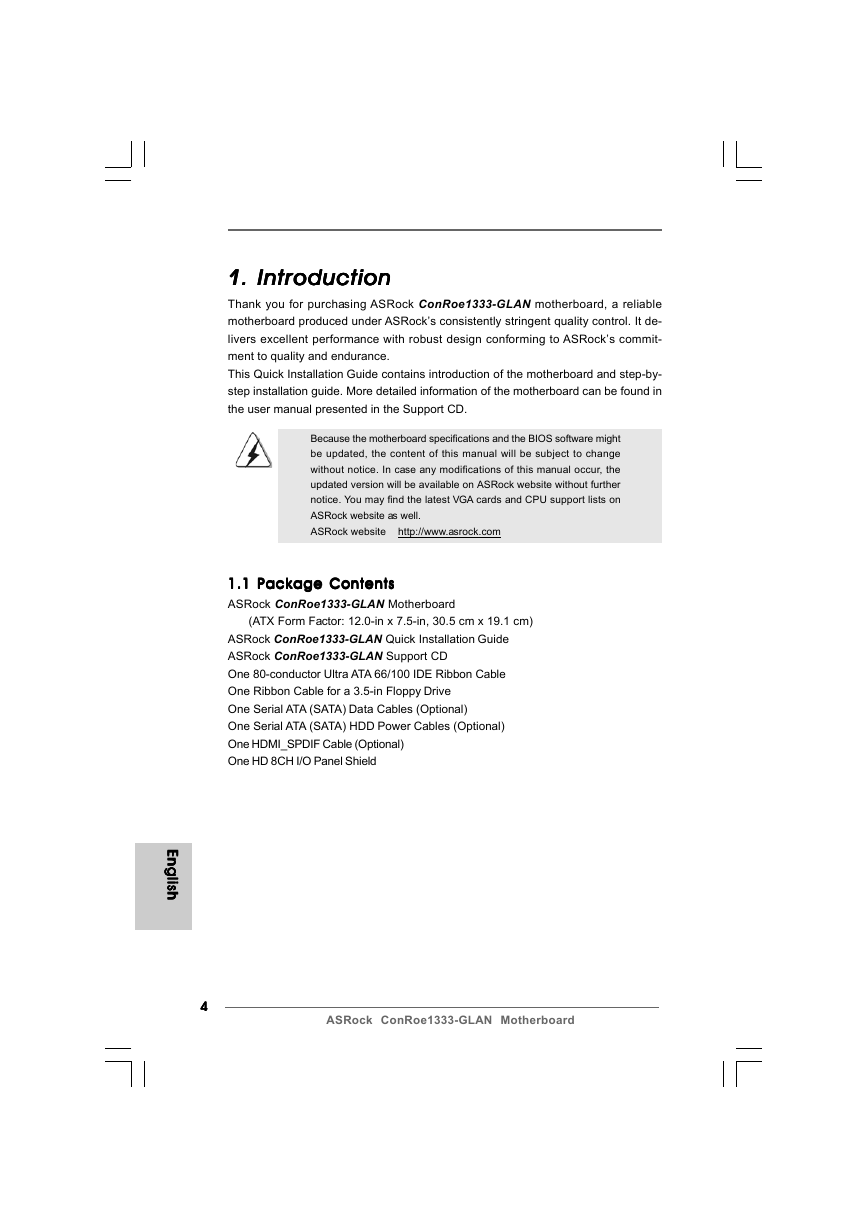

1. Introduction 1. Introduction 1. Introduction 1. Introduction 1. Introduction Thank you for purchasing ASRock ConRoe1333-GLAN motherboard, a reliable motherboard produced under ASRock’s consistently stringent quality control. It de- livers excellent performance with robust design conforming to ASRock’s commit- ment to quality and endurance. This Quick Installation Guide contains introduction of the motherboard and step-by- step installation guide. More detailed information of the motherboard can be found in the user manual presented in the Support CD. Because the motherboard specifications and the BIOS software might be updated, the content of this manual will be subject to change without notice. In case any modifications of this manual occur, the updated version will be available on ASRock website without further notice. You may find the latest VGA cards and CPU support lists on ASRock website as well. ASRock website http://www.asrock.com 1.1 Package Contents 1.1 Package Contents 1.1 Package Contents 1.1 Package Contents 1.1 Package Contents ASRock ConRoe1333-GLAN Motherboard (ATX Form Factor: 12.0-in x 7.5-in, 30.5 cm x 19.1 cm) ASRock ConRoe1333-GLAN Quick Installation Guide ASRock ConRoe1333-GLAN Support CD One 80-conductor Ultra ATA 66/100 IDE Ribbon Cable One Ribbon Cable for a 3.5-in Floppy Drive One Serial ATA (SATA) Data Cables (Optional) One Serial ATA (SATA) HDD Power Cables (Optional) One HDMI_SPDIF Cable (Optional) One HD 8CH I/O Panel Shield E E E E E n n n n n g g g g g l l l l l i i i i i s s s s s h h h h h 44444 ASRock ConRoe1333-GLAN Motherboard

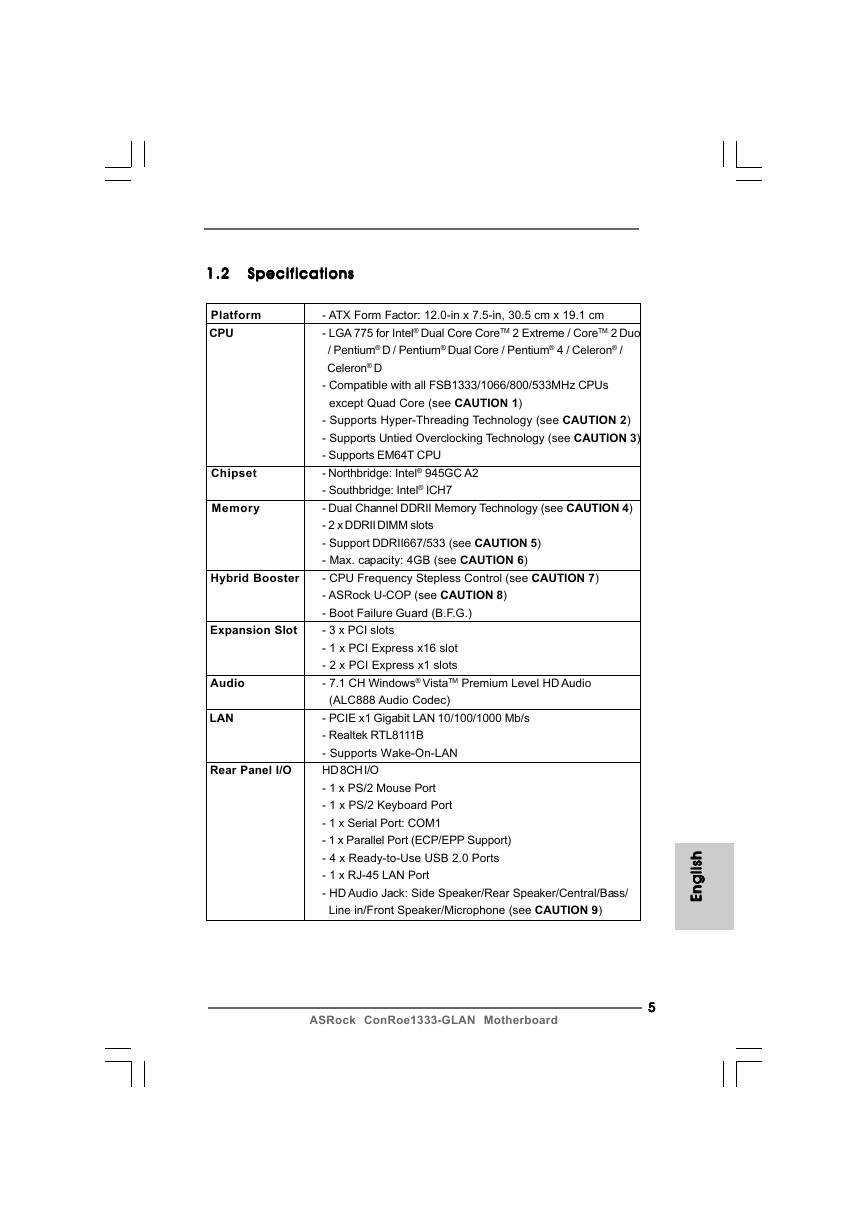

1.21.21.21.21.2 Specifications Specifications Specifications Specifications Specifications Platform CPU Chipset Memory Hybrid Booster Expansion Slot Audio LAN Rear Panel I/O - ATX Form Factor: 12.0-in x 7.5-in, 30.5 cm x 19.1 cm - LGA 775 for Intel® Dual Core CoreTM 2 Extreme / CoreTM 2 Duo / Pentium® D / Pentium® Dual Core / Pentium® 4 / Celeron® / Celeron® D - Compatible with all FSB1333/1066/800/533MHz CPUs except Quad Core (see CAUTION 1) - Supports Hyper-Threading Technology (see CAUTION 2) - Supports Untied Overclocking Technology (see CAUTION 3) - Supports EM64T CPU - Northbridge: Intel® 945GC A2 - Southbridge: Intel® ICH7 - Dual Channel DDRII Memory Technology (see CAUTION 4) - 2 x DDRII DIMM slots - Support DDRII667/533 (see CAUTION 5) - Max. capacity: 4GB (see CAUTION 6) - CPU Frequency Stepless Control (see CAUTION 7) - ASRock U-COP (see CAUTION 8) - Boot Failure Guard (B.F.G.) - 3 x PCI slots - 1 x PCI Express x16 slot - 2 x PCI Express x1 slots - 7.1 CH Windows® VistaTM Premium Level HD Audio (ALC888 Audio Codec) - PCIE x1 Gigabit LAN 10/100/1000 Mb/s - Realtek RTL8111B - Supports Wake-On-LAN HD 8CH I/O - 1 x PS/2 Mouse Port - 1 x PS/2 Keyboard Port - 1 x Serial Port: COM1 - 1 x Parallel Port (ECP/EPP Support) - 4 x Ready-to-Use USB 2.0 Ports - 1 x RJ-45 LAN Port - HD Audio Jack: Side Speaker/Rear Speaker/Central/Bass/ Line in/Front Speaker/Microphone (see CAUTION 9) h h h h h s s s s s i i i i i l l l l l g g g g g n n n n n E E E E E ASRock ConRoe1333-GLAN Motherboard 55555

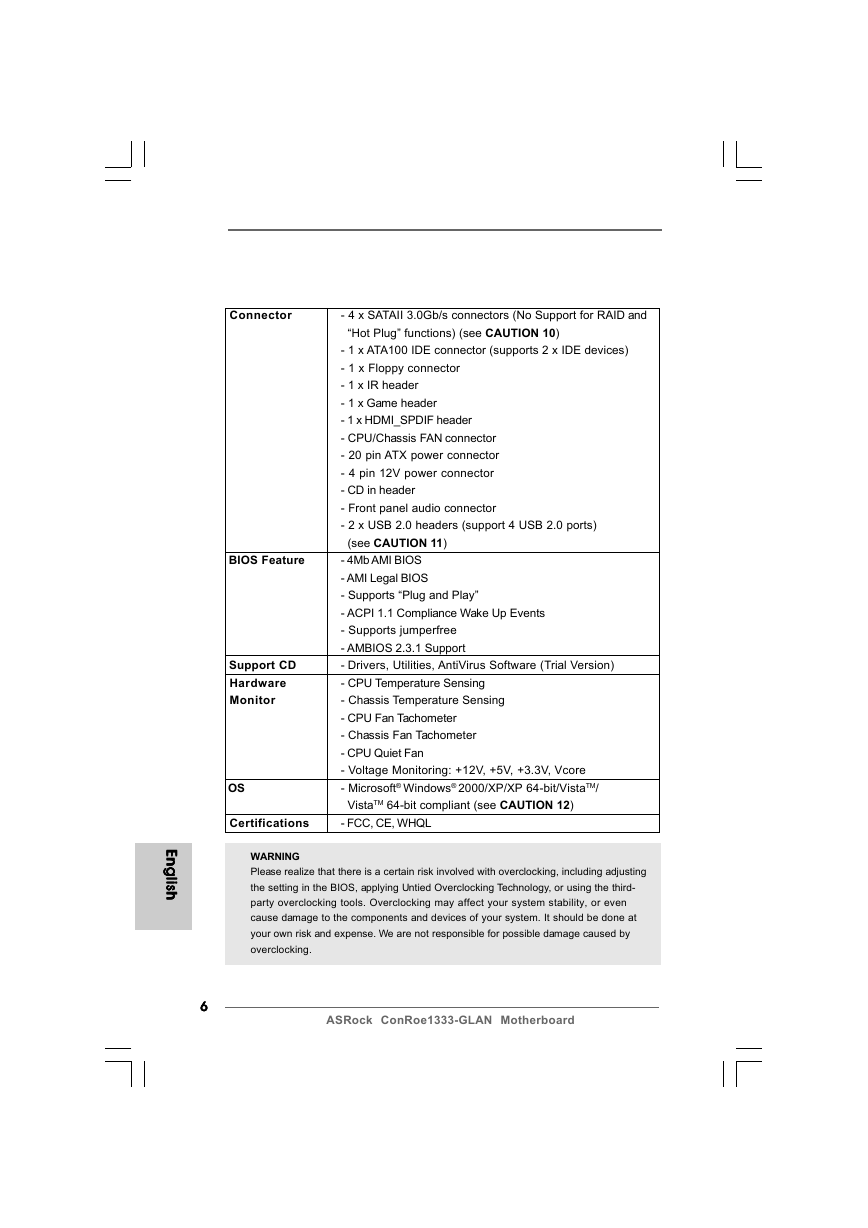

Connector BIOS Feature Support CD Hardware Monitor OS Certifications - 4 x SATAII 3.0Gb/s connectors (No Support for RAID and “Hot Plug” functions) (see CAUTION 10) - 1 x ATA100 IDE connector (supports 2 x IDE devices) - 1 x Floppy connector - 1 x IR header - 1 x Game header - 1 x HDMI_SPDIF header - CPU/Chassis FAN connector - 20 pin ATX power connector - 4 pin 12V power connector - CD in header - Front panel audio connector - 2 x USB 2.0 headers (support 4 USB 2.0 ports) (see CAUTION 11) - 4Mb AMI BIOS - AMI Legal BIOS - Supports “Plug and Play” - ACPI 1.1 Compliance Wake Up Events - Supports jumperfree - AMBIOS 2.3.1 Support - Drivers, Utilities, AntiVirus Software (Trial Version) - CPU Temperature Sensing - Chassis Temperature Sensing - CPU Fan Tachometer - Chassis Fan Tachometer - CPU Quiet Fan - Voltage Monitoring: +12V, +5V, +3.3V, Vcore - Microsoft® Windows® 2000/XP/XP 64-bit/VistaTM/ VistaTM 64-bit compliant (see CAUTION 12) - FCC, CE, WHQL WARNING Please realize that there is a certain risk involved with overclocking, including adjusting the setting in the BIOS, applying Untied Overclocking Technology, or using the third- party overclocking tools. Overclocking may affect your system stability, or even cause damage to the components and devices of your system. It should be done at your own risk and expense. We are not responsible for possible damage caused by overclocking. ASRock ConRoe1333-GLAN Motherboard E E E E E n n n n n g g g g g l l l l l i i i i i s s s s s h h h h h 66666

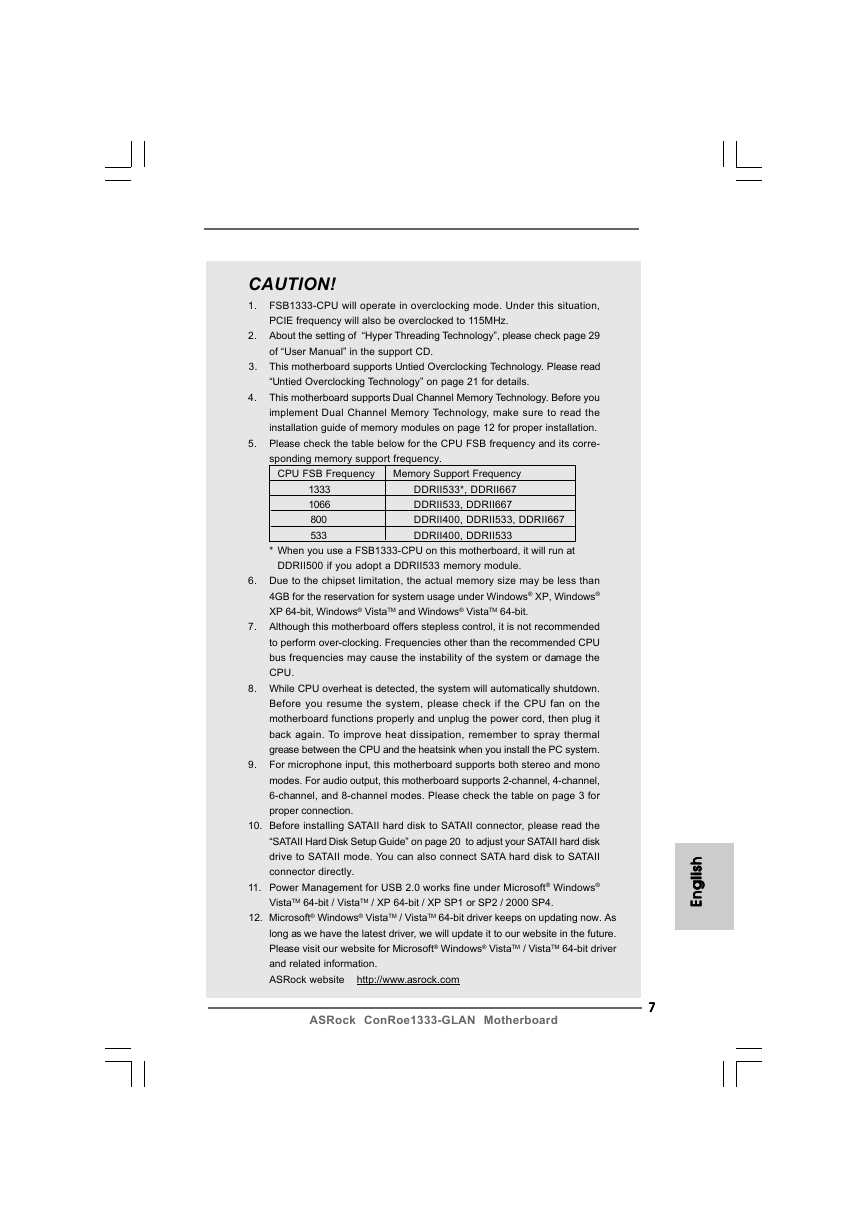

CAUTION! 1. FSB1333-CPU will operate in overclocking mode. Under this situation, PCIE frequency will also be overclocked to 115MHz. 2. About the setting of “Hyper Threading Technology”, please check page 29 of “User Manual” in the support CD. 3. This motherboard supports Untied Overclocking Technology. Please read “Untied Overclocking Technology” on page 21 for details. 4. This motherboard supports Dual Channel Memory Technology. Before you implement Dual Channel Memory Technology, make sure to read the installation guide of memory modules on page 12 for proper installation. 5. Please check the table below for the CPU FSB frequency and its corre- sponding memory support frequency. CPU FSB Frequency 1333 1066 800 533 Memory Support Frequency DDRII533*, DDRII667 DDRII533, DDRII667 DDRII400, DDRII533, DDRII667 DDRII400, DDRII533 * When you use a FSB1333-CPU on this motherboard, it will run at DDRII500 if you adopt a DDRII533 memory module. 6. Due to the chipset limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® XP, Windows® XP 64-bit, Windows® VistaTM and Windows® VistaTM 64-bit. 7. Although this motherboard offers stepless control, it is not recommended to perform over-clocking. Frequencies other than the recommended CPU bus frequencies may cause the instability of the system or damage the CPU. 8. While CPU overheat is detected, the system will automatically shutdown. Before you resume the system, please check if the CPU fan on the motherboard functions properly and unplug the power cord, then plug it back again. To improve heat dissipation, remember to spray thermal grease between the CPU and the heatsink when you install the PC system. 9. For microphone input, this motherboard supports both stereo and mono modes. For audio output, this motherboard supports 2-channel, 4-channel, 6-channel, and 8-channel modes. Please check the table on page 3 for proper connection. 10. Before installing SATAII hard disk to SATAII connector, please read the “SATAII Hard Disk Setup Guide” on page 20 to adjust your SATAII hard disk drive to SATAII mode. You can also connect SATA hard disk to SATAII connector directly. 11. Power Management for USB 2.0 works fine under Microsoft® Windows® VistaTM 64-bit / VistaTM / XP 64-bit / XP SP1 or SP2 / 2000 SP4. 12. Microsoft® Windows® VistaTM / VistaTM 64-bit driver keeps on updating now. As long as we have the latest driver, we will update it to our website in the future. Please visit our website for Microsoft® Windows® VistaTM / VistaTM 64-bit driver and related information. ASRock website http://www.asrock.com ASRock ConRoe1333-GLAN Motherboard 77777 h h h h h s s s s s i i i i i l l l l l g g g g g n n n n n E E E E E

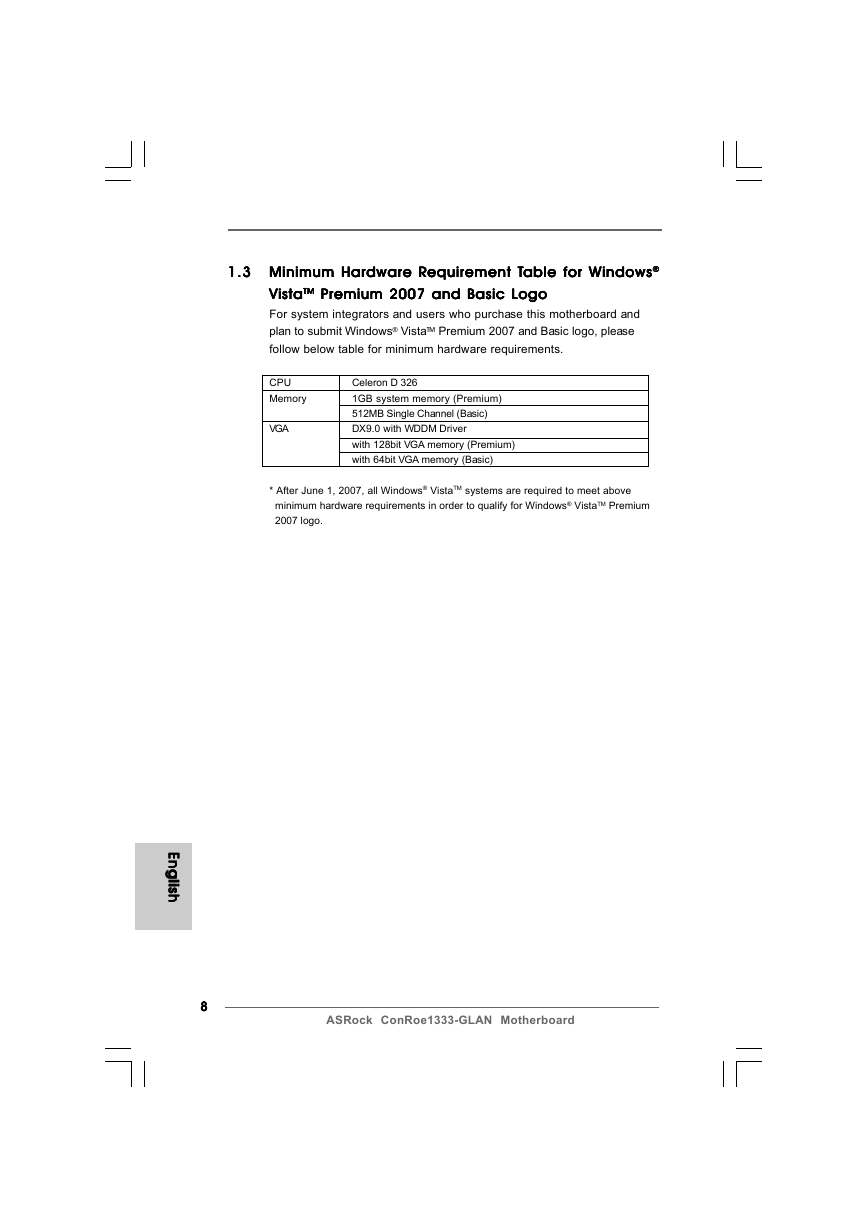

1.31.31.31.31.3 Minimum Hardware R Minimum Hardware R Minimum Hardware R equirement T equirement T able for W able for W indows indows able for Windows equirement Table for W Minimum Hardware Requirement T indows®®®®® Minimum Hardware R able for W equirement T indows VistaVistaVistaVistaVistaTMTMTMTMTM Premium 2007 and Basic Logo Premium 2007 and Basic Logo Premium 2007 and Basic Logo Premium 2007 and Basic Logo Premium 2007 and Basic Logo For system integrators and users who purchase this motherboard and plan to submit Windows® VistaTM Premium 2007 and Basic logo, please follow below table for minimum hardware requirements. CPU Memory VGA Celeron D 326 1GB system memory (Premium) 512MB Single Channel (Basic) DX9.0 with WDDM Driver with 128bit VGA memory (Premium) with 64bit VGA memory (Basic) * After June 1, 2007, all Windows® VistaTM systems are required to meet above minimum hardware requirements in order to qualify for Windows® VistaTM Premium 2007 logo. E E E E E n n n n n g g g g g l l l l l i i i i i s s s s s h h h h h 88888 ASRock ConRoe1333-GLAN Motherboard
