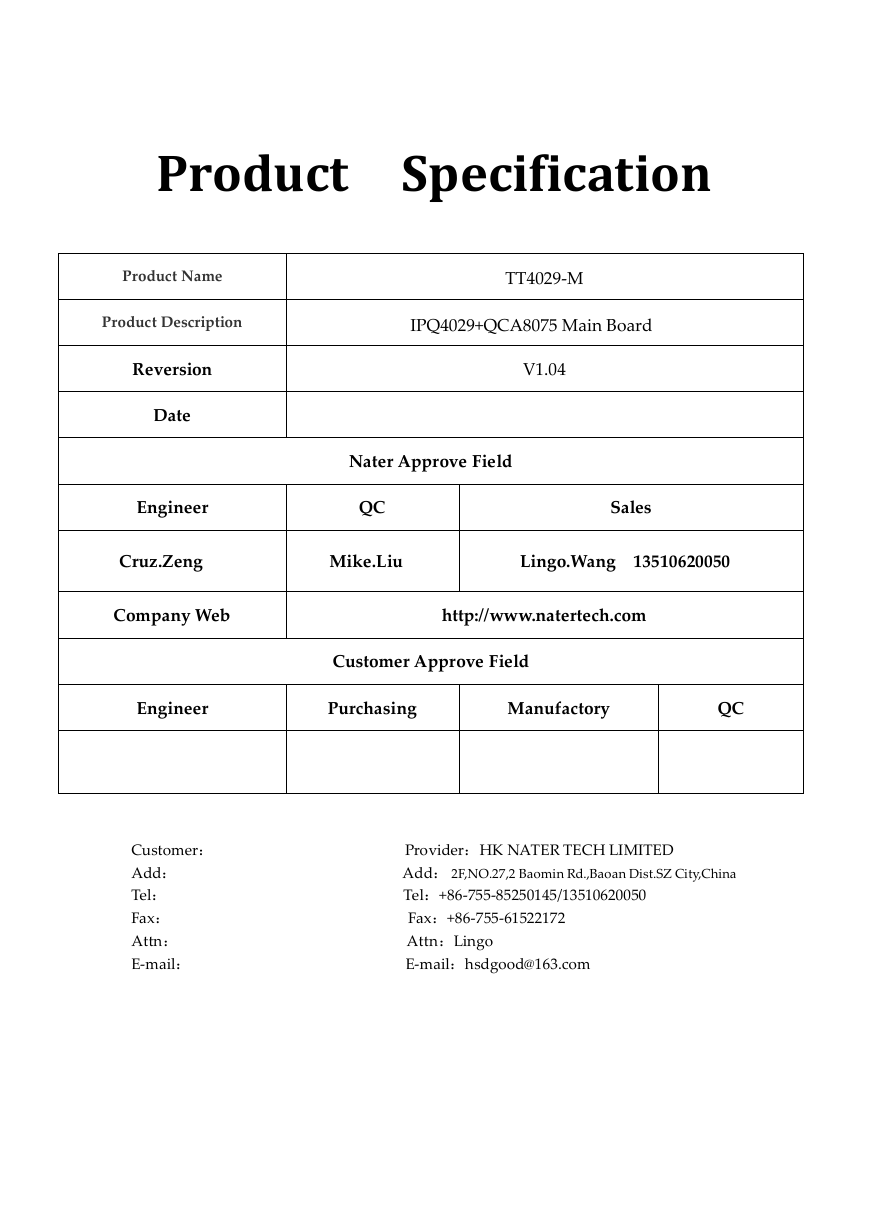

Product Specification Product Name TT4029-M Product Description IPQ4029+QCA8075 Main Board Reversion V1.04 Date Nater Approve Field Engineer QC Sales Cruz.Zeng Mike.Liu Lingo.Wang 13510620050 Company Web http://www.natertech.com Customer Approve Field Engineer Purchasing Manufactory QC Customer： Provider：HK NATER TECH LIMITED Add： Add： 2F,NO.27,2 Baomin Rd.,Baoan Dist.SZ City,China Tel： Tel：+86-755-85250145/13510620050 Fax： Fax：+86-755-61522172 Attn： Attn：Lingo E-mail： E-mail：hsdgood@163.com 

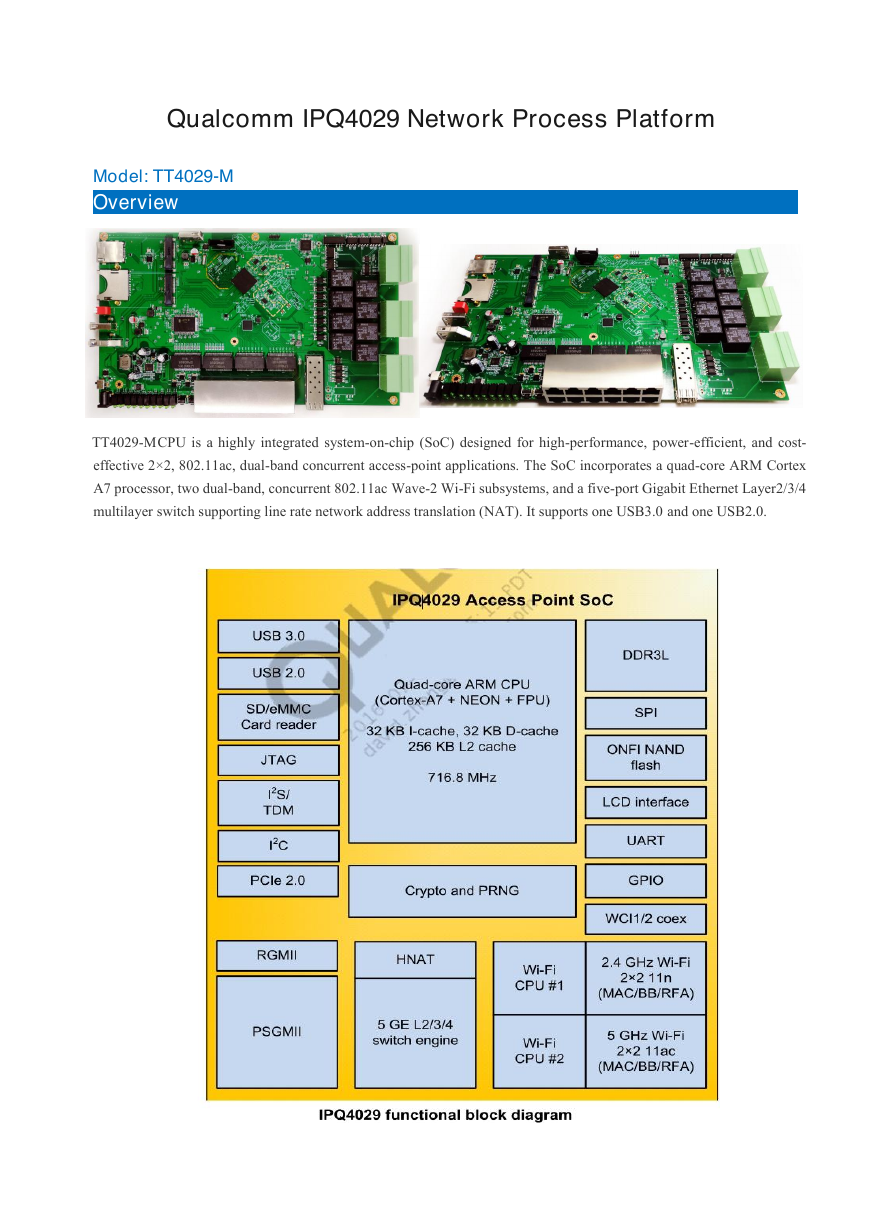

Qualcomm IPQ4029 Network Process Platform Model: TT4029-M Overview TT4029-M CPU is a highly integrated system-on-chip (SoC) designed for high-performance, power-efficient, and cost- effective 2×2, 802.11ac, dual-band concurrent access-point applications. The SoC incorporates a quad-core ARM Cortex A7 processor, two dual-band, concurrent 802.11ac Wave-2 Wi-Fi subsystems, and a five-port Gigabit Ethernet Layer2/3/4 multilayer switch supporting line rate network address translation (NAT). It supports one USB3.0 and one USB2.0. 

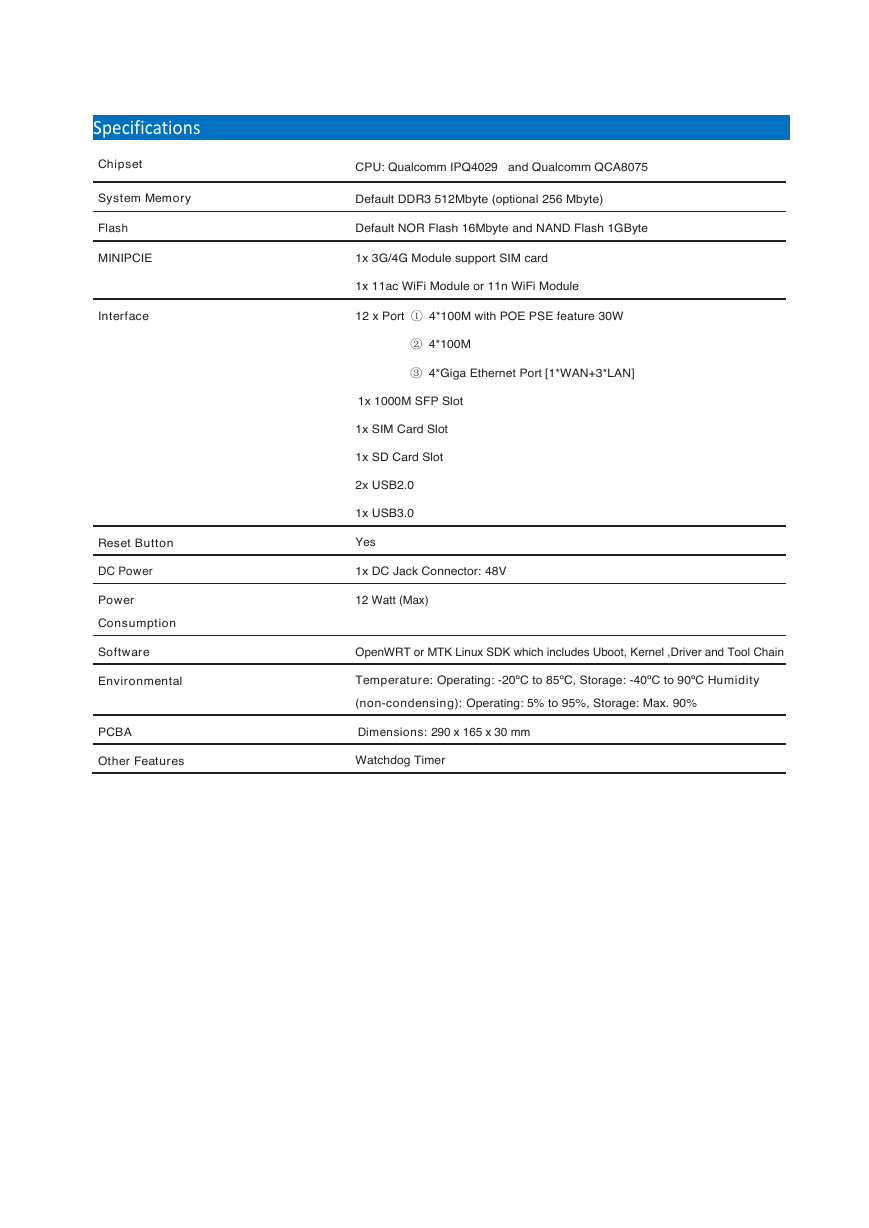

Specifications Chipset CPU: Qualcomm IPQ4029 and Qualcomm QCA8075 System Memory Default DDR3 512Mbyte (optional 256 Mbyte) Flash MINIPCIE Default NOR Flash 16Mbyte and NAND Flash 1GByte 1x 3G/4G Module support SIM card 1x 11ac WiFi Module or 11n WiFi Module Interface 12 x Port ① 4*100M with POE PSE feature 30W ② 4*100M ③ 4*Giga Ethernet Port [1*WAN+3*LAN] 1x 1000M SFP Slot 1x SIM Card Slot 1x SD Card Slot 2x USB2.0 1x USB3.0 Yes 1x DC Jack Connector: 48V 12 Watt (Max) OpenWRT or MTK Linux SDK which includes Uboot, Kernel ,Driver and Tool Chain Temperature: Operating: -20ºC to 85ºC, Storage: -40ºC to 90ºC Humidity (non-condensing): Operating: 5% to 95%, Storage: Max. 90% Reset Button DC Power Power Consumption Software Environmental PCBA Dimensions: 290 x 165 x 30 mm Other Features Watchdog Timer 

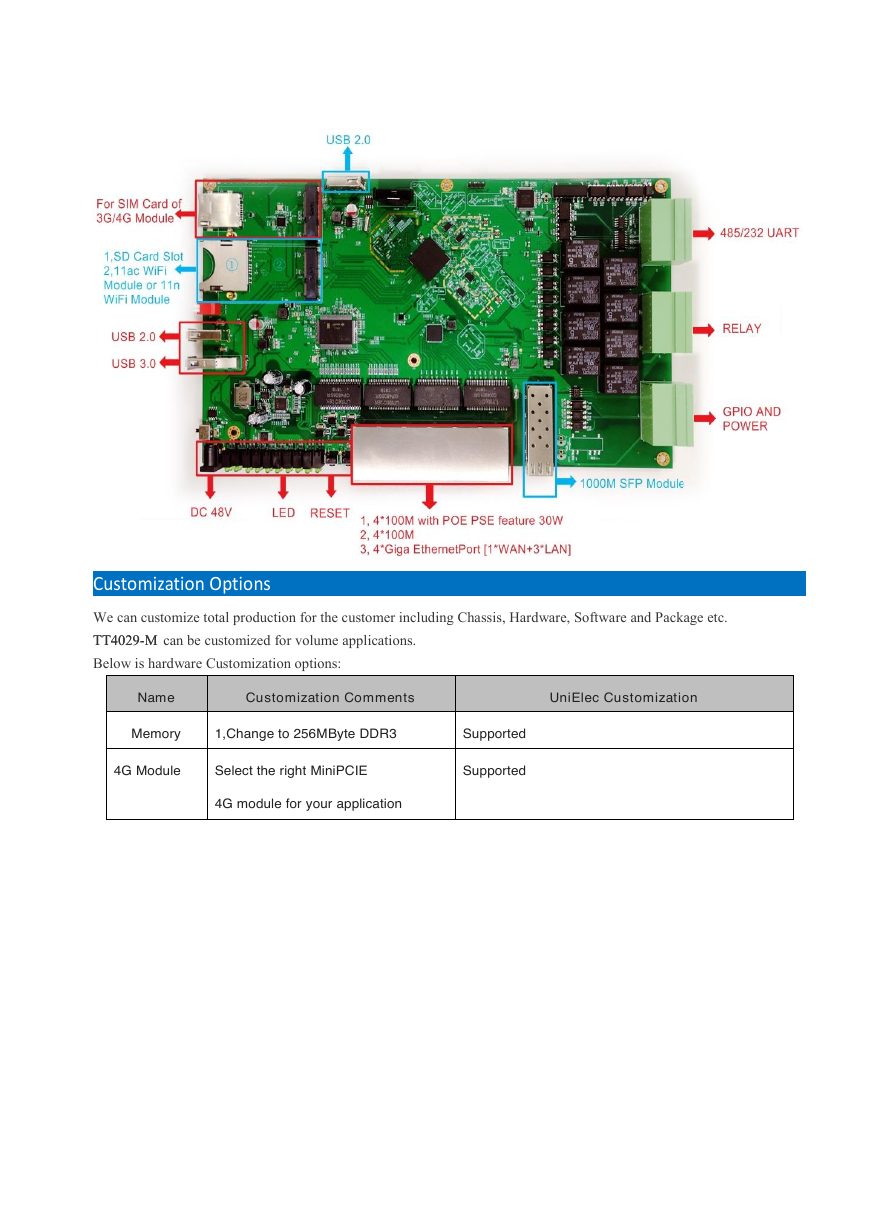

Customization Options We can customize total production for the customer including Chassis, Hardware, Software and Package etc. TT4029-M TT4029-M can be customized for volume applications. Below is hardware Customization options: Name Customization Comments UniElec Customization Memory 1,Change to 256MByte DDR3 Supported 4G Module Select the right MiniPCIE Supported 4G module for your application
