sensor 505-D User manual

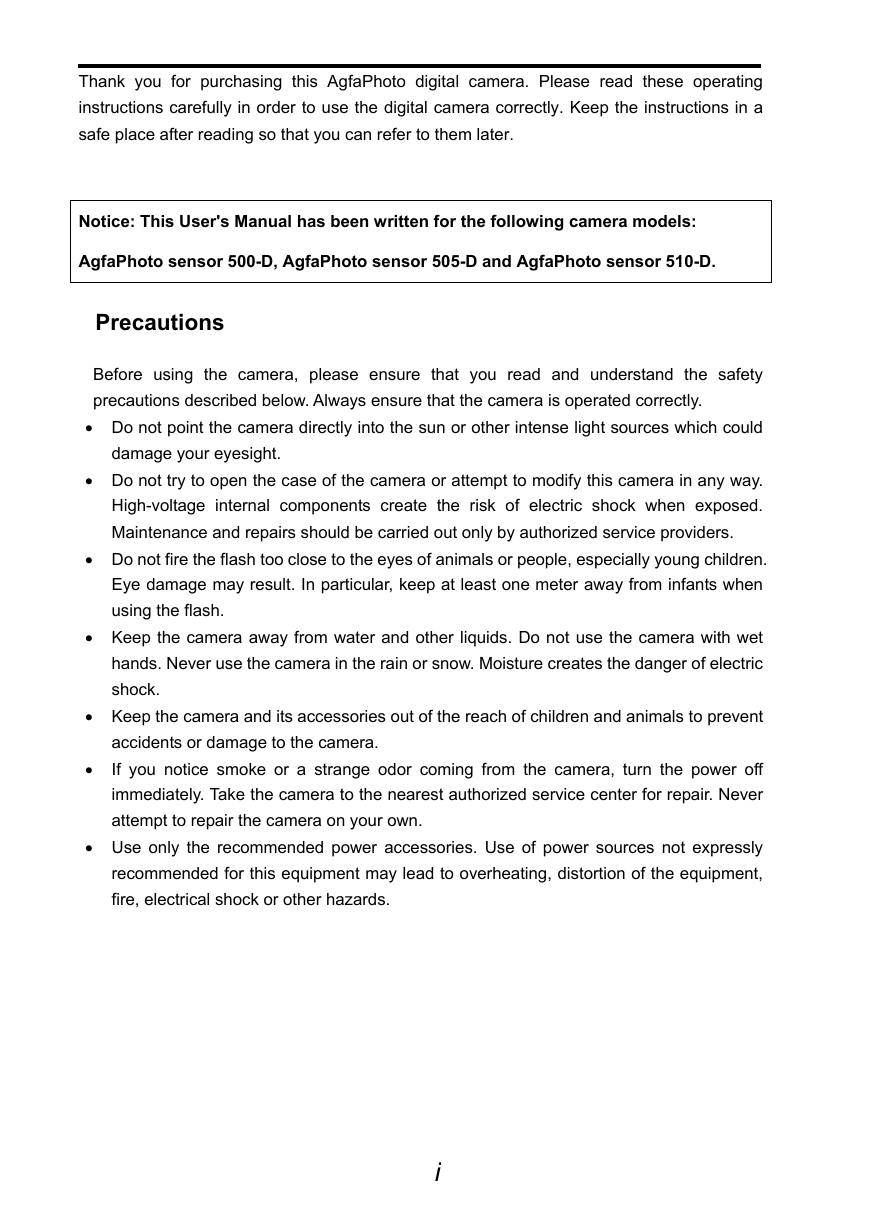

Thank you for purchasing this AgfaPhoto digital camera. Please read these operating instructions carefully in order to use the digital camera correctly. Keep the instructions in a safe place after reading so that you can refer to them later. Notice: This User's Manual has been written for the following camera models: AgfaPhoto sensor 500-D, AgfaPhoto sensor 505-D and AgfaPhoto sensor 510-D. Precautions Before using the camera, please ensure that you read and understand the safety precautions described below. Always ensure that the camera is operated correctly. • Do not point the camera directly into the sun or other intense light sources which could damage your eyesight. • Do not try to open the case of the camera or attempt to modify this camera in any way. High-voltage internal components create the risk of electric shock when exposed. Maintenance and repairs should be carried out only by authorized service providers. • Do not fire the flash too close to the eyes of animals or people, especially young children. Eye damage may result. In particular, keep at least one meter away from infants when using the flash. • Keep the camera away from water and other liquids. Do not use the camera with wet hands. Never use the camera in the rain or snow. Moisture creates the danger of electric shock. • Keep the camera and its accessories out of the reach of children and animals to prevent • accidents or damage to the camera. If you notice smoke or a strange odor coming from the camera, turn the power off immediately. Take the camera to the nearest authorized service center for repair. Never attempt to repair the camera on your own. • Use only the recommended power accessories. Use of power sources not expressly recommended for this equipment may lead to overheating, distortion of the equipment, fire, electrical shock or other hazards. i

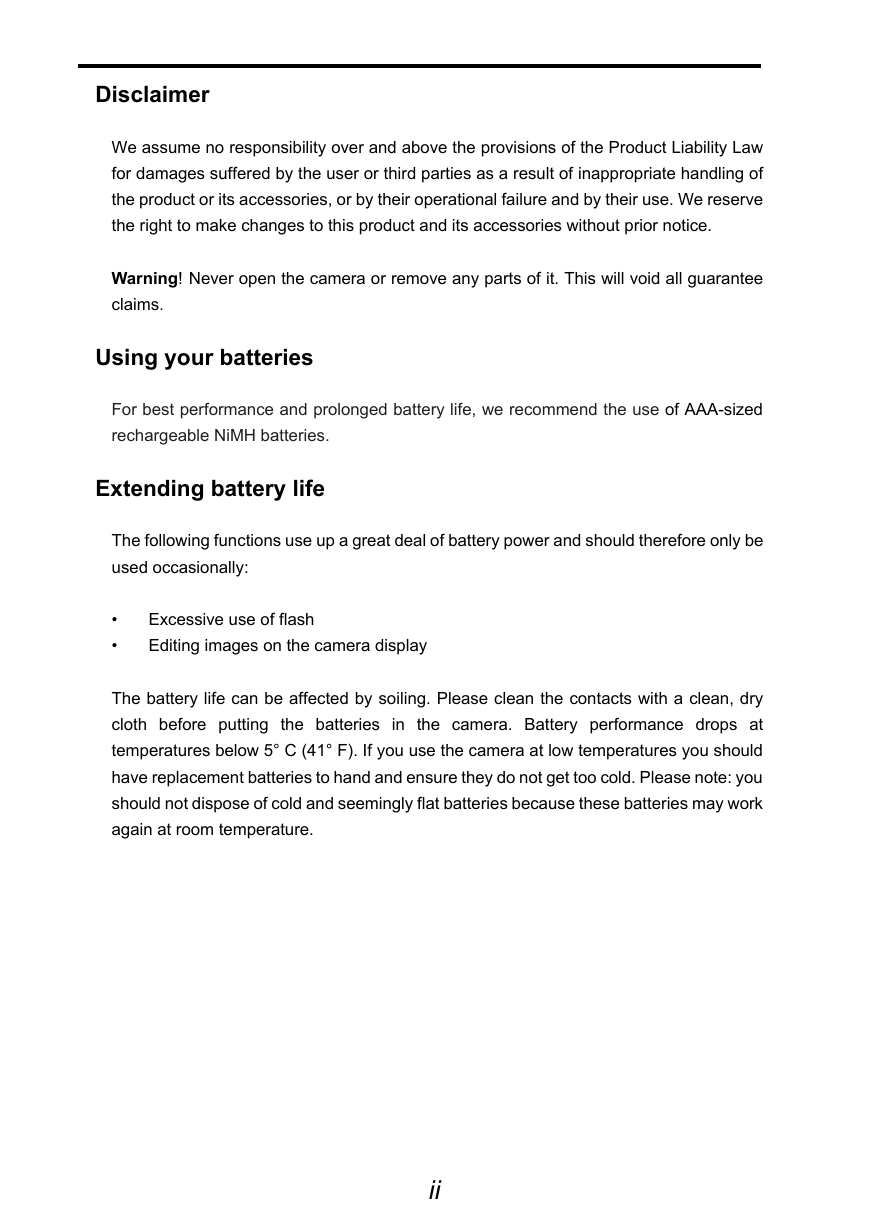

Disclaimer We assume no responsibility over and above the provisions of the Product Liability Law for damages suffered by the user or third parties as a result of inappropriate handling of the product or its accessories, or by their operational failure and by their use. We reserve the right to make changes to this product and its accessories without prior notice. Warning! Never open the camera or remove any parts of it. This will void all guarantee claims. Using your batteries For best performance and prolonged battery life, we recommend the use of AAA-sized rechargeable NiMH batteries. Extending battery life Excessive use of flash Editing images on the camera display The following functions use up a great deal of battery power and should therefore only be used occasionally: • • The battery life can be affected by soiling. Please clean the contacts with a clean, dry cloth before putting the batteries in the camera. Battery performance drops at temperatures below 5° C (41° F). If you use the camera at low temperatures you should have replacement batteries to hand and ensure they do not get too cold. Please note: you should not dispose of cold and seemingly flat batteries because these batteries may work again at room temperature. ii

Contents PRECAUTIONS DISCLAIMER USING YOUR BATTERIES EXTENDING BATTERY LIFE I II II II VIDEO MENU LIST SETUP MENU 16 17 BASIC RECORDING_________________ 19 CONTENTS ________________________ III GETTING STARTED __________________ 1 1 USING THIS MANUAL 2 PACKAGE CONTENTS 3 PARTS OF THE CAMERA 5 ATTACHING THE STRAP 5 INSERTING THE BATTERIES 6 LOW BATTERY INDICATOR 6 INSERTING A MEMORY CARD 7 ABOUT CAMERA MEMORY 7 TURNING POWER ON & OFF 7 POWER SAVING FUNCTION SETTING THE DISPLAY LANGUAGE / DATE & TIME 8 8 SETTING DISPLAY LANGUAGE 9 SETTING DATE & TIME USING THE LCD MONITOR 9 10 CAPTURE MODE 11 VIDEO MODE 12 PLAYBACK MODE BASIC OPERATION _________________ 13 TURNING POWER ON & OFF CHANGING THE MODE SWITCHING BETWEEN REC AND PLAYBACK MODE SELECTING THE REC MODE USING THE MENU IN REC MODE CAPTURE MENU LIST 13 13 13 14 15 16 19 RECORDING STILL IMAGES SELECTING THE RESOLUTION AND QUALITY USING THE ZOOM FUNCTION USING THE FLASH USING THE SELFTIMER USING THE BURST-SNAPSHOT RECORDING MOVIE CLIPS SETTING THE MOVIE SIZE RECORDING AUDIO PLAYING BACK AUDIO 20 21 22 23 24 25 25 26 26 OTHER RECORDING FUNCTIONS _____ 27 SETTING THE WHITE BALANCE SETTING THE COLOR EFFECT SETTING THE EXPOSURE SETTING DATE STAMP 27 28 28 29 PLAYBACK ________________________ 30 PLAYING BACK IMAGES PLAYING BACK MOVIE CLIPS USING THE MENU IN PLAYBACK MODE USING THE MENU IN PLAYBACK MODE VIEWING THUMBNAILS PLAYING A SLIDE SHOW DELETING FILES DELETING A SINGLE FILE DELETING ALL FILES FORMATTING THE SD CARD OR INTERNAL MEMORY 30 30 31 31 32 32 33 33 34 34 iii

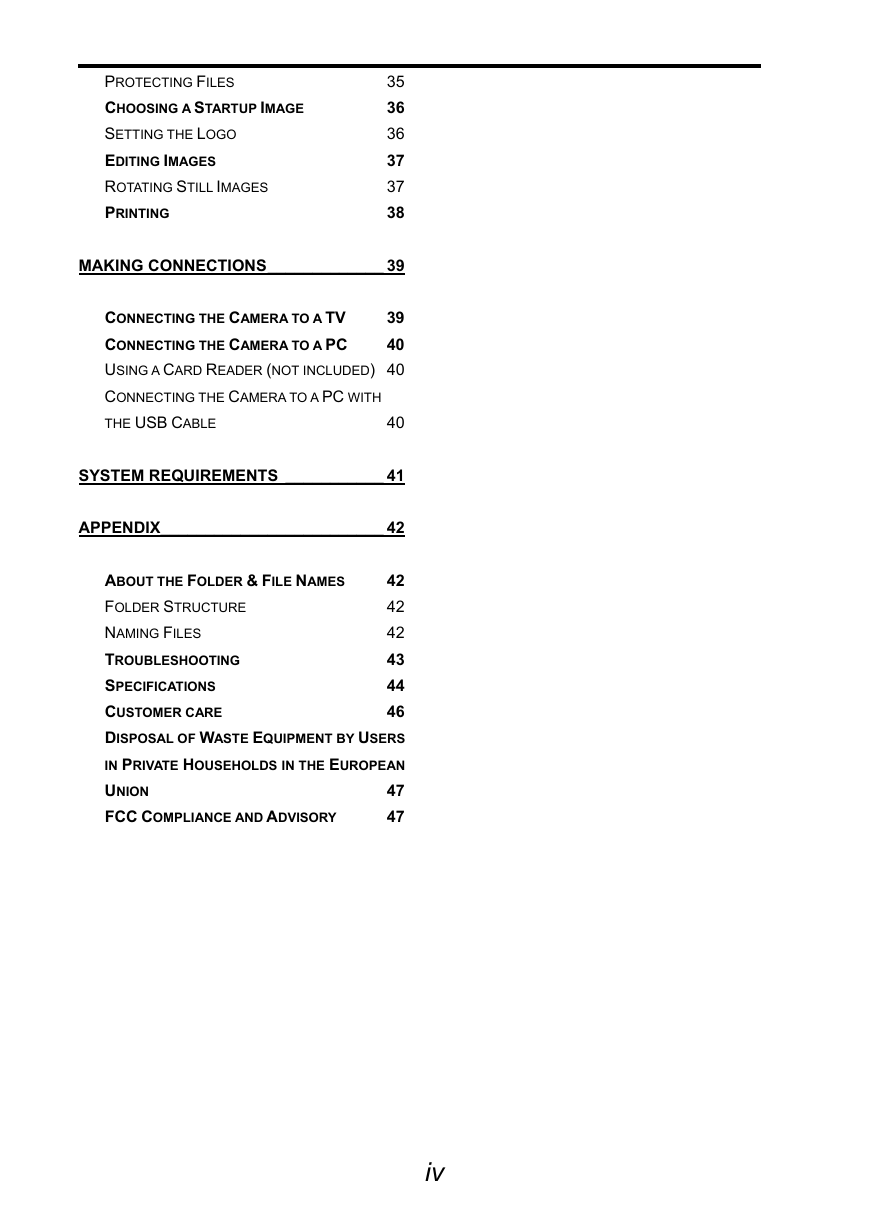

PROTECTING FILES CHOOSING A STARTUP IMAGE SETTING THE LOGO EDITING IMAGES ROTATING STILL IMAGES PRINTING 35 36 36 37 37 38 MAKING CONNECTIONS_____________ 39 39 CONNECTING THE CAMERA TO A TV CONNECTING THE CAMERA TO A PC 40 USING A CARD READER (NOT INCLUDED) 40 CONNECTING THE CAMERA TO A PC WITH THE USB CABLE 40 SYSTEM REQUIREMENTS ___________ 41 APPENDIX_________________________ 42 42 ABOUT THE FOLDER & FILE NAMES 42 FOLDER STRUCTURE 42 NAMING FILES 43 TROUBLESHOOTING 44 SPECIFICATIONS CUSTOMER CARE 46 DISPOSAL OF WASTE EQUIPMENT BY USERS IN PRIVATE HOUSEHOLDS IN THE EUROPEAN 47 UNION FCC COMPLIANCE AND ADVISORY 47 iv

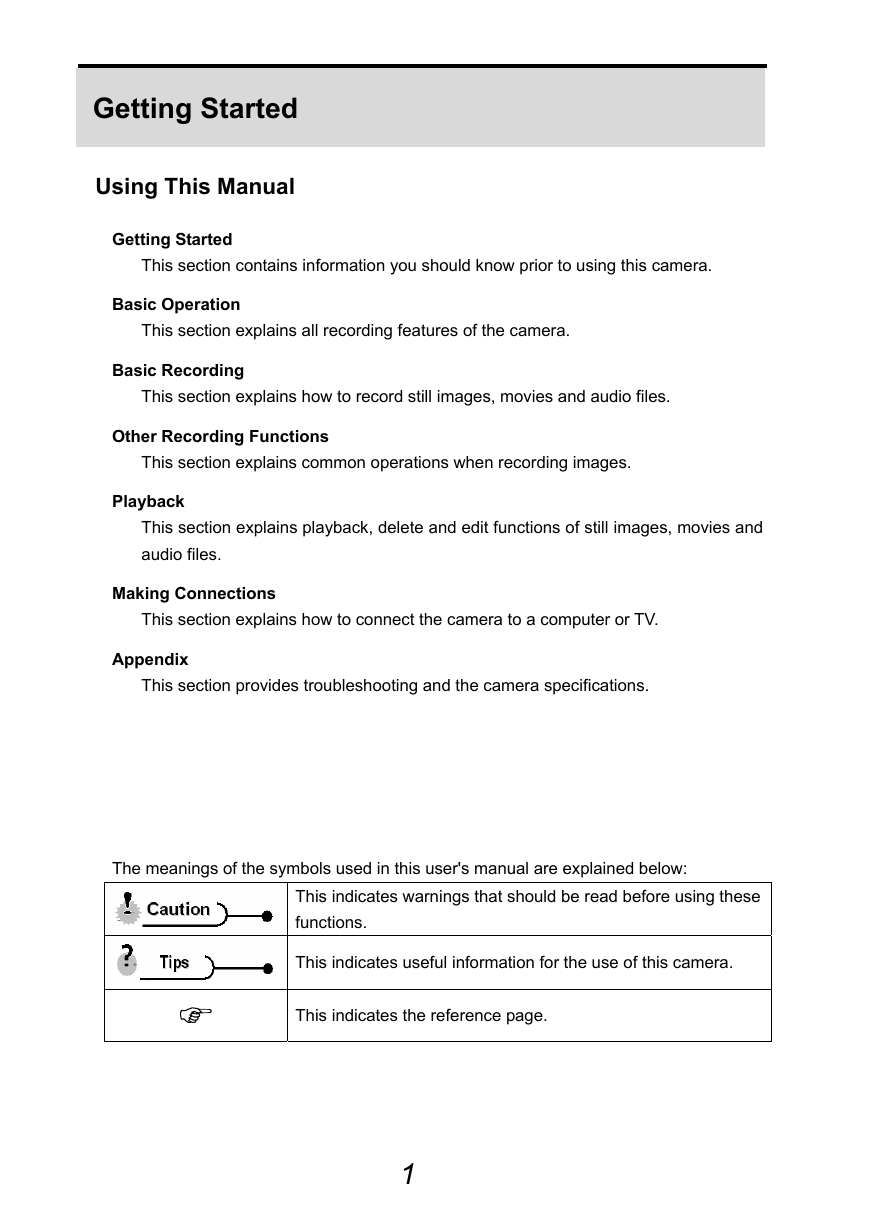

Getting Started Using This Manual Getting Started This section contains information you should know prior to using this camera. Basic Operation This section explains all recording features of the camera. Basic Recording This section explains how to record still images, movies and audio files. Other Recording Functions This section explains common operations when recording images. Playback This section explains playback, delete and edit functions of still images, movies and audio files. Making Connections This section explains how to connect the camera to a computer or TV. Appendix This section provides troubleshooting and the camera specifications. The meanings of the symbols used in this user's manual are explained below: This indicates warnings that should be read before using these functions. This indicates useful information for the use of this camera. This indicates the reference page. 1

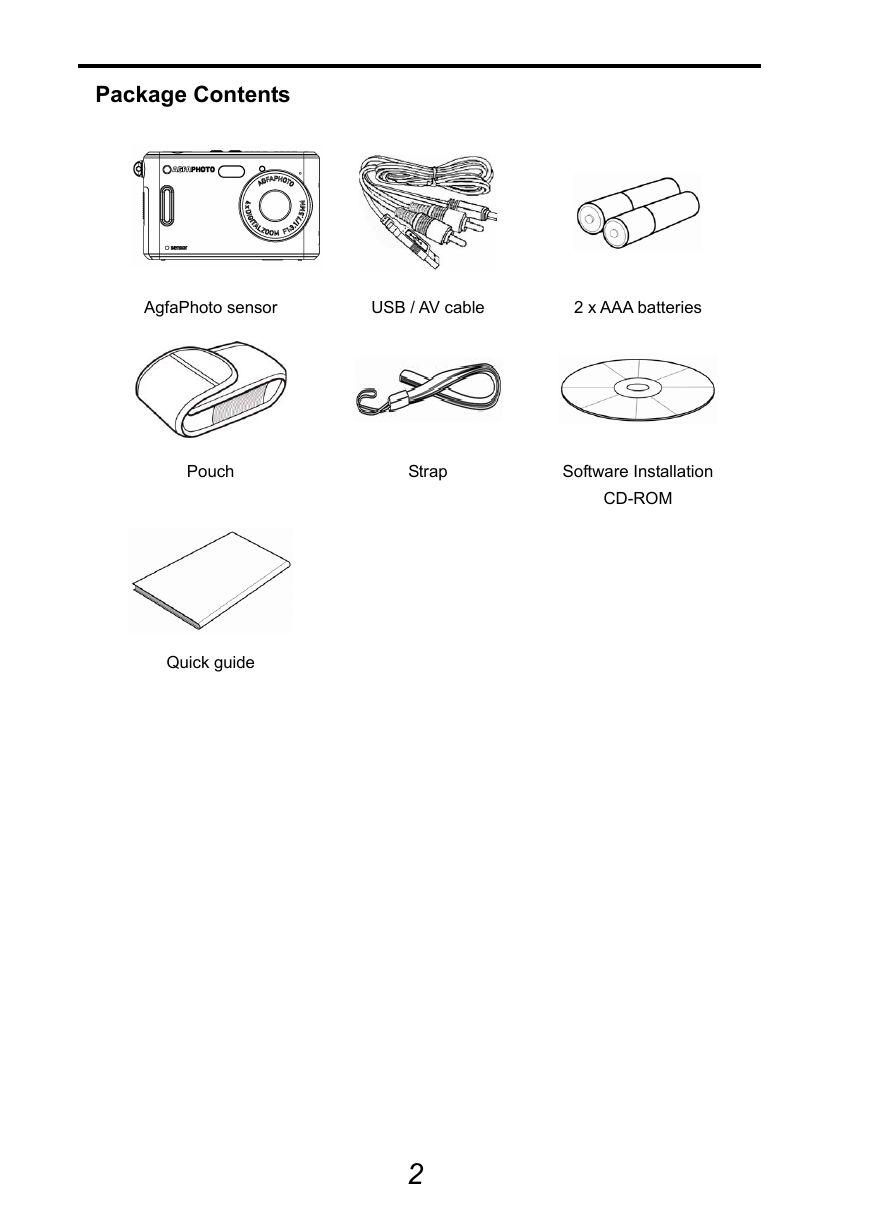

Package Contents AgfaPhoto sensor USB / AV cable 2 x AAA batteries hcuoP partS noitallatsnI erawtfoS CD-ROM Quick guide 2

Parts of the Camera 1. Flash 2. Self-timer lamp 3. Microphone 4. Lens 5. Operation lamp 6. LCD display Five-way control button 7. Vertically (OK) 8. Rightward 9. Downward 10. Upward 11. Leftward 12. Playback button 13. Menu button 3
