DLP Projector EIP-XSP2500 Owner’s Manual

Introduction Features The projector equips high-performance of optical projection and user-friendly design The projector offers the following features. Quick auto search speeding up the signal detecting process Digital keystone correction and high quality full screen image re-scaling Capable to display 16.7 million colors Multi-language On-Screen Display (OSD) menus Component HDTV compatibility (YPbPr) Short throw projection

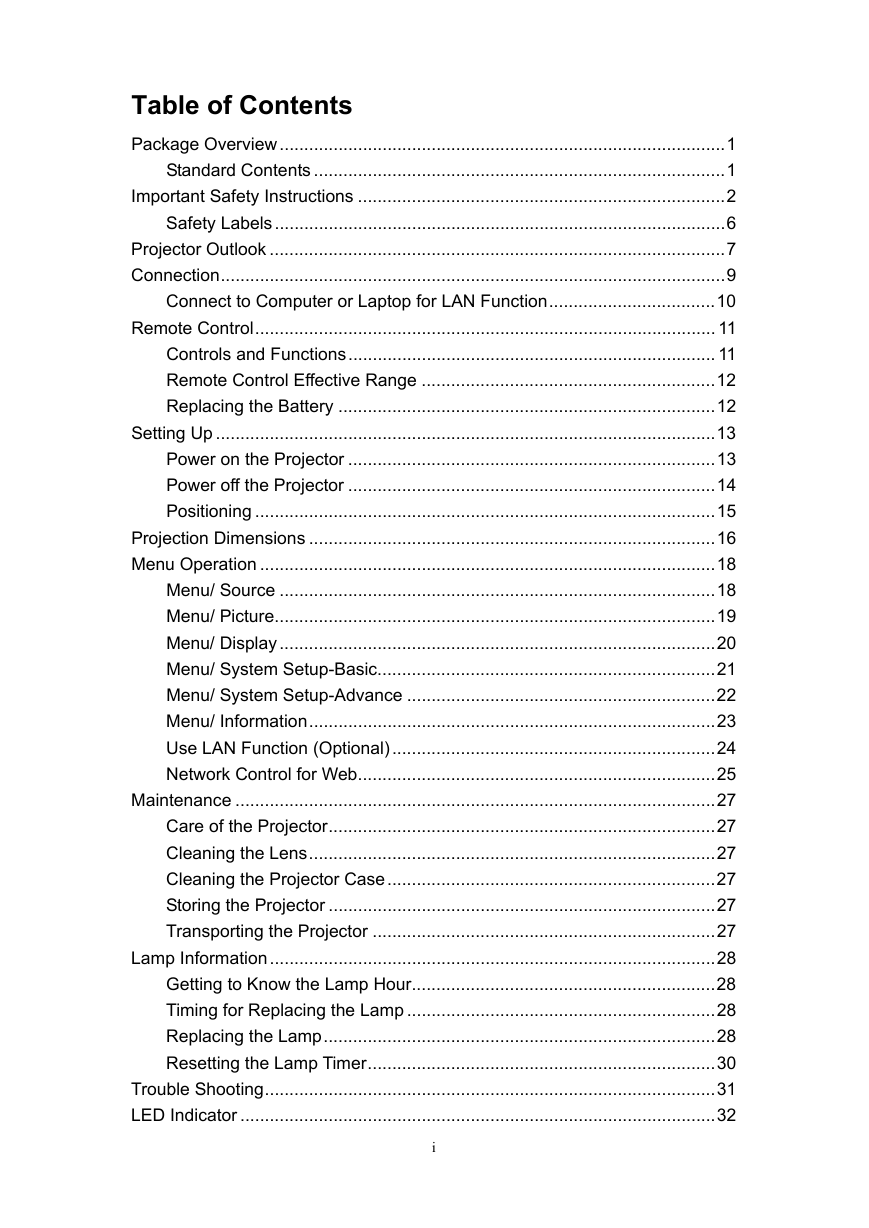

Table of Contents Package Overview...........................................................................................1 Standard Contents ....................................................................................1 Important Safety Instructions ...........................................................................2 Safety Labels............................................................................................6 Projector Outlook .............................................................................................7 Connection.......................................................................................................9 Connect to Computer or Laptop for LAN Function..................................10 Remote Control.............................................................................................. 11 Controls and Functions........................................................................... 11 Remote Control Effective Range ............................................................12 Replacing the Battery .............................................................................12 Setting Up ......................................................................................................13 Power on the Projector ...........................................................................13 Power off the Projector ...........................................................................14 Positioning ..............................................................................................15 Projection Dimensions ...................................................................................16 Menu Operation .............................................................................................18 Menu/ Source .........................................................................................18 Menu/ Picture..........................................................................................19 Menu/ Display.........................................................................................20 Menu/ System Setup-Basic.....................................................................21 Menu/ System Setup-Advance ...............................................................22 Menu/ Information...................................................................................23 Use LAN Function (Optional)..................................................................24 Network Control for Web.........................................................................25 Maintenance ..................................................................................................27 Care of the Projector...............................................................................27 Cleaning the Lens...................................................................................27 Cleaning the Projector Case...................................................................27 Storing the Projector ...............................................................................27 Transporting the Projector ......................................................................27 Lamp Information...........................................................................................28 Getting to Know the Lamp Hour..............................................................28 Timing for Replacing the Lamp ...............................................................28 Replacing the Lamp................................................................................28 Resetting the Lamp Timer.......................................................................30 Trouble Shooting............................................................................................31 LED Indicator .................................................................................................32 i

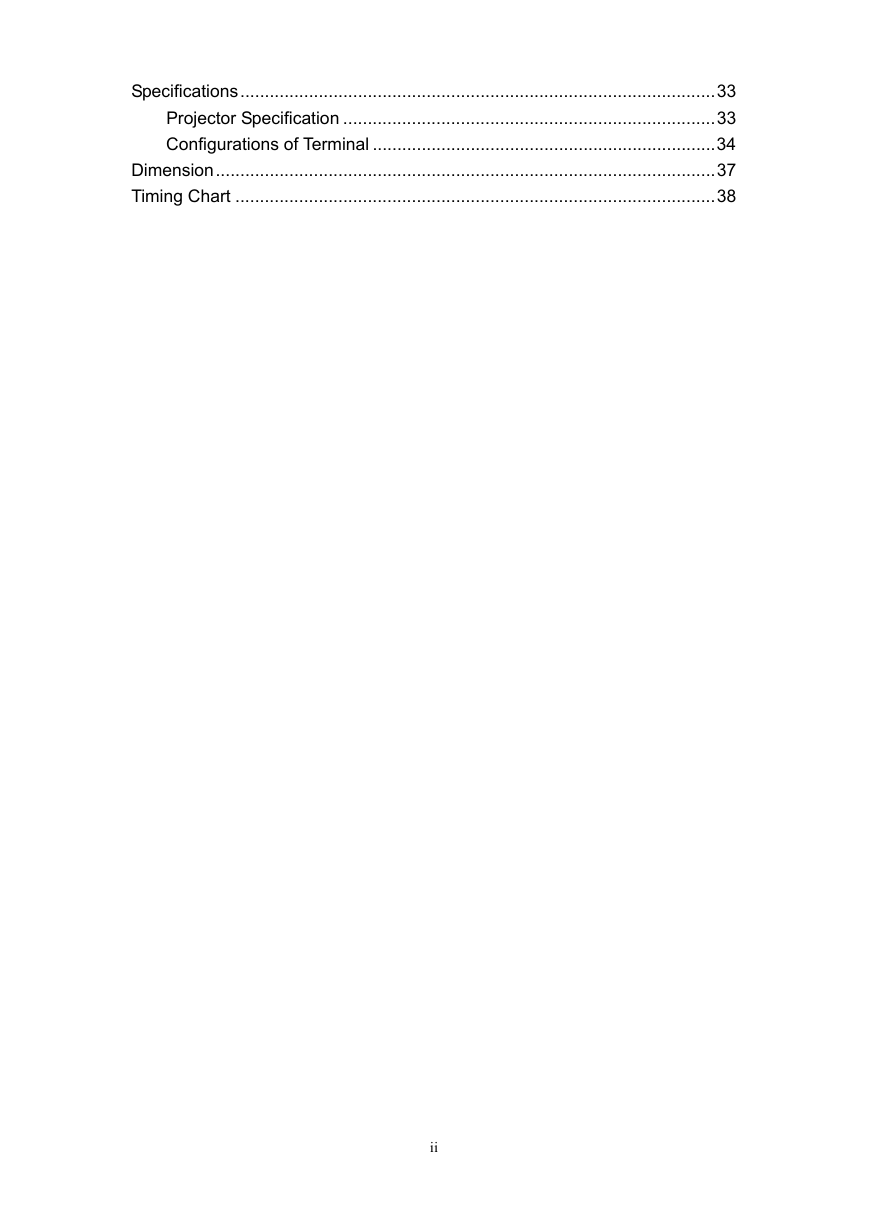

Specifications.................................................................................................33 Projector Specification ............................................................................33 Configurations of Terminal ......................................................................34 Dimension......................................................................................................37 Timing Chart ..................................................................................................38 ii

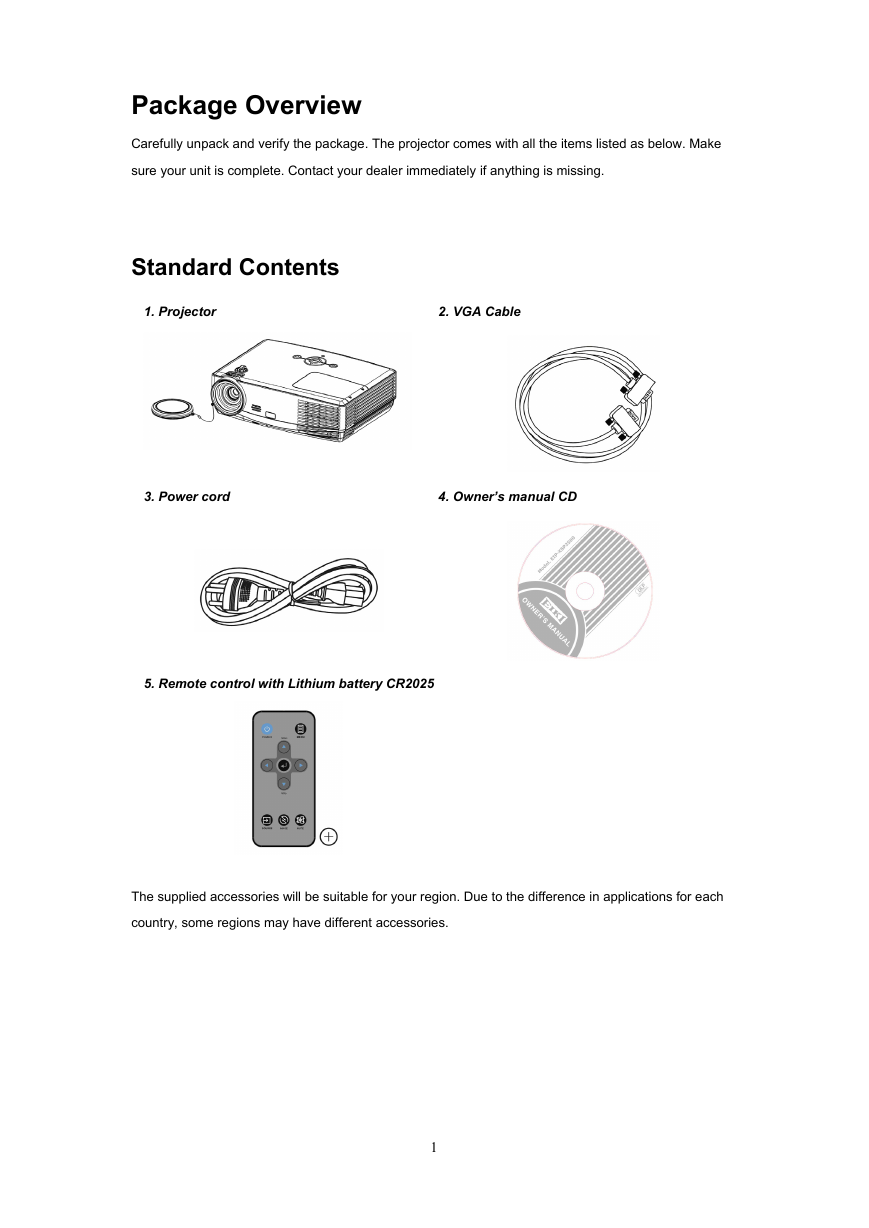

Package Overview Carefully unpack and verify the package. The projector comes with all the items listed as below. Make sure your unit is complete. Contact your dealer immediately if anything is missing. Standard Contents 1. Projector 2. VGA Cable 3. Power cord 4. Owner’s manual CD 5. Remote control with Lithium battery CR2025 The supplied accessories will be suitable for your region. Due to the difference in applications for each country, some regions may have different accessories. 1

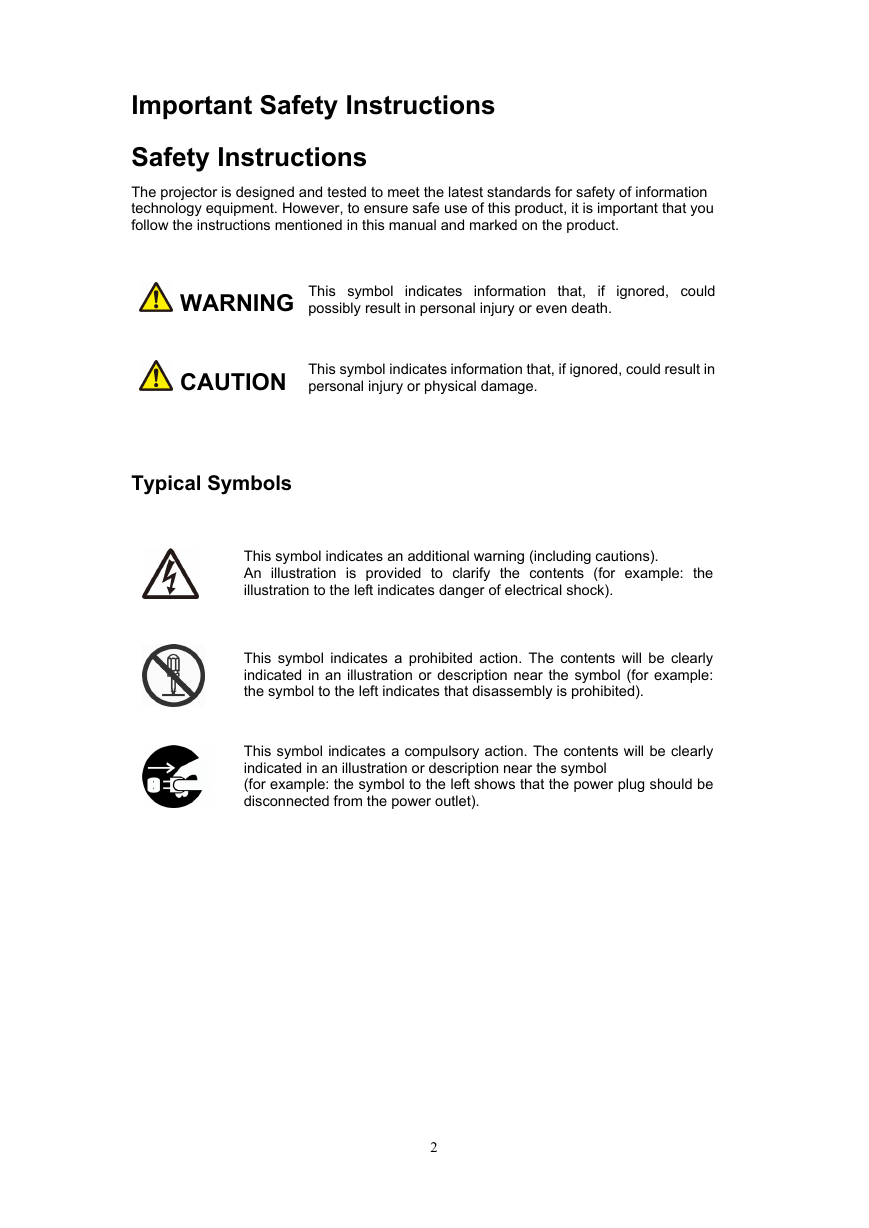

Important Safety Instructions Safety Instructions The projector is designed and tested to meet the latest standards for safety of information technology equipment. However, to ensure safe use of this product, it is important that you follow the instructions mentioned in this manual and marked on the product. WARNING This symbol indicates information that, if ignored, could possibly result in personal injury or even death. CAUTION This symbol indicates information that, if ignored, could result in personal injury or physical damage. Typical Symbols This symbol indicates an additional warning (including cautions). An illustration is provided to clarify the contents (for example: the illustration to the left indicates danger of electrical shock). This symbol indicates a prohibited action. The contents will be clearly indicated in an illustration or description near the symbol (for example: the symbol to the left indicates that disassembly is prohibited). This symbol indicates a compulsory action. The contents will be clearly indicated in an illustration or description near the symbol (for example: the symbol to the left shows that the power plug should be disconnected from the power outlet). 2

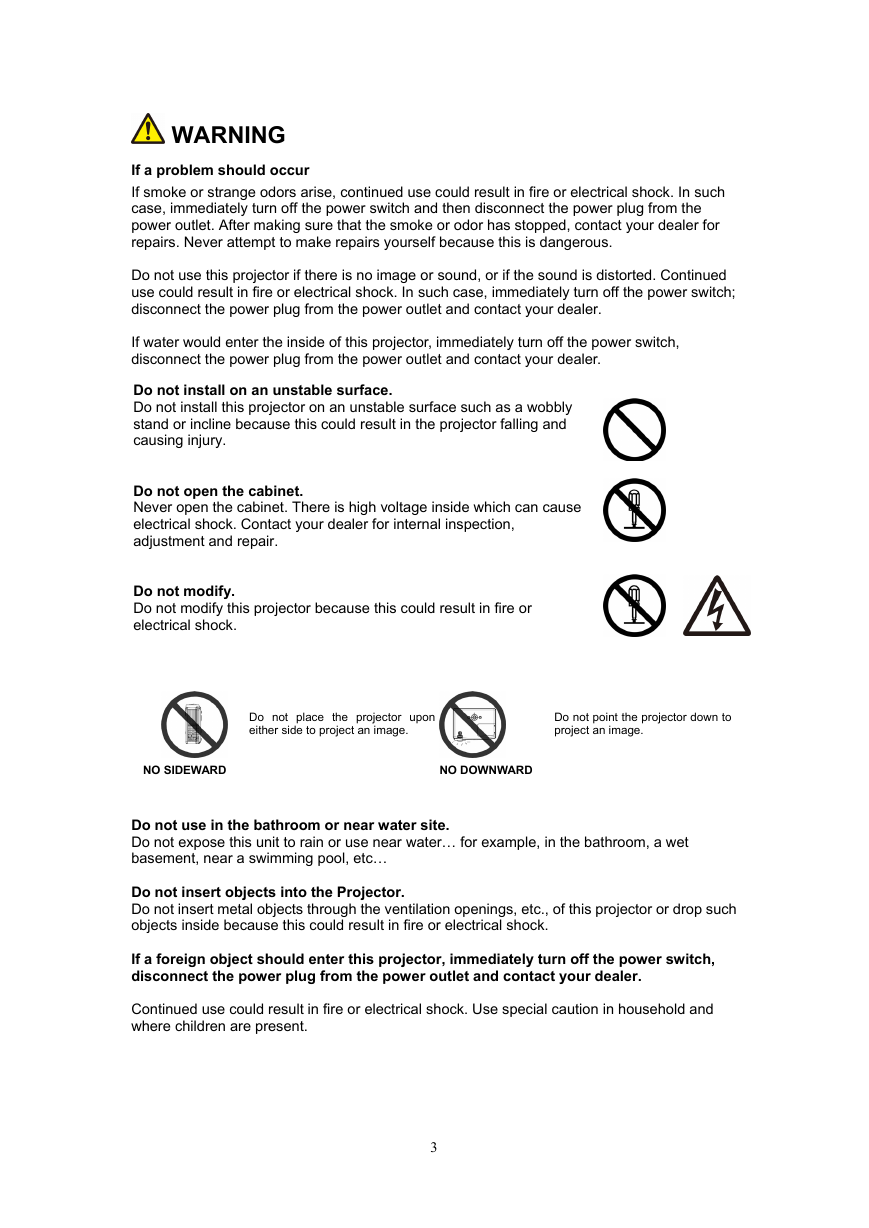

WARNING If a problem should occur If smoke or strange odors arise, continued use could result in fire or electrical shock. In such case, immediately turn off the power switch and then disconnect the power plug from the power outlet. After making sure that the smoke or odor has stopped, contact your dealer for repairs. Never attempt to make repairs yourself because this is dangerous. Do not use this projector if there is no image or sound, or if the sound is distorted. Continued use could result in fire or electrical shock. In such case, immediately turn off the power switch; disconnect the power plug from the power outlet and contact your dealer. If water would enter the inside of this projector, immediately turn off the power switch, disconnect the power plug from the power outlet and contact your dealer. Do not install on an unstable surface. Do not install this projector on an unstable surface such as a wobbly stand or incline because this could result in the projector falling and causing injury. Do not open the cabinet. Never open the cabinet. There is high voltage inside which can cause electrical shock. Contact your dealer for internal inspection, adjustment and repair. Do not modify. Do not modify this projector because this could result in fire or electrical shock. Do not place the projector upon either side to project an image. Do not point the projector down to project an image. NO SIDEWARD NO DOWNWARD Do not use in the bathroom or near water site. Do not expose this unit to rain or use near water… for example, in the bathroom, a wet basement, near a swimming pool, etc… Do not insert objects into the Projector. Do not insert metal objects through the ventilation openings, etc., of this projector or drop such objects inside because this could result in fire or electrical shock. If a foreign object should enter this projector, immediately turn off the power switch, disconnect the power plug from the power outlet and contact your dealer. Continued use could result in fire or electrical shock. Use special caution in household and where children are present. 3

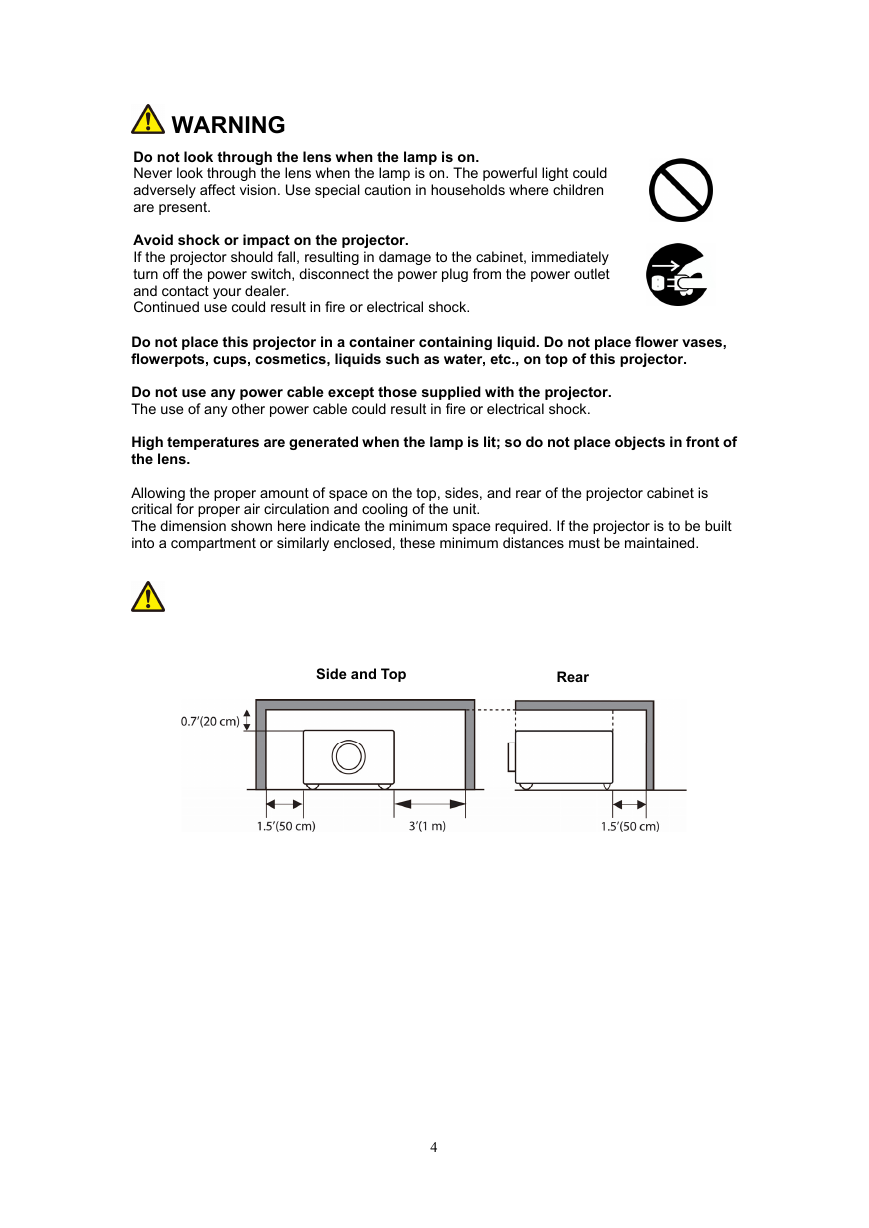

WARNING Do not look through the lens when the lamp is on. Never look through the lens when the lamp is on. The powerful light could adversely affect vision. Use special caution in households where children are present. Avoid shock or impact on the projector. If the projector should fall, resulting in damage to the cabinet, immediately turn off the power switch, disconnect the power plug from the power outlet and contact your dealer. Continued use could result in fire or electrical shock. Do not place this projector in a container containing liquid. Do not place flower vases, flowerpots, cups, cosmetics, liquids such as water, etc., on top of this projector. Do not use any power cable except those supplied with the projector. The use of any other power cable could result in fire or electrical shock. High temperatures are generated when the lamp is lit; so do not place objects in front of the lens. Allowing the proper amount of space on the top, sides, and rear of the projector cabinet is critical for proper air circulation and cooling of the unit. The dimension shown here indicate the minimum space required. If the projector is to be built into a compartment or similarly enclosed, these minimum distances must be maintained. Side and Top Rear 4
