Digital Still Camera 3.1 Mega Pixel User's Manual

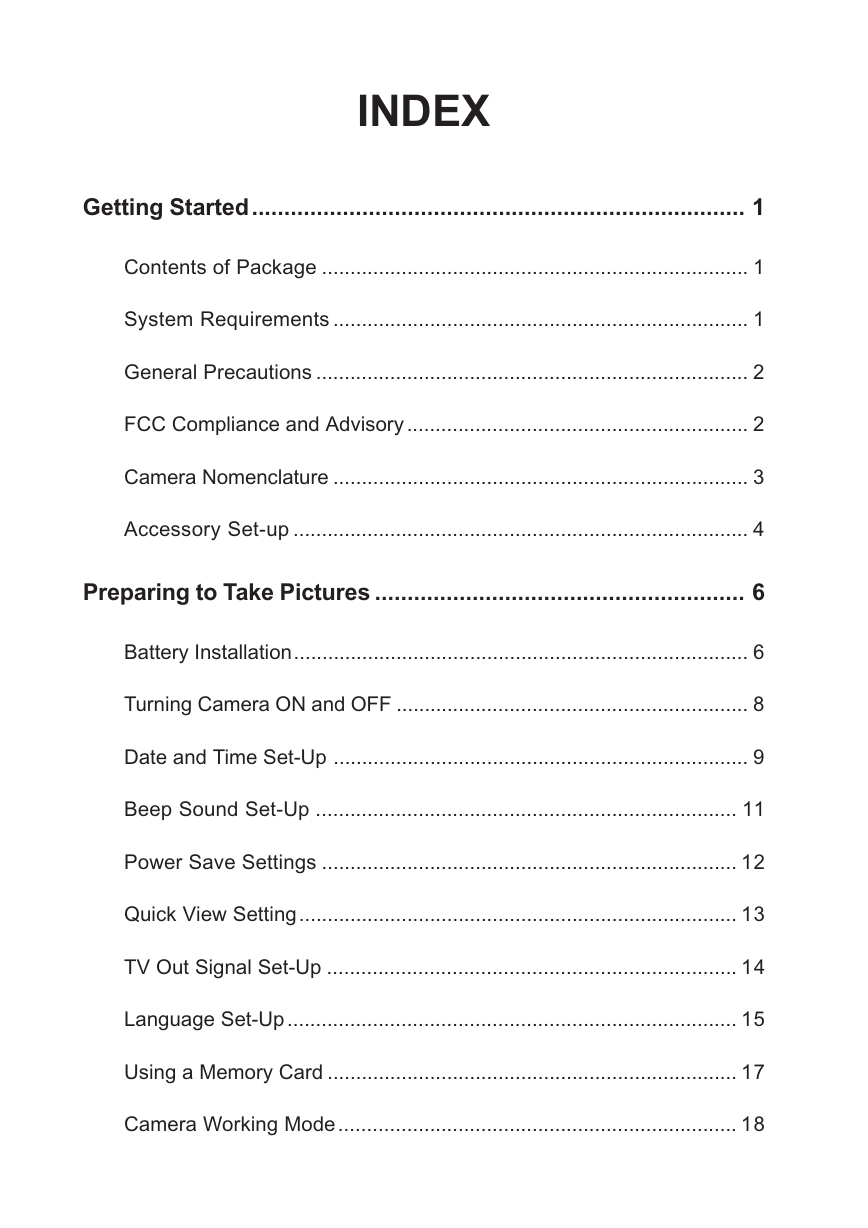

INDEX Getting Started............................................................................ 1 Contents of Package ........................................................................... 1 System Requirements ......................................................................... 1 General Precautions ............................................................................ 2 FCC Compliance and Advisory ............................................................ 2 Camera Nomenclature ......................................................................... 3 Accessory Set-up ................................................................................ 4 Preparing to Take Pictures ......................................................... 6 Battery Installation................................................................................ 6 Turning Camera ON and OFF .............................................................. 8 Date and Time Set-Up ......................................................................... 9 Beep Sound Set-Up .......................................................................... 11 Power Save Settings ......................................................................... 12 Quick View Setting............................................................................. 13 TV Out Signal Set-Up ........................................................................ 14 Language Set-Up ............................................................................... 15 Using a Memory Card ........................................................................ 17 Camera Working Mode ...................................................................... 18

Taking Pictures ......................................................................... 19 Previewing a Picture before it is taken............................................... 19 Taking a picture .................................................................................. 20 Adjusting the Exposure ..................................................................... 22 Setting the White Balance ................................................................. 23 Changing the Picture Resolution and Quality (Compression) ........... 24 Setting the Flash ................................................................................ 25 Using Digital Zoom ............................................................................ 26 Continuous Shutter Mode .................................................................. 27 Setting Self-Timer .............................................................................. 28 Recording Video images ................................................................... 29 Functions Available in Each Shooting Mode...................................... 30 Reviewing Your Pictures and Videos ....................................... 31 Viewing Pictures ................................................................................ 31 Viewing Pictures in Thumbnail ........................................................... 31 Zooming the Displayed Image .......................................................... 32 Deleting Pictures ............................................................................... 34 Protecting Pictures against Deletion ................................................. 36 Running a Slide Show........................................................................ 38

Copying Flash Memory Images to a Memory Card ........................... 39 Formatting Memory Card or On board memory ................................. 40 Setting Your Camera for Printing ............................................ 41 Folders and Files ................................................................................ 41 DPOF Print Settings ........................................................................... 42 PRINT Image Matching ...................................................................... 44 Connecting your camera......................................................... 45 Viewing Images on a TV Set .............................................................. 45 Installing the Software ............................................................. 46 Installation of camera on the PC......................................................... 46 Transfer of pictures from camera on PC............................................ 47 Installation of the camera on MAC...................................................... 48 Indicator Lamp Reference.................................................................. 50 Troubleshooting .................................................................................. 51 Specifications...................................................................................... 53

Getting Started Contents of Package All of the items shown below are included with your camera. Getting Started Camera USB cable Video cable Strap Soft case User's Guide CD-ROM Alkaline batteries (2 AA-size batteries) System Requirements For Windows PC with processor better than MMX Pentium 233MHz Windows 98/98se/2000/ME/XP Minimum 32MB RAM USB Port CD-ROM drive 800x600 pixels, 16-bit color display compatible monitor For Macintosh Power Mac G3 or later Mac OS 9.0, 9.1, 9.2 and OS X Minimum 64MB RAM USB Port CD-ROM drive 800x600 pixels, 16-bit color display compatible monitor * Specifications are subject to change without prior notice. 1

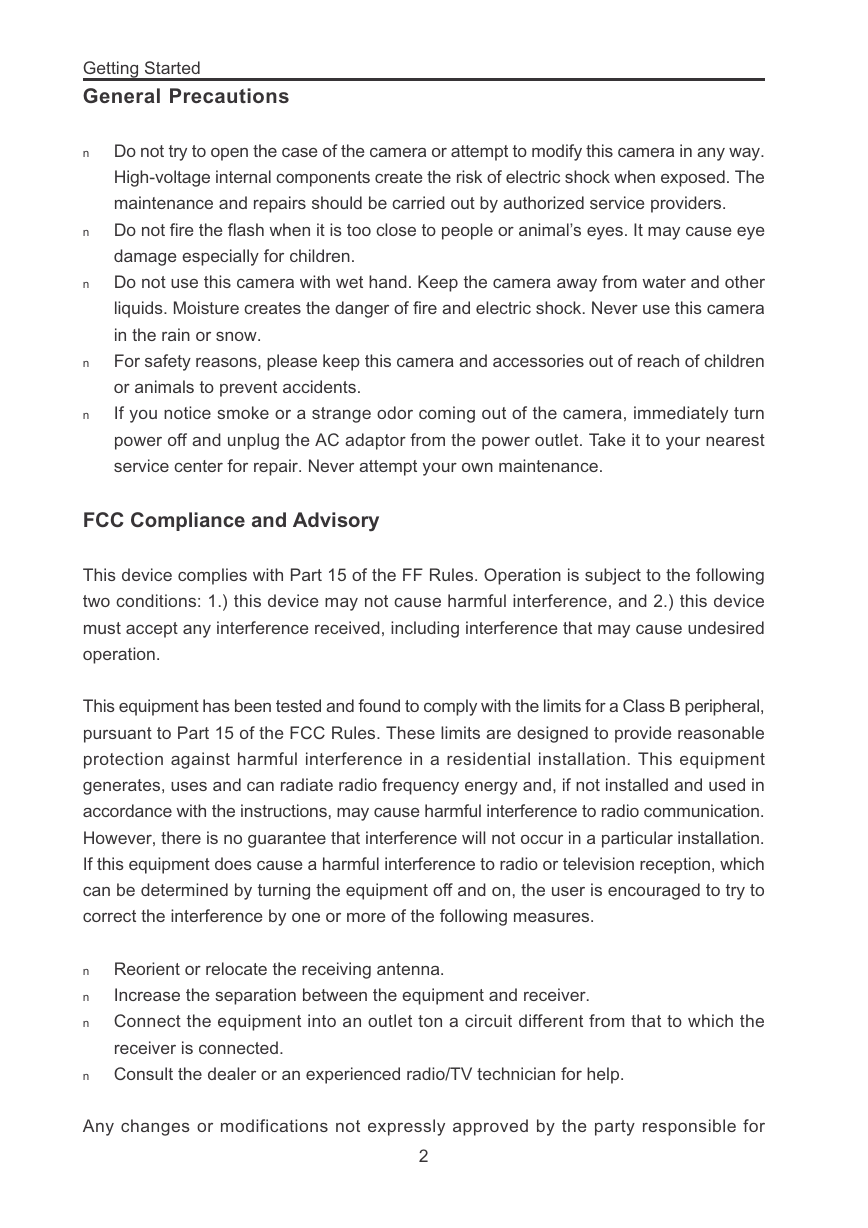

Getting Started General Precautions n Do not try to open the case of the camera or attempt to modify this camera in any way. High-voltage internal components create the risk of electric shock when exposed. The maintenance and repairs should be carried out by authorized service providers. n Do not fire the flash when it is too close to people or animal’s eyes. It may cause eye damage especially for children. n n Do not use this camera with wet hand. Keep the camera away from water and other liquids. Moisture creates the danger of fire and electric shock. Never use this camera in the rain or snow. For safety reasons, please keep this camera and accessories out of reach of children or animals to prevent accidents. If you notice smoke or a strange odor coming out of the camera, immediately turn power off and unplug the AC adaptor from the power outlet. Take it to your nearest service center for repair. Never attempt your own maintenance. n FCC Compliance and Advisory This device complies with Part 15 of the FF Rules. Operation is subject to the following two conditions: 1.) this device may not cause harmful interference, and 2.) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B peripheral, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communication. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause a harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures. n Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. n n Connect the equipment into an outlet ton a circuit different from that to which the receiver is connected. n Consult the dealer or an experienced radio/TV technician for help. Any changes or modifications not expressly approved by the party responsible for 2

Getting Started compliance could void the user’s authority to operate the equipment. Where shielded interface cables have been provided with the product or specified additional components or accessories elsewhere defined to be used with the installation of the product, they must be used in order to ensure compliance with FCC regulation. Camera Nomenclature Front Flash Viewfinder Microphone Lens Self-timer lamp Back Operation lamp Viewfinder button Power button / Self-timer / Left button / Zoom In / Up button / Continuous shutter / Right button / Zoom Out / Down button LCD Monitor screen Battery cover / /Stop button / / Flash / / Play / / Pause button 3

Getting Started Side DC IN terminal Video out terminal USB port Top Shutter button Mode dial Accessory Set-up Attaching the Wrist Strap · Follow illustrations to add the wrist strap. Note: When carrying the camera by the strap, please don’t swing the cam- era on the strap. 4
