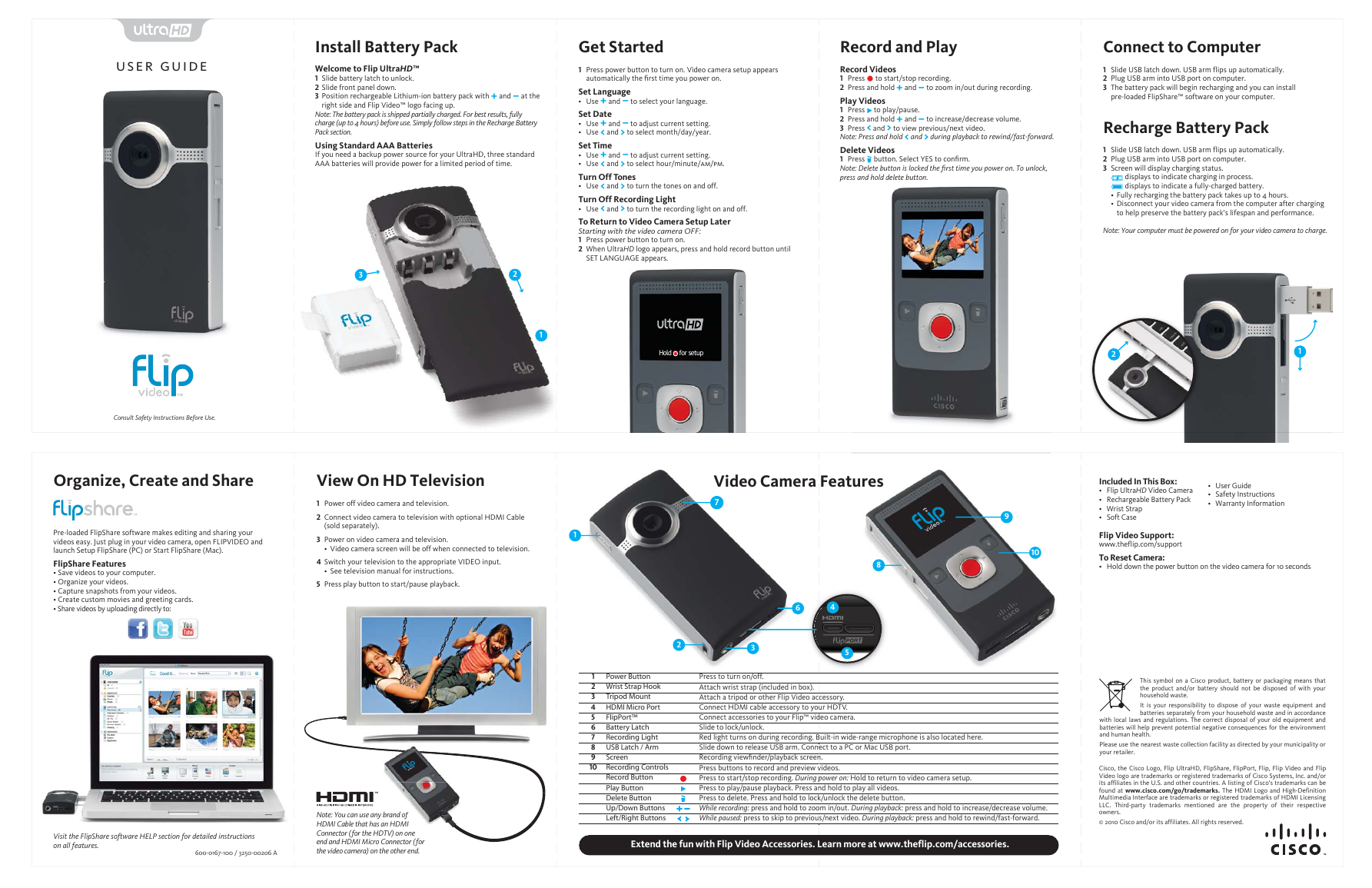

user guide Install Battery Pack Welcome to Flip UltraHD™ 1 Slide battery latch to unlock. 2 Slide front panel down. 3 Position rechargeable Lithium-ion battery pack with + and – at the right side and Flip Video™ logo facing up. Note: The battery pack is shipped partially charged. For best results, fully charge (up to 4 hours) before use. Simply follow steps in the Recharge Battery Pack section. Using Standard AAA Batteries If you need a backup power source for your UltraHD, three standard AAA batteries will provide power for a limited period of time. 3 2 Get Started 1 Press power button to turn on. Video camera setup appears automatically the first time you power on. Set Language • Use + and – to select your language. Set Date • Use + and – to adjust current setting. • Use < and > to select month/day/year. Set Time • Use + and – to adjust current setting. • Use < and > to select hour/minute/am/pm. Turn Off Tones • Use < and > to turn the tones on and off. Turn Off Recording Light • Use < and > to turn the recording light on and off. To Return to Video Camera Setup Later Starting with the video camera OFF: 1 Press power button to turn on. 2 When UltraHD logo appears, press and hold record button until SET LANGUAGE appears. Record and Play Record Videos 1 Press to start/stop recording. 2 Press and hold + and – to zoom in/out during recording. Play Videos 1 Press to play/pause. 2 Press and hold + and – to increase/decrease volume. 3 Press < and > to view previous/next video. Note: Press and hold < and > during playback to rewind/fast-forward. Delete Videos 1 Press button. Select YES to confirm. Note: Delete button is locked the first time you power on. To unlock, press and hold delete button. Connect to Computer 1 Slide USB latch down. USB arm flips up automatically. 2 Plug USB arm into USB port on computer. 3 The battery pack will begin recharging and you can install pre-loaded FlipShare™ software on your computer. Recharge Battery Pack 1 Slide USB latch down. USB arm flips up automatically. 2 Plug USB arm into USB port on computer. 3 Screen will display charging status. Note: Your computer must be powered on for your video camera to charge. displays to indicate charging in process. displays to indicate a fully-charged battery. • Fully recharging the battery pack takes up to 4 hours. • Disconnect your video camera from the computer after charging to help preserve the battery pack’s lifespan and performance. 1 Hold •• for setup 2 1 Consult Safety Instructions Before Use. Organize, Create and Share Pre-loaded FlipShare software makes editing and sharing your videos easy. Just plug in your video camera, open FLIPVIDEO and launch Setup FlipShare (PC) or Start FlipShare (Mac). FlipShare Features • Save videos to your computer. • Organize your videos. • Capture snapshots from your videos. • Create custom movies and greeting cards. • Share videos by uploading directly to: View On HD Television 1 Power off video camera and television. 2 Connect video camera to television with optional HDMI Cable 3 Power on video camera and television. 4 Switch your television to the appropriate VIDEO input. 5 Press play button to start/pause playback. • Video camera screen will be off when connected to television. (sold separately). • See television manual for instructions. Visit the FlipShare software HELP section for detailed instructions on all features. 600-0167-100 / 3250-00206 A brand of Note: You can use any brand of an HDMI HDMI Cable that has an HDMI Connector (for the HDTV) on one end and HDMI Micro Connector (for the video camera) on the other end. 1 Video Camera Features 7 8 6 4 9 10 Included In This Box: • Flip UltraHD Video Camera • Rechargeable Battery Pack • Wrist Strap • Soft Case • User Guide • Safety Instructions • Warranty Information Flip Video Support: www.theflip.com/support To Reset Camera: • Hold down the power button on the video camera for 10 seconds 2 3 5 1 2 3 4 5 6 7 8 9 10 Power Button Wrist Strap Hook Tripod Mount HDMI Micro Port FlipPort™ Battery Latch Recording Light USB Latch / Arm Screen Recording Controls Record Button Play Button Delete Button Up/Down Buttons Left/Right Buttons c u u d Press to turn on/off. Attach wrist strap (included in box). Attach a tripod or other Flip Video accessory. Connect HDMI cable accessory to your HDTV. Connect accessories to your Flip™ video camera. Slide to lock/unlock. Red light turns on during recording. Built-in wide-range microphone is also located here. B B Slide down to release USB arm. Connect to a PC or Mac USB port. e Recording viewfinder/playback screen. n n Press buttons to record and preview videos. v Press to start/stop recording. During power on: Hold to return to video camera setup. p p p Press to play/pause playback. Press and hold to play all videos. n Press to delete. Press and hold to lock/unlock the delete button. k k While recording: press and hold to zoom in/out. During playback: press and hold to increase/decrease volume. o While paused: press to skip to previous/next video. During playback: press and hold to rewind/fast-forward. Extend the fun with Flip Video Accessories. Learn more at www.theflip.com/accessories. L L This symbol on a Cisco product, battery or packaging means that the product and/or battery should not be disposed of with your household waste. It is your responsibility to dispose of your waste equipment and batteries separately from your household waste and in accordance with local laws and regulations. The correct disposal of your old equipment and batteries will help prevent potential negative consequences for the environment and human health. Please use the nearest waste collection facility as directed by your municipality or your retailer. Cisco, the Cisco Logo, Flip UltraHD, FlipShare, FlipPort, Flip, Flip Video and Flip Video logo are trademarks or registered trademarks of Cisco Systems, Inc. and/or its affiliates in the U.S. and other countries. A listing of Cisco's trademarks can be found at www.cisco.com/go/trademarks. The HDMI Logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC. Third-party trademarks mentioned are the property of their respective owners. © 2010 Cisco and/or its affiliates. All rights reserved.
