VISION
1609s
R9002240
R9002249
OWNER’S MANUAL
BARCO PROJECTION SYSTEMS
VISION
1609s
R9002240
R9002249
OWNER’S MANUAL
Date :
131097
Art. No. :
R5975688
Due to constant research, the information in this manual is subject to change without notice.
Produced by BARCO NV, October 1997.
All  rights  reserved.
Trademarks  are  the  rights  of  their  respective  owners.
BARCO nv/Projection Systems
Noordlaan 5
B-8520 Kuurne
Belgium
Tel : +32/56/368211
Fax : +32/56/351651
E-mail : sales.bps@barco.com
Visite Barco at the web : http://www.barco.com
Printed in Belgium
Table of Contents
Table  of  contents ................................................................................................................................................................................. i
Safety  instructions ......................................................................................................................................................................... 1-1
On  safety ................................................................................................................................................................................... 1-1
On installation ............................................................................................................................................................................. 1-2
On  servicing ............................................................................................................................................................................... 1-2
On cleaning ................................................................................................................................................................................ 1-2
On repacking .............................................................................................................................................................................. 1-2
On illumination............................................................................................................................................................................. 1-2
Location  and  Functions  of  Control .............................................................................................................................................. 2-1
Rear panel terminology .............................................................................................................................................................. 2-1
Front panel terminology .............................................................................................................................................................. 2-1
Control panel terminology .......................................................................................................................................................... 2-2
a. The Local Keypad .................................................................................................................................................................. 2-2
b. RCU control panel terminology ............................................................................................................................................... 2-2
Connections ..................................................................................................................................................................................... 3-1
AC Power (mains) Cord Connection ......................................................................................................................................... 3-1
Power  Check .............................................................................................................................................................................. 3-1
Switching  On/Off ....................................................................................................................................................................... 3-1
Signal Input Connection to the Projector : .................................................................................................................................. 3-2
Connecting a Composite Video source to port 1. ..................................................................................................................... 3-3
Connecting a S-Video or Video source to port 2. ..................................................................................................................... 3-3
Connecting a RGB Analog source to port 3. ............................................................................................................................. 3-4
Connecting a RGB Analog source to port 4/5. .......................................................................................................................... 3-4
Connecting a RGB Analog source with Tri-level sync to port 4/5.(option) .............................................................................. 3-5
Connecting a Component Video source to port 4/5. ................................................................................................................. 3-5
Connecting a Component Video source with Tri-level sync to port 4/5.(Opion) ..................................................................... 3-5
Peripheral equipment .................................................................................................................................................................. 3-6
Connecting a RCVDS 05 switcher to the projector .................................................................................................................. 3-6
Connecting  a  VS05  switcher  to  the  projector. ......................................................................................................................... 3-6
Connecting an IR Remote Receiver to the projector ................................................................................................................. 3-6
Controlling ........................................................................................................................................................................................ 4-1
Battery installation in the RCU. ................................................................................................................................................... 4-1
How to use your RCU ................................................................................................................................................................ 4-2
Projector  Address ...................................................................................................................................................................... 4-2
How  to  display  a  projector  address? ........................................................................................................................................ 4-3
How to program an address into the RCU? .............................................................................................................................. 4-3
Input selection ............................................................................................................................................................................ 4-3
Analog Picture Controls ............................................................................................................................................................. 4-4
Controlling chained projectors. .................................................................................................................................................. 4-4
Start  up  of  the  Adjustment  Mode ............................................................................................................................................... 5-1
Adjustment Mode ....................................................................................................................................................................... 5-1
Random  Access  Adjustment  Mode ............................................................................................................................................ 6-1
Starting-Up the Random Access Adjustment mode. ................................................................................................................. 6-1
Overview  ’Random  Access  Adjustment’  mode ........................................................................................................................ 6-1
Selecting Setup Pattern .............................................................................................................................................................. 6-3
Internal Cross Hatch Pattern ...................................................................................................................................................... 6-3
Random access adjustment mode selection menu. .................................................................................................................. 6-4
Picture Tuning............................................................................................................................................................................. 6-4
Color Balance ............................................................................................................................................................................. 6-4
Sync  Fast/Slow  Adjustment ...................................................................................................................................................... 6-5
Peaking ....................................................................................................................................................................................... 6-5
Clamp Tuning .............................................................................................................................................................................. 6-5
Port 2 : Video or S-Video ........................................................................................................................................................... 6-6
Line Doubler ............................................................................................................................................................................... 6-6
Color Select ................................................................................................................................................................................ 6-6
Focusing ..................................................................................................................................................................................... 6-7
Focusing  color  select. ................................................................................................................................................................ 6-7
Blue on source ........................................................................................................................................................................... 6-7
Geometry  Adjustments .............................................................................................................................................................. 6-8
Horizontal Phase Adjustment ..................................................................................................................................................... 6-8
Raster Shift Adjustment ............................................................................................................................................................. 6-9
Left-Right  (east-west)  Adjustments ....................................................................................................................................... 6-10
Seagull  correction .................................................................................................................................................................... 6-11
Left Side Correction ................................................................................................................................................................. 6-11
Top-Bottom  (north-south)  Adjustments ................................................................................................................................... 6-12
Seagull Correction .................................................................................................................................................................... 6-13
Horizontal Size Adjustment ...................................................................................................................................................... 6-13
Vertical  Linearity  Adjustment ................................................................................................................................................... 6-14
Vertical  Size  Adjustment ......................................................................................................................................................... 6-14
5975688 BARCOVISION 1609s 131097
i-1
Table of Contents
Blanking Adjustments ............................................................................................................................................................... 6-15
Convergence  Adjustment ........................................................................................................................................................ 6-16
Service  mode ................................................................................................................................................................................... 7-1
Starting up the Service mode. ................................................................................................................................................... 7-1
Overview  flowchart  ’Service’  mode. ........................................................................................................................................ 7-1
Identification ............................................................................................................................................................................... 7-2
Copy a block ............................................................................................................................................................................... 7-2
Deletion of blocks ....................................................................................................................................................................... 7-3
Deleting block by block ............................................................................................................................................................... 7-3
Deletion of all blocks .................................................................................................................................................................. 7-3
Change  password ..................................................................................................................................................................... 7-4
Change Language ...................................................................................................................................................................... 7-4
Run time ...................................................................................................................................................................................... 7-4
Set to midposition ....................................................................................................................................................................... 7-5
Undo Midposition ........................................................................................................................................................................ 7-5
Convergence Mid ....................................................................................................................................................................... 7-5
Undo Convergence Mid(position) .............................................................................................................................................. 7-5
Dynamic Astigmatism (spot shape adjustment) ........................................................................................................................ 7-6
G2  Adjust ................................................................................................................................................................................... 7-7
Gamma corrections .................................................................................................................................................................... 7-7
CRT run in cycle ......................................................................................................................................................................... 7-7
Projector Warm Up ..................................................................................................................................................................... 7-8
CRT Drive Mode ......................................................................................................................................................................... 7-8
Messages,  warnings  and  failures .............................................................................................................................................. 8-1
Options .............................................................................................................................................................................................. 9-1
Appendix A : Orbiting .......................................................................................................................................................................... A-1
Appendix B : Adjsutment Blocks and Source Numbers 90-99 .......................................................................................................... B-1
i-2
5975688 BARCOVISION 1609s 131097

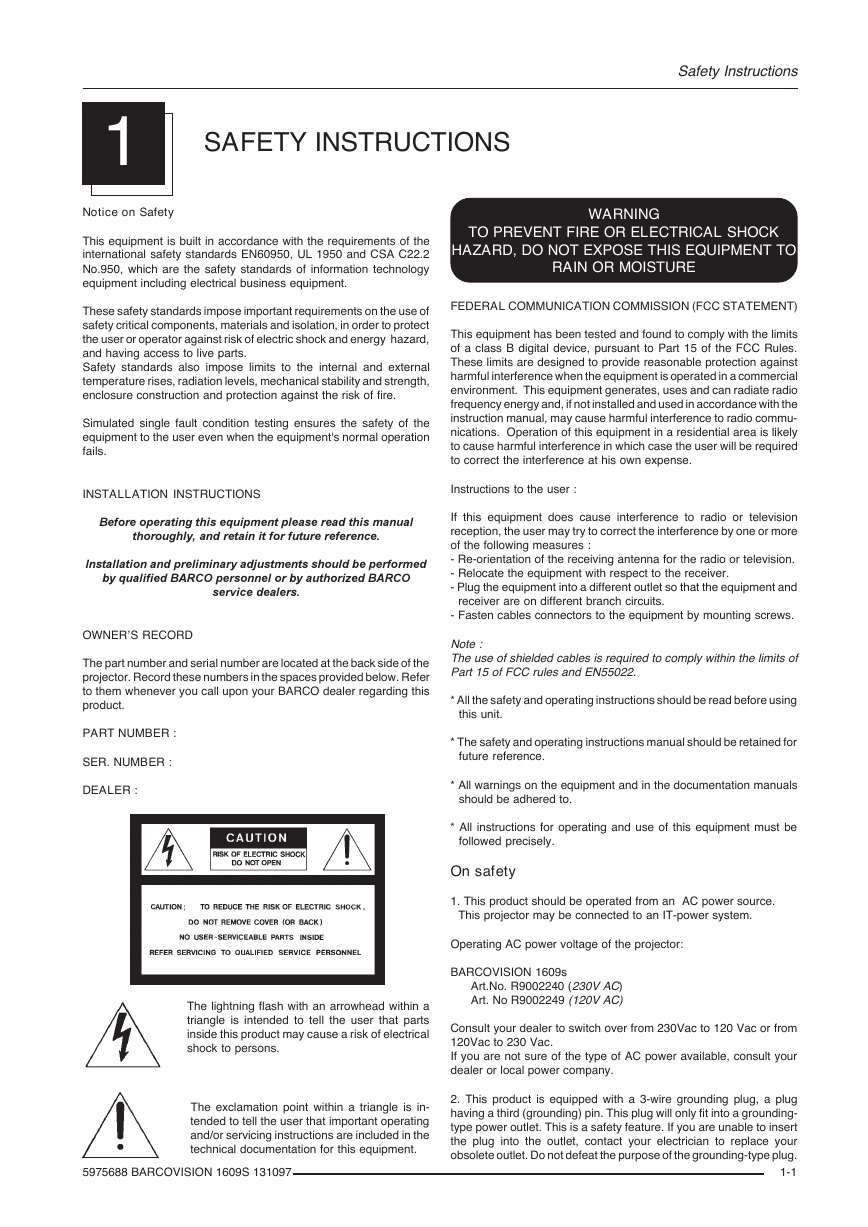

SAFETY INSTRUCTIONS
Safety Instructions
1
Notice on Safety
This equipment is built in accordance with the requirements of the
international safety standards EN60950, UL 1950 and CSA C22.2
No.950,  which  are  the  safety  standards  of  information  technology
equipment including electrical business equipment.
These safety standards impose important requirements on the use of
safety critical components, materials and isolation, in order to protect
the user or operator against risk of electric shock and energy  hazard,
and having access to live parts.
Safety  standards  also  impose  limits  to  the  internal  and  external
temperature rises, radiation levels, mechanical stability and strength,
enclosure construction and protection against the risk of fire.
Simulated  single  fault  condition  testing  ensures  the  safety  of  the
equipment to the user even when the equipment's normal operation
fails.
WARNING
TO PREVENT FIRE OR ELECTRICAL SHOCK
HAZARD, DO NOT EXPOSE THIS EQUIPMENT TO
RAIN OR MOISTURE
FEDERAL COMMUNICATION COMMISSION (FCC STATEMENT)
This equipment has been tested and found to comply with the limits
of a class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a commercial
environment.  This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio commu-
nications.  Operation of this equipment in a residential area is likely
to cause harmful interference in which case the user will be required
to correct the interference at his own expense.
INSTALLATION  INSTRUCTIONS
Instructions to the user :
Before operating this equipment please read this manual
thoroughly, and retain it for future reference.
Installation and preliminary adjustments should be performed
by qualified BARCO personnel or by authorized BARCO
service dealers.
OWNER’S RECORD
The part number and serial number are located at the back side of the
projector. Record these numbers in the spaces provided below. Refer
to them whenever you call upon your BARCO dealer regarding this
product.
PART NUMBER :
SER. NUMBER :
DEALER :
The lightning flash with an arrowhead within a
triangle  is  intended  to  tell  the  user  that  parts
inside this product may cause a risk of electrical
shock to persons.
The  exclamation  point  within  a  triangle  is  in-
tended to tell the user that important operating
and/or servicing instructions are included in the
technical documentation for this equipment.
5975688 BARCOVISION 1609S 131097
If  this  equipment  does  cause  interference  to  radio  or  television
reception, the user may try to correct the interference by one or more
of the following measures :
- Re-orientation of the receiving antenna for the radio or television.
- Relocate the equipment with respect to the receiver.
- Plug the equipment into a different outlet so that the equipment and
receiver are on different branch circuits.
- Fasten cables connectors to the equipment by mounting screws.
Note :
The use of shielded cables is required to comply within the limits of
Part 15 of FCC rules and EN55022.
* All the safety and operating instructions should be read before using
this unit.
* The safety and operating instructions manual should be retained for
future reference.
* All warnings on the equipment and in the documentation manuals
should be adhered to.
* All instructions for operating and use of this equipment must be
followed precisely.
On safety
1. This product should be operated from an  AC power source.
This projector may be connected to an IT-power system.
Operating AC power voltage of the projector:
BARCOVISION 1609s
Art.No. R9002240 (230V AC)
Art. No R9002249 (120V AC)
Consult your dealer to switch over from 230Vac to 120 Vac or from
120Vac to 230 Vac.
If you are not sure of the type of AC power available, consult your
dealer or local power company.
2.  This  product  is  equipped  with  a  3-wire  grounding  plug,  a  plug
having a third (grounding) pin. This plug will only fit into a grounding-
type power outlet. This is a safety feature. If you are unable to insert
the  plug  into  the  outlet,  contact  your  electrician  to  replace  your
obsolete outlet. Do not defeat the purpose of the grounding-type plug.
1-1

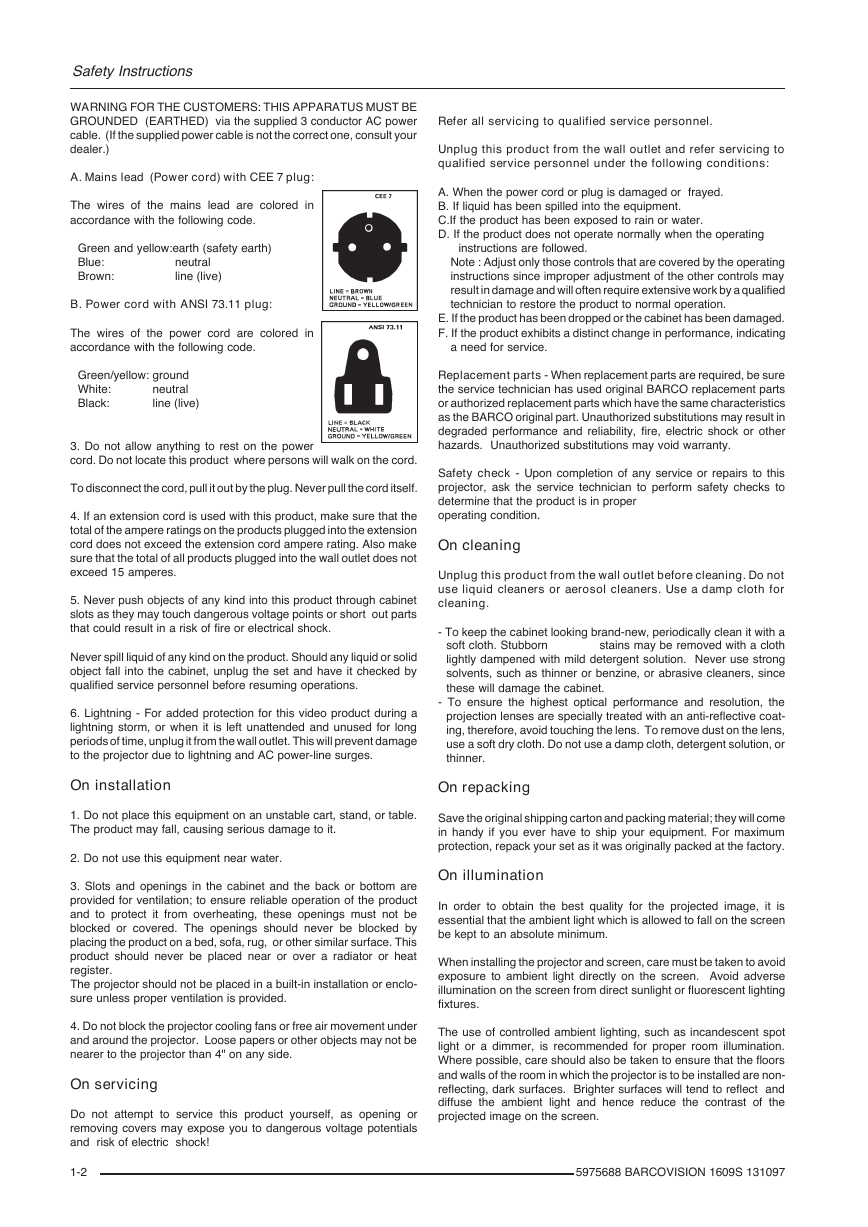

Safety Instructions
WARNING FOR THE CUSTOMERS: THIS APPARATUS MUST BE
GROUNDED  (EARTHED)  via the supplied 3 conductor AC power
cable.  (If the supplied power cable is not the correct one, consult your
dealer.)
A. Mains lead  (Power cord) with CEE 7 plug:
The  wires  of  the  mains  lead  are  colored  in
accordance with the following code.
Green and yellow:earth (safety earth)
Blue:
Brown:
neutral
line (live)
B. Power cord with ANSI 73.11 plug:
The  wires  of  the  power  cord  are  colored  in
accordance with the following code.
Green/yellow: ground
neutral
White:
Black:
line (live)
3.  Do  not  allow  anything  to  rest  on  the  power
cord. Do not locate this product  where persons will walk on the cord.
To disconnect the cord, pull it out by the plug. Never pull the cord itself.
4. If an extension cord is used with this product, make sure that the
total of the ampere ratings on the products plugged into the extension
cord does not exceed the extension cord ampere rating. Also make
sure that the total of all products plugged into the wall outlet does not
exceed 15 amperes.
5. Never push objects of any kind into this product through cabinet
slots as they may touch dangerous voltage points or short  out parts
that could result in a risk of fire or electrical shock.
Never spill liquid of any kind on the product. Should any liquid or solid
object fall into the cabinet, unplug the set and have it checked by
qualified service personnel before resuming operations.
6. Lightning - For added protection for this video product during a
lightning  storm,  or  when  it  is  left  unattended  and  unused  for  long
periods of time, unplug it from the wall outlet. This will prevent damage
to the projector due to lightning and AC power-line surges.
Refer all servicing to qualified service personnel.
Unplug this product from the wall outlet and refer servicing to
qualified service personnel under the following conditions:
A. When the power cord or plug is damaged or  frayed.
B. If liquid has been spilled into the equipment.
C.If the product has been exposed to rain or water.
D. If the product does not operate normally when the operating
instructions are followed.
Note : Adjust only those controls that are covered by the operating
instructions since improper adjustment of the other controls may
result in damage and will often require extensive work by a qualified
technician to restore the product to normal operation.
E. If the product has been dropped or the cabinet has been damaged.
F. If the product exhibits a distinct change in performance, indicating
a need for service.
Replacement parts - When replacement parts are required, be sure
the service technician has used original BARCO replacement parts
or authorized replacement parts which have the same characteristics
as the BARCO original part. Unauthorized substitutions may result in
degraded  performance  and  reliability,  fire,  electric  shock  or  other
hazards.  Unauthorized substitutions may void warranty.
Safety  check  -  Upon  completion  of  any  service  or  repairs  to  this
projector,  ask  the  service  technician  to  perform  safety  checks  to
determine that the product is in proper
operating condition.
On cleaning
Unplug this product from the wall outlet before cleaning. Do not
use liquid cleaners or aerosol cleaners. Use a damp cloth for
cleaning.
- To keep the cabinet looking brand-new, periodically clean it with a
soft cloth. Stubborn
 stains may be removed with a cloth
lightly dampened with mild detergent solution.  Never use strong
solvents, such as thinner or benzine, or abrasive cleaners, since
these will damage the cabinet.
-  To  ensure  the  highest  optical  performance  and  resolution,  the
projection lenses are specially treated with an anti-reflective coat-
ing, therefore, avoid touching the lens.  To remove dust on the lens,
use a soft dry cloth. Do not use a damp cloth, detergent solution, or
thinner.
On installation
On repacking
1. Do not place this equipment on an unstable cart, stand, or table.
The product may fall, causing serious damage to it.
2. Do not use this equipment near water.
3.  Slots  and  openings  in  the  cabinet  and  the  back  or  bottom  are
provided for ventilation; to ensure reliable operation of the product
and  to  protect  it  from  overheating,  these  openings  must  not  be
blocked  or  covered.  The  openings  should  never  be  blocked  by
placing the product on a bed, sofa, rug,  or other similar surface. This
product  should  never  be  placed  near  or  over  a  radiator  or  heat
register.
The projector should not be placed in a built-in installation or enclo-
sure unless proper ventilation is provided.
4. Do not block the projector cooling fans or free air movement under
and around the projector.  Loose papers or other objects may not be
nearer to the projector than 4" on any side.
On servicing
Do  not  attempt  to  service  this  product  yourself,  as  opening  or
removing covers may expose you to dangerous voltage potentials
and  risk of electric  shock!
Save the original shipping carton and packing material; they will come
in  handy  if  you  ever  have  to  ship  your  equipment.  For  maximum
protection, repack your set as it was originally packed at the factory.
On illumination
In  order  to  obtain  the  best  quality  for  the  projected  image,  it  is
essential that the ambient light which is allowed to fall on the screen
be kept to an absolute minimum.
When installing the projector and screen, care must be taken to avoid
exposure  to  ambient  light  directly  on  the  screen.    Avoid  adverse
illumination on the screen from direct sunlight or fluorescent lighting
fixtures.
The use of controlled ambient lighting, such as incandescent spot
light  or  a  dimmer,  is  recommended  for  proper  room  illumination.
Where possible, care should also be taken to ensure that the floors
and walls of the room in which the projector is to be installed are non-
reflecting, dark surfaces.  Brighter surfaces will tend to reflect  and
diffuse  the  ambient  light  and  hence  reduce  the  contrast  of  the
projected image on the screen.
1-2
5975688 BARCOVISION 1609S 131097
