华硕主板-MES-B说明书.pdf

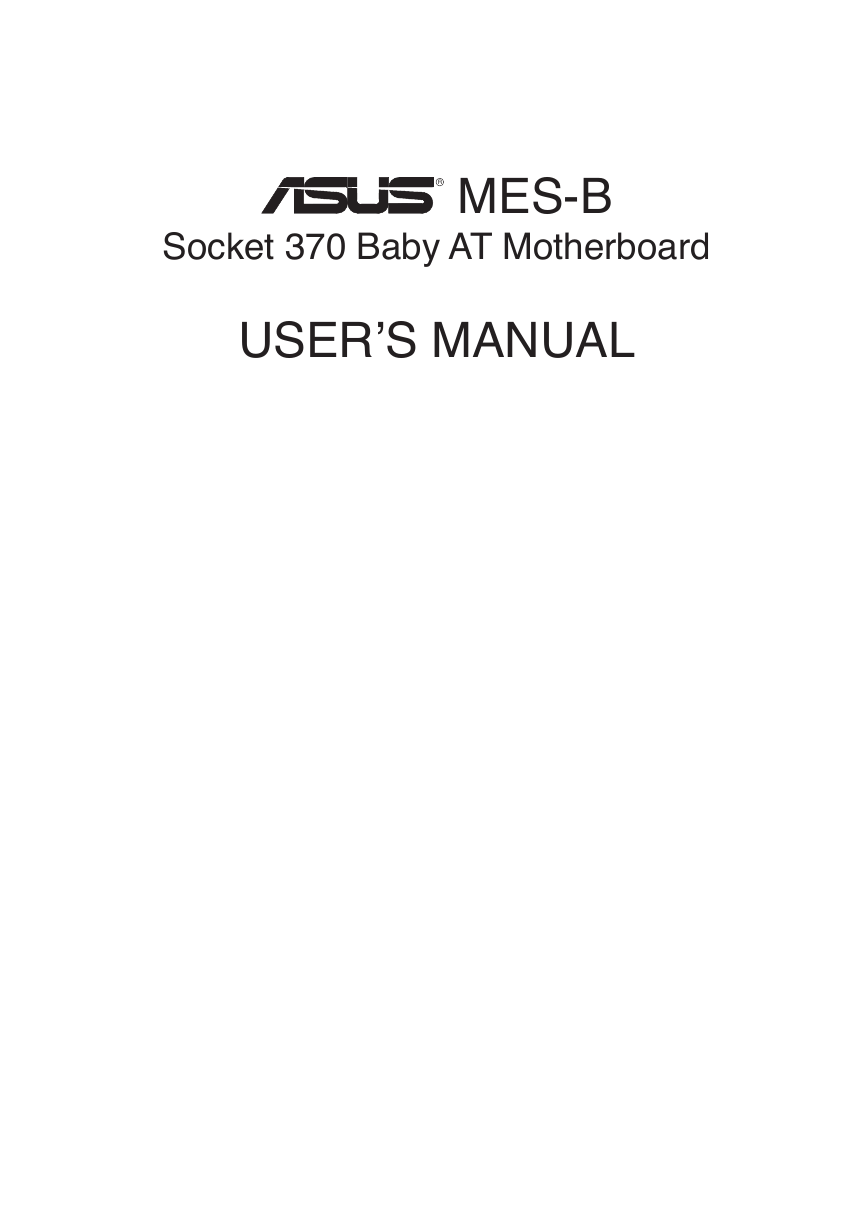

R MES-B
Socket 370 Baby AT Motherboard
USER’S MANUAL

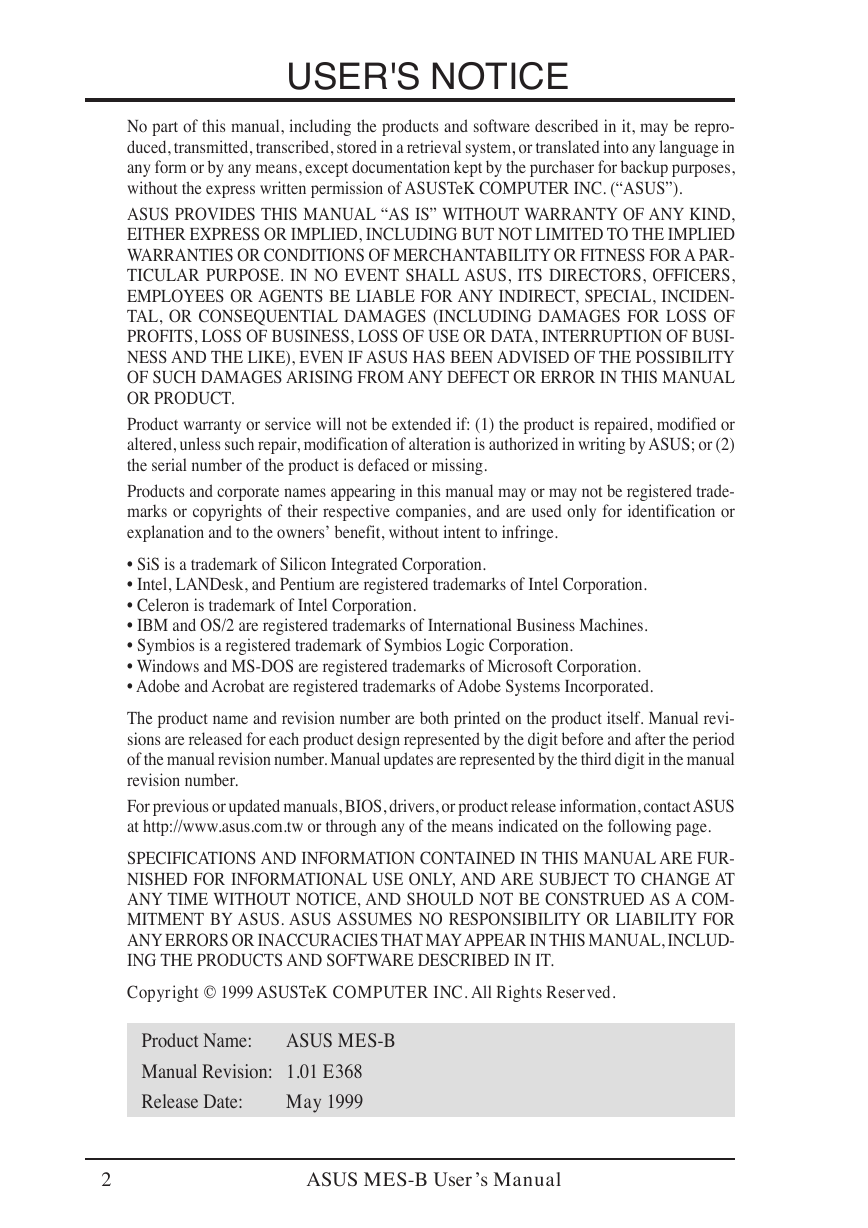

USER'S NOTICE
No part of this manual, including the products and software described in it, may be repro-
duced, transmitted, transcribed, stored in a retrieval system, or translated into any language in
any form or by any means, except documentation kept by the purchaser for backup purposes,
without the express written permission of ASUSTeK COMPUTER INC. (“ASUS”).
ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND,
EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED
WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A PAR-
TICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS,
EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDEN-
TAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF
PROFITS, LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSI-
NESS AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY
OF SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL
OR PRODUCT.
Product warranty or service will not be extended if: (1) the product is repaired, modified or
altered, unless such repair, modification of alteration is authorized in writing by ASUS; or (2)
the serial number of the product is defaced or missing.
Products and corporate names appearing in this manual may or may not be registered trade-
marks or copyrights of their respective companies, and are used only for identification or
explanation and to the owners’ benefit, without intent to infringe.
• SiS is a trademark of Silicon Integrated Corporation.
• Intel, LANDesk, and Pentium are registered trademarks of Intel Corporation.
• Celeron is trademark of Intel Corporation.
• IBM and OS/2 are registered trademarks of International Business Machines.
• Symbios is a registered trademark of Symbios Logic Corporation.
• Windows and MS-DOS are registered trademarks of Microsoft Corporation.
• Adobe and Acrobat are registered trademarks of Adobe Systems Incorporated.
The product name and revision number are both printed on the product itself. Manual revi-
sions are released for each product design represented by the digit before and after the period
of the manual revision number. Manual updates are represented by the third digit in the manual
revision number.
For previous or updated manuals, BIOS, drivers, or product release information, contact ASUS
at http://www.asus.com.tw or through any of the means indicated on the following page.
SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FUR-
NISHED FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT
ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A COM-
MITMENT BY ASUS. ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY FOR
ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS MANUAL, INCLUD-
ING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.
Copyright © 1999 ASUSTeK COMPUTER INC. All Rights Reserved.
ASUS MES-B
Product Name:
Manual Revision: 1.01 E368
May 1999
Release Date:
2
ASUS MES-B User’s Manual

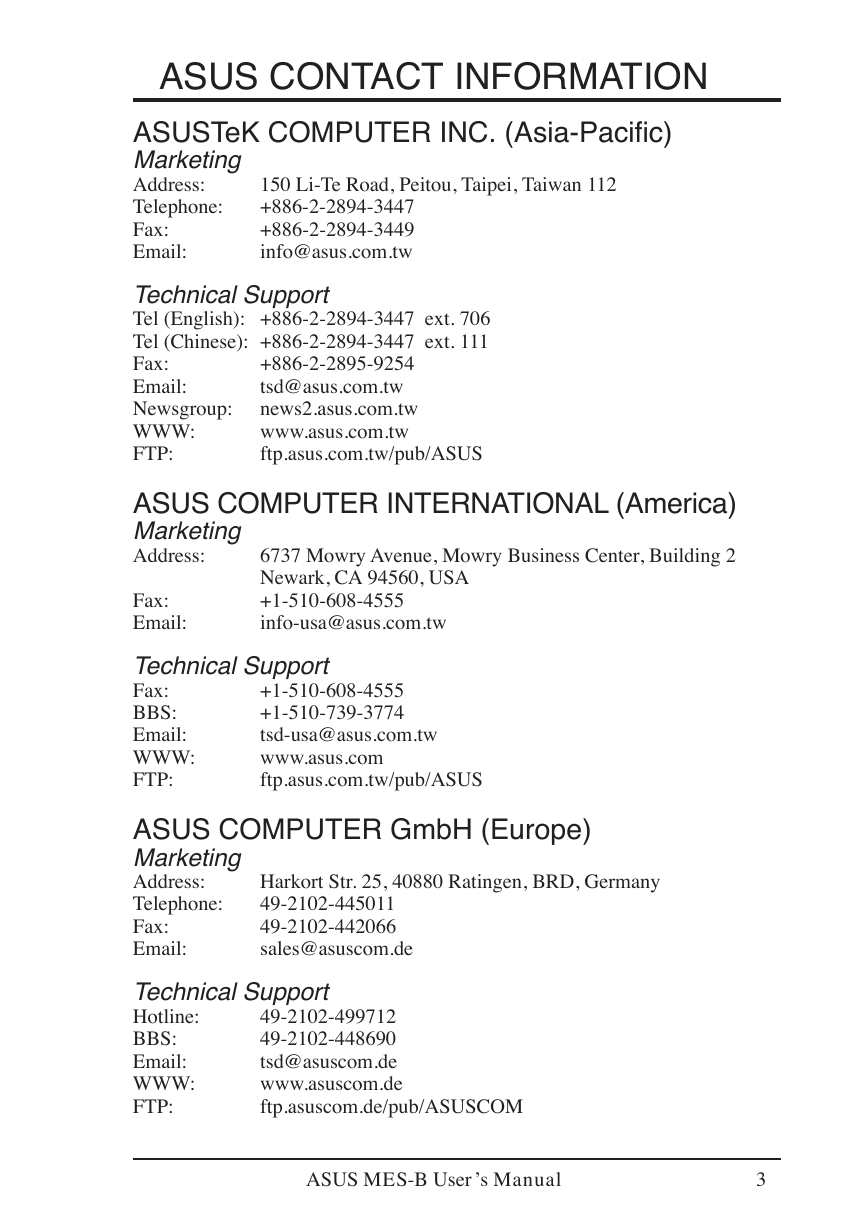

ASUS CONTACT INFORMATION
ASUSTeK COMPUTER INC. (Asia-Pacific)
Marketing
Address:
Telephone:
Fax:
Email:
150 Li-Te Road, Peitou, Taipei, Taiwan 112
+886-2-2894-3447
+886-2-2894-3449
info@asus.com.tw
Technical Support
Tel (English): +886-2-2894-3447 ext. 706
Tel (Chinese): +886-2-2894-3447 ext. 111
Fax:
Email:
Newsgroup:
WWW:
FTP:
+886-2-2895-9254
tsd@asus.com.tw
news2.asus.com.tw
www.asus.com.tw
ftp.asus.com.tw/pub/ASUS
ASUS COMPUTER INTERNATIONAL (America)
Marketing
Address:
6737 Mowry Avenue, Mowry Business Center, Building 2
Newark, CA 94560, USA
+1-510-608-4555
info-usa@asus.com.tw
Fax:
Email:
Technical Support
Fax:
BBS:
Email:
WWW:
FTP:
+1-510-608-4555
+1-510-739-3774
tsd-usa@asus.com.tw
www.asus.com
ftp.asus.com.tw/pub/ASUS
ASUS COMPUTER GmbH (Europe)
Marketing
Address:
Telephone:
Fax:
Email:
Harkort Str. 25, 40880 Ratingen, BRD, Germany
49-2102-445011
49-2102-442066
sales@asuscom.de
Technical Support
Hotline:
BBS:
Email:
WWW:
FTP:
49-2102-499712
49-2102-448690
tsd@asuscom.de
www.asuscom.de
ftp.asuscom.de/pub/ASUSCOM
ASUS MES-B User’s Manual
3

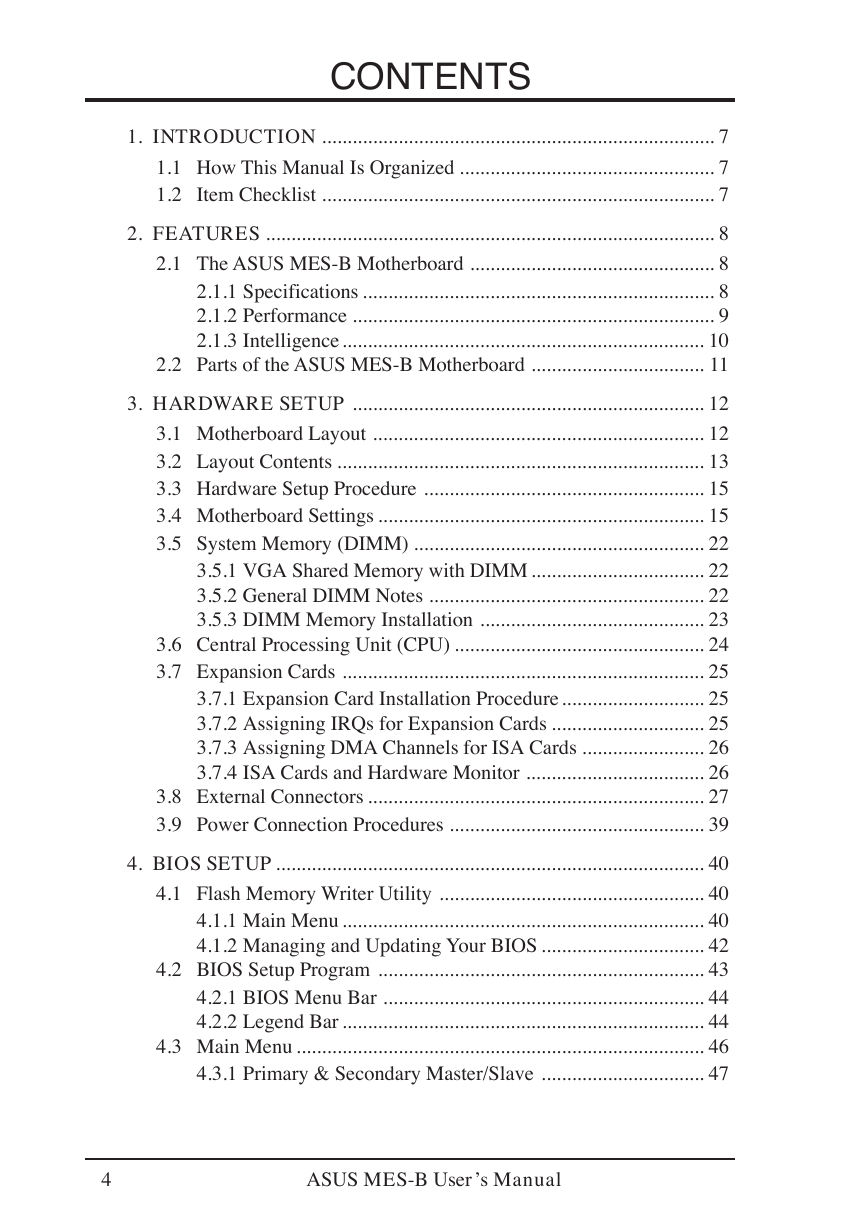

CONTENTS
1. INTRODUCTION ............................................................................. 7
1.1 How This Manual Is Organized .................................................. 7
1.2 Item Checklist ............................................................................. 7
2. FEATURES ........................................................................................ 8
2.1 The ASUS MES-B Motherboard ................................................ 8
2.1.1 Specifications ..................................................................... 8
2.1.2 Performance ....................................................................... 9
2.1.3 Intelligence....................................................................... 10
2.2 Parts of the ASUS MES-B Motherboard .................................. 11
3. HARDWARE SETUP ..................................................................... 12
3.1 Motherboard Layout ................................................................. 12
3.2 Layout Contents ........................................................................ 13
3.3 Hardware Setup Procedure ....................................................... 15
3.4 Motherboard Settings ................................................................ 15
3.5 System Memory (DIMM) ......................................................... 22
3.5.1 VGA Shared Memory with DIMM .................................. 22
3.5.2 General DIMM Notes ...................................................... 22
3.5.3 DIMM Memory Installation ............................................ 23
3.6 Central Processing Unit (CPU) ................................................. 24
3.7 Expansion Cards ....................................................................... 25
3.7.1 Expansion Card Installation Procedure............................ 25
3.7.2 Assigning IRQs for Expansion Cards .............................. 25
3.7.3 Assigning DMA Channels for ISA Cards ........................ 26
3.7.4 ISA Cards and Hardware Monitor ................................... 26
3.8 External Connectors .................................................................. 27
3.9 Power Connection Procedures .................................................. 39
4. BIOS SETUP .................................................................................... 40
4.1 Flash Memory Writer Utility .................................................... 40
4.1.1 Main Menu ....................................................................... 40
4.1.2 Managing and Updating Your BIOS ................................ 42
4.2 BIOS Setup Program ................................................................ 43
4.2.1 BIOS Menu Bar ............................................................... 44
4.2.2 Legend Bar ....................................................................... 44
4.3 Main Menu ................................................................................ 46
4.3.1 Primary & Secondary Master/Slave ................................ 47
4
ASUS MES-B User’s Manual

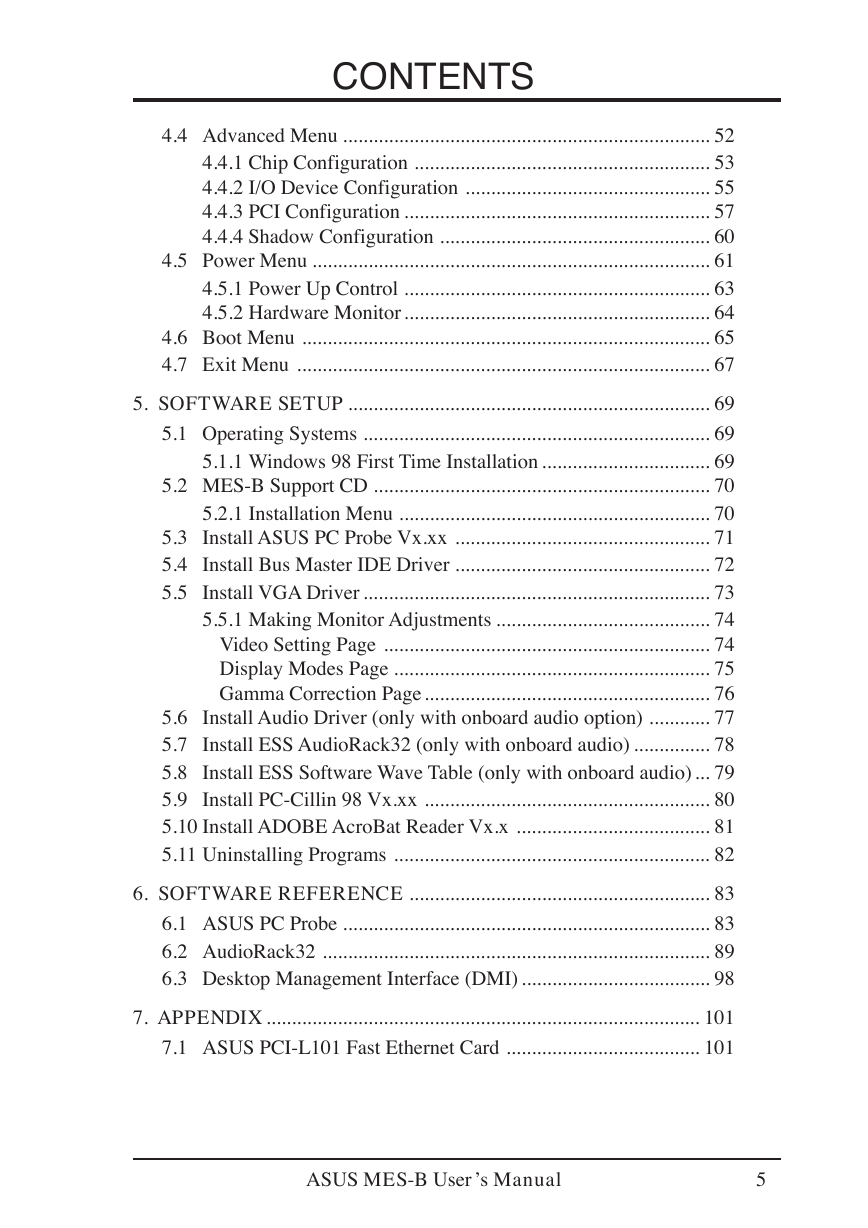

CONTENTS
4.4 Advanced Menu ........................................................................ 52
4.4.1 Chip Configuration .......................................................... 53
4.4.2 I/O Device Configuration ................................................ 55
4.4.3 PCI Configuration ............................................................ 57
4.4.4 Shadow Configuration ..................................................... 60
4.5 Power Menu .............................................................................. 61
4.5.1 Power Up Control ............................................................ 63
4.5.2 Hardware Monitor ............................................................ 64
4.6 Boot Menu ................................................................................ 65
4.7 Exit Menu ................................................................................. 67
5. SOFTWARE SETUP ....................................................................... 69
5.1 Operating Systems .................................................................... 69
5.1.1 Windows 98 First Time Installation ................................. 69
5.2 MES-B Support CD .................................................................. 70
5.2.1 Installation Menu ............................................................. 70
5.3 Install ASUS PC Probe Vx.xx .................................................. 71
5.4 Install Bus Master IDE Driver .................................................. 72
5.5 Install VGA Driver .................................................................... 73
5.5.1 Making Monitor Adjustments .......................................... 74
Video Setting Page ................................................................ 74
Display Modes Page .............................................................. 75
Gamma Correction Page........................................................ 76
5.6 Install Audio Driver (only with onboard audio option) ............ 77
5.7 Install ESS AudioRack32 (only with onboard audio) ............... 78
5.8 Install ESS Software Wave Table (only with onboard audio) ... 79
5.9 Install PC-Cillin 98 Vx.xx ........................................................ 80
5.10 Install ADOBE AcroBat Reader Vx.x ...................................... 81
5.11 Uninstalling Programs .............................................................. 82
6. SOFTWARE REFERENCE ........................................................... 83
6.1 ASUS PC Probe ........................................................................ 83
6.2 AudioRack32 ............................................................................ 89
6.3 Desktop Management Interface (DMI) ..................................... 98
7. APPENDIX ..................................................................................... 101
7.1 ASUS PCI-L101 Fast Ethernet Card ...................................... 101
ASUS MES-B User’s Manual
5

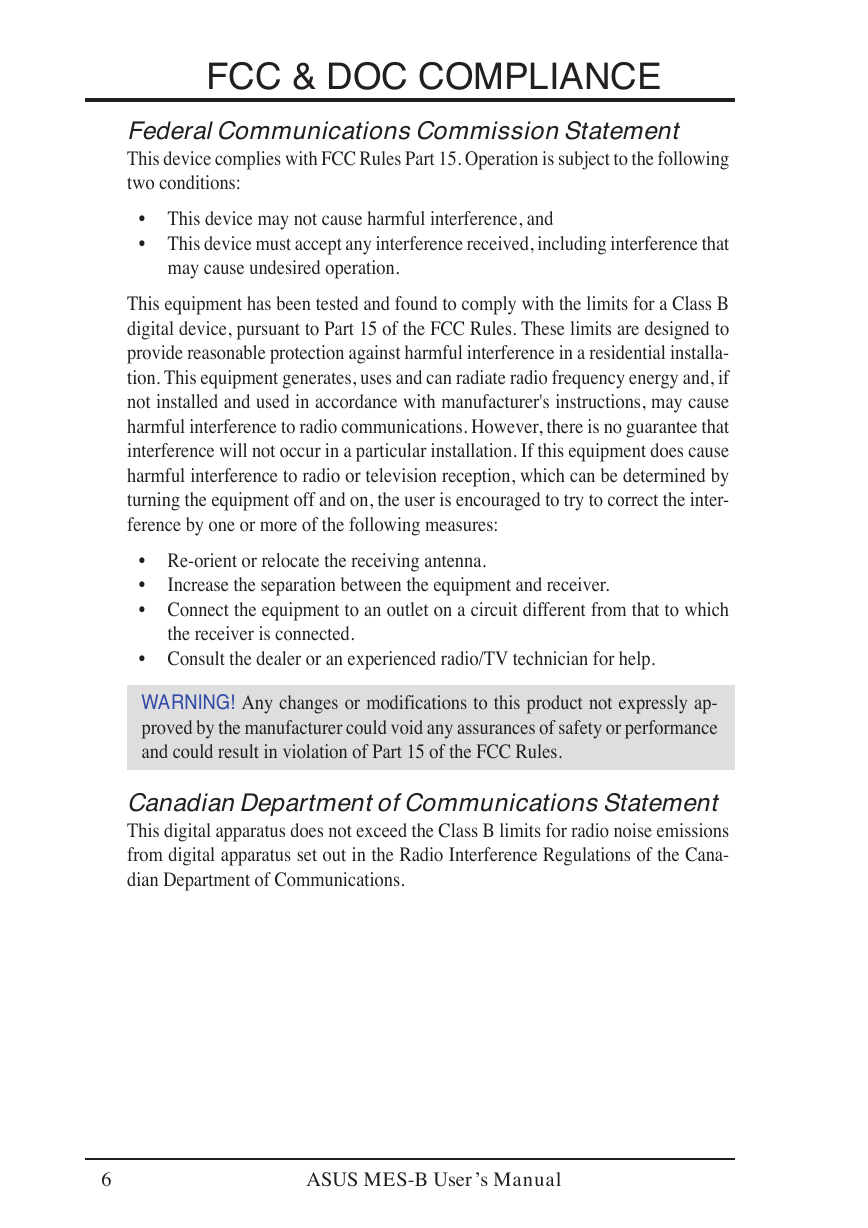

FCC & DOC COMPLIANCE
Federal Communications Commission Statement
This device complies with FCC Rules Part 15. Operation is subject to the following
two conditions:
• This device may not cause harmful interference, and
• This device must accept any interference received, including interference that
may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installa-
tion. This equipment generates, uses and can radiate radio frequency energy and, if
not installed and used in accordance with manufacturer's instructions, may cause
harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the inter-
ference by one or more of the following measures:
• Re-orient or relocate the receiving antenna.
•
• Connect the equipment to an outlet on a circuit different from that to which
Increase the separation between the equipment and receiver.
the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
WARNING! Any changes or modifications to this product not expressly ap-
proved by the manufacturer could void any assurances of safety or performance
and could result in violation of Part 15 of the FCC Rules.
Canadian Department of Communications Statement
This digital apparatus does not exceed the Class B limits for radio noise emissions
from digital apparatus set out in the Radio Interference Regulations of the Cana-
dian Department of Communications.
6
ASUS MES-B User’s Manual
t
s
I
N
O
T
C
U
D
O
R
T
N
I
.
1
i
l
k
c
e
h
C
/
s
n
o
i
t
c
e
S

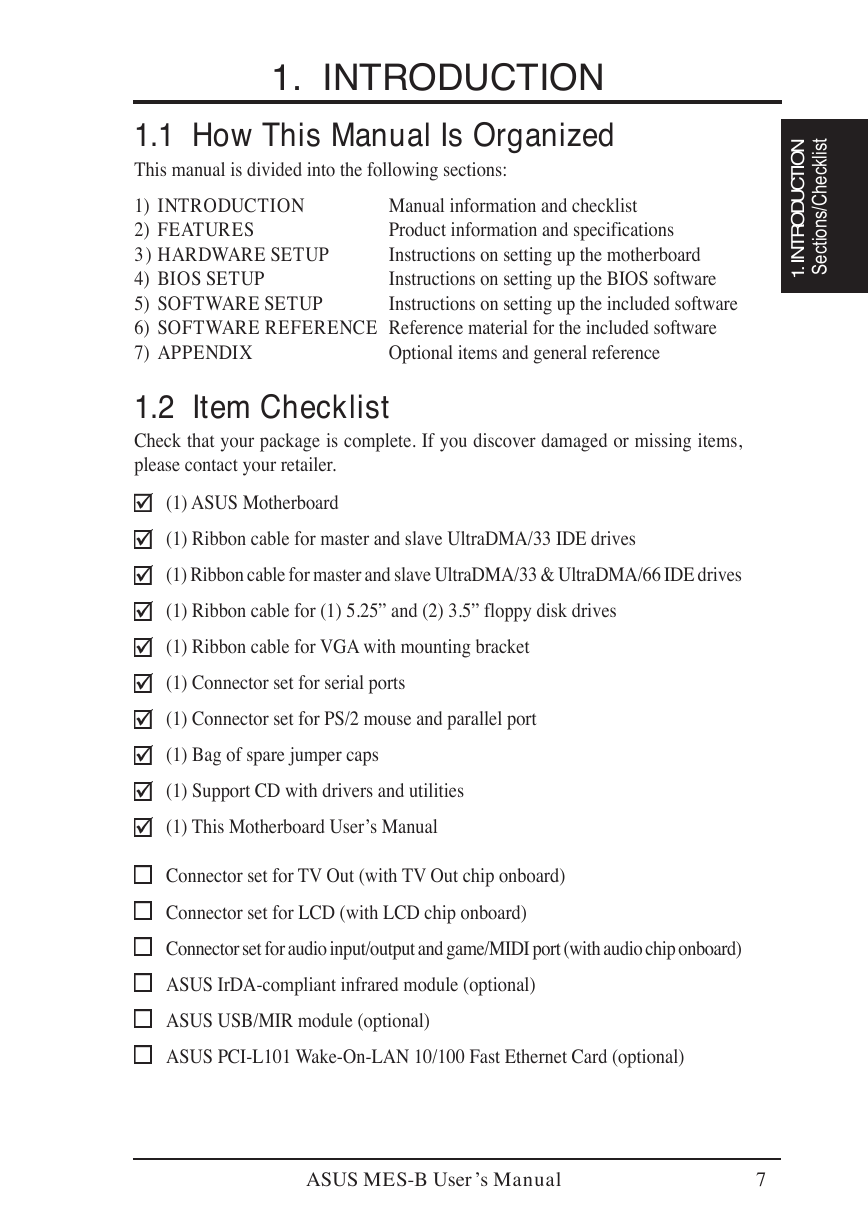

1. INTRODUCTION
1.1 How This Manual Is Organized
This manual is divided into the following sections:
1) INTRODUCTION
2) FEATURES
3) HARDWARE SETUP
4) BIOS SETUP
5) SOFTWARE SETUP
6) SOFTWARE REFERENCE Reference material for the included software
7) APPENDIX
Manual information and checklist
Product information and specifications
Instructions on setting up the motherboard
Instructions on setting up the BIOS software
Instructions on setting up the included software
Optional items and general reference
1.2 Item Checklist
Check that your package is complete. If you discover damaged or missing items,
please contact your retailer.
(1) ASUS Motherboard
(1) Ribbon cable for master and slave UltraDMA/33 IDE drives
(1) Ribbon cable for master and slave UltraDMA/33 & UltraDMA/66 IDE drives
(1) Ribbon cable for (1) 5.25” and (2) 3.5” floppy disk drives
(1) Ribbon cable for VGA with mounting bracket
(1) Connector set for serial ports
(1) Connector set for PS/2 mouse and parallel port
(1) Bag of spare jumper caps
(1) Support CD with drivers and utilities
(1) This Motherboard User’s Manual
Connector set for TV Out (with TV Out chip onboard)
Connector set for LCD (with LCD chip onboard)
Connector set for audio input/output and game/MIDI port (with audio chip onboard)
ASUS IrDA-compliant infrared module (optional)
ASUS USB/MIR module (optional)
ASUS PCI-L101 Wake-On-LAN 10/100 Fast Ethernet Card (optional)
ASUS MES-B User’s Manual
7
F
e
a
t
u
r
e
s
2
.
F
E
A
T
U
R
E
S

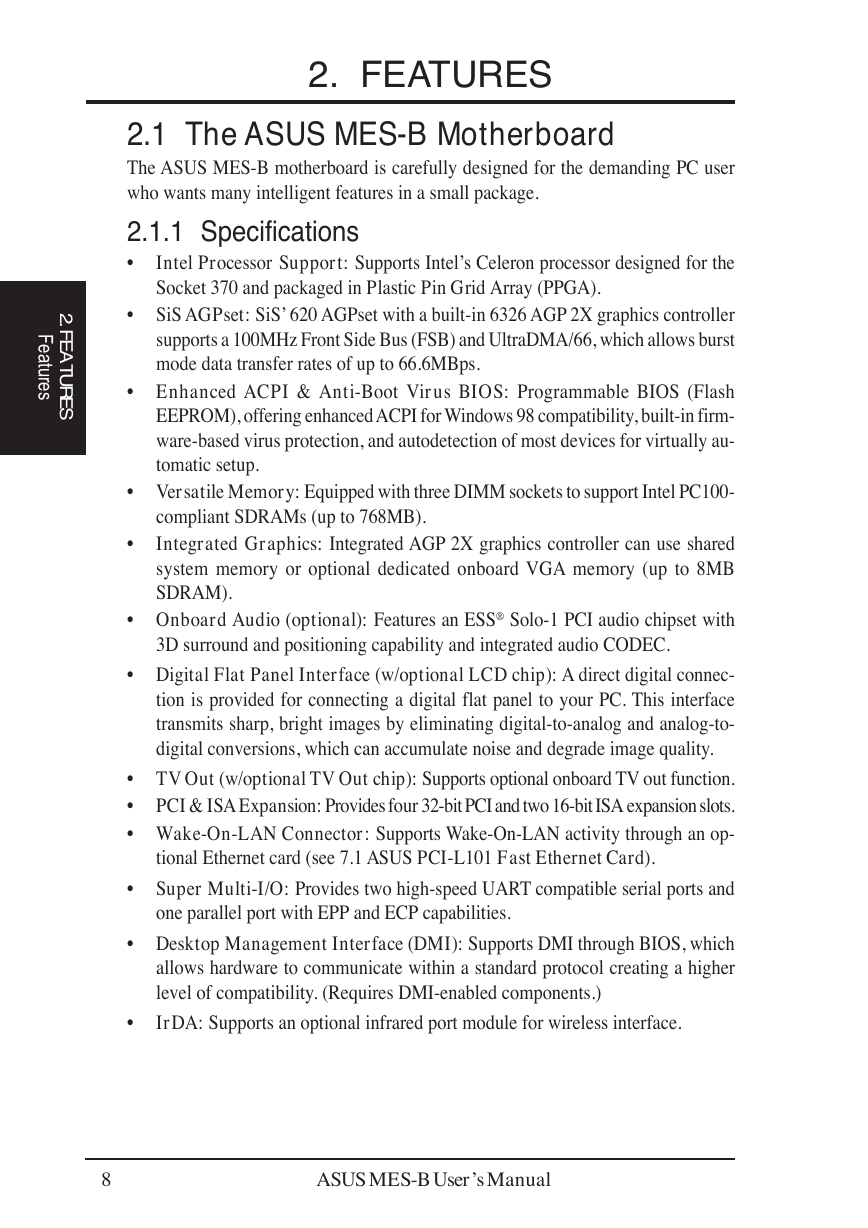

2. FEATURES
2.1 The ASUS MES-B Motherboard
The ASUS MES-B motherboard is carefully designed for the demanding PC user
who wants many intelligent features in a small package.
2.1.1 Specifications
•
Intel Processor Support: Supports Intel’s Celeron processor designed for the
Socket 370 and packaged in Plastic Pin Grid Array (PPGA).
SiS AGPset: SiS’ 620 AGPset with a built-in 6326 AGP 2X graphics controller
supports a 100MHz Front Side Bus (FSB) and UltraDMA/66, which allows burst
mode data transfer rates of up to 66.6MBps.
•
• Enhanced ACPI & Anti-Boot Virus BIOS: Programmable BIOS (Flash
EEPROM), offering enhanced ACPI for Windows 98 compatibility, built-in firm-
ware-based virus protection, and autodetection of most devices for virtually au-
tomatic setup.
• Versatile Memory: Equipped with three DIMM sockets to support Intel PC100-
•
compliant SDRAMs (up to 768MB).
Integrated Graphics: Integrated AGP 2X graphics controller can use shared
system memory or optional dedicated onboard VGA memory (up to 8MB
SDRAM).
• Onboard Audio (optional): Features an ESS® Solo-1 PCI audio chipset with
3D surround and positioning capability and integrated audio CODEC.
• Digital Flat Panel Interface (w/optional LCD chip): A direct digital connec-
tion is provided for connecting a digital flat panel to your PC. This interface
transmits sharp, bright images by eliminating digital-to-analog and analog-to-
digital conversions, which can accumulate noise and degrade image quality.
• TV Out (w/optional TV Out chip): Supports optional onboard TV out function.
PCI & ISA Expansion: Provides four 32-bit PCI and two 16-bit ISA expansion slots.
•
• Wake-On-LAN Connector: Supports Wake-On-LAN activity through an op-
•
tional Ethernet card (see 7.1 ASUS PCI-L101 Fast Ethernet Card).
Super Multi-I/O: Provides two high-speed UART compatible serial ports and
one parallel port with EPP and ECP capabilities.
• Desktop Management Interface (DMI): Supports DMI through BIOS, which
allows hardware to communicate within a standard protocol creating a higher
level of compatibility. (Requires DMI-enabled components.)
IrDA: Supports an optional infrared port module for wireless interface.
•
