an introduction to the an introduction to the WQXGA projector WQXGA projector F35 user’s guide user’s guide Designed and manufactured in Fredrikstad, Norway. www.projectiondesign.com

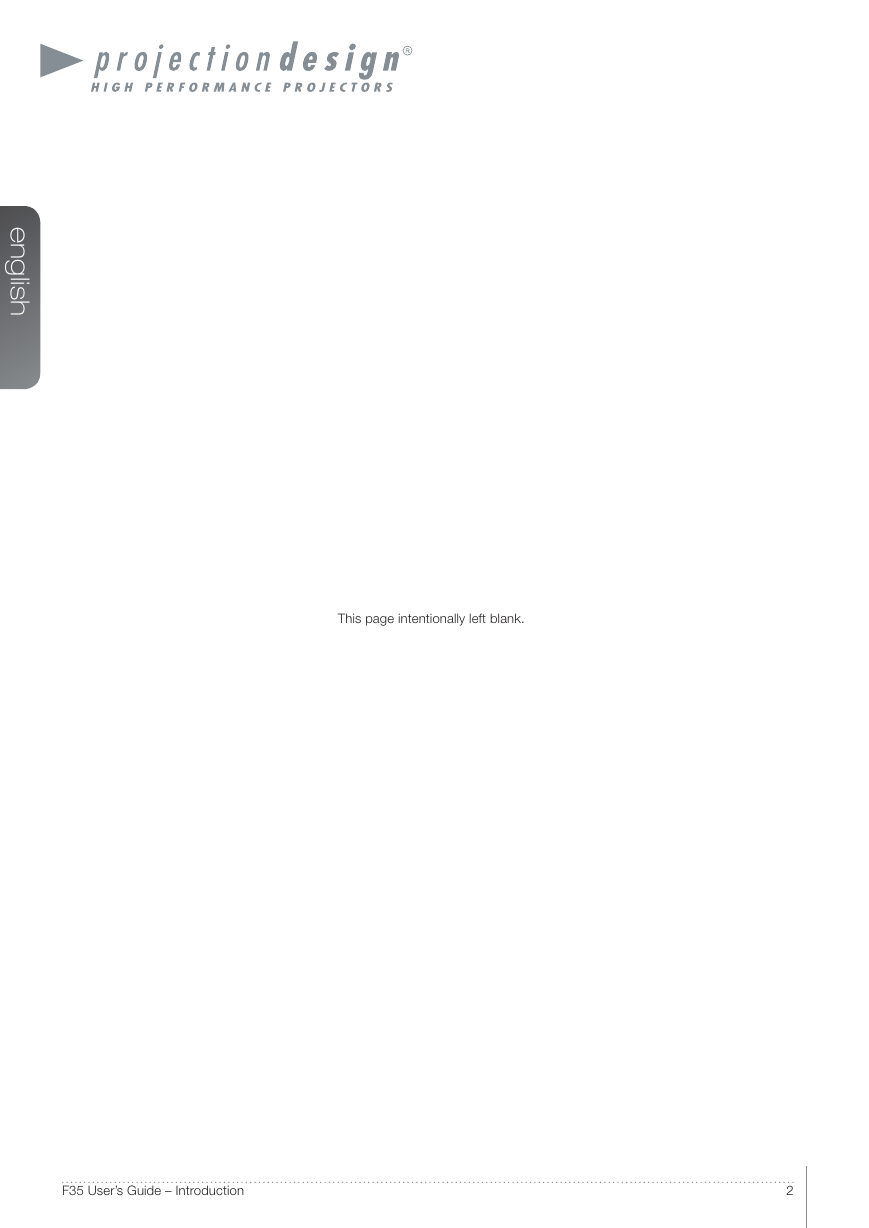

e n g l i s h This page intentionally left blank. F35 User’s Guide – Introduction 2

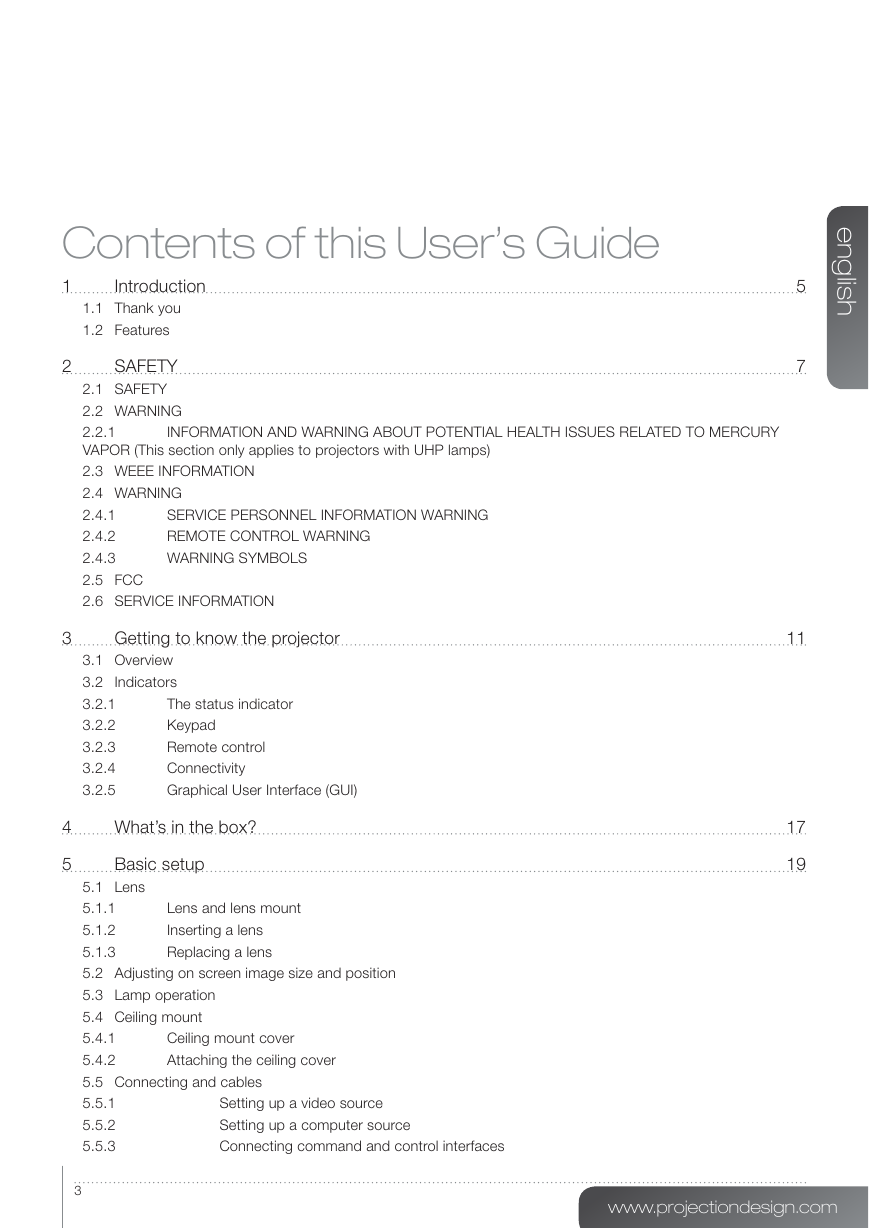

Contents of this User’s Guide 1 Introduction 1.1 Thank you 1.2 Features 2 SAFETY INFORMATION AND WARNING ABOUT POTENTIAL HEALTH ISSUES RELATED TO MERCURY 2.1 SAFETY 2.2 WARNING 2.2.1 VAPOR (This section only applies to projectors with UHP lamps) 2.3 WEEE INFORMATION 2.4 WARNING 2.4.1 2.4.2 2.4.3 2.5 FCC 2.6 SERVICE INFORMATION SERVICE PERSONNEL INFORMATION WARNING REMOTE CONTROL WARNING WARNING SYMBOLS 3 Getting to know the projector 3.1 Overview 3.2 Indicators 3.2.1 3.2.2 3.2.3 3.2.4 3.2.5 The status indicator Keypad Remote control Connectivity Graphical User Interface (GUI) 4 5 What’s in the box? Basic setup e n g l i s h 5 7 11 17 19 Lens and lens mount Inserting a lens Replacing a lens 5.1 Lens 5.1.1 5.1.2 5.1.3 5.2 Adjusting on screen image size and position 5.3 Lamp operation 5.4 Ceiling mount 5.4.1 5.4.2 5.5 Connecting and cables 5.5.1 5.5.2 5.5.3 Ceiling mount cover Attaching the ceiling cover Setting up a video source Setting up a computer source Connecting command and control interfaces 3 www.projectiondesign.com

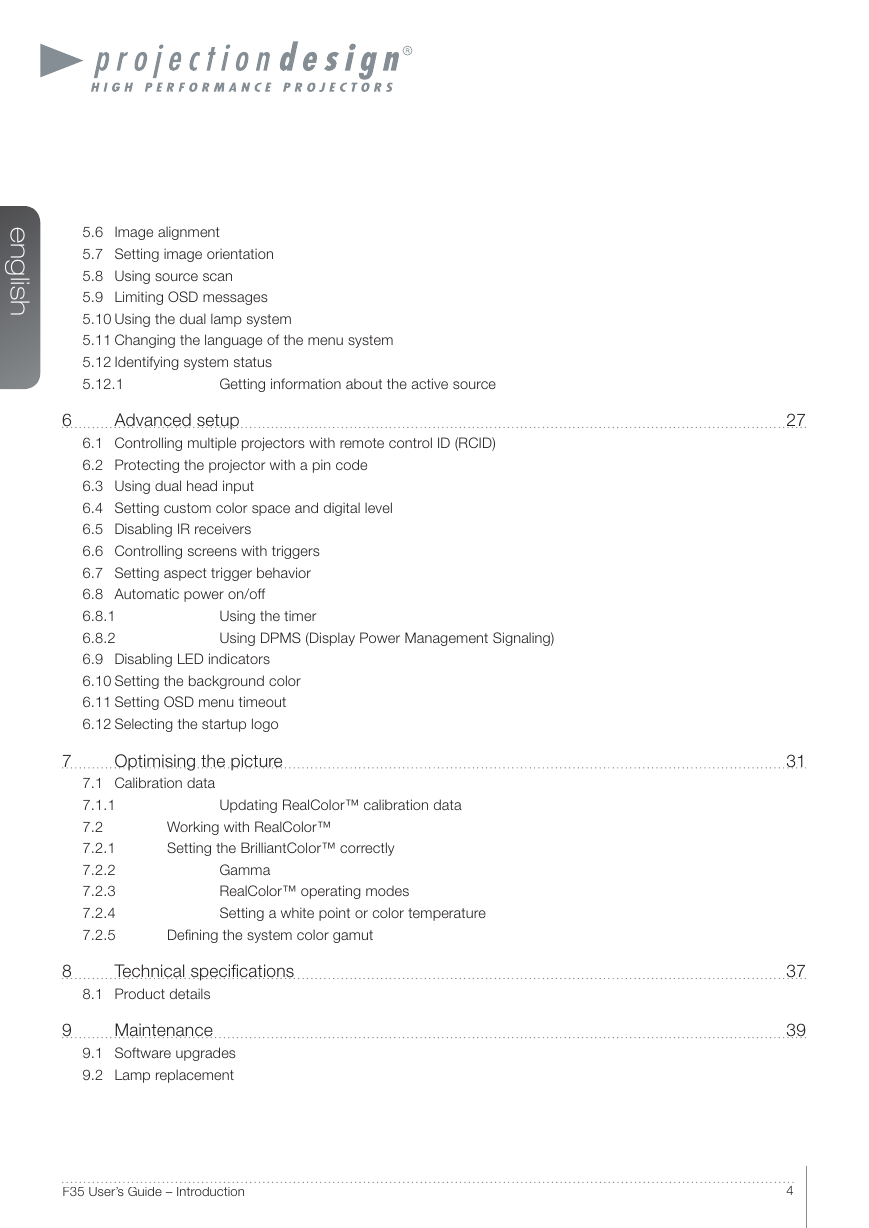

e n g l i s h 5.6 Image alignment 5.7 Setting image orientation 5.8 Using source scan 5.9 Limiting OSD messages 5.10 Using the dual lamp system 5.11 Changing the language of the menu system 5.12 Identifying system status 5.12.1 Getting information about the active source 6 Advanced setup 6.1 Controlling multiple projectors with remote control ID (RCID) 6.2 Protecting the projector with a pin code 6.3 Using dual head input 6.4 Setting custom color space and digital level 6.5 Disabling IR receivers 6.6 Controlling screens with triggers 6.7 Setting aspect trigger behavior 6.8 Automatic power on/off 6.8.1 6.8.2 6.9 Disabling LED indicators 6.10 Setting the background color 6.11 Setting OSD menu timeout 6.12 Selecting the startup logo Using the timer Using DPMS (Display Power Management Signaling) 7 Optimising the picture Updating RealColor™ calibration data 7.1 Calibration data 7.1.1 7.2 7.2.1 7.2.2 7.2.3 7.2.4 7.2.5 Working with RealColor™ Setting the BrilliantColor™ correctly Defining the system color gamut Gamma RealColor™ operating modes Setting a white point or color temperature 8 9 Technical specifications 8.1 Product details Maintenance 9.1 Software upgrades 9.2 Lamp replacement User’s Guide – Introduction F35 User’s Guide – Introduction 27 31 37 39 4

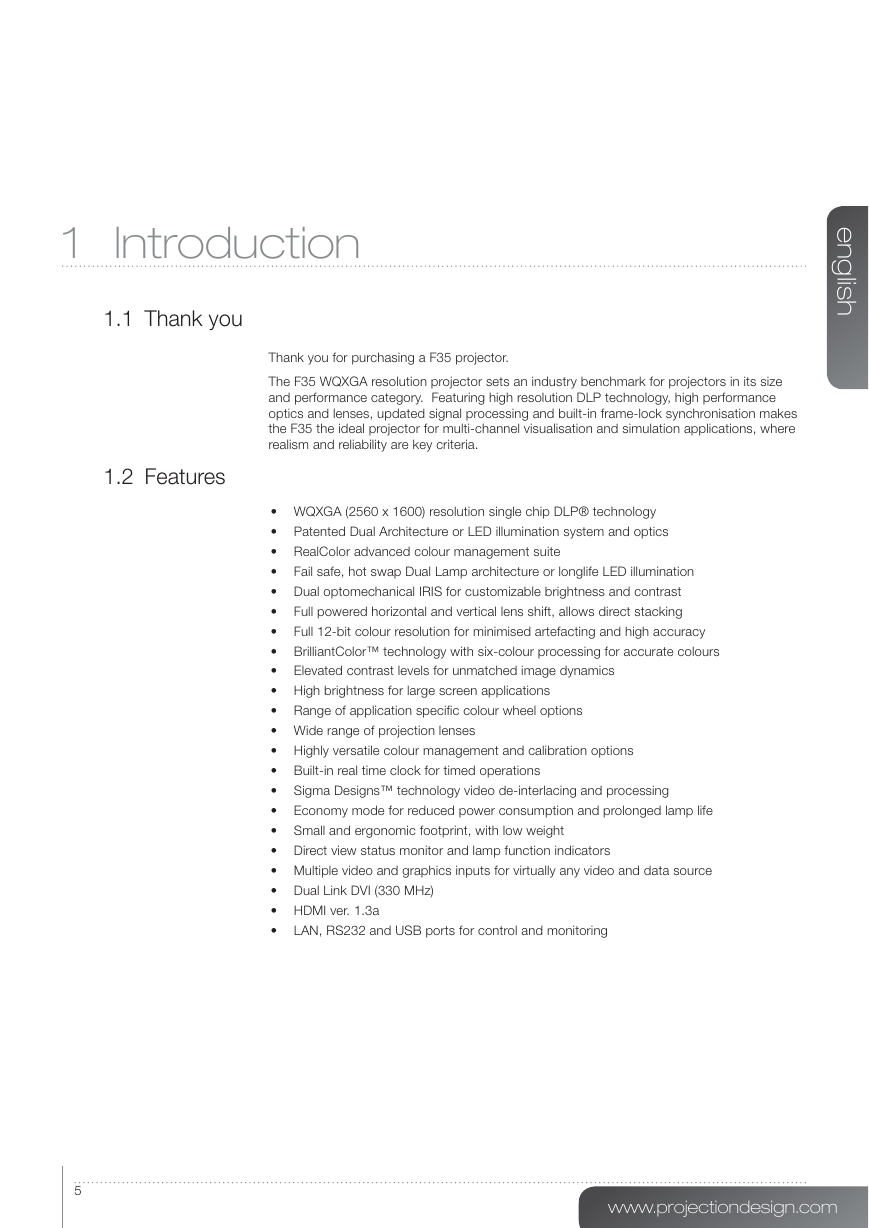

1 Introduction 1.1 Thank you e n g l i s h Thank you for purchasing a F35 projector. The F35 WQXGA resolution projector sets an industry benchmark for projectors in its size and performance category. Featuring high resolution DLP technology, high performance optics and lenses, updated signal processing and built-in frame-lock synchronisation makes the F35 the ideal projector for multi-channel visualisation and simulation applications, where realism and reliability are key criteria. 1.2 Features • WQXGA (2560 x 1600) resolution single chip DLP® technology • Patented Dual Architecture or LED illumination system and optics • RealColor advanced colour management suite • Fail safe, hot swap Dual Lamp architecture or longlife LED illumination • Dual optomechanical IRIS for customizable brightness and contrast • Full powered horizontal and vertical lens shift, allows direct stacking • Full 12-bit colour resolution for minimised artefacting and high accuracy • BrilliantColor™ technology with six-colour processing for accurate colours • Elevated contrast levels for unmatched image dynamics • High brightness for large screen applications • Range of application specific colour wheel options • Wide range of projection lenses • Highly versatile colour management and calibration options • Built-in real time clock for timed operations • Sigma Designs™ technology video de-interlacing and processing • Economy mode for reduced power consumption and prolonged lamp life • Small and ergonomic footprint, with low weight • Direct view status monitor and lamp function indicators • Multiple video and graphics inputs for virtually any video and data source • Dual Link DVI (330 MHz) • HDMI ver. 1.3a • LAN, RS232 and USB ports for control and monitoring 5 www.projectiondesign.com

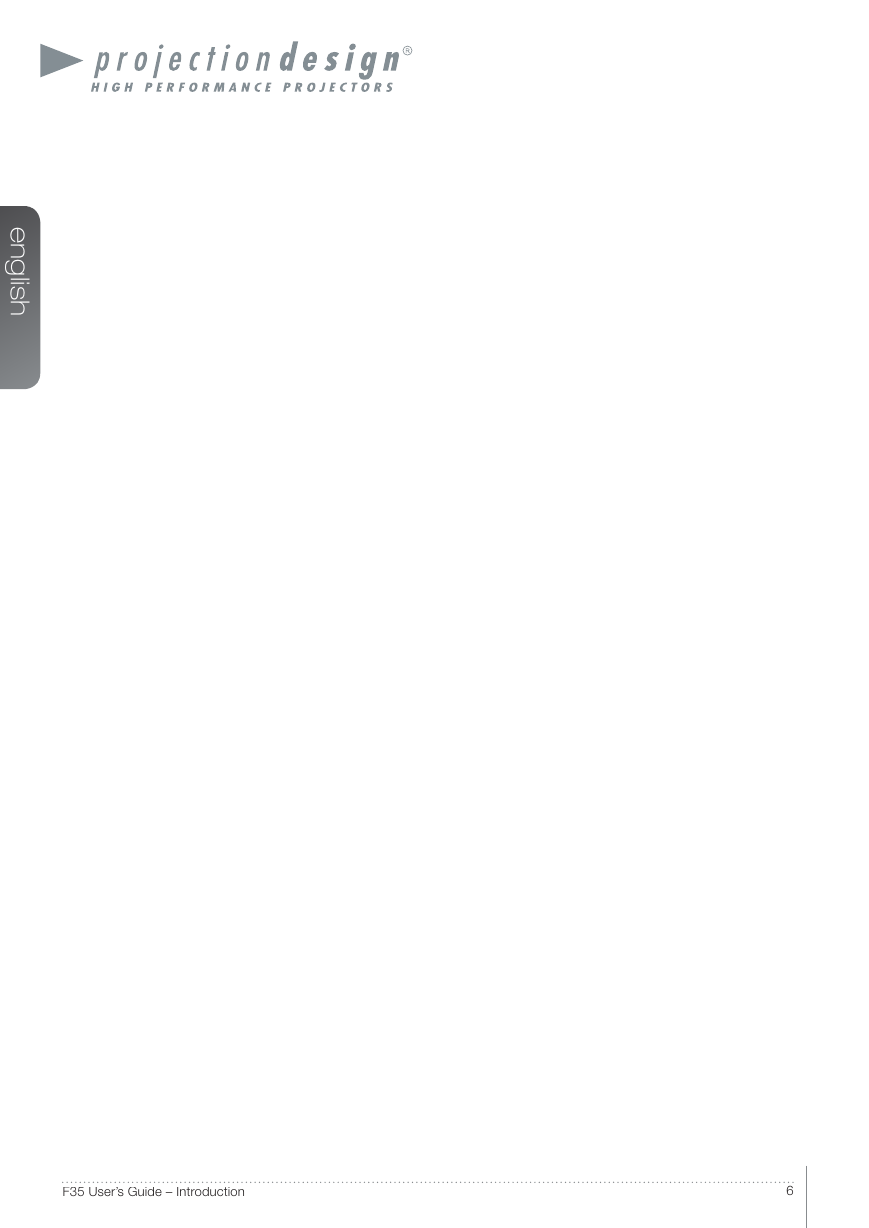

e n g l i s h User’s Guide – Introduction F35 User’s Guide – Introduction 6

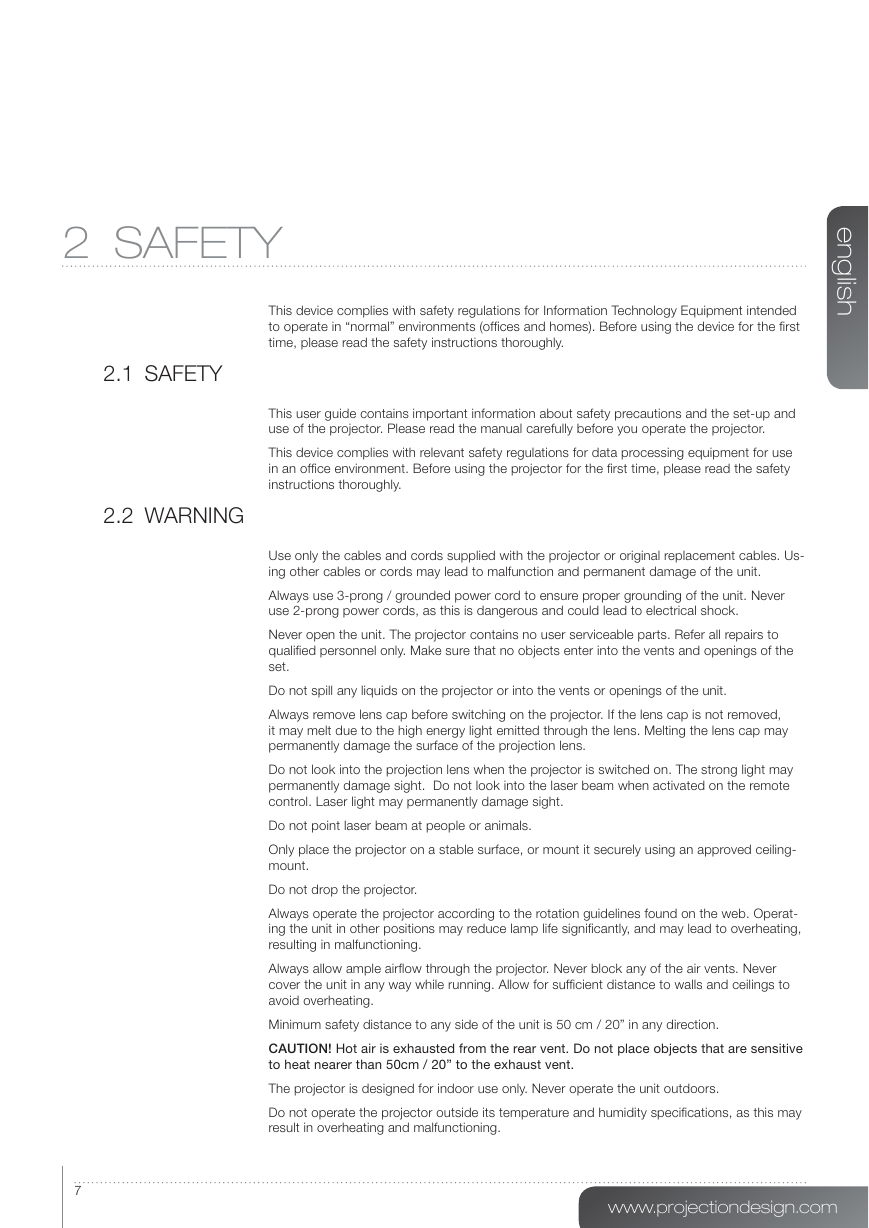

e n g l i s h 2 SAFETY 2.1 SAFETY 2.2 WARNING This device complies with safety regulations for Information Technology Equipment intended to operate in “normal” environments (offices and homes). Before using the device for the first time, please read the safety instructions thoroughly. This user guide contains important information about safety precautions and the set-up and use of the projector. Please read the manual carefully before you operate the projector. This device complies with relevant safety regulations for data processing equipment for use in an office environment. Before using the projector for the first time, please read the safety instructions thoroughly. Use only the cables and cords supplied with the projector or original replacement cables. Us- ing other cables or cords may lead to malfunction and permanent damage of the unit. Always use 3-prong / grounded power cord to ensure proper grounding of the unit. Never use 2-prong power cords, as this is dangerous and could lead to electrical shock. Never open the unit. The projector contains no user serviceable parts. Refer all repairs to qualified personnel only. Make sure that no objects enter into the vents and openings of the set. Do not spill any liquids on the projector or into the vents or openings of the unit. Always remove lens cap before switching on the projector. If the lens cap is not removed, it may melt due to the high energy light emitted through the lens. Melting the lens cap may permanently damage the surface of the projection lens. Do not look into the projection lens when the projector is switched on. The strong light may permanently damage sight. Do not look into the laser beam when activated on the remote control. Laser light may permanently damage sight. Do not point laser beam at people or animals. Only place the projector on a stable surface, or mount it securely using an approved ceiling- mount. Do not drop the projector. Always operate the projector according to the rotation guidelines found on the web. Operat- ing the unit in other positions may reduce lamp life significantly, and may lead to overheating, resulting in malfunctioning. Always allow ample airflow through the projector. Never block any of the air vents. Never cover the unit in any way while running. Allow for sufficient distance to walls and ceilings to avoid overheating. Minimum safety distance to any side of the unit is 50 cm / 20” in any direction. CAUTION! Hot air is exhausted from the rear vent. Do not place objects that are sensitive to heat nearer than 50cm / 20” to the exhaust vent. The projector is designed for indoor use only. Never operate the unit outdoors. Do not operate the projector outside its temperature and humidity specifications, as this may result in overheating and malfunctioning. 7 www.projectiondesign.com

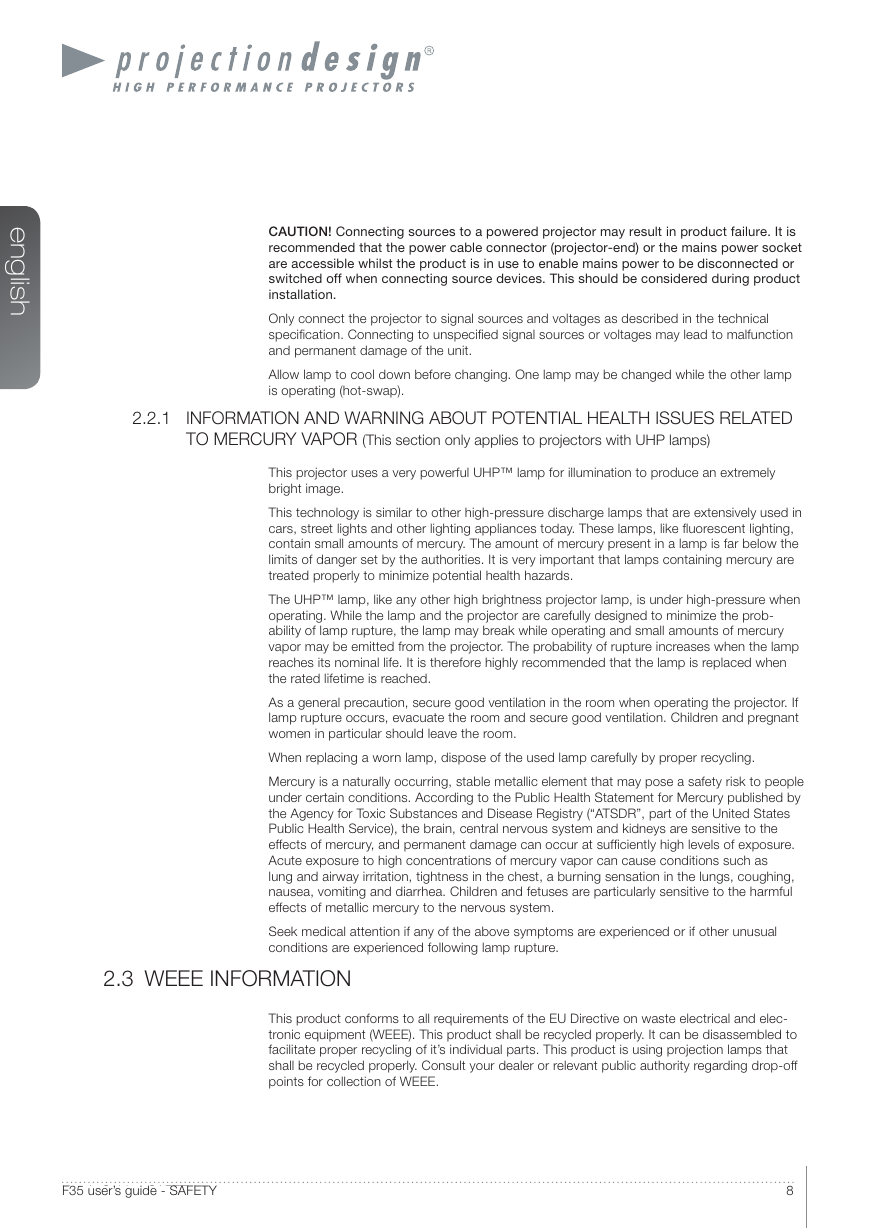

e n g l i s h CAUTION! Connecting sources to a powered projector may result in product failure. It is recommended that the power cable connector (projector-end) or the mains power socket are accessible whilst the product is in use to enable mains power to be disconnected or switched off when connecting source devices. This should be considered during product installation. Only connect the projector to signal sources and voltages as described in the technical specification. Connecting to unspecified signal sources or voltages may lead to malfunction and permanent damage of the unit. Allow lamp to cool down before changing. One lamp may be changed while the other lamp is operating (hot-swap). 2.2.1 INFORMATION AND WARNING ABOUT POTENTIAL HEALTH ISSUES RELATED TO MERCURY VAPOR (This section only applies to projectors with UHP lamps) This projector uses a very powerful UHP™ lamp for illumination to produce an extremely bright image. This technology is similar to other high-pressure discharge lamps that are extensively used in cars, street lights and other lighting appliances today. These lamps, like fluorescent lighting, contain small amounts of mercury. The amount of mercury present in a lamp is far below the limits of danger set by the authorities. It is very important that lamps containing mercury are treated properly to minimize potential health hazards. The UHP™ lamp, like any other high brightness projector lamp, is under high-pressure when operating. While the lamp and the projector are carefully designed to minimize the prob- ability of lamp rupture, the lamp may break while operating and small amounts of mercury vapor may be emitted from the projector. The probability of rupture increases when the lamp reaches its nominal life. It is therefore highly recommended that the lamp is replaced when the rated lifetime is reached. As a general precaution, secure good ventilation in the room when operating the projector. If lamp rupture occurs, evacuate the room and secure good ventilation. Children and pregnant women in particular should leave the room. When replacing a worn lamp, dispose of the used lamp carefully by proper recycling. Mercury is a naturally occurring, stable metallic element that may pose a safety risk to people under certain conditions. According to the Public Health Statement for Mercury published by the Agency for Toxic Substances and Disease Registry (“ATSDR”, part of the United States Public Health Service), the brain, central nervous system and kidneys are sensitive to the effects of mercury, and permanent damage can occur at sufficiently high levels of exposure. Acute exposure to high concentrations of mercury vapor can cause conditions such as lung and airway irritation, tightness in the chest, a burning sensation in the lungs, coughing, nausea, vomiting and diarrhea. Children and fetuses are particularly sensitive to the harmful effects of metallic mercury to the nervous system. Seek medical attention if any of the above symptoms are experienced or if other unusual conditions are experienced following lamp rupture. 2.3 WEEE INFORMATION This product conforms to all requirements of the EU Directive on waste electrical and elec- tronic equipment (WEEE). This product shall be recycled properly. It can be disassembled to facilitate proper recycling of it’s individual parts. This product is using projection lamps that shall be recycled properly. Consult your dealer or relevant public authority regarding drop-off points for collection of WEEE. User’s Guide - SAFETY F35 user’s guide - SAFETY 8
