A introduction to Database Management System
Raghu Ramakrishnan
A database (sometimes spelled data base) is also called an electronic database
, referring to any
collection of data, or information, that is specially organized for rapid search and retrieval by a
computer. Databases are structured to facilitate the storage, retrieval , modification, and deletion
of data in conjunction with various data-processing operations .Databases can be stored on
magnetic disk or tape, optical disk, or some other secondary storage device.
A database consists of a file or a set of files. The information in these files may be broken down
into records, each of which consists of one or more fields. Fields are the basic units of data
storage
, and each field typically contains information pertaining to one aspect or attribute of the
entity described by the database . Using keywords and various sorting commands, users can
rapidly search , rearrange, group, and select the fields
in many records to retrieve or create
reports on particular aggregate of data.
Complex data relationships and linkages may be found in all but the simplest databases .The
system software package that handles the difficult tasks associated with creating ,accessing, and
maintaining database records is called a database management system(DBMS).The programs in a
DBMS package establish an interface between the database itself and the users of the database..
(These users may be applications programmers, managers and others with information needs, and
various OS programs.)
A DBMS can organize, process, and present selected data elements form the database. This
capability enables decision makers to search, probe, and query database contents in order to
extract answers to nonrecurring and unplanned questions that aren’t
available in regular reports.
These questions might initially be vague and/or poorly defined ,but people can “browse” through
the database until they have the needed information. In short, the DBMS will “manage” the stored
data items and assemble the needed items from the common database in response to the queries of
those who aren’t
A database management system (DBMS) is composed of three major parts:(1)a storage subsystem
that stores and retrieves data in files;(2) a modeling and manipulation subsystem that provides the
means with which to organize the data and to add , delete, maintain, and update the data;(3)and an
interface between the DBMS and its users. Several major trends are emerging that enhance the
value and usefulness of database management systems;
Managers: who require more up-to-data information to make effective decision
Customers: who demand increasingly sophisticated information services and more current
information about the status of their orders, invoices, and accounts.
Users: who find that they can develop custom applications with database systems in a fraction of
the time it takes to use traditional programming languages.
Organizations : that discover information has a strategic value; they utilize their database systems
to gain an edge over their competitors.
The Database Model
structure and manipulate the data in a database. The structural
A data model describes a way to
part of the model specifies how data should be represented(such as tree, tables, and so on ).The
manipulative part of the model specifies the operation with which to add, delete, display, maintain,
programmers.
1
print, search, select, sort and update the data.
Hierarchical Model
The first database management systems used a hierarchical model-that is-they arranged records
into a tree structure. Some records are root records and all others have unique parent records. The
structure of the tree is designed to reflect the order in which the data will be used that is ,the
record at the root of a tree will be accessed first, then records one level below the root ,and so on.
The hierarchical model was developed because hierarchical relationships are commonly found in
business applications. As you have known, an organization char often describes a hierarchical
relationship: top management is at the highest level, middle management at lower levels, and
operational employees at the lowest levels. Note that within a strict hierarchy, each level of
management may have many employees or levels of employees beneath it, but each employee has
only one manager. Hierarchical data are characterized by this one-to-many relationship among
data.
In the hierarchical approach, each relationship must be explicitly defined when the database is
created. Each record in a hierarchical database can contain only one key field and only one
relationship is allowed between any two fields. This can create a problem because data do not
always conform to such a strict hierarchy.
Relational Model
A major breakthrough in database research occurred in 1970 when E. F. Codd
proposed a
fundamentally different approach to database management called relational model ,which uses a
table as its data structure.
The relational database is the most widely used database structure. Data is organized into related
tables. Each table is made up of rows called and columns called fields. Each record contains fields
of data about some specific item. For example, in a table containing information on employees, a
record would contain fields of data such as a person’s last name ,first name ,and street address.
Structured query language(SQL)is a query language for manipulating data in a relational
database .It is nonprocedural or declarative, in which the user need only specify an English-like
description that specifies the operation and the described record or combination of records. A
query optimizer translates the description into a procedure to perform the database manipulation.
Network Model
The network model creates relationships among data through a linked-list structure in which
subordinate records can be linked to more than one parent record. This approach combines records
with links, which are called pointers. The pointers are addresses that indicate the location of a
record. With the network approach, a subordinate record can be linked to a key record and at the
same time itself be a key record linked to other sets of subordinate records. The network mode
historically has had a performance
advantage over other database models. Today , such
performance characteristics are only important in high-volume ,high-speed transaction processing
such as automatic teller machine networks or airline reservation system.
Both hierarchical and network databases are application specific. If a new application is
developed ,maintaining the consistency of databases in
different applications can be very
difficult. For example, suppose a new pension application is developed .The data are the same, but
a new database must be created.
Object Model
The newest approach to database management uses an object model , in which records are
2
into play .
communication and networking concepts come

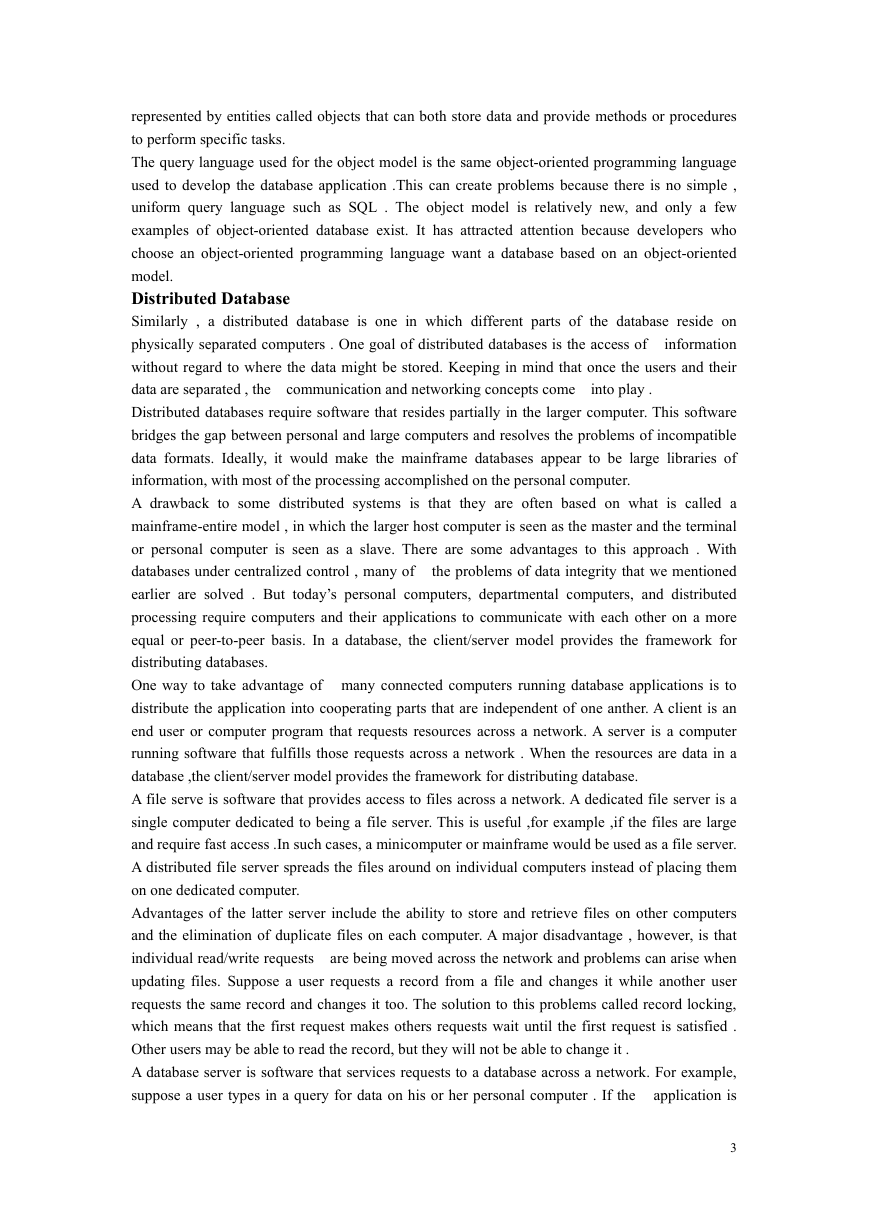

represented by entities called objects that can both store data and provide methods or procedures
to perform specific tasks.
The query language used for the object model is the same object-oriented programming language
used to develop the database application .This can create problems because there is no simple ,
uniform query language such as SQL . The object model is relatively new, and only a few
examples of object-oriented database exist. It has attracted attention because developers who
choose an object-oriented programming language want a database based on an object-oriented
model.
Distributed Database
Similarly , a distributed database is one in which different parts of the database reside on
physically separated computers . One goal of distributed databases is the access of
information
without regard to where the data might be stored. Keeping in mind that once the users and their
data are separated , the
Distributed databases require software that resides partially in the larger computer. This software
bridges the gap between personal and large computers and resolves the problems of incompatible
data formats. Ideally, it would make the mainframe databases appear to be large libraries of
information, with most of the processing accomplished on the personal computer.
A drawback to some distributed systems is that they are often based on what is called a
mainframe-entire model , in which the larger host computer is seen as the master and the terminal
or personal computer is seen as a slave. There are some advantages to this approach . With
databases under centralized control , many of
the problems of data integrity that we mentioned
earlier are solved . But today’s personal computers, departmental computers, and distributed
processing require computers and their applications to communicate with each other on a more
equal or peer-to-peer basis. In a database, the client/server model provides the framework for
distributing databases.
One way to take advantage of many connected computers running database applications is to
distribute the application into cooperating parts that are independent of one anther. A client is an
end user or computer program that requests resources across a network. A server is a computer
running software that fulfills those requests across a network . When the resources are data in a
database ,the client/server model provides the framework for distributing database.
A file serve is software that provides access to files across a network. A dedicated file server is a
single computer dedicated to being a file server. This is useful ,for example ,if the files are large
and require fast access .In such cases, a minicomputer or mainframe would be used as a file server.
A distributed file server spreads the files around on individual computers instead of placing them
on one dedicated computer.
Advantages of the latter server include the ability to store and retrieve files on other computers
and the elimination of duplicate files on each computer. A major disadvantage , however, is that
individual read/write requests
are being moved across the network and problems can arise when
updating files. Suppose a user requests a record from a file and changes it while another user
requests the same record and changes it too. The solution to this problems called record locking,
which means that the first request makes others requests wait until the first request is satisfied .
Other users may be able to read the record, but they will not be able to change it .
A database server is software that services requests to a database across a network. For example,
suppose a user types in a query for data on his or her personal computer . If the
application is
3

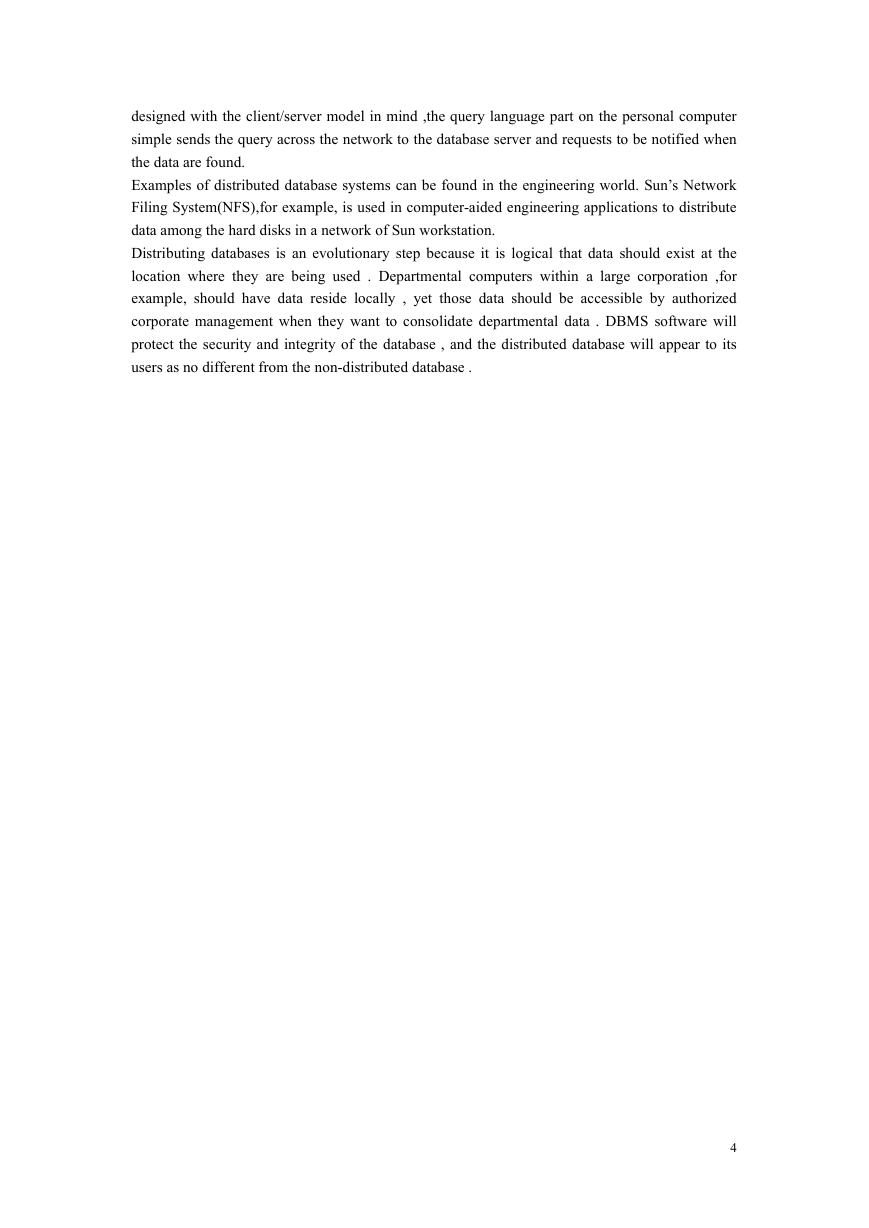

designed with the client/server model in mind ,the query language part on the personal computer
simple sends the query across the network to the database server and requests to be notified when
the data are found.
Examples of distributed database systems can be found in the engineering world. Sun’s Network
Filing System(NFS),for example, is used in computer-aided engineering applications to distribute
data among the hard disks in a network of Sun workstation.
Distributing databases is an evolutionary step because it is logical that data should exist at the
location where they are being used . Departmental computers within a large corporation ,for
example, should have data reside locally , yet those data should be accessible by authorized
corporate management when they want to consolidate departmental data . DBMS software will
protect the security and integrity of the database , and the distributed database will appear to its
users as no different from the non-distributed database .
4

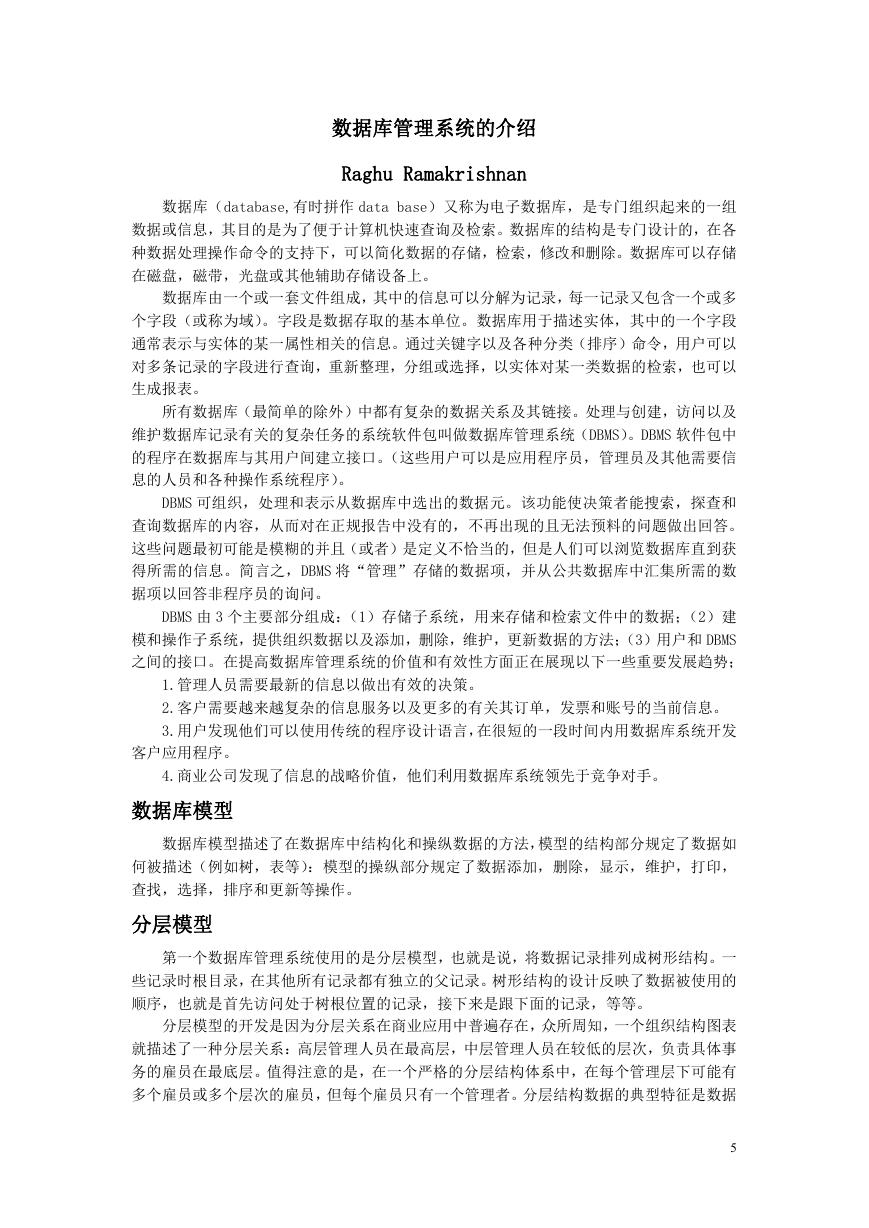

数据库管理系统的介绍
Raghu Ramakrishnan
数据库(database,有时拼作 data base)又称为电子数据库,是专门组织起来的一组
数据或信息,其目的是为了便于计算机快速查询及检索。数据库的结构是专门设计的,在各
种数据处理操作命令的支持下,可以简化数据的存储,检索,修改和删除。数据库可以存储
在磁盘,磁带,光盘或其他辅助存储设备上。
数据库由一个或一套文件组成,其中的信息可以分解为记录,每一记录又包含一个或多
个字段(或称为域)。字段是数据存取的基本单位。数据库用于描述实体,其中的一个字段
通常表示与实体的某一属性相关的信息。通过关键字以及各种分类(排序)命令,用户可以
对多条记录的字段进行查询,重新整理,分组或选择,以实体对某一类数据的检索,也可以
生成报表。
所有数据库(最简单的除外)中都有复杂的数据关系及其链接。处理与创建,访问以及
维护数据库记录有关的复杂任务的系统软件包叫做数据库管理系统(DBMS)。DBMS 软件包中
的程序在数据库与其用户间建立接口。(这些用户可以是应用程序员,管理员及其他需要信
息的人员和各种操作系统程序)。
DBMS 可组织,处理和表示从数据库中选出的数据元。该功能使决策者能搜索,探查和
查询数据库的内容,从而对在正规报告中没有的,不再出现的且无法预料的问题做出回答。
这些问题最初可能是模糊的并且(或者)是定义不恰当的,但是人们可以浏览数据库直到获
得所需的信息。简言之,DBMS 将“管理”存储的数据项,并从公共数据库中汇集所需的数
据项以回答非程序员的询问。
DBMS 由 3 个主要部分组成:(1)存储子系统,用来存储和检索文件中的数据;(2)建
模和操作子系统,提供组织数据以及添加,删除,维护,更新数据的方法;(3)用户和 DBMS
之间的接口。在提高数据库管理系统的价值和有效性方面正在展现以下一些重要发展趋势;
1.管理人员需要最新的信息以做出有效的决策。
2.客户需要越来越复杂的信息服务以及更多的有关其订单,发票和账号的当前信息。
3.用户发现他们可以使用传统的程序设计语言,在很短的一段时间内用数据库系统开发
客户应用程序。
4.商业公司发现了信息的战略价值,他们利用数据库系统领先于竞争对手。
数据库模型
数据库模型描述了在数据库中结构化和操纵数据的方法,模型的结构部分规定了数据如
何被描述(例如树,表等):模型的操纵部分规定了数据添加,删除,显示,维护,打印,
查找,选择,排序和更新等操作。
分层模型
第一个数据库管理系统使用的是分层模型,也就是说,将数据记录排列成树形结构。一
些记录时根目录,在其他所有记录都有独立的父记录。树形结构的设计反映了数据被使用的
顺序,也就是首先访问处于树根位置的记录,接下来是跟下面的记录,等等。
分层模型的开发是因为分层关系在商业应用中普遍存在,众所周知,一个组织结构图表
就描述了一种分层关系:高层管理人员在最高层,中层管理人员在较低的层次,负责具体事
务的雇员在最底层。值得注意的是,在一个严格的分层结构体系中,在每个管理层下可能有
多个雇员或多个层次的雇员,但每个雇员只有一个管理者。分层结构数据的典型特征是数据
5

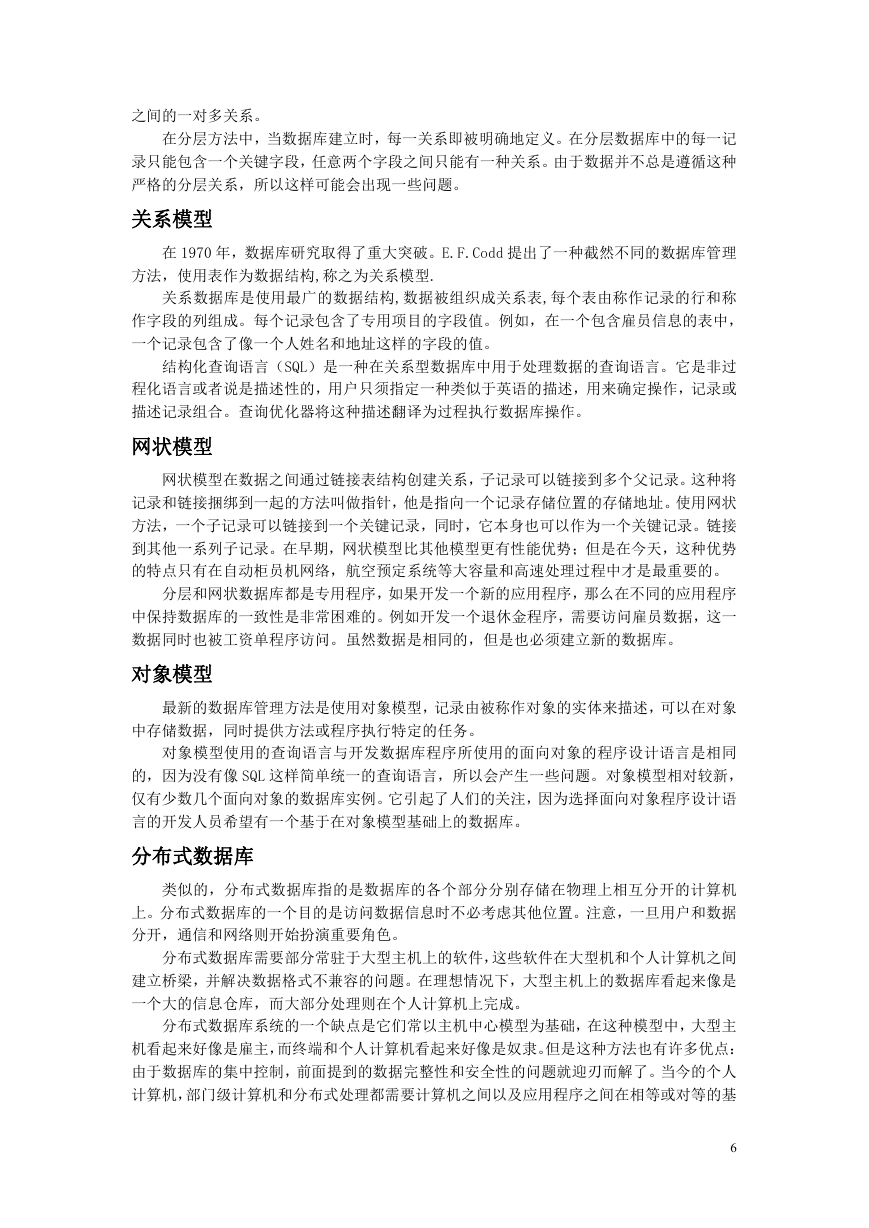

之间的一对多关系。
在分层方法中,当数据库建立时,每一关系即被明确地定义。在分层数据库中的每一记
录只能包含一个关键字段,任意两个字段之间只能有一种关系。由于数据并不总是遵循这种
严格的分层关系,所以这样可能会出现一些问题。
关系模型
在 1970 年,数据库研究取得了重大突破。E.F.Codd 提出了一种截然不同的数据库管理
方法,使用表作为数据结构,称之为关系模型.
关系数据库是使用最广的数据结构,数据被组织成关系表,每个表由称作记录的行和称
作字段的列组成。每个记录包含了专用项目的字段值。例如,在一个包含雇员信息的表中,
一个记录包含了像一个人姓名和地址这样的字段的值。
结构化查询语言(SQL)是一种在关系型数据库中用于处理数据的查询语言。它是非过
程化语言或者说是描述性的,用户只须指定一种类似于英语的描述,用来确定操作,记录或
描述记录组合。查询优化器将这种描述翻译为过程执行数据库操作。
网状模型
网状模型在数据之间通过链接表结构创建关系,子记录可以链接到多个父记录。这种将
记录和链接捆绑到一起的方法叫做指针,他是指向一个记录存储位置的存储地址。使用网状
方法,一个子记录可以链接到一个关键记录,同时,它本身也可以作为一个关键记录。链接
到其他一系列子记录。在早期,网状模型比其他模型更有性能优势;但是在今天,这种优势
的特点只有在自动柜员机网络,航空预定系统等大容量和高速处理过程中才是最重要的。
分层和网状数据库都是专用程序,如果开发一个新的应用程序,那么在不同的应用程序
中保持数据库的一致性是非常困难的。例如开发一个退休金程序,需要访问雇员数据,这一
数据同时也被工资单程序访问。虽然数据是相同的,但是也必须建立新的数据库。
对象模型
最新的数据库管理方法是使用对象模型,记录由被称作对象的实体来描述,可以在对象
中存储数据,同时提供方法或程序执行特定的任务。
对象模型使用的查询语言与开发数据库程序所使用的面向对象的程序设计语言是相同
的,因为没有像 SQL 这样简单统一的查询语言,所以会产生一些问题。对象模型相对较新,
仅有少数几个面向对象的数据库实例。它引起了人们的关注,因为选择面向对象程序设计语
言的开发人员希望有一个基于在对象模型基础上的数据库。
分布式数据库
类似的,分布式数据库指的是数据库的各个部分分别存储在物理上相互分开的计算机
上。分布式数据库的一个目的是访问数据信息时不必考虑其他位置。注意,一旦用户和数据
分开,通信和网络则开始扮演重要角色。
分布式数据库需要部分常驻于大型主机上的软件,这些软件在大型机和个人计算机之间
建立桥梁,并解决数据格式不兼容的问题。在理想情况下,大型主机上的数据库看起来像是
一个大的信息仓库,而大部分处理则在个人计算机上完成。
分布式数据库系统的一个缺点是它们常以主机中心模型为基础,在这种模型中,大型主
机看起来好像是雇主,而终端和个人计算机看起来好像是奴隶。但是这种方法也有许多优点:
由于数据库的集中控制,前面提到的数据完整性和安全性的问题就迎刃而解了。当今的个人
计算机,部门级计算机和分布式处理都需要计算机之间以及应用程序之间在相等或对等的基
6
础上相互通信,在数据库中客户机/服务器模型为分布式数据库提供了框架结构。
利用相互连接的计算机上运行的数据库应用程序的一种方法是将程序分解为相互独立
的部分。客户端是一个最终用户或通过网络申请资源的计算机程序,服务器是一个运行着的
计算机软件,存储着那些通过网络传输的申请。当申请的资源是数据库中的数据时,客户机
/服务器模型则为分布式数据库提供了框架结构。
文件服务器指的是一个通过网络提供文件访问的软件,专门的文件服务器是一台被指定
为文件服务器的计算机。这是非常有用的,例如,如果文件比较大而且需要快速访问,在这
种情况下,一台微型计算机或大型主机将被用作文件服务器。分布式文件服务器将文件分散
到不同的计算机上,而不是将它们集中存放到专门的文件服务器上。
后一种文件服务器的优点包括在其他计算机上存储和检索文件的能力,并可以在每一台
计算机上消除重复文件。然而,一个重要的缺点是每个读写请求需要在网络上传播,在刷新
文件时可能出现问题。假设一个用户申请文件中的一个数据并修改它,同时另外一个用户也
申请这个数据并修改它,解决这种问题的方法叫做数据锁定,即第一个申请使其他申请处于
等待状态,直到完成第一个申请,其他用户可以读取这个数据,但不能修改。
数据库服务器是一个通过网络为数据库申请提供服务的软件,例如,假设某个用户在他
的个人计算机上输入了一个数据查询命令,如果应用程序按照客户机/服务器模型设计,那
么个人计算机上的查询语言通过网络传送数据库服务器上,当发现数据时发出通知。
在工程界也有许多分布式数据库的例子,如 SUN 公司的网络文件系统(NFS)被应用到
计算机辅助工程应用程序中,将数据分散到由 SUN 工作站组成的网络上的不同硬盘之间。
分布式数据库是革命性的进步,因为把数据存放在被使用位置上是很合乎常理的。例如
一个大公司不同部门之间的计算机,应该将数据存储在本地,然而,当被授权的管理人员需
要整理部门数据时,数据应该能够被访问。数据库信息系统软件将保护数据库的安全性和完
整性,对用户而言,分布式数据库和非分布式数据库看起来没有什么差别。
7
