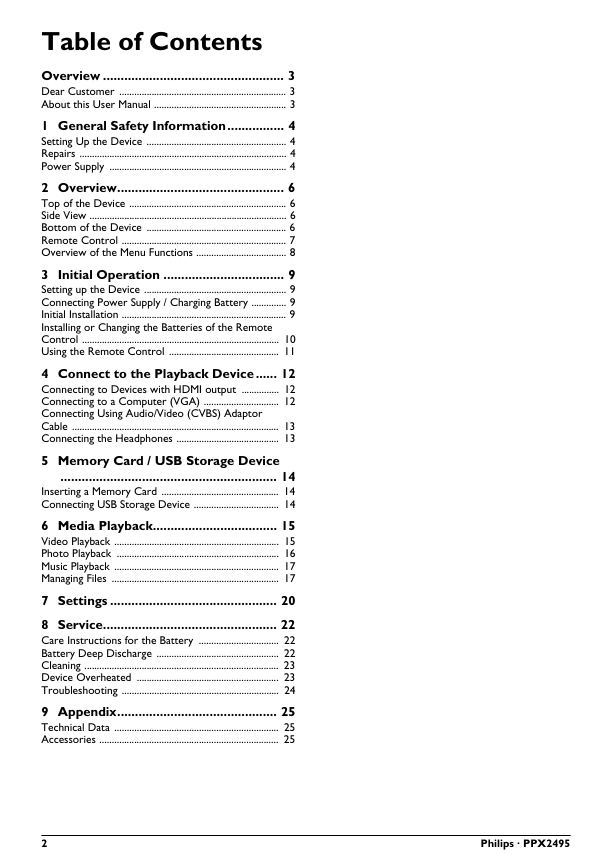

Table of Contents Overview ................................................... 3 Dear Customer ................................................................... 3 About this User Manual ..................................................... 3 1 General Safety Information................ 4 Setting Up the Device ........................................................ 4 Repairs ................................................................................... 4 Power Supply ....................................................................... 4 2 Overview............................................... 6 Top of the Device ............................................................... 6 Side View ............................................................................... 6 Bottom of the Device ........................................................ 6 Remote Control .................................................................. 7 Overview of the Menu Functions .................................... 8 3 Initial Operation .................................. 9 Setting up the Device ......................................................... 9 Connecting Power Supply / Charging Battery .............. 9 Initial Installation .................................................................. 9 Installing or Changing the Batteries of the Remote Control ............................................................................... 10 Using the Remote Control ............................................ 11 4 Connect to the Playback Device ...... 12 Connecting to Devices with HDMI output ............... 12 Connecting to a Computer (VGA) .............................. 12 Connecting Using Audio/Video (CVBS) Adaptor Cable ................................................................................... 13 Connecting the Headphones ......................................... 13 5 Memory Card / USB Storage Device ............................................................. 14 Inserting a Memory Card ............................................... 14 Connecting USB Storage Device .................................. 14 6 Media Playback................................... 15 Video Playback .................................................................. 15 Photo Playback ................................................................. 16 Music Playback .................................................................. 17 Managing Files ................................................................... 17 7 Settings ............................................... 20 8 Service................................................. 22 Care Instructions for the Battery ................................ 22 Battery Deep Discharge ................................................. 22 Cleaning .............................................................................. 23 Device Overheated ......................................................... 23 Troubleshooting ............................................................... 24 9 Appendix............................................. 25 Technical Data .................................................................. 25 Accessories ........................................................................ 25 2 Philips · PPX2495

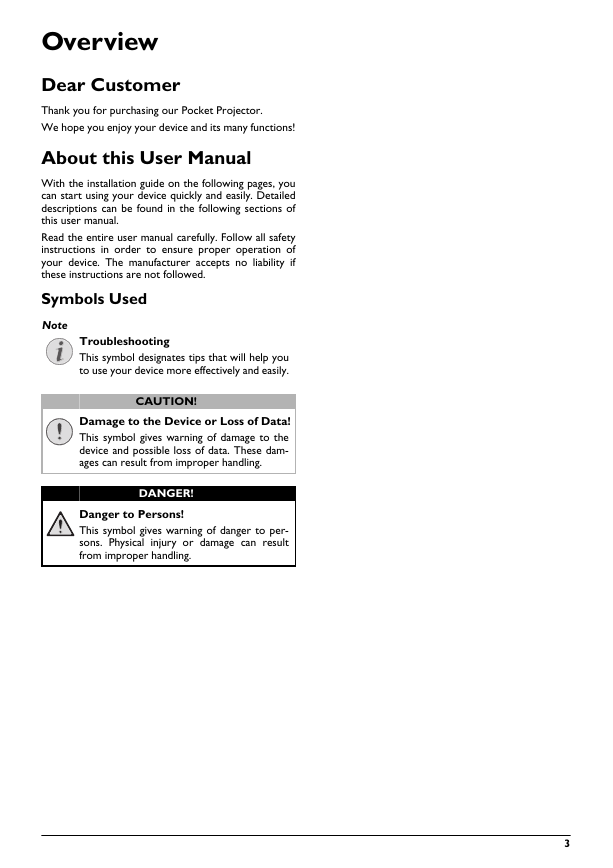

Overview Dear Customer Thank you for purchasing our Pocket Projector. We hope you enjoy your device and its many functions! About this User Manual With the installation guide on the following pages, you can start using your device quickly and easily. Detailed descriptions can be found in the following sections of this user manual. Read the entire user manual carefully. Follow all safety instructions in order to ensure proper operation of your device. The manufacturer accepts no liability if these instructions are not followed. Symbols Used Note Troubleshooting This symbol designates tips that will help you to use your device more effectively and easily. CAUTION! Damage to the Device or Loss of Data! This symbol gives warning of damage to the device and possible loss of data. These dam- ages can result from improper handling. DANGER! Danger to Persons! This symbol gives warning of danger to per- sons. Physical injury or damage can result from improper handling. 3

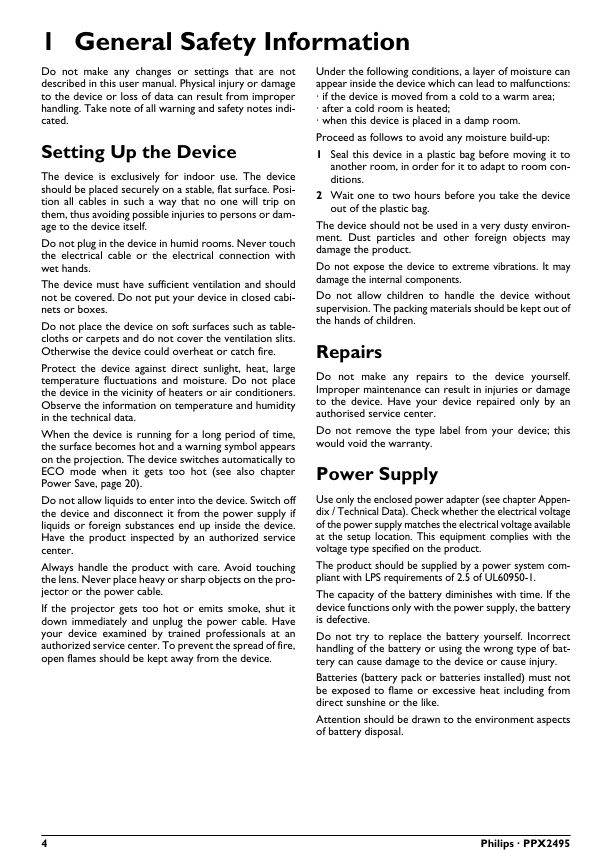

1 General Safety Information Do not make any changes or settings that are not described in this user manual. Physical injury or damage to the device or loss of data can result from improper handling. Take note of all warning and safety notes indi- cated. Setting Up the Device The device is exclusively for indoor use. The device should be placed securely on a stable, flat surface. Posi- tion all cables in such a way that no one will trip on them, thus avoiding possible injuries to persons or dam- age to the device itself. Do not plug in the device in humid rooms. Never touch the electrical cable or the electrical connection with wet hands. The device must have sufficient ventilation and should not be covered. Do not put your device in closed cabi- nets or boxes. Do not place the device on soft surfaces such as table- cloths or carpets and do not cover the ventilation slits. Otherwise the device could overheat or catch fire. Protect the device against direct sunlight, heat, large temperature fluctuations and moisture. Do not place the device in the vicinity of heaters or air conditioners. Observe the information on temperature and humidity in the technical data. When the device is running for a long period of time, the surface becomes hot and a warning symbol appears on the projection. The device switches automatically to ECO mode when it gets too hot (see also chapter Power Save, page 20). Do not allow liquids to enter into the device. Switch off the device and disconnect it from the power supply if liquids or foreign substances end up inside the device. Have the product inspected by an authorized service center. Always handle the product with care. Avoid touching the lens. Never place heavy or sharp objects on the pro- jector or the power cable. If the projector gets too hot or emits smoke, shut it down immediately and unplug the power cable. Have your device examined by trained professionals at an authorized service center. To prevent the spread of fire, open flames should be kept away from the device. Under the following conditions, a layer of moisture can appear inside the device which can lead to malfunctions: · if the device is moved from a cold to a warm area; · after a cold room is heated; · when this device is placed in a damp room. Proceed as follows to avoid any moisture build-up: 1 Seal this device in a plastic bag before moving it to another room, in order for it to adapt to room con- ditions. 2 Wait one to two hours before you take the device out of the plastic bag. The device should not be used in a very dusty environ- ment. Dust particles and other foreign objects may damage the product. Do not expose the device to extreme vibrations. It may damage the internal components. Do not allow children to handle the device without supervision. The packing materials should be kept out of the hands of children. Repairs Do not make any repairs to the device yourself. Improper maintenance can result in injuries or damage to the device. Have your device repaired only by an authorised service center. Do not remove the type label from your device; this would void the warranty. Power Supply Use only the enclosed power adapter (see chapter Appen- dix / Technical Data). Check whether the electrical voltage of the power supply matches the electrical voltage available at the setup location. This equipment complies with the voltage type specified on the product. The product should be supplied by a power system com- pliant with LPS requirements of 2.5 of UL60950-1. The capacity of the battery diminishes with time. If the device functions only with the power supply, the battery is defective. Do not try to replace the battery yourself. Incorrect handling of the battery or using the wrong type of bat- tery can cause damage to the device or cause injury. Batteries (battery pack or batteries installed) must not be exposed to flame or excessive heat including from direct sunshine or the like. Attention should be drawn to the environment aspects of battery disposal. 4 Philips · PPX2495

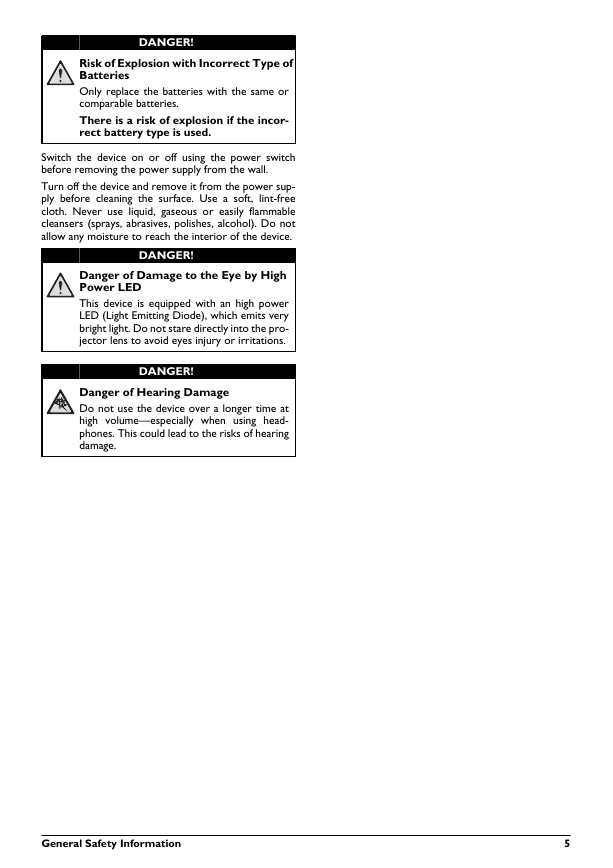

DANGER! Risk of Explosion with Incorrect Type of Batteries Only replace the batteries with the same or comparable batteries. There is a risk of explosion if the incor- rect battery type is used. Switch the device on or off using the power switch before removing the power supply from the wall. Turn off the device and remove it from the power sup- ply before cleaning the surface. Use a soft, lint-free cloth. Never use liquid, gaseous or easily flammable cleansers (sprays, abrasives, polishes, alcohol). Do not allow any moisture to reach the interior of the device. DANGER! Danger of Damage to the Eye by High Power LED This device is equipped with an high power LED (Light Emitting Diode), which emits very bright light. Do not stare directly into the pro- jector lens to avoid eyes injury or irritations. DANGER! Danger of Hearing Damage Do not use the device over a longer time at high volume—especially when using head- phones. This could lead to the risks of hearing damage. General Safety Information 5

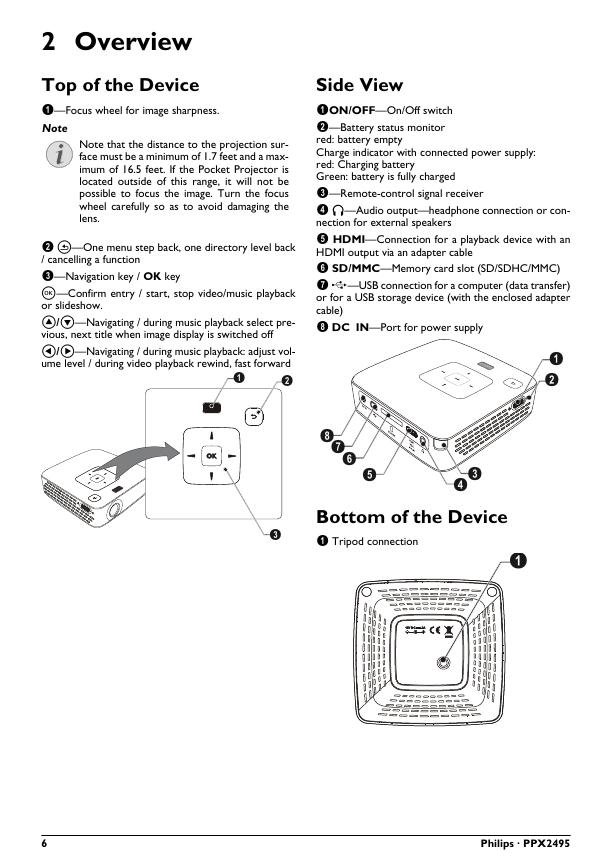

2 Overview Top of the Device 1—Focus wheel for image sharpness. Note Note that the distance to the projection sur- face must be a minimum of 1.7 feet and a max- imum of 16.5 feet. If the Pocket Projector is located outside of this range, it will not be possible to focus the image. Turn the focus wheel carefully so as to avoid damaging the lens. 2 ¿—One menu step back, one directory level back / cancelling a function 3—Navigation key / OK key à—Confirm entry / start, stop video/music playback or slideshow. ¡/¢—Navigating / during music playback select pre- vious, next title when image display is switched off À/Á—Navigating / during music playback: adjust vol- ume level / during video playback rewind, fast forward b a Side View 1ON/OFF—On/Off switch 2—Battery status monitor red: battery empty Charge indicator with connected power supply: red: Charging battery Green: battery is fully charged 3—Remote-control signal receiver 4 Ï—Audio output—headphone connection or con- nection for external speakers 5 HDMI—Connection for a playback device with an HDMI output via an adapter cable 6 SD/MMC—Memory card slot (SD/SDHC/MMC) ˆ ý—USB connection for a computer (data transfer) or for a USB storage device (with the enclosed adapter cable) ‰ DC IN—Port for power supply a b h g f e c d c Bottom of the Device ‚ Tripod connection a 6 Philips · PPX2495

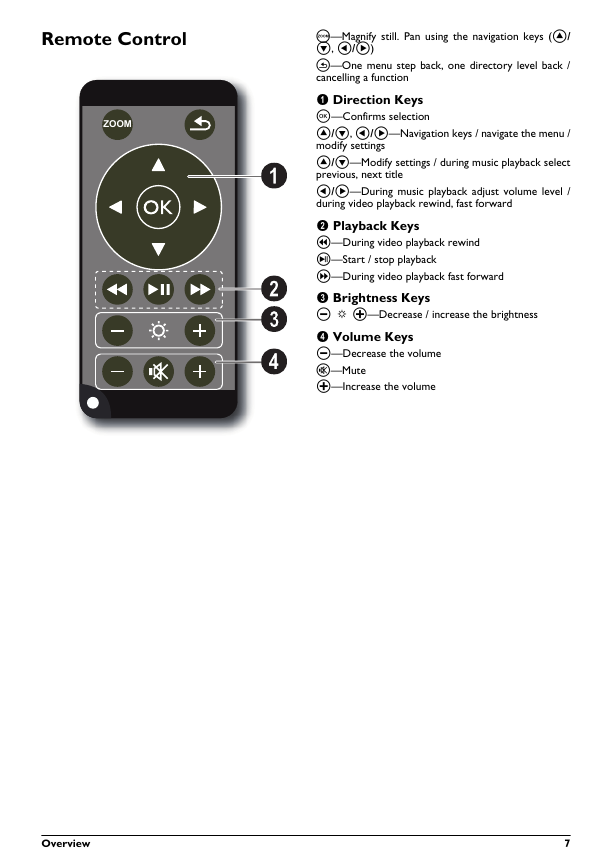

Remote Control ZOOM ¾—Magnify still. Pan using the navigation keys (¡/ ¢, À/Á) ¿—One menu step back, one directory level back / cancelling a function ‚ Direction Keys à—Confirms selection ¡/¢, À/Á—Navigation keys / navigate the menu / modify settings ¡/¢—Modify settings / during music playback select previous, next title À/Á—During music playback adjust volume level / during video playback rewind, fast forward ƒ Playback Keys :—During video playback rewind T—Start / stop playback ;—During video playback fast forward „ Brightness Keys N ß O—Decrease / increase the brightness … Volume Keys N—Decrease the volume «—Mute O—Increase the volume Overview 7

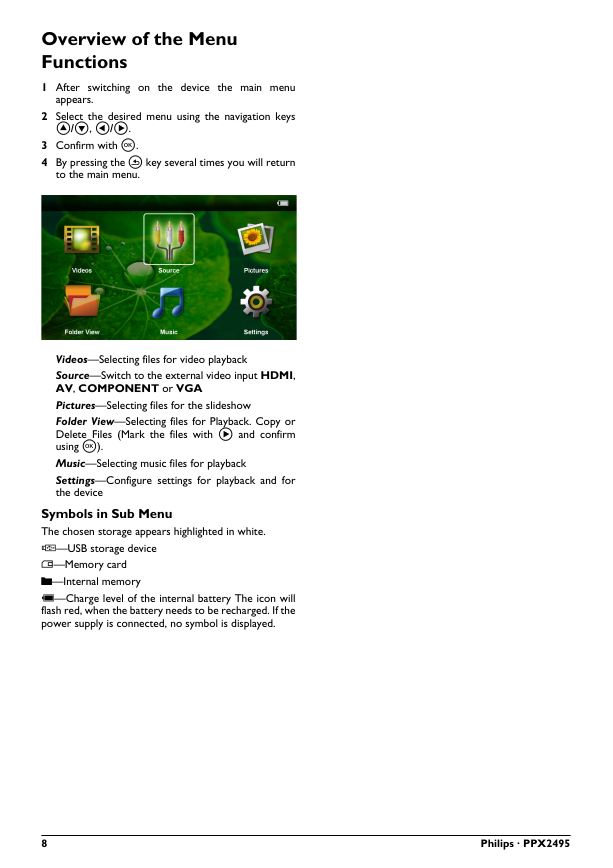

Overview of the Menu Functions 1 After switching on the device the main menu appears. 2 Select the desired menu using the navigation keys ¡/¢, À/Á. 3 Confirm with à. 4 By pressing the ¿ key several times you will return to the main menu. Videos—Selecting files for video playback Source—Switch to the external video input HDMI, AV, COMPONENT or VGA Pictures—Selecting files for the slideshow Folder View—Selecting files for Playback. Copy or Delete Files (Mark the files with Á and confirm using à). Music—Selecting music files for playback Settings—Configure settings for playback and for the device Symbols in Sub Menu The chosen storage appears highlighted in white. §—USB storage device ¨—Memory card ©—Internal memory ª—Charge level of the internal battery The icon will flash red, when the battery needs to be recharged. If the power supply is connected, no symbol is displayed. 8 Philips · PPX2495
