Multimedia Projector
LV-S4
Owner’s Manual
E
English

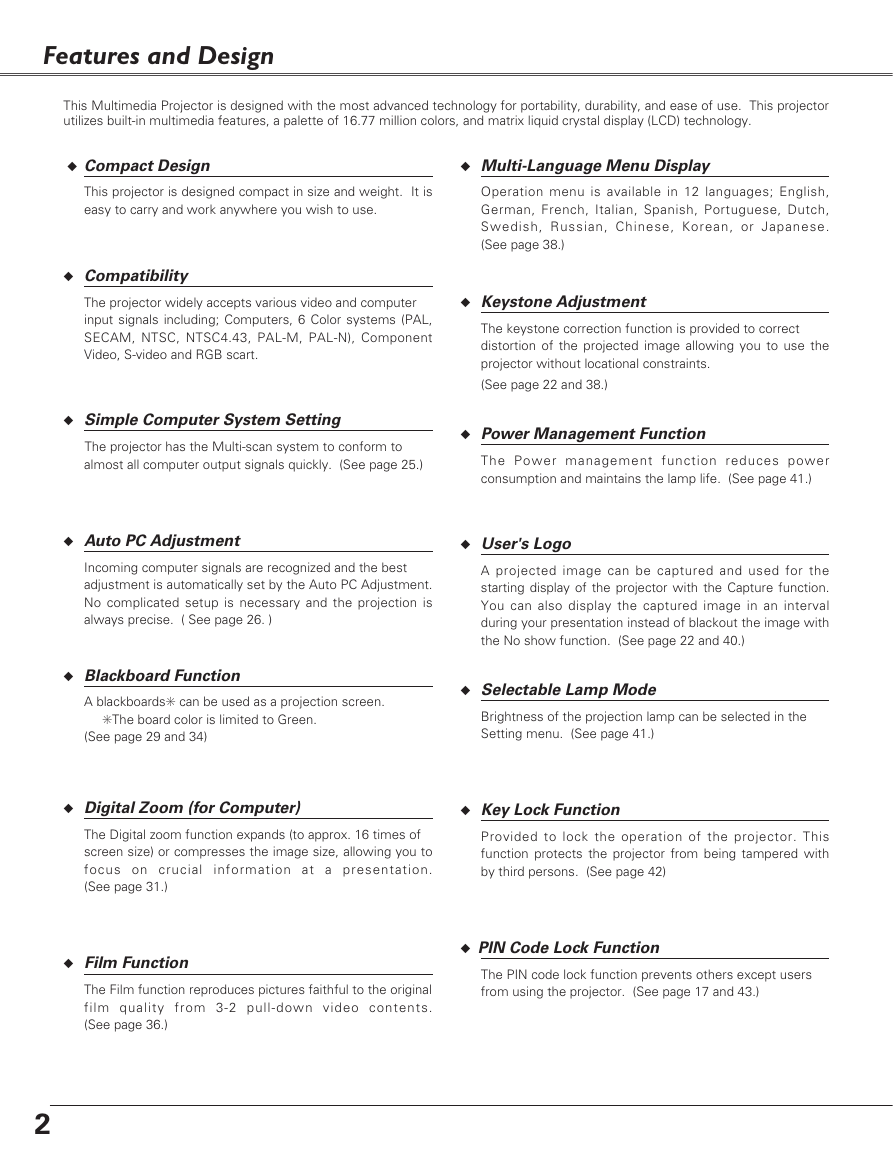

Features and Design
This Multimedia Projector is designed with the most advanced technology for portability, durability, and ease of use. This projector
utilizes built-in multimedia features, a palette of 16.77 million colors, and matrix liquid crystal display (LCD) technology.
◆ Compact Design
◆ Multi-Language Menu Display
This projector is designed compact in size and weight. It is
easy to carry and work anywhere you wish to use.
Operation menu is available in 12 languages; English,
German, French, Italian, Spanish, Portuguese, Dutch,
Swedish, Russian, Chinese, Korean, or Japanese.
(See page 38.)
◆ Compatibility
The projector widely accepts various video and computer
input signals including; Computers, 6 Color systems (PAL,
SECAM, NTSC, NTSC4.43, PAL-M, PAL-N), Component
Video, S-video and RGB scart.
◆ Simple Computer System Setting
The projector has the Multi-scan system to conform to
almost all computer output signals quickly. (See page 25.)
◆ Keystone Adjustment
The keystone correction function is provided to correct
distortion of the projected image allowing you to use the
projector without locational constraints.
(See page 22 and 38.)
◆ Power Management Function
The Power management function reduces power
consumption and maintains the lamp life. (See page 41.)
◆ Auto PC Adjustment
◆ User's Logo
Incoming computer signals are recognized and the best
adjustment is automatically set by the Auto PC Adjustment.
No complicated setup is necessary and the projection is
always precise. ( See page 26. )
A projected image can be captured and used for the
starting display of the projector with the Capture function.
You can also display the captured image in an interval
during your presentation instead of blackout the image with
the No show function. (See page 22 and 40.)
◆ Blackboard Function
A blackboards✳ can be used as a projection screen.
✳The board color is limited to Green.
(See page 29 and 34)
◆ Selectable Lamp Mode
Brightness of the projection lamp can be selected in the
Setting menu. (See page 41.)
◆ Digital Zoom (for Computer)
◆ Key Lock Function
The Digital zoom function expands (to approx. 16 times of
screen size) or compresses the image size, allowing you to
focus on crucial information at a presentation.
(See page 31.)
Provided to lock the operation of the projector. This
function protects the projector from being tampered with
by third persons. (See page 42)
◆ Film Function
The Film function reproduces pictures faithful to the original
film quality from 3-2 pull-down video contents.
(See page 36.)
◆ PIN Code Lock Function
The PIN code lock function prevents others except users
from using the projector. (See page 17 and 43.)
2

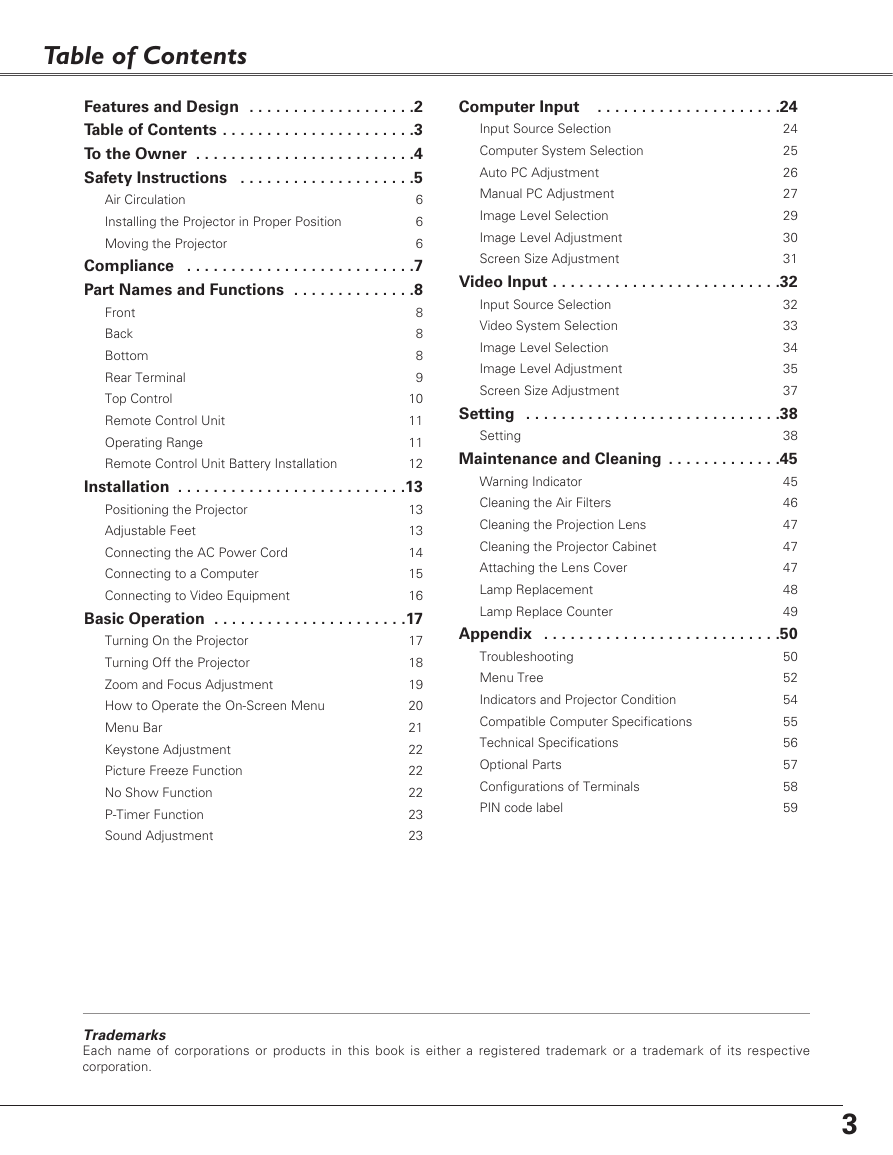

Table of Contents
Air Circulation
Installing the Projector in Proper Position
Moving the Projector
Front
Back
Bottom
Rear Terminal
Top Control
Remote Control Unit
Operating Range
Remote Control Unit Battery Installation
Features and Design . . . . . . . . . . . . . . . . . . .2
Table of Contents . . . . . . . . . . . . . . . . . . . . . .3
To the Owner . . . . . . . . . . . . . . . . . . . . . . . . .4
Safety Instructions . . . . . . . . . . . . . . . . . . . .5
6
6
6
Compliance . . . . . . . . . . . . . . . . . . . . . . . . . .7
Part Names and Functions . . . . . . . . . . . . . .8
8
8
8
9
10
11
11
12
Installation . . . . . . . . . . . . . . . . . . . . . . . . . .13
13
13
14
15
16
Basic Operation . . . . . . . . . . . . . . . . . . . . . .17
17
18
19
20
21
22
22
22
23
23
Turning On the Projector
Turning Off the Projector
Zoom and Focus Adjustment
How to Operate the On-Screen Menu
Menu Bar
Keystone Adjustment
Picture Freeze Function
No Show Function
P-Timer Function
Sound Adjustment
Positioning the Projector
Adjustable Feet
Connecting the AC Power Cord
Connecting to a Computer
Connecting to Video Equipment
Input Source Selection
Video System Selection
Image Level Selection
Image Level Adjustment
Screen Size Adjustment
Setting
Input Source Selection
Computer System Selection
Auto PC Adjustment
Manual PC Adjustment
Image Level Selection
Image Level Adjustment
Screen Size Adjustment
Computer Input . . . . . . . . . . . . . . . . . . . . .24
24
25
26
27
29
30
31
Video Input . . . . . . . . . . . . . . . . . . . . . . . . . .32
32
33
34
35
37
Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38
38
Maintenance and Cleaning . . . . . . . . . . . . .45
45
46
47
47
47
48
49
Appendix . . . . . . . . . . . . . . . . . . . . . . . . . . .50
50
52
54
55
56
57
58
59
Troubleshooting
Menu Tree
Indicators and Projector Condition
Compatible Computer Specifications
Technical Specifications
Optional Parts
Configurations of Terminals
PIN code label
Warning Indicator
Cleaning the Air Filters
Cleaning the Projection Lens
Cleaning the Projector Cabinet
Attaching the Lens Cover
Lamp Replacement
Lamp Replace Counter
Trademarks
Each name of corporations or products in this book is either a registered trademark or a trademark of its respective
corporation.
3

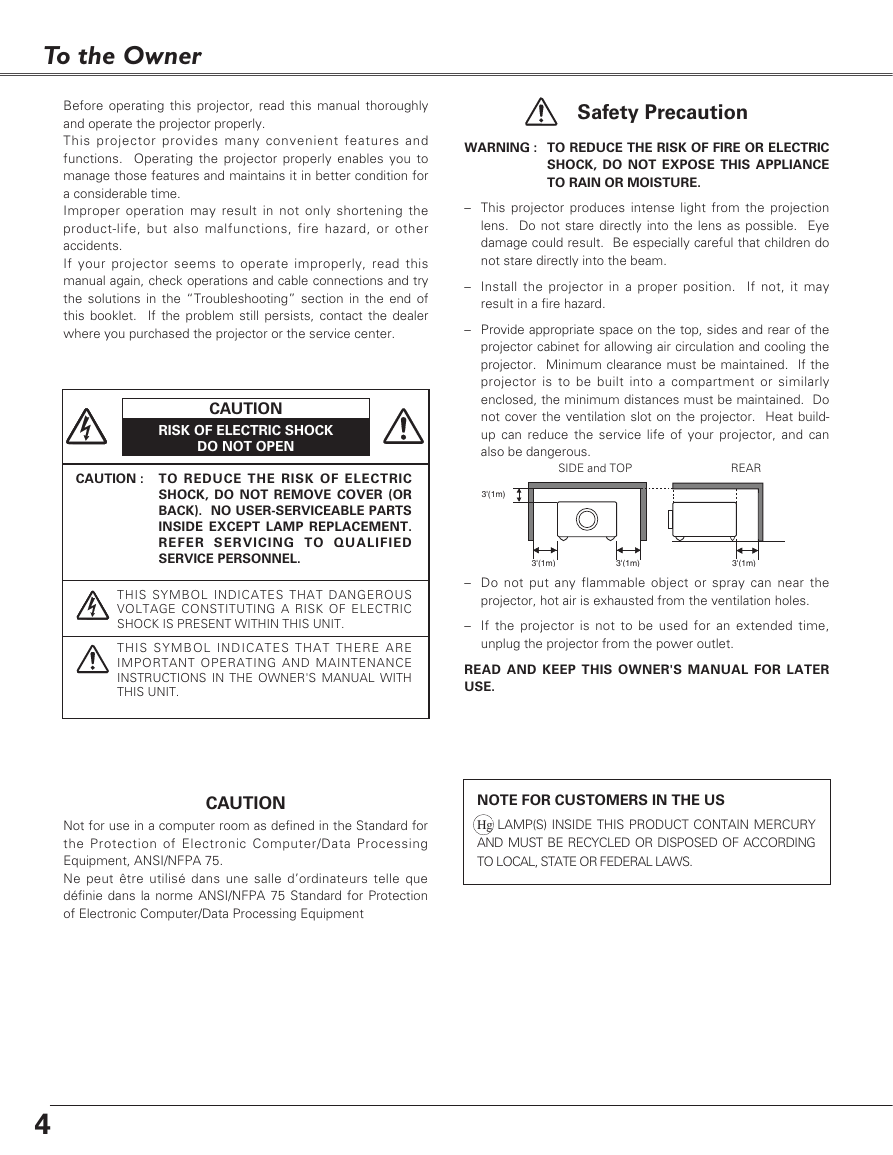

To the Owner
Before operating this projector, read this manual thoroughly
and operate the projector properly.
This projector provides many convenient features and
functions. Operating the projector properly enables you to
manage those features and maintains it in better condition for
a considerable time.
Improper operation may result in not only shortening the
product-life, but also malfunctions, fire hazard, or other
accidents.
If your projector seems to operate improperly, read this
manual again, check operations and cable connections and try
the solutions in the “Troubleshooting” section in the end of
this booklet. If the problem still persists, contact the dealer
where you purchased the projector or the service center.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION : TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER (OR
BACK). NO USER-SERVICEABLE PARTS
INSIDE EXCEPT LAMP REPLACEMENT.
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
THIS SYMBOL INDICATES THAT DANGEROUS
VOLTAGE CONSTITUTING A RISK OF ELECTRIC
SHOCK IS PRESENT WITHIN THIS UNIT.
THIS SYMBOL INDICATES THAT THERE ARE
IMPORTANT OPERATING AND MAINTENANCE
INSTRUCTIONS IN THE OWNER'S MANUAL WITH
THIS UNIT.
Safety Precaution
WARNING : TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK, DO NOT EXPOSE THIS APPLIANCE
TO RAIN OR MOISTURE.
– This projector produces intense light from the projection
lens. Do not stare directly into the lens as possible. Eye
damage could result. Be especially careful that children do
not stare directly into the beam.
– Install the projector in a proper position. If not, it may
result in a fire hazard.
– Provide appropriate space on the top, sides and rear of the
projector cabinet for allowing air circulation and cooling the
projector. Minimum clearance must be maintained. If the
projector is to be built into a compartment or similarly
enclosed, the minimum distances must be maintained. Do
not cover the ventilation slot on the projector. Heat build-
up can reduce the service life of your projector, and can
also be dangerous.
SIDE and TOP
REAR
3'(1m)
3'(1m)
3'(1m)
3'(1m)
– Do not put any flammable object or spray can near the
projector, hot air is exhausted from the ventilation holes.
– If the projector is not to be used for an extended time,
unplug the projector from the power outlet.
READ AND KEEP THIS OWNER'S MANUAL FOR LATER
USE.
CAUTION
Not for use in a computer room as defined in the Standard for
the Protection of Electronic Computer/Data Processing
Equipment, ANSI/NFPA 75.
Ne peut être utilisé dans une salle d’ordinateurs telle que
définie dans la norme ANSI/NFPA 75 Standard for Protection
of Electronic Computer/Data Processing Equipment
NOTE FOR CUSTOMERS IN THE US
Hg LAMP(S) INSIDE THIS PRODUCT CONTAIN MERCURY
AND MUST BE RECYCLED OR DISPOSED OF ACCORDING
TO LOCAL, STATE OR FEDERAL LAWS.
4

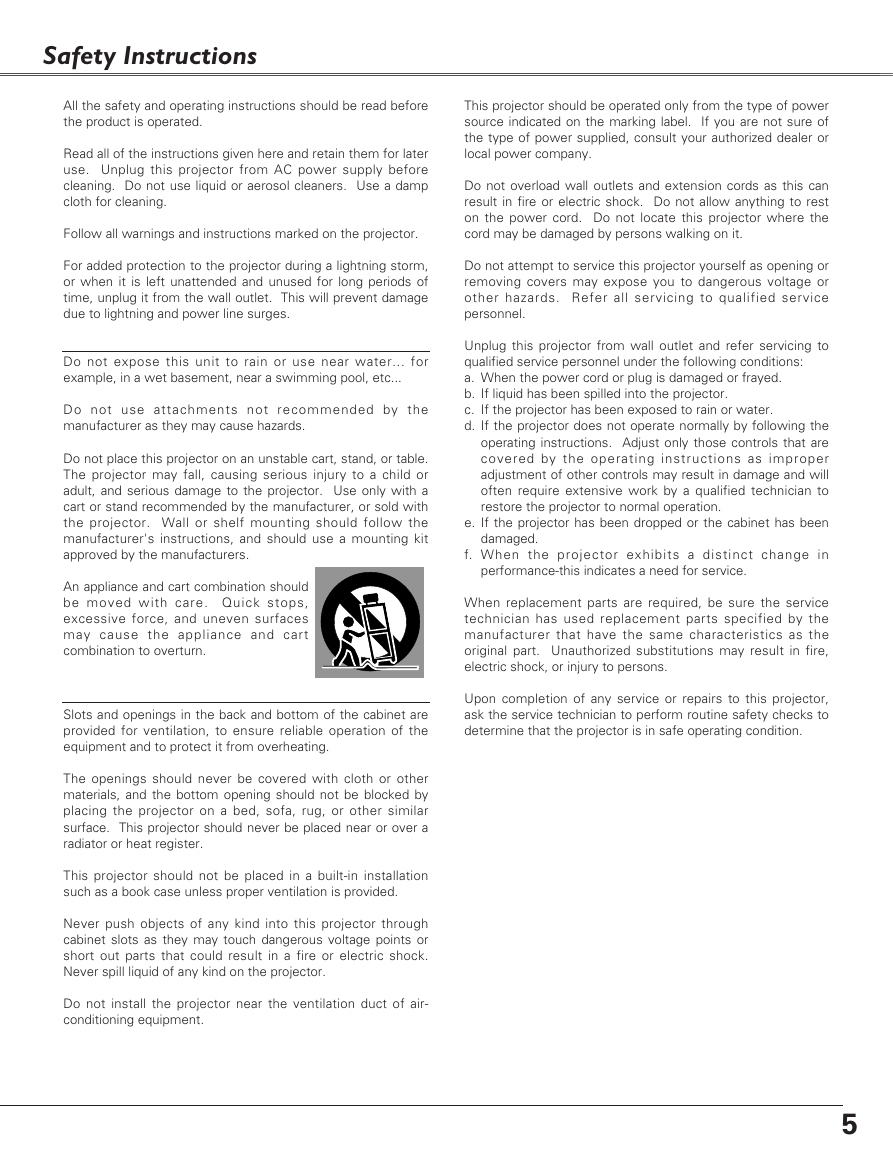

Safety Instructions
All the safety and operating instructions should be read before
the product is operated.
Read all of the instructions given here and retain them for later
use. Unplug this projector from AC power supply before
cleaning. Do not use liquid or aerosol cleaners. Use a damp
cloth for cleaning.
Follow all warnings and instructions marked on the projector.
This projector should be operated only from the type of power
source indicated on the marking label. If you are not sure of
the type of power supplied, consult your authorized dealer or
local power company.
Do not overload wall outlets and extension cords as this can
result in fire or electric shock. Do not allow anything to rest
on the power cord. Do not locate this projector where the
cord may be damaged by persons walking on it.
For added protection to the projector during a lightning storm,
or when it is left unattended and unused for long periods of
time, unplug it from the wall outlet. This will prevent damage
due to lightning and power line surges.
Do not attempt to service this projector yourself as opening or
removing covers may expose you to dangerous voltage or
other hazards. Refer all servicing to qualified service
personnel.
Unplug this projector from wall outlet and refer servicing to
qualified service personnel under the following conditions:
a. When the power cord or plug is damaged or frayed.
b. If liquid has been spilled into the projector.
c. If the projector has been exposed to rain or water.
d. If the projector does not operate normally by following the
operating instructions. Adjust only those controls that are
covered by the operating instructions as improper
adjustment of other controls may result in damage and will
often require extensive work by a qualified technician to
restore the projector to normal operation.
e. If the projector has been dropped or the cabinet has been
damaged.
f. When the projector exhibits a distinct change in
performance-this indicates a need for service.
When replacement parts are required, be sure the service
technician has used replacement parts specified by the
manufacturer that have the same characteristics as the
original part. Unauthorized substitutions may result in fire,
electric shock, or injury to persons.
Upon completion of any service or repairs to this projector,
ask the service technician to perform routine safety checks to
determine that the projector is in safe operating condition.
Do not expose this unit to rain or use near water... for
example, in a wet basement, near a swimming pool, etc...
Do not use attachments not recommended by the
manufacturer as they may cause hazards.
Do not place this projector on an unstable cart, stand, or table.
The projector may fall, causing serious injury to a child or
adult, and serious damage to the projector. Use only with a
cart or stand recommended by the manufacturer, or sold with
the projector. Wall or shelf mounting should follow the
manufacturer's instructions, and should use a mounting kit
approved by the manufacturers.
An appliance and cart combination should
be moved with care. Quick stops,
excessive force, and uneven surfaces
may cause the appliance and cart
combination to overturn.
Slots and openings in the back and bottom of the cabinet are
provided for ventilation, to ensure reliable operation of the
equipment and to protect it from overheating.
The openings should never be covered with cloth or other
materials, and the bottom opening should not be blocked by
placing the projector on a bed, sofa, rug, or other similar
surface. This projector should never be placed near or over a
radiator or heat register.
This projector should not be placed in a built-in installation
such as a book case unless proper ventilation is provided.
Never push objects of any kind into this projector through
cabinet slots as they may touch dangerous voltage points or
short out parts that could result in a fire or electric shock.
Never spill liquid of any kind on the projector.
Do not install the projector near the ventilation duct of air-
conditioning equipment.
5
Safety Instructions
Air Circulation
Openings in the cabinet are provided for ventilation and to
ensure reliable operation of the product and to protect it from
overheating, and these openings must not be blocked or
covered.
CAUTION
Hot air is exhausted from the exhaust vent. When using or
installing the projector, the following precautions should be
taken.
– Do not put any flammable objects near the vent.
– Keep the exhaust vent at least 3’(1m) away from any
objects.
– Do not touch a peripheral part of the exhaust vent,
especially screws and metallic part. This area will become
hot while the projector is being used.
– Do not put anything on the projector. The materials put on
the cabinet will not only get damaged but also cause fire
hazard by heat.
Cooling fans are provided to cool down the projector. This
projector monitors internal temperature and control the
running speed of the cooling fans.
Installing the Projector in Proper Position
Install the projector properly. Improper Installation may reduce
the lamp life and cause a fire hazard.
20˚
20˚
Do not tilt the projector more than 20
degrees above and below.
Do not point the projector up to
project an image.
Do not point the projector down to
project an image.
Do not put the projector on either
side to project an image.
Air Intake Vent
Moving the Projector
When moving the projector, replace the Lens Cover and
retract Adjustable Feet to prevent damage to the lens and
cabinet.
When the projector is not in use for an extended period, put it
into the supplied case (carrying bag) with lens side up.
Exhaust Vent
(Hot air exhaust)
CAUTION
Carrying Bag (supplied) is intended for protection from dust
and scratches on the surface of a cabinet, and it is not
designed to protect an appliance from external forces. Do not
transport the projector through a courier or transport services
with this bag, otherwise the projector can be damaged. When
handling the projector, do not drop, bump, subject it to strong
forces or put other things on the cabinet.
USE CAUTION IN CARRYING OR
TRANSPORTING THE PROJECTOR
– Do not drop or bump the projector, otherwise damages or
malfunctions may result.
– When carrying the projector, use a suitable carrying case.
– Do not transport the projector by using a courier or transport
service in an unsuitable transport case. This may cause
damage to the projector. To transport a projector through a
courier or transport service, consult your dealer for their
information.
6
Compliance
Federal Communication Commission Notice
Multimedia Projector, Model : LV-S4E and LV-S4U
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
Note : This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures :
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
– Consult the dealer or an experienced radio/TV technician for help.
Use of shielded cable is required to comply with class B limits in Subpart B of Part 15 of FCC Rules.
Do not make any changes or modifications to the equipment unless otherwise specified in the manual. If such changes or
modifications should be made, you could be required to stop operation of the equipment.
Canon U.S.A., Inc.
One Canon Plaza, Lake Success, NY 11042, U.S.A.
Tel No. (516)328-5600
Canadian Radio Interference Regulations
This Class B digital apparatus complies with Canadian ICES-003.
Réglementation canadienne sur les intérferences radio
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
AC Power Cord Requirement
The AC Power Cord supplied with this projector meets the requirement for use in the country you purchased it.
AC Power Cord for the United States and Canada :
AC Power Cord used in the United States and Canada is listed by the Underwriters Laboratories (UL) and
certified by the Canadian Standard Association (CSA).
AC Power Cord has a grounding-type AC line plug. This is a safety feature to be sure that the plug will fit into
the power outlet. Do not try to defeat this safety feature. Should you be unable to insert the plug into the
outlet, contact your electrician.
GROUND
THE SOCKET-OUTLET SHOULD BE INSTALLED NEAR THE EQUIPMENT AND EASILY ACCESSIBLE.
7
Part Names and Functions
Front
q
w
e
r
t
Back
q
w
e
Bottom
q
8
q Focus Ring
w Infrared Remote Receiver
e Projection Lens
r Zoom Lever
t Lens Cover
y Air Intake Vent
u Exhaust Vent
i
CAUTION
Hot air is exhausted from the exhaust vent. Do
not put heat-sensitive objects near this side.
i Speaker
q Air Intake Vent
w Terminals and Connectors
e Power Cord Connector
r Exhaust Vent
t Top Controls and Indicators
CAUTION
Hot air is exhausted from the exhaust vent. Do
not put heat-sensitive objects near this side.
q Air Filters
w Air Intake Vents
e Adjustable Feet
CAUTION
u
y
t
r
e
w
Hot air is exhausted from the exhaust vents.
When using or installing the projector, the
following precautions should be taken.
– Do not put any flammable objects near these
vents.
– Keep front grills at least 3’(1m) away from any
objects, especially heat-sensitive objects.
– Do not touch this area, especially screws and
metallic part. This area will become hot while
the projector is being used.
This projector detects internal temperature and
will automatically adjust the running speed of the
cooling fans.
相关推荐
2023年江西萍乡中考道德与法治真题及答案.doc
2012年重庆南川中考生物真题及答案.doc
2013年江西师范大学地理学综合及文艺理论基础考研真题.doc
2020年四川甘孜小升初语文真题及答案I卷.doc
2020年注册岩土工程师专业基础考试真题及答案.doc
2023-2024学年福建省厦门市九年级上学期数学月考试题及答案.doc
2021-2022学年辽宁省沈阳市大东区九年级上学期语文期末试题及答案.doc
2022-2023学年北京东城区初三第一学期物理期末试卷及答案.doc
2018上半年江西教师资格初中地理学科知识与教学能力真题及答案.doc
2012年河北国家公务员申论考试真题及答案-省级.doc
2020-2021学年江苏省扬州市江都区邵樊片九年级上学期数学第一次质量检测试题及答案.doc
2022下半年黑龙江教师资格证中学综合素质真题及答案.doc
