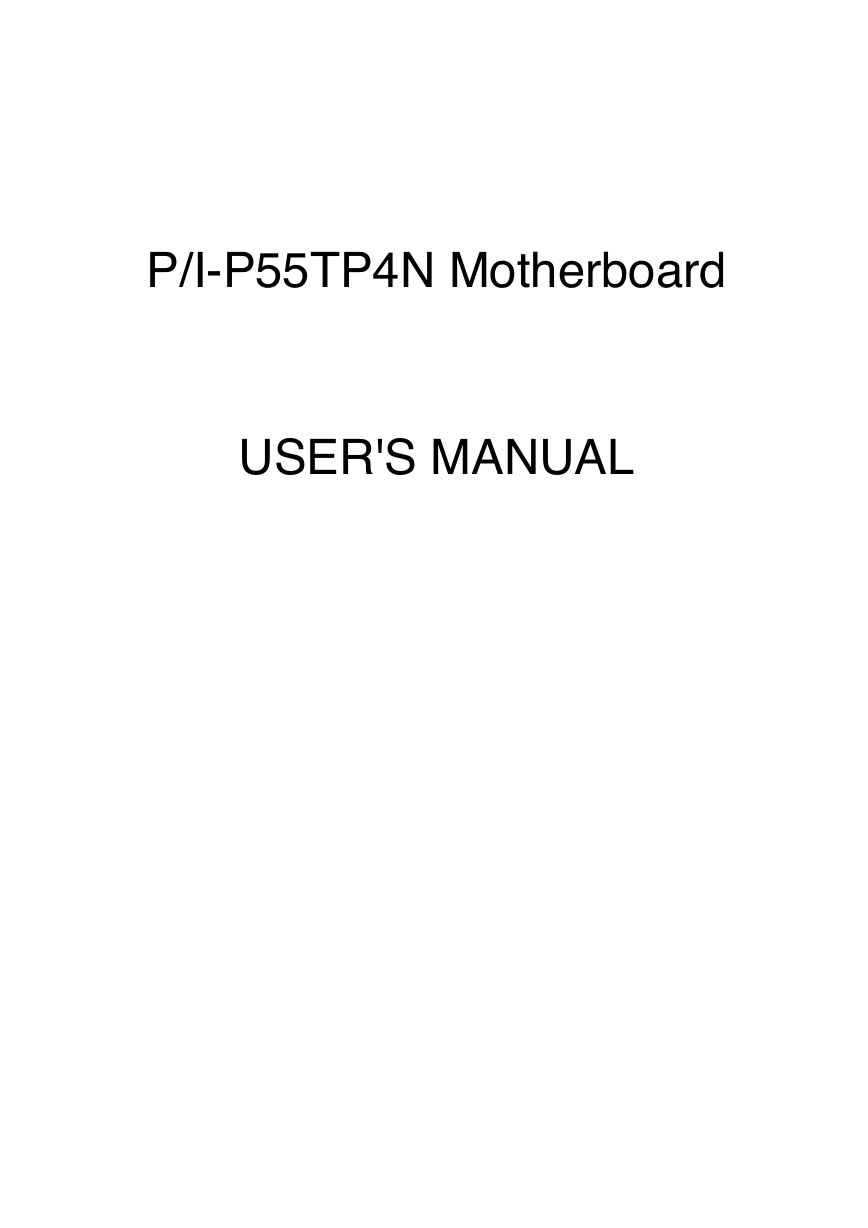

P/I-P55TP4N Motherboard USER'S MANUAL

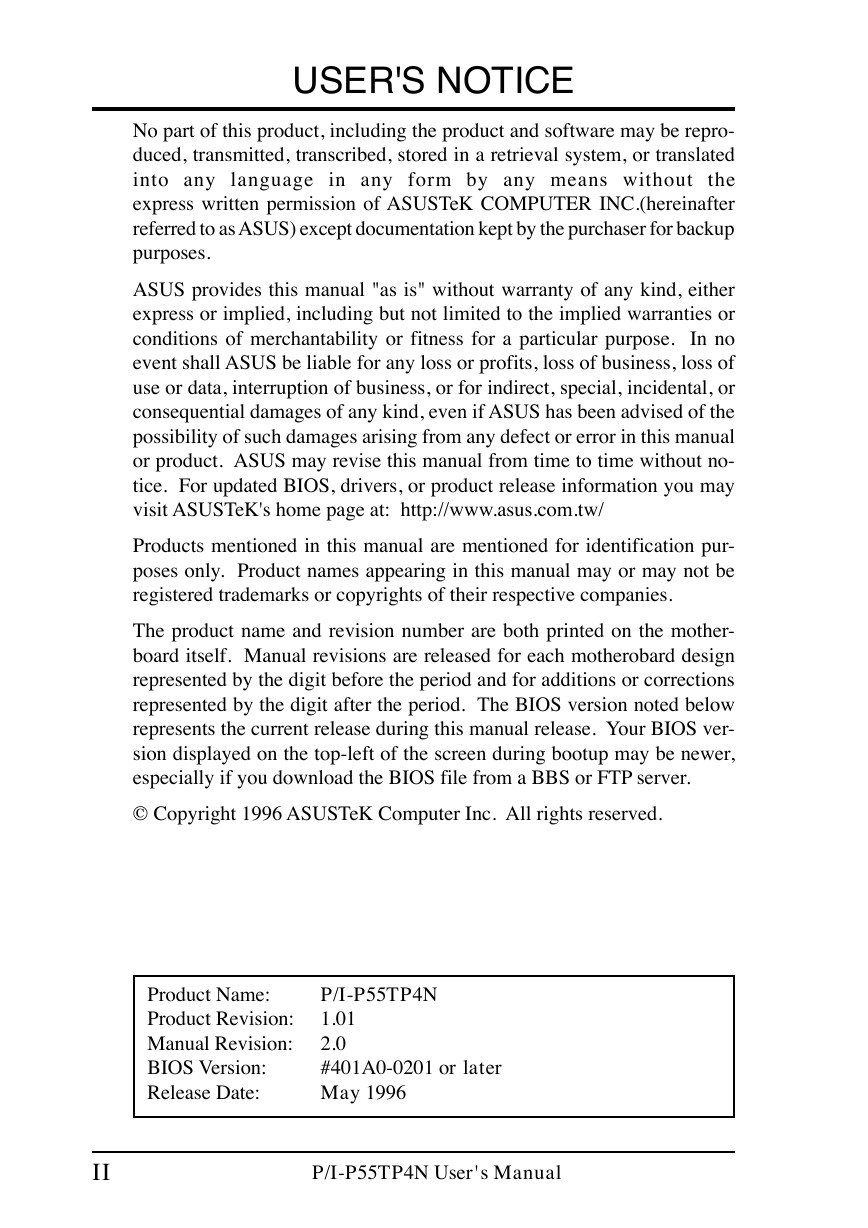

USER'S NOTICE No part of this product, including the product and software may be repro- duced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form by any means without the express written permission of ASUSTeK COMPUTER INC.(hereinafter referred to as ASUS) except documentation kept by the purchaser for backup purposes. ASUS provides this manual "as is" without warranty of any kind, either express or implied, including but not limited to the implied warranties or conditions of merchantability or fitness for a particular purpose. In no event shall ASUS be liable for any loss or profits, loss of business, loss of use or data, interruption of business, or for indirect, special, incidental, or consequential damages of any kind, even if ASUS has been advised of the possibility of such damages arising from any defect or error in this manual or product. ASUS may revise this manual from time to time without no- tice. For updated BIOS, drivers, or product release information you may visit ASUSTeK's home page at: http://www.asus.com.tw/ Products mentioned in this manual are mentioned for identification pur- poses only. Product names appearing in this manual may or may not be registered trademarks or copyrights of their respective companies. The product name and revision number are both printed on the mother- board itself. Manual revisions are released for each motherobard design represented by the digit before the period and for additions or corrections represented by the digit after the period. The BIOS version noted below represents the current release during this manual release. Your BIOS ver- sion displayed on the top-left of the screen during bootup may be newer, especially if you download the BIOS file from a BBS or FTP server. © Copyright 1996 ASUSTeK Computer Inc. All rights reserved. Product Name: Product Revision: Manual Revision: BIOS Version: Release Date: P/I-P55TP4N 1.01 2.0 #401A0-0201 or later May 1996 II P/I-P55TP4N User's Manual

P/I-P55TP4N User's Manual III

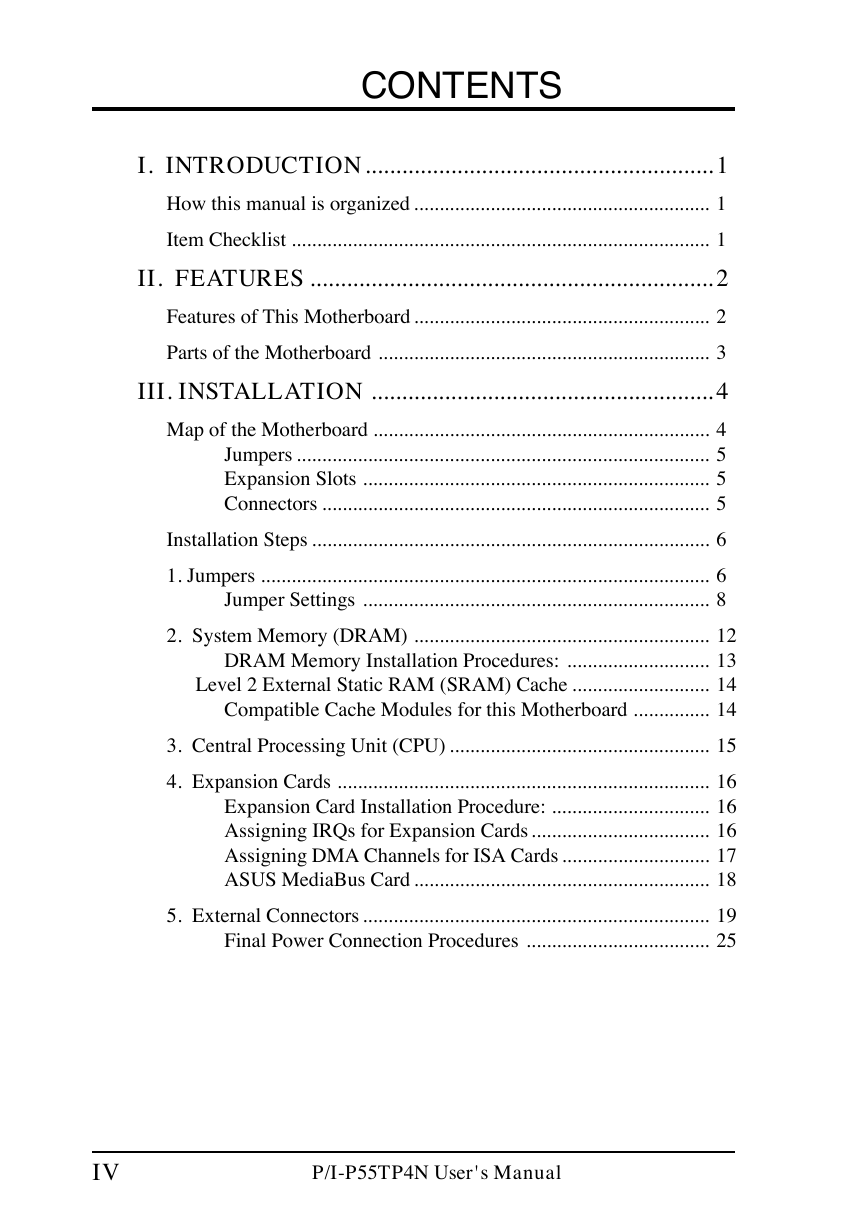

CONTENTS I. INTRODUCTION......................................................... 1 How this manual is organized .......................................................... 1 Item Checklist .................................................................................. 1 II. FEATURES .................................................................. 2 Features of This Motherboard .......................................................... 2 Parts of the Motherboard ................................................................. 3 III. INSTALLATION ........................................................ 4 Map of the Motherboard .................................................................. 4 Jumpers ................................................................................. 5 Expansion Slots .................................................................... 5 Connectors ............................................................................ 5 Installation Steps .............................................................................. 6 1. Jumpers ........................................................................................ 6 Jumper Settings .................................................................... 8 2. System Memory (DRAM) .......................................................... 12 DRAM Memory Installation Procedures: ............................ 13 Level 2 External Static RAM (SRAM) Cache ........................... 14 Compatible Cache Modules for this Motherboard ............... 14 3. Central Processing Unit (CPU) ................................................... 15 4. Expansion Cards ......................................................................... 16 Expansion Card Installation Procedure: ............................... 16 Assigning IRQs for Expansion Cards................................... 16 Assigning DMA Channels for ISA Cards ............................. 17 ASUS MediaBus Card .......................................................... 18 5. External Connectors .................................................................... 19 Final Power Connection Procedures .................................... 25 IV P/I-P55TP4N User's Manual

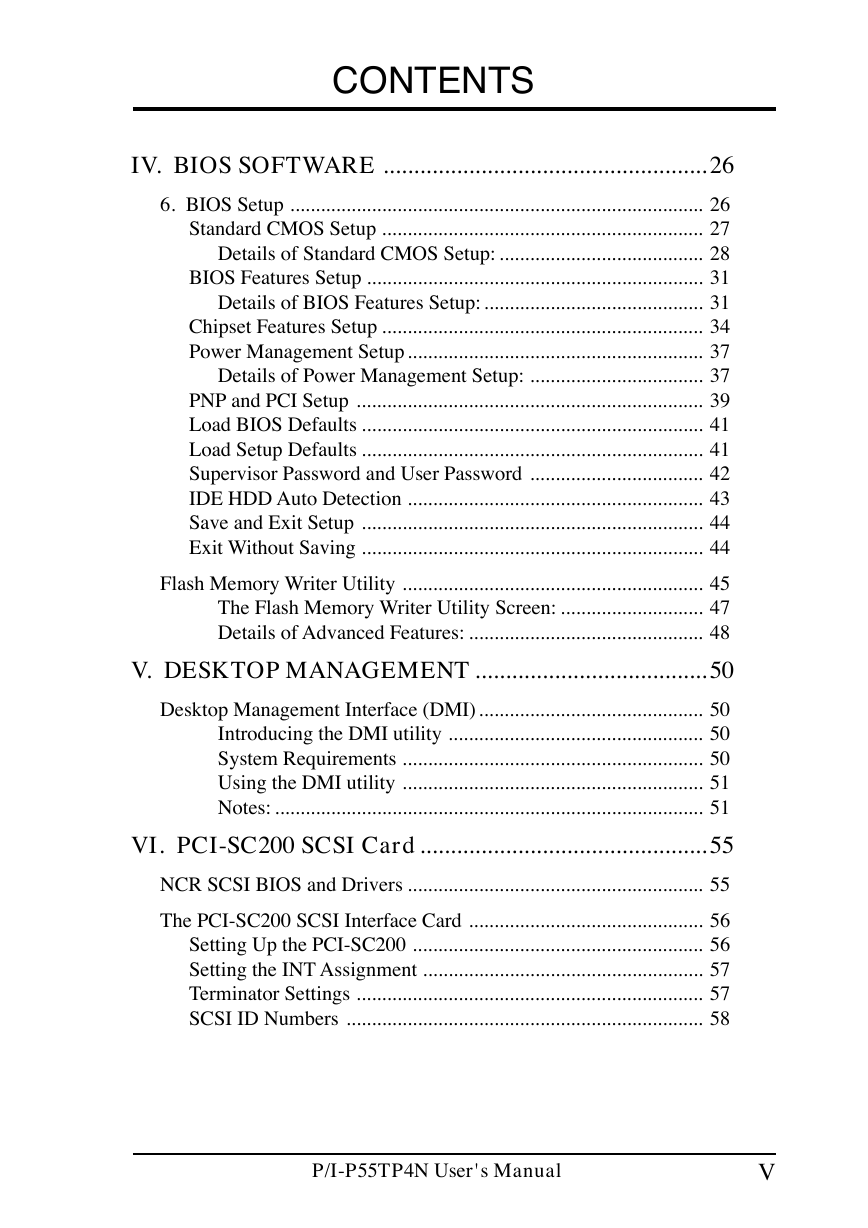

CONTENTS IV. BIOS SOFTWARE ..................................................... 26 6. BIOS Setup ................................................................................. 26 Standard CMOS Setup ............................................................... 27 Details of Standard CMOS Setup: ........................................ 28 BIOS Features Setup .................................................................. 31 Details of BIOS Features Setup: ........................................... 31 Chipset Features Setup ............................................................... 34 Power Management Setup.......................................................... 37 Details of Power Management Setup: .................................. 37 PNP and PCI Setup .................................................................... 39 Load BIOS Defaults ................................................................... 41 Load Setup Defaults ................................................................... 41 Supervisor Password and User Password .................................. 42 IDE HDD Auto Detection .......................................................... 43 Save and Exit Setup ................................................................... 44 Exit Without Saving ................................................................... 44 Flash Memory Writer Utility ........................................................... 45 The Flash Memory Writer Utility Screen: ............................ 47 Details of Advanced Features: .............................................. 48 V. DESKTOP MANAGEMENT ...................................... 50 Desktop Management Interface (DMI)............................................ 50 Introducing the DMI utility .................................................. 50 System Requirements ........................................................... 50 Using the DMI utility ........................................................... 51 Notes: .................................................................................... 51 VI. PCI-SC200 SCSI Card............................................... 55 NCR SCSI BIOS and Drivers .......................................................... 55 The PCI-SC200 SCSI Interface Card .............................................. 56 Setting Up the PCI-SC200 ......................................................... 56 Setting the INT Assignment ....................................................... 57 Terminator Settings .................................................................... 57 SCSI ID Numbers ...................................................................... 58 P/I-P55TP4N User's Manual V

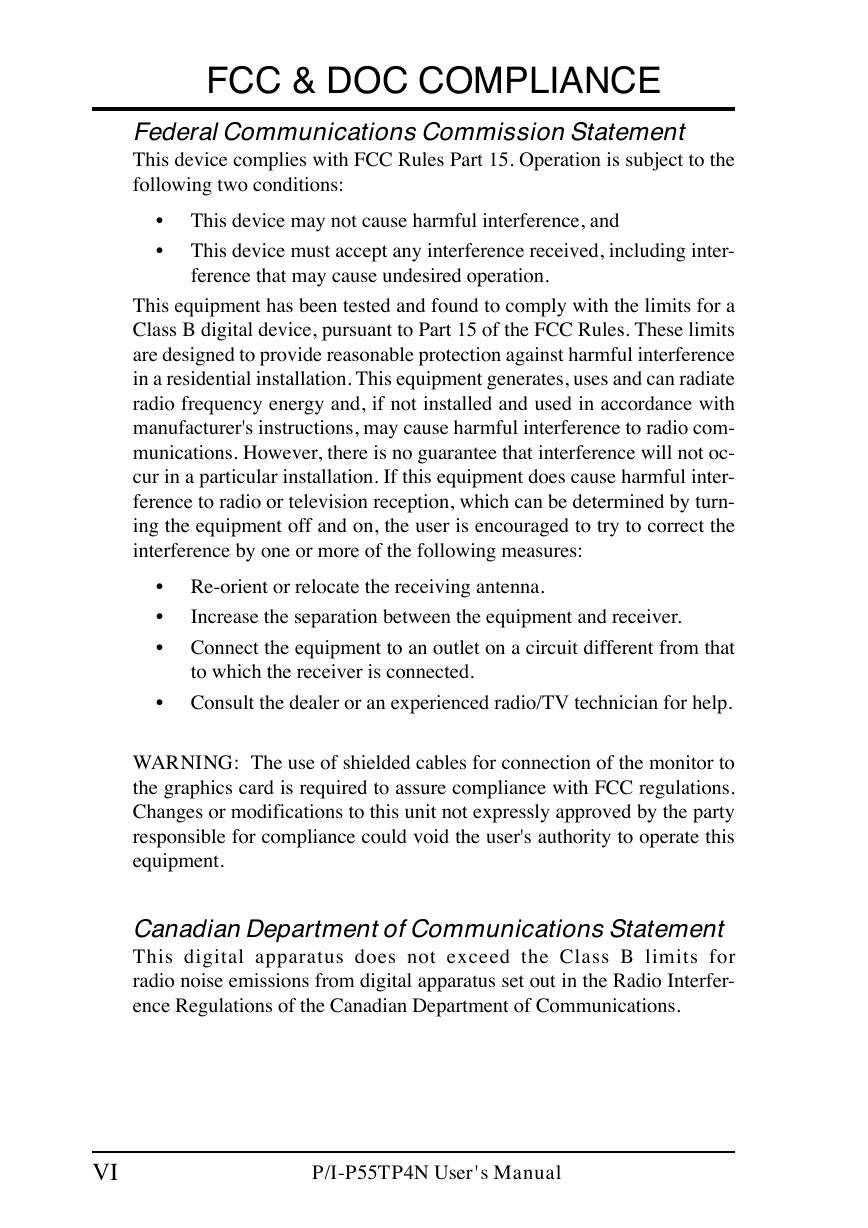

FCC & DOC COMPLIANCE Federal Communications Commission Statement This device complies with FCC Rules Part 15. Operation is subject to the following two conditions: • • This device may not cause harmful interference, and This device must accept any interference received, including inter- ference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with manufacturer's instructions, may cause harmful interference to radio com- munications. However, there is no guarantee that interference will not oc- cur in a particular installation. If this equipment does cause harmful inter- ference to radio or television reception, which can be determined by turn- ing the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • • • • Re-orient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment to an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. WARNING: The use of shielded cables for connection of the monitor to the graphics card is required to assure compliance with FCC regulations. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. Canadian Department of Communications Statement This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus set out in the Radio Interfer- ence Regulations of the Canadian Department of Communications. VI P/I-P55TP4N User's Manual

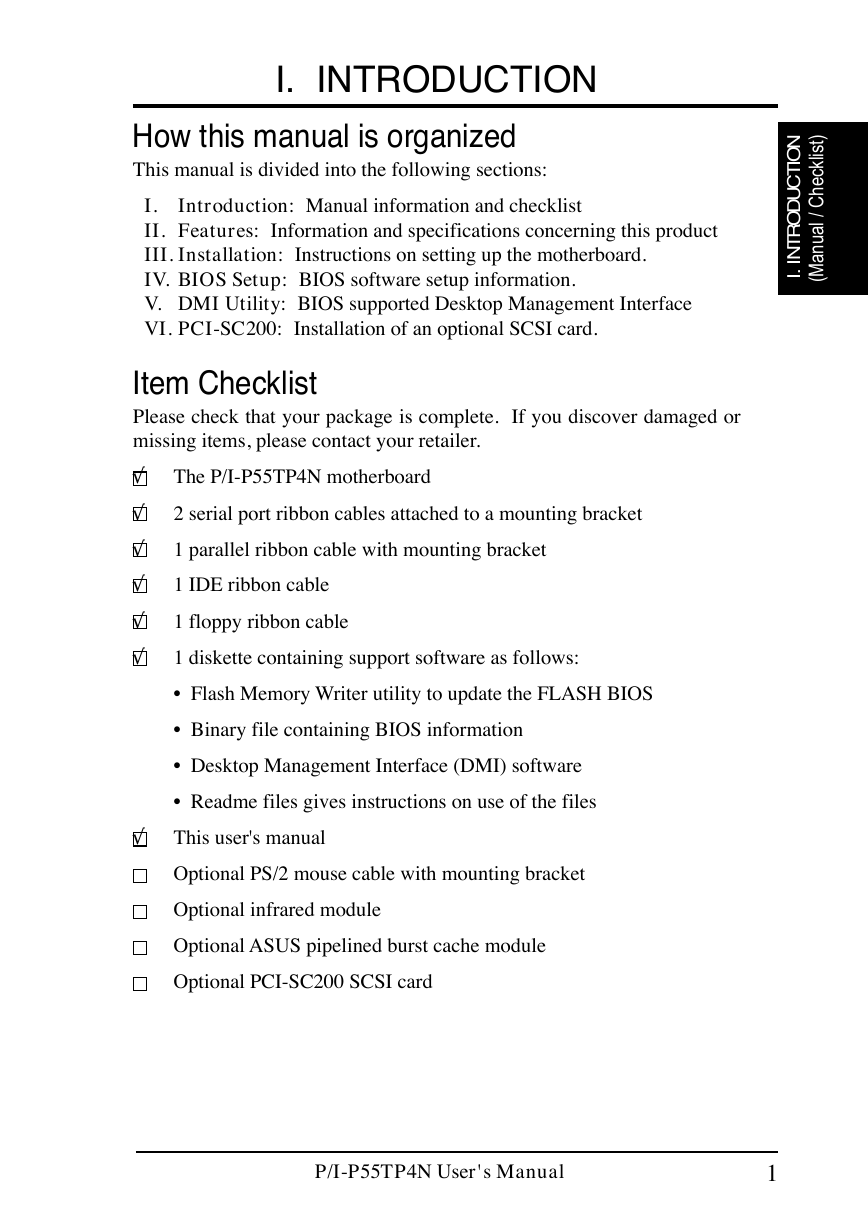

i l k c e h C I N O T C U D O R T N I . I ) t s / l a u n a M ( I. INTRODUCTION How this manual is organized This manual is divided into the following sections: Introduction: Manual information and checklist I. II. Features: Information and specifications concerning this product III. Installation: Instructions on setting up the motherboard. IV. BIOS Setup: BIOS software setup information. V. DMI Utility: BIOS supported Desktop Management Interface VI. PCI-SC200: Installation of an optional SCSI card. Item Checklist Please check that your package is complete. If you discover damaged or missing items, please contact your retailer. The P/I-P55TP4N motherboard 2 serial port ribbon cables attached to a mounting bracket 1 parallel ribbon cable with mounting bracket 1 IDE ribbon cable 1 floppy ribbon cable 1 diskette containing support software as follows: • Flash Memory Writer utility to update the FLASH BIOS • Binary file containing BIOS information • Desktop Management Interface (DMI) software • Readme files gives instructions on use of the files This user's manual Optional PS/2 mouse cable with mounting bracket Optional infrared module Optional ASUS pipelined burst cache module Optional PCI-SC200 SCSI card P/I-P55TP4N User's Manual 1

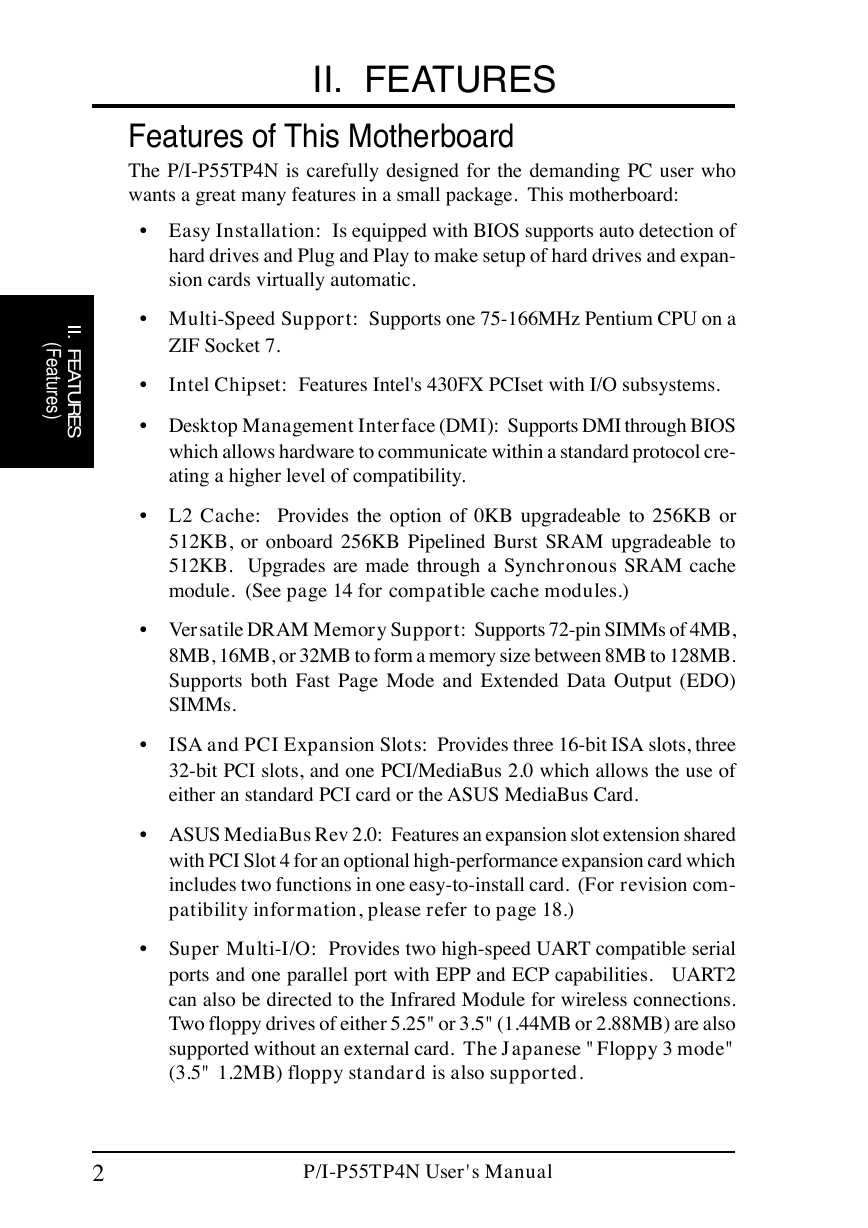

( F e a t u r e s ) I I . F E A T U R E S II. FEATURES Features of This Motherboard The P/I-P55TP4N is carefully designed for the demanding PC user who wants a great many features in a small package. This motherboard: • Easy Installation: Is equipped with BIOS supports auto detection of hard drives and Plug and Play to make setup of hard drives and expan- sion cards virtually automatic. • Multi-Speed Support: Supports one 75-166MHz Pentium CPU on a ZIF Socket 7. • Intel Chipset: Features Intel's 430FX PCIset with I/O subsystems. • Desktop Management Interface (DMI): Supports DMI through BIOS which allows hardware to communicate within a standard protocol cre- ating a higher level of compatibility. • L2 Cache: Provides the option of 0KB upgradeable to 256KB or 512KB, or onboard 256KB Pipelined Burst SRAM upgradeable to 512KB. Upgrades are made through a Synchronous SRAM cache module. (See page 14 for compatible cache modules.) • Versatile DRAM Memory Support: Supports 72-pin SIMMs of 4MB, 8MB, 16MB, or 32MB to form a memory size between 8MB to 128MB. Supports both Fast Page Mode and Extended Data Output (EDO) SIMMs. • ISA and PCI Expansion Slots: Provides three 16-bit ISA slots, three 32-bit PCI slots, and one PCI/MediaBus 2.0 which allows the use of either an standard PCI card or the ASUS MediaBus Card. • ASUS MediaBus Rev 2.0: Features an expansion slot extension shared with PCI Slot 4 for an optional high-performance expansion card which includes two functions in one easy-to-install card. (For revision com- patibility information, please refer to page 18.) • Super Multi-I/O: Provides two high-speed UART compatible serial ports and one parallel port with EPP and ECP capabilities. UART2 can also be directed to the Infrared Module for wireless connections. Two floppy drives of either 5.25" or 3.5" (1.44MB or 2.88MB) are also supported without an external card. The Japanese "Floppy 3 mode" (3.5" 1.2MB) floppy standard is also supported. 2 P/I-P55TP4N User's Manual
