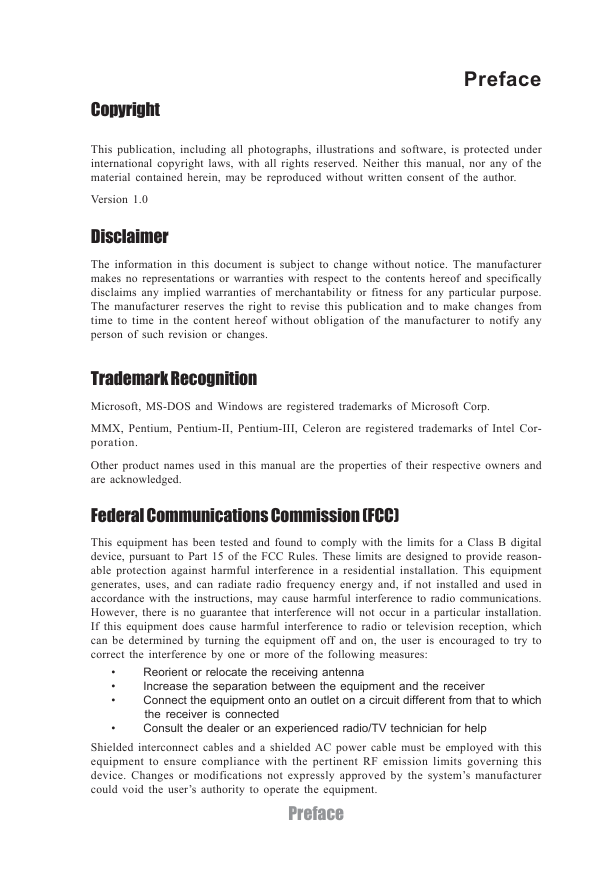

Preface Copyright This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. Neither this manual, nor any of the material contained herein, may be reproduced without written consent of the author. Version 1.0 Disclaimer The information in this document is subject to change without notice. The manufacturer makes no representations or warranties with respect to the contents hereof and specifically disclaims any implied warranties of merchantability or fitness for any particular purpose. The manufacturer reserves the right to revise this publication and to make changes from time to time in the content hereof without obligation of the manufacturer to notify any person of such revision or changes. Trademark Recognition Microsoft, MS-DOS and Windows are registered trademarks of Microsoft Corp. MMX, Pentium, Pentium-II, Pentium-III, Celeron are registered trademarks of Intel Cor- poration. Other product names used in this manual are the properties of their respective owners and are acknowledged. Federal Communications Commission (FCC) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reason- able protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • • • • Reorient or relocate the receiving antenna Increase the separation between the equipment and the receiver Connect the equipment onto an outlet on a circuit different from that to which the receiver is connected Consult the dealer or an experienced radio/TV technician for help Shielded interconnect cables and a shielded AC power cable must be employed with this equipment to ensure compliance with the pertinent RF emission limits governing this device. Changes or modifications not expressly approved by the system’s manufacturer could void the user’s authority to operate the equipment. Preface

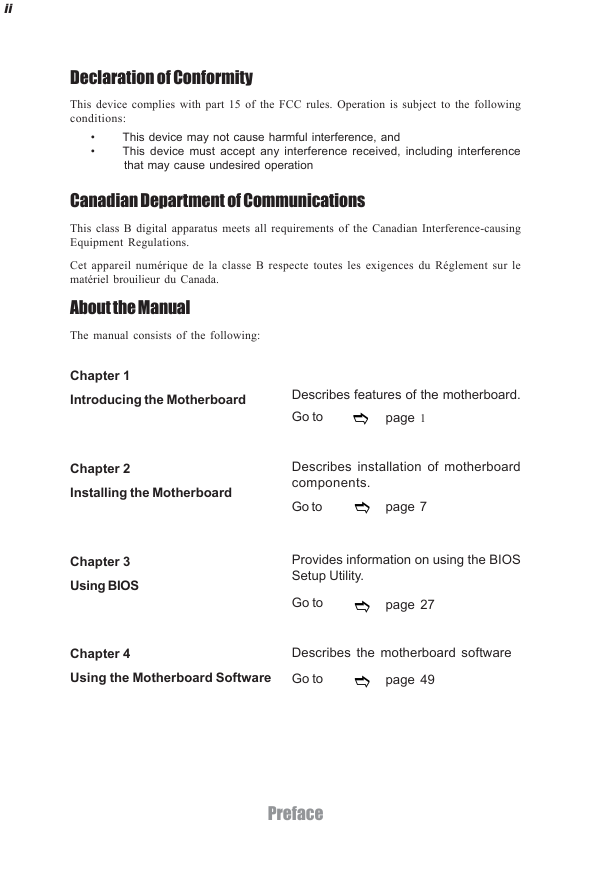

ii Declaration of Conformity This device complies with part 15 of the FCC rules. Operation is subject to the following conditions: • • This device may not cause harmful interference, and This device must accept any interference received, including interference that may cause undesired operation Canadian Department of Communications This class B digital apparatus meets all requirements of the Canadian Interference-causing Equipment Regulations. Cet appareil numérique de la classe B respecte toutes les exigences du Réglement sur le matériel brouilieur du Canada. About the Manual The manual consists of the following: Chapter 1 Introducing the Motherboard Chapter 2 Installing the Motherboard Chapter 3 Using BIOS Describes features of the motherboard. Go to page 1 Describes installation of motherboard components. Go to page 7 Provides information on using the BIOS Setup Utility. Go to page 27 Chapter 4 Using the Motherboard Software Describes the motherboard software Go to page 49 Preface

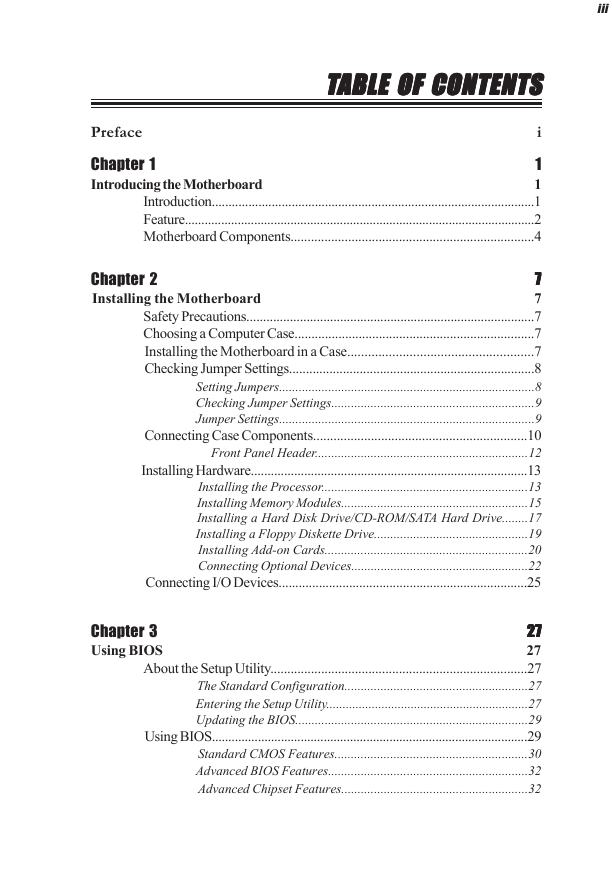

iii TTTTTABLE OF CONTENTS ABLE OF CONTENTS ABLE OF CONTENTS ABLE OF CONTENTS ABLE OF CONTENTS Preface i Chapter 1 Introducing the Motherboard 1 1 Introduction.................................................................................................1 Feature..........................................................................................................2 Motherboard Components........................................................................4 7 7 7 7 7 Chapter 2 Installing the Motherboard 7 Safety Precautions......................................................................................7 Choosing a Computer Case.......................................................................7 Installing the Motherboard in a Case......................................................7 Checking Jumper Settings.........................................................................8 Setting Jumpers..............................................................................8 Checking Jumper Settings..............................................................9 Jumper Settings..............................................................................9 Connecting Case Components...............................................................10 Front Panel Header.................................................................12 Installing Hardware...................................................................................13 Installing the Processor...............................................................13 Installing Memory Modules.........................................................15 Installing a Hard Disk Drive/CD-ROM/SATA Hard Drive........17 Installing a Floppy Diskette Drive...............................................19 Installing Add-on Cards..............................................................20 Connecting Optional Devices......................................................22 Connecting I/O Devices..........................................................................25 Chapter 3 Using BIOS 27 27 27 27 27 27 About the Setup Utility............................................................................27 The Standard Configuration........................................................27 Entering the Setup Utility..............................................................27 Updating the BIOS.......................................................................29 Using BIOS................................................................................................29 Standard CMOS Features...........................................................30 Advanced BIOS Features.............................................................32 Advanced Chipset Features.........................................................32

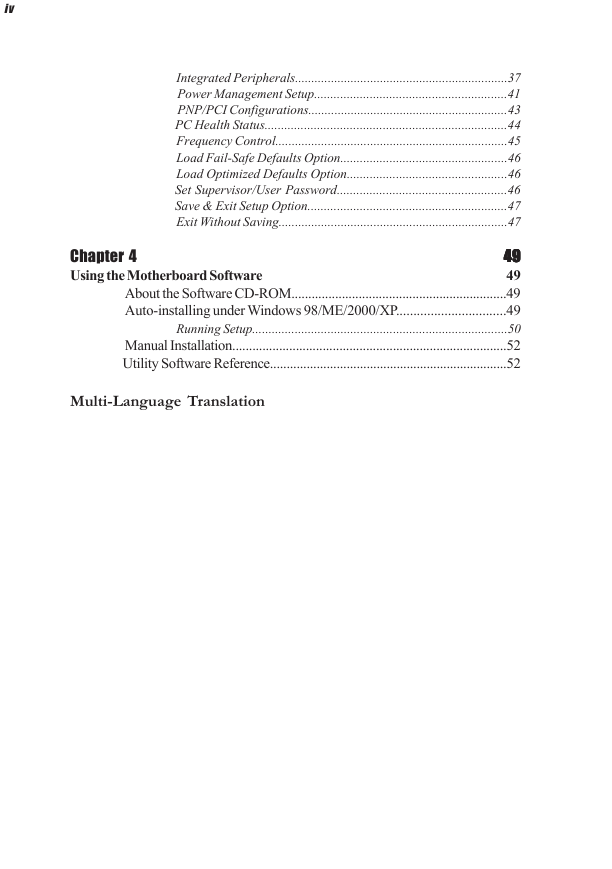

iv Integrated Peripherals.................................................................37 Power Management Setup...........................................................41 PNP/PCI Configurations.............................................................43 PC Health Status..........................................................................44 Frequency Control.......................................................................45 Load Fail-Safe Defaults Option...................................................46 Load Optimized Defaults Option.................................................46 Set Supervisor/User Password....................................................46 Save & Exit Setup Option.............................................................47 Exit Without Saving......................................................................47 Chapter 4 Using the Motherboard Software 49 49 49 49 49 49 About the Software CD-ROM................................................................49 Auto-installing under Windows 98/ME/2000/XP................................49 Running Setup..............................................................................50 Manual Installation..................................................................................52 Utility Software Reference.......................................................................52 Multi-Language Translation

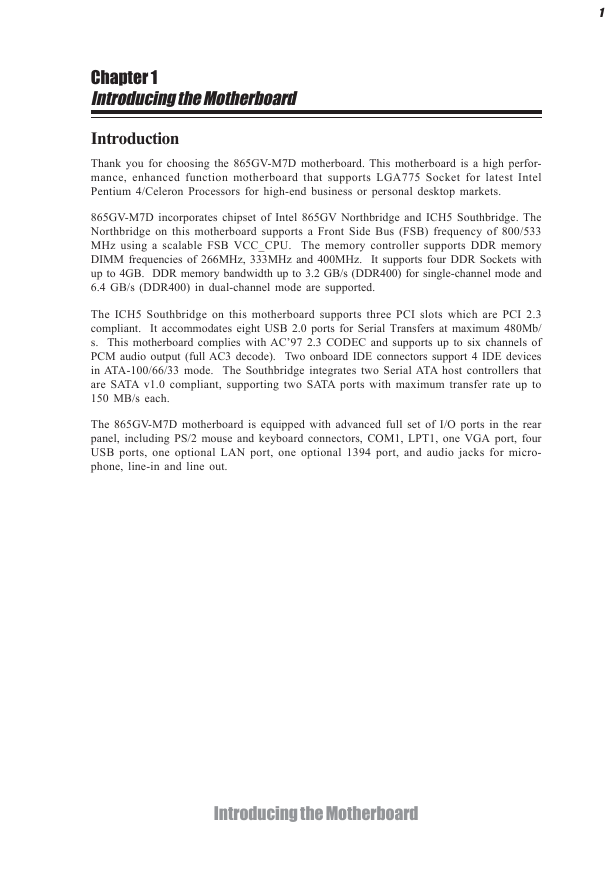

1 Chapter 1 Introducing the Motherboard Introduction Thank you for choosing the 865GV-M7D motherboard. This motherboard is a high perfor- mance, enhanced function motherboard that supports LGA775 Socket for latest Intel Pentium 4/Celeron Processors for high-end business or personal desktop markets. 865GV-M7D incorporates chipset of Intel 865GV Northbridge and ICH5 Southbridge. The Northbridge on this motherboard supports a Front Side Bus (FSB) frequency of 800/533 MHz using a scalable FSB VCC_CPU. The memory controller supports DDR memory DIMM frequencies of 266MHz, 333MHz and 400MHz. It supports four DDR Sockets with up to 4GB. DDR memory bandwidth up to 3.2 GB/s (DDR400) for single-channel mode and 6.4 GB/s (DDR400) in dual-channel mode are supported. The ICH5 Southbridge on this motherboard supports three PCI slots which are PCI 2.3 compliant. It accommodates eight USB 2.0 ports for Serial Transfers at maximum 480Mb/ s. This motherboard complies with AC’97 2.3 CODEC and supports up to six channels of PCM audio output (full AC3 decode). Two onboard IDE connectors support 4 IDE devices in ATA-100/66/33 mode. The Southbridge integrates two Serial ATA host controllers that are SATA v1.0 compliant, supporting two SATA ports with maximum transfer rate up to 150 MB/s each. The 865GV-M7D motherboard is equipped with advanced full set of I/O ports in the rear panel, including PS/2 mouse and keyboard connectors, COM1, LPT1, one VGA port, four USB ports, one optional LAN port, one optional 1394 port, and audio jacks for micro- phone, line-in and line out. Introducing the Motherboard

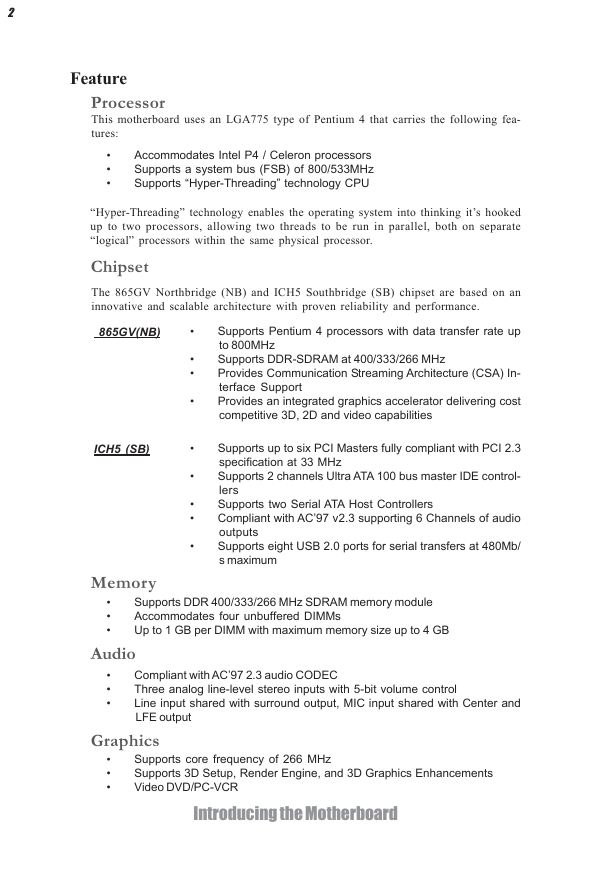

2 Feature Processor This motherboard uses an LGA775 type of Pentium 4 that carries the following fea- tures: • • • Accommodates Intel P4 / Celeron processors Supports a system bus (FSB) of 800/533MHz Supports “Hyper-Threading” technology CPU “Hyper-Threading” technology enables the operating system into thinking it’s hooked up to two processors, allowing two threads to be run in parallel, both on separate “logical” processors within the same physical processor. Chipset The 865GV Northbridge (NB) and ICH5 Southbridge (SB) chipset are based on an innovative and scalable architecture with proven reliability and performance. 865GV(NB) ICH5 (SB) • • • • • • • • • Supports Pentium 4 processors with data transfer rate up to 800MHz Supports DDR-SDRAM at 400/333/266 MHz Provides Communication Streaming Architecture (CSA) In- terface Support Provides an integrated graphics accelerator delivering cost competitive 3D, 2D and video capabilities Supports up to six PCI Masters fully compliant with PCI 2.3 specification at 33 MHz Supports 2 channels Ultra ATA 100 bus master IDE control- lers Supports two Serial ATA Host Controllers Compliant with AC’97 v2.3 supporting 6 Channels of audio outputs Supports eight USB 2.0 ports for serial transfers at 480Mb/ s maximum Memory Supports DDR 400/333/266 MHz SDRAM memory module Accommodates four unbuffered DIMMs Up to 1 GB per DIMM with maximum memory size up to 4 GB Audio • • • Compliant with AC’97 2.3 audio CODEC Three analog line-level stereo inputs with 5-bit volume control Line input shared with surround output, MIC input shared with Center and LFE output • • • • • • Graphics Supports core frequency of 266 MHz Supports 3D Setup, Render Engine, and 3D Graphics Enhancements Video DVD/PC-VCR Introducing the Motherboard
