INSTRUCTION MANUAL
VPC-E1090
Digital Camera
10 Mega Pixels

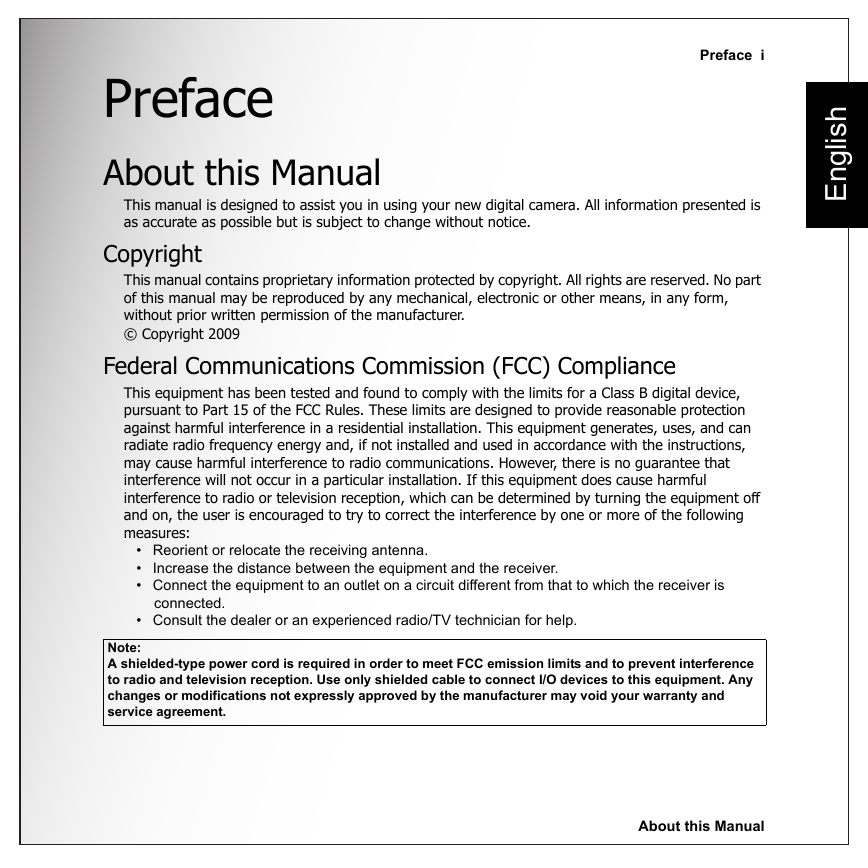

Preface
About this Manual
Preface i
This manual is designed to assist you in using your new digital camera. All information presented is
as accurate as possible but is subject to change without notice.
Copyright
This manual contains proprietary information protected by copyright. All rights are reserved. No part
of this manual may be reproduced by any mechanical, electronic or other means, in any form,
without prior written permission of the manufacturer.
© Copyright 2009
Federal Communications Commission (FCC) Compliance
h
s
i
l
g
n
E
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
•
• Connect the equipment to an outlet on a circuit different from that to which the receiver is
Increase the distance between the equipment and the receiver.
connected.
• Consult the dealer or an experienced radio/TV technician for help.
Note:
A shielded-type power cord is required in order to meet FCC emission limits and to prevent interference
to radio and television reception. Use only shielded cable to connect I/O devices to this equipment. Any
changes or modifications not expressly approved by the manufacturer may void your warranty and
service agreement.
About this Manual
E
n
g
l
i
s
h
ii Preface
Declaration of Conformity
This device complies with Part 15 of the FCC rules. Operation is subject to the following conditions:
• This device may not cause harmful interference.
• This device must accept any interference received, including interference that may cause
undersired operation.
Trademark Recognition
Windows 2000/XP/Vista are registered trademarks of Microsoft Corporation in the United States
and/or other countries. Windows is an abbreviated term referring to the Microsoft Windows
Operation System. Adobe is a trademark of Adobe Corporation. ArcSoft is the trademark of ArcSoft
System, Inc. All other companies or product names are trademarks or registered trademarks of their
respective companies.
Safety and Handling Precautions
Camera Information
• Do not take apart or attempt to service the camera yourself.
• Do not expose the camera to moisture, or extreme temperatures.
• Allow the camera to warm up when moving from cold to warm temperatures.
• Do not touch the camera lens.
• Do not expose the lens to direct sunlight for extended periods.
• Do not use abrasive chemicals, cleaning solvents or strong detergents to clean the product.
Wipe the product with a slightly damp soft cloth.
Battery Information
• Turn off the camera before installing or removing the battery.
• Use only the type of battery (SANYO Li-ion battery, Type NP40, 3.7V, 720mAH). Using other
types of battery may damage the equipment and invalidate the warranty.
•
Inserting the battery upside down can cause damage to the product and possibly start a fire.
• Download all pictures and remove the battery from the camera if you are going to store the
camera for long periods.
Safety and Handling Precautions
h
s
i
l
g
n
E
Preface iii
Safety Instructions
Read and understand all Warnings and Cautions before using this product.
WARNING
Do not disassemble, change or repair the camera.
This might cause fire or electric shock. For repair or internal inspection, ask the store of purchase.
Do not use the camera in areas near water.
This might cause fire or electric shock. Take special care during rain, snow, on the beach, or near the
shore.
Do not place the camera on inclined or unstable surfaces.
This might cause the camera to fall or tilt over, causing injury.
Keep the battery out of the reach of children.
Swallowing battery might cause poisoning. If the battery is accidentally swallowed, immediately consult
a physician.
Do not use the camera while you are walking, driving or riding a vehicle.
This might cause you to fall over or result in traffic accident.
CAUTION
Insert the battery paying careful attention to the polarity (+ or -) of the terminals.
Inserting the battery with its polarities inverted might cause fire and injury, or damage to the surrounding
areas due to the battery rupturing or leaking.
Do not fire the flash close to anyone’s eyes.
This might cause damage to the person’s eyesight.
Do not subject the LCD monitor to impact.
This might damage the glass on the screen or cause the internal fluid to leak. If the internal fluid enters
your eyes or comes into contact with your body or clothes, rinse with fresh water.
If the internal fluid has entered your eyes, consult a physician to receive treatment.
A camera is a precision instrument. Do not drop it, strike it or use excessive force when handling
the camera.
This might cause damage to the camera.
Do not use the camera in humid, steamy, smoky, or dusty places.
This might cause fire or electric shock.
Do not remove the battery immediately after long period of continuous use.
The battery becomes hot during use. Touching a hot battery might cause burns.
Safety Instructions
iv Preface
E
n
g
l
i
s
h

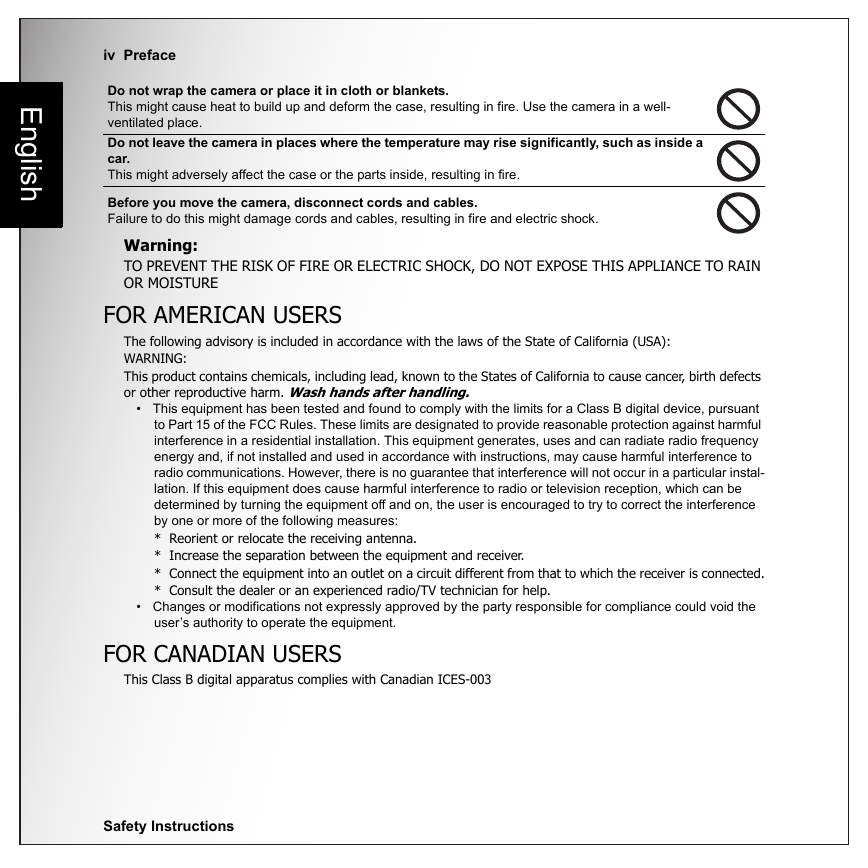

Do not wrap the camera or place it in cloth or blankets.
This might cause heat to build up and deform the case, resulting in fire. Use the camera in a well-
ventilated place.
Do not leave the camera in places where the temperature may rise significantly, such as inside a
car.
This might adversely affect the case or the parts inside, resulting in fire.
Before you move the camera, disconnect cords and cables.
Failure to do this might damage cords and cables, resulting in fire and electric shock.
Warning:
TO PREVENT THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN
OR MOISTURE
FOR AMERICAN USERS
The following advisory is included in accordance with the laws of the State of California (USA):
WARNING:
This product contains chemicals, including lead, known to the States of California to cause cancer, birth defects
or other reproductive harm. Wash hands after handling.
• This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designated to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a particular instal-
lation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference
by one or more of the following measures:
* Reorient or relocate the receiving antenna.
* Increase the separation between the equipment and receiver.
* Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
* Consult the dealer or an experienced radio/TV technician for help.
• Changes or modifications not expressly approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
FOR CANADIAN USERS
This Class B digital apparatus complies with Canadian ICES-003
Safety Instructions

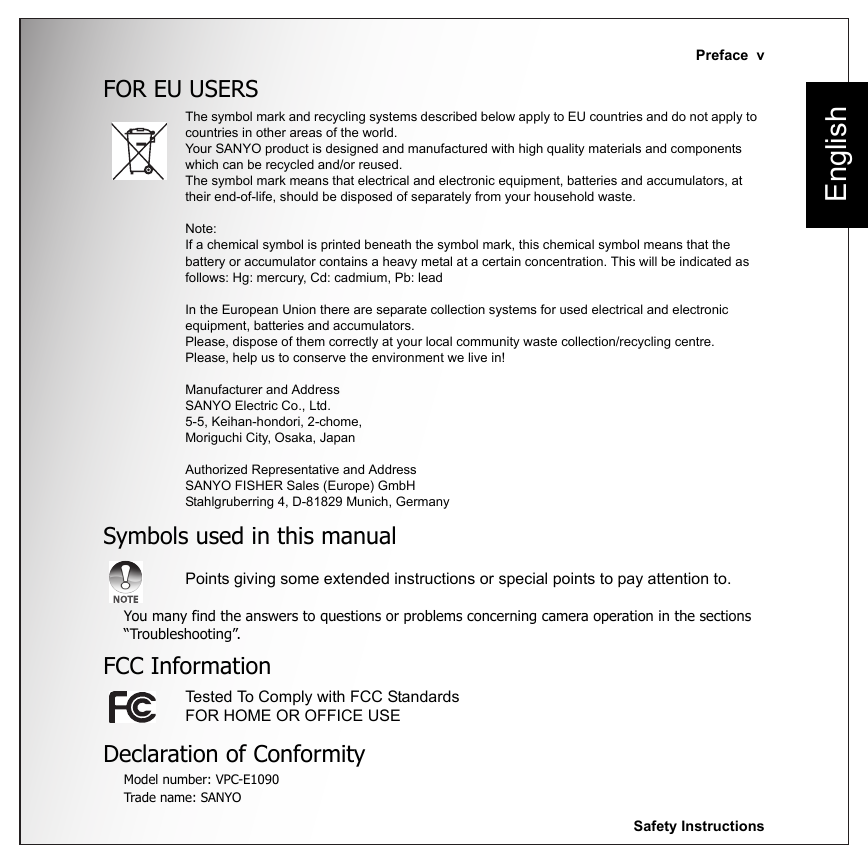

FOR EU USERS
Preface v
The symbol mark and recycling systems described below apply to EU countries and do not apply to
countries in other areas of the world.
Your SANYO product is designed and manufactured with high quality materials and components
which can be recycled and/or reused.
The symbol mark means that electrical and electronic equipment, batteries and accumulators, at
their end-of-life, should be disposed of separately from your household waste.
h
s
i
l
g
n
E
Note:
If a chemical symbol is printed beneath the symbol mark, this chemical symbol means that the
battery or accumulator contains a heavy metal at a certain concentration. This will be indicated as
follows: Hg: mercury, Cd: cadmium, Pb: lead
In the European Union there are separate collection systems for used electrical and electronic
equipment, batteries and accumulators.
Please, dispose of them correctly at your local community waste collection/recycling centre.
Please, help us to conserve the environment we live in!
Manufacturer and Address
SANYO Electric Co., Ltd.
5-5, Keihan-hondori, 2-chome,
Moriguchi City, Osaka, Japan
Authorized Representative and Address
SANYO FISHER Sales (Europe) GmbH
Stahlgruberring 4, D-81829 Munich, Germany
Symbols used in this manual
Points giving some extended instructions or special points to pay attention to.
You many find the answers to questions or problems concerning camera operation in the sections
“Troubleshooting”.
FCC Information
Tested To Comply with FCC Standards
FOR HOME OR OFFICE USE
Declaration of Conformity
Model number: VPC-E1090
Trade name: SANYO
Safety Instructions
vi Preface
E
n
g
l
i
s
h

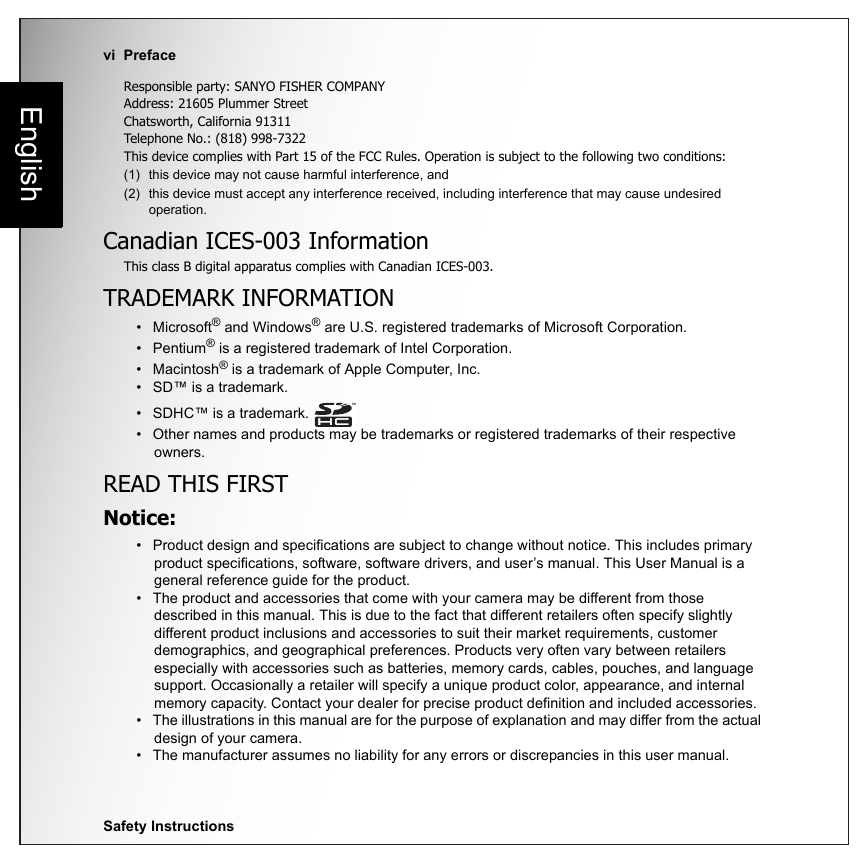

Responsible party: SANYO FISHER COMPANY
Address: 21605 Plummer Street
Chatsworth, California 91311
Telephone No.: (818) 998-7322
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired
operation.
Canadian ICES-003 Information
This class B digital apparatus complies with Canadian ICES-003.
TRADEMARK INFORMATION
• Microsoft® and Windows® are U.S. registered trademarks of Microsoft Corporation.
• Pentium® is a registered trademark of Intel Corporation.
• Macintosh® is a trademark of Apple Computer, Inc.
• SD™ is a trademark.
• SDHC™ is a trademark.
• Other names and products may be trademarks or registered trademarks of their respective
owners.
READ THIS FIRST
Notice:
• Product design and specifications are subject to change without notice. This includes primary
product specifications, software, software drivers, and user’s manual. This User Manual is a
general reference guide for the product.
• The product and accessories that come with your camera may be different from those
described in this manual. This is due to the fact that different retailers often specify slightly
different product inclusions and accessories to suit their market requirements, customer
demographics, and geographical preferences. Products very often vary between retailers
especially with accessories such as batteries, memory cards, cables, pouches, and language
support. Occasionally a retailer will specify a unique product color, appearance, and internal
memory capacity. Contact your dealer for precise product definition and included accessories.
• The illustrations in this manual are for the purpose of explanation and may differ from the actual
design of your camera.
• The manufacturer assumes no liability for any errors or discrepancies in this user manual.
Safety Instructions
