三洋投影机-PLC-XF47K说明书.pdf
Features and Design
Table of Contents
To The Owner
Safety Instructions
Air Circulation
Installing the Projector in Proper Directions
Moving the Projector
Compliance
Part Names and Functions
Front
Back
Bottom
Input / Output Terminals and Jacks
Side Control and Indicators
Side Controls
Indicators
Remote Control
Remote Control Battery Installation
Remote Control Receivers and Operating Range
Wired Remote Control
Remote Control Code
Installation
Lens Installation
Positioning Projector
Lens Shift Adjustment
Picture Level and Pitch Adjustment
Terminals of Projector
Connecting to Computer
Connecting to Video Equipment
Connecting the AC Power Cord
Basic Operation
Turning On the Projector
Turning Off the Projector
How to Operate the On-Screen Menu
Menu Bar
Operating with Projector Control
Operating with Remote Control
Input Selection
Input
Computer Input Source Selection
Video Input Source Selection
Computer Input
Computer System Selection
Auto PC Adjustment
Manual PC Adjustment
Image Level Selection
Screen Size Adjustment
Video Input
Video System Selection
Image Level Selection
Screen Size Adjustment
Picture Image
Image Adjustment
Setting
Setting
Maintenance and Care
Air Filter Care and Cleaning
Resetting the Filter Counter
Lamp Management
Lamp Replacement
Resetting the Lamp Counter
Cleaning the Projection Lens
Cleaning the Projector Cabinet
Warning Indicators
Appendix
Troubleshooting
Menu Tree
Indicators and Projector Condition
Compatible Computer Specifications
Technical Specifications
Optional Parts
Configurations of Terminals
PIN Code Number Memo
Dimensions
Serial Control Interface
Multimedia Projector
MODEL PLC-XF47
PLC-XF47K
✽ Projection lens is optional.
Owner’s Manual

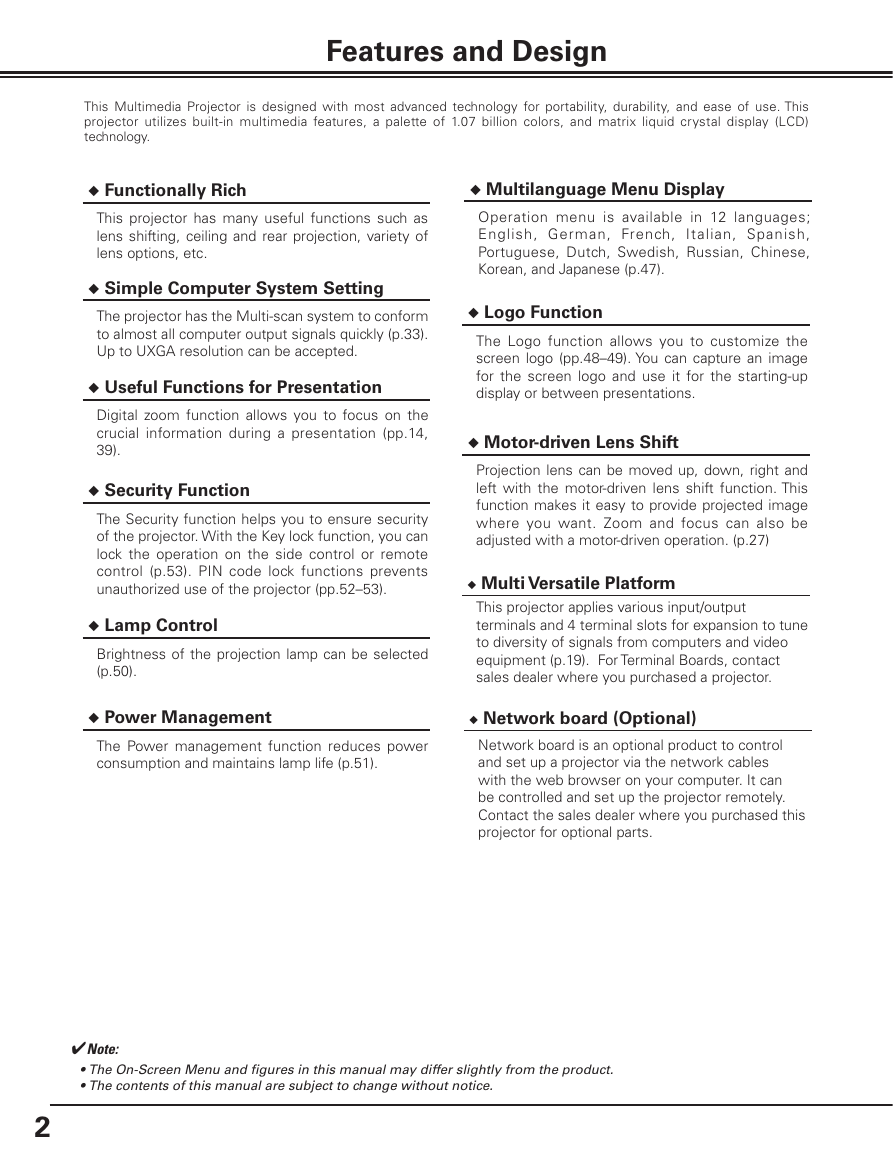

Features and Design
This Multimedia Projector is designed with most advanced technology for portability, durability, and ease of use. This
projector utilizes built-in multimedia features, a palette of 1.07 billion colors, and matrix liquid crystal display (LCD)
technology.
◆ Functionally Rich
◆ Multilanguage Menu Display
This projector has many useful functions such as
lens shifting, ceiling and rear projection, variety of
lens options, etc.
◆ Simple Computer System Setting
The projector has the Multi-scan system to conform
to almost all computer output signals quickly (p.33).
Up to UXGA resolution can be accepted.
◆ Useful Functions for Presentation
Digital zoom function allows you to focus on the
crucial information during a presentation (pp.14,
39).
◆ Security Function
The Security function helps you to ensure security
of the projector. With the Key lock function, you can
lock the operation on the side control or remote
control (p.53). PIN code lock functions prevents
unauthorized use of the projector (pp.52–53).
◆ Lamp Control
Brightness of the projection lamp can be selected
(p.50).
Operation menu is available in 12 languages;
English, German, French, Italian, Spanish,
Portuguese, Dutch, Swedish, Russian, Chinese,
Korean, and Japanese (p.47).
◆ Logo Function
The Logo function allows you to customize the
screen logo (pp.48–49). You can capture an image
for the screen logo and use it for the starting-up
display or between presentations.
◆ Motor-driven Lens Shift
Projection lens can be moved up, down, right and
left with the motor-driven lens shift function. This
function makes it easy to provide projected image
where you want. Zoom and focus can also be
adjusted with a motor-driven operation. (p.27)
◆ Multi Versatile Platform
This projector applies various input/output
terminals and 4 terminal slots for expansion to tune
to diversity of signals from computers and video
equipment (p.19). For Terminal Boards, contact
sales dealer where you purchased a projector.
◆ Power Management
◆ Network board (Optional)
The Power management function reduces power
consumption and maintains lamp life (p.51).
Network board is an optional product to control
and set up a projector via the network cables
with the web browser on your computer. It can
be controlled and set up the projector remotely.
Contact the sales dealer where you purchased this
projector for optional parts.
✔Note:
• The On-Screen Menu and figures in this manual may differ slightly from the product.
• The contents of this manual are subject to change without notice.

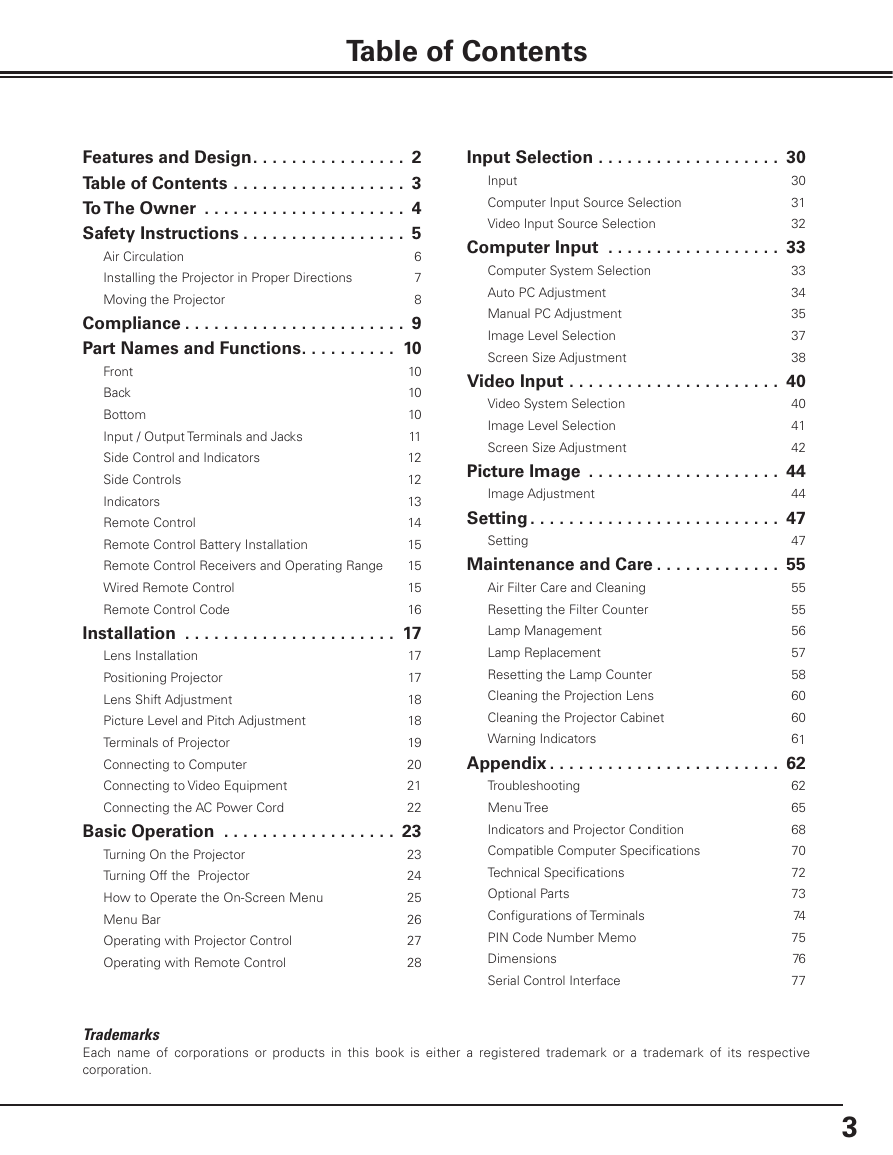

Table of Contents
Air Circulation
Installing the Projector in Proper Directions
Moving the Projector
Front
Back
Bottom
Input / Output Terminals and Jacks
Side Control and Indicators
Side Controls
Indicators
Remote Control
Remote Control Battery Installation
Remote Control Receivers and Operating Range
Wired Remote Control
Remote Control Code
Features and Design . . . . . . . . . . . . . . . .
Table of Contents . . . . . . . . . . . . . . . . . .
To The Owner . . . . . . . . . . . . . . . . . . . . . 4
Safety Instructions . . . . . . . . . . . . . . . . . 5
6
7
8
Compliance . . . . . . . . . . . . . . . . . . . . . . . 9
Part Names and Functions . . . . . . . . . . 10
10
10
10
11
12
12
13
14
15
15
15
16
Installation . . . . . . . . . . . . . . . . . . . . . . 17
17
17
18
18
19
20
21
22
Basic Operation . . . . . . . . . . . . . . . . . .
23
24
25
26
27
28
Lens Installation
Positioning Projector
Lens Shift Adjustment
Picture Level and Pitch Adjustment
Terminals of Projector
Connecting to Computer
Connecting to Video Equipment
Connecting the AC Power Cord
Turning On the Projector
Turning Off the Projector
How to Operate the On-Screen Menu
Menu Bar
Operating with Projector Control
Operating with Remote Control
Video System Selection
Image Level Selection
Screen Size Adjustment
Image Adjustment
Setting
Input
Computer Input Source Selection
Video Input Source Selection
Computer System Selection
Auto PC Adjustment
Manual PC Adjustment
Image Level Selection
Screen Size Adjustment
Input Selection . . . . . . . . . . . . . . . . . . . 0
30
31
32
Computer Input . . . . . . . . . . . . . . . . . .
33
34
35
37
38
Video Input . . . . . . . . . . . . . . . . . . . . . . 40
40
41
42
Picture Image . . . . . . . . . . . . . . . . . . . . 44
44
Setting . . . . . . . . . . . . . . . . . . . . . . . . . . 47
47
Maintenance and Care . . . . . . . . . . . . . 55
55
55
56
57
58
60
60
61
Appendix . . . . . . . . . . . . . . . . . . . . . . . . 6
62
65
68
70
72
73
74
75
76
77
Troubleshooting
Menu Tree
Indicators and Projector Condition
Compatible Computer Specifications
Technical Specifications
Optional Parts
Configurations of Terminals
PIN Code Number Memo
Dimensions
Serial Control Interface
Air Filter Care and Cleaning
Resetting the Filter Counter
Lamp Management
Lamp Replacement
Resetting the Lamp Counter
Cleaning the Projection Lens
Cleaning the Projector Cabinet
Warning Indicators
Trademarks
Each name of corporations or products in this book is either a registered trademark or a trademark of its respective
corporation.

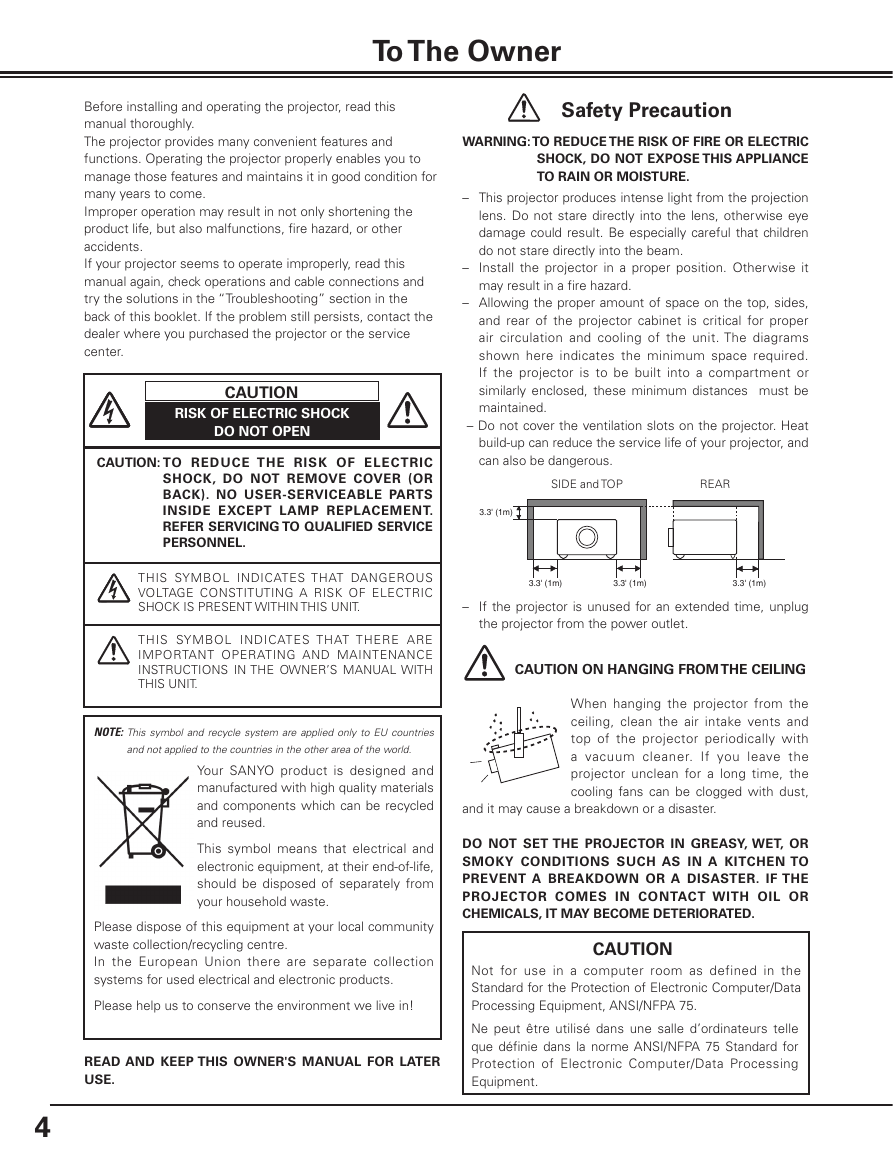

To The Owner
Before installing and operating the projector, read this
manual thoroughly.
The projector provides many convenient features and
functions. Operating the projector properly enables you to
manage those features and maintains it in good condition for
many years to come.
Improper operation may result in not only shortening the
product life, but also malfunctions, fire hazard, or other
accidents.
If your projector seems to operate improperly, read this
manual again, check operations and cable connections and
try the solutions in the “Troubleshooting” section in the
back of this booklet. If the problem still persists, contact the
dealer where you purchased the projector or the service
center.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER (OR
BACK) . NO USER-SERVICEABLE PARTS
INSIDE EXCEPT LAMP REPLACEMENT .
REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL .
THIS SYMBOL INDICATES THAT DANGEROUS
VOLTAGE CONSTITUTING A RISK OF ELECTRIC
SHOCK IS PRESENT WITHIN THIS UNIT.
Safety Precaution
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK, DO NOT EXPOSE THIS APPLIANCE
TO RAIN OR MOISTURE .
– This projector produces intense light from the projection
lens. Do not stare directly into the lens, otherwise eye
damage could result. Be especially careful that children
do not stare directly into the beam.
– Install the projector in a proper position. Otherwise it
may result in a fire hazard.
– Allowing the proper amount of space on the top, sides,
and rear of the projector cabinet is critical for proper
air circulation and cooling of the unit. The diagrams
shown here indicates the minimum space required.
If the projector is to be built into a compartment or
similarly enclosed, these minimum distances must be
maintained.
– Do not cover the ventilation slots on the projector. Heat
build-up can reduce the service life of your projector, and
can also be dangerous.
SIDE and TOP
REAR
3.3' (1m)
3.3' (1m)
3.3' (1m)
3.3' (1m)
– If the projector is unused for an extended time, unplug
the projector from the power outlet.
THIS SYMBOL INDICATES THAT THERE ARE
IMPORTANT OPERATING AND MAINTENANCE
INSTRUCTIONS IN THE OWNER’S MANUAL WITH
THIS UNIT.
NOTE: This symbol and recycle system are applied only to EU countries
and not applied to the countries in the other area of the world.
Your SANYO product is designed and
manufactured with high quality materials
and components which can be recycled
and reused.
This symbol means that electrical and
electronic equipment, at their end-of-life,
should be disposed of separately from
your household waste.
Please dispose of this equipment at your local community
waste collection/recycling centre.
In the European Union there are separate collection
systems for used electrical and electronic products.
Please help us to conserve the environment we live in!
READ AND KEEP THIS OWNER'S MANUAL FOR LATER
USE .
4
CAUTION ON HANGING FROM THE CEILING
When hanging the projector from the
ceiling, clean the air intake vents and
top of the projector periodically with
a vacuum cleaner. If you leave the
projector unclean for a long time, the
cooling fans can be clogged with dust,
and it may cause a breakdown or a disaster.
DO NOT SET THE PROjECTOR IN GREASy, WET, OR
SMOKy CONDITIONS SUCH AS IN A KITCHEN TO
PREVENT A BREAKDOWN OR A DISASTER . IF THE
PROjECTOR COMES IN CONTACT WITH OIL OR
CHEMICALS, IT MAy BECOME DETERIORATED .
CAUTION
Not for use in a computer room as defined in the
Standard for the Protection of Electronic Computer/Data
Processing Equipment, ANSI/NFPA 75.
Ne peut être utilisé dans une salle d’ordinateurs telle
que définie dans la norme ANSI/NFPA 75 Standard for
Protection of Electronic Computer/Data Processing
Equipment.

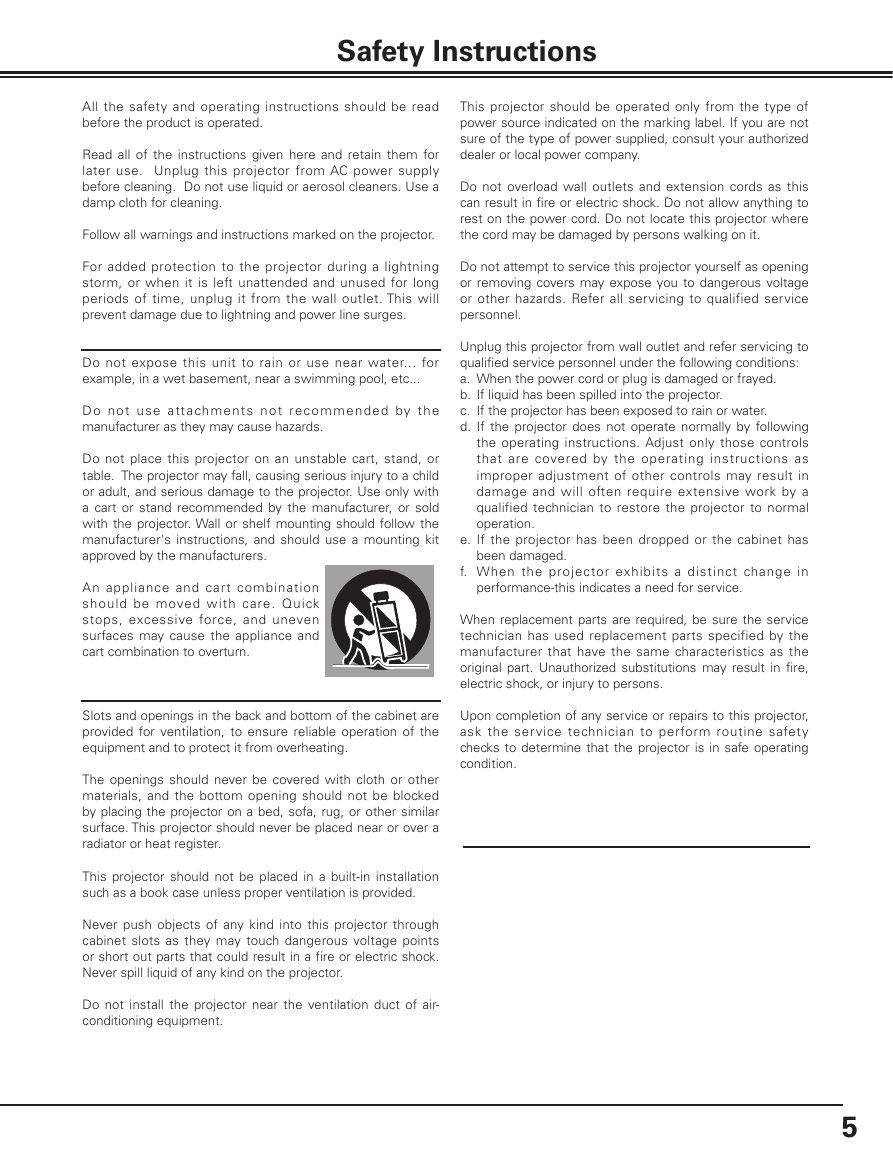

Safety Instructions
This projector should be operated only from the type of
power source indicated on the marking label. If you are not
sure of the type of power supplied, consult your authorized
dealer or local power company.
Do not overload wall outlets and extension cords as this
can result in fire or electric shock. Do not allow anything to
rest on the power cord. Do not locate this projector where
the cord may be damaged by persons walking on it.
Do not attempt to service this projector yourself as opening
or removing covers may expose you to dangerous voltage
or other hazards. Refer all servicing to qualified service
personnel.
Unplug this projector from wall outlet and refer servicing to
qualified service personnel under the following conditions:
a. When the power cord or plug is damaged or frayed.
b. If liquid has been spilled into the projector.
c. If the projector has been exposed to rain or water.
d. If the projector does not operate normally by following
the operating instructions. Adjust only those controls
that are covered by the operating instructions as
improper adjustment of other controls may result in
damage and will often require extensive work by a
qualified technician to restore the projector to normal
operation.
e. If the projector has been dropped or the cabinet has
been damaged.
f. When the projector exhibits a distinct change in
performance-this indicates a need for service.
When replacement parts are required, be sure the service
technician has used replacement parts specified by the
manufacturer that have the same characteristics as the
original part. Unauthorized substitutions may result in fire,
electric shock, or injury to persons.
Upon completion of any service or repairs to this projector,
ask the service technician to perform routine safety
checks to determine that the projector is in safe operating
condition.
All the safety and operating instructions should be read
before the product is operated.
Read all of the instructions given here and retain them for
later use. Unplug this projector from AC power supply
before cleaning. Do not use liquid or aerosol cleaners. Use a
damp cloth for cleaning.
Follow all warnings and instructions marked on the projector.
For added protection to the projector during a lightning
storm, or when it is left unattended and unused for long
periods of time, unplug it from the wall outlet. This will
prevent damage due to lightning and power line surges.
Do not expose this unit to rain or use near water... for
example, in a wet basement, near a swimming pool, etc...
Do not use att achments not recommended by the
manufacturer as they may cause hazards.
Do not place this projector on an unstable cart, stand, or
table. The projector may fall, causing serious injury to a child
or adult, and serious damage to the projector. Use only with
a cart or stand recommended by the manufacturer, or sold
with the projector. Wall or shelf mounting should follow the
manufacturer's instructions, and should use a mounting kit
approved by the manufacturers.
An appliance and cart combination
should be moved with care. Quick
stops, excessive force, and uneven
surfaces may cause the appliance and
cart combination to overturn.
Slots and openings in the back and bottom of the cabinet are
provided for ventilation, to ensure reliable operation of the
equipment and to protect it from overheating.
The openings should never be covered with cloth or other
materials, and the bottom opening should not be blocked
by placing the projector on a bed, sofa, rug, or other similar
surface. This projector should never be placed near or over a
radiator or heat register.
This projector should not be placed in a built-in installation
such as a book case unless proper ventilation is provided.
Never push objects of any kind into this projector through
cabinet slots as they may touch dangerous voltage points
or short out parts that could result in a fire or electric shock.
Never spill liquid of any kind on the projector.
Do not install the projector near the ventilation duct of air-
conditioning equipment.
5
Safety Instructions
Air Circulation
Openings in the cabinet are provided for ventilation.
To ensure reliable operation of the product and to
protect it from overheating, these openings must not
be blocked or covered.
CAUTION
Hot air is exhausted from the exhaust vent. When
using or installing the projector, the following
precautions should be taken.
– Do not put any flammable object or spray can near
the projector, hot air is exhausted from the air vents.
– Keep the exhaust vent at least 3’ (1 m) away from
any objects.
– Do not touch peripheral parts of the exhaust vent,
especially screws and metallic parts. These areas
will become hot while the projector is being used.
– Do not put anything on the cabinet. Objects put on
the cabinet will not only get damaged but also may
cause fire hazard by heat.
– Do not cover vents with papers or other materials.
– Make sure that there are no objects under a
projector. An object under a projector may prevent
a projector from taking cooling air through bottom
vent.
AIR INTAKE VENT
(BOTTOM SIDE)
EXHAUST VENT
(REAR SIDE)
EXHAUST VENT
(HOT AIR EXHAUST)
Cooling fans are provided to cool down the projector.
The fans’ running speed is changed according to the
temperature inside the projector.
AIR INTAKE VENTS
6
IMPORTANT!
Filter Maintenance!!
The projector uses a lamp which generates significant
heat. The cooling fans and air vents are provided to
dissipate the heat by drawing air into the housing and
the filter is located in the intake vents to prevent dust
from getting inside of the projector.
In order to care for the projector appropriately, regular
cleaning is required. Remove any dirt or dust that has
accumulated on the projector or in the filter.
If the projector reaches a time set in the timer setting,
a Filter warning icon (Fig. 1) appears on the screen.
Blocking the air vents and leaving the projector
uncleaned for a long time may not only damage the
projector and may require costly repairs but may also
cause accidents or fire.
For maintenance of the filter, refer to “Filter counter”
on page 54 and “Maintenance and Care” on pages 55.
Damages to the projector caused by using an
uncleaned filter or improper maintenance will void
the warranty on the projector .
Fig .1 Filter warning icon
Safety Instructions
Installing the Projector
in Proper Directions
Use the projector properly in specified positions.
Improper positioning may reduce the lamp life and
result in severe accident or fire hazard.
Positioning Precautions
Avoid positioning the projector as described below
when installing.
10˚
10˚
Do not roll the projector more
than 10 degrees from side to
side.
Do not point the projector up
to project an image.
NO UPWARD
NO DOWNWARD
NO SIDEWAyS
10˚
10˚
Do not point the projector
down to project an image.
Do not put the projector
on either side to project an
image.
Do not pitch the projector
more than 10 degrees
backward and forward.
CAUTION ON CEILING MOUNTING
For ceiling mounting, you need the ceiling
mount kit designed for this projector. When
not mounted properly, the projector may fall,
causing hazards or injury. For details, consult
your dealer. The warranty on this projector
does not cover any damage caused by use
of any non-recommended ceiling mount kit
or installation of the ceiling mount kit in an
improper location.
7
Safety Instructions
Moving the Projector
For safety, be sure to hold Carrying Handles on
both sides by 2 or more people when moving
a projector. Moving it improperly may result in
damage of cabinet or person's injury.
Replace lens cap and retract feet to prevent
damage to lens and cabinet.
CARRYING
HANDLE
1
2
3
Pull up lock buttons on each side of carrying
handles to release locks.
Pull carrying handles out fully until the handles
click. Move a projector by holding two handles by
2 or more people.
To retract carrying handles, pull up lock buttons
to release lock of handles and press handles fully
in until the handles are locked.
CAUTION IN CARRyING OR
TRANSPORTING THE PROjECTOR
LOCK BUTTONS
Pull up lock buttons to
release lock.
– Do not drop or bump the projector, otherwise
damages or malfunctions may result.
– When carrying the projector, use a suitable
carrying case.
– Do not transport the projector by courier or any
other transport service in an unsuitable transport
case. This may cause damage to the projector. For
information about transporting the projector by
courier or any other transport service, consult your
dealer.
– Do not put the projector in a case before it is
cooled enough.
相关推荐
2023年江西萍乡中考道德与法治真题及答案.doc
2012年重庆南川中考生物真题及答案.doc
2013年江西师范大学地理学综合及文艺理论基础考研真题.doc
2020年四川甘孜小升初语文真题及答案I卷.doc
2020年注册岩土工程师专业基础考试真题及答案.doc
2023-2024学年福建省厦门市九年级上学期数学月考试题及答案.doc
2021-2022学年辽宁省沈阳市大东区九年级上学期语文期末试题及答案.doc
2022-2023学年北京东城区初三第一学期物理期末试卷及答案.doc
2018上半年江西教师资格初中地理学科知识与教学能力真题及答案.doc
2012年河北国家公务员申论考试真题及答案-省级.doc
2020-2021学年江苏省扬州市江都区邵樊片九年级上学期数学第一次质量检测试题及答案.doc
2022下半年黑龙江教师资格证中学综合素质真题及答案.doc
