TABLE OF CONTENTS

END USER LICENSE AGREEMENT

INFORMATION FOR YOUR SAFETY

INTRODUCTION

PREPARATION

STANDARD ACCESSORIES

OPTIONAL ACCESSORY

CONTROLS AND COMPONENTS

POWER SUPPLY

FITTING THE CAMERA ON THE AV CRADLE

INSERTING A MEMORY CARD

USING THE LCD MONITOR

TURNING THE POWER ON/SELECTING OPERATION MODES

USING THE MENU SCREEN

LIST OF MENUS

SETTING DATE AND TIME

ADJUSTING BRIGHTNESS AND COLOR LEVEL ON THE LCD MONITOR

BASIC FUNCTIONS

BEFORE RECORDING OPERATION

CLEAN UP FUNCTION

RECORDING MOTION IMAGES (MPEG2)

RECORDING MOTION IMAGES (MPEG4)

PLAYING BACK MOTION IMAGES (MPEG2)

PLAYING BACK MOTION IMAGES (MPEG4)

ADJUSTING THE VOLUME

RECORDING STILL PICTURES

PLAYING BACK STILL PICTURES

PLAY BACK ALL OF THE STILL PICTURES ONE BY ONE (SLIDE SHOW)

ADVANCED FUNCTIONS

ZOOM IN/OUT FUNCTIONS

BACKLIGHT COMPENSATION FUNCTION

ADJUSTING WHITE BALANCE

MANUAL EXPOSURE ADJUSTMENT

MANUAL FOCUS ADJUSTMENT

RECORDING IN SPECIAL SITUATIONS (PROGRAM AE)

DIGITAL ELECTRONIC IMAGE STABILIZER FUNCTION

WIND NOISE REDUCTION FUNCTION

USING THE PLAY MENU FUNCTIONS

PLAYING BACK ON AN EXTERNAL DEVICE

RECORDING PICTURES SUPPLIED FROM AN EXTERNAL DEVICE

STORING ON THE PC

USING THE DVD VIDEO RECORDER WITH A HARD DISK

ON A PERSONAL COMPUTER

ABOUT THE SUPPLIED SOFTWARE

USB DRIVER

MEDIASTAGE FOR AV100

INSTALLING MEDIASTAGE & USB DRIVER

INSTALLING USB DRIVER

CONNECTING WITH THE PC

STARTING THE SOFTWARE

DISCONNECTING THE USB CABLE SAFELY

IF YOU NO LONGER NEED SOFTWARE (UNINSTALL)

CONSTRUCTING A FOLDER WHEN THE MEMORY CARD IS USED WITH A PC

OTHERS

CHARGE THE BUILT-IN BATTERY FOR MAINTAINING THE DATE INFORMATION

USING THE OPTIONAL EARPHONES

USING ACCESSORIES

AFTER USE

INDICATIONS (RECORDING MODE)

INDICATIONS (PLAYBACK MODE)

NOTES & PRECAUTIONS

NOTES AND HINTS

BEFORE REQUESTING SERVICE

SPECIFICATIONS

LIMITED WARRANTY (FOR U.S.A. ONLY)

CUSTOMER SERVICES DIRECTORY (FOR U.S.A. ONLY)

INDEX

SPANISH QUICK USE GUIDE/GUIA ESPANOLA PARA EL USO RAPIDO

ALIMENTACION ELECTRICA

COMO ENCAJAR LA CAMARA EN EL SOPORTE

INSERCION DE LA TARJETA DE MEMORIA

ENCENDIDO/SELECCION DE LOS MODOS DE FUNCIONAMIENTO

GRABACION DE IMAGENES DINAMICAS/IMAGENES ESTATICAS

REPRODUCCION DE IMAGENES DINAMICAS/IMAGENES ESTATICAS

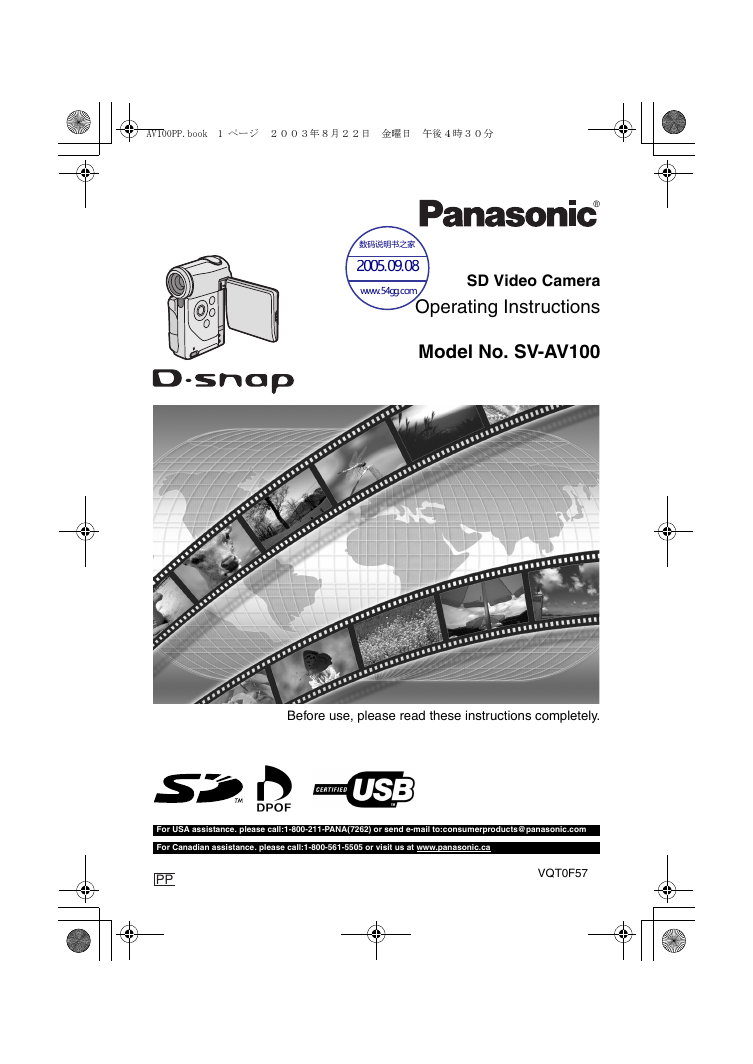

AV100PP.book 1 ページ２００３年８月２２日　金曜日　午後４時３０分 SD Video Camera Operating Instructions Model No. SV-AV100 Before use, please read these instructions completely. For USA assistance. please call:1-800-211-PANA(7262) or send e-mail to:consumerproducts@panasonic.com For Canadian assistance. please call:1-800-561-5505 or visit us at www.panasonic.ca PP VQT0F57

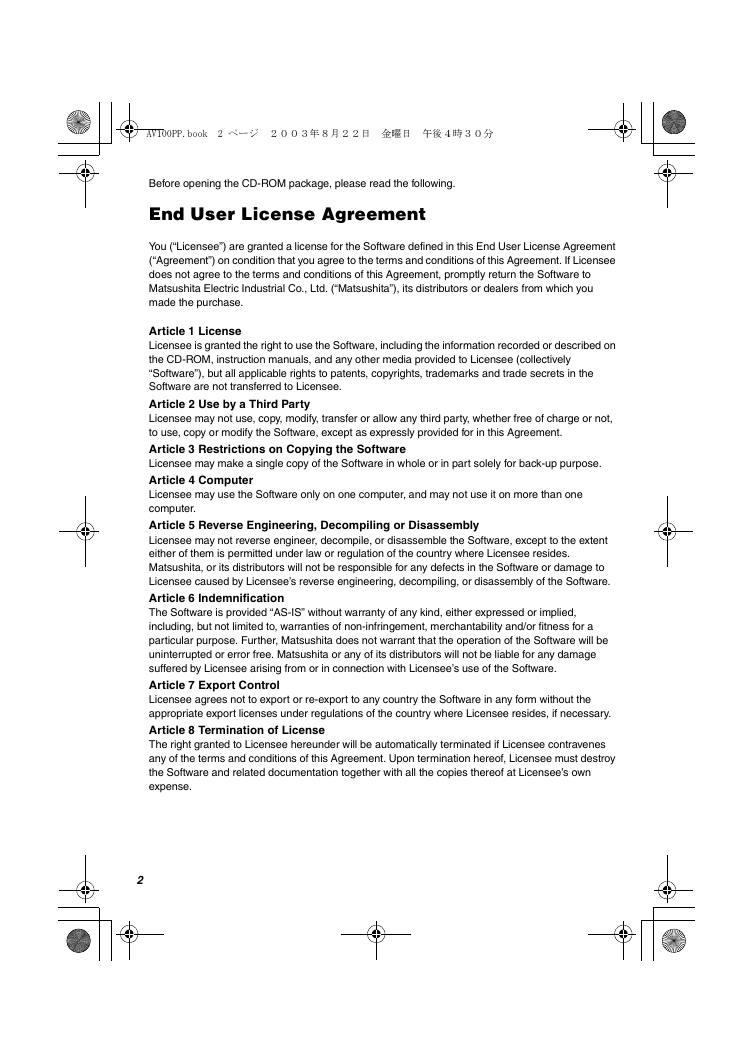

AV100PP.book 2 ページ２００３年８月２２日　金曜日　午後４時３０分 Before opening the CD-ROM package, please read the following. båÇ=rëÉê=iáÅÉåëÉ=^ÖêÉÉãÉåí You (“Licensee”) are granted a license for the Software defined in this End User License Agreement (“Agreement”) on condition that you agree to the terms and conditions of this Agreement. If Licensee does not agree to the terms and conditions of this Agreement, promptly return the Software to Matsushita Electric Industrial Co., Ltd. (“Matsushita”), its distributors or dealers from which you made the purchase. Article 1 License Licensee is granted the right to use the Software, including the information recorded or described on the CD-ROM, instruction manuals, and any other media provided to Licensee (collectively “Software”), but all applicable rights to patents, copyrights, trademarks and trade secrets in the Software are not transferred to Licensee. Article 2 Use by a Third Party Licensee may not use, copy, modify, transfer or allow any third party, whether free of charge or not, to use, copy or modify the Software, except as expressly provided for in this Agreement. Article 3 Restrictions on Copying the Software Licensee may make a single copy of the Software in whole or in part solely for back-up purpose. Article 4 Computer Licensee may use the Software only on one computer, and may not use it on more than one computer. Article 5 Reverse Engineering, Decompiling or Disassembly Licensee may not reverse engineer, decompile, or disassemble the Software, except to the extent either of them is permitted under law or regulation of the country where Licensee resides. Matsushita, or its distributors will not be responsible for any defects in the Software or damage to Licensee caused by Licensee’s reverse engineering, decompiling, or disassembly of the Software. Article 6 Indemnification The Software is provided “AS-IS” without warranty of any kind, either expressed or implied, including, but not limited to, warranties of non-infringement, merchantability and/or fitness for a particular purpose. Further, Matsushita does not warrant that the operation of the Software will be uninterrupted or error free. Matsushita or any of its distributors will not be liable for any damage suffered by Licensee arising from or in connection with Licensee’s use of the Software. Article 7 Export Control Licensee agrees not to export or re-export to any country the Software in any form without the appropriate export licenses under regulations of the country where Licensee resides, if necessary. Article 8 Termination of License The right granted to Licensee hereunder will be automatically terminated if Licensee contravenes any of the terms and conditions of this Agreement. Upon termination hereof, Licensee must destroy the Software and related documentation together with all the copies thereof at Licensee’s own expense. O

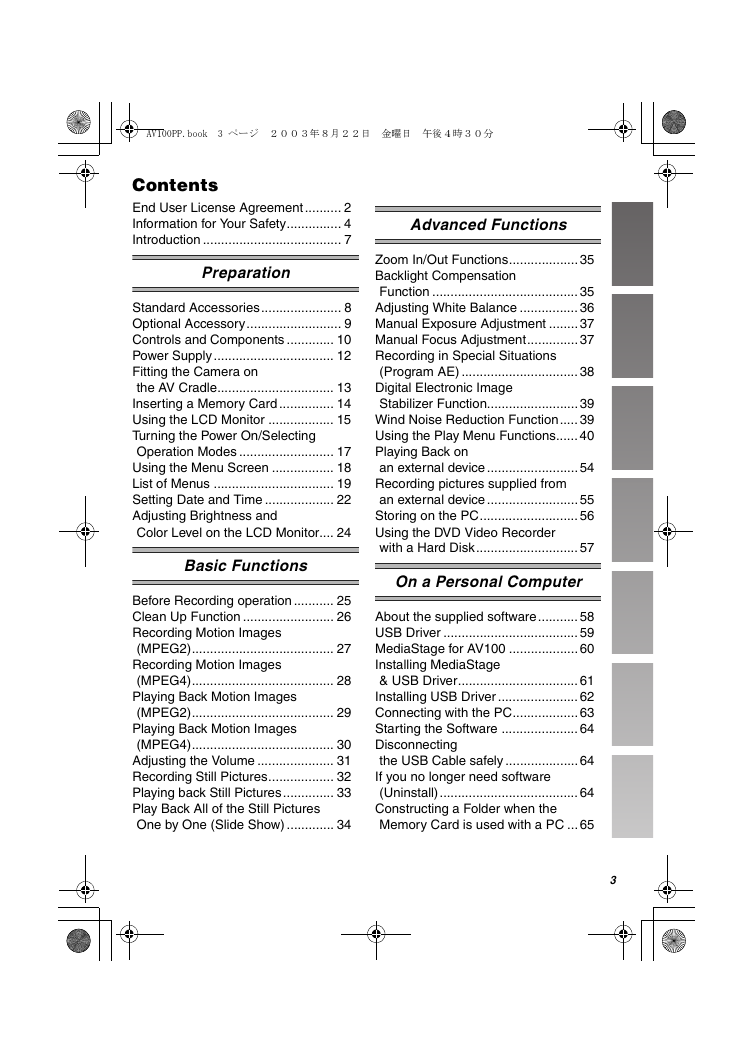

AV100PP.book 3 ページ２００３年８月２２日　金曜日　午後４時３０分 `çåíÉåíë End User License Agreement.......... 2 Information for Your Safety............... 4 Introduction ...................................... 7 mêÉé~ê~íáçå Standard Accessories...................... 8 Optional Accessory.......................... 9 Controls and Components ............. 10 Power Supply................................. 12 Fitting the Camera on the AV Cradle................................ 13 Inserting a Memory Card ............... 14 Using the LCD Monitor .................. 15 Turning the Power On/Selecting Operation Modes .......................... 17 Using the Menu Screen ................. 18 List of Menus ................................. 19 Setting Date and Time ................... 22 Adjusting Brightness and Color Level on the LCD Monitor.... 24 _~ëáÅ=cìåÅíáçåë Before Recording operation ........... 25 Clean Up Function ......................... 26 Recording Motion Images (MPEG2)....................................... 27 Recording Motion Images (MPEG4)....................................... 28 Playing Back Motion Images (MPEG2)....................................... 29 Playing Back Motion Images (MPEG4)....................................... 30 Adjusting the Volume ..................... 31 Recording Still Pictures.................. 32 Playing back Still Pictures.............. 33 Play Back All of the Still Pictures One by One (Slide Show) ............. 34 ^Çî~åÅÉÇ=cìåÅíáçåë Zoom In/Out Functions................... 35 Backlight Compensation Function ........................................ 35 Adjusting White Balance ................ 36 Manual Exposure Adjustment ........ 37 Manual Focus Adjustment.............. 37 Recording in Special Situations (Program AE) ................................ 38 Digital Electronic Image Stabilizer Function......................... 39 Wind Noise Reduction Function..... 39 Using the Play Menu Functions...... 40 Playing Back on an external device ......................... 54 Recording pictures supplied from an external device ......................... 55 Storing on the PC........................... 56 Using the DVD Video Recorder with a Hard Disk............................ 57 lå=~=mÉêëçå~ä=`çãéìíÉê About the supplied software........... 58 USB Driver ..................................... 59 MediaStage for AV100 ................... 60 Installing MediaStage & USB Driver................................. 61 Installing USB Driver ...................... 62 Connecting with the PC.................. 63 Starting the Software ..................... 64 Disconnecting the USB Cable safely .................... 64 If you no longer need software (Uninstall)...................................... 64 Constructing a Folder when the Memory Card is used with a PC ... 65 P

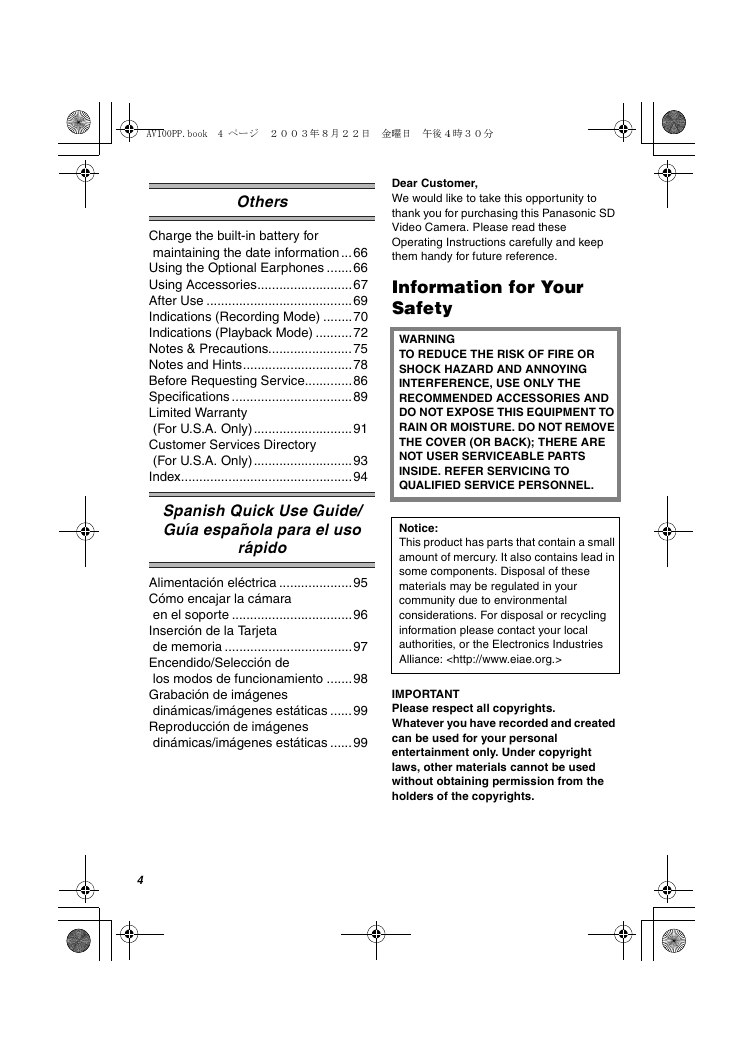

AV100PP.book 4 ページ２００３年８月２２日　金曜日　午後４時３０分 líÜÉêë Charge the built-in battery for maintaining the date information ...66 Using the Optional Earphones .......66 Using Accessories..........................67 After Use ........................................69 Indications (Recording Mode) ........70 Indications (Playback Mode) ..........72 Notes & Precautions.......................75 Notes and Hints..............................78 Before Requesting Service.............86 Specifications .................................89 Limited Warranty (For U.S.A. Only)...........................91 Customer Services Directory (For U.S.A. Only)...........................93 Index...............................................94 pé~åáëÜ=nìáÅâ=rëÉ=dìáÇÉL dì∞~=Éëé~¥çä~=é~ê~=Éä=ìëç= ê•éáÇç Alimentación eléctrica ....................95 Cómo encajar la cámara en el soporte .................................96 Inserción de la Tarjeta de memoria ...................................97 Encendido/Selección de los modos de funcionamiento .......98 Grabación de imágenes dinámicas/imágenes estáticas ......99 Reproducción de imágenes dinámicas/imágenes estáticas ......99 Dear Customer, We would like to take this opportunity to thank you for purchasing this Panasonic SD Video Camera. Please read these Operating Instructions carefully and keep them handy for future reference. fåÑçêã~íáçå=Ñçê=vçìê= p~ÑÉíó WARNING TO REDUCE THE RISK OF FIRE OR SHOCK HAZARD AND ANNOYING INTERFERENCE, USE ONLY THE RECOMMENDED ACCESSORIES AND DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE. DO NOT REMOVE THE COVER (OR BACK); THERE ARE NOT USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. Notice: This product has parts that contain a small amount of mercury. It also contains lead in some components. Disposal of these materials may be regulated in your community due to environmental considerations. For disposal or recycling information please contact your local authorities, or the Electronics Industries Alliance: IMPORTANT Please respect all copyrights. Whatever you have recorded and created can be used for your personal entertainment only. Under copyright laws, other materials cannot be used without obtaining permission from the holders of the copyrights. Q

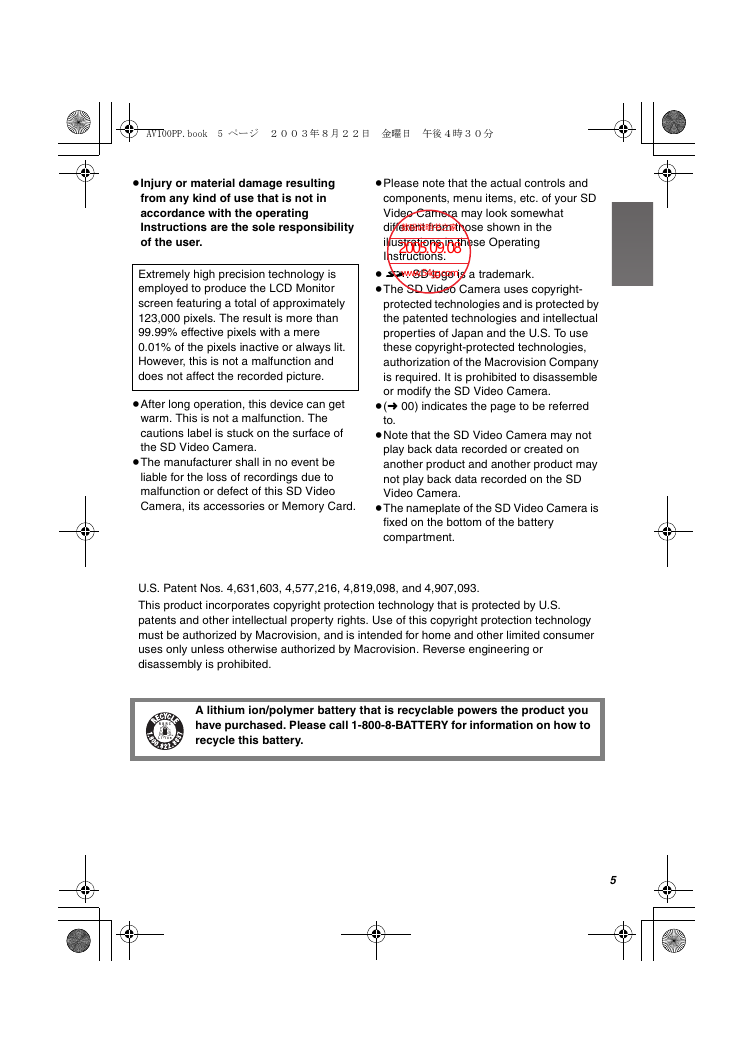

AV100PP.book 5 ページ２００３年８月２２日　金曜日　午後４時３０分 ≥Injury or material damage resulting ≥Please note that the actual controls and from any kind of use that is not in accordance with the operating Instructions are the sole responsibility of the user. Extremely high precision technology is employed to produce the LCD Monitor screen featuring a total of approximately 123,000 pixels. The result is more than 99.99% effective pixels with a mere 0.01% of the pixels inactive or always lit. However, this is not a malfunction and does not affect the recorded picture. ≥After long operation, this device can get warm. This is not a malfunction. The cautions label is stuck on the surface of the SD Video Camera. ≥The manufacturer shall in no event be liable for the loss of recordings due to malfunction or defect of this SD Video Camera, its accessories or Memory Card. components, menu items, etc. of your SD Video Camera may look somewhat different from those shown in the illustrations in these Operating Instructions. : SD logo is a trademark. ≥ ≥The SD Video Camera uses copyright- protected technologies and is protected by the patented technologies and intellectual properties of Japan and the U.S. To use these copyright-protected technologies, authorization of the Macrovision Company is required. It is prohibited to disassemble or modify the SD Video Camera. ≥(l 00) indicates the page to be referred to. ≥Note that the SD Video Camera may not play back data recorded or created on another product and another product may not play back data recorded on the SD Video Camera. ≥The nameplate of the SD Video Camera is fixed on the bottom of the battery compartment. U.S. Patent Nos. 4,631,603, 4,577,216, 4,819,098, and 4,907,093. This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited consumer uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited. R B R C T M L i - i o n A lithium ion/polymer battery that is recyclable powers the product you have purchased. Please call 1-800-8-BATTERY for information on how to recycle this battery. R

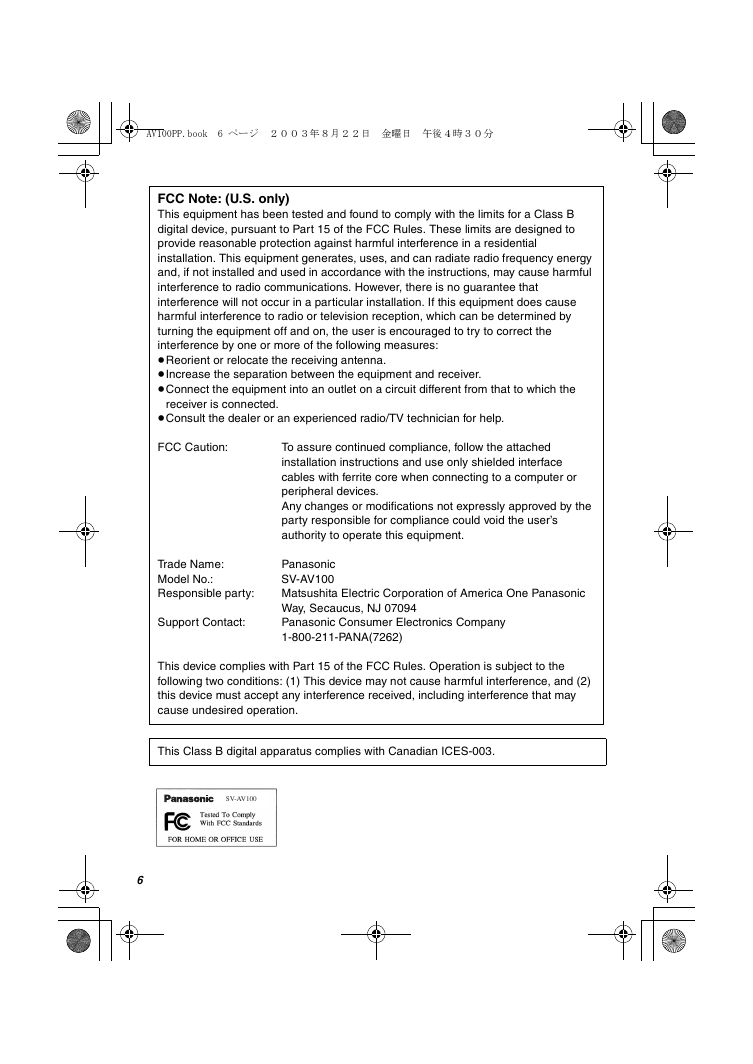

AV100PP.book 6 ページ２００３年８月２２日　金曜日　午後４時３０分 FCC Note: (U.S. only) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ≥Reorient or relocate the receiving antenna. ≥Increase the separation between the equipment and receiver. ≥Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ≥Consult the dealer or an experienced radio/TV technician for help. FCC Caution: To assure continued compliance, follow the attached installation instructions and use only shielded interface cables with ferrite core when connecting to a computer or peripheral devices. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. Trade Name: Model No.: Responsible party: Support Contact: Panasonic SV-AV100 Matsushita Electric Corporation of America One Panasonic Way, Secaucus, NJ 07094 Panasonic Consumer Electronics Company 1-800-211-PANA(7262) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This Class B digital apparatus complies with Canadian ICES-003. SV-AV100 S

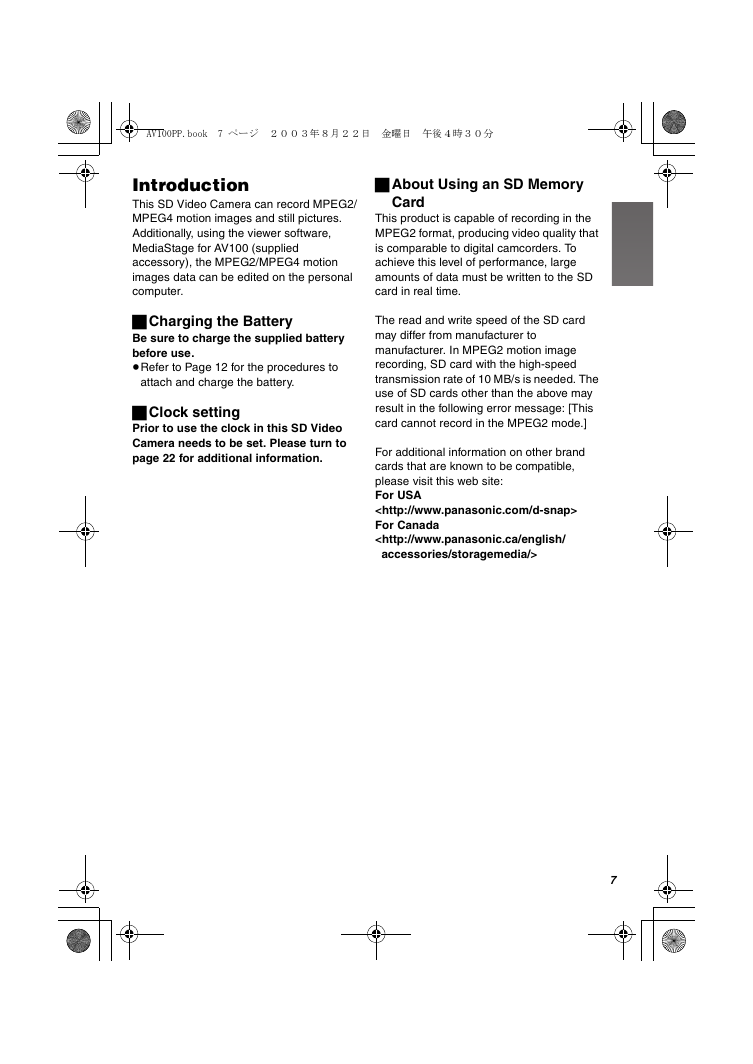

AV100PP.book 7 ページ２００３年８月２２日　金曜日　午後４時３０分 fåíêçÇìÅíáçå This SD Video Camera can record MPEG2/ MPEG4 motion images and still pictures. Additionally, using the viewer software, MediaStage for AV100 (supplied accessory), the MPEG2/MPEG4 motion images data can be edited on the personal computer. ª About Using an SD Memory Card This product is capable of recording in the MPEG2 format, producing video quality that is comparable to digital camcorders. To achieve this level of performance, large amounts of data must be written to the SD card in real time. ª Charging the Battery Be sure to charge the supplied battery before use. ≥Refer to Page 12 for the procedures to attach and charge the battery. ª Clock setting Prior to use the clock in this SD Video Camera needs to be set. Please turn to page 22 for additional information. The read and write speed of the SD card may differ from manufacturer to manufacturer. In MPEG2 motion image recording, SD card with the high-speed transmission rate of 10 MB/s is needed. The use of SD cards other than the above may result in the following error message: [This card cannot record in the MPEG2 mode.] For additional information on other brand cards that are known to be compatible, please visit this web site: For USA For Canada T

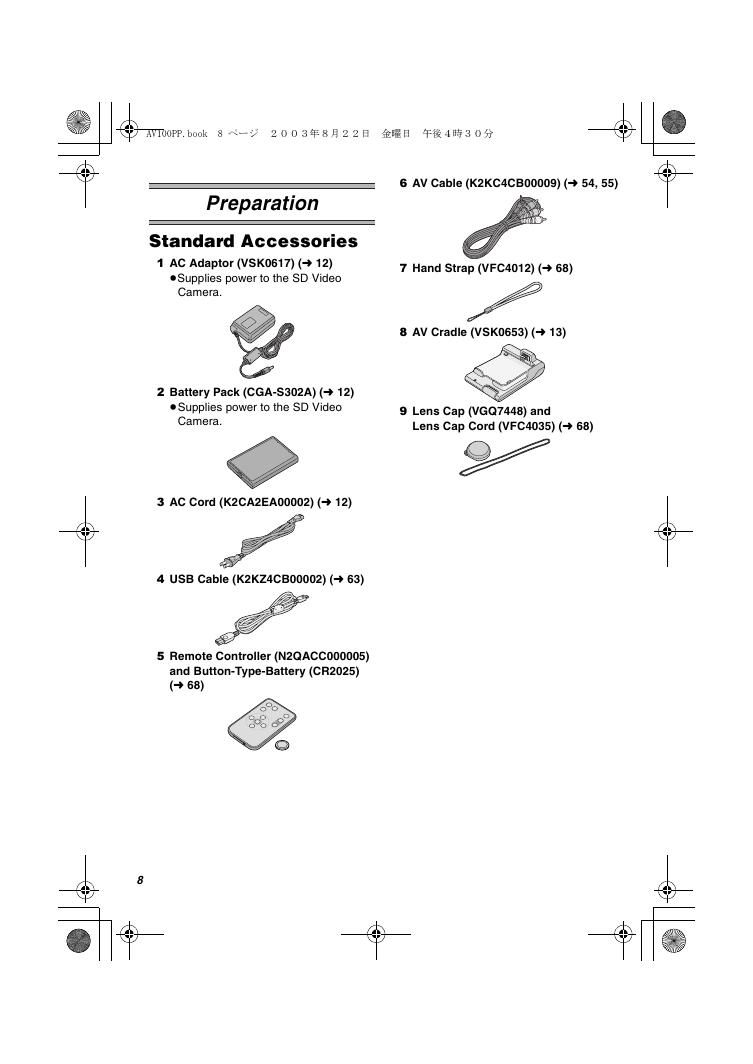

AV100PP.book 8 ページ２００３年８月２２日　金曜日　午後４時３０分 mêÉé~ê~íáçå pí~åÇ~êÇ=^ÅÅÉëëçêáÉë 1 AC Adaptor (VSK0617) (l 12) ≥Supplies power to the SD Video Camera. 6 AV Cable (K2KC4CB00009) (l 54, 55) 7 Hand Strap (VFC4012) (l 68) 8 AV Cradle (VSK0653) (l 13) 2 Battery Pack (CGA-S302A) (l 12) ≥Supplies power to the SD Video Camera. 9 Lens Cap (VGQ7448) and Lens Cap Cord (VFC4035) (l 68) 3 AC Cord (K2CA2EA00002) (l 12) 4 USB Cable (K2KZ4CB00002) (l 63) 5 Remote Controller (N2QACC000005) and Button-Type-Battery (CR2025) (l 68) U
