第1章概述

1.1 方正文杰打印机的卓越品质和突出性能

1.2 推荐计算机配置

硬盘空间：安装文杰打印机驱动至少需要100M的硬盘自由空间。

1.3 本手册中的符号和术语

1.4 用户手册所含全部内容

1.5 安全声明

第2章安装打印机硬件

2.1 为打印机准备安放场地

2.2 拆箱

2.3 打印机部件及其位置

为确保您顺利使用本打印机，请仔细阅读本节，熟悉打印机各部件及其位置。2.3.1 正视图

2.3.2 后视图

2.3.3 内部图

2.4 安装硒鼓

2.5 放置纸张

2.6 连接打印机电源线

第3章安装打印机驱动软件

3.1 安装驱动软件

A650251802023派出打印机第6章排除打印故障

6.1 缺纸

6.1.1 给送纸盒添纸

6.1.2 检查送纸盒的安装

6.2 清除卡纸

6.2.1 清除纸盘中的卡纸

6.2.2 清除定影区的卡纸

6.2.3 取出硒鼓处的卡纸

6.3 硒鼓故障

6.3.1 纠正模糊的文本打印

6.4 纠正打印质量

6.5 打印故障及排除

第7章打印机维护

7.1 清洁打印机

7.1.1 清洁打印机的外部

7.1.2 清洁打印机的内部

7.2 硒鼓的寿命

7.3 硒鼓的管理

7.3.1 硒鼓的日常管理与养护

7.3.2 更换硒鼓

附录1 规格

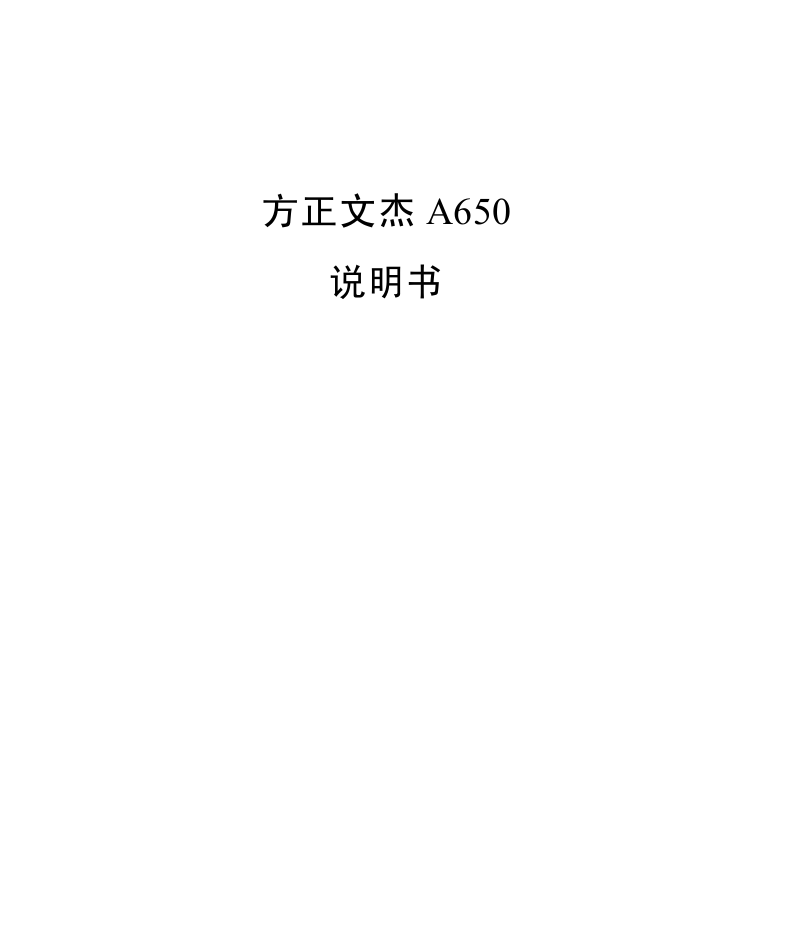

方正文杰 A650 说明书

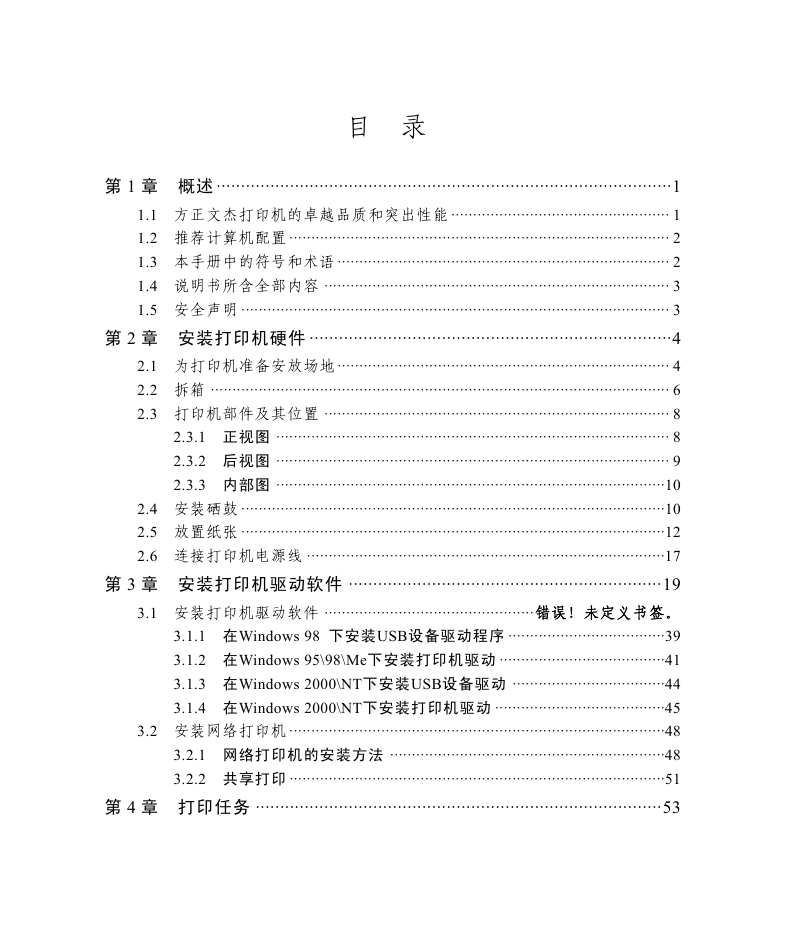

目录第 1 章概述·····························································································1 1.1 方正文杰打印机的卓越品质和突出性能 ·················································· 1 1.2 推荐计算机配置 ······················································································· 2 1.3 本手册中的符号和术语············································································ 2 1.4 说明书所含全部内容 ··············································································· 3 1.5 安全声明 ·································································································· 3 第 2 章安装打印机硬件 ··········································································4 2.1 为打印机准备安放场地············································································ 4 2.2 拆箱 ········································································································· 6 2.3 打印机部件及其位置 ··············································································· 8 2.3.1 正视图 ·························································································· 8 2.3.2 后视图 ·························································································· 9 2.3.3 内部图 ·························································································10 2.4 安装硒鼓 ·································································································10 2.5 放置纸张 ·································································································12 2.6 连接打印机电源线 ··················································································17 第 3 章安装打印机驱动软件 ································································19 3.1 安装打印机驱动软件 ················································ 错误！未定义书签。 3.1.1 在Windows 98 下安装USB设备驱动程序 ····································39 3.1.2 在Windows 95\98\Me下安装打印机驱动 ······································41 3.1.3 在Windows 2000\NT下安装USB设备驱动 ···································44 3.1.4 在Windows 2000\NT下安装打印机驱动 ·······································45 3.2 安装网络打印机 ······················································································48 3.2.1 网络打印机的安装方法 ·······························································48 3.2.2 共享打印 ······················································································51 第 4 章打印任务 ···················································································53

ii 方正激光打印机文杰 A650 说明书 4.1 多功能送纸盒 ·························································································53 4.1.1 多功能送纸盒 ··············································································53 4.1.2 将打印用纸装入送纸盒 ·······························································53 4.2 纸张信息 ··································································· 错误！未定义书签。 4.3 执行打印任务 ··························································· 错误！未定义书签。 4.3.1 打印机的开启与关闭 ····································· 错误！未定义书签。第 5 章排除打印故障············································································53 5.1 缺纸 ········································································································53 5.1.1 给送纸盒添纸 ··············································································53 5.1.2 检查送纸盒的安装 ·······································································53 5.2 清除卡纸 ·································································································54 5.2.1 清除纸盘中的卡纸 ·······································································54 5.2.2 清除定影区的卡纸 ·······································································56 5.2.3 取出硒鼓处的卡纸 ·······································································58 5.3 硒鼓故障 ·································································································60 5.3.1 纠正模糊的文本打印 ···································································60 5.4 纠正打印质量 ·························································································61 5.5 打印故障及排除 ······················································································69 第 6 章打印机维护 ···············································································71 6.1 清洁打印机 ·····························································································71 6.1.1 清洁打印机的外部 ·······································································71 6.1.2 清洁打印机的内部 ·······································································72 6.2 硒鼓的寿命 ·····························································································72 6.3 硒鼓的管理 ·····························································································74 6.3.1 硒鼓的日常管理与养护 ·······························································74 6.3.2 更换硒鼓 ······················································································75 第 7 章充分发挥打印机的功能·······························错误！未定义书签。 7.1 如何使用打印机驱动程序 ········································· 错误！未定义书签。附录 1 规格 ···························································································80

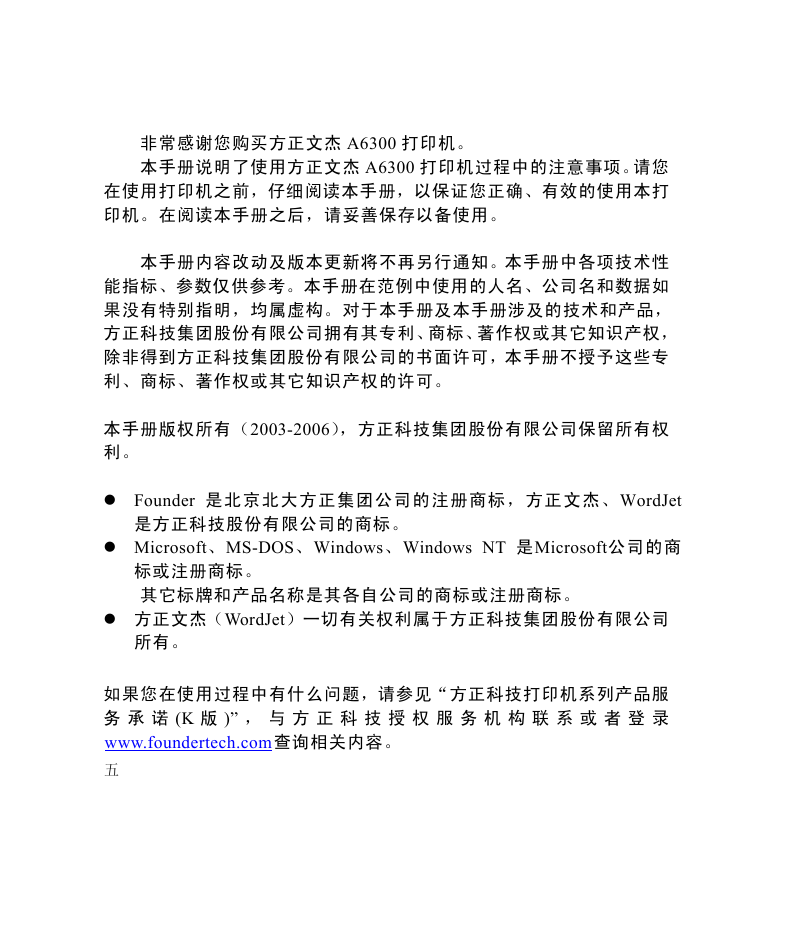

非常感谢您购买方正文杰 A6300 打印机。本手册说明了使用方正文杰 A6300 打印机过程中的注意事项。请您在使用打印机之前，仔细阅读本手册，以保证您正确、有效的使用本打印机。在阅读本手册之后，请妥善保存以备使用。本手册内容改动及版本更新将不再另行通知。本手册中各项技术性能指标、参数仅供参考。本手册在范例中使用的人名、公司名和数据如果没有特别指明，均属虚构。对于本手册及本手册涉及的技术和产品，方正科技集团股份有限公司拥有其专利、商标、著作权或其它知识产权，除非得到方正科技集团股份有限公司的书面许可，本手册不授予这些专利、商标、著作权或其它知识产权的许可。本手册版权所有（2003-2006），方正科技集团股份有限公司保留所有权利。 Founder 是北京北大方正集团公司的注册商标，方正文杰、WordJet 是方正科技股份有限公司的商标。 Microsoft、MS-DOS、Windows、Windows NT 是Microsoft公司的商标或注册商标。其它标牌和产品名称是其各自公司的商标或注册商标。方正文杰（WordJet）一切有关权利属于方正科技集团股份有限公司所有。如果您在使用过程中有什么问题，请参见“方正科技打印机系列产品服务承诺(K 版 )” ，与方正科技授权服务机构联系或者登录 www.foundertech.com查询相关内容。五

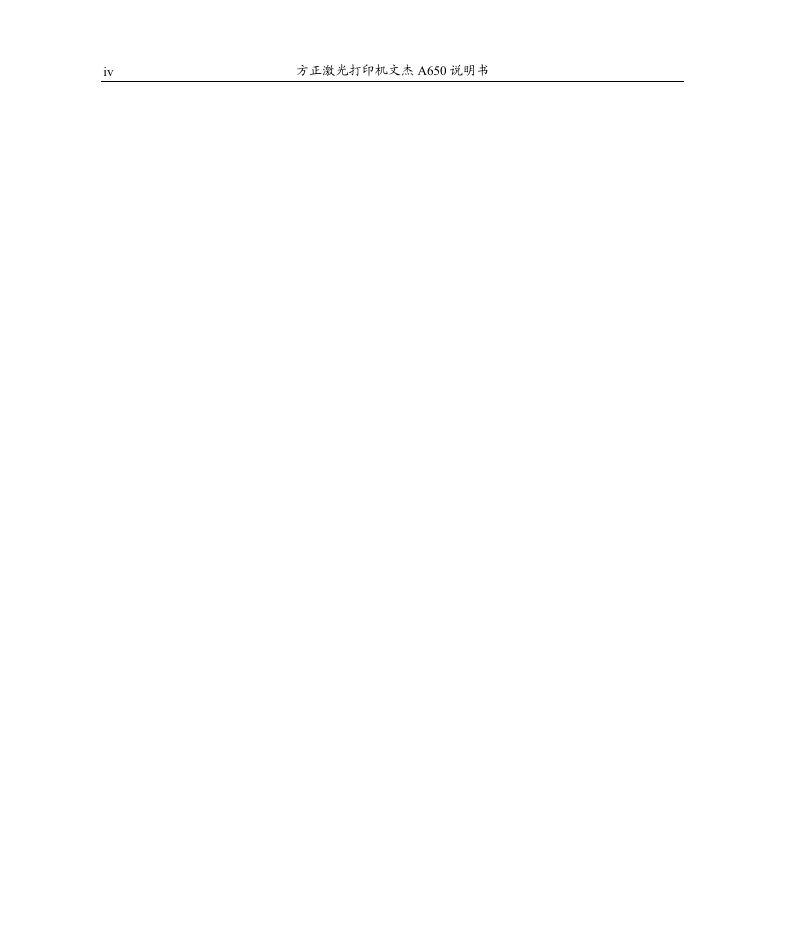

iv 方正激光打印机文杰 A650 说明书

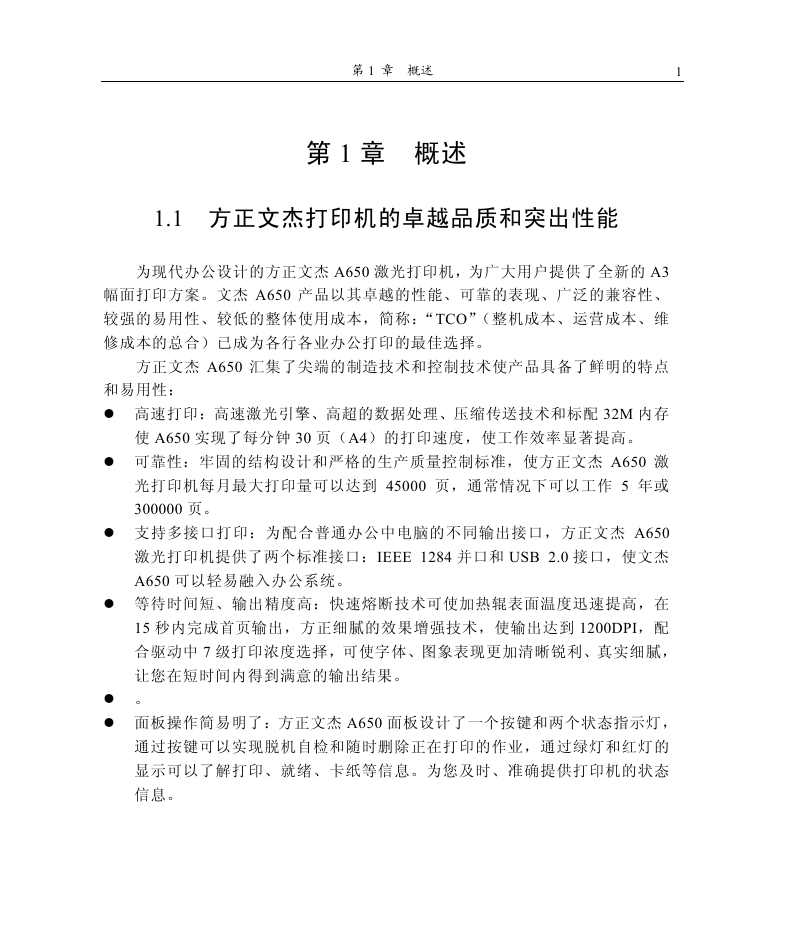

第 1 章概述 1 第 1 章概述 1.1 方正文杰打印机的卓越品质和突出性能为现代办公设计的方正文杰 A650 激光打印机，为广大用户提供了全新的 A3 幅面打印方案。文杰 A650 产品以其卓越的性能、可靠的表现、广泛的兼容性、较强的易用性、较低的整体使用成本，简称：“TCO”（整机成本、运营成本、维修成本的总合）已成为各行各业办公打印的最佳选择。方正文杰 A650 汇集了尖端的制造技术和控制技术使产品具备了鲜明的特点和易用性：高速打印：高速激光引擎、高超的数据处理、压缩传送技术和标配 32M 内存使 A650 实现了每分钟 30 页（A4）的打印速度，使工作效率显著提高。可靠性：牢固的结构设计和严格的生产质量控制标准，使方正文杰 A650 激光打印机每月最大打印量可以达到 45000 页，通常情况下可以工作 5 年或 300000 页。支持多接口打印：为配合普通办公中电脑的不同输出接口，方正文杰 A650 激光打印机提供了两个标准接口：IEEE 1284 并口和 USB 2.0 接口，使文杰 A650 可以轻易融入办公系统。等待时间短、输出精度高：快速熔断技术可使加热辊表面温度迅速提高，在 15 秒内完成首页输出，方正细腻的效果增强技术，使输出达到 1200DPI，配合驱动中 7 级打印浓度选择，可使字体、图象表现更加清晰锐利、真实细腻，让您在短时间内得到满意的输出结果。。面板操作简易明了：方正文杰 A650 面板设计了一个按键和两个状态指示灯，通过按键可以实现脱机自检和随时删除正在打印的作业，通过绿灯和红灯的显示可以了解打印、就绪、卡纸等信息。为您及时、准确提供打印机的状态信息。

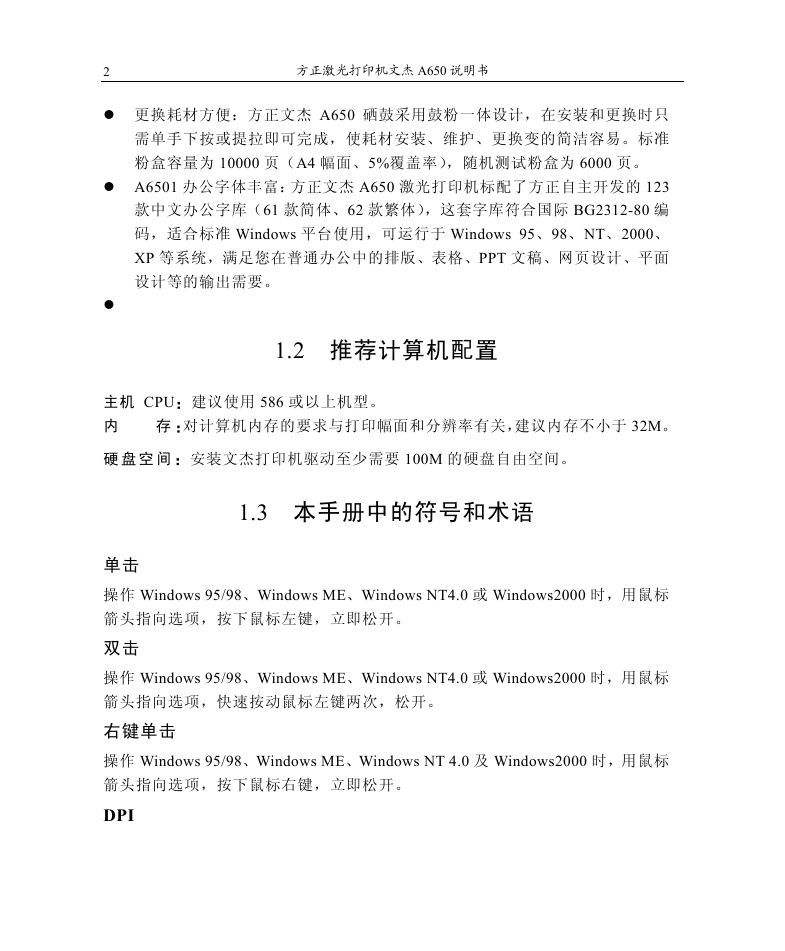

2 方正激光打印机文杰 A650 说明书更换耗材方便：方正文杰 A650 硒鼓采用鼓粉一体设计，在安装和更换时只需单手下按或提拉即可完成，使耗材安装、维护、更换变的简洁容易。标准粉盒容量为 10000 页（A4 幅面、5%覆盖率），随机测试粉盒为 6000 页。 A6501 办公字体丰富：方正文杰 A650 激光打印机标配了方正自主开发的 123 款中文办公字库（61 款简体、62 款繁体），这套字库符合国际 BG2312-80 编码，适合标准 Windows 平台使用，可运行于 Windows 95、98、NT、2000、 XP 等系统，满足您在普通办公中的排版、表格、PPT 文稿、网页设计、平面设计等的输出需要。 1.2 推荐计算机配置主机 CPU：建议使用 586 或以上机型。内存：对计算机内存的要求与打印幅面和分辨率有关，建议内存不小于 32M。硬盘空间：安装文杰打印机驱动至少需要 100M 的硬盘自由空间。 1.3 本手册中的符号和术语单击操作 Windows 95/98、Windows ME、Windows NT4.0 或 Windows2000 时，用鼠标箭头指向选项，按下鼠标左键，立即松开。双击操作 Windows 95/98、Windows ME、Windows NT4.0 或 Windows2000 时，用鼠标箭头指向选项，快速按动鼠标左键两次，松开。右键单击操作 Windows 95/98、Windows ME、Windows NT 4.0 及 Windows2000 时，用鼠标箭头指向选项，按下鼠标右键，立即松开。 DPI

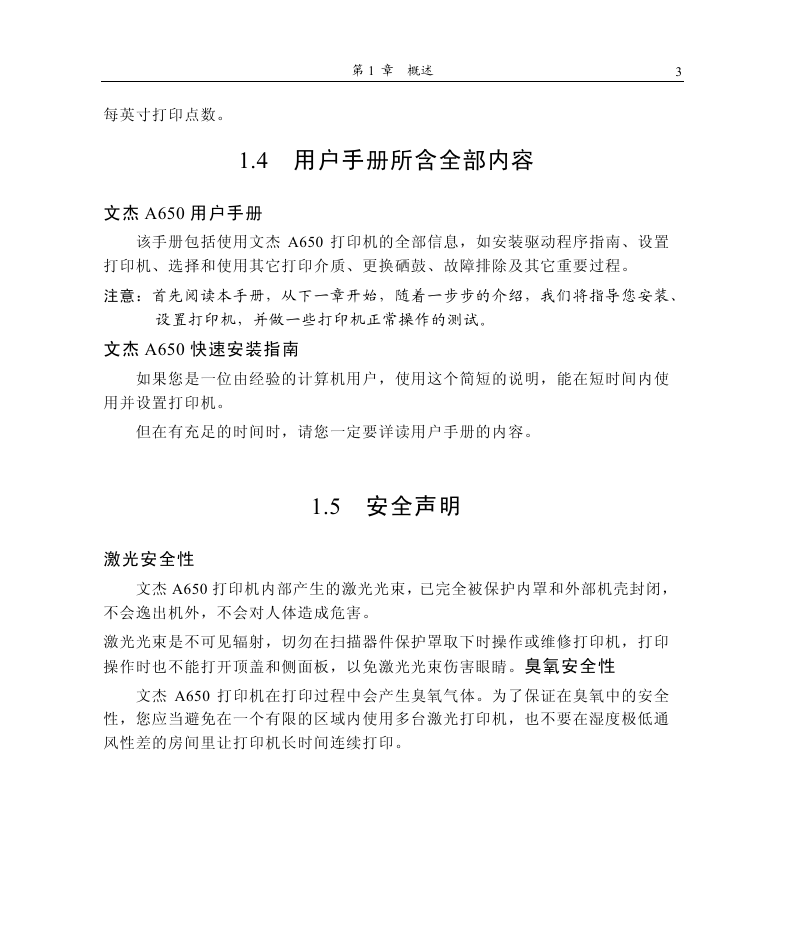

第 1 章概述 3 每英寸打印点数。 1.4 用户手册所含全部内容文杰 A650 用户手册该手册包括使用文杰 A650 打印机的全部信息，如安装驱动程序指南、设置打印机、选择和使用其它打印介质、更换硒鼓、故障排除及其它重要过程。注意：首先阅读本手册，从下一章开始，随着一步步的介绍，我们将指导您安装、设置打印机，并做一些打印机正常操作的测试。文杰 A650 快速安装指南如果您是一位由经验的计算机用户，使用这个简短的说明，能在短时间内使用并设置打印机。但在有充足的时间时，请您一定要详读用户手册的内容。 1.5 安全声明激光安全性文杰 A650 打印机内部产生的激光光束，已完全被保护内罩和外部机壳封闭，不会逸出机外，不会对人体造成危害。激光光束是不可见辐射，切勿在扫描器件保护罩取下时操作或维修打印机，打印操作时也不能打开顶盖和侧面板，以免激光光束伤害眼睛。臭氧安全性文杰 A650 打印机在打印过程中会产生臭氧气体。为了保证在臭氧中的安全性，您应当避免在一个有限的区域内使用多台激光打印机，也不要在湿度极低通风性差的房间里让打印机长时间连续打印。
