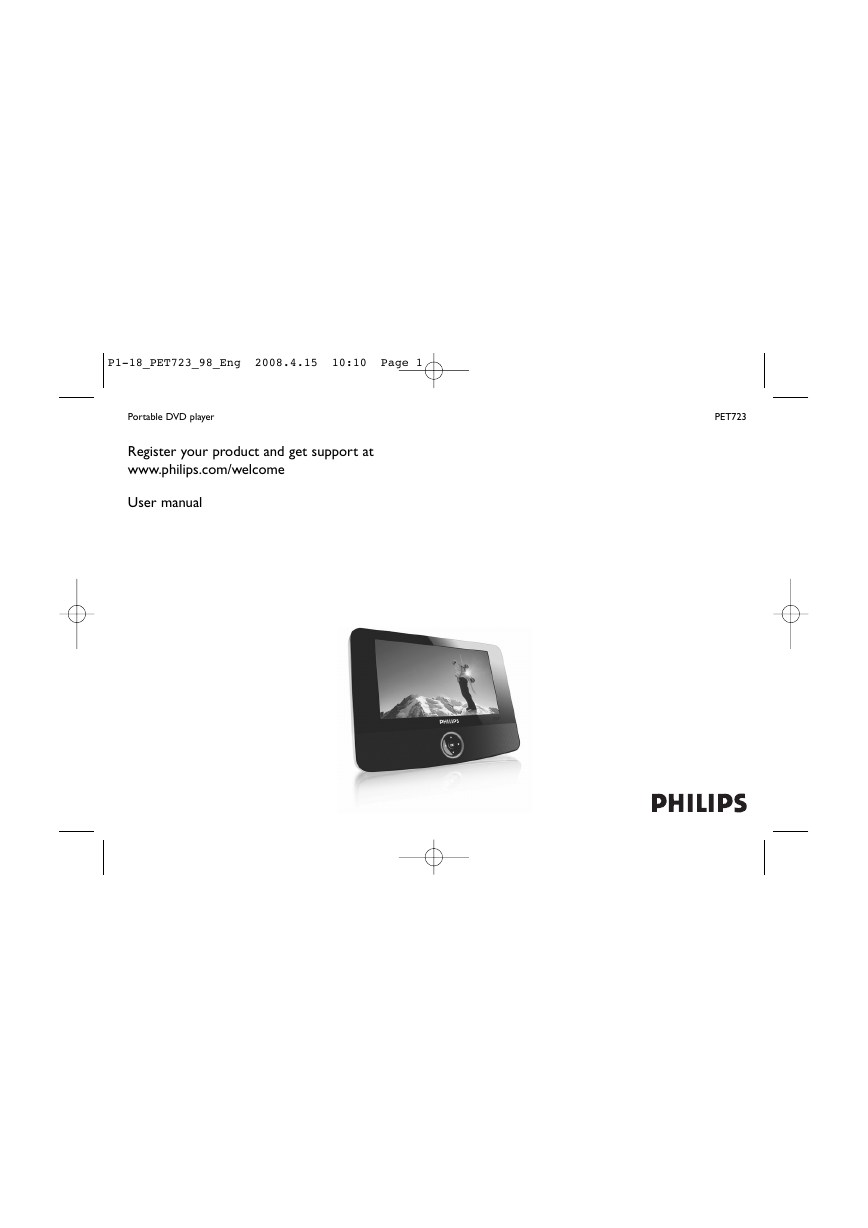

P1-18_PET723_98_Eng 2008.4.15 10:10 Page 1 Portable DVD player PET723 Register your product and get support at www.philips.com/welcome User manual

P1-18_PET723_98_Eng 2008.4.15 10:10 Page 2

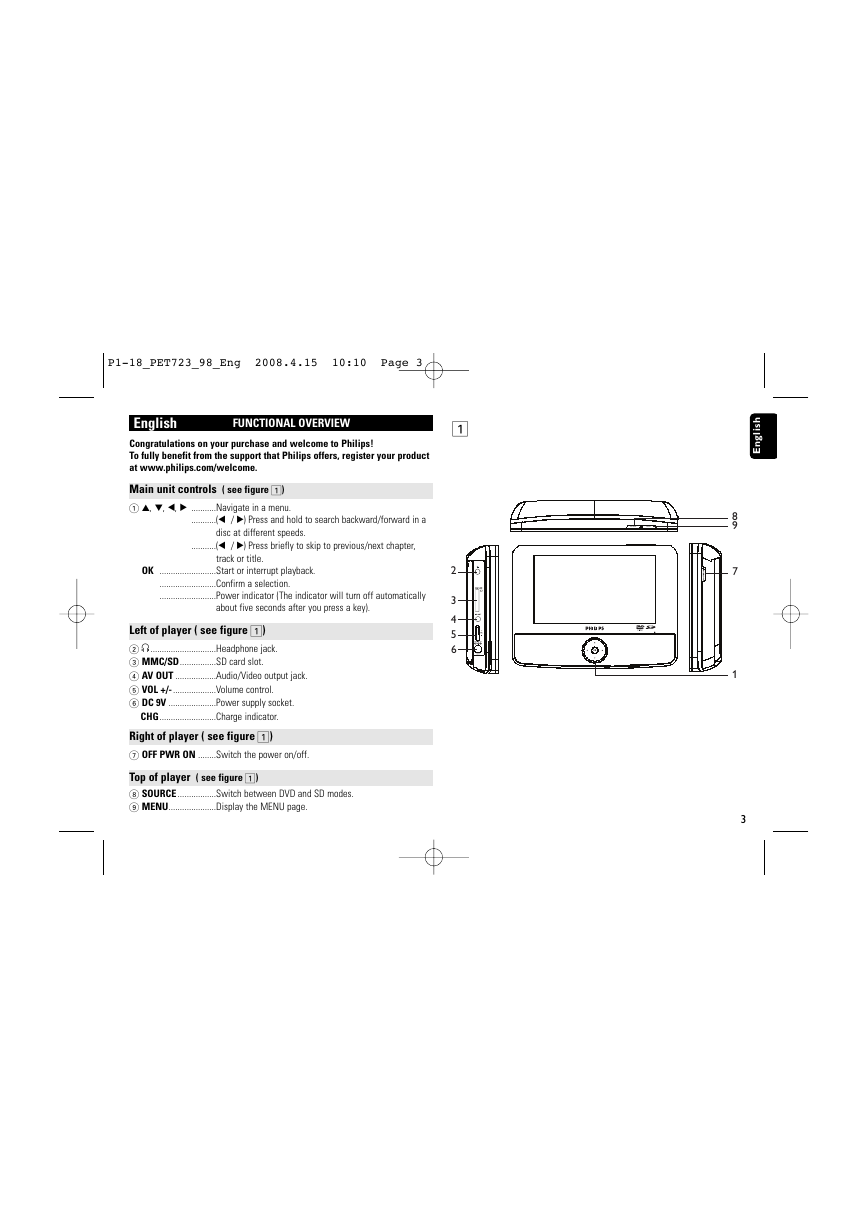

P1-18_PET723_98_Eng 2008.4.15 10:10 Page 3 FUNCTIONAL OVERVIEW English Congratulations on your purchase and welcome to Philips! To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome. 1 Main unit controls ( see figure 1) 1 3, 4, 1, 2 ...........Navigate in a menu. ...........(1 / 2) Press and hold to search backward/forward in a disc at different speeds. ...........(1 / 2) Press briefly to skip to previous/next chapter, OK .........................Start or interrupt playback. track or title. .........................Confirm a selection. .........................Power indicator (The indicator will turn off automatically about five seconds after you press a key). Left of player ( see figure 1) 2 p.............................Headphone jack. 3 MMC/SD................SD card slot. 4 AV OUT ..................Audio/Video output jack. 5 VOL +/-...................Volume control. 6 DC 9V .....................Power supply socket. CHG.........................Charge indicator. Right of player ( see figure 1) 7 OFF PWR ON ........Switch the power on/off. Top of player ( see figure 1) 8 SOURCE .................Switch between DVD and SD modes. 9 MENU.....................Display the MENU page. h s i l g n E 3 234518976SOURCE MENU

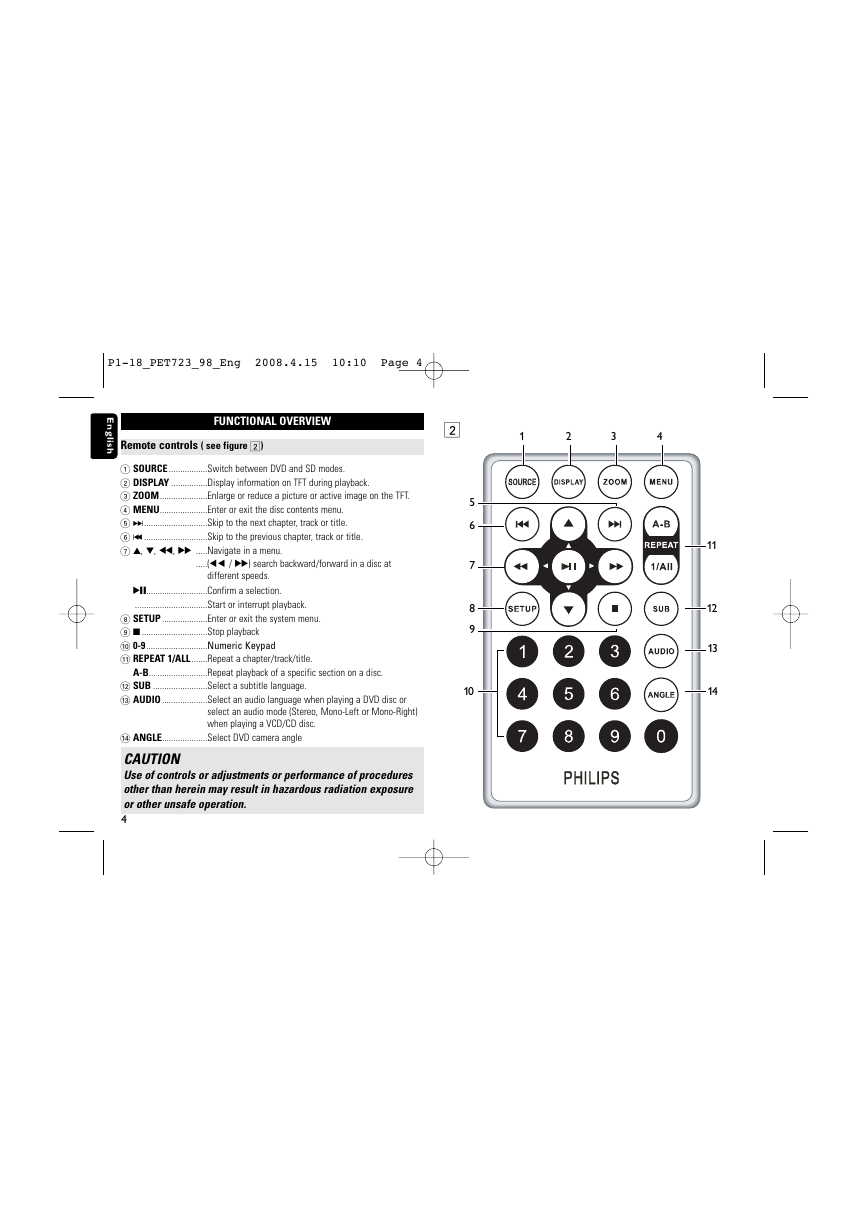

P1-18_PET723_98_Eng 2008.4.15 10:10 Page 4 FUNCTIONAL OVERVIEW Remote controls ( see figure 2) E n g l i s h 1 SOURCE .................Switch between DVD and SD modes. 2 DISPLAY ................Display information on TFT during playback. 3 ZOOM.....................Enlarge or reduce a picture or active image on the TFT. 4 MENU.....................Enter or exit the disc contents menu. 5 §............................Skip to the next chapter, track or title. 6 J( ............................Skip to the previous chapter, track or title. 7 3, 4, 11, 22 .....Navigate in a menu. .....(1 1 / 22) search backward/forward in a disc at different speeds. 2;...........................Confirm a selection. ................................Start or interrupt playback. 8 SETUP ....................Enter or exit the system menu. 9 9 .............................Stop playback 0 0-9...........................Numeric Keypad ! REPEAT 1/ALL.......Repeat a chapter/track/title. A-B... ......................Repeat playback of a specific section on a disc. @ SUB ........................Select a subtitle language. # AUDIO ....................Select an audio language when playing a DVD disc or select an audio mode (Stereo, Mono-Left or Mono-Right) when playing a VCD/CD disc. $ ANGLE....................Select DVD camera angle CAUTION Use of controls or adjustments or performance of procedures other than herein may result in hazardous radiation exposure or other unsafe operation. 4 2 1 2 3 4 5 6 7 8 9 10 11 12 13 14

h s i l g n E P1-18_PET723_98_Eng 2008.4.15 10:10 Page 5 INTRODUCTION INTRODUCTION Your portable DVD player Your portable DVD player plays digital video discs conforming to the universal DVD Video standard. With it, you will be able to enjoy full-length movies with true cinema picture quality, and stereo or multichannel sound (depending on the disc and on your playback set-up). The unique features of DVD-Video, such as selection of soundtrack and subtitle languages, and of different camera angles (again depending on the disc), are all included. What’s more, parental lock lets you decide which discs your children will be able to see. You will find your player remarkably easy to use with the On-Screen Display and player display in combination with the remote control. Unpacking First check and identify the contents of your package, as listed below: • Portable DVD player • Car adaptor (12V) • User Manual • AC power adaptor, DSA-9W-09 F (DVE), AY4132 (PHILIPS) or AY4193 (PHILIPS) Placement • Place the player on a firm, flat surface. • Keep away from domestic heating equipment and direct sunlight. • If the player cannot read CDs/DVDs correctly, try using a commonly available • Remote Control • Audio / Video cable • Warranty cleaning CD/DVD to clean the lens before taking the player to be repaired. Other cleaning methods may destroy the lens. • Always keep the disc door closed to avoid dust on the lens. • The lens may cloud over when the player is suddenly moved from cold to warm surroundings. It is then not possible to play a CD/DVD. Leave the player in a warm environment until the moisture evaporates. About Built-in Rechargeable Battery Precautions related to battery recharge 1 Once the battery is fully discharged, immediately recharge it (regardless of whether you plan to use the battery or not) in order to maximize the battery life. When the power is low, the battery icon will be shown on the upper- right corner of the TFT for warning. To charge the battery, please directly connect this DVD player to AC mains and the charge indicator will turn on. 2 Using and maintaining your rechargeable batteries 1 Please make sure you always use only the AC adapter included with the player to recharge your batteries. Recharge efficiency will degrade when the environmental temperature drops below 50oF (10oC) or exceed 95oF (35oC). The lasting time of the fully charged battery when a headphone is connected to the DVD player is approximately 2 hours. 2 3 Playable disc formats In addition to DVD-Video disc, you will also be able to play all Video CDs and audio CDs (including CD-R, CD-RW, DVD±R and DVD±RW). DVD-Video Depending on the material on the disc (a movie, video clips, a drama series, etc.) these discs may have one or more Titles, and each Title may have one or more Chapters. To make access easy and convenient, your player lets you move between Titles, and also between Chapters. CD with JPEG files You can also view JPEG still photos on this player. 5

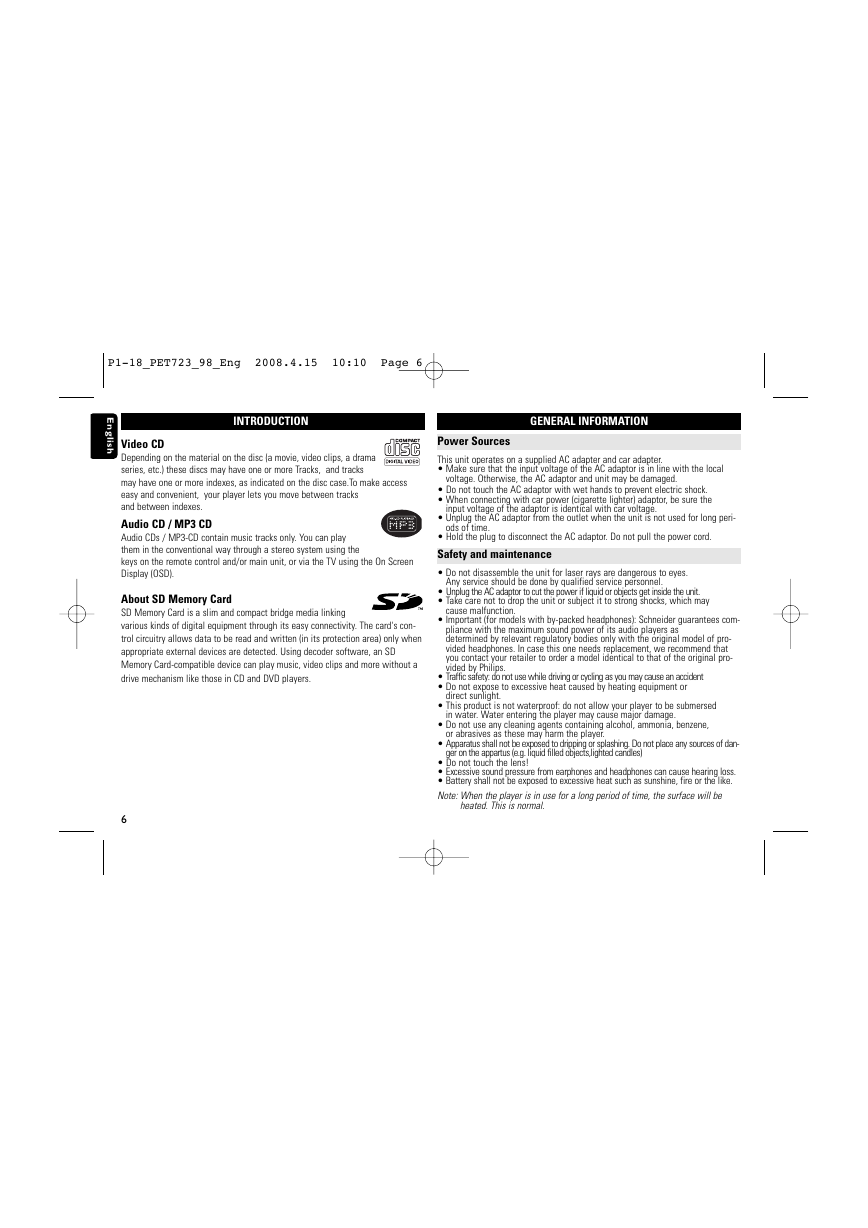

P1-18_PET723_98_Eng 2008.4.15 10:10 Page 6 E n g l i s h INTRODUCTION GENERAL INFORMATION Video CD Depending on the material on the disc (a movie, video clips, a drama series, etc.) these discs may have one or more Tracks, and tracks may have one or more indexes, as indicated on the disc case.To make access easy and convenient, your player lets you move between tracks and between indexes. Audio CD / MP3 CD Audio CDs / MP3-CD contain music tracks only. You can play them in the conventional way through a stereo system using the keys on the remote control and/or main unit, or via the TV using the On Screen Display (OSD). About SD Memory Card SD Memory Card is a slim and compact bridge media linking various kinds of digital equipment through its easy connectivity. The card's con- trol circuitry allows data to be read and written (in its protection area) only when appropriate external devices are detected. Using decoder software, an SD Memory Card-compatible device can play music, video clips and more without a drive mechanism like those in CD and DVD players. 6 Power Sources This unit operates on a supplied AC adapter and car adapter. • Make sure that the input voltage of the AC adaptor is in line with the local voltage. Otherwise, the AC adaptor and unit may be damaged. • Do not touch the AC adaptor with wet hands to prevent electric shock. • When connecting with car power (cigarette lighter) adaptor, be sure the input voltage of the adaptor is identical with car voltage. • Unplug the AC adaptor from the outlet when the unit is not used for long peri- ods of time. • Hold the plug to disconnect the AC adaptor. Do not pull the power cord. Safety and maintenance • Do not disassemble the unit for laser rays are dangerous to eyes. Any service should be done by qualified service personnel. • Unplug the AC adaptor to cut the power if liquid or objects get inside the unit. • Take care not to drop the unit or subject it to strong shocks, which may cause malfunction. • Important (for models with by-packed headphones): Schneider guarantees com- pliance with the maximum sound power of its audio players as determined by relevant regulatory bodies only with the original model of pro- vided headphones. In case this one needs replacement, we recommend that you contact your retailer to order a model identical to that of the original pro- vided by Philips. • Traffic safety: do not use while driving or cycling as you may cause an accident • Do not expose to excessive heat caused by heating equipment or direct sunlight. • This product is not waterproof: do not allow your player to be submersed in water. Water entering the player may cause major damage. • Do not use any cleaning agents containing alcohol, ammonia, benzene, or abrasives as these may harm the player. • Apparatus shall not be exposed to dripping or splashing. Do not place any sources of dan- ger on the appartus (e.g. liquid filled objects,lighted candles) • Do not touch the lens! • Excessive sound pressure from earphones and headphones can cause hearing loss. • Battery shall not be exposed to excessive heat such as sunshine, fire or the like. Note: When the player is in use for a long period of time, the surface will be heated. This is normal.

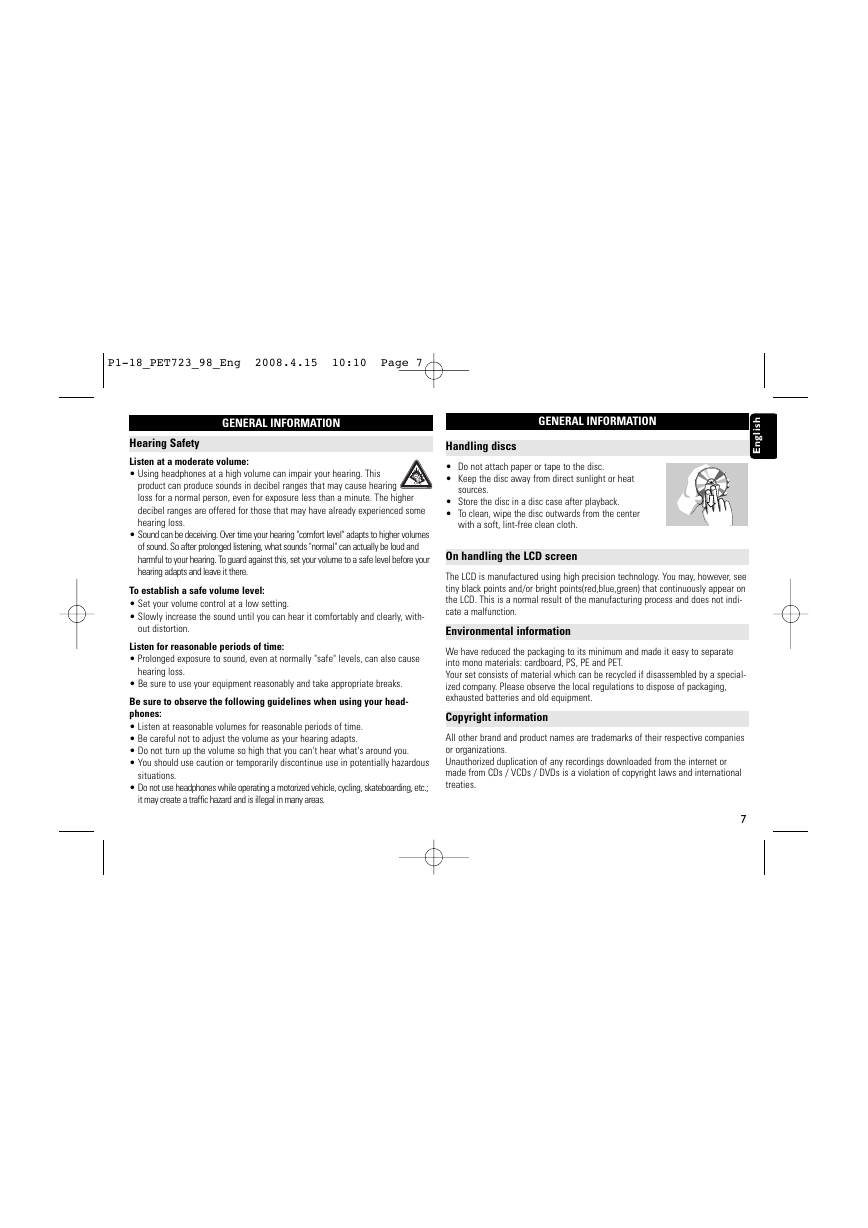

h s i l g n E P1-18_PET723_98_Eng 2008.4.15 10:10 Page 7 GENERAL INFORMATION GENERAL INFORMATION Hearing Safety Listen at a moderate volume: • Using headphones at a high volume can impair your hearing. This product can produce sounds in decibel ranges that may cause hearing loss for a normal person, even for exposure less than a minute. The higher decibel ranges are offered for those that may have already experienced some hearing loss. • Sound can be deceiving. Over time your hearing "comfort level" adapts to higher volumes of sound. So after prolonged listening, what sounds "normal" can actually be loud and harmful to your hearing. To guard against this, set your volume to a safe level before your hearing adapts and leave it there. To establish a safe volume level: • Set your volume control at a low setting. • Slowly increase the sound until you can hear it comfortably and clearly, with- out distortion. Listen for reasonable periods of time: • Prolonged exposure to sound, even at normally "safe" levels, can also cause hearing loss. • Be sure to use your equipment reasonably and take appropriate breaks. Be sure to observe the following guidelines when using your head- phones: • Listen at reasonable volumes for reasonable periods of time. • Be careful not to adjust the volume as your hearing adapts. • Do not turn up the volume so high that you can't hear what's around you. • You should use caution or temporarily discontinue use in potentially hazardous situations. • Do not use headphones while operating a motorized vehicle, cycling, skateboarding, etc.; it may create a traffic hazard and is illegal in many areas. Handling discs • Do not attach paper or tape to the disc. • Keep the disc away from direct sunlight or heat sources. • Store the disc in a disc case after playback. • To clean, wipe the disc outwards from the center with a soft, lint-free clean cloth. On handling the LCD screen The LCD is manufactured using high precision technology. You may, however, see tiny black points and/or bright points(red,blue,green) that continuously appear on the LCD. This is a normal result of the manufacturing process and does not indi- cate a malfunction. Environmental information We have reduced the packaging to its minimum and made it easy to separate into mono materials: cardboard, PS, PE and PET. Your set consists of material which can be recycled if disassembled by a special- ized company. Please observe the local regulations to dispose of packaging, exhausted batteries and old equipment. Copyright information All other brand and product names are trademarks of their respective companies or organizations. Unauthorized duplication of any recordings downloaded from the internet or made from CDs / VCDs / DVDs is a violation of copyright laws and international treaties. 7

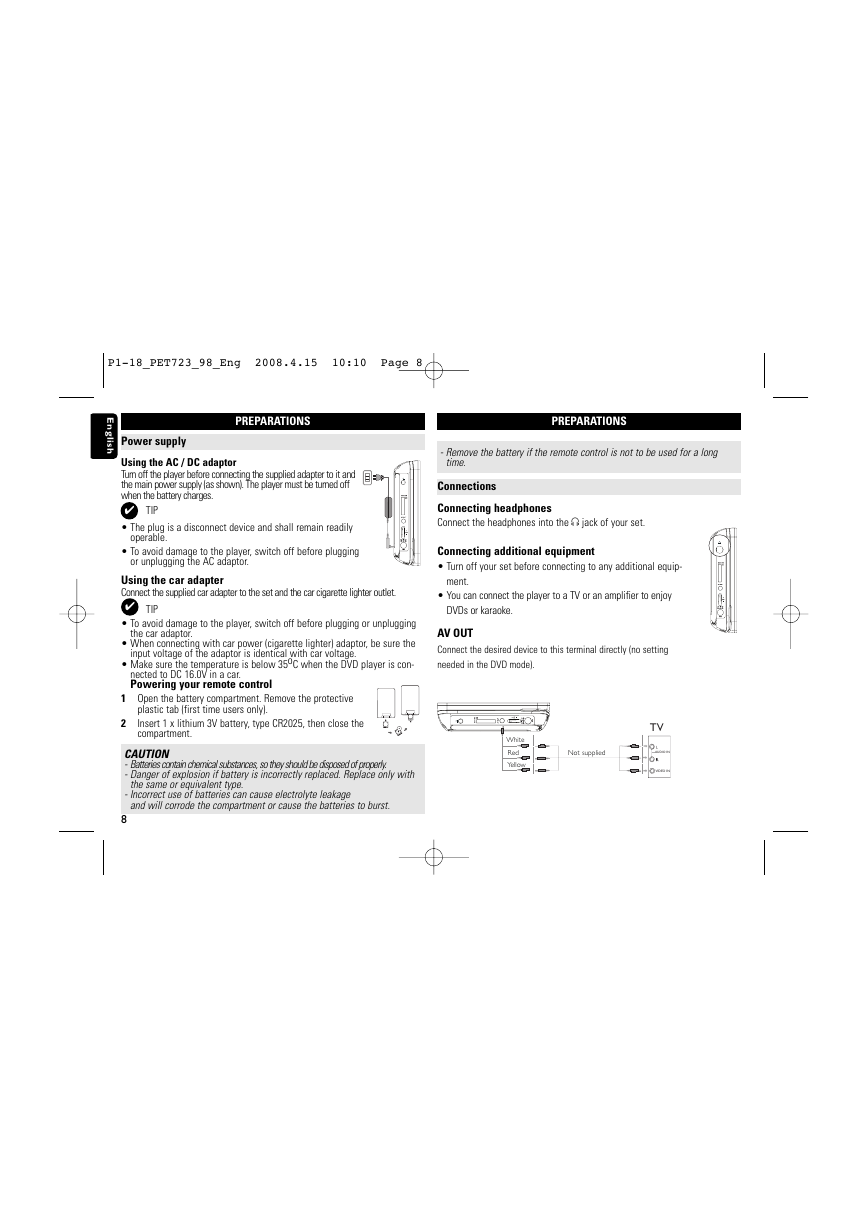

P1-18_PET723_98_Eng 2008.4.15 10:10 Page 8 E n g l i s h Power supply PREPARATIONS PREPARATIONS Using the AC / DC adaptor Turn off the player before connecting the supplied adapter to it and the main power supply (as shown). The player must be turned off when the battery charges. ✔ • The plug is a disconnect device and shall remain readily TIP operable. • To avoid damage to the player, switch off before plugging or unplugging the AC adaptor. Using the car adapter Connect the supplied car adapter to the set and the car cigarette lighter outlet. ✔ • To avoid damage to the player, switch off before plugging or unplugging TIP • When connecting with car power (cigarette lighter) adaptor, be sure the • Make sure the temperature is below 35oC when the DVD player is con- input voltage of the adaptor is identical with car voltage. the car adaptor. nected to DC 16.0V in a car. Powering your remote control 1 Open the battery compartment. Remove the protective plastic tab (first time users only). Insert 1 x lithium 3V battery, type CR2025, then close the compartment. 2 CAUTION - Batteries contain chemical substances, so they should be disposed of properly. - Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type. - Incorrect use of batteries can cause electrolyte leakage and will corrode the compartment or cause the batteries to burst. 8 - Remove the battery if the remote control is not to be used for a long time. Connections Connecting headphones Connect the headphones into the p jack of your set. Connecting additional equipment • Turn off your set before connecting to any additional equip- ment. • You can connect the player to a TV or an amplifier to enjoy DVDs or karaoke. AV OUT Connect the desired device to this terminal directly (no setting needed in the DVD mode). White Red Yellow Not supplied TVAUDIO INVIDEO IN
