拯救数据库项目--数据库性能测试报告
数据库性能测试目的：得出 TPS 值
测试环境
硬件配置：CPU:E5-2660（双路）,内存：64G, 磁盘：7 块 SSD，做 raid10
软件工具参考：https://www.postgresql.org/docs/9.3/static/pgbench.html
pgbench 是一个简单的给 PostgreSQL 做性能测试的程序。它反复运行同样的 SQL 命令序
列，可能是在多个并发数据库会话上头，然后检查平均的事务速度（每秒的事务数 tps）。
缺省的时候，pgbench 测试一个（松散的）接近 TPC-B 的情况，每个事务包括五个
SELECT，UPDATE，和 INSERT 命令
测试工具输出如下：
transaction type: TPC-B (sort of)
scaling factor: 10
number of clients: 10
number of transactions per client: 1000
number of transactions actually processed: 10000/10000
tps = 85.184871 (including connections establishing)
tps = 85.296346 (excluding connections establishing)
我们主要关心的是最后的输出报告中的 TPS 值，里面有两个,一个是包含连接开销(including),
另一个是不包含连接开销的(excluding),这个值是反映的每秒处理的事务数，这里也列出了每个
事务所消耗的平均时间。一般认为能将硬件用到极致，速度越快越好。
测试流程
1.新建数据库性能测试账号：按照系统提示输入密码：
createuser -P xhj;
2.在性能测试账号下，新建测试数据库
createdb pgbench --owner xhj --encoding=UTF8;
3.初始化性能测试数据库
[root@hjd-master-db bin]# ./pgbench -U xhj -i pgbench
creating tables...
100000 of 100000 tuples (100%) done (elapsed 0.06 s, remaining 0.00 s)
vacuum...
set primary keys...
done.
4. 开始测试
❖ 模拟 50 个客户端，一个线程
10 秒 50 个并发，共插入 31557 条数据，每条数据插入耗时 15.844 毫秒；平均每秒插入
3156 条数据；
[root@hjd-master-db bin]# ./pgbench -U xhj -M simple -c 50 -T 10 -r pgbench
starting vacuum...end.
transaction type: TPC-B (sort of)
scaling factor: 1
query mode: simple
number of clients: 50
number of threads: 1
duration: 10 s
number of transactions actually processed: 31557
latency average: 15.844 ms
tps = 3149.427914 (including connections establishing)
tps = 3150.644350 (excluding connections establishing)
statement latencies in milliseconds:
0.001971
\set nbranches 1 * :scale
0.000668
\set ntellers 10 * :scale
0.000597
\set naccounts 100000 * :scale
0.000933
\setrandom aid 1 :naccounts
0.000624
\setrandom bid 1 :nbranches
0.000580
\setrandom tid 1 :ntellers
0.000685
\setrandom delta -5000 5000
0.040691
BEGIN;
0.155414
UPDATE pgbench_accounts SET abalance = abalance + :delta
WHERE aid = :aid;
0.105338
SELECT abalance FROM pgbench_accounts WHERE aid = :aid;
12.632544
UPDATE pgbench_tellers SET tbalance = tbalance + :delta
WHERE tid = :tid;
2.380206
UPDATE pgbench_branches SET bbalance = bbalance + :delta
WHERE bid = :bid;
0.098487
INSERT INTO pgbench_history (tid, bid, aid, delta, mtime)
VALUES (:tid, :bid, :aid, :delta, CURRENT_TIMESTAMP);
0.127183
END;
❖ 模拟 50 个客户端，两个线程
10 秒 50 个并发，共插入 33820 条数据，每条数据插入耗时 14.784 毫秒；平均每秒插入 3382
条数据；
[root@hjd-master-db bin]# ./pgbench -U xhj -M simple -c 50 -T 10 -j 2 -r pgbench
starting vacuum...end.
transaction type: TPC-B (sort of)
scaling factor: 1
query mode: simple
number of clients: 50
number of threads: 2
duration: 10 s
number of transactions actually processed: 33820
latency average: 14.784 ms
tps = 3377.368952 (including connections establishing)
tps = 3378.641522 (excluding connections establishing)
statement latencies in milliseconds:
0.001846
0.000643
0.000569
0.000880
0.000600
0.000583
0.000673
0.030064
0.143514
\set nbranches 1 * :scale
\set ntellers 10 * :scale
\set naccounts 100000 * :scale
\setrandom aid 1 :naccounts
\setrandom bid 1 :nbranches
\setrandom tid 1 :ntellers
\setrandom delta -5000 5000
BEGIN;
UPDATE pgbench_accounts SET abalance = abalance + :delta
WHERE aid = :aid;
0.092524
11.975457
tid = :tid;
2.198434
WHERE bid = :bid;
SELECT abalance FROM pgbench_accounts WHERE aid = :aid;
UPDATE pgbench_tellers SET tbalance = tbalance + :delta WHERE
UPDATE pgbench_branches SET bbalance = bbalance + :delta
0.088867
INSERT INTO pgbench_history (tid, bid, aid, delta, mtime) VALUES
(:tid, :bid, :aid, :delta, CURRENT_TIMESTAMP);
0.115995
END;
❖ 模拟 50 个客户端，使用扩张调用接口，一个线程
10 秒 50 个并发，共插入 29004 条数据，每条数据插入耗时 17.239 毫秒；平均每秒插
入 2900 条数据；
[root@hjd-master-db bin]# ./pgbench -U xhj -M extended -c 50 -T 10 -r pgbench
starting vacuum...end.
transaction type: TPC-B (sort of)
scaling factor: 1
query mode: extended
number of clients: 50
number of threads: 1
duration: 10 s
number of transactions actually processed: 29004
latency average: 17.239 ms
tps = 2892.360395 (including connections establishing)
tps = 2893.421461 (excluding connections establishing)
statement latencies in milliseconds:
0.002088
\set nbranches 1 * :scale
0.000689
\set ntellers 10 * :scale
0.000591
\set naccounts 100000 * :scale
0.000938
\setrandom aid 1 :naccounts
0.000629
\setrandom bid 1 :nbranches
0.000586
\setrandom tid 1 :ntellers
0.000693
\setrandom delta -5000 5000
0.048848
BEGIN;
0.181780
UPDATE pgbench_accounts SET abalance = abalance + :delta
WHERE aid = :aid;
0.122386
SELECT abalance FROM pgbench_accounts WHERE aid = :aid;
13.693402
UPDATE pgbench_tellers SET tbalance = tbalance + :delta
WHERE tid = :tid;
2.627090
UPDATE pgbench_branches SET bbalance = bbalance + :delta
WHERE bid = :bid;
0.124916
INSERT INTO pgbench_history (tid, bid, aid, delta, mtime)
VALUES (:tid, :bid, :aid, :delta, CURRENT_TIMESTAMP);
0.137854
END;
❖ 模拟 50 个客户端，使用扩张调用接口，两个个线程
10 秒 50 个并发，共插入 31059 条数据，每条数据插入耗时 16.098 毫秒；平均每秒插入 3106 条
数据；
[root@hjd-master-db bin]# ./pgbench -U xhj -M extended -c 50 -T 10 -j 2 -r
pgbench
starting vacuum...end.
transaction type: TPC-B (sort of)
scaling factor: 1
query mode: extended
number of clients: 50
number of threads: 2
duration: 10 s
number of transactions actually processed: 31059
latency average: 16.098 ms
tps = 3100.144891 (including connections establishing)
tps = 3101.375992 (excluding connections establishing)
statement latencies in milliseconds:
0.001838
\set nbranches 1 * :scale
0.000646
\set ntellers 10 * :scale
0.000572
\set naccounts 100000 * :scale
0.000882
\setrandom aid 1 :naccounts
0.000610
\setrandom bid 1 :nbranches
0.000589
\setrandom tid 1 :ntellers
0.000677
\setrandom delta -5000 5000
0.036120
BEGIN;
0.168477
UPDATE pgbench_accounts SET abalance = abalance + :delta
WHERE aid = :aid;
0.107377
SELECT abalance FROM pgbench_accounts WHERE aid = :aid;
12.985970
UPDATE pgbench_tellers SET tbalance = tbalance + :delta
WHERE tid = :tid;
2.406841
UPDATE pgbench_branches SET bbalance = bbalance + :delta
WHERE bid = :bid;
0.111336
INSERT INTO pgbench_history (tid, bid, aid, delta, mtime)
VALUES (:tid, :bid, :aid, :delta, CURRENT_TIMESTAMP);
0.125953
END;
❖ 模拟 80 个客户端，一个线程
10 秒 80 个并发，共插入 25693 条数据，每条数据插入耗时 31.137 毫秒；平均每秒插入
2569 条数据；
[root@hjd-master-db bin]# ./pgbench -U xhj -M simple -c 80 -T 10 -r pgbench
starting vacuum...end.
transaction type: TPC-B (sort of)
scaling factor: 1
query mode: simple
number of clients: 80
number of threads: 1
duration: 10 s
number of transactions actually processed: 25693
latency average: 31.137 ms
tps = 2561.312547 (including connections establishing)
tps = 2562.214251 (excluding connections establishing)
statement latencies in milliseconds:
0.002135
0.000669
0.000576
0.000872
0.000608
0.000580
0.000670
0.062661
0.193747
\set nbranches 1 * :scale
\set ntellers 10 * :scale
\set naccounts 100000 * :scale
\setrandom aid 1 :naccounts
\setrandom bid 1 :nbranches
\setrandom tid 1 :ntellers
\setrandom delta -5000 5000
BEGIN;
UPDATE pgbench_accounts SET abalance = abalance + :delta
SELECT abalance FROM pgbench_accounts WHERE aid = :aid;
UPDATE pgbench_tellers SET tbalance = tbalance + :delta
UPDATE pgbench_branches SET bbalance = bbalance + :delta
WHERE aid = :aid;
0.114447
26.501614
WHERE tid = :tid;
3.180320
WHERE bid = :bid;
0.101617
INSERT INTO pgbench_history (tid, bid, aid, delta, mtime)
VALUES (:tid, :bid, :aid, :delta, CURRENT_TIMESTAMP);
0.139868
END;

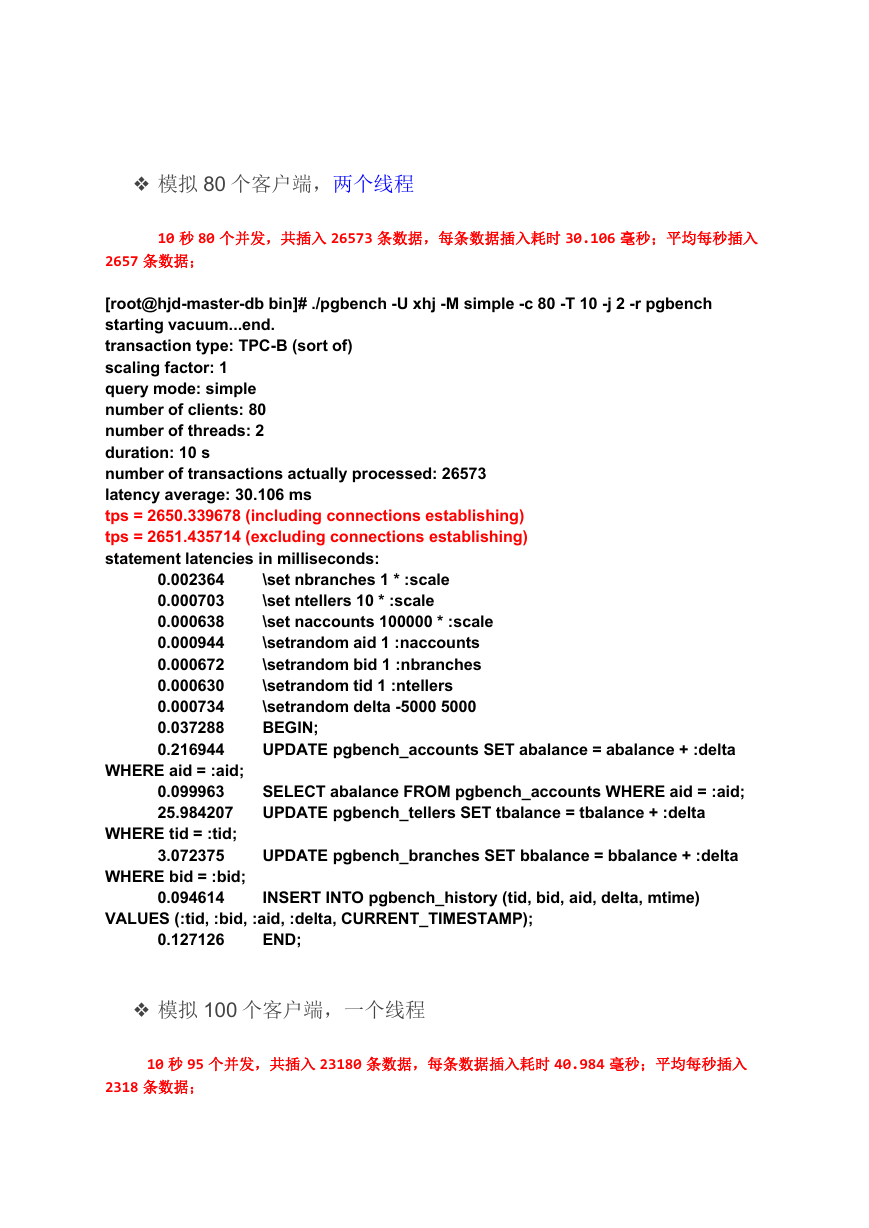

❖ 模拟 80 个客户端，两个线程
10 秒 80 个并发，共插入 26573 条数据，每条数据插入耗时 30.106 毫秒；平均每秒插入
2657 条数据；
[root@hjd-master-db bin]# ./pgbench -U xhj -M simple -c 80 -T 10 -j 2 -r pgbench
starting vacuum...end.
transaction type: TPC-B (sort of)
scaling factor: 1
query mode: simple
number of clients: 80
number of threads: 2
duration: 10 s
number of transactions actually processed: 26573
latency average: 30.106 ms
tps = 2650.339678 (including connections establishing)
tps = 2651.435714 (excluding connections establishing)
statement latencies in milliseconds:
0.002364
0.000703
0.000638
0.000944
0.000672
0.000630
0.000734
0.037288
0.216944
\set nbranches 1 * :scale
\set ntellers 10 * :scale
\set naccounts 100000 * :scale
\setrandom aid 1 :naccounts
\setrandom bid 1 :nbranches
\setrandom tid 1 :ntellers
\setrandom delta -5000 5000
BEGIN;
UPDATE pgbench_accounts SET abalance = abalance + :delta
WHERE aid = :aid;
0.099963
25.984207
WHERE tid = :tid;
3.072375
WHERE bid = :bid;
SELECT abalance FROM pgbench_accounts WHERE aid = :aid;
UPDATE pgbench_tellers SET tbalance = tbalance + :delta
UPDATE pgbench_branches SET bbalance = bbalance + :delta
0.094614
INSERT INTO pgbench_history (tid, bid, aid, delta, mtime)
VALUES (:tid, :bid, :aid, :delta, CURRENT_TIMESTAMP);
0.127126
END;
❖ 模拟 100 个客户端，一个线程
10 秒 95 个并发，共插入 23180 条数据，每条数据插入耗时 40.984 毫秒；平均每秒插入
2318 条数据；
