GPSMAP 292/298

Introduction

About This Manual

Warning

Important Information

Basic Operation

Turning on the GPSMAP 292/298

Using Simulator Mode

Adjusting the Backlight

Using the GPSMAP 292/298 Keypad

Entering Data and Selecting Options

Using the Map Pointer

Creating and Using Waypoints

Man OverBoard (MOB)

Reviewing and Editing Waypoints

Navigating to a Destination

Routes

Find

Additional Information

DSC

AIS

Main Pages

Map Page

Compass Page

3D Highway Page

Active Route Page

Main Menu

GPS Tab

Tide Tab

Trip Tab

Celes (Celestial) Tab

Points Tab

Route Tab

Track Tab

DSC Tab

Card Tab

Msgs Tab

Pages Tab

Map Tab

Hiway (Highway) Tab

Temp (Temperature) Tab

Sonar Tab

Systm (System) Tab

Alarm Tab

Using Sonar

Sonar Page

Sonar Tab Options

Understanding Sonar

Flasher Page

Map Split Page

Appendix

Specifications

Installing the GPSMAP 292/298 External GPS Antenna

Mounting the GPSMAP 292/298

Installing the Transducer

Connecting the Power/Data Cable

Interfacing

Caring for the Screen

Installing and Removing Data Cards

Satellite Information

What is WAAS/EGNOS?

What is a Maritime Mobile Service Identity (MMSI)?

How Are MMSI Assignments Obtained?

Navigation Terms

Messages

LORAN TD System

Optional Accessories

Software License Agreement

Product Registration

Limited Warranty

FCC Compliance

Industry Canada Compliance

Declaration of Conformity (DoC)

Index

Owner’s Manual GPSMAP 292/298

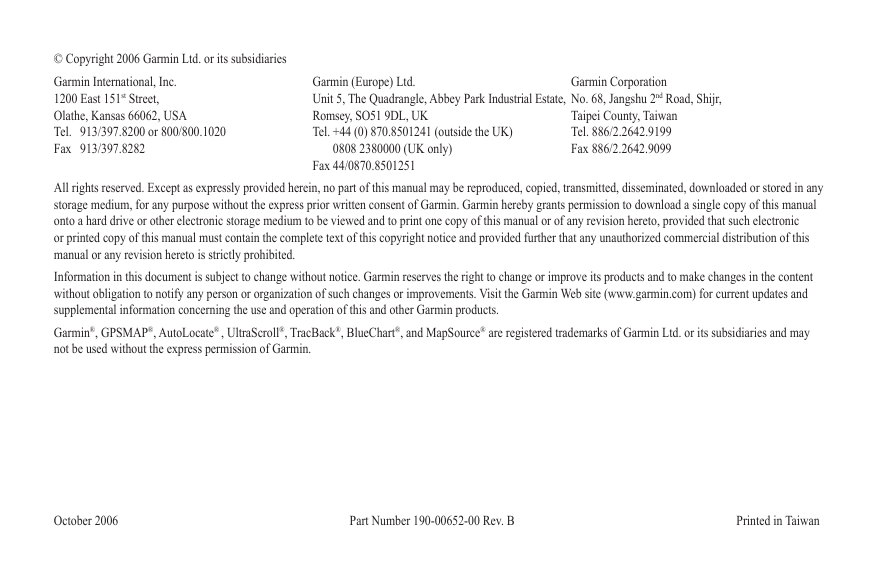

© Copyright 2006 Garmin Ltd. or its subsidiaries Garmin International, Inc. 1200 East 151st Street, Olathe, Kansas 66062, USA Tel. 913/397.8200 or 800/800.1020 Fax 913/397.8282 Garmin (Europe) Ltd. Unit 5, The Quadrangle, Abbey Park Industrial Estate, Romsey, SO51 9DL, UK Tel. +44 (0) 870.8501241 (outside the UK) Fax 44/0870.8501251 0808 2380000 (UK only) Garmin Corporation No. 68, Jangshu 2nd Road, Shijr, Taipei County, Taiwan Tel. 886/2.2642.9199 Fax 886/2.2642.9099 All rights reserved. Except as expressly provided herein, no part of this manual may be reproduced, copied, transmitted, disseminated, downloaded or stored in any storage medium, for any purpose without the express prior written consent of Garmin. Garmin hereby grants permission to download a single copy of this manual onto a hard drive or other electronic storage medium to be viewed and to print one copy of this manual or of any revision hereto, provided that such electronic or printed copy of this manual must contain the complete text of this copyright notice and provided further that any unauthorized commercial distribution of this manual or any revision hereto is strictly prohibited. Information in this document is subject to change without notice. Garmin reserves the right to change or improve its products and to make changes in the content without obligation to notify any person or organization of such changes or improvements. Visit the Garmin Web site (www.garmin.com) for current updates and supplemental information concerning the use and operation of this and other Garmin products. Garmin®, GPSMAP®, AutoLocate® , UltraScroll®, TracBack®, BlueChart®, and MapSource® are registered trademarks of Garmin Ltd. or its subsidiaries and may not be used without the express permission of Garmin. October 2006 Part Number 190-00652-00 Rev. B Printed in Taiwan

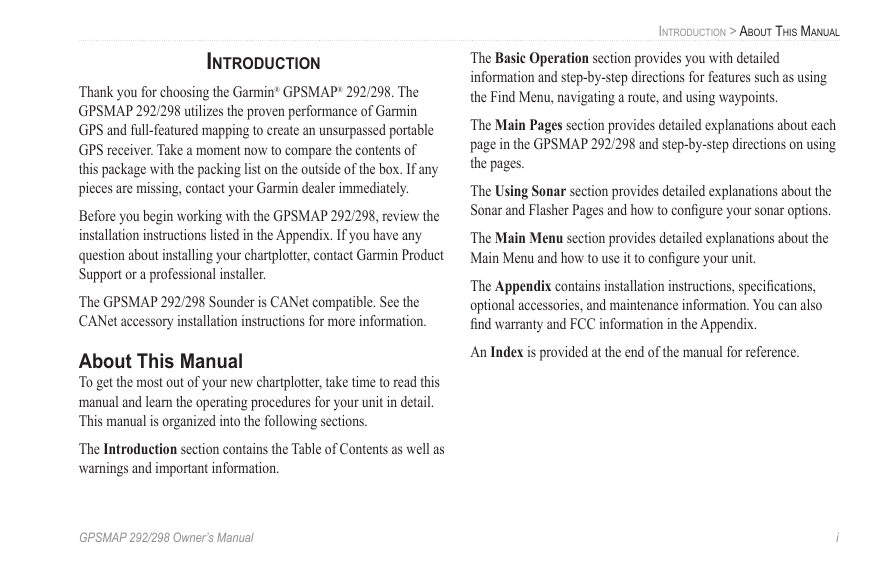

INTRODUCTION > ABOUT THIS MANUAL The Basic Operation section provides you with detailed information and step-by-step directions for features such as using the Find Menu, navigating a route, and using waypoints. The Main Pages section provides detailed explanations about each page in the GPSMAP 292/298 and step-by-step directions on using the pages. The Using Sonar section provides detailed explanations about the Sonar and Flasher Pages and how to conﬁgure your sonar options. The Main Menu section provides detailed explanations about the Main Menu and how to use it to conﬁgure your unit. The Appendix contains installation instructions, speciﬁcations, optional accessories, and maintenance information. You can also ﬁnd warranty and FCC information in the Appendix. An Index is provided at the end of the manual for reference. INTRODUCTION Thank you for choosing the Garmin® GPSMAP® 292/298. The GPSMAP 292/298 utilizes the proven performance of Garmin GPS and full-featured mapping to create an unsurpassed portable GPS receiver. Take a moment now to compare the contents of this package with the packing list on the outside of the box. If any pieces are missing, contact your Garmin dealer immediately. Before you begin working with the GPSMAP 292/298, review the installation instructions listed in the Appendix. If you have any question about installing your chartplotter, contact Garmin Product Support or a professional installer. The GPSMAP 292/298 Sounder is CANet compatible. See the CANet accessory installation instructions for more information. About This Manual To get the most out of your new chartplotter, take time to read this manual and learn the operating procedures for your unit in detail. This manual is organized into the following sections. The Introduction section contains the Table of Contents as well as warnings and important information. GPSMAP 292/298 Owner’s Manual i

INTRODUCTION > TABLE OF CONTENTS Table of Contents Introduction ...........................................................................i About This Manual ................................................................... i Warning ................................................................................... iv Important Information ............................................................ iv Basic Operation ...................................................................1 Turning on the GPSMAP 292/298 ........................................... 1 Using Simulator Mode ............................................................ 3 Adjusting the Backlight .......................................................... 4 Using the GPSMAP 292/298 Keypad ..................................... 5 Entering Data and Selecting Options .................................... 6 Using the Map Pointer ............................................................ 7 Creating and Using Waypoints .............................................. 8 Man OverBoard (MOB) .......................................................... 10 Reviewing and Editing Waypoints ....................................... 11 Navigating to a Destination .................................................. 12 Routes .................................................................................... 17 Find ........................................................................................ 19 Additional Information .......................................................... 21 DSC ......................................................................................... 21 AIS .......................................................................................... 25 Main Pages .........................................................................26 Map Page ................................................................................ 27 Compass Page ....................................................................... 32 3D Highway Page .................................................................. 33 Active Route Page ................................................................. 36 Main Menu ..........................................................................37 GPS Tab .................................................................................. 37 Tide Tab .................................................................................. 40 Trip Tab ................................................................................... 44 Celes (Celestial) Tab ............................................................. 45 Points Tab .............................................................................. 46 Route Tab ............................................................................... 51 Track Tab ................................................................................ 57 DSC Tab .................................................................................. 59 Card Tab ................................................................................. 59 Msgs Tab ................................................................................ 60 Pages Tab ............................................................................... 61 Map Tab .................................................................................. 61 Hiway (Highway) Tab ............................................................. 64 Temp (Temperature) Tab ....................................................... 64 Sonar Tab ............................................................................... 64 Systm (System) Tab ............................................................. 65 Alarm Tab ............................................................................... 70 ii GPSMAP 292/298 Owner’s Manual

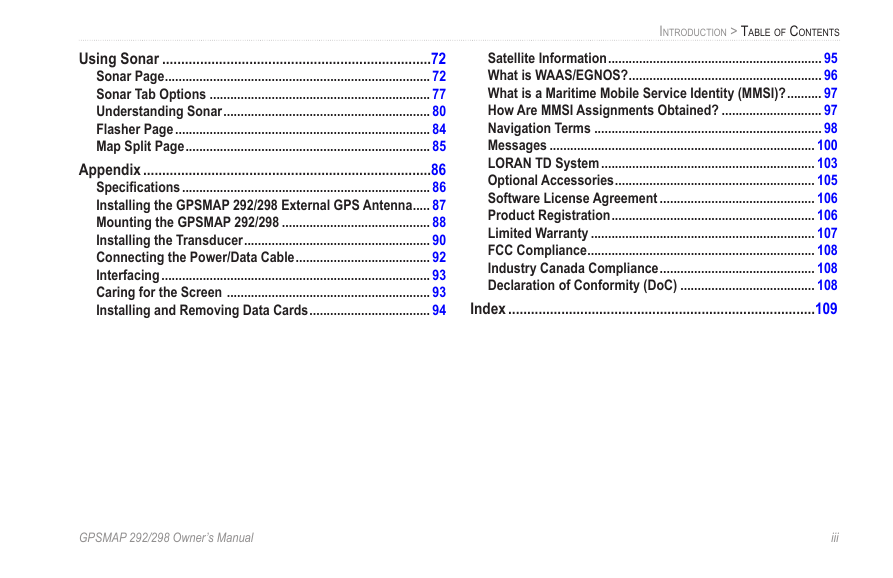

Using Sonar .......................................................................72 Sonar Page ............................................................................. 72 Sonar Tab Options ................................................................ 77 Understanding Sonar ............................................................ 80 Flasher Page .......................................................................... 84 Map Split Page ....................................................................... 85 Appendix ............................................................................86 Speciﬁcations ........................................................................ 86 Installing the GPSMAP 292/298 External GPS Antenna ..... 87 Mounting the GPSMAP 292/298 ........................................... 88 Installing the Transducer ...................................................... 90 Connecting the Power/Data Cable ....................................... 92 Interfacing .............................................................................. 93 Caring for the Screen ........................................................... 93 Installing and Removing Data Cards ................................... 94 INTRODUCTION > TABLE OF CONTENTS Satellite Information .............................................................. 95 What is WAAS/EGNOS? ........................................................ 96 What is a Maritime Mobile Service Identity (MMSI)? .......... 97 How Are MMSI Assignments Obtained? ............................. 97 Navigation Terms .................................................................. 98 Messages ............................................................................. 100 LORAN TD System .............................................................. 103 Optional Accessories .......................................................... 105 Software License Agreement ............................................. 106 Product Registration ........................................................... 106 Limited Warranty ................................................................. 107 FCC Compliance .................................................................. 108 Industry Canada Compliance ............................................. 108 Declaration of Conformity (DoC) ....................................... 108 Index .................................................................................109 GPSMAP 292/298 Owner’s Manual iii

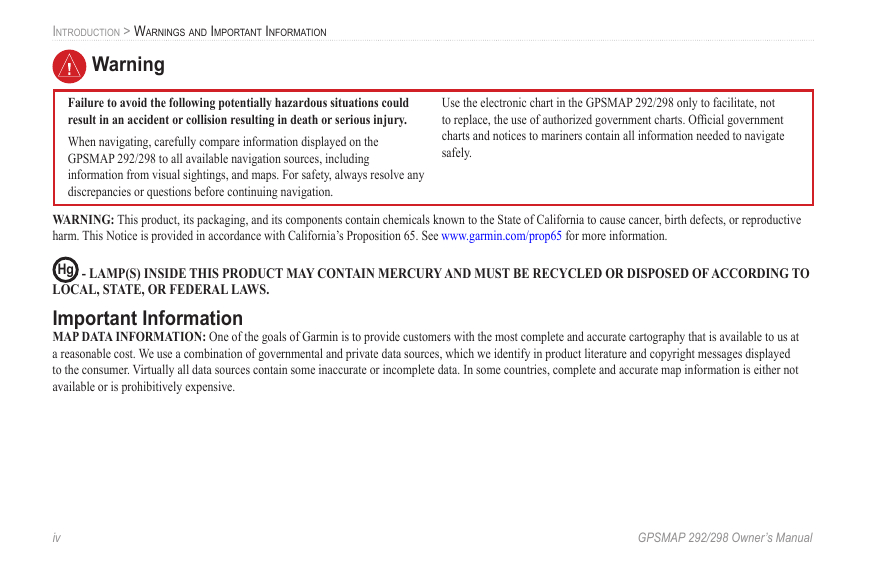

INTRODUCTION > WARNINGS AND IMPORTANT INFORMATION Warning Failure to avoid the following potentially hazardous situations could result in an accident or collision resulting in death or serious injury. When navigating, carefully compare information displayed on the GPSMAP 292/298 to all available navigation sources, including information from visual sightings, and maps. For safety, always resolve any discrepancies or questions before continuing navigation. Use the electronic chart in the GPSMAP 292/298 only to facilitate, not to replace, the use of authorized government charts. Ofﬁcial government charts and notices to mariners contain all information needed to navigate safely. WARNING: This product, its packaging, and its components contain chemicals known to the State of California to cause cancer, birth defects, or reproductive harm. This Notice is provided in accordance with California’s Proposition 65. See www.garmin.com/prop65 for more information. Hg - LAMP(S) INSIDE THIS PRODUCT MAY CONTAIN MERCURY AND MUST BE RECYCLED OR DISPOSED OF ACCORDING TO LOCAL, STATE, OR FEDERAL LAWS. Important Information MAP DATA INFORMATION: One of the goals of Garmin is to provide customers with the most complete and accurate cartography that is available to us at a reasonable cost. We use a combination of governmental and private data sources, which we identify in product literature and copyright messages displayed to the consumer. Virtually all data sources contain some inaccurate or incomplete data. In some countries, complete and accurate map information is either not available or is prohibitively expensive. iv GPSMAP 292/298 Owner’s Manual

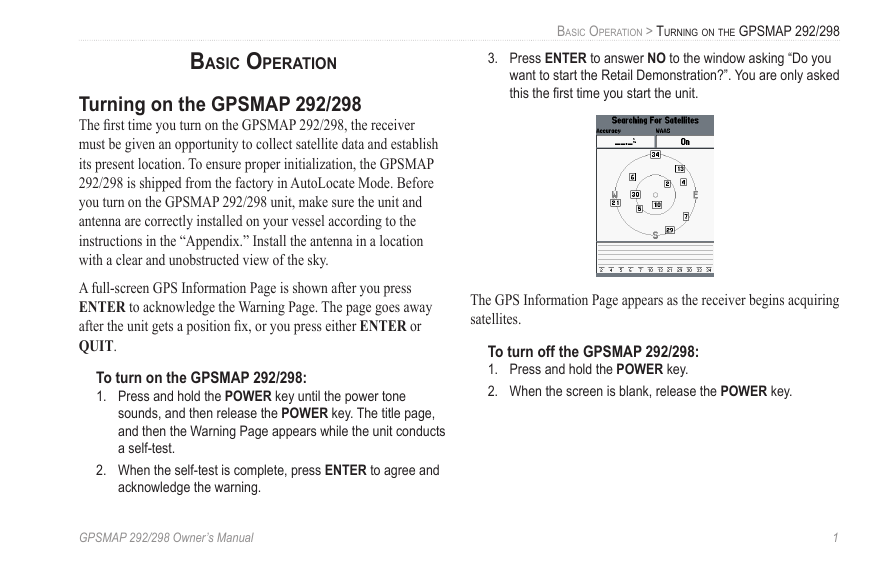

BASIC OPERATION Turning on the GPSMAP 292/298 The ﬁrst time you turn on the GPSMAP 292/298, the receiver must be given an opportunity to collect satellite data and establish its present location. To ensure proper initialization, the GPSMAP 292/298 is shipped from the factory in AutoLocate Mode. Before you turn on the GPSMAP 292/298 unit, make sure the unit and antenna are correctly installed on your vessel according to the instructions in the “Appendix.” Install the antenna in a location with a clear and unobstructed view of the sky. A full-screen GPS Information Page is shown after you press ENTER to acknowledge the Warning Page. The page goes away after the unit gets a position ﬁx, or you press either ENTER or QUIT. To turn on the GPSMAP 292/298: 1. Press and hold the POWER key until the power tone sounds, and then release the POWER key. The title page, and then the Warning Page appears while the unit conducts a self-test. 2. When the self-test is complete, press ENTER to agree and acknowledge the warning. BASIC OPERATION > TURNING ON THE GPSMAP 292/298 3. Press ENTER to answer NO to the window asking “Do you want to start the Retail Demonstration?”. You are only asked this the ﬁrst time you start the unit. The GPS Information Page appears as the receiver begins acquiring satellites. To turn off the GPSMAP 292/298: 1. Press and hold the POWER key. 2. When the screen is blank, release the POWER key. GPSMAP 292/298 Owner’s Manual 1

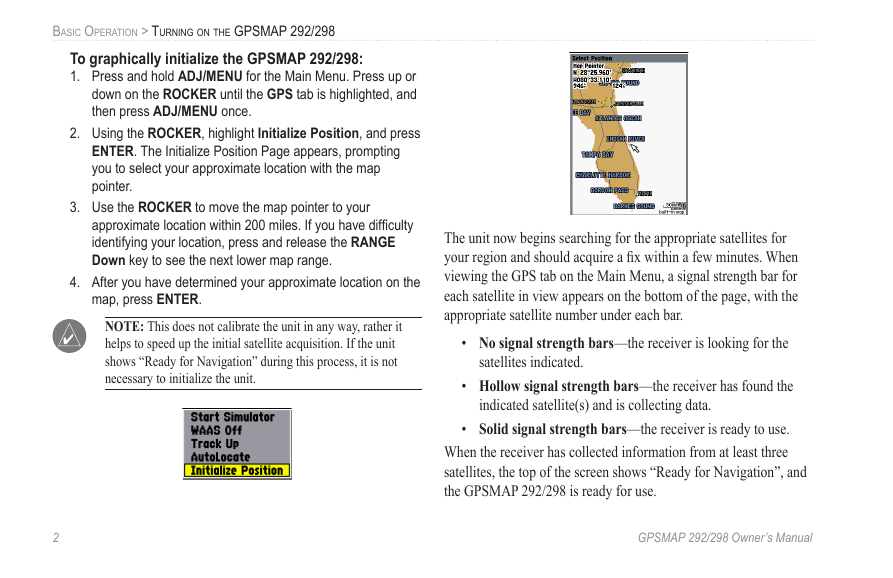

BASIC OPERATION > TURNING ON THE GPSMAP 292/298 To graphically initialize the GPSMAP 292/298: 1. Press and hold ADJ/MENU for the Main Menu. Press up or down on the ROCKER until the GPS tab is highlighted, and then press ADJ/MENU once. 2. Using the ROCKER, highlight Initialize Position, and press ENTER. The Initialize Position Page appears, prompting you to select your approximate location with the map pointer. 3. Use the ROCKER to move the map pointer to your approximate location within 200 miles. If you have difﬁculty identifying your location, press and release the RANGE Down key to see the next lower map range. 4. After you have determined your approximate location on the map, press ENTER. NOTE: This does not calibrate the unit in any way, rather it helps to speed up the initial satellite acquisition. If the unit shows “Ready for Navigation” during this process, it is not necessary to initialize the unit. The unit now begins searching for the appropriate satellites for your region and should acquire a ﬁx within a few minutes. When viewing the GPS tab on the Main Menu, a signal strength bar for each satellite in view appears on the bottom of the page, with the appropriate satellite number under each bar. • No signal strength bars—the receiver is looking for the satellites indicated. • Hollow signal strength bars—the receiver has found the indicated satellite(s) and is collecting data. • Solid signal strength bars—the receiver is ready to use. When the receiver has collected information from at least three satellites, the top of the screen shows “Ready for Navigation”, and the GPSMAP 292/298 is ready for use. 2 GPSMAP 292/298 Owner’s Manual
