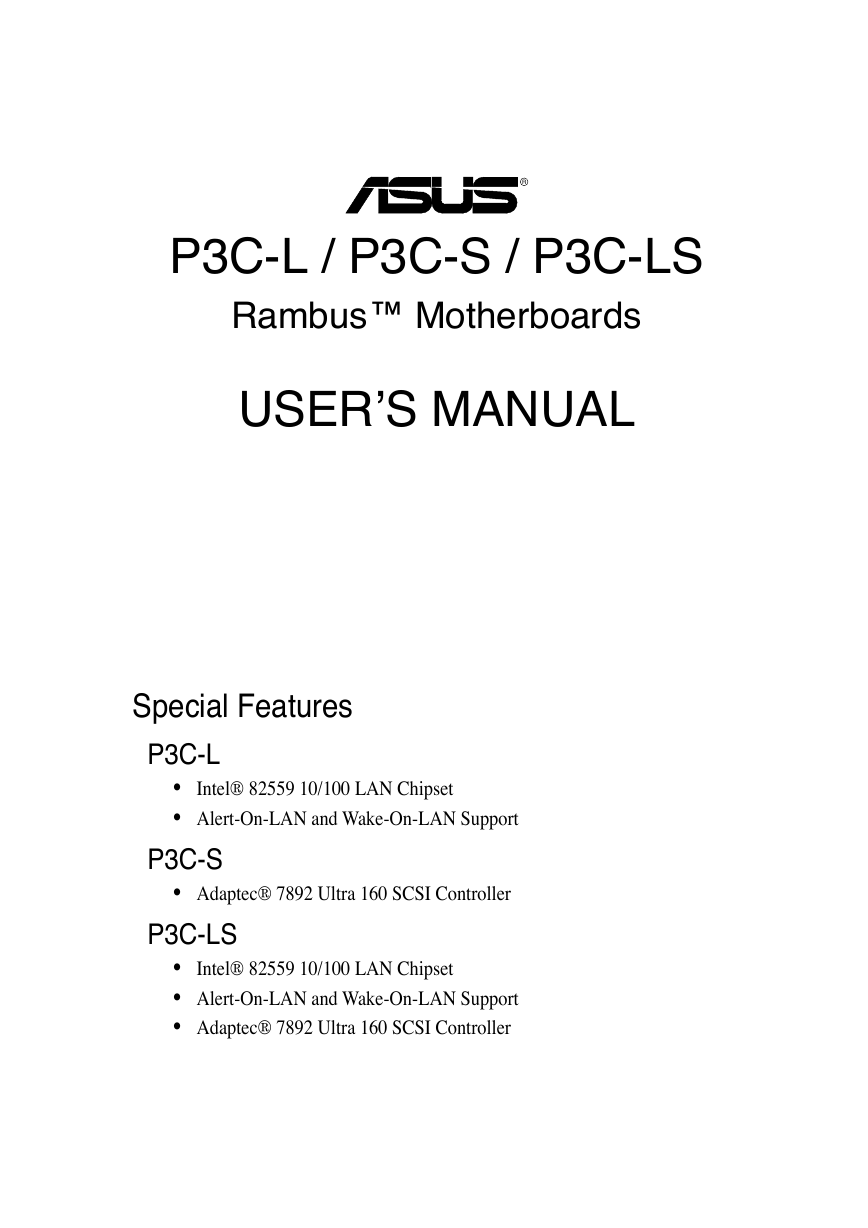

R P3C-L / P3C-S / P3C-LS Rambus™ Motherboards USER’S MANUAL Special Features P3C-L Intel® 82559 10/100 LAN Chipset • • Alert-On-LAN and Wake-On-LAN Support P3C-S • Adaptec® 7892 Ultra 160 SCSI Controller P3C-LS Intel® 82559 10/100 LAN Chipset • • Alert-On-LAN and Wake-On-LAN Support • Adaptec® 7892 Ultra 160 SCSI Controller

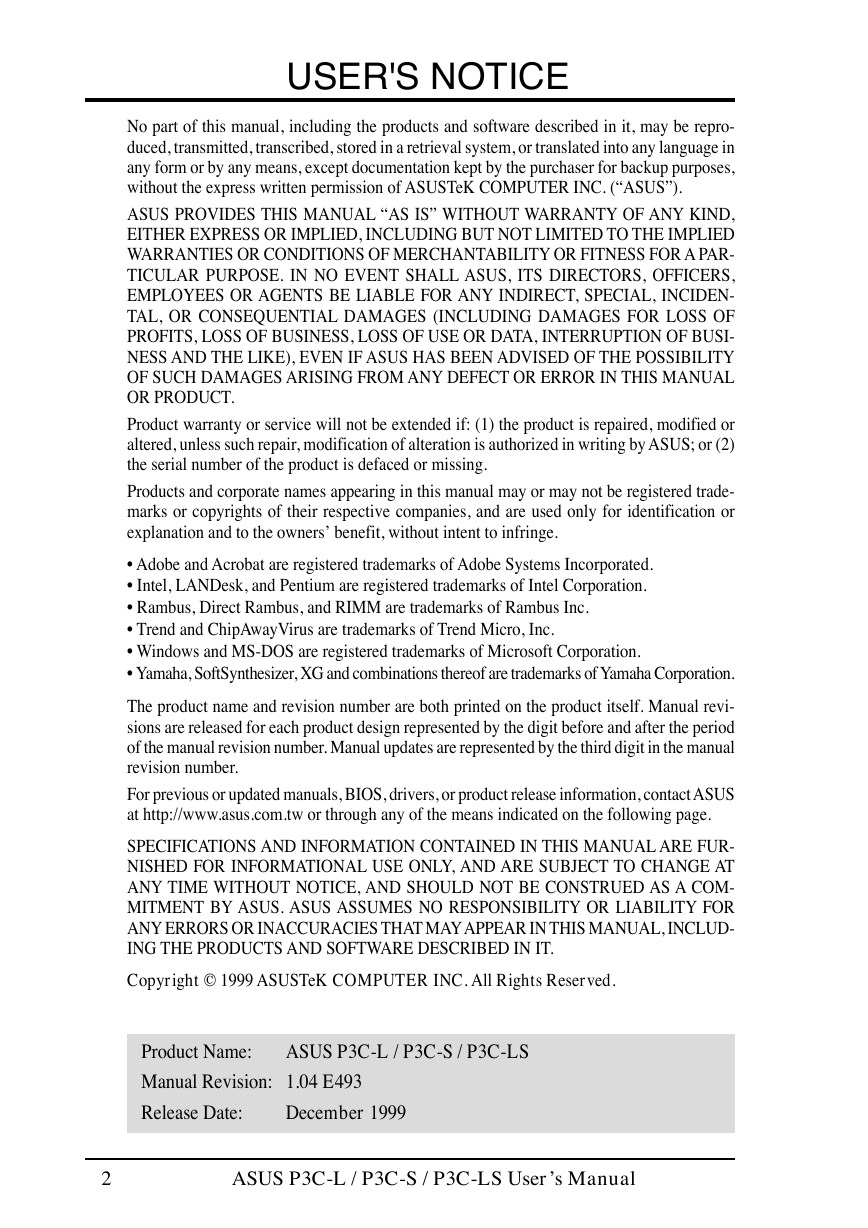

USER'S NOTICE No part of this manual, including the products and software described in it, may be repro- duced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means, except documentation kept by the purchaser for backup purposes, without the express written permission of ASUSTeK COMPUTER INC. (“ASUS”). ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A PAR- TICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDEN- TAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSI- NESS AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL OR PRODUCT. Product warranty or service will not be extended if: (1) the product is repaired, modified or altered, unless such repair, modification of alteration is authorized in writing by ASUS; or (2) the serial number of the product is defaced or missing. Products and corporate names appearing in this manual may or may not be registered trade- marks or copyrights of their respective companies, and are used only for identification or explanation and to the owners’ benefit, without intent to infringe. • Adobe and Acrobat are registered trademarks of Adobe Systems Incorporated. • Intel, LANDesk, and Pentium are registered trademarks of Intel Corporation. • Rambus, Direct Rambus, and RIMM are trademarks of Rambus Inc. • Trend and ChipAwayVirus are trademarks of Trend Micro, Inc. • Windows and MS-DOS are registered trademarks of Microsoft Corporation. • Yamaha, SoftSynthesizer, XG and combinations thereof are trademarks of Yamaha Corporation. The product name and revision number are both printed on the product itself. Manual revi- sions are released for each product design represented by the digit before and after the period of the manual revision number. Manual updates are represented by the third digit in the manual revision number. For previous or updated manuals, BIOS, drivers, or product release information, contact ASUS at http://www.asus.com.tw or through any of the means indicated on the following page. SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FUR- NISHED FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A COM- MITMENT BY ASUS. ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS MANUAL, INCLUD- ING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT. Copyright © 1999 ASUSTeK COMPUTER INC. All Rights Reserved. ASUS P3C-L / P3C-S / P3C-LS Product Name: Manual Revision: 1.04 E493 Release Date: December 1999 2 ASUS P3C-L / P3C-S / P3C-LS User’s Manual

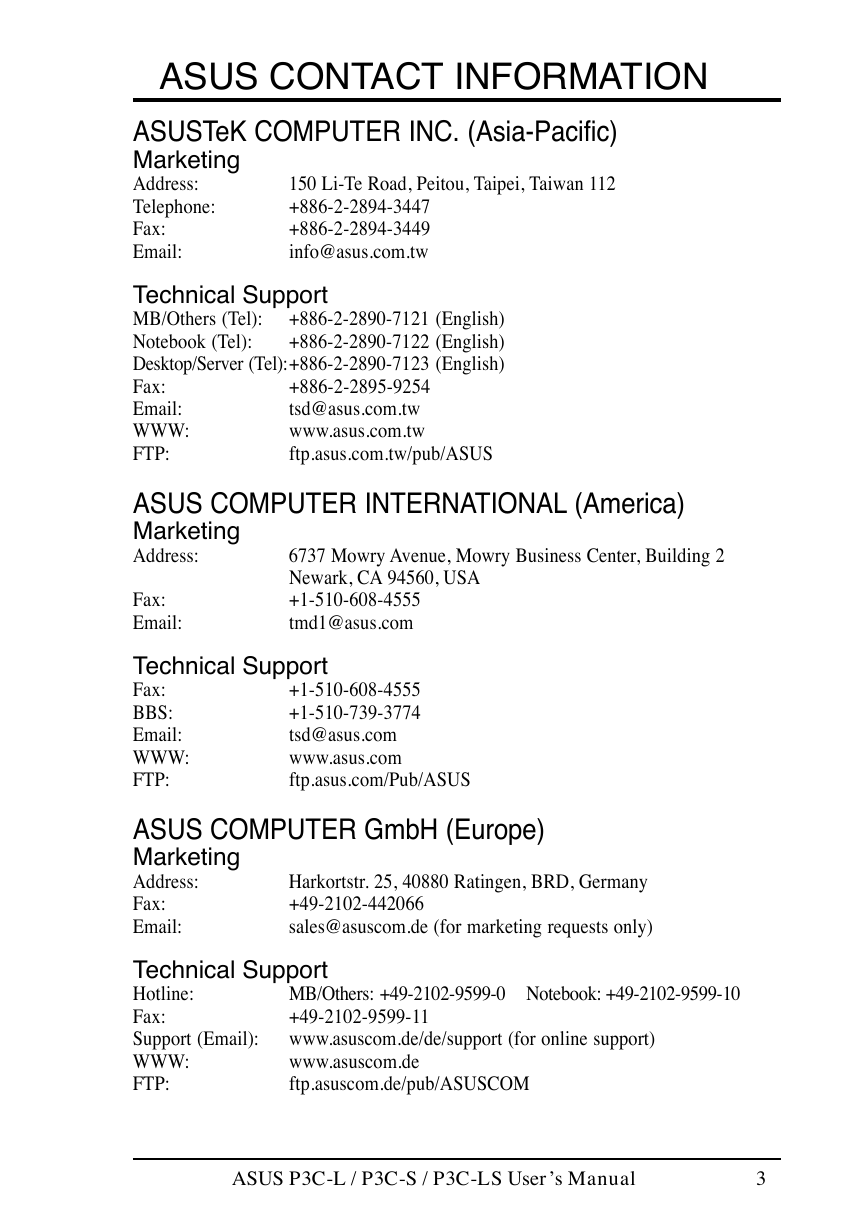

ASUS CONTACT INFORMATION ASUSTeK COMPUTER INC. (Asia-Pacific) Marketing Address: Telephone: Fax: Email: 150 Li-Te Road, Peitou, Taipei, Taiwan 112 +886-2-2894-3447 +886-2-2894-3449 info@asus.com.tw Technical Support MB/Others (Tel): +886-2-2890-7121 (English) Notebook (Tel): +886-2-2890-7122 (English) Desktop/Server (Tel):+886-2-2890-7123 (English) Fax: Email: WWW: FTP: +886-2-2895-9254 tsd@asus.com.tw www.asus.com.tw ftp.asus.com.tw/pub/ASUS ASUS COMPUTER INTERNATIONAL (America) Marketing Address: 6737 Mowry Avenue, Mowry Business Center, Building 2 Newark, CA 94560, USA +1-510-608-4555 tmd1@asus.com Fax: Email: Technical Support Fax: BBS: Email: WWW: FTP: +1-510-608-4555 +1-510-739-3774 tsd@asus.com www.asus.com ftp.asus.com/Pub/ASUS ASUS COMPUTER GmbH (Europe) Marketing Address: Fax: Email: Harkortstr. 25, 40880 Ratingen, BRD, Germany +49-2102-442066 sales@asuscom.de (for marketing requests only) Technical Support Hotline: Fax: Support (Email): WWW: FTP: MB/Others: +49-2102-9599-0 Notebook: +49-2102-9599-10 +49-2102-9599-11 www.asuscom.de/de/support (for online support) www.asuscom.de ftp.asuscom.de/pub/ASUSCOM ASUS P3C-L / P3C-S / P3C-LS User’s Manual 3

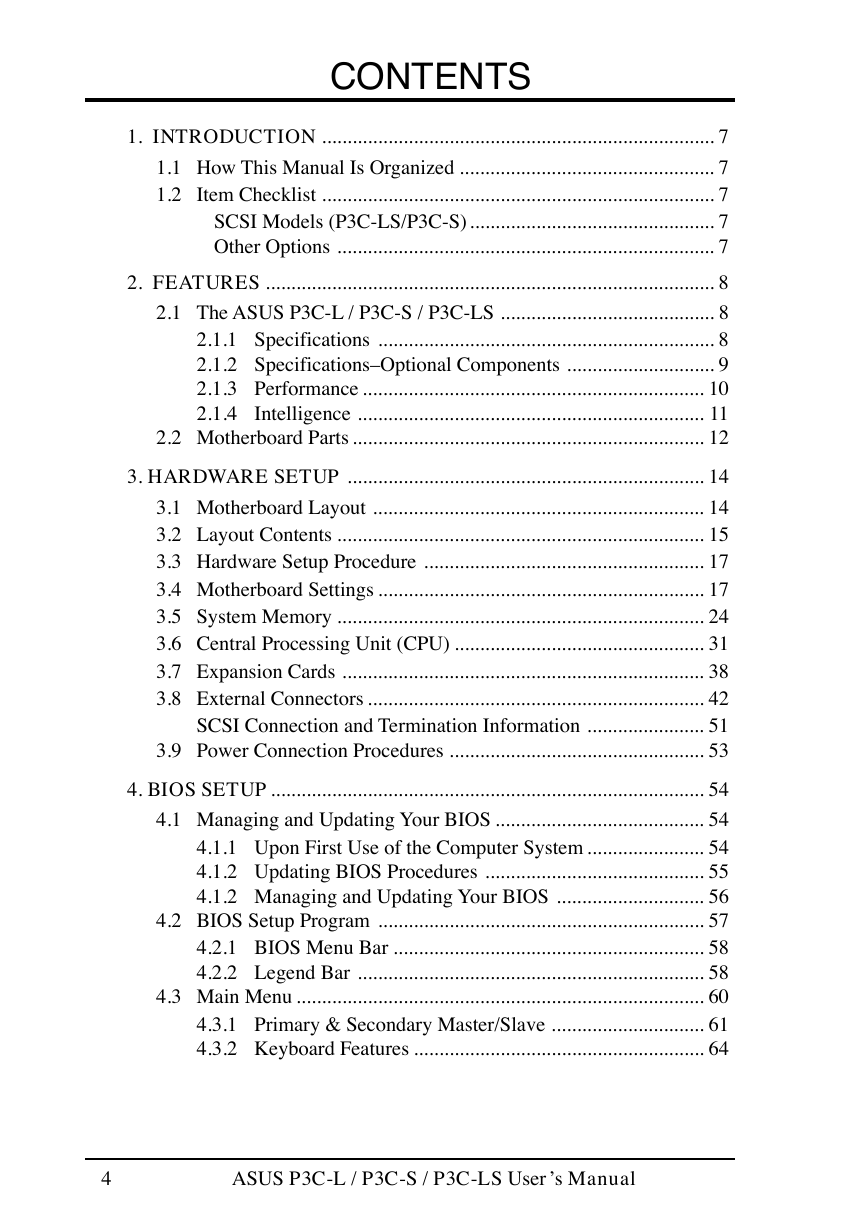

CONTENTS 1. INTRODUCTION ............................................................................. 7 1.1 How This Manual Is Organized .................................................. 7 1.2 Item Checklist ............................................................................. 7 SCSI Models (P3C-LS/P3C-S)................................................ 7 Other Options .......................................................................... 7 2. FEATURES ........................................................................................ 8 2.1 The ASUS P3C-L / P3C-S / P3C-LS .......................................... 8 2.1.1 Specifications .................................................................. 8 2.1.2 Specifications–Optional Components ............................. 9 2.1.3 Performance ................................................................... 10 2.1.4 Intelligence .................................................................... 11 2.2 Motherboard Parts ..................................................................... 12 3. HARDWARE SETUP ...................................................................... 14 3.1 Motherboard Layout ................................................................. 14 3.2 Layout Contents ........................................................................ 15 3.3 Hardware Setup Procedure ....................................................... 17 3.4 Motherboard Settings ................................................................ 17 3.5 System Memory ........................................................................ 24 3.6 Central Processing Unit (CPU) ................................................. 31 3.7 Expansion Cards ....................................................................... 38 3.8 External Connectors .................................................................. 42 SCSI Connection and Termination Information ....................... 51 3.9 Power Connection Procedures .................................................. 53 4. BIOS SETUP ..................................................................................... 54 4.1 Managing and Updating Your BIOS ......................................... 54 4.1.1 Upon First Use of the Computer System ....................... 54 4.1.2 Updating BIOS Procedures ........................................... 55 4.1.2 Managing and Updating Your BIOS ............................. 56 4.2 BIOS Setup Program ................................................................ 57 4.2.1 BIOS Menu Bar ............................................................. 58 4.2.2 Legend Bar .................................................................... 58 4.3 Main Menu ................................................................................ 60 4.3.1 Primary & Secondary Master/Slave .............................. 61 4.3.2 Keyboard Features ......................................................... 64 4 ASUS P3C-L / P3C-S / P3C-LS User’s Manual

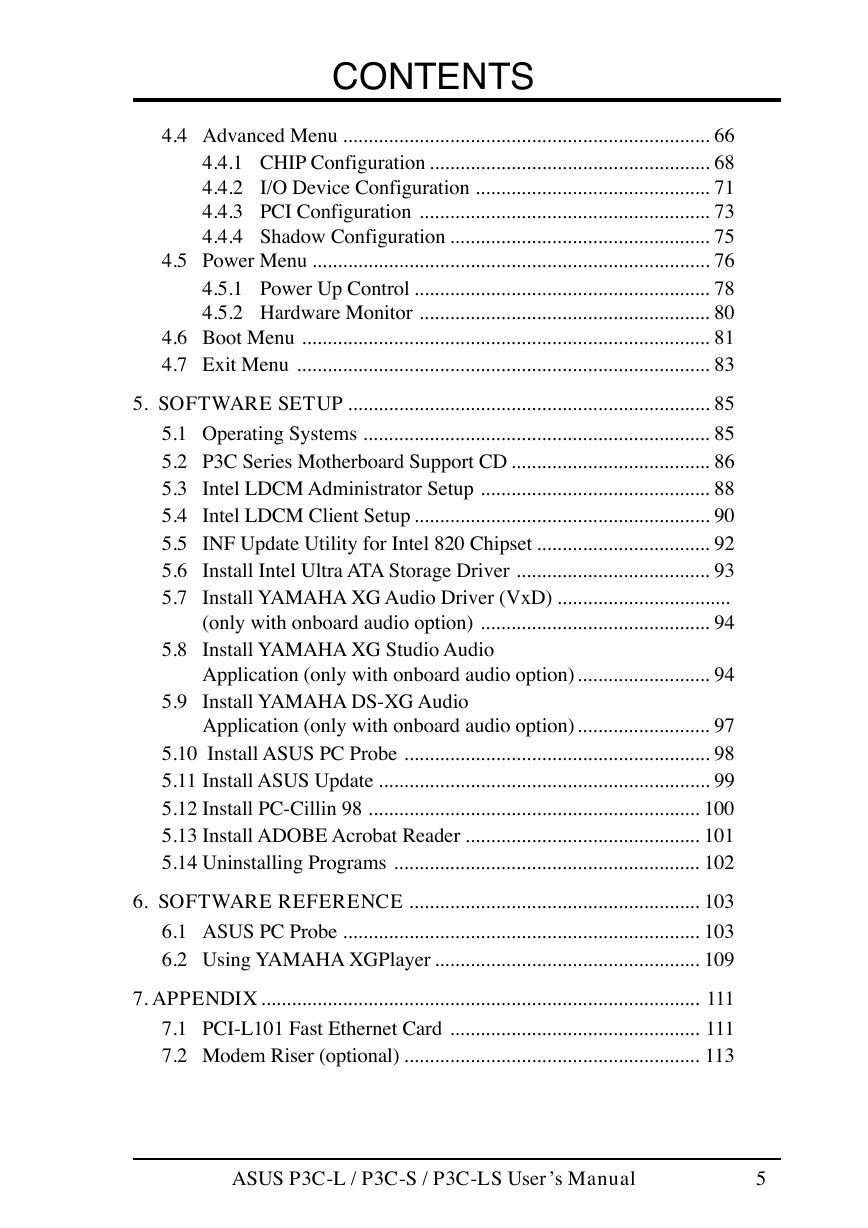

CONTENTS 4.4 Advanced Menu ........................................................................ 66 4.4.1 CHIP Configuration ....................................................... 68 4.4.2 I/O Device Configuration .............................................. 71 4.4.3 PCI Configuration ......................................................... 73 4.4.4 Shadow Configuration ................................................... 75 4.5 Power Menu .............................................................................. 76 4.5.1 Power Up Control .......................................................... 78 4.5.2 Hardware Monitor ......................................................... 80 4.6 Boot Menu ................................................................................ 81 4.7 Exit Menu ................................................................................. 83 5. SOFTWARE SETUP ....................................................................... 85 5.1 Operating Systems .................................................................... 85 5.2 P3C Series Motherboard Support CD ....................................... 86 5.3 Intel LDCM Administrator Setup ............................................. 88 5.4 Intel LDCM Client Setup .......................................................... 90 5.5 INF Update Utility for Intel 820 Chipset .................................. 92 5.6 Install Intel Ultra ATA Storage Driver ...................................... 93 5.7 Install YAMAHA XG Audio Driver (VxD) .................................. (only with onboard audio option) ............................................. 94 5.8 Install YAMAHA XG Studio Audio Application (only with onboard audio option).......................... 94 5.9 Install YAMAHA DS-XG Audio Application (only with onboard audio option).......................... 97 5.10 Install ASUS PC Probe ............................................................ 98 5.11 Install ASUS Update ................................................................. 99 5.12 Install PC-Cillin 98 ................................................................. 100 5.13 Install ADOBE Acrobat Reader .............................................. 101 5.14 Uninstalling Programs ............................................................ 102 6. SOFTWARE REFERENCE ......................................................... 103 6.1 ASUS PC Probe ...................................................................... 103 6.2 Using YAMAHA XGPlayer .................................................... 109 7. APPENDIX ...................................................................................... 111 7.1 PCI-L101 Fast Ethernet Card ................................................. 111 7.2 Modem Riser (optional) .......................................................... 113 ASUS P3C-L / P3C-S / P3C-LS User’s Manual 5

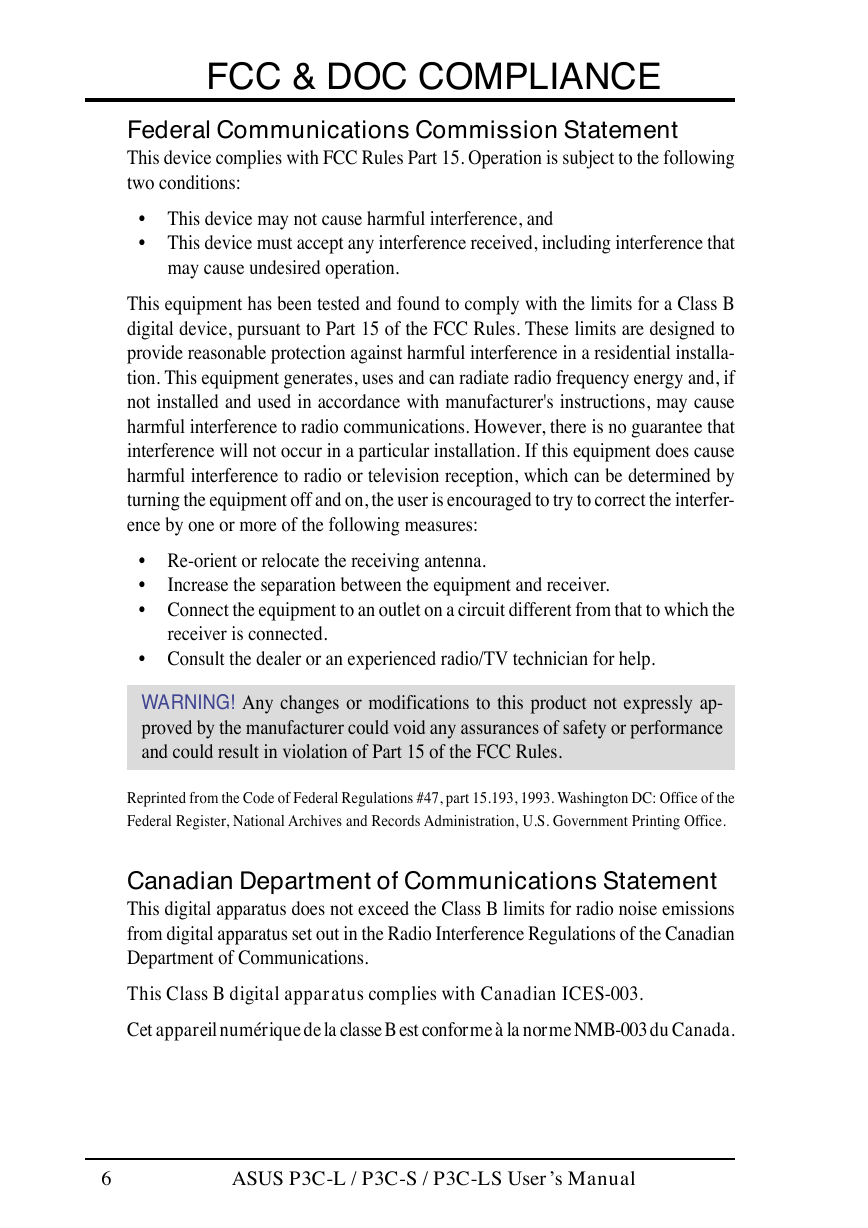

FCC & DOC COMPLIANCE Federal Communications Commission Statement This device complies with FCC Rules Part 15. Operation is subject to the following two conditions: • This device may not cause harmful interference, and • This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installa- tion. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with manufacturer's instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interfer- ence by one or more of the following measures: • Re-orient or relocate the receiving antenna. • • Connect the equipment to an outlet on a circuit different from that to which the Increase the separation between the equipment and receiver. receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. WARNING! Any changes or modifications to this product not expressly ap- proved by the manufacturer could void any assurances of safety or performance and could result in violation of Part 15 of the FCC Rules. Reprinted from the Code of Federal Regulations #47, part 15.193, 1993. Washington DC: Office of the Federal Register, National Archives and Records Administration, U.S. Government Printing Office. Canadian Department of Communications Statement This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications. This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. 6 ASUS P3C-L / P3C-S / P3C-LS User’s Manual

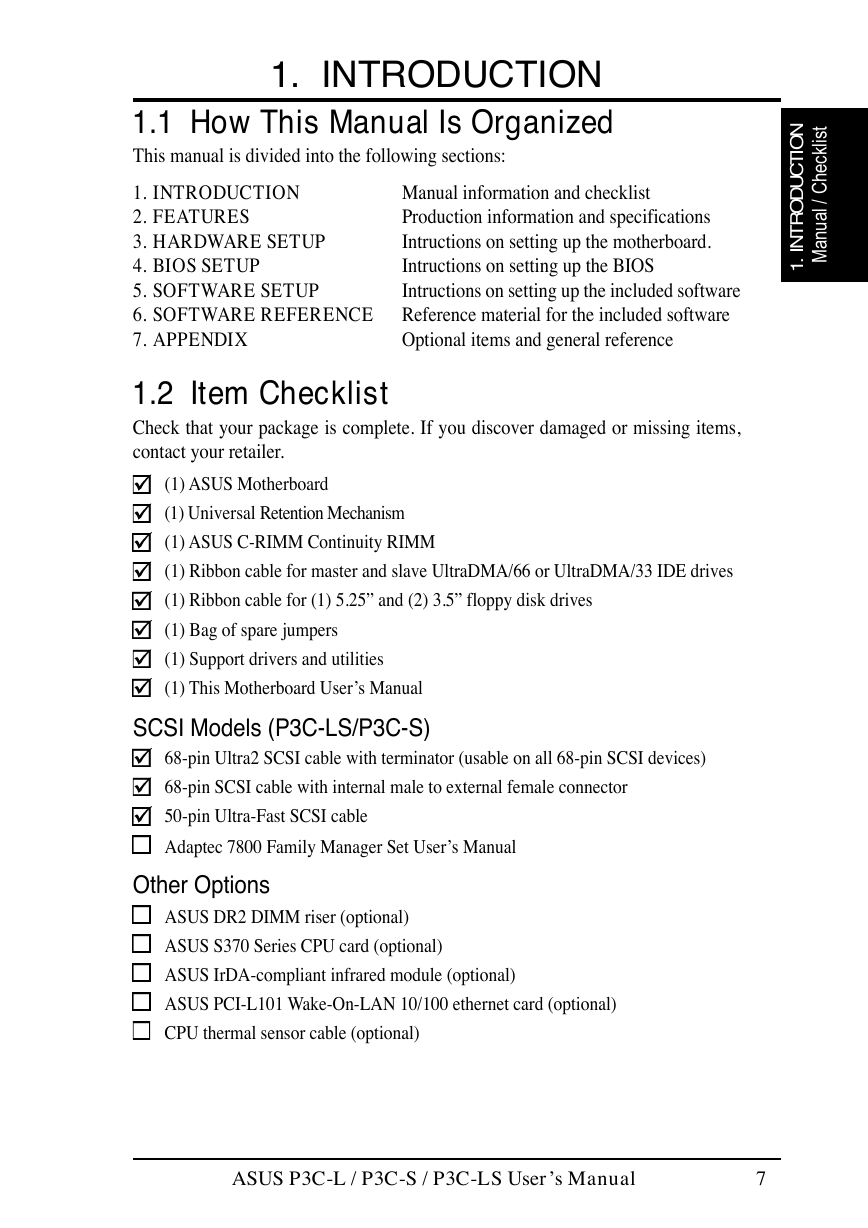

I N O T C U D O R T N I . 1 t s i l k c e h C / l a u n a M 1. INTRODUCTION 1.1 How This Manual Is Organized This manual is divided into the following sections: 1. INTRODUCTION 2. FEATURES 3. HARDWARE SETUP 4. BIOS SETUP 5. SOFTWARE SETUP 6. SOFTWARE REFERENCE 7. APPENDIX Manual information and checklist Production information and specifications Intructions on setting up the motherboard. Intructions on setting up the BIOS Intructions on setting up the included software Reference material for the included software Optional items and general reference 1.2 Item Checklist Check that your package is complete. If you discover damaged or missing items, contact your retailer. (1) ASUS Motherboard (1) Universal Retention Mechanism (1) ASUS C-RIMM Continuity RIMM (1) Ribbon cable for master and slave UltraDMA/66 or UltraDMA/33 IDE drives (1) Ribbon cable for (1) 5.25” and (2) 3.5” floppy disk drives (1) Bag of spare jumpers (1) Support drivers and utilities (1) This Motherboard User’s Manual SCSI Models (P3C-LS/P3C-S) 68-pin Ultra2 SCSI cable with terminator (usable on all 68-pin SCSI devices) 68-pin SCSI cable with internal male to external female connector 50-pin Ultra-Fast SCSI cable Adaptec 7800 Family Manager Set User’s Manual Other Options ASUS DR2 DIMM riser (optional) ASUS S370 Series CPU card (optional) ASUS IrDA-compliant infrared module (optional) ASUS PCI-L101 Wake-On-LAN 10/100 ethernet card (optional) CPU thermal sensor cable (optional) ASUS P3C-L / P3C-S / P3C-LS User’s Manual 7

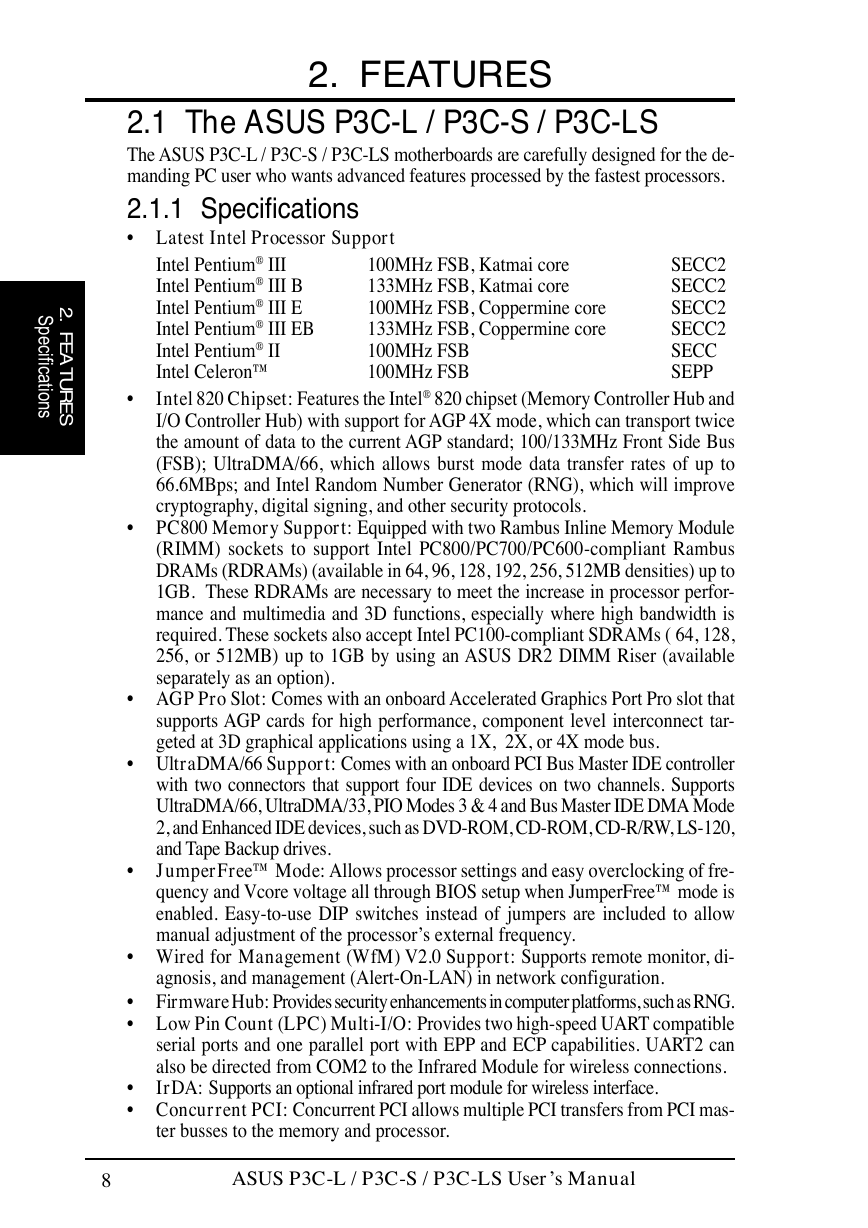

2. FEATURES 2.1 The ASUS P3C-L / P3C-S / P3C-LS The ASUS P3C-L / P3C-S / P3C-LS motherboards are carefully designed for the de- manding PC user who wants advanced features processed by the fastest processors. 2.1.1 Specifications • Latest Intel Processor Support SECC2 SECC2 SECC2 SECC2 SECC SEPP 100MHz FSB, Katmai core 133MHz FSB, Katmai core 100MHz FSB, Coppermine core 133MHz FSB, Coppermine core 100MHz FSB 100MHz FSB Intel Pentium® III Intel Pentium® III B Intel Pentium® III E Intel Pentium® III EB Intel Pentium® II Intel Celeron™ Intel 820 Chipset: Features the Intel® 820 chipset (Memory Controller Hub and I/O Controller Hub) with support for AGP 4X mode, which can transport twice the amount of data to the current AGP standard; 100/133MHz Front Side Bus (FSB); UltraDMA/66, which allows burst mode data transfer rates of up to 66.6MBps; and Intel Random Number Generator (RNG), which will improve cryptography, digital signing, and other security protocols. PC800 Memory Support: Equipped with two Rambus Inline Memory Module (RIMM) sockets to support Intel PC800/PC700/PC600-compliant Rambus DRAMs (RDRAMs) (available in 64, 96, 128, 192, 256, 512MB densities) up to 1GB. These RDRAMs are necessary to meet the increase in processor perfor- mance and multimedia and 3D functions, especially where high bandwidth is required. These sockets also accept Intel PC100-compliant SDRAMs ( 64, 128, 256, or 512MB) up to 1GB by using an ASUS DR2 DIMM Riser (available separately as an option). S p e c i f i c a t i o n s 2 . F E A T U R E S • • • AGP Pro Slot: Comes with an onboard Accelerated Graphics Port Pro slot that supports AGP cards for high performance, component level interconnect tar- geted at 3D graphical applications using a 1X, 2X, or 4X mode bus. • UltraDMA/66 Support: Comes with an onboard PCI Bus Master IDE controller with two connectors that support four IDE devices on two channels. Supports UltraDMA/66, UltraDMA/33, PIO Modes 3 & 4 and Bus Master IDE DMA Mode 2, and Enhanced IDE devices, such as DVD-ROM, CD-ROM, CD-R/RW, LS-120, and Tape Backup drives. JumperFree™ Mode: Allows processor settings and easy overclocking of fre- quency and Vcore voltage all through BIOS setup when JumperFree™ mode is enabled. Easy-to-use DIP switches instead of jumpers are included to allow manual adjustment of the processor’s external frequency. • • Wired for Management (WfM) V2.0 Support: Supports remote monitor, di- agnosis, and management (Alert-On-LAN) in network configuration. Firmware Hub: Provides security enhancements in computer platforms, such as RNG. • • Low Pin Count (LPC) Multi-I/O: Provides two high-speed UART compatible serial ports and one parallel port with EPP and ECP capabilities. UART2 can also be directed from COM2 to the Infrared Module for wireless connections. IrDA: Supports an optional infrared port module for wireless interface. • • Concurrent PCI: Concurrent PCI allows multiple PCI transfers from PCI mas- ter busses to the memory and processor. 8 ASUS P3C-L / P3C-S / P3C-LS User’s Manual
