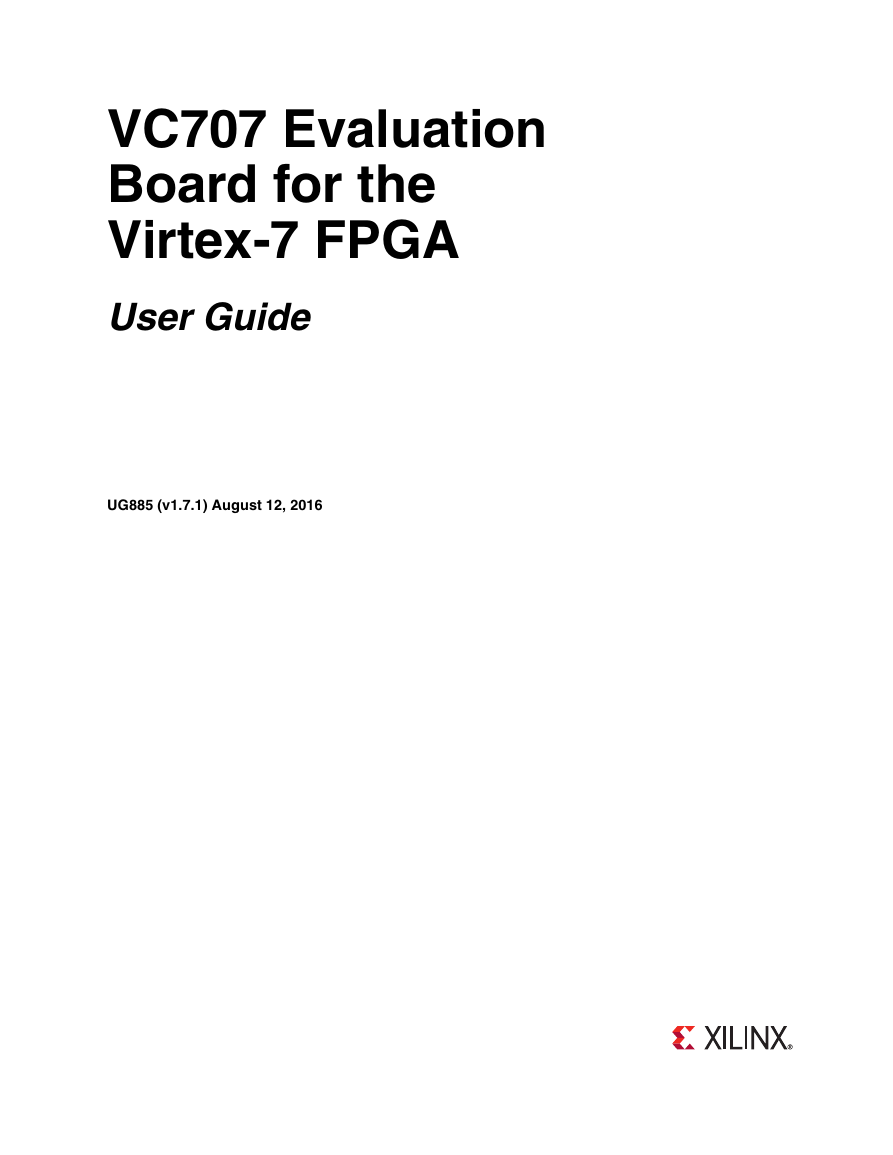

VC707 Evaluation Board for the Virtex-7 FPGA
Revision History
Table of Contents
Ch. 1: VC707 Evaluation Board Features
Overview
Additional Information
VC707 Board Features
Feature Descriptions
Virtex-7 XC7VX485T-2FFG1761C FPGA
DDR3 Memory
Linear BPI Flash Memory
USB 2.0 ULPI Transceiver
SD Card Interface
USB JTAG
Clock Generation
GTX Transceivers
PCI Express Endpoint Connectivity
SFP/SFP+ Module Connector
10/100/1000 Tri-Speed Ethernet PHY
SGMII GTX Transceiver Clock Generation
USB-to-UART Bridge
HDMI Video Output
LCD Character Display (16 x 2)
I2C Bus
Status LEDs
User I/O
Switches
VITA 57.1 FMC1 HPC Connector (Partially Populated)
VITA 57.1 FMC2 HPC Connector (Partially Populated)
Power Management
XADC Analog-to-Digital Converter
Configuration Options
Appx. A: Default Switch and Jumper Settings
GPIO DIP Switch SW2
Configuration DIP Switch SW11
Default Jumper Settings
Appx. B: VITA 57.1 FMC Connector Pinouts
Appx. C: Master Constraints File Listing
VC707 Board XDC Listing
Appx. D: Board Setup
Installing VC707 Board in a PC Chassis
Appx. E: Board Specifications
Dimensions
Environmental
Temperature
Humidity
Operating Voltage
Appx. F: Additional Resources
Xilinx Resources
Solution Centers
References
Appx. G: Regulatory and Compliance Information
Declaration of Conformity
Directives
Standards
Electromagnetic Compatibility
Safety
Markings
VC707 Evaluation Board for the Virtex-7 FPGA User Guide UG885 (v1.7.1) August 12, 2016
The information disclosed to you hereunder (the “Materials”) is provided solely for the selection and use of Xilinx products. To the maximum extent permitted by applicable law: (1) Materials are made available "AS IS" and with all faults, Xilinx hereby DISCLAIMS ALL WARRANTIES AND CONDITIONS, EXPRESS, IMPLIED, OR STATUTORY, INCLUDING BUT NOT LIMITED TO WARRANTIES OF MERCHANTABILITY, NON-INFRINGEMENT, OR FITNESS FOR ANY PARTICULAR PURPOSE; and (2) Xilinx shall not be liable (whether in contract or tort, including negligence, or under any other theory of liability) for any loss or damage of any kind or nature related to, arising under, or in connection with, the Materials (including your use of the Materials), including for any direct, indirect, special, incidental, or consequential loss or damage (including loss of data, profits, goodwill, or any type of loss or damage suffered as a result of any action brought by a third party) even if such damage or loss was reasonably foreseeable or Xilinx had been advised of the possibility of the same. Xilinx assumes no obligation to correct any errors contained in the Materials or to notify you of updates to the Materials or to product specifications. You may not reproduce, modify, distribute, or publicly display the Materials without prior written consent. Certain products are subject to the terms and conditions of Xilinx’s limited warranty, please refer to Xilinx’s Terms of Sale which can be viewed at http://www.xilinx.com/legal.htm#tos; IP cores may be subject to warranty and support terms contained in a license issued to you by Xilinx. Xilinx products are not designed or intended to be fail-safe or for use in any application requiring fail-safe performance; you assume sole risk and liability for use of Xilinx products in such critical applications, please refer to Xilinx’s Terms of Sale which can be viewed at http://www.xilinx.com/legal.htm#tos. AUTOMOTIVE APPLICATIONS DISCLAIMER AUTOMOTIVE PRODUCTS (IDENTIFIED AS "XA" IN THE PART NUMBER) ARE NOT WARRANTED FOR USE IN THE DEPLOYMENT OF AIRBAGS OR FOR USE IN APPLICATIONS THAT AFFECT CONTROL OF A VEHICLE ("SAFETY APPLICATION") UNLESS THERE IS A SAFETY CONCEPT OR REDUNDANCY FEATURE CONSISTENT WITH THE ISO 26262 AUTOMOTIVE SAFETY STANDARD ("SAFETY DESIGN"). CUSTOMER SHALL, PRIOR TO USING OR DISTRIBUTING ANY SYSTEMS THAT INCORPORATE PRODUCTS, THOROUGHLY TEST SUCH SYSTEMS FOR SAFETY PURPOSES. USE OF PRODUCTS IN A SAFETY APPLICATION WITHOUT A SAFETY DESIGN IS FULLY AT THE RISK OF CUSTOMER, SUBJECT ONLY TO APPLICABLE LAWS AND REGULATIONS GOVERNING LIMITATIONS ON PRODUCT LIABILITY. © Copyright 2012 – 2016 Xilinx, Inc. Xilinx, the Xilinx logo, Artix, ISE, Kintex, Spartan, Vivado, Virtex, Zynq, and other designated brands included herein are trademarks of Xilinx in the United States and other countries. PCI, PCI Express, PCIe, and PCI-X are trademarks of PCI-SIG. HDMI, HDMI logo, and High-Definition Multimedia Interface are trademarks of HDMI Licensing LLC. All other trademarks are the property of their respective owners. Revision History The following table shows the revision history for this document. Date Version 03/05/12 10/08/12 1.0 1.1 Revision Initial Xilinx release. Chapter 1, VC707 Evaluation Board Features: In Table 1-1, notes for J37 changed to Samtec ASP_134486_01. The board photo in Figure 1-2 was replaced. In Table 1-3, GPGA (U1) Bank 32 was deleted. A note was added about the user clock for Figure 1-10. In Table 1-15, FPGA pin AN1 changed to AM4 and pin AN2 changed to AM3. In SGMII GTX Transceiver Clock Generation, page 42, 25 MHz LVDS clock changed to 125 MHz LVDS clock. The Figure 1-10 title also changed from 25 MHz to 125 MHz. In Table 1-23, pin AR42 changed to AT42. In Figure 1-33, switching regulator supply voltage UG63 for MGTVCCAUX was updated. In Table 1-29, device type PTD08D021W (VOUT A) power rail voltage changed to 1.80V. In Table 1-32, values for rail number 3 changed. In Appendix C, Master Constraints File Listing, the entire listing was replaced. Appendix G, Regulatory and Compliance Information now includes a link to the Declaration of Conformity and markings for waste electrical and electronic equipment (WEEE), restriction of hazardous substances (RoHS), and CE compliance. VC707 Evaluation Board www.xilinx.com UG885 (v1.7.1) August 12, 2016
Date Version 02/01/13 1.2 08/22/13 05/12/14 09/20/14 1.3 1.4 1.5 04/07/15 1.6 09/01/15 03/26/16 1.6.1 1.7 08/12/16 1.7.1 Revision Updated VC707 Board Features, Table 1-1, Virtex-7 XC7VX485T-2FFG1761C FPGA, FPGA Configuration, USB JTAG, System Clock (SYSCLK_P and SYSCLK_N), HDMI Video Output, I2C Bus, Table 1-15, User I/O, Table 1-26, Power Management, and VITA 57.1 FMC2 HPC Connector (Partially Populated). Updated Figure 1-5, Figure 1-16, and Figure 1-25. Updated paragraph following Table 1-4, Figure 1-7, Figure 1-19, Figure 1-20, and Table 1-24. Added CPU Reset Pushbutton, User Rotary Switch, User SMA, and PCIe Form Factor Board TI Power System Cooling. Added Table 1-27 and Table 1-28. Replaced PTD08D021W with PTD08D210W in Table 1-29. Added third paragraph to the introduction in Appendix C, Master Constraints File Listing. Added UG483 and removed NXP Semiconductors in Appendix F, Additional Resources. Added second paragraph to the introduction in Appendix G, Regulatory and Compliance Information. Updated Figure 1-2, Table 1-1, Table 1-12, Table 1-13, and Table 1-14. Updated Linear BPI Flash Memory. Replaced Master UCF Listing with Appendix C, Master Constraints File Listing. Updated disclaimer and copyright. In Table 1-27, changed U1 FPGA pin N39 to M39, B36 to A35, and B37 to A36. Added note to Table 1-1 and Table 1-27. Updated Table 1-7. Changed Net Name column heading to FHG1761 Placement in Table 1-11. Added I/O standard information to Table 1-4, Table 1-5, Table 1-8, Table 1-10, Table 1-18, Table 1-21, Table 1-23, Table 1-26, Table 1-27 and Table 1-28. Updated schematic net name for pins C34 and D35 in Table 1-27 and Table 1-28. Updated GTX Transceivers. Added Figure A-3. Added notes to Jitter Attenuated Clock and I2C Bus. Updated Table 1-24. Deleted redundant Figure B-2 FMC2 HPC Connector Pinout in Appendix B, VITA 57.1 FMC Connector Pinouts. Added information for ordering the ATX power supply adapter cable. Made typographical edits. Updated transceiver bank MGT_BANK_119 in Table 1-11. Updated GPIO pin for CPU reset pushbutton switch in Table 1-26. Updated U1 FPGA pins for J37 FMC2 HPC pins B12, B13, B32, and B33 in Table 1-28. Added thickness information in Appendix E, Board Specifications. Made a typographical edit. UG885 (v1.7.1) August 12, 2016 www.xilinx.com VC707 Evaluation Board
VC707 Evaluation Board www.xilinx.com UG885 (v1.7.1) August 12, 2016
Table of Contents Revision History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Chapter 1: VC707 Evaluation Board Features Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Additional Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 VC707 Board Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Feature Descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Virtex-7 XC7VX485T-2FFG1761C FPGA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 DDR3 Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Linear BPI Flash Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 USB 2.0 ULPI Transceiver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 SD Card Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 USB JTAG . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 Clock Generation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 GTX Transceivers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 PCI Express Endpoint Connectivity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35 SFP/SFP+ Module Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39 10/100/1000 Tri-Speed Ethernet PHY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40 SGMII GTX Transceiver Clock Generation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42 USB-to-UART Bridge. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42 HDMI Video Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43 LCD Character Display (16 x 2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47 I2C Bus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48 Status LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 User I/O . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 Switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55 VITA 57.1 FMC1 HPC Connector (Partially Populated) . . . . . . . . . . . . . . . . . . . . . . . . 58 VITA 57.1 FMC2 HPC Connector (Partially Populated) . . . . . . . . . . . . . . . . . . . . . . . . 58 Power Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70 XADC Analog-to-Digital Converter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75 Configuration Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77 Appendix A: Default Switch and Jumper Settings GPIO DIP Switch SW2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79 Configuration DIP Switch SW11 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80 Default Jumper Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80 Appendix B: VITA 57.1 FMC Connector Pinouts Appendix C: Master Constraints File Listing VC707 Board XDC Listing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85 VC707 Evaluation Board UG885 (v1.7.1) August 12, 2016 www.xilinx.com 5 Send Feedback

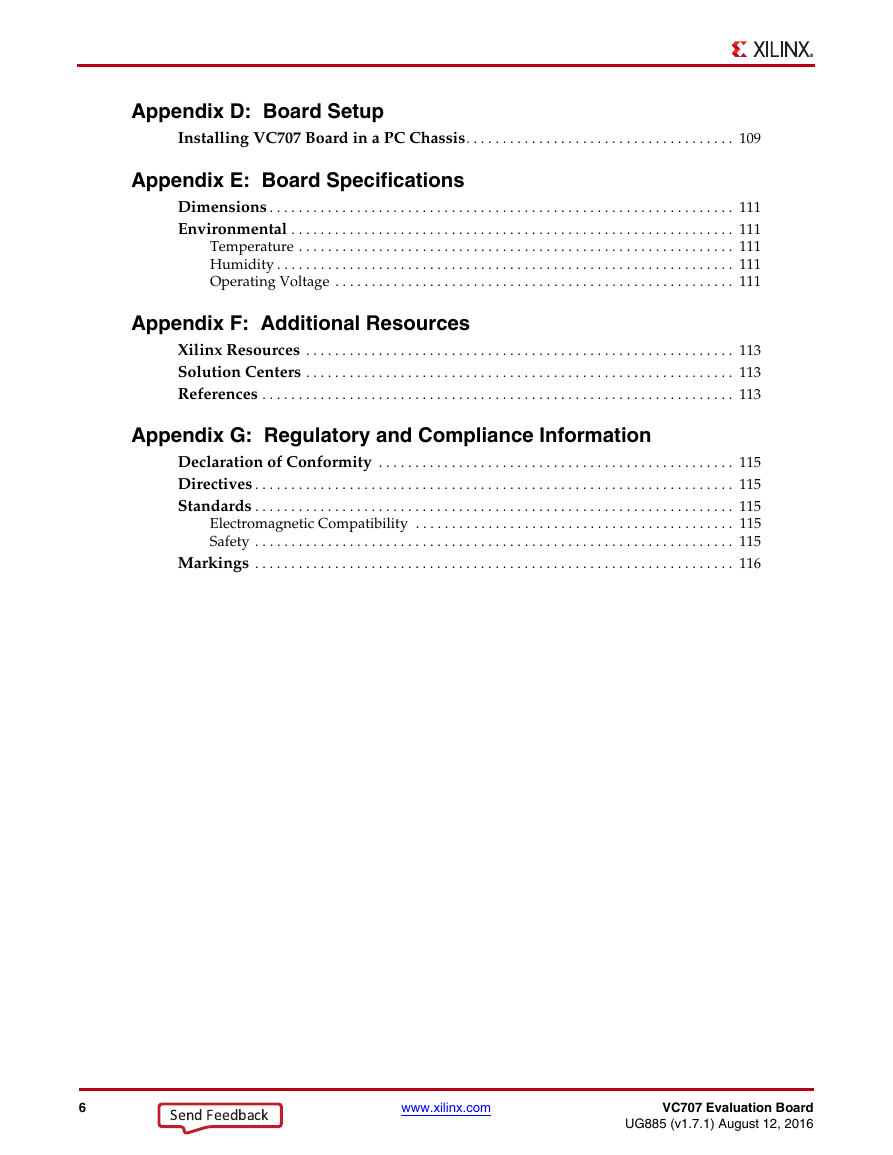

Appendix D: Board Setup Installing VC707 Board in a PC Chassis. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109 Appendix E: Board Specifications Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111 Environmental . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111 Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111 Humidity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111 Operating Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111 Appendix F: Additional Resources Xilinx Resources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113 Solution Centers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113 References . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113 Appendix G: Regulatory and Compliance Information Declaration of Conformity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115 Directives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115 Standards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115 Electromagnetic Compatibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115 Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115 Markings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116 6 www.xilinx.com VC707 Evaluation Board UG885 (v1.7.1) August 12, 2016 Send Feedback
Chapter 1 VC707 Evaluation Board Features Overview The VC707 evaluation board for the Virtex®-7 FPGA provides a hardware environment for developing and evaluating designs targeting the Virtex-7 XC7VX485T-2FFG1761C FPGA. The VC707 board provides features common to many embedded processing systems, including a DDR3 SODIMM memory, an 8-lane PCI Express® interface, a tri-mode Ethernet PHY, general purpose I/O, and two UART interfaces. Other features can be added by using mezzanine cards attached to either of two VITA-57 FPGA mezzanine connectors (FMC) provided on the board. Two high pin count (HPC) FMCs are provided. See VC707 Board Features for a complete list of features. The details for each feature are described in Feature Descriptions, page 10. Additional Information See Appendix F, Additional Resources for references to documents, files and resources relevant to the VC707 board. VC707 Board Features Virtex-7 XC7VX485T-2FFG1761C FPGA 1 GB DDR3 memory SODIMM 128 MB Linear byte peripheral interface (BPI) Flash memory USB 2.0 ULPI Transceiver Secure Digital (SD) connector USB JTAG through Digilent module Clock Generation Fixed 200 MHz LVDS oscillator (differential) I2C programmable LVDS oscillator (differential) SMA connectors (differential) SMA connectors for GTX transceiver clocking GTX transceivers FMC1 HPC connector (eight GTX transceivers) FMC2 HPC connector (eight GTX transceiver) SMA connectors (one pair each for TX, RX, and REFCLK) PCI Express (eight lanes) Small form-factor pluggable plus (SFP+) connector VC707 Evaluation Board UG885 (v1.7.1) August 12, 2016 www.xilinx.com 7 Send Feedback

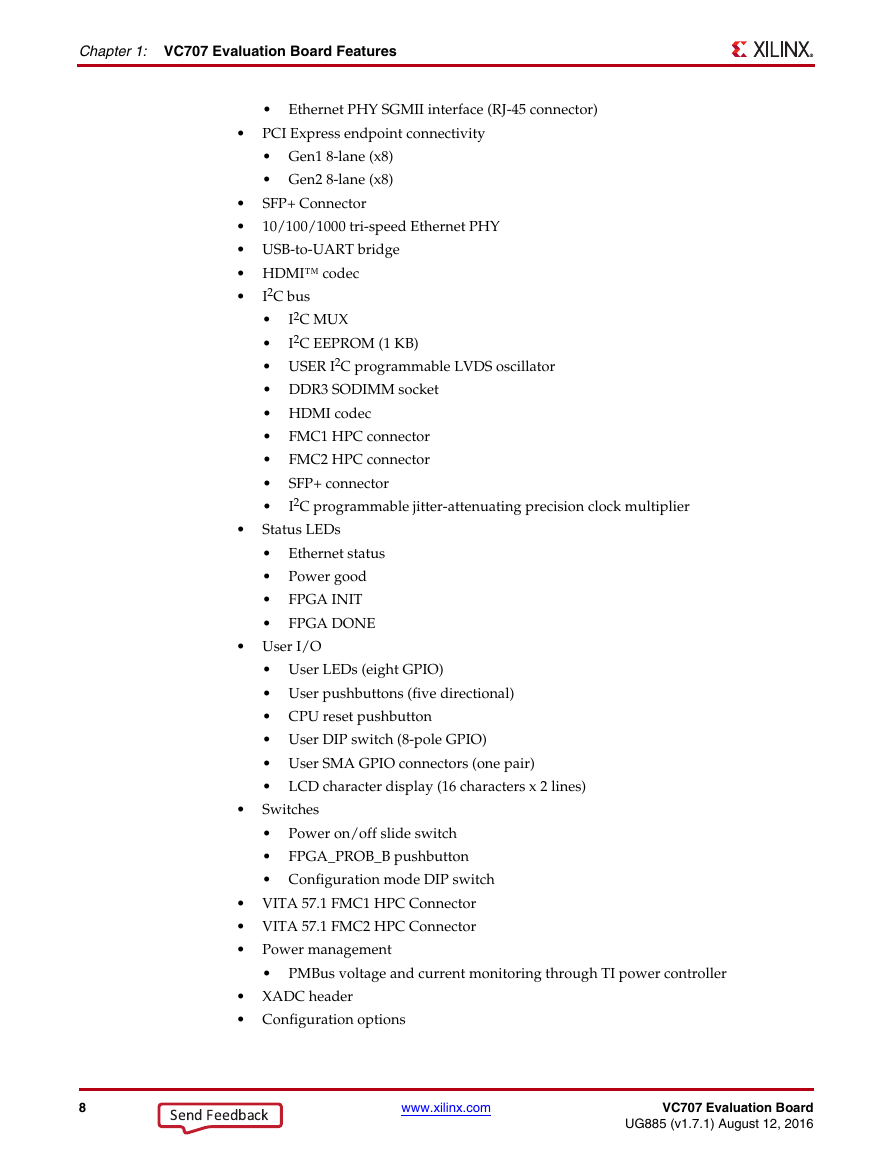

Chapter 1: VC707 Evaluation Board Features Ethernet PHY SGMII interface (RJ-45 connector) PCI Express endpoint connectivity Gen1 8-lane (x8) Gen2 8-lane (x8) SFP+ Connector 10/100/1000 tri-speed Ethernet PHY USB-to-UART bridge HDMI™ codec I2C bus I2C MUX I2C EEPROM (1 KB) USER I2C programmable LVDS oscillator DDR3 SODIMM socket HDMI codec FMC1 HPC connector FMC2 HPC connector SFP+ connector I2C programmable jitter-attenuating precision clock multiplier Status LEDs Ethernet status Power good FPGA INIT FPGA DONE User I/O User LEDs (eight GPIO) User pushbuttons (five directional) CPU reset pushbutton User DIP switch (8-pole GPIO) User SMA GPIO connectors (one pair) LCD character display (16 characters x 2 lines) Switches Power on/off slide switch FPGA_PROB_B pushbutton Configuration mode DIP switch VITA 57.1 FMC1 HPC Connector VITA 57.1 FMC2 HPC Connector Power management PMBus voltage and current monitoring through TI power controller XADC header Configuration options 8 www.xilinx.com VC707 Evaluation Board UG885 (v1.7.1) August 12, 2016 Send Feedback
