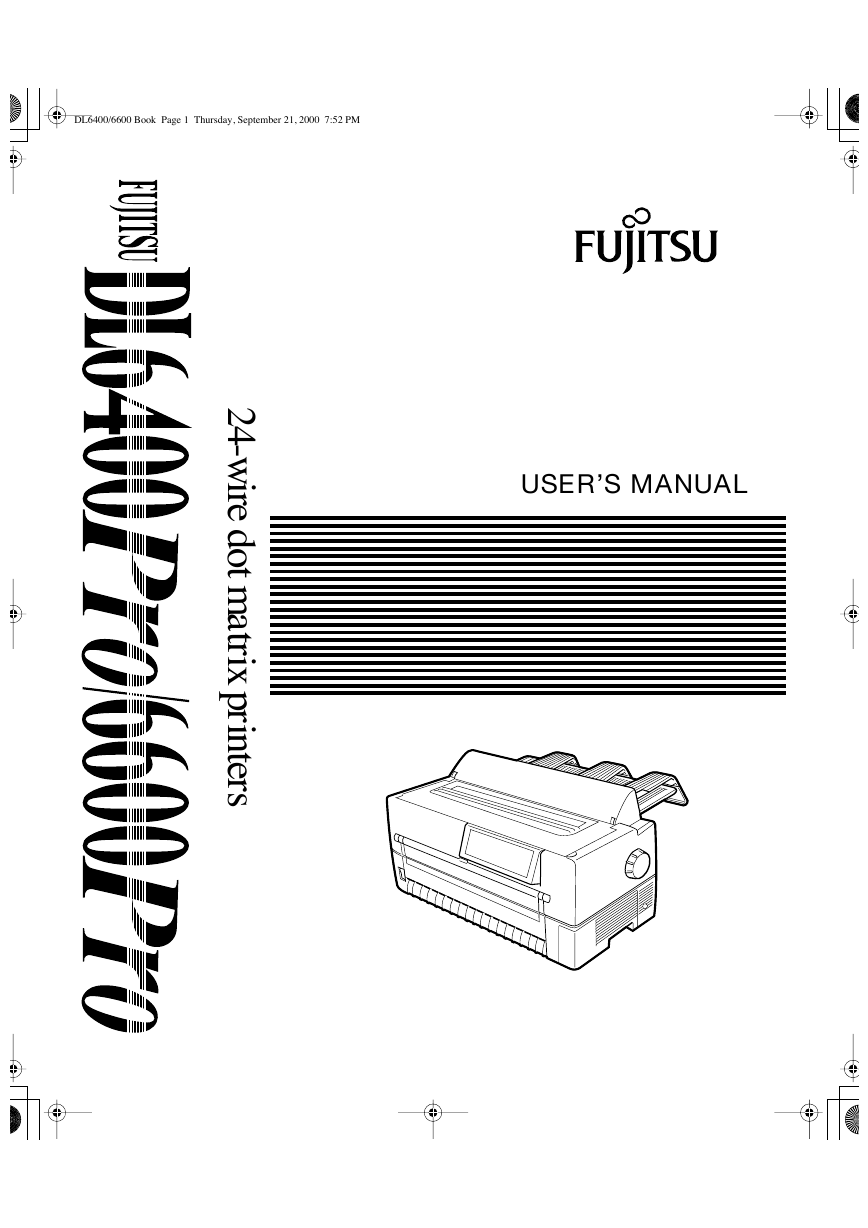

DL6400/6600 Book Page 1 Thursday, September 21, 2000 7:52 PM USER’S MANUAL 2 4 - w i r e d o t m a t r i x p r i n t e r s

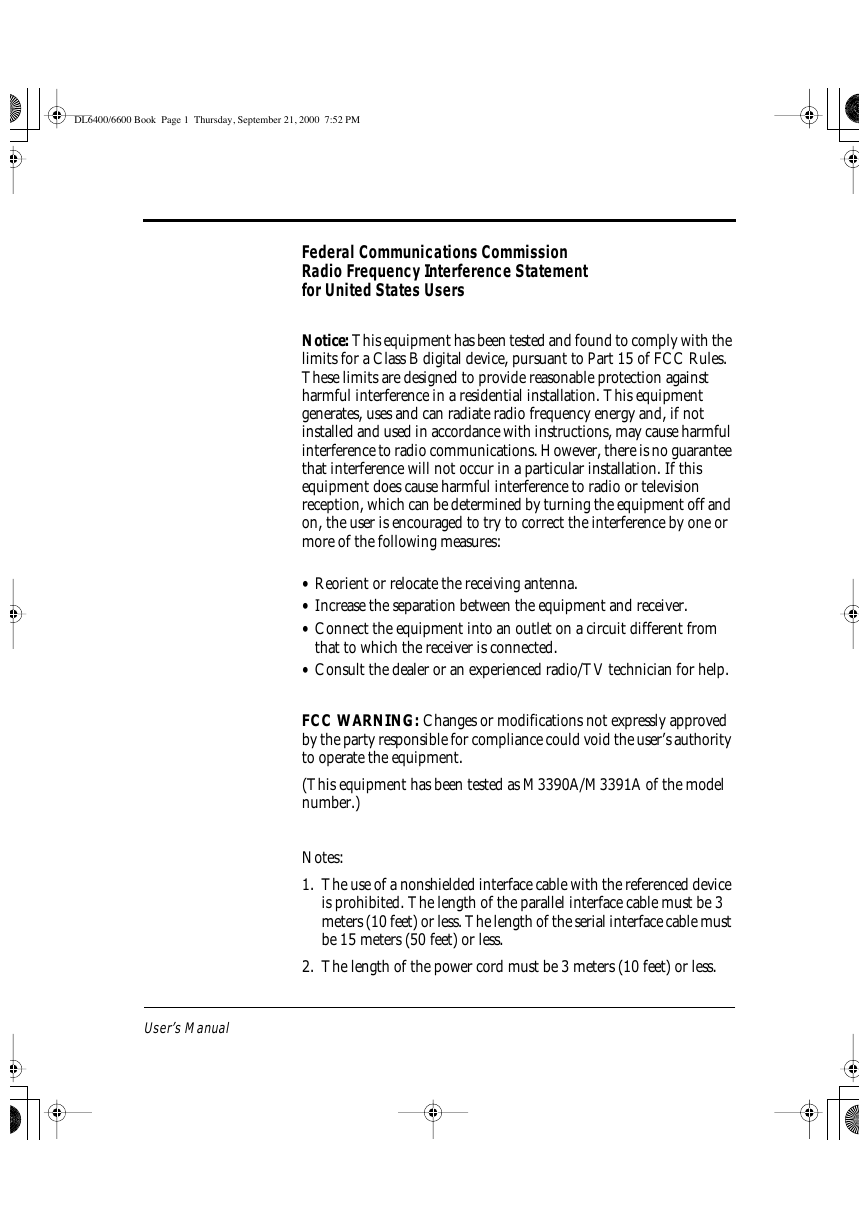

DL6400/6600 Book Page 1 Thursday, September 21, 2000 7:52 PM Federal Communications Commission Radio Frequency Interference Statement for United States Users Notice: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. FCC WARNING: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. (This equipment has been tested as M3390A/M3391A of the model number.) Notes: 1. The use of a nonshielded interface cable with the referenced device is prohibited. The length of the parallel interface cable must be 3 meters (10 feet) or less. The length of the serial interface cable must be 15 meters (50 feet) or less. 2. The length of the power cord must be 3 meters (10 feet) or less. User’s Manual

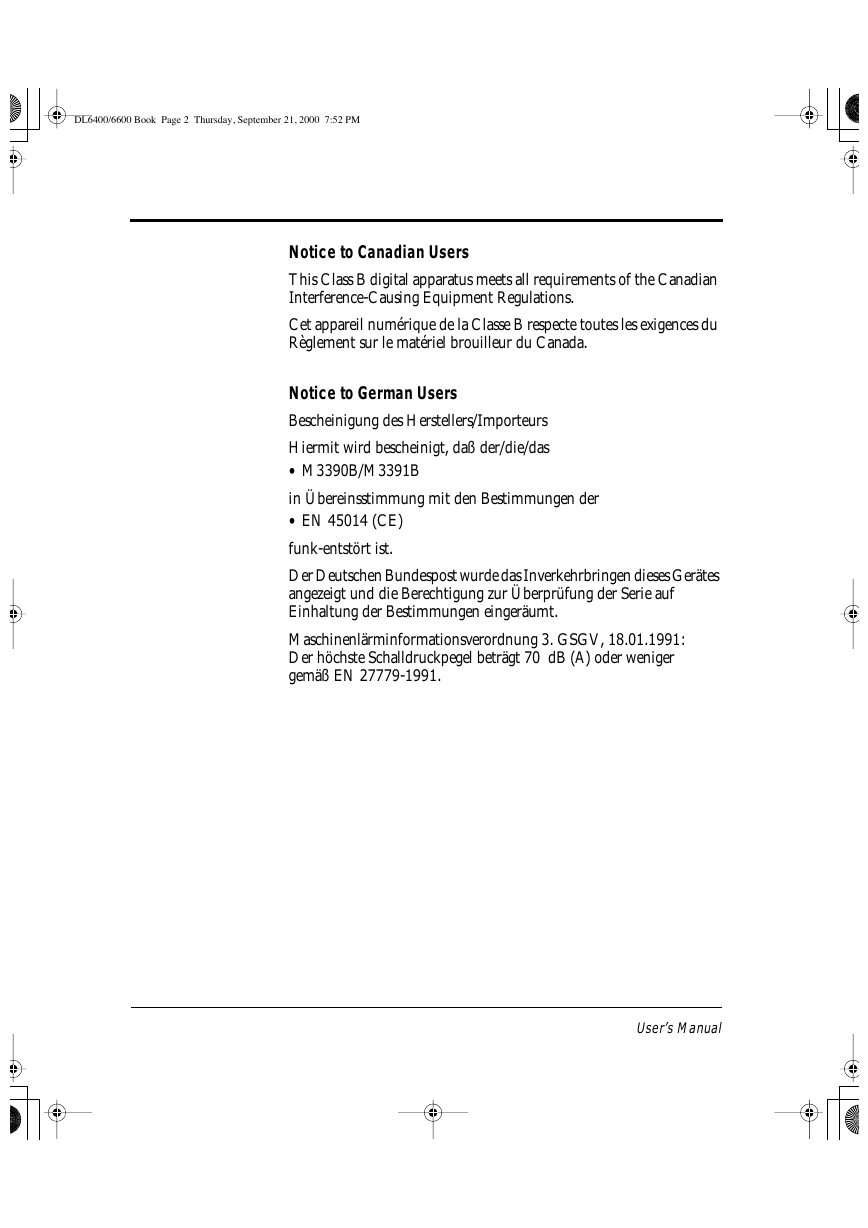

DL6400/6600 Book Page 2 Thursday, September 21, 2000 7:52 PM Notice to Canadian Users This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations. Cet appareil numérique de la Classe B respecte toutes les exigences du Règlement sur le matériel brouilleur du Canada. Notice to German Users Bescheinigung des Herstellers/Importeurs Hiermit wird bescheinigt, daß der/die/das • M3390B/M3391B in Übereinsstimmung mit den Bestimmungen der • EN 45014 (CE) funk-entstört ist. Der Deutschen Bundespost wurde das Inverkehrbringen dieses Gerätes angezeigt und die Berechtigung zur Überprüfung der Serie auf Einhaltung der Bestimmungen eingeräumt. Maschinenlärminformationsverordnung 3. GSGV, 18.01.1991: Der höchste Schalldruckpegel beträgt 70 dB (A) oder weniger gemäß EN 27779-1991. User’s Manual

Manufacturer's Declaration of Conformity CE According to Electromagnetic Compatibility Directive 89/336/EEC and Low Voltage Directive 73/23/EEC, Annex III B. FUJITSU ISOTEC LIMITED, 135 Higashinozaki Hobara-machi Date-gun, Fukushima, 960-0695, Japan Declares, in sole responsibility, that the following products Product Type Model Number : DOT MATRIX PRINTER : M3390B and M3391B Approval ID Number : S1 2050720 for M3390B S1 2050721 for M3391B Referred to in this declaration, conforms with the following directives and standards; Electromagnetic Compatibility Directive 89/336/EEC, 92/31/EEC, 93/68/ EEC Low Voltage Directive 73/23/EEC, 93/68/EEC EN55022 : 1998, Class B EN55024 : 1998 (IEC61000-4-2 : 1995, IEC61000-4-3 : 1995, IEC61000-4-5 : 1995, IEC61000-4-6 : 1996, IEC61000-4-11 : 1994) EN61000-3-2 : 1995 EN61000-3-3 : 1995 EN60950 User’s Manual

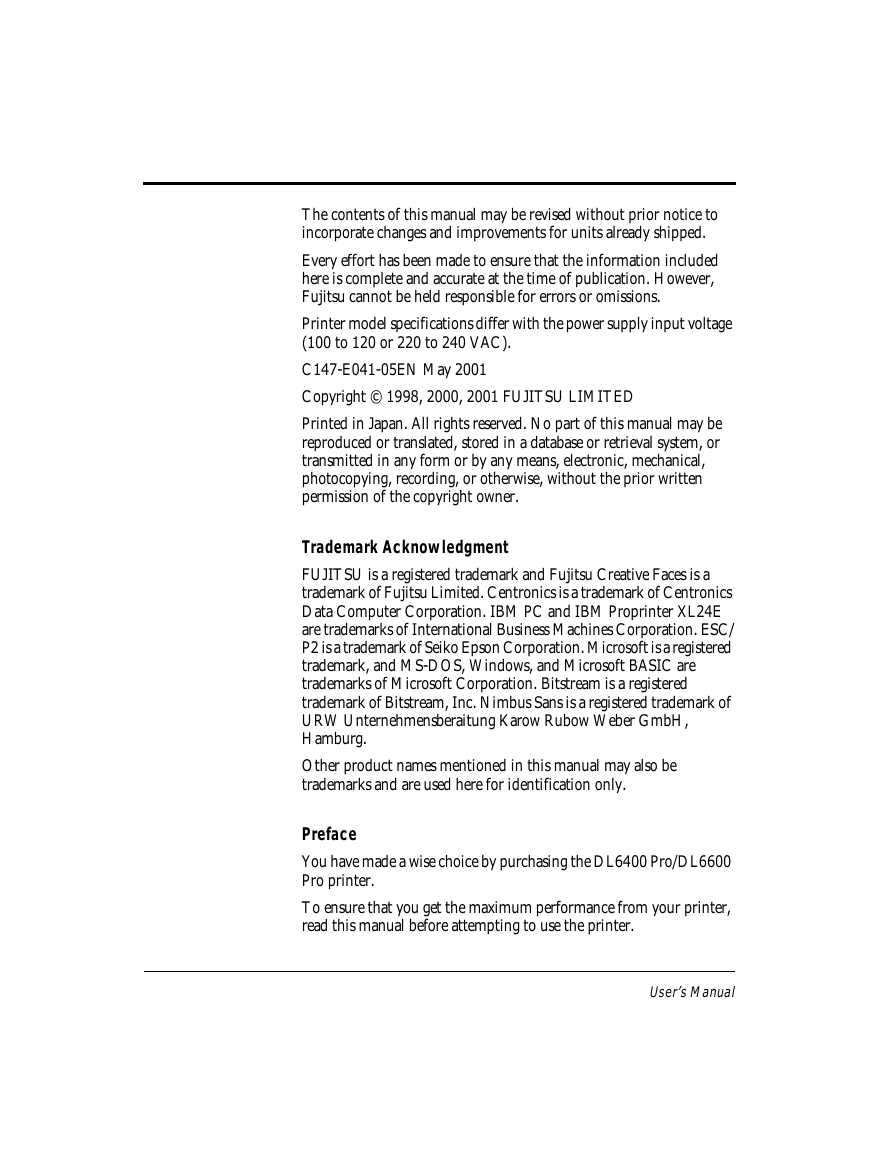

The contents of this manual may be revised without prior notice to incorporate changes and improvements for units already shipped. Every effort has been made to ensure that the information included here is complete and accurate at the time of publication. However, Fujitsu cannot be held responsible for errors or omissions. Printer model specifications differ with the power supply input voltage (100 to 120 or 220 to 240 VAC). C147-E041-05EN May 2001 Copyright © 1998, 2000, 2001 FUJITSU LIMITED Printed in Japan. All rights reserved. No part of this manual may be reproduced or translated, stored in a database or retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written permission of the copyright owner. Trademark Acknowledgment FUJITSU is a registered trademark and Fujitsu Creative Faces is a trademark of Fujitsu Limited. Centronics is a trademark of Centronics Data Computer Corporation. IBM PC and IBM Proprinter XL24E are trademarks of International Business Machines Corporation. ESC/ P2 is a trademark of Seiko Epson Corporation. Microsoft is a registered trademark, and MS-DOS, Windows, and Microsoft BASIC are trademarks of Microsoft Corporation. Bitstream is a registered trademark of Bitstream, Inc. Nimbus Sans is a registered trademark of URW Unternehmensberaitung Karow Rubow Weber GmbH, Hamburg. Other product names mentioned in this manual may also be trademarks and are used here for identification only. Preface You have made a wise choice by purchasing the DL6400 Pro/DL6600 Pro printer. To ensure that you get the maximum performance from your printer, read this manual before attempting to use the printer. User’s Manual

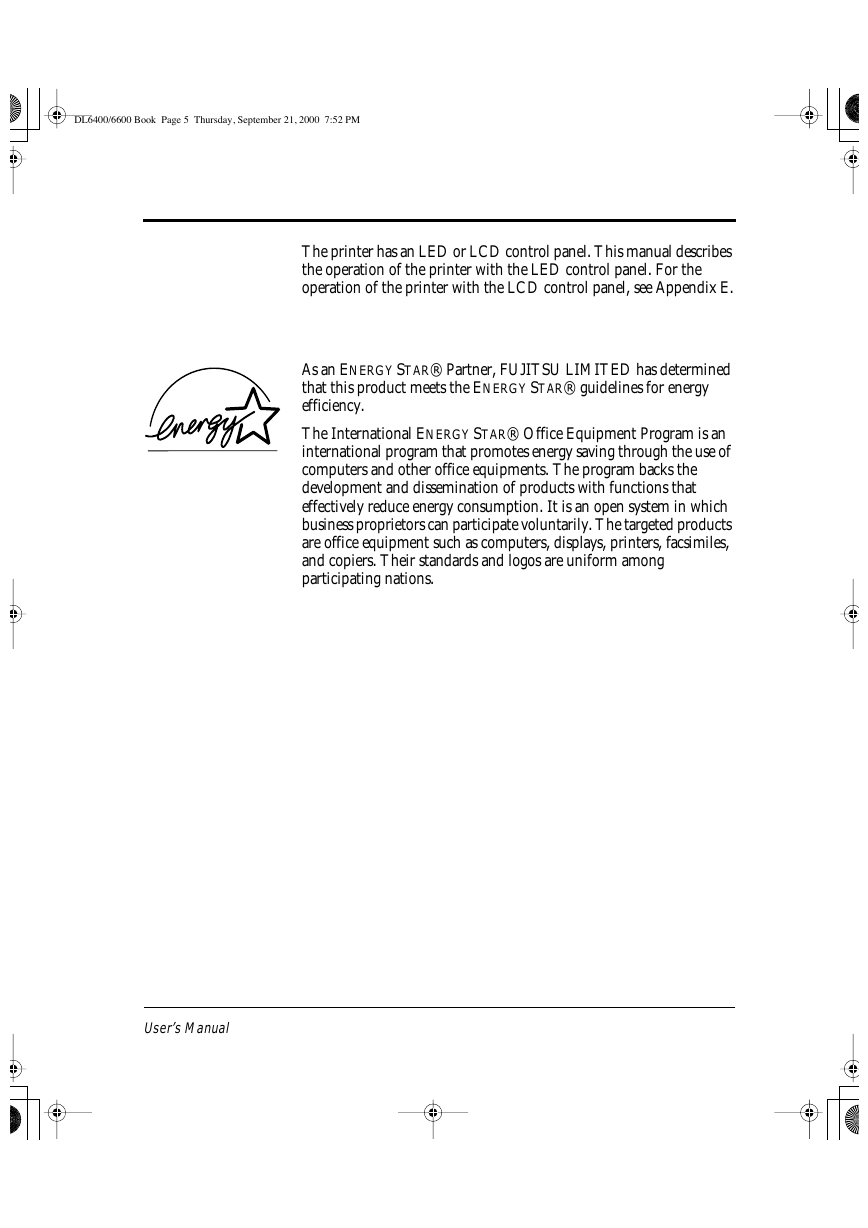

DL6400/6600 Book Page 5 Thursday, September 21, 2000 7:52 PM The printer has an LED or LCD control panel. This manual describes the operation of the printer with the LED control panel. For the operation of the printer with the LCD control panel, see Appendix E. S ® Partner, FUJITSU LIMITED has determined TAR NERGY As an E that this product meets the E efficiency. NERGY S TAR ® guidelines for energy S TAR NERGY The International E ® Office Equipment Program is an international program that promotes energy saving through the use of computers and other office equipments. The program backs the development and dissemination of products with functions that effectively reduce energy consumption. It is an open system in which business proprietors can participate voluntarily. The targeted products are office equipment such as computers, displays, printers, facsimiles, and copiers. Their standards and logos are uniform among participating nations. User’s Manual

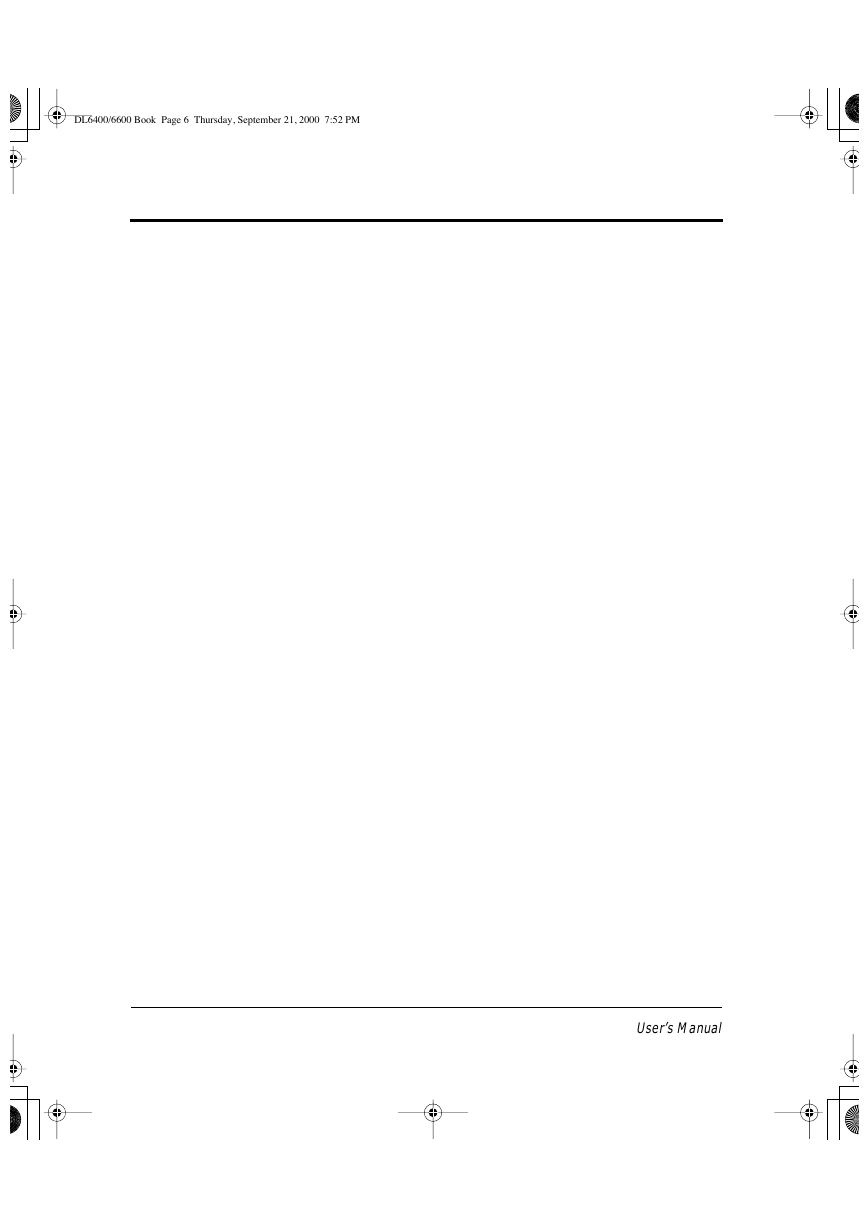

DL6400/6600 Book Page 6 Thursday, September 21, 2000 7:52 PM User’s Manual

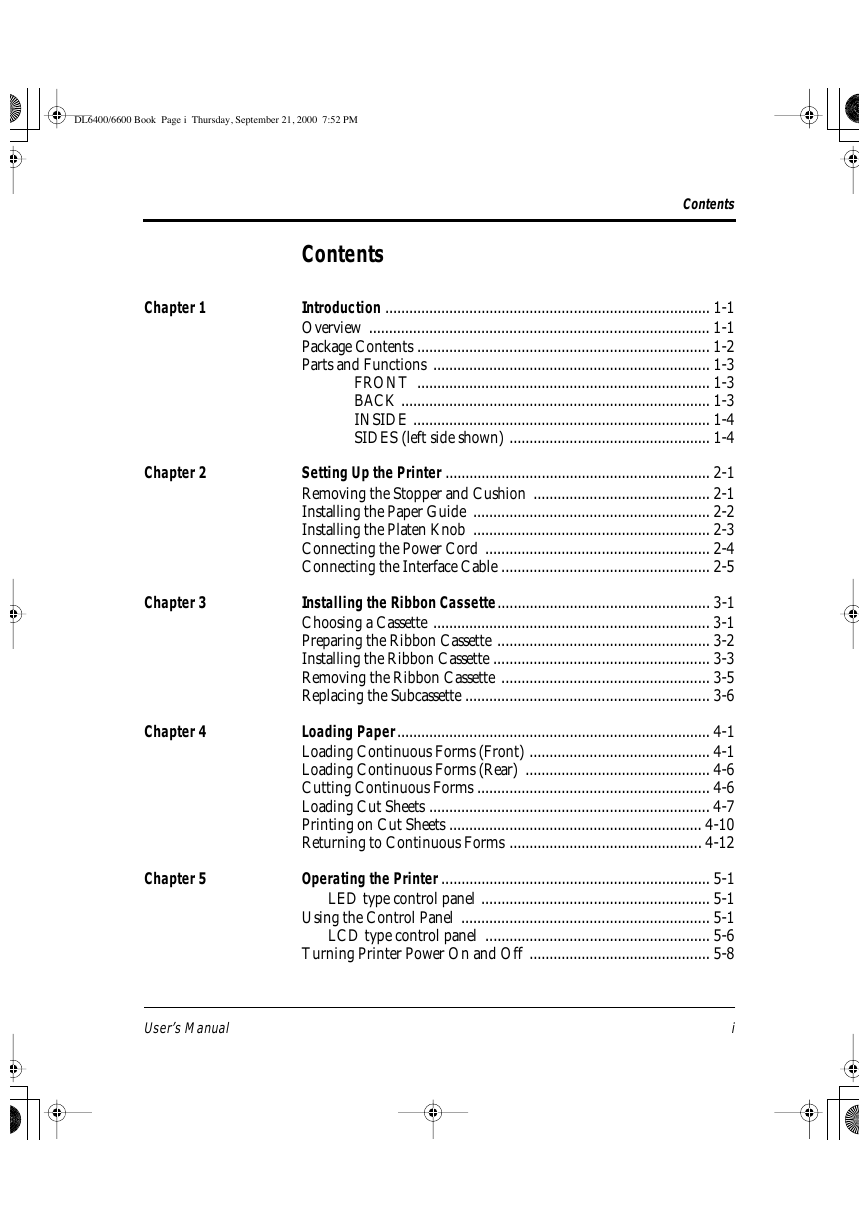

DL6400/6600 Book Page i Thursday, September 21, 2000 7:52 PM Chapter 1 Chapter 2 Chapter 3 Chapter 4 Chapter 5 Contents Contents Introduction ................................................................................. 1-1 Overview ..................................................................................... 1-1 Package Contents ......................................................................... 1-2 Parts and Functions ..................................................................... 1-3 FRONT ......................................................................... 1-3 BACK ............................................................................. 1-3 INSIDE .......................................................................... 1-4 SIDES (left side shown) .................................................. 1-4 Setting Up the Printer .................................................................. 2-1 Removing the Stopper and Cushion ............................................ 2-1 Installing the Paper Guide ........................................................... 2-2 Installing the Platen Knob ........................................................... 2-3 Connecting the Power Cord ........................................................ 2-4 Connecting the Interface Cable .................................................... 2-5 Installing the Ribbon Cassette ..................................................... 3-1 Choosing a Cassette ..................................................................... 3-1 Preparing the Ribbon Cassette ..................................................... 3-2 Installing the Ribbon Cassette ...................................................... 3-3 Removing the Ribbon Cassette .................................................... 3-5 Replacing the Subcassette ............................................................. 3-6 Loading Paper .............................................................................. 4-1 Loading Continuous Forms (Front) ............................................. 4-1 Loading Continuous Forms (Rear) .............................................. 4-6 Cutting Continuous Forms .......................................................... 4-6 Loading Cut Sheets ...................................................................... 4-7 Printing on Cut Sheets ............................................................... 4-10 Returning to Continuous Forms ................................................ 4-12 Operating the Printer ................................................................... 5-1 LED type control panel ......................................................... 5-1 Using the Control Panel .............................................................. 5-1 LCD type control panel ........................................................ 5-6 Turning Printer Power On and Off ............................................. 5-8 User’s Manual i
