O W N E R ' S I N S T R U C T I O N S Europe Only Correct Disposal of This Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. BP68-00430C-00 Owner's Instructions SP-H800

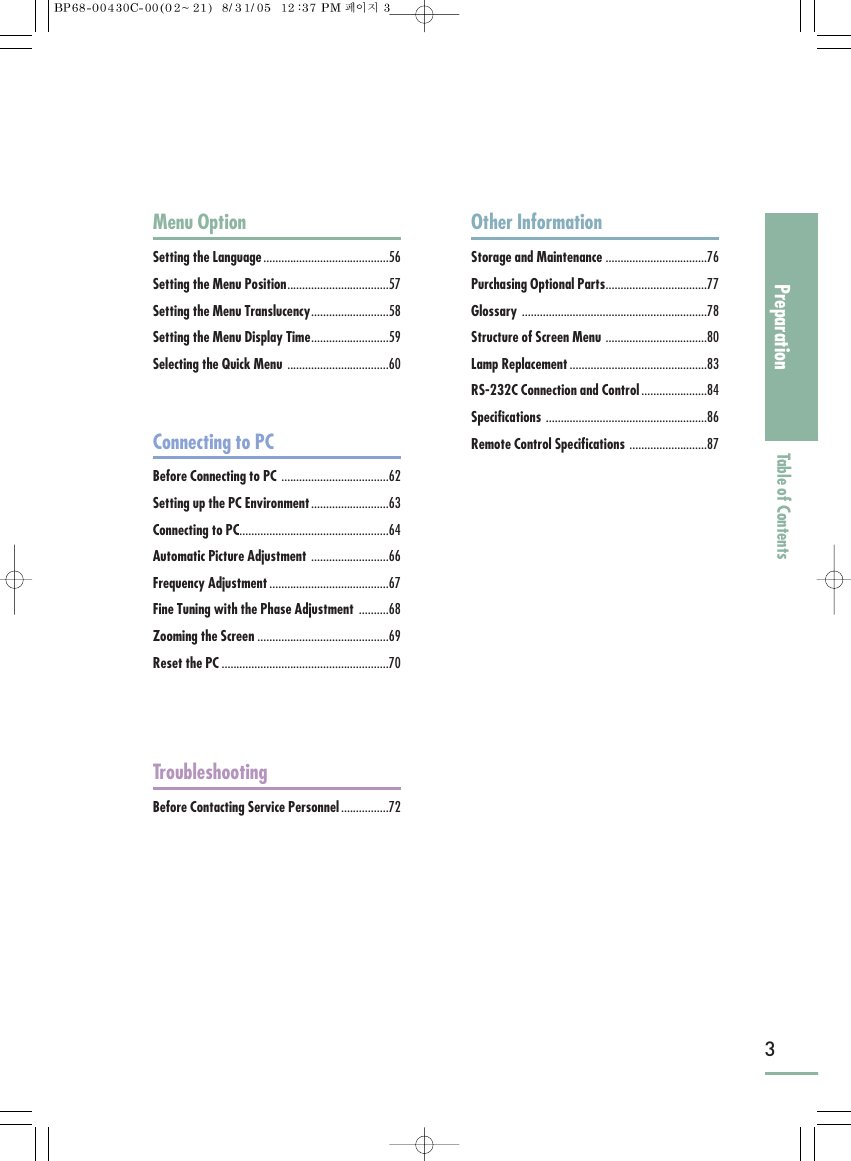

Table of Contents Preparation Features and Design..............................................4 Caution on Lamp Use and Replacement..............5 Projector and Accessories Front/Upper Side and Accessories ........................8 Rear Side and Cables ........................................10 Remote Control Buttons ....................................11 Operating the Remote Control............................12 Installation and Basic Adjustments Installation ......................................................14 Turning ON/OFF ..............................................15 Zooming and Focus Adjustment..........................16 Leveling with Adjustable Feet ............................17 Using the Lens Shift Dial....................................18 Screen Size and Projection Distance....................19 Connections and Source Setup Before Connections ............................................22 Connecting to Video Equipment Connecting to VCR/Camcorder/Cable Box ..........23 Connecting to DVD ............................................24 Connecting to the Digital TV Receiver..................25 Setting up the External Input Source ................26 Naming the External Connections ....................27 Picture Adjustment Selecting Picture Mode ......................................30 Custom Settings of the Picture ..........................31 Changing the Color Standard ............................32 Selecting and Adjusting Color Temperature ....33 Gamma Correction ..............................................34 Saving Custom Picture Settings ........................35 Setting up DNle ..................................................36 Selecting Picture Size..........................................37 Screen Position Adjustment ..............................39 Selecting Noise Reduction ..................................40 Color Control........................................................41 Film Mode ............................................................42 Overscan ..............................................................43 Setting the Black Level ......................................44 Still Picture ..........................................................45 Setup Flipping/Reversing the Projected Image ........48 Light Setting ........................................................49 Correcting Vertical Keystone ............................50 Test Patterns ......................................................51 Restoring the Factory Default Settings............52 Information ..........................................................53 Setting the LED ....................................................54 P r e p a r a t i o n T a b l e o f C o n t e n t s 2

Menu Option Other Information Storage and Maintenance ..................................76 Purchasing Optional Parts..................................77 Glossary ..............................................................78 Structure of Screen Menu ..................................80 Lamp Replacement ..............................................83 RS-232C Connection and Control ......................84 Specifications ......................................................86 Remote Control Specifications ..........................87 Setting the Language..........................................56 Setting the Menu Position..................................57 Setting the Menu Translucency..........................58 Setting the Menu Display Time..........................59 Selecting the Quick Menu ..................................60 Connecting to PC Before Connecting to PC ....................................62 Setting up the PC Environment..........................63 Connecting to PC..................................................64 Automatic Picture Adjustment ..........................66 Frequency Adjustment ........................................67 Fine Tuning with the Phase Adjustment ..........68 Zooming the Screen ............................................69 Reset the PC ........................................................70 Troubleshooting Before Contacting Service Personnel ................72 P r e p a r a t i o n T a b l e o f C o n t e n t s 3

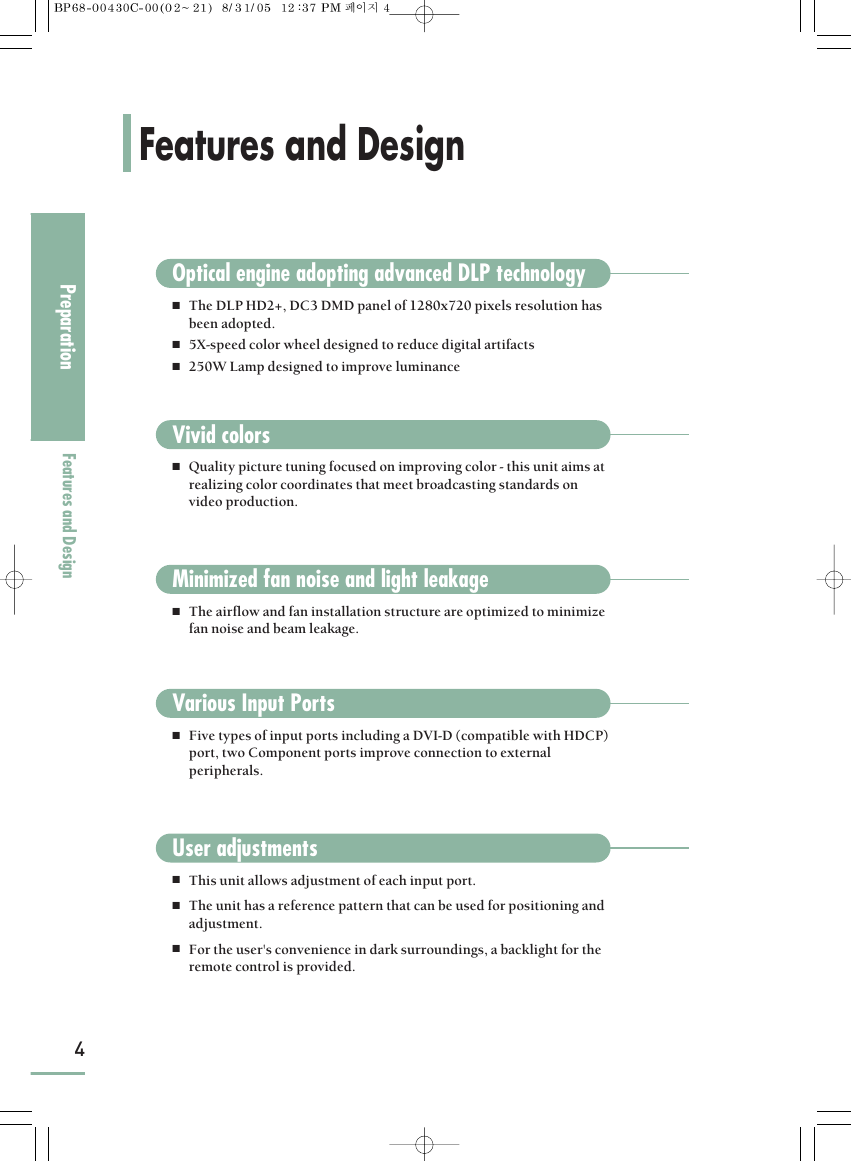

Features and Design Optical engine adopting advanced DLP technology ■ The DLP HD2+, DC3 DMD panel of 1280x720 pixels resolution has been adopted. ■ 5X-speed color wheel designed to reduce digital artifacts ■ 250W Lamp designed to improve luminance Vivid colors ■ Quality picture tuning focused on improving color - this unit aims at realizing color coordinates that meet broadcasting standards on video production. Minimized fan noise and light leakage ■ The airflow and fan installation structure are optimized to minimize fan noise and beam leakage. Various Input Ports ■ Five types of input ports including a DVI-D (compatible with HDCP) port, two Component ports improve connection to external peripherals. User adjustments ■ This unit allows adjustment of each input port. ■ The unit has a reference pattern that can be used for positioning and adjustment. ■ For the user's convenience in dark surroundings, a backlight for the remote control is provided. P r e p a r a t i o n F e a t u r e s a n d D e s i g n 4

Caution on Lamp Use and Replacement Projector Lamp ■ The projector lamp is an expendable whose life time and performance is determined by the operating conditions such as the usage time and environment. The lamp needs to be replaced periodically before the life time ends so as to prevent a sudden degradation of performance or malfunction. ■ Free servicing will be offered within 90 days after purchasing of the product and within 300 hours of product use, if the problem is due to a defective lamp. ■ You can check the lamp use time by pressing the INFO button on the remote control. Caution on Lamp Replacement ■ Unplug the power cord before replacing the lamp. ■ Inside of the projector is very hot. Cool off the projector for at least an hour after turning off. ■ Contact your dealer to purchase a lamp for replacement. (Ultra violets from the lamp can damage your eyes.) ■ Turn off the power of the lamp before replacement or repair. (Due to the high-pressure of the lamp, it is possible to explode.) ■ Take care when handling the lamp because any broken pieces of glass may harm you if the lamp breaks. For more detailed information about the procedures to use, refer to on page 83. Caution on Lamp Use ■ This projector produces intense light. Do not stare light source directly. Take Care: The ultraviolet ray from the lamp may harm your eyesight. ■ Do not touch the exhaust vent during operation. It can be very hot. ■ Do not expose the unit to rain or moisture. P r e p a r a t i o n C a u t i o n o n L a m p U s e a n d R e p a c e m e n t l 5

V I S U A L R E A L I S M Preparation Projector and Accessories ............................8 Installation and Basic Adjustments ..........14

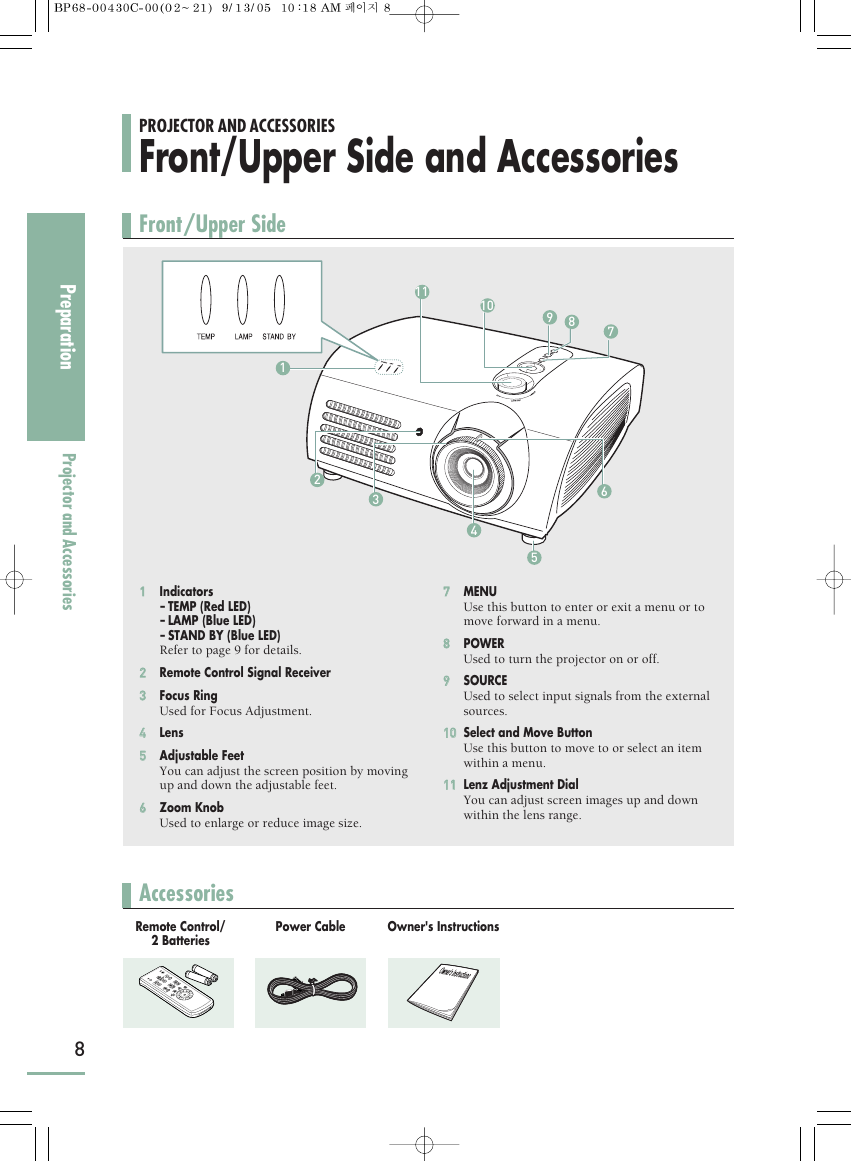

PROJECTOR AND ACCESSORIES Front/Upper Side and Accessories Front/Upper Side 11 10 9 8 7 1 2 3 6 11 Indicators - TEMP (Red LED) - LAMP (Blue LED) - STAND BY (Blue LED) Refer to page 9 for details. 22 Remote Control Signal Receiver 33 Focus Ring Used for Focus Adjustment. 44 Lens 55 Adjustable Feet You can adjust the screen position by moving up and down the adjustable feet. 66 Zoom Knob Used to enlarge or reduce image size. 4 5 77 MENU Use this button to enter or exit a menu or to move forward in a menu. 88 POWER Used to turn the projector on or off. 99 SOURCE Used to select input signals from the external sources. 1100 Select and Move Button Use this button to move to or select an item within a menu. 1111 Lenz Adjustment Dial You can adjust screen images up and down within the lens range. Accessories Remote Control/ 2 Batteries Power Cable Owner's Instructions P r e p a r a t i o n P r o j e c t o r a n d A c c e s s o r i e s 8
