Magellan RoadMate Receiver
Fundamentals
1. Press the Power button.
2. After the initial splash screen the Warnings screen is displayed. Read and tap .
1. Press the Power button.
1. While viewing the Map screen, tap on the Menu button.
2. The battery level indicator is located in the upper right corner of the Menu screen, just below the satellite signal indicator. Green bars indicate battery level.
1. While viewing the Map screen, tap on the Menu button.
2. The GPS status indicator is located in the upper right corner of the Menu screen. Four green bars would indicate optimum satellite signal reception.
1. Tap the speaker icon . Additional controls appear.
2. Tap the Mute button to mute the volume, or tap the '+' or '-' buttons to raise or lower the volume.
3. Tap .
1. Access the Main Menu.
2. Tap the Settings icon .
3. Tap Sound.
4. Tap inside the Master volume adjust bar to change the volume level of the Magellan RoadMate receiver.
5. Tap to save and exit.
1. Access the Main Menu.
2. Tap the Settings icon .
3. Tap Sound.
4. Tap the check box for Button Sounds. Check to have button sounds played, unchecked to turn them off.
5. Tap to save and exit.
1. Access the Main Menu.
2. Tap the Settings icon .
3. Tap Brightness.
4. Tap inside the brightness adjust bar to set the desired brightness.
5. Tap to save and exit.
1. From the Map screen tap Menu.
1. Access the Main Menu.
2. Tap the Settings icon .
3. Tap Keyboard.
4. Select QWERTY or ABC.
Installation Instructions
Map Screen
1. On the Main Menu screen, tap the Back arrow.
1. From the Map screen, tap anywhere on the map. Additional controls appear.
2. Tap 2D to switch the map to 2D mode from 3D mode, or tap 3D to switch the map to 3D mode from 2D mode.
1. Tap the '+' or '-' zoom level buttons at the bottom of the display to set the desired zoom level.
1. While viewing the Map screen, slide your finger or a stylus across the map.
2. The map screen changes to Pan mode.
3. When finished, tap and the map returns to your current position.
1. Pan the map until the location you wish to route to is displayed.
2. Tap on the map at the point you want to go to. A red push pin will be displayed along with information about the point chosen at the top of the screen.
3. Tap the button in the top left corner.
4. If an active route already exists, first you need to define what to do with this new route point:
5. Tap the large GO button on the right to return to the Map screen and begin navigating.
1. From the Map screen tap on the current position icon .
1. From the Map screen tap on the current position icon .
2. Tap Save.
3. (optional) If you want to save this location to the OneTouch menu, select Add to OneTouch.
4. Edit information:
5. When the details for this address are acceptable, tap . (Note: entering a Name is required before saving the Address Book entry.)
6. If you have selected to save this point to the OneTouch menu, you need to select a button for the entry.
1. When actively following a route, tap the maneuver icon in the top left corner of the Map screen.
1. Access the Maneuver List.
2. Tap the Avoid icon for the maneuver you want to avoid.
3. Tap Yes to confirm.
4. The Magellan RoadMate receiver recalculates the route and the Map screen returns.
1. Tap the speaker icon . Additional controls appear.
2. Tap on the Mute button to mute the volume, or tap the '+' or '-' icons to change the volume levels.
3. Tap .
Creating a Destination
1. From the Main Menu tap the Address icon.
2. Enter City:
3. Enter Street name:
4. Enter Street number:
5. The GO screen appears with the address of the selected location, the estimated time of arrival (ETA), the distance to travel, and the routing method (e.g. Fastest Time).
6. (optional) Tap Options if you want to change the routing method.
7. Tap the large GO button on the right to return to the Map screen and begin routing.
1. From the Main Menu, tap the Intersection icon.
2. Enter City:
3. Enter Street name:
4. Enter the second street:
5. A screen appears with the address of the selected location, the estimated time of arrival (ETA), the distance to travel, and the routing method (e.g. Fastest Time).
6. (optional) Tap Options if you want to change the routing method.
7. Tap the large GO button on the right to return to the Map screen and begin routing.
1. From the Main Menu, tap the City Center icon.
2. Enter City:
3. A screen appears with the address of the selected location, the estimated time of arrival (ETA), the distance to travel, and the routing method (e.g. Fastest Time).
4. (optional) Tap Options if you want to change the routing method.
5. Tap the large GO button on the right to return to the Map screen and start navigating.
1. From the Main Menu, tap the Previous icon.
2. Select the destination from the list of previous destinations.
3. A screen appears with the address of the selected location, the estimated time of arrival (ETA), the distance to travel, and the routing method (e.g. Fastest).
4. (optional) Tap Options if you want to change the routing method.
5. Tap the large GO button on the right to return to the Map screen and start navigating
1. Access the list of Previous Destinations as described above.
2. Select the desired location from the list of previous destinations.
3. On the Go screen, tap Save.
4. The Edit Information screen is displayed. If you want to save this location to the OneTouch menu, select Add to OneTouch.
5. Edit information:
6. When the details for this address are acceptable, tap the .
7. If you have selected to save this to the OneTouch menu, you be asked to select a the OneTouch button you want it assigned too.
1. Access the list of Previous Destinations as described above.
2. Tap Delete All to clear the list.
3. To confirm the deletion, tap Yes.
1. From the Main Menu, tap the Address Book icon.
1. Access the address record from your address book as described above.
2. Tap the GO icon of the desired address book entry. A screen appears with the address of the selected location, the estimated time of arrival (ETA), the distance to travel, and the routing method (e.g. Fast).
3. (optional) Tap Options if you want to change the routing method.
4. Tap the large GO button on the right to return to the Map screen and start navigating.
1. From the Main Menu, tap the Address icon, and enter an address as described in “Entering an Address”.
2. When the screen appears with the address of the selected location, the estimated time of arrival (ETA), the distance to travel, and the routing method (e.g. Fast), tap Save.
3. Edit information:
4. When the details for this address are acceptable, tap the .
5. If you have selected to save this to the OneTouch menu, you asked to select a the OneTouch button you want it assigned too.
1. From the Main Menu, tap the POI icon, and search for a POI as described in “Creating a Route to a POI by Category/Name.”
2. When the list of POIs appear, tap on the desired POI, and tap Save from the Route Method display.
3. Edit information:
4. When the details for this address are acceptable, tap the .
5. If you have selected to save this to the OneTouch menu, you asked to select a the OneTouch button you want it assigned too.
OneTouch Menu
1. Tap the button in the top right corner of the Map screen. The OneTouch menu appears.
2. Tap one of the Assign icons.
3. Tap Location.
4. Using the keypad, enter the address (city, street and number) for the OneTouch icon.
5. When the address is complete you are prompted to enter a name for the button.
6. Using the keypad, enter a name for the button and tap .
7. Verify that the address has been added by going to the Map screen and accessing the OneTouch menu.
1. Tap the button in the top right corner of the Map screen. The OneTouch menu appears.
2. Tap the Edit button.
3. Tap on the OneTouch button you want to edit.
4. Tap on the Re-assign button.
5. Tap Yes to confirm.
6. Follow the instructions for assigning a OneTouch button.
1. Tap the button in the top right corner of the Map screen.
2. Tap one of the Assign buttons.
3. Tap Search.
4. Tap one of the POI categories in the list.
5. If the next screen contains a list of subcategories, tap one of the POI subcategories in the list to further narrow the search, or tap “Any xxx” to see the list of all nearby POIs from the selected main POI category.
6. Repeat selecting subcategories until the list of POIs appear. (The list of POIs are shown with the closest POI to your current position on top.)
7. Tap Save.
8. Using the keypad, enter a name for the button and tap .
1. Tap the button in the top right corner of the Map screen.
2. Tap one of the assigned OneTouch buttons.
3. If the assigned button is for a search, the list of POIs is displayed. Tap on the desired POI. The “Preview” icon at the bottom of the display allows you to step through the available POIs while viewing their location on the map. The “Near.....
4. Whether the destination was chosen from a list of POIs or by an address, the GO screen is displayed (unless you are already on a route -- see below). Tap on the Go button to begin the route.
Points of Interest (POI)
1. From the Main Menu, tap the Points of Interest icon.
2. Tap one of the POI categories in the list.
3. If the next screen contains a list of subcategories, tap one of the POI subcategories in the list to further narrow the search.
4. POIs near your current position are displayed. You can tap “Near...” for different search criteria (Near Current Position, Near City, or Near Address).
5. If you select Near City or Near Address you will need to enter the city or address information.
6. Select the POI desired from the list of POIs.
7. The ‘Go’ screen appears with the address of the selected location, the estimated time of arrival (ETA), the distance to travel, and the routing method (e.g. Fastest Time).
8. (optional) Tap Options if you want to change the routing method. You can select from Fastest Time, Shortest Distance, Mostly Freeways or Least Use of Freeways.
9. Tap the large Go button on the right to return to the Map screen and begin navigating to the POI selected.
1. From the Main Menu, tap the Points of Interest icon.
2. Tap the Search By Name button.
3. Spell the name of the POI to be used as the destination. You don’t need to enter the full name, but the more characters you enter, the easier it will be to find the exact POI you are searching for. Tap .
4. POIs near your current position are displayed. You can tap “Near” for different search criteria (Near Current Position, Near City, or Near Address).
5. If you select Near City or Near Address you will need to enter the city or address information.
6. Select the POI desired from the list of POIs.
7. The ‘Go’ screen appears with the address of the selected location, the estimated time of arrival (ETA), the distance to travel, and the routing method (e.g. Fast).
8. (optional) Tap Options if you want to change the routing method.
9. Tap the large Go button on the right to return to the Map screen and start navigating.
1. From the Map screen, tap the Highway Exit POIs button when it appears.
2. The list of the next freeway exits and their distance from your current position appear.
3. Small symbols represent the following service POIs near the exits:
4. Tap any of the symbols to get a list of related POIs near the exit.
5. Select one POI from the list, and tap .
6. The ‘Go’ screen appears with the address of the selected POI, the estimated time of arrival (ETA), the distance to travel, and the routing method.
7. (optional) Tap Options if you want to change the routing method.
8. Tap the Go button on the right to return to the Map screen and begin routing to the POI selected.
Home Address
1. Tap the button in the top right corner of the Map screen. The OneTouch menu appears.
2. Tap the Home button.
3. Tap Yes to confirm that you want to enter your home address. (Tap ‘Use My Current Location’ if you want to store your home address using the GPS location.)
4. Using the keyboard, enter the desired address (city, street and number).
1. Tap the button in the top right corner. The OneTouch menu appears.
2. Tap Edit to enter editing mode.
3. Tap the Home button.
4. Tap the Re-assign button.
5. Tap Yes to confirm that you want to enter your home address.
6. Using the keyboard, enter the desired address (city, street and number).
1. Tap the button in the top right corner. The OneTouch menu appears.
2. Tap the Home button.
3. The display is returned to the Map screen and instructions for travelling to your home address are supplied. (Note when you are on a route, creating a route to your home replaces the route automatically.)
Traveling on a Route
1. To change the routing method, tap Options when the ‘Go’ screen is displayed. The Magellan RoadMate calculates the route with different methods.
2. Tap on the icon to view the maneuver list for the route method desired.
3. Tap the desired routing method in the list, and the previous screen returns with the new calculation.
1. From the Main Menu, tap the Settings icon.
2. Tap Navigation Preferences.
3. Use the Route Method drop-down menu to select the default routing method desired.
1. From the Map screen, tap Menu.
2. On the Main Menu, tap the cancel route icon.
3. Confirm that you want to cancel the route. Tap Yes.
1. Tap the OneTouch icon from the Map screen to display the OneTouch menu.
2. Tap the cancel route icon.
3. Confirm that you want to cancel the route. Tap Yes.
1. From the Map screen, tap Menu.
2. Tap the Detour icon.
3. Different detours are calculated using the same routing method that was used to create the route. The list of alternate routes is displayed.
4. (optional) You can check the Maneuver List of an alternate route if you tap the button on the right.
5. Tap the desired alternate route.
1. Tap Detour.
2. Different detours are calculated using the same routing method that was used to create the route. The list of alternate routes is displayed.
3. (optional) You can check the Maneuver List of an alternate route if you tap the button on the right.
4. Tap the desired alternate route.
Multi Destination Routes
1. From the Main Menu, tap the Itinerary icon.
2. Tap Multiple Stop Trip.
3. Tap + Add.
4. Tap Address, POI, Previous, Address Book, Intersection, or City Center.
5. Select a new destination as described earlier.
6. If a route already exists, a new screen is displayed with Add Destination options (Replace Destination, Go There Now, or Add to Trip).
7. The Multiple Destination List is displayed.
8. Tap on one of the addresses to move it up or down in the list.
9. Tap Optimize to optimize the route.
10. Tap + Add to put another destination in the route.
11. When done, tap .
12. A screen appears with the address of the next destination in the trip, the estimated time of arrival (ETA), the distance to travel, and the routing method (e.g. Fast).
13. (optional) Tap Options if you want to change the routing method.
14. Tap the large GO button on the right to return to the Map screen and start navigating.
1. From the Map screen, tap Menu.
2. Tap Address Book icon.
3. Select the Trip from the list.
4. Tap on the direction list on the screen.
5. Tap on one of the addresses to move it up or down in the list.
6. Tap Optimize to optimize the route.
7. Tap Add to put another destination in the route.
8. When done, tap .
9. A screen appears with the address of the next destination in the trip, the estimated time of arrival (ETA), the distance to travel, and the routing method (e.g. Fastest).
10. (optional) Tap Options if you want to change the routing method or the vehicle type.
11. Tap the large GO button on the right to return to the Map screen and start navigating.
Bluetooth
1. From the Map screen, tap the Bluetooth icon .
2. Tap the Settings icon.
3. Tap Pair Phone Now.
4. Enable Bluetooth on your phone. (See instructions supplied with your phone for any questions.)
5. On your phone, begin the searching for Bluetooth device function.
6. Select Magellan RoadMate from the list of devices found.
7. The Bluetooth phone will begin communicating with the Magellan RoadMate. When prompted, enter ‘1234’ as the passcode on your phone.
8. Your phone may ask to connect to the Magellan RoadMate. (If not, refer to your phone manual for connecting to a Bluetooth device.)
9. When connected, the Magellan RoadMate will ask if you want to accept the connection. Tap Yes.
10. Wait while the communication is established.
11. You may now import contacts from your phone. Tap Yes to begin importing. (If you choose not to import your contacts now you can do so later from the Bluetooth Settings menu.)
12. You may need to confirm on your phone to accept connection from the Magellan RoadMate.
13. When the contacts have been successfully imported a confirmation screen is displayed.
14. The Bluetooth Settings screen is displayed.
1. From the Map screen, tap the Bluetooth icon .
2. Tap the Settings icon.
1. Access the Bluetooth Settings screen.
1. Check Enable Bluetooth to turn Bluetooth on; uncheck to turn Bluetooth off.
1. Access the Bluetooth Settings screen.
2. Check Auto Connect to set the Magellan RoadMate receiver to auto connect to your paired Bluetooth phone when it is in range; unchecked turns off auto connect.
1. Access the Bluetooth Settings screen.
2. Check Audible Maneuver Warning to turn it on; uncheck to turn it off. (When Audible Maneuver Warning is enabled you will hear a beep when a maneuver is needed and you are in the middle of a phone conversation.)
1. Access the Bluetooth Settings screen.
2. Tap Pair Phone Now.
3. Follow the instructions above for pairing a phone.
1. Access the Bluetooth Settings screen.
2. Tap Import Contacts to begin importing contacts from your Bluetooth phone.
1. From the Map screen, tap the Bluetooth icon .
2. Tap Call Home.
3. If your home phone number has not been set, a screen asking you if you want to enter your home phone number is displayed. Tap Yes. Enter your home phone number using the keypad. You will need to select Call Home again from the Phone menu.
4. If your home phone number is set, the Magellan RoadMate will initiate the call to the number stored.
1. From the Map screen, tap the Bluetooth icon .
2. If there is a phone number that can be redialed it will appear in the second button (marked Redial).
3. Tap the Redial button.
4. The Magellan RoadMate will begin calling the number.
1. From the Map screen, tap the Bluetooth icon .
2. Tap Dial Pad.
3. Using the keypad, enter the number you want to call.
4. Tap the green call button.
5. The Magellan RoadMate will begin calling the number.
1. From the Map screen, tap the Bluetooth icon .
2. Tap Address Book.
3. Tap the Phone button at the top of the screen.
4. All the addresses in your address book are displayed with the phone icon displayed at the right for those addresses with phone number information.
5. Tap the dial icon on the right to begin placing the call. (The dial icon displayed will indicate if it’s a work, home or cell phone number.)
6. The Magellan RoadMate will begin calling the number.
1. From the Map screen, tap the Bluetooth icon .
2. Tap Speed Dial.
3. Tap an Assign button.
4. Enter the phone number or tap the Address Book button to select a phone number from your Address Book.
5. When the phone number is displayed at the top of the screen, tap the green checkmark.
1. From the Map screen, tap the Bluetooth icon .
2. Tap Speed Dial.
3. Tap the button with the phone number you want to call.
4. The Magellan RoadMate will begin calling the number.
1. When your phone gets an incoming call, the Magellan RoadMate displays an Answer Phone screen. Tap the green button to answer the call or the red button to end the call.
1. Tap the Volume button.
2. Tap on the volume (top) slider to adjust the volume.
3. Tap on the microphone gain (bottom) slider to adjust the microphone gain.
Traffic
1. Tap on the red traffic icon while traveling on a route. A list of traffic incidents, slow traffic and stopped traffic along your route are displayed.
2. Tap on the checkbox to the left of the traffic delay you want to avoid.
3. Tap Avoid.
4. A comparison list of the time for the current route as well as the newly computed route are displayed. Tap on Current or New to select which route you wish to use.
5. The Map screen is displayed and routing instructions are provided for the route you selected.
Vehicle Profile
1. From the Map screen tap Menu.
2. Tap the Vehicle Profile icon.
3. You can choose not to use the Vehicle Profile by unchecking the box on the Vehicle Profile screen.
1. Access the Vehicle Profile screen.
2. Tap the Height button.
3. Enter your vehicle height in inches.
1. Access the Vehicle Profile screen.
2. Tap the Width button.
3. Enter your vehicle width in inches.
1. Access the Vehicle Profile screen.
2. Tap the Weight button.
3. Enter your vehicle weight in pounds.
1. Access the Vehicle Profile screen.
2. Tap the Total Length button.
3. Enter your vehicle total length in inches.
1. Access the Vehicle Profile screen.
2. Tap the Vehicle Type button.
3. Select from available choices.
1. Access the Vehicle Profile screen.
2. Tap the Hazmat Type button.
3. Select from available choices (if applicable).
Settings
1. From the Main Menu screen, tap the Settings icon.
2. Tap Sound.
3. Sound levels can be set for the navigation or the phone independently or together by using the “Master” slider.
4. Smart Volume adjusts the sound levels based on road noises.
1. Access the System Settings menu (above).
2. Tap Languages.
3. Tap on the desired language.
4. Confirm the change.
5. Tap the back arrow .
1. Access the System Settings menu (above).
2. Tap Auto-Off.
3. Tap on the desired duration.
4. Tap the back arrow .
1. Access the System Settings menu (above).
2. Tap Brightness.
3. Tap in the brightness slider to set the brightness of the display for either day or night use.
4. Tap the back arrow .
1. Access the System Settings menu (above).
2. Tap Time Format.
3. Tap on 24 Hours or 12 hours with am/pm.
4. Tap the back arrow .
1. Access the System Settings menu (above).
2. Tap Time Zone.
3. Check Auto Time Zone or select your time zone from one of the cities in the list.
4. Tap the back arrow .
1. Access the System Settings menu (above).
2. Tap Units.
3. Tap on the desired unit of measure.
4. Tap the back arrow .
1. From the Main Menu screen, tap the Settings icon.
2. Tap Map.
3. Tap Night Mode to select Automatic for the timed adjustment, on always or off always.
1. From the Main Menu screen, tap the Settings icon.
2. Tap Map.
3. Tap 3D, 2D Heading Up or 2D North Up to toggle between settings.
1. From the Main Menu screen, tap Settings.
2. Tap Map.
3. Tap POI Visibility.
4. Use the POI Selection screen to check those POIs you want shown and uncheck those you want hidden.
1. From the Main Menu screen, tap the Settings icon.
2. Tap Map.
3. Checking Auto Zoom on Turns enables this function.
1. From the Main Menu screen, tap the Settings icon.
2. Tap Map.
3. Checking Highway Lane Assist enables this function.
1. From the Main Menu screen, tap the Settings icon.
2. Tap Sound.
3. Tap inside the volume slider bar to set the desired volume level.
1. From the Main Menu screen, tap the Settings icon.
2. Tap Sound.
3. Checking Mute will mute all sounds.
1. From the Main Menu screen, tap the Settings icon.
2. Tap Sound.
3. Unchecking Button Sounds will turn off the audible indication that a button is tapped.
1. From the Main Menu screen, tap the Settings icon.
2. Tap Navigation Preferences.
3. Use the drop-down menu to select the default routing method.
1. From the Main Menu screen, tap the Settings icon.
2. Tap Navigation Preferences.
3. Use the drop-down menu to select the default sound you want played when alerting you to a turn.
1. From the Main Menu screen, tap the Settings icon.
2. Tap Navigation Preferences.
3. Checking Enable U Turns will allow the receiver to use U turns when necessary to compute your route.
1. From the Main Menu screen, tap the Settings icon.
2. Tap Navigation Preferences.
3. Checking Avoid Toll Roads tells the receiver to avoid toll roads whenever possible.
1. From the Main Menu screen, tap the Settings icon.
2. Tap Keyboard.
3. Select QWERTY (default) or ABC keyboard layouts.
1. From the Main Menu screen, tap the Settings icon.
2. Tap Traffic.
3. Checking Enable Live Traffic allows the receiver to display received traffic information.
1. From the Main Menu screen, tap the Settings icon.
2. Tap Traffic.
3. Checking Automatic Traffic Popup allows the receiver to display popup traffic information.
1. From the Main Menu screen, tap the Settings icon.
2. Tap Traffic.
3. Checking Autdible Traffic Warnings allows the receiver to sound a beep when traffic warnings appear.
1. From the Main Menu screen, tap the Settings icon.
2. Tap GPS Options.
3. Tap Set GPS Position.
4. Enter an address as you were selecting a destination.
1. From the Main Menu screen, tap the Settings icon.
2. Tap GPS.
3. Tap Status.
1. From the Main Menu screen, tap the Settings icon.
2. Tap GPS.
3. Tap Set GPS Position.
1. From the Main Menu screen, tap the Settings icon.
2. Tap Product Information.
1. From the Main Menu screen, tap the Settings icon.
2. Tap Speed Warning.
3. Set Audible Warning on or off.
4. Set Visible Warning on or off.
5. The Visible checkbox determines if the speed limit icon is displayed on the screen.
6. Set the number of miles above the speed limit you want the warnings to be alerted.
1. From the Main Menu screen, tap the Settings icon.
2. Tap Region.
3. Select an available map that is installed in your receiver.

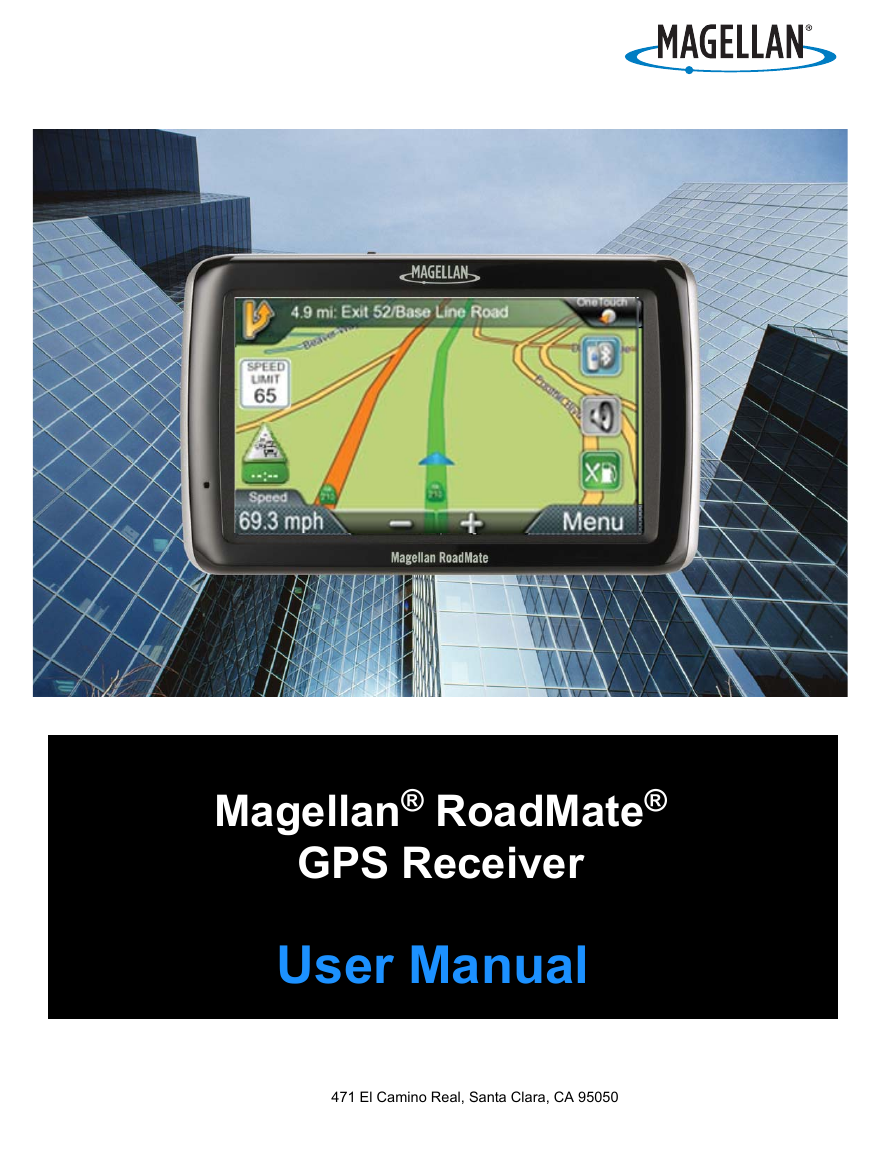

Magellan® RoadMate®
GPS Receiver
User Manual
471 El Camino Real, Santa Clara, CA 95050

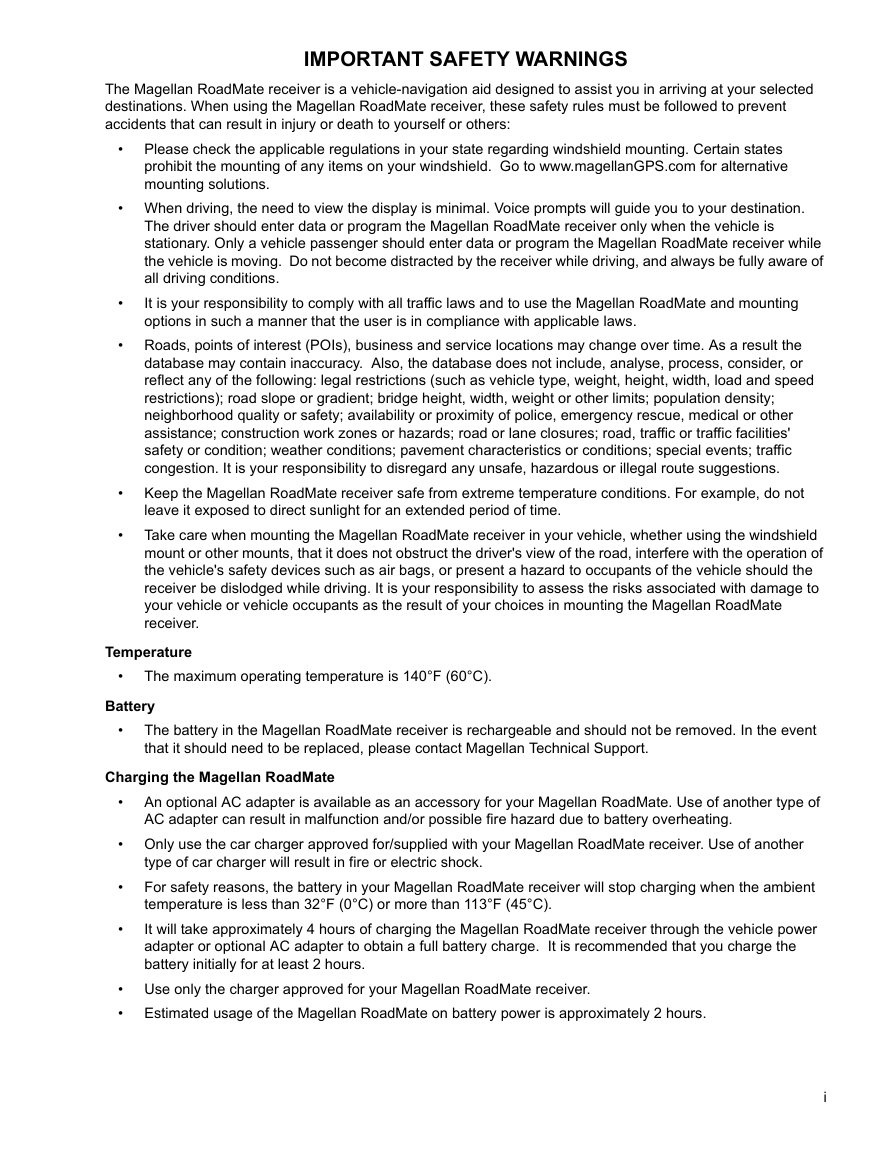

IMPORTANT SAFETY WARNINGS
The Magellan RoadMate receiver is a vehicle-navigation aid designed to assist you in arriving at your selected
destinations. When using the Magellan RoadMate receiver, these safety rules must be followed to prevent
accidents that can result in injury or death to yourself or others:
•
Please check the applicable regulations in your state regarding windshield mounting. Certain states
prohibit the mounting of any items on your windshield. Go to www.magellanGPS.com for alternative
mounting solutions.
•
•
•
• When driving, the need to view the display is minimal. Voice prompts will guide you to your destination.
The driver should enter data or program the Magellan RoadMate receiver only when the vehicle is
stationary. Only a vehicle passenger should enter data or program the Magellan RoadMate receiver while
the vehicle is moving. Do not become distracted by the receiver while driving, and always be fully aware of
all driving conditions.
It is your responsibility to comply with all traffic laws and to use the Magellan RoadMate and mounting
options in such a manner that the user is in compliance with applicable laws.
Roads, points of interest (POIs), business and service locations may change over time. As a result the
database may contain inaccuracy. Also, the database does not include, analyse, process, consider, or
reflect any of the following: legal restrictions (such as vehicle type, weight, height, width, load and speed
restrictions); road slope or gradient; bridge height, width, weight or other limits; population density;
neighborhood quality or safety; availability or proximity of police, emergency rescue, medical or other
assistance; construction work zones or hazards; road or lane closures; road, traffic or traffic facilities'
safety or condition; weather conditions; pavement characteristics or conditions; special events; traffic
congestion. It is your responsibility to disregard any unsafe, hazardous or illegal route suggestions.
Keep the Magellan RoadMate receiver safe from extreme temperature conditions. For example, do not
leave it exposed to direct sunlight for an extended period of time.
Take care when mounting the Magellan RoadMate receiver in your vehicle, whether using the windshield
mount or other mounts, that it does not obstruct the driver's view of the road, interfere with the operation of
the vehicle's safety devices such as air bags, or present a hazard to occupants of the vehicle should the
receiver be dislodged while driving. It is your responsibility to assess the risks associated with damage to
your vehicle or vehicle occupants as the result of your choices in mounting the Magellan RoadMate
receiver.
Temperature
•
•
The maximum operating temperature is 140°F (60°C).
Battery
•
The battery in the Magellan RoadMate receiver is rechargeable and should not be removed. In the event
that it should need to be replaced, please contact Magellan Technical Support.
Charging the Magellan RoadMate
•
An optional AC adapter is available as an accessory for your Magellan RoadMate. Use of another type of
AC adapter can result in malfunction and/or possible fire hazard due to battery overheating.
• Only use the car charger approved for/supplied with your Magellan RoadMate receiver. Use of another
type of car charger will result in fire or electric shock.
For safety reasons, the battery in your Magellan RoadMate receiver will stop charging when the ambient
temperature is less than 32°F (0°C) or more than 113°F (45°C).
It will take approximately 4 hours of charging the Magellan RoadMate receiver through the vehicle power
adapter or optional AC adapter to obtain a full battery charge. It is recommended that you charge the
battery initially for at least 2 hours.
Use only the charger approved for your Magellan RoadMate receiver.
Estimated usage of the Magellan RoadMate on battery power is approximately 2 hours.
•
•
•
•
i

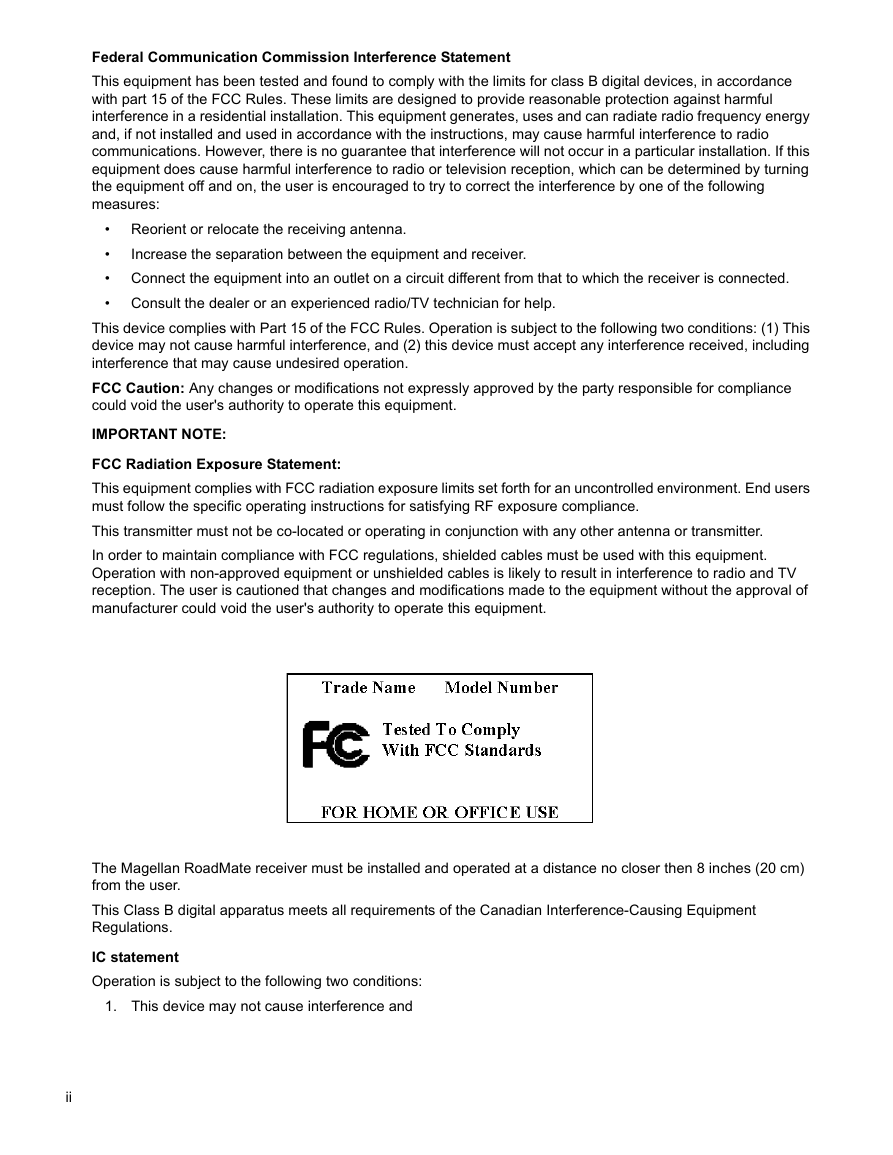

Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for class B digital devices, in accordance
with part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one of the following
measures:
•
•
•
•
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate this equipment.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users
must follow the specific operating instructions for satisfying RF exposure compliance.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
In order to maintain compliance with FCC regulations, shielded cables must be used with this equipment.
Operation with non-approved equipment or unshielded cables is likely to result in interference to radio and TV
reception. The user is cautioned that changes and modifications made to the equipment without the approval of
manufacturer could void the user's authority to operate this equipment.
The Magellan RoadMate receiver must be installed and operated at a distance no closer then 8 inches (20 cm)
from the user.
This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment
Regulations.
IC statement
Operation is subject to the following two conditions:
1. This device may not cause interference and
ii

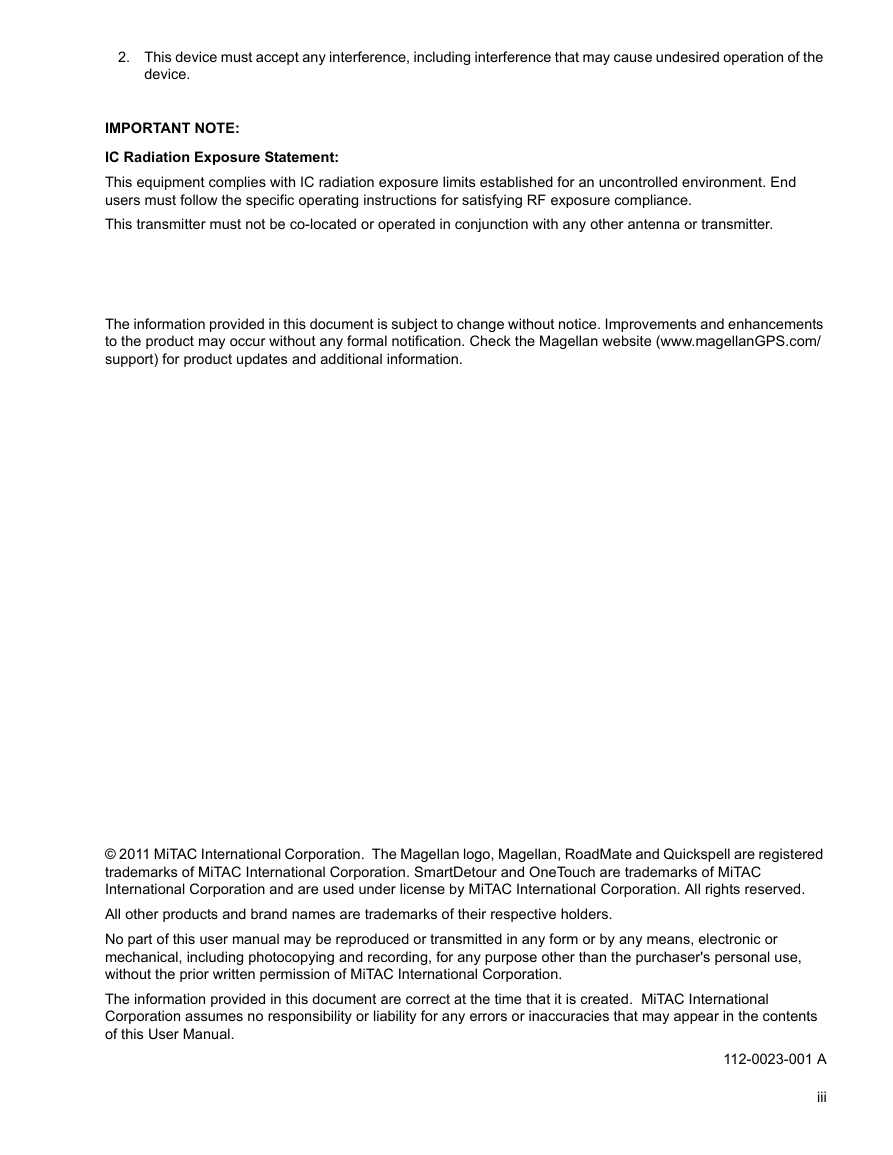

2. This device must accept any interference, including interference that may cause undesired operation of the
device.
IMPORTANT NOTE:
IC Radiation Exposure Statement:
This equipment complies with IC radiation exposure limits established for an uncontrolled environment. End
users must follow the specific operating instructions for satisfying RF exposure compliance.
This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter.
The information provided in this document is subject to change without notice. Improvements and enhancements
to the product may occur without any formal notification. Check the Magellan website (www.magellanGPS.com/
support) for product updates and additional information.
© 2011 MiTAC International Corporation. The Magellan logo, Magellan, RoadMate and Quickspell are registered
trademarks of MiTAC International Corporation. SmartDetour and OneTouch are trademarks of MiTAC
International Corporation and are used under license by MiTAC International Corporation. All rights reserved.
All other products and brand names are trademarks of their respective holders.
No part of this user manual may be reproduced or transmitted in any form or by any means, electronic or
mechanical, including photocopying and recording, for any purpose other than the purchaser's personal use,
without the prior written permission of MiTAC International Corporation.
The information provided in this document are correct at the time that it is created. MiTAC International
Corporation assumes no responsibility or liability for any errors or inaccuracies that may appear in the contents
of this User Manual.
112-0023-001 A
iii
iv

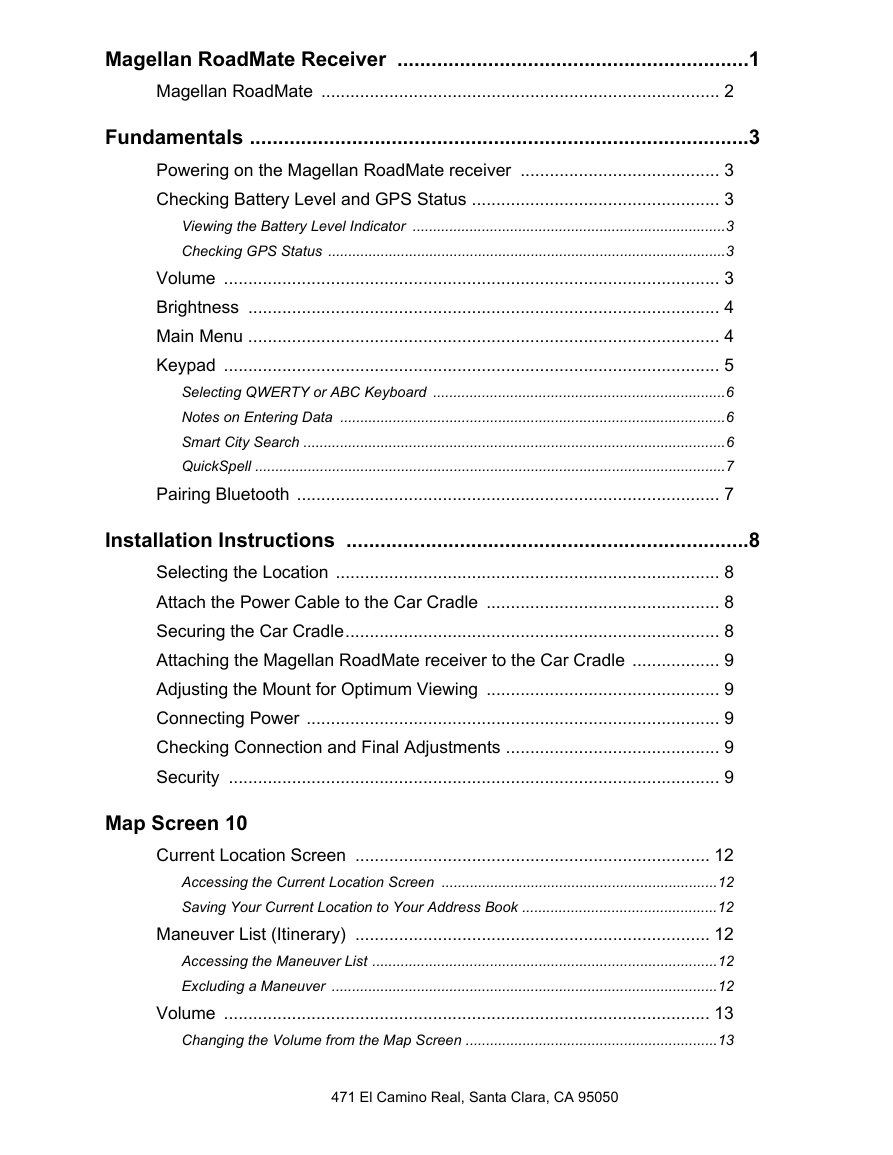

Magellan RoadMate Receiver ..............................................................1
Magellan RoadMate .................................................................................. 2
Fundamentals ........................................................................................3
Powering on the Magellan RoadMate receiver ......................................... 3
Checking Battery Level and GPS Status ................................................... 3
Viewing the Battery Level Indicator .............................................................................3
Checking GPS Status ..................................................................................................3
Volume ...................................................................................................... 3
Brightness ................................................................................................. 4
Main Menu ................................................................................................. 4
Keypad ...................................................................................................... 5
Selecting QWERTY or ABC Keyboard ........................................................................6
Notes on Entering Data ...............................................................................................6
Smart City Search ........................................................................................................6
QuickSpell ....................................................................................................................7
Pairing Bluetooth ....................................................................................... 7
Installation Instructions .......................................................................8
Selecting the Location ............................................................................... 8
Attach the Power Cable to the Car Cradle ................................................ 8
Securing the Car Cradle............................................................................. 8
Attaching the Magellan RoadMate receiver to the Car Cradle .................. 9
Adjusting the Mount for Optimum Viewing ................................................ 9
Connecting Power ..................................................................................... 9
Checking Connection and Final Adjustments ............................................ 9
Security ..................................................................................................... 9
Map Screen 10
Current Location Screen ......................................................................... 12
Accessing the Current Location Screen ....................................................................12
Saving Your Current Location to Your Address Book ................................................12
Maneuver List (Itinerary) ......................................................................... 12
Accessing the Maneuver List .....................................................................................12
Excluding a Maneuver ...............................................................................................12
Volume .................................................................................................... 13
Changing the Volume from the Map Screen ..............................................................13
471 El Camino Real, Santa Clara, CA 95050
Creating a Destination ........................................................................14
Creating a Destination to an Address ...................................................... 14
Tips on Entering Addresses Quickly ..........................................................................14
Creating a Destination to an Intersection ...................................................................15
Creating a Destination to a City Center .....................................................................15
Previous Destinations .............................................................................. 16
Routing to a Previous Destination .............................................................................16
Saving a Previous Destination to Your Address Book ...............................................16
Clearing the list of Previous Destinations ..................................................................16
Address Book .......................................................................................... 16
Accessing an Address in Your Address Book ...........................................................16
Routing to an Address in Your Address Book ...........................................................16
Creating a New Entry in Your Address Book by Entering an Address ......................17
Creating a New Entry in Your Address Book from a POI ..........................................17
OneTouch Menu ..................................................................................18
Saving an Address to a OneTouch Icon ....................................................................18
Changing the Address or Search of a OneTouch Icon ..............................................18
Saving a POI Search Criteria to a OneTouch Icon ....................................................18
Setting a Route to a OneTouch Icon .........................................................................19
Points of Interest (POI) .......................................................................20
Creating a Route to a POI by Category .....................................................................20
Creating a Route to a POI by Name ..........................................................................21
Creating a Route to a Highway Exit POI ....................................................................21
Home Address .....................................................................................22
Saving the Home Address .........................................................................................22
Changing the Home Address .....................................................................................22
Creating a Route to the Home Address .....................................................................22
Traveling on a Route ..........................................................................23
Map Screen ............................................................................................. 23
Maneuver List .......................................................................................... 23
Types of Routes ...................................................................................... 23
Routing Method ....................................................................................... 23
To permanently change the routing method ..............................................................23
Special Routing Functions ....................................................................... 23
471 El Camino Real, Santa Clara, CA 95050
Cancelling a Route ....................................................................................................23
Detouring off a Route .............................................................................. 24
SmartDetour™ on Freeways ................................................................... 24
Multi Destination Routes ....................................................................25
Bluetooth .............................................................................................27
Pairing your Bluetooth-ready Phone for the First Time ........................... 27
Bluetooth Settings ................................................................................... 27
Accessing the Bluetooth Settings ..............................................................................27
Enabling/Disabling Bluetooth .....................................................................................27
Enabling/Disabling Auto Connect ..............................................................................27
Enabling/Disabling Audible Maneuver Warning .........................................................28
Pairing Additional Bluetooth-ready Phone .................................................................28
Importing Contacts 28
Calling Home ........................................................................................... 28
Redial ...................................................................................................... 28
Manual Dialing ......................................................................................... 28
Dialing a Phone Number from the Address Book .................................... 28
Speed Dialing .......................................................................................... 29
Assigning a Phone Number to Speed Dialing ............................................................29
Speed Dialing a Phone Number ................................................................................29
Answering a Call ..................................................................................... 29
Available Options During a Call ............................................................... 29
Hanging Up ................................................................................................................29
Entering Numeric Data ..............................................................................................29
Setting Volume and Microphone Gain .......................................................................29
Traffic ...................................................................................................31
Glossary .................................................................................................. 31
Traffic Incidents ....................................................................................... 31
Avoiding a Traffic Incidents ........................................................................................31
Vehicle Profile .....................................................................................33
Accessing Vehicle Profile ..........................................................................................33
Set Vehicle Height .....................................................................................................33
Set Vehicle Width ......................................................................................................33
Set Vehicle Weight ....................................................................................................33
471 El Camino Real, Santa Clara, CA 95050
相关推荐
2023年江西萍乡中考道德与法治真题及答案.doc
2012年重庆南川中考生物真题及答案.doc
2013年江西师范大学地理学综合及文艺理论基础考研真题.doc
2020年四川甘孜小升初语文真题及答案I卷.doc
2020年注册岩土工程师专业基础考试真题及答案.doc
2023-2024学年福建省厦门市九年级上学期数学月考试题及答案.doc
2021-2022学年辽宁省沈阳市大东区九年级上学期语文期末试题及答案.doc
2022-2023学年北京东城区初三第一学期物理期末试卷及答案.doc
2018上半年江西教师资格初中地理学科知识与教学能力真题及答案.doc
2012年河北国家公务员申论考试真题及答案-省级.doc
2020-2021学年江苏省扬州市江都区邵樊片九年级上学期数学第一次质量检测试题及答案.doc
2022下半年黑龙江教师资格证中学综合素质真题及答案.doc
